TMP102-Q1
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
TMP102-Q1 Low-Power Digital Temperature Sensor With SMBus
and Two-Wire Serial Interface in SOT563
1 Features
3 Description
•
The TMP102-Q1 device is a digital temperature
sensor ideal for NTC and PTC thermistor replacement
where high accuracy is required. The device offers
an accuracy of ±0.5°C without requiring calibration
or external component signal conditioning. Device
temperature sensors are highly linear and do not
require complex calculations or lookup tables to
derive the temperature. The on-chip 12-bit ADC offers
resolutions down to 0.0625°C.
•
•
•
•
•
•
•
AEC-Q100 Qualified With:
– Temperature Grade 1: –40°C to 125°C Ambient
Operating Temperature Range
– HBM ESD Classification Level 2
– CDM ESD Classification Level C6

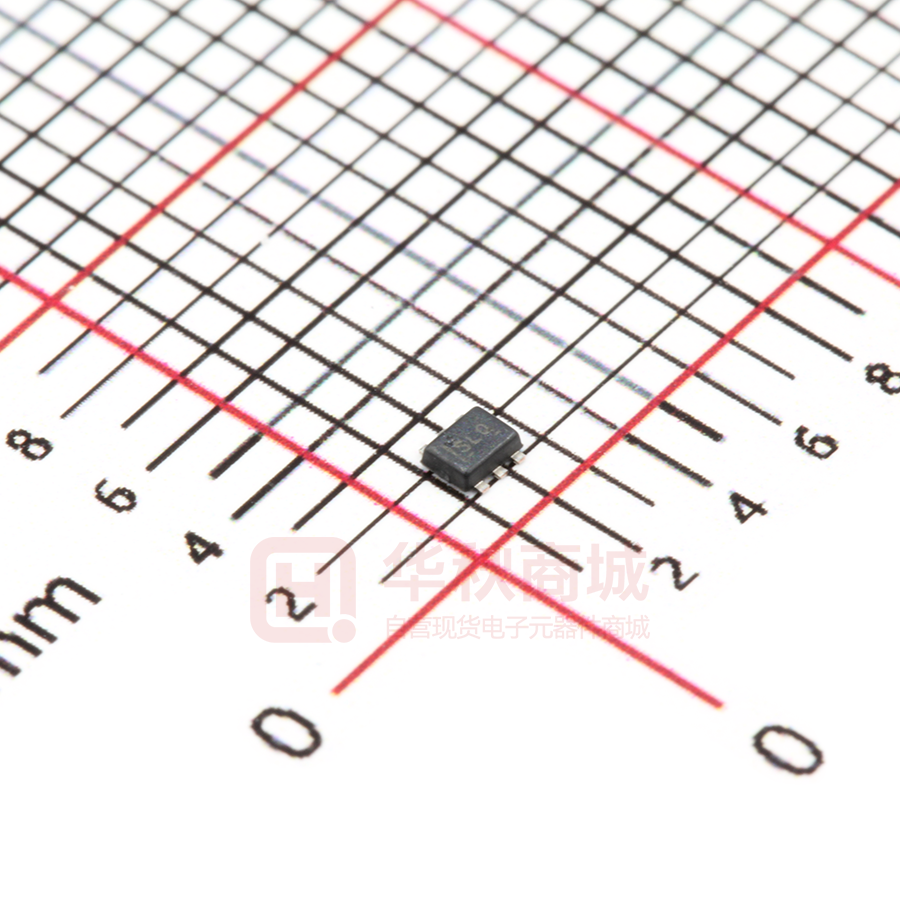

SOT563 Package (1.6 mm × 1.6 mm) is a 68%
Smaller Footprint than SOT23
Accuracy Without Calibration:
– 2°C (Maximum) From –25°C to 85°C
– 3°C (Maximum) From –40°C to 125°C
Low Quiescent Current:
– 10-μA Active (Maximum)
– 1-μA Shutdown (Maximum)
Supply Range: 1.4 V to 3.6 V
Resolution: 12 Bits
Digital Output: SMBus™, Two-Wire, and I2C
Interface Compatibility
NIST Traceable
2 Applications
•
•
•
•
•
•
•
•
•
The 1.6-mm × 1.6-mm SOT563 package is 68%
smaller footprint than an SOT23 package. The
TMP102-Q1 device features SMBus, two-wire, and
I2C interface compatibility, and allows up to four
devices on one bus. The device also features an
SMBus alert function. The device is specified to
operate over supply voltages from 1.4 V to 3.6 V with
the maximum quiescent current of 10 µA over the full
operating range.
The TMP102-Q1 device is designed for extended
temperature measurement in a variety of
communication, computer, consumer, environmental,
industrial, and instrumentation applications. The
device is specified for operation over a temperature
range of –40°C to 125°C.
Climate Controls
Infotainment Processor Management
Airflow Sensors
Battery Control Units
Engine Control Units
UREA Sensors
Water Pumps
HID Lamps
Airbag Control Units
The TMP102-Q1 production units are 100% tested
against sensors that are NIST-traceable and are
verified with equipment that are NIST-traceable
through ISO/IEC 17025 accredited calibrations.
Device Information(1)
Supply Voltage
1.4 V to 3.6 V
PART NUMBER
Supply Bypass
Capacitor
0.01 µF
Pullup Resistors
TMP102-Q1
(1)
5k
PACKAGE
SOT563 (6)
BODY SIZE (NOM)
1.60 mm × 1.20 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
Temperature
TMP102-Q1
Two-Wire
Host Controller
1
2
3
SCL
GND
ALERT
SDA
V+
6
SCL
1
Diode
Temp.
Sensor
Control
Logic
6
DS
A/D
Converter
Serial
Interface
5
OSC
Config.
and Temp.
Register
SDA
5
4
ADD0
GND
Simplified Schematic
ALERT
2
3
4
V+
ADD0
TMP102-Q1
Block Diagram
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................4
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings(1) .................................... 5
6.2 ESD Ratings............................................................... 5
6.3 Recommended Operating Conditions.........................5
6.4 Thermal Information....................................................5
6.5 Electrical Characteristics.............................................5
6.6 Timing Requirements.................................................. 7
6.7 Typical Characteristics................................................ 8
7 Detailed Description........................................................9
7.1 Overview..................................................................... 9
7.2 Functional Block Diagram........................................... 9
7.3 Feature Description.....................................................9
7.4 Device Functional Modes..........................................15
7.5 Programming............................................................ 17
8 Application and Implementation.................................. 22
8.1 Application Information............................................. 22
8.2 Typical Application.................................................... 22
9 Power Supply Recommendations................................23
10 Layout...........................................................................24
10.1 Layout Guidelines................................................... 24
10.2 Layout Example...................................................... 24
11 Device and Documentation Support..........................25
11.1 Documentation Support.......................................... 25
11.2 Receiving Notification of Documentation Updates.. 25
11.3 Community Resources............................................25
11.4 Trademarks............................................................. 25
12 Mechanical, Packaging, and Orderable
Information.................................................................... 25
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision D (December 2018) to Revision E (September 2021)
Page
• Added supply voltage minimum value: –0.3 V....................................................................................................5
Changes from Revision C (December 2015) to Revision D (December 2018)
Page
• Changed the supply voltage maximum value from: 3.6 V to: 4 V....................................................................... 5
• Updated junction-to-ambient thermal resistance from 200°C/W to 210.3°C/W ................................................. 5
• Updated junction-to-case (top) thermal resistance from 73.7°C/W to 105.0°C/W ............................................. 5
• Updated junction-to-board thermal resistance from 34.4°C/W to 87.5°C/W.......................................................5
• Updated junction-to-top characterization parameter from 3.1°C/W to 6.1°C/W .................................................5
• Updated junction-to-board characterization parameter from 34.2°C/W to 87.0°C/W ........................................ 5
• Added the Receiving Notification of Documentation Updates section..............................................................25
Changes from Revision B (March 2015) to Revision C (December 2015)
Page
• Added TI Design ................................................................................................................................................ 1
• Added NIST Traceable Features bullet ..............................................................................................................1
• Added last paragraph to Description section ..................................................................................................... 1
• Added Community Resources section .............................................................................................................25
Changes from Revision A (November 2014) to Revision B (March 2015)
Page
• Updated pin numbers on the schematic images.................................................................................................1
• Changed the Handling Ratings table to ESD Ratings and moved the storage temperature parameter to the
Absolute Maximum Ratings table ...................................................................................................................... 5
• Changed typ, max values for the Accuracy (temperature error) parameter....................................................... 5
• Changed the frequency from 2.85 to 3.4 MHz in the POWER SUPPLY section of the Electrical Characteristics
table ................................................................................................................................................................... 5
• Changed the Temperature Error vs Temperature graph in the Typical Characteristics section..........................8
• Changed the Temperature Error at 25°C graph in the Typical Characteristics section ......................................8
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
www.ti.com
TMP102-Q1
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Changes from Revision * (October 2014) to Revision A (November 2014)
Page
• Changed the frequency from 2.8 to 2.85 MHz in the POWER SUPPLY section of the Electrical Characteristics
table ................................................................................................................................................................... 5
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
3
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
5 Pin Configuration and Functions
1
GND
2
ALERT
3
SLQ
SCL
6
SDA
5
V+
4
ADD0
Figure 5-1. DRL Package 6-Pin SOT563 Top View
Table 5-1. Pin Functions
PIN
NO.
4
NAME
I/O
DESCRIPTION
1
SCL
I
2
GND
—
Ground
3
ALERT
O
Overtemperature alert. Open-drain output; requires a pullup resistor.
4
ADD0
I
Address select. Connect to GND or V+
Supply voltage, 1.4 V to 3.6 V
5
V+
I
6
SDA
I/O
Serial clock. Open-drain output; requires a pullup resistor.
Serial data. Open-drain output; requires a pullup resistor.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
6 Specifications
6.1 Absolute Maximum Ratings(1)
MIN
MAX
UNIT
Supply voltage
–0.3
4
V
Voltage at SCL, SDA, ADD0(2)
–0.5
4
V
Voltage at ALERT(2)
–0.5
((V+) +
0.3) and
≤4
V
Operating temperature
–55
150
°C
150
°C
150
°C
Junction temperature
Storage temperature, Tstg
(1)
(2)
–60
Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may
degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those specified is not supported.
Input voltage rating applies to all TMP102-Q1 input voltages.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
Electrostatic discharge
Human body model (HBM), per AEC Q100-002(1)
±2000
Charged device model (CDM), per AEC Q100-011
±1000
UNIT
V
AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
V+
Supply voltage
1.4
3.3
3.6
UNIT
V
TA
Operating free-air temperature
–40
125
°C
6.4 Thermal Information
TMP102-Q1
THERMAL
METRIC(1)
DRL (SOT563)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
210.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
105.0
°C/W
RθJB
Junction-to-board thermal resistance
87.5
°C/W
ψJT
Junction-to-top characterization parameter
6.1
°C/W
ψJB
Junction-to-board characterization parameter
87.0
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report (SPRA953).
6.5 Electrical Characteristics
at TA = 25°C and VS = 1.4 V to 3.6 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
125
°C
TEMPERATURE INPUT
Range
–40
–25°C to 85°C
Accuracy (temperature error)
±0.5
±2
–40°C to 125°C
±1
±3
Versus supply
0.2
0.5
°C
°C/V
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
5
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
at TA = 25°C and VS = 1.4 V to 3.6 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
Resolution
TYP
MAX
0.0625
UNIT
°C
DIGITAL INPUT/OUTPUT
Input capacitance
VIH
Input logic high
VIL
Input logic low
II
Input current
VOL(SDA)
Output logic on the SDA pin
VOL(ALERT)
Output logic on the ALERT pin
3
3.6
–0.5
0.3 × (V+)
V
1
μA
0 < VI < 3.6 V
V+ > 2 V, IOL = 3 mA
0
0.4
V+ < 2 V, IOL = 3 mA
0
0.2 × (V+)
V+ > 2 V, IOL = 3 mA
0
0.4
V+ < 2 V, IOL = 3 mA
0
0.2 × (V+)
Resolution
12
Conversion time
Conversion modes
pF
0.7 × (V+)
26
CR1 = 0, CR0 = 0
0.25
CR1 = 0, CR0 = 1
1
CR1 = 1, CR0 = 0 (default)
4
CR1 = 1, CR0 = 1
8
Timeout time
30
V
V
V
Bit
35
ms
Conv/s
40
ms
3.6
V
POWER SUPPLY
Operating supply range
IQ
ISD
6
Average quiescent current
Shutdown current
1.4
Serial bus inactive, CR1 = 1, CR0 = 0 (default)
7
Serial bus active, SCL frequency (ƒ) = 400 kHz
15
Serial bus active, SCL frequency (ƒ) = 3.4 MHz
85
Serial bus inactive
0.5
Serial bus active, SCL frequency (ƒ) = 400 kHz
10
Serial bus active, SCL frequency (ƒ) = 3.4 MHz
80
Submit Document Feedback
10
μA
1
μA
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
6.6 Timing Requirements
see the Section 7.3.11 section for additional information
FAST MODE
V+
HIGH-SPEED
MODE
MIN
MAX
MIN
MAX
0.001
0.4
0.001
2.85
UNIT
ƒ(SCL)
SCL operating frequency
t(BUF)
Bus-free time between STOP and START
condition
600
160
ns
t(HDSTA)
Hold time after repeated START condition.
After this period, the first clock is generated.
600
160
ns
t(SUSTA)
repeated start condition setup time
600
160
ns
t(SUSTO)
STOP Condition Setup Time
600
160
ns
t(HDDAT)
Data hold time
100
t(SUDAT)
Data setup time
100
25
ns
t(LOW)
SCL-clock low period
V+ , see Section 7.3.12
1300
210
ns
t(HIGH)
SCL-clock high period
See Section 7.3.12
600
60
ns
tFD
Data fall time
See Section 7.3.12
300
See Section 7.3.12
300
ns
1000
ns
See Section 7.3.12.
900
25
105
80
MHz
ns
ns
tRD
Data rise time
SCLK ≤ 100 kHz, see Section
7.3.12
tFC
Clock fall time
See Section 7.3.12
300
40
ns
tRC
Clock rise time
See Section 7.3.12
300
40
ns
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
7
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
6.7 Typical Characteristics
at TA = 25°C and VV+ = 3.3 V (unless otherwise noted)
20
10
= 1.4-V Supply
= 3.6-V Supply
18
Shutdown Current (µA)
16
Quiescent Current (µA)
= 1.4-V Supply
= 3.6-V Supply
9
14
12
10
8
6
4
2
8
7
6
5
4
3
2
1
0
0
-60
-40 -20
0
20
40
60
80
100 120 140 160
-60
-40 -20
0
20
Temperature (°C)
40
60
80
100 120 140 160
Temperature (°C)
Figure 6-2. Shutdown Current vs Temperature
Four conversions per second
Figure 6-1. Average Quiescent Current vs
Temperature
40
= –55°C
= 25°C
= 125°C
90
36
Quiescent Current (µA)
Conversion Time (ms)
100
= 1.4-V Supply
= 3.6-V Supply
38
34
32
30
28
26
24
80
70
60
50
40
30
20
10
22
0
20
-60
-40 -20
0
20
40
60
80
1k
100 120 140 160
10k
100k
Figure 6-3. Conversion Time vs Temperature
60
50
0.4
0.2
Population
Temperature Error (qC)
70
Mean
Mean + 3 V
Mean 3 V
0.6
10M
Figure 6-4. Quiescent Current vs Bus Frequency
(Temperature at 3.3-V Supply)
1
0.8
1M
Bus Frequency (Hz)
Temperature (°C)
0
-0.2
-0.4
40
30
20
-0.6
Figure 6-5. Temperature Error vs Temperature
0.4
0.3
0.35
0.2
0.25
0.1
0.15
D002
0
0
140
0.05
120
-0.05
100
-0.1
20
40
60
80
Temperature (qC)
-0.2
0
-0.15
-20
-0.3
-40
-0.25
-1
-60
-0.35
10
-0.8
D001
Temperature Error (qC)
Figure 6-6. Temperature Error at 25°C
8
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
7 Detailed Description
7.1 Overview
The TMP102-Q1 device is a digital temperature sensor that is optimal for thermal-management and thermalprotection applications. The TMP102-Q1 device is two-wire, SMBus, and I2C interface-compatible. The device
is specified over an operating temperature range of –40°C to 125°C. Figure 7-1 shows a block diagram of the
TMP102-Q1 device.
The temperature sensor in the TMP102-Q1 device is the chip itself. Thermal paths run through the package
leads as well as the plastic package. The package leads provide the primary thermal path because of the lower
thermal resistance of the metal.
An alternative version of the TMP102-Q1 device is available. The TMP112-Q1 device has highest accuracy, the
same micro-package, and is pin-to-pin compatible.
Table 7-1. Advantages of TMP112-Q1 Versus TMP102-Q1
DEVICE
COMPATIBLE
INTERFACES
PACKAGE
SUPPLY
CURRENT
SUPPLY
VOLTAGE
(MIN)
SUPPLY
VOLTAGE
(MAX)
RESOLUTION
LOCAL SENSOR ACCURACY
(MAX)
SPECIFIED
CALIBRATION
DRIFT SLOPE
TMP112-Q1
I2C
SMBus
SOT563
1.2 × 1.6 × 0.6
10 µA
1.4 V
3.6 V
12 bit
0.0625°C
0.5°C: (0°C to 65°C)
1°C: (-40°C to 125°C)
Yes
TMP102-Q1
I2C
SMBus
SOT563
1.2 × 1.6 × 0.6
10 µA
1.4 V
3.6 V
12 bit
0.0625°C
2°C: (25°C to 85°C)
3°C: (-40°C to 125°C)
No
7.2 Functional Block Diagram
Temperature
SCL
GND
ALERT
1
2
3
Diode
Temp.
Sensor
Control
Logic
6
DS
A/D
Converter
Serial
Interface
5
OSC
Config.
and Temp.
Register
4
SDA
V+
ADD0
TMP102-Q1
Figure 7-1. Internal Block Diagram
7.3 Feature Description
7.3.1 Digital Temperature Output
The digital output from each temperature measurement is stored in the read-only temperature register. The
temperature register of the TMP102-Q1 device is configured as a 12-bit, read-only register (configuration register
EM bit = 0, see the Section 7.4.2 section), or as a 13-bit, read-only register (configuration register EM bit
= 1) that stores the output of the most recent conversion. Two bytes must be read to obtain data and are
listed in Table 7-8 and Table 7-9. Byte 1 is the most significant byte (MSB), followed by byte 2, the least
significant byte (LSB). The first 12 bits (13 bits in extended mode) are used to indicate temperature. The least
significant byte does not have to be read if that information is not needed. The data format for temperature
is summarized in Table 7-2 and Table 7-3. One LSB equals 0.0625°C. Negative numbers are represented in
binary twos-complement format. Following power-up or reset, the temperature register reads 0°C until the first
conversion is complete. Bit D0 of byte 2 indicates normal mode (EM bit = 0) or extended mode (EM bit = 1) ,
and can be used to distinguish between the two temperature register data formats. The unused bits in the
temperature register always read 0.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
9
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Table 7-2. 12-Bit Temperature Data Format(1)
(1)
TEMPERATURE (°C)
DIGITAL OUTPUT (BINARY)
HEX
128
0111 1111 1111
7FF
127.9375
0111 1111 1111
7FF
100
0110 0100 0000
640
80
0101 0000 0000
500
75
0100 1011 0000
4B0
50
0011 0010 0000
320
25
0001 1001 0000
190
0.25
0000 0000 0100
004
0
0000 0000 0000
000
–0.25
1111 1111 1100
FFC
–25
1110 0111 0000
E70
–55
1100 1001 0000
C90
The resolution for the Temp ADC in Internal Temperature mode is 0.0625°C/count.
Table 7-2 does not list all temperatures. Use the following rules to obtain the digital data format for a given
temperature or the temperature for a given digital data format.
To convert positive temperatures to a digital data format:
1. Divide the temperature by the resolution
2. Convert the result to binary code with a 12-bit, left-justified format, and MSB = 0 to denote a positive sign.
Example: (50°C) / (0.0625°C / LSB) = 800 = 320h = 0011 0010 0000
To convert a positive digital data format to temperature:
1. Convert the 12-bit, left-justified binary temperature result, with the MSB = 0 to denote a positive sign, to a
decimal number.
2. Multiply the decimal number by the resolution to obtain the positive temperature.
Example: 0011 0010 0000 = 320h = 800 × (0.0625°C / LSB) = 50°C
To convert negative temperatures to a digital data format:
1. Divide the absolute value of the temperature by the resolution, and convert the result to binary code with a
12-bit, left-justified format.
2. Generate the twos complement of the result by complementing the binary number and adding one. Denote a
negative number with MSB = 1.
Example: (|–25°C|) / (0.0625°C / LSB) = 400 = 190h = 0001 1001 0000
Two's complement format: 1110 0110 1111 + 1 = 1110 0111 0000
To convert a negative digital data format to temperature:
1. Generate the twos compliment of the 12-bit, left-justified binary number of the temperature result (with
MSB = 1, denoting negative temperature result) by complementing the binary number and adding one. This
represents the binary number of the absolute value of the temperature.
2. Convert to decimal number and multiply by the resolution to get the absolute temperature, then multiply by
–1 for the negative sign.
Example: 1110 0111 0000 has twos compliment of 0001 1001 0000 = 0001 1000 1111 + 1
Convert to temperature: 0001 1001 0000 = 190h = 400; 400 × (0.0625°C / LSB) = 25°C = (|–25°C|); (|–
25°C|) × (–1) = –25°C
Table 7-3. 13-Bit Temperature Data Format
10
TEMPERATURE (°C)
DIGITAL OUTPUT (BINARY)
HEX
150
0 1001 0110 0000
0960
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Table 7-3. 13-Bit Temperature Data Format (continued)
TEMPERATURE (°C)
DIGITAL OUTPUT (BINARY)
HEX
128
0 1000 0000 0000
0800
127.9375
0 0111 1111 1111
07FF
100
0 0110 0100 0000
0640
80
0 0101 0000 0000
0500
75
0 0100 1011 0000
04B0
50
0 0011 0010 0000
0320
25
0 0001 1001 0000
0190
0.25
0 0000 0000 0100
0004
0
0 0000 0000 0000
0000
–0.25
1 1111 1111 1100
1FFC
–25
1 1110 0111 0000
1E70
–55
1 1100 1001 0000
1C90
7.3.2 Serial Interface
The TMP102-Q1 device operates as a slave device only on the two-wire bus and SMBus. Connections to the
bus are made through the open-drain I/O lines, SDA and SCL. The SDA and SCL pins feature integrated spike
suppression filters and Schmitt triggers to minimize the effects of input spikes and bus noise. The TMP102-Q1
device supports the transmission protocol for both fast (1 kHz to 400 kHz) and high-speed (1 kHz to 2.85 MHz)
modes. All data bytes are transmitted MSB first.
7.3.3 Bus Overview
The device that initiates the transfer is called a master, and the devices controlled by the master are called
slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus
access, and generates the START and STOP conditions.
To address a specific device, a START condition is initiated, indicated by pulling the data-line (SDA) from a high
to low logic level when SCL is high. All slaves on the bus shift in the slave address byte on the rising edge of the
clock, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the
slave being addressed responds to the master by generating an acknowledge and by pulling SDA pin low.
A data transfer is then initiated and sent over eight clock pulses followed by an acknowledge bit. During the data
transfer the SDA pin must remain stable when SCL is high, because any change in SDA pin when SCL pin is
high is interpreted as a START signal or STOP signal.
When all data have been transferred, the master generates a STOP condition indicated by pulling SDA pin from
low to high, when the SCL pin is high.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
11
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
7.3.4 Serial Bus Address
To communicate with the TMP102-Q1 device, the master must first address slave devices through a slave
address byte. The slave address byte consists of seven address bits and a direction bit indicating the intent of
executing a read or write operation.
The TMP102-Q1 device features an address pin to allow up to four devices to be addressed on a single bus.
Table 7-4 lists the pin-logic levels used to properly connect up to four devices.
Table 7-4. Address Pin and Slave Addresses
DEVICE TWO-WIRE ADDRESS
A0 PIN CONNECTION
1001000
Ground
1001001
V+
1001010
SDA
1001011
SCL
7.3.5 Writing and Reading Operation
Accessing a particular register on the TMP102-Q1 device is accomplished by writing the appropriate value to the
pointer register. The value for the pointer register is the first byte transferred after the slave address byte with the
R/ W bit low. Every write operation to the TMP102-Q1 device requires a value for the pointer register (see Figure
7-3).
When reading from the TMP102-Q1 device, the last value stored in the pointer register by a write operation
determines which register is read by a read operation. To change the register pointer for a read operation, a
new value must be written to the pointer register. This action is accomplished by issuing a slave address byte
with the R/ W bit low, followed by the pointer register byte. No additional data are required. The master then
generates a START condition and sends the slave address byte with the R/ W bit high to initiate the read
command. See Figure 7-4 for details of this sequence. If repeated reads from the same register are desired,
continuously sending the pointer register bytes is not required because the TMP102-Q1 device remembers the
pointer register value until the value is changed by the next write operation.
Register bytes are sent with the most significant byte first, followed by the least significant byte.
7.3.6 Slave Mode Operations
The TMP102-Q1 device operates either as a slave receiver or a slave transmitter. As a slave device, the
TMP102-Q1 device never drives the SCL line.
7.3.6.1 Slave Receiver Mode
The first byte transmitted by the master is the slave address, with the R/ W bit low. The TMP102-Q1 then
acknowledges reception of a valid address. The next byte transmitted by the master is the pointer register. The
TMP102-Q1 then acknowledges reception of the pointer register byte. The next byte or bytes are written to the
register addressed by the pointer register. The TMP102-Q1 acknowledges reception of each data byte. The
master can terminate data transfer by generating a START or STOP condition.
7.3.6.2 Slave Transmitter Mode
The first byte transmitted by the master is the slave address, with the R/ W bit high. The slave acknowledges
reception of a valid slave address. The next byte is transmitted by the slave and is the most significant byte of
the register indicated by the pointer register. The master acknowledges reception of the data byte. The next byte
transmitted by the slave is the least significant byte. The master acknowledges reception of the data byte. The
master terminates data transfer by generating a Not-Acknowledge on reception of any data byte, or generating a
START or STOP condition.
7.3.7 SMBus Alert Function
The TMP102-Q1 device supports the SMBus alert function. When the TMP102-Q1 device operates in Interrupt
Mode (TM = 1), the ALERT pin can be connected as an SMBus alert signal. When a master senses that an
ALERT condition is present on the ALERT line, the master sends an SMBus alert command (0001 1001) to the
12
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
bus. If the ALERT pin is active, the device acknowledges the SMBus alert command and responds by returning
the slave address on the SDA line. The eighth bit (LSB) of the slave address byte indicates if the ALERT
condition was caused by the temperature exceeding THIGH or falling below TLOW. For POL = 0, the LSB is low
if the temperature is greater than or equal to THIGH; this bit is high if the temperature is less than TLOW. The
polarity of this bit is inverted if POL = 1. See Figure 7-5 for details of this sequence.
If multiple devices on the bus respond to the SMBus alert command, arbitration during the slave address portion
of the SMBus alert command determines which device clears the ALERT status. The device with the lowest
two-wire address wins the arbitration. If the TMP102-Q1 device wins the arbitration, its ALERT pin inactivates
at the completion of the SMBus alert command. If the TMP102-Q1 device loses the arbitration, its ALERT pin
remains active.
7.3.8 General Call
The TMP102-Q1 device responds to a two-wire general call address (000 0000) if the eighth bit is 0. The device
acknowledges the general call address and responds to commands in the second byte. If the second byte is
0000 0110, the TMP102-Q1 device internal registers are reset to power-up values. The TMP102-Q1 device does
not support the general address acquire command.
7.3.9 High-Speed (Hs) Mode
In order for the two-wire bus to operate at frequencies above 400 kHz, the master device must issue an
Hs-Mode master code (0000 1xxx) as the first byte after a START condition to switch the bus to high-speed
operation. The TMP102-Q1 device does not acknowledge this byte, but switches the input filters on SDA and
SCL and the output filters on SDA to operate in Hs-mode, allowing transfers of up to 2.85 MHz. After the
Hs-Mode master code has been issued, the master transmits a two-wire slave address to initiate a data transfer
operation. The bus continues to operate in Hs-Mode until a STOP condition occurs on the bus. Upon receiving
the STOP condition, the TMP102-Q1 device switches the input and output filters back to fast-mode operation.
7.3.10 Time-Out Function
The TMP102-Q1 device resets the serial interface if SCL is held low for 30 ms (typ) between a start and stop
condition. The TMP102-Q1 device releases the SDA line if the SCL pin is pulled low and waits for a start
condition from the host controller. To avoid activating the time-out function, maintaining a communication speed
of at least 1 kHz for SCL operating frequency is necessary.
7.3.11 Timing Diagrams
The TMP102-Q1 device is two-wire, SMBus, and I2C-interface compatible. Figure 7-2, Figure 7-3, Figure 7-4,
and Figure 7-5 list the various operations on the TMP102-Q1 device. Parameters for Figure 7-2 are defined in
the Section 6.6 table. The bus definitions are defined as follows:
Bus Idle
Both SDA and SCL lines remain high.
Start Data
Transfer
A change in the state of the SDA line, from high to low, when the SCL line is high, defines a
START condition. Each data transfer is initiated with a START condition.
Stop Data
Transfer
A change in the state of the SDA line from low to high when the SCL line is high defines
a STOP condition. Each data transfer is terminated with a repeated START or STOP
condition.
Data Transfer
The number of data bytes transferred between a START and a STOP condition is not
limited and is determined by the master device. The TMP102-Q1 device can also be used
for single byte updates. To update only the MS byte, terminate the communication by
issuing a START or STOP communication on the bus.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
13
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Acknowledge
Each receiving device, when addressed, is obliged to generate an acknowledge bit. A
device that acknowledges must pull down the SDA line during the acknowledge clock
pulse in such a way that the SDA line is stable low during the high period of the
Acknowledge clock pulse. Setup and hold times must be taken into account. On a master
receive, the termination of the data transfer can be signaled by the master generating a
not-acknowledge (1) on the last byte that has been transmitted by the slave.
7.3.12 Two-Wire Timing Diagrams
t(LOW)
tFC
t(HDSTA)
tRC
SCL
t(HDSTA)
t(HIGH)
t(SUSTO)
t(SUSTA)
t(HDDAT)
t(SUDAT)
SDA
t(BUF)
P
tRD
tFD
S
S
P
Figure 7-2. Two-Wire Timing Diagram
1
9
1
9
SCL
¼
1
SDA
0
0
1
0
A1(1)
A0(1)
0
R/W
Start By
Master
0
0
0
0
0
P1
P0
ACK By
Device
¼
ACK By
Device
Frame 2 Pointer Register Byte
Frame 1 Two-Wire Slave Address Byte
9
1
1
9
SCL
(Continued)
SDA
(Continued)
D7
D6
D5
D4
D3
D2
D1
D0
D7
D6
D5
D4
D3
D2
D1
D0
ACK By
Device
ACK By
Device
Stop By
Master
Frame 4 Data Byte 2
Frame 3 Data Byte 1
NOTE: (1) The value of A0 and A1 are determined by the ADD0 pin.
Figure 7-3. Two-Wire Timing Diagram for Write Word Format
14
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
1
9
1
9
SCL
¼
SDA
1
0
0
1
0
A1
(1)
A0
(1)
R/W
Start By
Master
0
0
0
0
0
0
P1
P0
ACK By
Device
Stop By
Master
ACK By
Device
Frame 1 Two-Wire Slave Address Byte
Frame 2 Pointer Register Byte
1
9
1
9
SCL
(Continued)
¼
SDA
(Continued)
1
0
0
1
0
A1
(1)
A0
(1)
D7
R/W
Start By
Master
D6
D5
D4
D3
ACK By
Device
D1
D0
¼
ACK By
From
Device
Frame 3 Two-Wire Slave Address Byte
1
D2
Master
(2)
Frame 4 Data Byte 1 Read Register
9
SCL
(Continued)
SDA
(Continued)
D7
D6
D5
D4
D3
D2
D1
D0
ACK By
From
Device
Master
Stop By
Master
(3)
Frame 5 Data Byte 2 Read Register
NOTE: (1) The value of A0 and A1 are determined by the ADD0 pin.
(2) Master should leave SDA high to terminate a single-byte read operation.
(3) Master should leave SDA high to terminate a two-byte read operation.
Figure 7-4. Two-Wire Timing Diagram for Read Word Format
ALERT
1
9
1
9
SCL
SDA
0
0
0
1
1
Start By
Master
0
0
1
R/W
0
0
1
ACK By
Device
Frame 1 SMBus ALERT Response Address Byte
A1
A0
From
Device
Status
NACK By
Master
Stop By
Master
Frame 2 Slave Address From Device
NOTE: (1) The value of A0 and A1 are determined by the ADD0 pin.
Figure 7-5. Timing Diagram for SMBus ALERT
7.4 Device Functional Modes
7.4.1 Continuous-Conversion Mode
The default mode of the TMP102-Q1 device is continuous conversion mode. During continuous-conversion
mode, the ADC performs continuous temperature conversions and stores each results to the temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
15
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
register, overwriting the result from the previous conversion. The conversion rate bits, CR1 and CR0, configure
the TMP102-Q1 device for conversion rates of 0.25 Hz, 1 Hz, 4 Hz, or 8 Hz. The default rate is 4 Hz. The
TMP102-Q1 device has a typical conversion time of 26 ms. To achieve different conversion rates, the TMP102Q1 device makes a conversion and then powers down to wait for the appropriate delay set by CR1 and CR0.
Table 7-5 lists the settings for CR1 and CR0.
Table 7-5. Conversion Rate Settings
CR1
CR0
CONVERSION RATE
0
0
0.25 Hz
0
1
1 Hz
1
0
4 Hz (default)
1
1
8 Hz
After power-up or general-call reset, the TMP102-Q1 device immediately begins a conversion as shown in
Figure 7-6. The first result is available after 26 ms (typical). The active quiescent current during conversion is
40 μA (typical at 27°C). The quiescent current during delay is 2.2 μA (typical at 27°C).
Delay
(1)
26ms
26ms
Startup
A.
Start of
Conversion
The delay is set by CR1 and CR0 bits in the configuration register.
Figure 7-6. Conversion Start
7.4.2 Extended Mode (EM)
The Extended-Mode bit configures the device for Normal Mode operation (EM = 0) or Extended Mode operation
(EM = 1). In normal mode, the temperature register, high-limit register, and low-limit register use a 12-bit data
format. Normal Mode is used to make the TMP102-Q1 device compatible with the TMP75 device.
Extended mode (EM = 1) allows measurement of temperatures above 128°C by configuring the temperature
register, high-limit register, and low-limit register for 13-bit data format.
7.4.3 Shutdown Mode (SD)
The Shutdown-mode bit saves maximum power by shutting down all device circuitry other than the serial
interface, reducing current consumption to typically less than 0.5 μA. Shutdown mode enables when the SD bit
is 1; the device shuts down when current conversion is completed. When SD is equal to 0, the device maintains
a continuous conversion state.
7.4.4 One-Shot and Conversion Ready (OS)
The TMP102-Q1 device features a one-shot temperature measurement mode. When the device is in Shutdown
Mode, writing a 1 to the OS bit starts a single temperature conversion. During the conversion, the OS bit reads
'0'. The device returns to the shutdown state at the completion of the single conversion. After the conversion,
the OS bit reads 1. This feature reduces power consumption in the TMP102-Q1 device when continuous
temperature monitoring is not required.
As a result of the short conversion time, the TMP102-Q1 device achieves a higher conversion rate. A single
conversion typically takes 26 ms and a read can take place in less than 20 μs. When using One-Shot Mode, 30
or more conversions per second are possible.
16
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
7.4.5 Thermostat Mode (TM)
The thermostat-mode bit indicates to the device whether to operate in comparator mode (TM = 0) or Interrupt
mode (TM = 1).
7.4.5.1 Comparator Mode (TM = 0)
In Comparator mode (TM = 0), the Alert pin is activated when the temperature equals or exceeds the value in
the T(HIGH) register and remains active until the temperature falls below the value in the T(LOW)register. For more
information on the comparator mode, see the Section 7.5.4 section.
7.4.5.2 Interrupt Mode (TM = 1)
In Interrupt mode (TM = 1), the Alert pin is activated when the temperature exceeds T(HIGH) or goes below T(LOW)
registers. The Alert pin is cleared when the host controller reads the temperature register. For more information
on the interrupt mode, see the Section 7.5.4 section.
7.5 Programming
7.5.1 Pointer Register
Figure 7-7 shows the internal register structure of the TMP102-Q1 device. The 8-bit pointer register of the device
is used to address a given data register. The pointer register uses the two least-significant bytes (LSBs) (see
Table 7-13) to identify which of the data registers must respond to a read or write command. The power-up reset
value of P1 and P0 is 00. By default, the TMP102-Q1 device reads the temperature on power up.
Pointer
Register
Temperature
Register
Configuration
Register
TLOW
Register
SCL
I/O
Control
Interface
SDA
THIGH
Register
Figure 7-7. Internal Register Structure
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
17
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
Table 7-6 lists the pointer address of the registers available in the TMP102-Q1 device. Table 7-7 lists the bits of
the pointer register byte. During a write command, P2 through P7 must always be 0.
Table 7-6. Pointer Addresses
P1
P0
REGISTER
0
0
Temperature register (read only)
0
1
Configuration register (read and write)
1
0
TLOW register (read and write)
1
1
THIGH register (read and write)
Table 7-7. Pointer Register Byte
P7
P6
P5
P4
P3
P2
0
0
0
0
0
0
P1
P0
Register bits
7.5.2 Temperature Register
The temperature register of the TMP102-Q1 device is configured as a 12-bit, read-only register (configuration
register EM bit = 0, see the Section 7.4.2 section), or as a 13-bit, read-only register (configuration register EM
bit = 1) that stores the output of the most recent conversion. To obtain data as described in Table 7-8 and Table
7-9 read two bytes. Note that byte 1 is the most-significant byte (MSB), followed by byte 2, the least-significant
byte. The first 12 bits (13 bits in extended mode) indicate temperature. The LSB does not must be read if that
information is not needed.
Table 7-8. Byte 1 of Temperature Register(1)
D7
(1)
D6
D5
D4
D3
D2
D1
D0
T11
T10
T9
T8
T7
T6
T5
T4
(T12)
(T11)
(T10)
(T9)
(T8)
(T7)
(T6)
(T5)
The 13-bit Extended-Mode configuration is shown in parentheses.
Table 7-9. Byte 2 of Temperature Register(1)
(1)
D7
D6
D5
D4
D3
D2
D1
D0
T3
T2
T1
T0
0
0
0
0
(T4)
(T3)
(T2)
(T1)
(T0)
(0)
(0)
(1)
The 13-bit Extended-Mode configuration is shown in parenthesis.
7.5.3 Configuration Register
The configuration register is a 16-bit read-write register that stores bits which control the operational modes of
the temperature sensor. Read and write operations are performed on the MSB first. Table 7-10 lists the format
and the power-up or reset value of the configuration register. For compatibility, the first byte corresponds to
the configuration register in the TMP75 device and TMP275 device (for more information see the device data
sheets, SBOS288 and SBOS363, respectively). All registers are updated byte by byte.
Table 7-10. Configuration and Power-Up or Reset Format
BYTE
1
2
D7
D6
D5
D4
D3
D2
D1
D0
OS
R1
R0
F1
F0
POL
TM
SD
0
1
1
0
0
0
0
0
CR1
CR0
AL
EM
0
0
0
0
1
0
1
0
0
0
0
0
7.5.3.1 Shutdown Mode (SD)
The Shutdown-mode bit saves maximum power by shutting down all device circuitry other than the serial
interface, reducing current consumption to typically less than 0.5 μA. Shutdown mode enables when the SD bit
18
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
is 1; the device shuts down when current conversion is completed. When SD is equal to 0, the device maintains
a continuous conversion state.
7.5.3.2 Thermostat Mode (TM)
The thermostat-mode bit indicates to the device whether to operate in comparator mode (TM = 0) or Interrupt
mode (TM = 1). For more information on comparator and interrupt modes, see the Section 7.5.4 section.
7.5.3.3 Polarity (POL)
The polarity bit allows the user to adjust the polarity of the ALERT pin output. If the POL bit is set to 0 (default),
the ALERT pin becomes active low. When the POL bit is set to 1, the ALERT pin becomes active high and the
state of the ALERT pin is inverted. The operation of the ALERT pin in various modes is shown in Figure 7-8.
THIGH
Measured
Temperature
TLOW
ALERT PIN
(Comparator Mode)
POL = 0
ALERT PIN
(Interrupt Mode)
POL = 0
ALERT PIN
(Comparator Mode)
POL = 1
ALERT PIN
(Interrupt Mode)
POL = 1
Read
Read
Read
Time
Figure 7-8. Output Transfer Function Diagrams
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
19
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
7.5.3.4 Fault Queue (F1 and F0)
A fault condition exists when the measured temperature exceeds the user-defined limits set in the THIGH and
TLOW registers. Additionally, the number of fault conditions required to generate an alert is programmed using
the fault queue. The fault queue is provided to prevent a false alert as a result of environmental noise. The
fault queue requires consecutive fault measurements in order to trigger the alert function. Table 7-11 lists the
number of measured faults that can be programmed to trigger an alert condition in the device. For THIGH and
TLOW register format and byte order, see the Section 7.5.4 section.
Table 7-11. TMP102-Q1 Fault Settings
F1
F0
CONSECUTIVE FAULTS
0
0
1
0
1
2
1
0
4
1
1
6
7.5.3.5 Converter Resolution (R1 and R0)
The converter resolution bits, R1 and R0, are read-only bits. The TMP102-Q1 converter resolution is set at
device start-up to 11 which sets the temperature register to a 12 bit-resolution.
7.5.3.6 One-Shot (OS)
When the device is in Shutdown Mode, writing a 1 to the OS bit starts a single temperature conversion. During
the conversion, the OS bit reads '0'. The device returns to the shutdown state at the completion of the single
conversion. For more information on the one-shot conversion mode, see the Section 7.4.4 section.
7.5.3.7 Extended Mode (EM)
The Extended-Mode bit configures the device for Normal Mode operation (EM = 0) or Extended Mode operation
(EM = 1). In normal mode, the temperature register, high-limit register, and low-limit register use a 12-bit data
format. For more information on the extended mode, see the Section 7.4.2 section.
7.5.3.8 Alert (AL Bit)
The AL bit is a read-only function. Reading the AL bit provides information about the comparator mode status.
The state of the POL bit inverts the polarity of data returned from the AL bit. When the POL bit equals 0, the AL
bit reads as 1 until the temperature equals or exceeds T(HIGH) for the programmed number of consecutive faults,
causing the AL bit to read as 0. The AL bit continues to read as 0 until the temperature falls below T(LOW) for the
programmed number of consecutive faults, when it again reads as 1. The status of the TM bit does not affect the
status of the AL bit.
7.5.3.9 Conversion Rate (CR)
The conversion rate bits, CR1 and CR0, configure the TMP102-Q1 device for conversion rates of 0.25 Hz, 1 Hz,
4 Hz, or 8 Hz. The default rate is 4 Hz. For more information on the conversion rate bits, see the Section 7.4.1
section.
7.5.4 High-Limit and Low-Limit Registers
The temperature limits are stored in the T(LOW) and T(HIGH) registers in the same format as the temperature
result, and their values are compared to the temperature result on every conversion. The outcome of the
comparison drives the behavior of the ALERT pin, which operates as a comparator output or an interrupt, and is
set by the TM bit in the configuration register.
In Comparator mode (TM = 0), the ALERT pin is active when the temperature equals or exceeds the value in
THIGH and generates a consecutive number of faults according to fault bits F1 and F0. The ALERT pin remains
active until the temperature falls below the indicated TLOW value for the same number of faults.
In Interrupt mode (TM = 1), the ALERT pin becomes active when the temperature equals or exceeds the value in
THIGH for a consecutive number of fault conditions as shown in Table 7-11. The ALERT pin remains active until a
20
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
read operation of any register occurs, or the device successfully responds to the SMBus alert response address.
The ALERT pin is cleared if the device is placed in shutdown mode. When the ALERT pin is cleared, it becomes
active again only when temperature falls below TLOW. The pin remains active until cleared by a read operation
of any register or a successful response to the SMBus alert response address. When the ALERT pin is cleared,
the above cycle repeats, and the ALERT pin goes active when the temperature equals or exceeds THIGH. The
ALERT pin is also cleared by resetting the device with the general call reset command. This action also clears
the state of the internal registers in the device, returning the device to comparator mode (TM = 0).
Both operational modes are shown in Figure 7-8. Table 7-12 and Table 7-13 list the format for the THIGH and
TLOW registers. Note that the most significant byte is sent first, followed by the least significant byte. Power-up
reset values for THIGH and TLOW are: THIGH = 80°C and TLOW = 75°C. The format of the data for THIGH and TLOW
is the same as for the temperature register.
Table 7-12. Bytes 1 and 2 of THIGH Register(1)
BYTE
1
2
(1)
D7
D6
D5
D4
D3
D2
D1
H11
H10
H9
H8
H7
H6
H5
D0
H4
(H12)
(H11)
(H10)
(H9)
(H8)
(H7)
(H6)
(H5)
H3
H2
H1
H0
0
0
0
0
(H4)
(H3)
(H2)
(H1)
(H0)
(0)
(0)
(0)
D0
The 13-bit Extended-Mode configuration is shown in parenthesis.
Table 7-13. Bytes 1 and 2 of TLOW Register(1)
BYTE
1
2
(1)
D7
D6
D5
D4
D3
D2
D1
L11
L10
L9
L8
L7
L6
L5
L4
(L12)
(L11)
(L10)
(L9)
(L8)
(L7)
(L6)
(L5)
L3
L2
L1
L0
0
0
0
0
(L4)
(L3)
(L2)
(L1)
(L0)
(0)
(0)
(0)
The 13-bit Extended-Mode configuration is shown in parenthesis.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
21
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
8 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and
TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes. Customers should validate and test their design
implementation to confirm system functionality.
8.1 Application Information
The TMP102-Q1 device is used to measure the PCB temperature of the board location where the device is
mounted. The programmable address options allow up to four locations on the board to be monitored on a single
serial bus.
8.2 Typical Application
Supply Voltage
1.4 V to 3.6 V
Supply Bypass
Capacitor
0.01 µF
Pullup Resistors
5k
TMP102-Q1
Two-Wire
Host Controller
1
2
3
SCL
SDA
GND
V+
ALERT
6
5
4
ADD0
Figure 8-1. Typical Connections
8.2.1 Design Requirements
The TMP102-Q1 device requires pullup resistors on the SCL, SDA, and ALERT pins. The recommended value
for the pullup resistors is 5-kΩ. In some applications the pullup resistor can be lower or higher than 5 kΩ
but must not exceed 3 mA of current on any of those pins. A 0.01-μF bypass capacitor on the supply is
recommended as shown in Figure 8-1. The SCL and SDA lines can be pulled up to a supply that is equal to or
higher than V+ through the pullup resistors. To configure one of four different addresses on the bus, connect the
ADD0 pin to either the GND, V+, SDA, or SCL pin.
8.2.2 Detailed Design Procedure
Place the TMP102-Q1 device in close proximity to the heat source that must be monitored, with a proper layout
for good thermal coupling. This placement ensures that temperature changes are captured within the shortest
22
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
possible time interval. To maintain accuracy in applications that require air or surface temperature measurement,
care must be taken to isolate the package and leads from ambient air temperature. A thermally-conductive
adhesive is helpful in achieving accurate surface temperature measurement.
The TMP102-Q1 device is a very low-power device and generates very low noise on the supply bus. Applying an
RC filter to the V+ pin of the TMP102-Q1 device can further reduce any noise that the TMP102-Q1 device might
propagate to other components. R(F) in Figure 8-2 must be less than 5 kΩ and C(F) must be greater than 10 nF.
Supply Voltage
R(F) ≤ 5 kΩ
Device
SCL
SDA
GND
V+
ALERT
C(F) ≥ 10 nF
ADD0
Figure 8-2. Noise Reduction Techniques
8.2.3 Application Curve
Temperature (qC)
Figure 8-3 shows the step response of the TMP102-Q1 device to a submersion in an oil bath of 100°C from
room temperature (27°C). The time-constant, or the time for the output to reach 63% of the input step, is 0.8 s.
The time-constant result depends on the printed circuit board (PCB) that the TMP102-Q1 device is mounted. For
this test, the TMP102-Q1 device was soldered to a two-layer PCB that measured 0.375 in × 0.437 in.
100
95
90
85
80
75
70
65
60
55
50
45
40
35
30
25
-1
1
3
5
7
9
11
Time (s)
13
15
17
19
Figure 8-3. Temperature Step Response
9 Power Supply Recommendations
The TMP102-Q1 device operates with power supply in the range of 1.4 to 3.6 V. The device is optimized for
operation at 3.3-V supply but can measure temperature accurately in the full supply range.
A power-supply bypass capacitor is required for proper operation. Place this capacitor as close as possible
to the supply and ground pins of the device. A typical value for this supply bypass capacitor is 0.01 μF.
Applications with noisy or high-impedance power supplies may require additional decoupling capacitors to reject
power-supply noise.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
23
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
10 Layout
10.1 Layout Guidelines
Place the power-supply bypass capacitor as close as possible to the supply and ground pins. The recommended
value of this bypass capacitor is 0.01 μF. Additional decoupling capacitance can be added to compensate for
noisy or high-impedance power supplies. Pull up the open-drain output pins (SDA , SCL and ALERT) through
5-kΩ pullup resistors.
10.2 Layout Example
Via to Power or
Ground Plane
Via to Internal Layer
Pullup Resistors
SCL
SDA
GND
V+
ALERT
Supply Voltage
ADD0
Supply Bypass
Capacitor
Ground Plane for
Thermal Coupling
to Heat Source
Serial Bus Traces
Heat Source
Figure 10-1. TMP102-Q1 Layout Example
24
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
TMP102-Q1
www.ti.com
SBOS702E – OCTOBER 2014 – REVISED SEPTEMBER 2021
11 Device and Documentation Support
11.1 Documentation Support
11.1.1 Related Documentation
For related documentation see the following:
• TMP75 Digital Temperature Sensor With Two-Wire Interface (SBOS288)
• TMP102 Low Power Digital Temperature Sensor With SMBus™/Two-Wire Serial Interface in SOT563
(SBOS397)
• TMP275 0.5°C Digital Out Temperature Sensor (SBOS363)
Or view the TMP102 product folder at http://www.ti.com/product/TMP102.
11.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
11.3 Community Resources
11.4 Trademarks
SMBus™ is a trademark of Intel, Inc.
All trademarks are the property of their respective owners.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP102-Q1
25
PACKAGE OPTION ADDENDUM
www.ti.com
12-Aug-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TMP102AQDRLRQ1
ACTIVE
SOT-5X3
DRL
6
4000
RoHS & Green
NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
SLQ
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
