TMP139
TMP139
SNIS217 – DECEMBER
2020
SNIS217 – DECEMBER 2020
www.ti.com
TMP139 0.5 °C Accuracy, JEDEC DDR5 Grade B, Digital Temperature Sensor With I2C
and I3C Interface
1 Features
3 Description
•
The TMP139 is a high-accuracy temperature sensor
with an I2C / I3C compliant digital interface supporting
In Band Interrupts (IBI). Supporting the interface
requirements of JEDEC JESD302-1 for Grade-B
devices, the TMP139 exceeds the temperature
accuracy requirements of the specification, enabling
higher performance DDR5 memory modules.

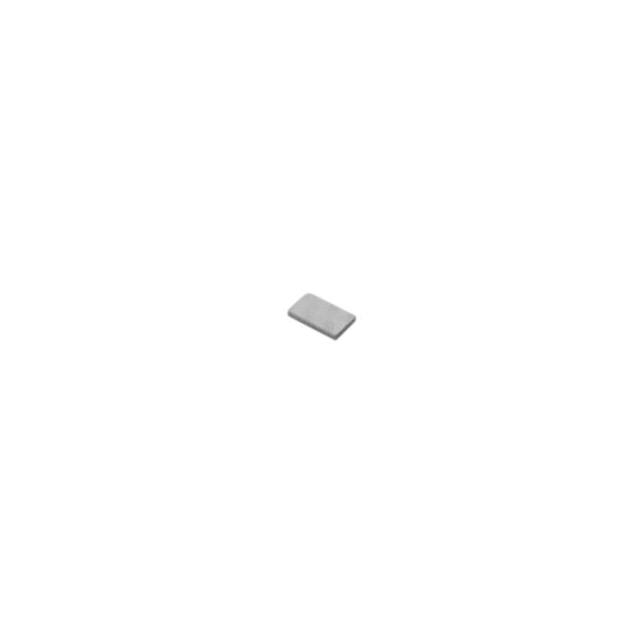

Available in a compact 6-ball DSBGA package,
TMP139 is designed for high-speed, high-accuracy
and low-power thermal monitoring applications.
•
•
•
•
•
•
•
•
•
•
•
•
Supports JEDEC JESD302-1 DDR5 Grade B
temperature sensor
Exceeds JEDEC temperature accuracy
specification:
– ±0.25 °C typical
– ±0.5 °C maximum (+75 °C to +95 °C)
– ±0.75 °C maximum (–40 °C to +125 °C)
Operating temperature range: –40 °C to +125 °C
Low power consumption:
– 4.7-µA typical average quiescent current
– 0.6-µA typical standby current
I/O power supply of 1 V
Core power supply of 1.8 V
Two wire serial bus interface (I2C and I3C basic
operation modes)
Up to 12.5-MHz data transfer rate in I3C basic
mode
In Band Interrupt (IBI) for alerting host
Parity error check function for host writes
Packet error check function for host read and
writes
11-bit resolution: 0.25 °C (1 LSB)
Standard 6-ball DSBGA (WCSP) package with
0.5-mm pitch
The TMP139 has a typical accuracy of ±0.25 °C over
the entire temperature range from –40 °C to +125 °C
and offers an on-chip 11-bit analog-to-digital converter
(ADC) providing a temperature resolution of 0.25 °C.
The TMP139 is designed to operate from a core
power supply of 1.8 V and I/O power supply of 1 V,
with a low typical average quiescent current of 4.7 µA
when performing conversions every 125 ms.
Table 3-1. Device Information
PART NUMBER
TMP139
(1)
PACKAGE(1)
DSBGA (6)
BODY SIZE (NOM)
1.328 mm × 0.828
mm
For all available packages, see the orderable addendum at
the end of the data sheet.
2 Applications
•
•
•
•
•
DDR5 DIMM modules
Server
Laptops
Workstations
SSDs
VDDIO = 1.0V
VDDSPD = 1.8V
VDDIO
SDA
VDDSPD
TMP139
SCL
VDDIO
SPD Hub
LSDA
SDA
LSCL
SCL
SA
VSS
VDDSPD
TMP139
SA
VSS
Local Sideband Bus
Figure 3-1. Simplified Schematic
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: TMP139
1
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings ....................................... 4
6.2 ESD Ratings .............................................................. 4
6.3 Recommended Operating Conditions ........................4
6.4 Thermal Information ...................................................4
6.5 Electrical Characteristics ............................................5
6.6 Timing Requirements ................................................. 6
6.7 Switching Characteristics ...........................................6
6.8 Timing Diagrams......................................................... 7
6.9 Typical Characteristics................................................ 8
7 Detailed Description......................................................10
7.1 Overview................................................................... 10
7.2 Functional Block Diagram......................................... 10
7.3 Feature Description...................................................10
7.4 Device Functional Modes..........................................13
7.5 Programming............................................................ 32
7.6 Register Map.............................................................35
8 Application and Implementation.................................. 47
8.1 Application Information............................................. 47
8.2 Typical Application.................................................... 47
9 Power Supply Recommendations................................48
10 Layout...........................................................................49
10.1 Layout Guidelines................................................... 49
10.2 Layout Example...................................................... 49
11 Device and Documentation Support..........................50
11.1 Receiving Notification of Documentation Updates.. 50
11.2 Support Resources................................................. 50
11.3 Trademarks............................................................. 50
11.4 Electrostatic Discharge Caution.............................. 50
11.5 Glossary.................................................................. 50
12 Mechanical, Packaging, and Orderable
Information.................................................................... 50
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
2
DATE
REVISION
NOTES
December 2020
*
Initial release.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
5 Pin Configuration and Functions
1
2
A
SCL
VDDIO
B
SDA
SA
C
VSS
VDDSPD
Not to scale
Figure 5-1. YAH Package 6-Pin DSBGA Top View
Table 5-1. Pin Functions
PIN
NAME
BALL
I/O
DESCRIPTION
SA
B2
I
Address select. Connected to VDDSPD or GND
SCL
A1
I
Serial clock
SDA
B1
I/O
VDDIO
A2
I
Supply voltage for sensor I/Os
VDDSPD
C2
I
Supply voltage for sensor core
VSS
C1
—
Serial data input and output. Pin may be open drain or push-pull in I3C mode and open drain
in I2C mode
Ground
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
3
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN
MAX
Power supply, VDDIO
–0.5
2.1
V
Power supply, VDDSPD
–0.5
2.1
V
Input voltage SA
–0.5
2.1
V
Input voltage SCL, SDA
–0.5 VDDIO + 0.3
V
Output sink current SDA
UNIT
±15
mA
Junction temperature, TJ
–55
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101(2)
±1000
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
VDDIO
Supply voltage
VDDSPD
I/O Voltage
MIN
NOM
MAX
UNIT
0.95
1.0
1.05
V
1.7
1.8
1.98
V
SA
0
VDDSPD +
0.3
V
SCL, SDA
0
VDDIO + 0.3
V
–40
125
°C
Operating free-air temperature, TA
6.4 Thermal Information
TMP139
THERMAL
METRIC(1)
YAH (WCSP)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
RθJC(top)
Junction-to-case (top) thermal resistance
°C/W
1.0
°C/W
RθJC(bottom)
Junction-to-case (bottom) thermal resistance
NA
°C/W
RθJB
Junction-to-board thermal resistance
33.6
°C/W
ΨJT
Junction-to-top characterization parameter
0.4
°C/W
ΨJB
Junction-to-board characterization parameter
33.6
°C/W
(1)
4
116.6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
6.5 Electrical Characteristics
at TA = −40 °C to +125 °C, VDDIO = 0.95 V to 1.05 V and VDDSPD = 1.7 V to 1.98 V (unless noted); typical specification are at
TA = 25 °C, VDDIO = 1 V and VDDSPD =1.8 V
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
TEMPERATURE INPUT
TERR
Temperature Accuracy
TRES
Resolution
TREPEAT
Repeatability(1)
tACT
Active conversion time
tCONV
Conversion interval
THYST
Temperature Hysteresis
+75 °C to +95 °C
±0.25
±0.5
°C
–40 °C to +125 °C
±0.25
±0.75
°C
1 LSB (11-bit)
0.25
°C
1
LSB
5.5
ms
125
ms
1
°C
DIGITAL INPUT/OUTPUT
CIN
Input capacitance(2)
Input capacitance (SCL and SDA)
RON
Output pullup and pulldown
driver impedance
SDA pin
20
4
pF
100
Ω
ILI
Leakage input current
-1
0
1
µA
ILO
Leakage output current
-1
0
1
µA
VIL
Low-level input logic
–0.3
0.3
V
VIH
High-level input logic
0.7
1.35
V
VHYS
Input voltage hysteresis
SCL and SDA pins
VOL
Low-level output logic
SDA pin, IOL = –3 mA
VOH
High-level output logic
SDA pin, IOH = 3 mA
SLEW_RATE
Output slew rate(2)
SDA pin
60
100
0
mV
0.3
V
1.0
V/ns
10
µA
0.75
V
0.1
POWER SUPPLY
IQ
Average current (serial bus
inactive)
125-ms conversion interval
4.7
IDDR
Average current (read
operation)
125-ms conversion interval, fSCL = 12.5 MHz
34
µA
IDDW
Average current (write
operation)
125-ms conversion interval, fSCL = 12.5 MHz
30
µA
IACT
Active current
During 5.5-ms active conversion
92
140
µA
IDD1
Standby current
Between active conversion during continuous
conversion
0.6
4
µA
VPON
Power-on reset threshold
Monotonic rise between VPON and VDDSPD(MIN)
VPOFF
Power-off reset threshold for
warm power on cycle
No ringback above VPOFF
tINIT
Initialization time after
Power-on reset(2)
Figure 7-2
tPOFF
Warm power cycle off time(2) Figure 7-3
tSENSE_SA
Time from valid VDDSPD
supply to sense SA pin for
LID code assignment(2)
tRST
(3)
(1)
(2)
(3)
Figure 7-2
Device reinitialization time(2)
1.6
V
0.3
V
10.0
ms
1.0
ms
5.0
ms
40
µs
Repeatability is the ability to reproduce a reading when the measured temperature is applied consecutively, under the same conditions.
Parameter is specified by design
Parameter is specified for RSTDAA Common Command Code
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
5
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
6.6 Timing Requirements
minimum and maximum specifications are over –40 °C to 125 °C and VDDIO = 0.95 V to 1.05 V (unless otherwise noted)(1)
I2C MODE OPEN DRAIN
I3C MODE PUSH PULL(1)
UNIT
MIN
MAX
MIN
MAX
1
0.001
12.5
fSCL
SCL operating frequency
0.01
tHiGH
Clock pulse width high time (Figure 6-1)
260
35
ns
tLOW
Clock pulse width low time (Figure 6-1)
500
35
ns
tTIMEOUT
Detect clock low timeout (Figure 7-4)
tR
SDA rise time (Figure 6-1)
tF
SDA fall time (Figure 6-1)
tSUDAT
Data setup time (Figure 6-1)
time(2)
10
50
10
120
4
120
50
50
ms
5
ns
5
ns
8
ns
tHDDI
Data hold
0
3
ns
tSUSTA
START condition setup time (Figure 6-1)
260
19.2
ns
tHDSTA
Hold time after repeated START condition. After this period, the
first clock is generated. (Figure 6-1)
260
38.4
ns
tSUSTO
STOP condition setup time (Figure 6-1)
260
19.2
ns
tBUF
Time between STOP condition and next START condition (Figure
6-1)
500
500
ns
tAVAL
Bus available time (no edges seen in SDA and SCL)
tIBI_ISSUE
Time to issue IBI after an event is detected when bus is available
tCLR_I3C_CMD_DELAY
(Figure 6-1)
MHz
1
µs
15
µs
Time from Clear Register Status to any I3C operation with START
condition. PEC disabled
4
µs
Time from Clear Register Status to any I3C operation with START
condition. PEC enabled
15
µs
tHDDAT
SCL falling clock in to SDA data out hold time (Figure 6-4)
tDOUT
SCL falling clock in to SDA valid data out time (Figure 6-2, Figure
6-3, Figure 6-5)
0.5
350
ns
0.5
12
ns
tDOFFS
SCL rising clock in to SDA output off (Figure 6-2, Figure 6-3)
0.5
12
ns
30
tDOFFM
SCL rising clock in to host controller SDA output off
0.5
tCL_R_DAT_F
SCL rising clock in to host controller driving SDA low (Figure 6-2)
40
ns
tDEVCTRLCCC_PEC_DIS
DEVCTRL CCC followed by DEVCTRL CCC or register read/write
command delay
3
µs
tWR_RD_DECLAY_PEC_EN
Register write command followed by register read command delay
in PEC enabled mode
8
µs
tI2C_CCC_UPDATE_DELAY
SETHID CCC or SETAASA CCC to any other CCC or read/write
command delay
tI3C_CCC_UPDATE_DELAY
RSTDAA CCC or ENEC CCC or DISEC CCC to any other CCC or
read/write command delay
2.5
µs
tCCC_DELAY
Any CCC to RSTDAA CCC delay
2.5
µs
(1)
(2)
3
ns
2.5
µs
The host and device have the same VDD value. Values are based on statistical analysis of samples tested during initial release.
The maximum t(HDDAT) can be 0.9 µs for fast mode, and is less than the maximum t(VDAT) by a transition time.
6.7 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)
MIN
tLPF
6
Spike filter for I3C compatibility valid
SCL= 12.5 MHz
in I2C mode only
Submit Document Feedback
TYP
MAX
50
UNIT
ns
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
6.8 Timing Diagrams
S
P
tR
tLOW
tHD:DI
tHIGH
Sr
P
tSU:STA
tSU:STO
SCL
VIH(MIN)
VIL(MAX)
tSU:DAT
tHD:STA
tF
tSU:DAT
VIH(MIN)
VIL(MAX)
SDA
tBUF
Figure 6-1. I2C and I3C Basic Bus Input Timing Diagram
tDOUT
Device drives SDA Bus
Host Pullup Resistor Keeps SDA Bus High
Host drives SDA Bus
tDOFFS
SCL
VIH(MIN)
VIL(MAX)
tCL_R_DAT_F
SDA
VIH(MIN)
VIL(MAX)
T=1
SR
P
Figure 6-2. T = 1 Host Ends Read with Repeated Start and Stop Timing Diagram
tDOUT
tDOFFS
Device drives SDA Bus
Host & Device drive overlap
Host drives SDA Bus
SCL
VIH(MIN)
VIL(MAX)
SDA
VIH(MIN)
VIL(MAX)
P
T=0
Figure 6-3. T = 0 Device Ends Read and Host Generates Stop Timing Diagram
tHD:DAT
tHD:DAT
SCL
VIH(MIN)
VIL(MAX)
SDA
VOH(MIN)
VOL(MAX)
Figure 6-4. I2C Basic Bus Output Timing Diagram
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
7
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
tDOUT
tDOUT
VIH(MIN)
VIL(MAX)
SCL
VOH(MIN)
SDA
VOL(MAX)
Figure 6-5. I3C Basic Bus Output Timing Diagram
50 Q
SDA
5 mm
Figure 6-6. Output Slew Rate and Output Timing Reference Load
Delta tF
Delta tR
VOH
70% × VOH
SDA
30% × VOH
VOL
Figure 6-7. Output Slew Rate Measurement Points
4
3.5
3
2.5
2
1.5
1
0.5
0
-0.5
-1
-1.5
-2
-2.5
-3
-3.5
-4
-45
130
JEDEC Specification Limits
.
120
110
Active Conversion Current (PA)
Temperature Error (qC)
6.9 Typical Characteristics
100
90
80
70
60
50
40
30
20
10
-25
-5
15
35
55
75
95
115
130
Temperature (qC)
0
-60
-40
-20
0
20
40
60
80
100
120
140
Temperature (qC)
Figure 6-8. Temperature Error vs Temperature
8
VDDIO = 1 V. VDDSPD = 1.8 V
Figure 6-9. Active Conversion Current vs
Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
SNIS217 – DECEMBER 2020
10
5
9
4.5
8
4
Standby Current (PA)
Average Current Consumption (PA)
www.ti.com
7
6
5
4
3
3.5
3
2.5
2
1.5
2
1
1
0.5
0
-60
-40
-20
0
20
40
60
80
100
120
0
-60
140
-40
-20
Temperature (qC)
0
20
40
60
80
100
120
140
Temperature (qC)
VDDIO = 1 V. VDDSPD = 1.8
VDDIO = 1 V. VDDSPD = 1.8
Figure 6-10. Average Current vs Temperature
Figure 6-11. Standby Current vs Temperature
10
4.5
8
Sampling Rate Variation (%)
5
Shutdown Current (PA)
4
3.5
3
2.5
2
1.5
1
6
4
2
0
-2
-4
-6
-8
-10
-50
0.5
0
-60
VDDSPD= 1.98 V .
VDDSPD= 1.7 V
-40
-20
0
20
40
60
80
100
120
140
-30
-10
10
30 50 70 90
Temperature (qC)
110 130
Temperature (qC)
VDDIO = 1 V. VDDSPD = 1.8
Figure 6-12. Shutdown Current vs Temperature
Figure 6-13. Sampling Rate Change
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
9
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7 Detailed Description
7.1 Overview
The TMP139 is a high-accuracy temperature sensor that supports a power-up sequence, power-down and
device reset, parity and packet error check functions, In Band Interrupts (IBI), and common command codes
(CCC).
7.2 Functional Block Diagram
VDDIO = 1.0V
VDDSPD = 1.8V
VDDIO
VDDSPD
ADC
Temperature
Sensor
Control Logic
Temperature
Sensor Registers
SCL
SA
I3C Serial Interface
SDA
VSS
Figure 7-1. TMP139 Functional Block Diagram
7.3 Feature Description
7.3.1 Power-Up Sequence
The TMP139 has two supply pins: VDDSPD which is the core supply, and VDDIO which is the IO supply. To ensure
that the device starts up correctly, the application must power up VDDSPD first followed by VDDIO. Additionally, the
power-on reset (POR) circuit is implemented to prevent improper operation in case of an incorrect power-up
sequence.
As shown in Figure 7-2, the VDDSPD supply is applied first and must rise monotonically between VPON(min) and
VDDSPD(min) without ring back. The VDDIO supply must ramp up next and must reach the correct level before any
operation can be performed.
VDDSPD(min)
VPON(min)
tINIT
VDDSPD
VDDIO(min)
VDDIO
tSENSE_SA
Ready to accept I2C
command
Figure 7-2. Power-Up Sequence
When the VDDSPD and VDDIO supply have ramped up above the minimum threshold values, the TMP139
performs the following steps:
1. Within the time tSENSE_SA, the device samples the SA pin to configure the LID code which forms part of the
device address.
10
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
2. Within time tINIT, enables the interface to accept the command from the host.
The device always powers up in the I2C mode of operation.
7.3.2 Power-Down and Device Reset
When the VDDSPD supply decreases, the device operation is not ensured below VDDSPD(min) level. To ensure that
the device operates correctly, the application must ensure that the VDDIO and VDDSPD must remain below VPOFF
for TPOFF as shown in Figure 7-3. Once the condition is met, the device shall be reset properly and the power-up
sequence will initialize the device correctly.
VPOFF(max)
Ready to accept I2C
command
VDDSPD
VDDIO
tPOFF(min)
Figure 7-3. Power-Down and Reset Sequence
7.3.3 Temperature Result and Limits
All temperature result and limit registers are eleven bit values stored in two consecutive registers. The low byte
register comes first followed by the high byte register as shown in Table 7-1 for the register map. The data is
represented as a 11-bit signed number with the most significant bit for the temperature format being the signed
bit. Each of the temperature value bits is assigned a weight which can be used to compute the temperature
value. All unused bits read as 0 and any attempt to write a unused bit shall have no effect. The resolution of the
temperature result and limit registers is always 0.25 °C and the values can range from –255.75 °C to +255.75
°C, even though the recommended operating range is from –40 °C to +125 °C.
Table 7-1. Temperature Register Format
REGISTER
BYTE
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
Low Byte
8
4
2
1
0.5
0.25
RSVD = 0
RSVD = 0
High Byte
RSVD = 0
RSVD = 0
RSVD = 0
Sign
128
64
32
16
The Table 7-2 shows examples of the temperature register read and its corresponding conversion in °C.
Table 7-2. Temperature Register Examples
TEMPERATURE (°C)
HIGH BYTE
LOW BYTE
+255.75
0000 1111
1111 1100
+125
0000 0111
1101 0000
+95
0000 0101
1111 0000
+85
0000 0101
0101 0000
+75
0000 0100
1011 0000
+1
0000 0000
0001 0000
+0.25
0000 0000
0000 0100
0
0000 0000
0000 0000
–0.25
0001 1111
1111 1100
–1
0001 1111
1111 0000
–25
0001 1110
0111 0000
–40
0001 1101
1000 0000
–255.75
0001 0000
0000 0000
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
11
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.3.4 Bus Reset
The bus reset mechanism is supported by the TMP139, to prevent a device from locking up the serial bus. The
devices on the bus do not drive the SCL, therefore the bus reset mechanism uses the timeout scheme on the
SCL as shown in Figure 7-4. When the SCL is held low by the host controller for a time which is greater than
TTIMEOUT(max), TMP139 shall be reset and take the following action:
•
•
•
•
Interface is reset, and as the bus reset is considered a Stop condition, any pending internal transaction is
also cleared.
The TMP139 returns to I2C mode of operation, and resets the following registers:
– MR7 register, DEV_HID_CODE[2:0] is set to 3'b111.
– MR18 register, PEC_EN, PAR_DIS and INF_SEL are set to 1'b0.
– MR27 register, IBI_ERROR_EN is set to 1'b0.
– MR52 register, PEC_ERROR_STATUS and PAR_ERROR_STATUS are set to 1'b0.
TMP139 does not resample the SA pin.
TMP139 floats the SDA pin so that the bus controller can pull up the line.
SCL
tTIMEOUT(max)
tTIMEOUT(min)
Resets I2C/I3C interface
SCL
Does not reset I2C/I3C Interface
SCL
May or may not reset I2C/I3C Interface
Figure 7-4. I2C or I3C Basic Bus Reset
7.3.5 Interrupt Generation
The TMP139 does not have a dedicated interrupt or alert pin, but instead supports interrupt generation using In
Band Interrupts (IBI) on the SDA pin. Interrupt generation using IBI is only supported during I3C mode of
operation. Hence the application must ensure that the device is first programmed to work in I3C mode before it
enables the IBI. As there are multiple devices on the I3C basic bus—each capable of generating an IBI—an
arbitration process is required.
The TMP139 generates an IBI only when it sees the bus in idle state for TAVAL. Once this condition is met, the
device pulls the SDA line low by TIBI_ISSUE to indicate to the host that it has an IBI. The host shall start by driving
the SCL low, which creates the Start bus condition. At this point the device shall send its device address on the
bus with the R/W bit set.
There can be a condition when the host starts a new bus transaction at the same time as the TMP139 is
generating an IBI. In such a case, the TMP139 shall arbitrate along with the host in the device address byte.
7.3.6 Parity Error Check
The parity error check implemented by the TMP139 is odd parity. In I2C mode, parity error check is not
supported except for supported common command codes (CCC). In I3C mode the parity error check is
supported for both CCC and host to device data transfers. The parity bit is only sent during the host write and the
TMP139 shall check the parity to ensure that the data or CCC it received is correct. The device implements odd
parity. If an odd number of bits in the byte are set as 1, the parity bit is set as 0. If an even number of bits in the
byte are set as 1, the parity bit is set as 1.
If there is a parity error during a data transfer or CCC, then the TMP139 shall drop the bytes after the parity error
is detected and shall wait for a Stop condition on the bus.
When a parity error is detected, the device shall set the IBI_STATUS bit in the MR48 register and
PAR_ERROR_STATUS bit in the MR52 register.
12
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.3.7 Packet Error Check
The packet error check (PEC) is implemented at a CRC-8 with the polynomial given in Table 7-3.
Table 7-3. PEC Rule Table
PEC Rule
Attributes
PEC width
8-bits
X8
PEC polynomial
+ X2 + X1 + 1
Initial seed value
00h
Input data reflected
No
Output data reflected
No
XOR value
00h
The PEC is supported in I3C mode only and is computed on the device address, the R/W bit and the data
packet. The seed value for the PEC function is reset to zero on either a Start or Repeated Start bus condition.
Any host transaction that results from a PEC enable or disable must be followed by a Stop condition on the bus
immediately to allow an update on the PEC control bit in the MR18 register.
7.4 Device Functional Modes
This section describes the serial address structure of the TMP139 and how the device operates in both I2C
mode and I3C basic mode, including the switching between the modes. This section also describes the behavior
of the TMP139 during IBI and the bus reset sequence.
7.4.1 Conversion Mode
The TMP139 powers up in continuous conversion mode. In this mode, the device shall perform temperature
conversions every 125 ms as shown in Figure 7-5.
Start of co nve rsion
Acti ve conversion time
(tACT )
Conversion interval
(tCONV )
Conversion interval
Figure 7-5. Continuous Conversion Timing Diagram
The application software can stop the conversion by clearing bit 0 of the MR26 register. When disabled, the
device shall not update the result registers. When the temperature sensor is disabled, the host must wait for at
least one active conversion cycle for the disable to take effect before any other writes are performed to the
device. When the temperature sensor is re-enabled for continuous conversion mode, the host must wait for at
least one conversion interval before reading the temperature results. During this time, read to other registers
may be performed.
7.4.2 Serial Address
The TMP139 has a 7-bit serial address which is used by the host to communicate with the device in both I 2C and
I3C basic modes of operation. The Table 7-4 shows the serial address format for the TMP139. As described in
the power-up sequence, the SA pin is sampled on power up. The sampled value of the SA pin is used to select
one of the two possible local device type ID (LID) section of the serial address. The LID is concatenated with the
host ID (HID) to form the 7-bit unique serial address.
Table 7-4. Serial Address Format
BIT 7
BIT 6
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
BIT 0
0
SA
1
0
1
1
1
R/W
Local Device Type ID (LID)
Host ID (HID)
Read/Write
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
13
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
If the SA pin is connected to GND, then the serial address for the TMP139 is encoded as 7'b0010111. If the SA
pin is connected to VDDSPD, then the serial address is encoded as 7'b0110111.
7.4.3 I2C Mode Operation
The I2C mode of operation is the primary mode of operation when the device is powered up, goes through a bus
reset, or when a RSTDAA CCC is issued if the device is in I3C mode of operation. The maximum bus speed
supported in this mode is up to 1.0 MHz. In this mode of operation, the following are not supported:
1. IBI: If IBI is enabled during I3C basic mode, then switching to I2C mode shall disable the IBI enabling
mechanism. If there are device events that cause the generation of IBI, then the status of the events shall be
logged by the device in the respective register.
2. Packet Error Check: This feature is not supported. If the host attempts to write data with a PEC byte, then the
PEC byte shall be treated as a data byte and written to the register address in an incremental format.
3. Parity Error Check: The parity error check is not supported except for the CCC that are listed in Table 7-6.
In the I2C mode of operation, the TMP139 supports SETHID, DEVCTRL and SETAASA CCC, and data transfer
packets without PEC. Additionally, a Start or Repeated Start followed by 7'h7E with W = 0 is only allowed for the
purpose of issuing the supported CCCs. Any other operation involving a Repeated Start shall be considered
illegal.
7.4.3.1 Host I2C Write Operation
For I2C write operation, the host controller sends the device address with R/W bit as 0, after a Start or Repeated
Start as shown in Figure 7-6. This is followed by the 8-bit register address and then the data. The TMP139 writes
the data to the register address specified. The internal write register address pointer is incremented after every
data byte written. If the write results in an address rollover, then the device shall reset the internal write register
address pointer and continue the write operation if possible. The TMP139 does not NACK the data byte for
reserved or read-only register, but shall discard the data byte and not update the register.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
ACK
Data (RA)
ACK
Data (RA+1)
ACK
...
ACK
Data (RA+N)
ACK
Sr or P
Figure 7-6. I2C Write Operation
7.4.3.2 Host I2C Read Operation
For I2C read operation, the host controller sends the device address with R/W bit as 0, after a Start or repeated
start. This is followed by the 8-bit register address. Once the register address is available to the TMP139, the
host issues a Repeated Start and sends the device address with R/W bit as 1. At this point the device shall send
the data from the register address incrementally, till the host sends a NACK. If the read operation results in the
internal read register address pointer to rollover, then the TMP139 device behavior is not defined.
14
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
S or Sr
SNIS217 – DECEMBER 2020
0
SA
1
0
HID2
HID1
HID0
R/W=0
RA = Register Address [7:0]
Sr
0
SA
1
0
HID2
ACK/NACK
ACK
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
ACK
Data (RA+1)
ACK
...
ACK
Data (RA+N)
NACK
Sr or P
Figure 7-7. I2C Read Operation
7.4.3.3 Host I2C Read Operation in Default Read Address Pointer Mode
The TMP139 provides a default read address pointer mode as shown in Figure 7-8 to read a specific register on
the I2C bus. Since the number of bytes to be sent by the host are two less than a standard I2C read operation,
this mode provides for a more efficient polling mechanism. The MR18 register, bit DEF_RD_ADDR_POINT_EN
is used to enable the mode and bits DEF_RD_ADDR_POINT_Start are used to set the default read address
pointer to a specific register in the register map. When enabled, the TMP139 shall set the internal read address
pointer to the specific register when there is a Stop condition on the bus.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (DEF_ADDR_POINTER)
ACK
Data (DEF_ADDR_POINTER+1)
ACK
...
ACK
Data (DEF_ADDR_POINTER+N)
NACK
Sr or P
Figure 7-8. I2C Default Read Address Pointer Mode
There can be two specific cases in this mode of operation. In the first case as shown in Figure 7-9, there is a
normal I2C read preceding the default read mode. If a Stop precedes the Start, then the internal read address
pointer shall be set to the default address pointer and subsequent data reads shall result in the data bytes sent
by the TMP139 corresponding to the default read address pointer. If a Repeated Start is issued instead of a
Stop, then the TMP139 shall send data based on the default read address pointer.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
15
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
Sr
S
0
0
SA
SA
1
1
0
HID2
ACK
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
ACK
Data (RA+1)
ACK
...
ACK
Data (RA+N)
NACK
0
HID2
HID1
HID0
R/W=1
P
ACK/NACK
Data (DEF_ADDR_POINTER)
ACK
Data (DEF_ADDR_POINTER+1)
ACK
...
ACK
Data (DEF_ADDR_POINTER+N)
NACK
Sr or P
Figure 7-9. I2C normal read followed by a Default Read Address
In the second case as shown in Figure 7-10, there is a normal I2C write preceding the default read mode. If there
is a Stop, followed by a write bus operation and then a Repeated Start for the read mode, then the TMP139 shall
update its internal read address pointer to the default read address and transmit bytes to the host.
P
S
Sr
0
0
SA
SA
1
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
ACK
Data (RA)
ACK
Data (RA+1)
ACK
...
ACK
Data (RA+N)
ACK
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (DEF_ADDR_POINTER)
ACK
Data (DEF_ADDR_POINTER+1)
ACK
...
ACK
Data (DEF_ADDR_POINTER+N)
NACK
Sr or P
Figure 7-10. I2C normal write followed by a Default Read Address
7.4.3.4 Switching from I2C Mode to I3C Basic Mode
As shown in Table 7-6, only DEVCTRL, SETHID and SETAASA CCCs are supported in I2C mode. The host may
issue DEVCTRL and/or SETHID, before it can issue SETAASA for switching the device from I2C mode to I3C
basic mode.
When the SETAASA is issued by the host, the device shall register the command by setting MR18 register
INF_SEL bit to 1'b1 once the Stop condition on the bus is detected. After this, the TMP139 shall be in the I3C
basic mode of operation.
16
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.4.4 I3C Basic Mode Operation
As described in the previous section, I3C basic mode of operation is always entered from the I2C mode of
operation. When in the I3C basic mode, the device can support data transfer rates of up to 12.5 MHz with a
push-pull SDA driver. Additionally, the following may be supported by default or when enabled:
1. IBI: Disabled by default, the IBI can now be enabled.
2. Packet error check: Disabled by default, but the TMP139 can support the PEC feature when enabled by the
host.
3. Parity check: Is always enabled by default.
In I3C basic mode of operation, the read and write packets may have different structures. The structure of the
data payload shall be dependent on the feature that has been enabled.
7.4.4.1 Host I3C Write Operation without PEC
As shown in Figure 7-11 and Figure 7-12, an I3C basic write operation is the same as an I2C write operation. For
all bytes after the device address field, the 9th bit is the parity bit sent by the host. When the IBI is enabled by the
host, it must send the IBI header byte which consists of 7'h7E+R/W=0, before it sends the device address. This
allows the participating devices on the bus to arbitrate between themselves if more than one device has an
interrupt condition that needs to be communicated to the host.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
T
Data(RA )
T
Data(RA +1)
T
...
T
Data(RA +N)
T
Sr or P
Figure 7-11. I3C Basic Mode Write
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
T
Data(RA )
T
Data(RA +1)
T
...
T
Data(RA +N)
T
Sr or P
Figure 7-12. I3C Basic Mode Write with IBI Header
If there is a parity error during the data transfer, the device shall discard all the bytes including the byte for which
parity error was detected and set the parity error condition. If the host attempts to start a new transaction with a
Repeated Start to the same device, then TMP139 shall NACK the device address to indicate an error condition
to the host. The host must first clear the parity error condition before performing any new transfer to the
TMP139. When IBI is enabled, the device can communicate to the host the error conditions seen, using IBI.
However when IBI is not enabled, it is strongly recommended that the host check the error status register to
ensure that no parity error was detected on the bus.
7.4.4.2 Host I3C Write Operation with PEC
As shown in Figure 7-13 and Figure 7-14, when the PEC is enabled by the host, an additional byte is added by
the host after sending the register address. The format for the additional byte is described in Table 7-5.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
17
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-5. Command Truth Table - PEC Enabled Mode
CMD
RW
Command Name
Command Description
0
W1R
Write 1 Byte to Register address specified in
data packet
1
R1R
Read 1 Byte from Register address specified
in data packet
0
W2R
Write 2 Bytes to Register address specified in
data packet
1
R2R
Read 2 Bytes from Register address
specified in data packet
X
RSVD
Reserved
000
001
010 – 111
If the CMD value sent by the host is not valid for TMP139, the device shall not write any data to the register
specified.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
CMD
W=0
0
T
0
0
T
0
Data(RA )
T
...
T
Data(RA +N)
T
PEC
T
Sr or P
Figure 7-13. I3C Basic Mode Write with PEC enabled
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
CMD
W=0
0
T
0
0
0
T
Data(RA )
T
...
T
Data(RA +N)
T
PEC
T
Sr or P
Figure 7-14. I3C Basic Mode Write with IBI Header and PEC enabled
If there is a parity error during the data transfer, the device shall discard all the bytes including the byte for which
parity error was detected and set the parity error condition. If the host attempts to start a new transaction with a
Repeated Start to the same device, then TMP139 shall NACK the device address to indicate an error condition
to the host. The host must first clear the parity error condition before performing any new transfer to the
TMP139.
If there is a PEC error, then the TMP139 shall discard the entire data packet and set the PEC error condition. If
the host attempts to start a new transaction with a Repeated Start to the same device, then TMP139 shall NACK
the device address to indicate an error condition to the host. The host must first clear the PEC error condition
before performing any new transfer to the TMP139.
18
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
When IBI is enabled, the device can communicate to the host the error conditions seen, using IBI. However
when IBI is not enabled, it is strongly recommended that the host check the error status register to ensure that
no parity or PEC error was detected on the bus.
7.4.4.3 Host I3C Read Operation without PEC
As shown in Figure 7-15 and Figure 7-16, an I3C basic mode read is same as I2C read operation. For all bytes
sent by the device, the 9th bit is the T-bit, which is used by the device and host to negotiate continuation of the
read transfer. During the read phase, the device drives the T-bit as 1, before the rising edge to tell the host that it
can send more bytes or drives the T-bit as 0, to indicate to the host that the device wants to terminate the
transfer and the host shall respond with either a Stop or Repeated Start on the bus. The host may also terminate
the transfer by driving the T-bit as 0, only when device sends the T-bit as 1, which creates a repeated start
condition on the bus. Additionally, the host may send a Stop on the bus. When the IBI is enabled by the host, it
must send the IBI header byte which consists of 7'h7E+R/W = 0, before it sends the device address. This allows
the participating devices on the bus, to arbitrate between themselves if more than one device has an interrupt
condition that needs to be communicated to the host.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
RA = Register Address [7:0]
Sr
0
SA
1
0
HID2
ACK/NACK
T
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
Data (RA+1)
T=1
xxxxx
xxxxx
T=1
...
T=1
Data (RA+N)
Figure 7-15. I3C Basic Mode Read
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
Sr
0
SA
1
0
HID2
Sr or P
T
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
Data (RA+1)
T=1
...
T=1
Data (RA+N)
T=1
Sr or P
Figure 7-16. I3C Basic Mode Read with IBI Header
The TMP139 shall NACK the read phase of the transaction if there was a parity error in the write phase before
the repeated start. The device shall also send the T-bit as 0, if the host attempts to read data continuously such
that the internal read address pointer reaches 255, which is the last register in the register map table.
Additionally, if the host attempts to start a new transaction with a Repeated Start to the same device, when there
was a parity error in the previous transaction, then TMP139 shall NACK the device address to indicate an error
condition to the host. The host must first clear the parity error condition before performing any new transfer to the
TMP139. When IBI is enabled, the device can communicate to the host the error conditions seen, using IBI.
However when IBI is not enabled, it is strongly recommended that the host check the error status register to
ensure that no parity error was detected on the bus.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
19
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.4.4.4 Host I3C Read Operation with PEC
As shown in Figure 7-17 and Figure 7-18, when the PEC is enabled by the host, an additional byte is added by
the host after sending the register address. The format for the additional byte is described in Table 7-5. Since
only one and two byte reads are permitted by the CMD byte, the device shall terminate the read phase after
sending one byte of data and PEC byte or two byte of data and PEC byte, followed by the T-bit as 0. In an
unlikely case where the host sets the register address as 255, and attempts a read of two bytes, the device
result is not guaranteed.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
R=1
CMD
0
T
0
0
0
T
PEC
Sr
0
SA
1
0
T
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
...
T=1
Data (RA+N)
T=1
PEC
T=0
Sr or P
Figure 7-17. I3C Basic Mode Read with PEC enabled
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=0
ACK/NACK
RA = Register Address [7:0]
R=1
CMD
0
T
0
0
0
T
PEC
Sr
0
SA
1
0
T
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
...
T=1
Data (RA+N)
T=1
PEC
T=0
Sr or P
Figure 7-18. I3C Basic Mode Read with PEC enabled and IBI Header
If the CMD value sent by the host is not valid for TMP139, the device shall NACK the read phase.
The TMP139 shall NACK the read phase of the transaction if there was a parity error in the write phase before
the Repeated Start. If the host attempts to start a new transaction with a Repeated Start to the same device,
then TMP139 shall NACK the device address to indicate an error condition to the host. The host must first clear
the parity error condition before performing any new transfer to the TMP139.
If there is a PEC error, then the TMP139 shall NACK the read phase of the transaction. If the host attempts to
start a new transaction with a Repeated Start to the same device, then TMP139 shall NACK the device address
to indicate an existing error condition to the host. The host must first clear the PEC error condition before
performing any new transfer to the TMP139.
20
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
When IBI is enabled, the device can communicate to the host the error conditions seen, using IBI. However
when IBI is not enabled, it is strongly recommended that the host check the error status register to ensure that
no parity or PEC error was detected on the bus.
7.4.4.5 Host I3C Read Operation in Default Read Address Pointer Mode
The default read address pointer mode in I3C basic mode works the same way as I2C mode as shown in Figure
7-19 to Figure 7-22. The device shall also send the T-bit as 0, if the host attempts to read data continuously such
that the internal read address pointer reaches 255, which is the last register in the register map table. The host
may also terminate the transfer by driving the T-bit as 0 only when PEC is not enabled.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
Data (RA+1)
T=1
...
T=1
Data (RA+N)
T=1
Sr or P
Figure 7-19. I3C Basic Mode Default Read Address Enabled
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
Data (RA+1)
T=1
...
T=1
Data (RA+N)
T=1
Sr or P
Figure 7-20. I3C Basic Mode Default Read Address Enabled with IBI Header
When PEC is enabled, then the MR18 register sets the default number of bytes that shall be sent, after which
the device shall send the PEC byte with T-bit as 0.
S or Sr
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
...
T=1
Data (RA+N)
T=1
PEC
T=0
Sr or P
Figure 7-21. I3C Basic Mode Default Read Address Enabled with PEC Enabled
S
1
1
1
1
1
1
0
R/W=0
ACK
Sr
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
Data (RA)
T=1
...
T=1
Data (RA+N)
T=1
PEC
T=0
Sr or P
Figure 7-22. I3C Basic Mode Default Read Address Enabled with PEC Enabled and IBI Header
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
21
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
The TMP139 shall NACK the address phase, during a Repeated Start, if there was an error in the previous
transaction.
7.4.5 In Band Interrupt
The In Band Interrupt (IBI) is an elegant method to inform the host of an event in the TMP139. There are two
types of events that the TMP139 generates:
1. Error event: Events corresponding to parity or PEC error.
2. Temperature event: Events corresponding to the temperature exceeding the higher temperature limits or
falling below the lower temperature limits.
By default, all interrupt sources are disabled when the device powers up. The interrupt source can only be
enabled when the device is in I3C basic mode of operation, as enabling the interrupt source shall generate an
IBI which is not allowed in I2C mode of operation. An IBI can only be requested by the TMP139 when the bus
has been in an inactive state for the TAVAL period. Once the condition for an inactive state on the bus is met, and
there is no bus transaction, the TMP139 shall initiate an IBI by driving the SDA low to indicate to the host of a
pending IBI.
7.4.5.1 In Band Interrupt Arbitration Rules
Based on the state of the host controller readiness and due to the fact that there are multiple devices on the bus,
the IBI generation and arbitration must follow some rules, as described below. All of these conditions assume
that the bus has been inactive for TAVAL period.
1. When the host controller starts a write or read with IBI header, TMP139 shall start driving its own address on
the bus. The host on seeing a value other than the IBI header shall no longer drive the SDA, allowing the
TMP139 to transmit its device header along with R/W bit set to 1.
2. If the host controller can accept the IBI from the device, it shall ACK the device address, release the bus on
the falling edge of SCL and shall accept the bytes sent by the TMP139.
3. If the host controller cannot accept the IBI from the device, it shall NACK the device address and issue a Stop
condition on the bus. The TMP139 shall retry another IBI only after TAVAL period.
4. When the host controller starts a write or read without an IBI header to a device on the bus which has a lower
device address than the TMP139, the device on detecting a mismatch, shall no longer participate on the bus
and retry another IBI only after TAVAL period.
5. When the host controller starts a write or read without an IBI header to a device on the bus which has a
higher device address than the TMP139, the device wins the bus arbitration and the host shall no longer
participate on the bus. The host may accept the IBI by sending an ACK or disregard the IBI by sending a
NACK. In the latter case, TMP139 shall retry another IBI only after TAVAL period.
6. When the host controller starts a write or read transaction without an IBI header to the TMP139 which is also
requesting an IBI, either the host or TMP139 can win.
7. If the host controller starts a write transaction, then it shall win the bus arbitration and the TMP139 shall let go
of the bus. The TMP139 shall retry another IBI only after TAVAL period.
8. If the host controller starts a read transaction, then all the bits shall match. However at this point the host is
expecting an ACK from the TMP139 for the read request, while the TMP139 is waiting for an ACK from the
host for the IBI. As a result there shall be a NACK on the bus. In such a case, the TMP139 shall retry the IBI
only after TAVAL period. However if the host issues start (or Repeated Start) and attempts the read transaction
before the TAVAL period, it shall get an ACK from the TMP139 and the host read shall win the arbitration on
the bus.
9. As described above, in the case when there are multiple devices initiating an IBI at the same time, the device
which has the lowest device address shall win the bus arbitration and the TMP139 when it detects a loss on
the bus arbitration, shall retry another IBI only after TAVAL period
7.4.5.2 In Band Interrupt Bus Transaction
As shown in Figure 7-23 and Figure 7-24, when the device has to send an IBI, wins arbitration on the bus and
the IBI is ACK by the host, it shall always send the mandatory data byte (MDB) as 8'h00, followed by the MR51
and MR52 register values. After transmitting the last byte, it shall set the T-bit as 0, after which the host controller
must send a Stop condition on the bus.
22
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
S
SNIS217 – DECEMBER 2020
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
MDB = 0x0
T=1
MR51[7:0]
T=1
MR52[7:0]
T=0
P
Figure 7-23. IBI Payload Packet with PEC Disabled
If PEC is enabled, then after MR52 register value, the PEC byte is sent with the T-bit set as 0. Again, the host
must send a Stop condition on the bus.
S
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
MDB = 0x0
T=1
MR51[7:0]
T=1
MR52[7:0]
T=1
PEC
T=0
P
Figure 7-24. IBI Payload Packet with PEC Enabled
When an IBI is asserted by the device and it successfully transmits the IBI, including the MDB, MR51, MR52 and
PEC (if PEC mode is enabled) bytes, the device shall automatically clear the IBI_STATUS bit in MR48 register.
7.4.6 Common Command Codes Support
The TMP139 supports a subset of the CCC as listed in the I3C basic specification and shown in Table 7-6. Only
CCC specified in the JESD302-1 are supported and the TMP139 shall either NACK unsupported CCC (if
possible) or ignore the actions when on a generic I3C bus. Similarly, for supported CCC—depending on whether
the TMP139 is in I2C or I3C mode—if a non-applicable CCC is sent, the device shall ignore the actions.
The TMP139 requires a Stop condition on the bus after receiving any CCC before it can process a device
specific read or write operation. Similarly, when processing a device specific read or write condition, a Stop on
the bus should follow before any CCC can be issued.
The TMP139 can receive a direct CCC with a Repeated Start condition after another direct CCC. Similarly, it is
valid to send a broadcast CCC following another broadcast CCC with a Repeated Start in between. In such a
case, the action taken by the device will only be updated following a Stop condition on the bus. The behavior of
TMP139 is not defined if a direct CCC is followed by a broadcast CCC or vice-versa with a Repeated Start. For
example, it is a legal combination in I2C mode to send a SETHID CCC, followed by a Repeated Start, then a
SETAASA CCC followed by a Stop condition. However, in I3C mode, sending a direct ENEC CCC followed by
Repeated Start and then a broadcast DEVCTRL CCC is not a valid condition for the TMP139. The host must
issue a Stop after ENEC CCC, before it sends a broadcast DEVCTRL CCC.
The CCC sent to the TMP139 may either be a broadcast code or a direct code. All CCC operations require the
host to send 7'h7E with R/W = 0, followed by the CCC and payload bytes specific to the CCC. For a direct CCC,
the host shall issue a Repeated Start on the bus after the CCC byte followed by the payload bytes.
Table 7-6. Supported CCC
CCC
ENEC
DISEC
RSTDAA
Mode
Code
Broadcast
0x00
Direct
0x80
Broadcast
0x01
Direct
0x81
Broadcast
0x06
Description
Applicable in I2C Mode
Applicable in I3C
Mode
Enable Event Interrupts
No
Yes
Disable Event Interrupts
No
Yes
Put the device in I2C mode
No
Yes
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
23
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-6. Supported CCC (continued)
CCC
Mode
Code
Description
Applicable in I2C Mode
Applicable in I3C
Mode
SETAASA
Broadcast
0x29
Put the device in I3C Basic
Mode
Yes
No
GETSTATUS
Direct
0x90
Get Device Status
No
Yes
DEVCAP
Direct
0xE0
Get Device Capability
No
Yes
SETHID
Broadcast
0x61
TMP139 updates 3-bit HID
field
Yes
No
DEVCTRL
Broadcast
0x62
Configure Device
Yes
Yes
7.4.6.1 ENEC CCC
The ENEC CCC is issued by the host controller to enable the event interrupt generation. The CCC takes effect
after a Stop has been issued by the host controller. Once the ENEC is received, the TMP139 shall update the
MR27 register bit IBI_ERROR_EN to 1'b1.
Note
It is illegal for the host controller to send the ENINT bit as 0.
The command may be issued either as a broadcast command or as a direct command to TMP139 as shown in
Figure 7-25 and Figure 7-26.
S or Sr
1
1
1
1
1
1
0
R/W=0
0x00
ACK/NACK
T
0x00
ENINT
T
R/W=0
ACK/NACK
Sr or P
Figure 7-25. ENEC CCC Broadcast
S or Sr
1
1
1
1
1
1
0
0x80
Sr
0
SA
1
0
T
HID2
HID1
HID0
0x00
R/W=0
ACK/NACK
ENINT
T
Sr or P
Figure 7-26. ENEC CCC Direct
The command may be issued either as a broadcast or as a direct command, as shown in Figure 7-27 and Figure
7-28, with PEC Enabled. In such a case the host controller shall append the PEC byte calculated on all bytes
except the byte with 7'h7E and R/W=0 after the Start or Repeated Start.
S or Sr
1
1
1
1
1
1
0
R/W=0
T
0x00
0x00
ACK/NACK
ENINT
PEC
T
T
Sr or P
Figure 7-27. ENEC CCC Broadcast with PEC Enabled
24
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
S or Sr
Sr
SNIS217 – DECEMBER 2020
1
0
1
1
SA
1
1
1
1
0
R/W=0
ACK/NACK
0x80
T
PEC
T
0
HID2
HID1
HID0
0x00
R/W=0
ACK/NACK
ENINT
T
PEC
T
Sr or P
Figure 7-28. ENEC CCC Direct with PEC Enabled
Note
TMP139 NACKs the ENEC CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
7.4.6.2 DISEC CCC
The DISEC CCC is issued by the host controller to disable the event interrupt generation. The CCC takes effect
after a Stop has been issued by the host controller. Once the DISEC is received, the TMP139 shall the update
MR27 register bit IBI_ERROR_EN to 1'b0.
Note
It is illegal for the host controller to send the DISINT bit as 0.
The command may be issued either as a broadcast command or as a direct command to a specific device as
shown in Figure 7-29 and Figure 7-30.
S or Sr
1
1
1
1
1
1
0
R/W=0
0x01
ACK/NACK
T
0x00
DISINT
T
R/W=0
ACK/NACK
Sr or P
Figure 7-29. DISEC CCC Broadcast
S or Sr
1
1
1
1
1
1
0
0x81
Sr
0
SA
1
0
T
HID2
HID1
HID0
0x00
R/W=0
ACK/NACK
DISINT
T
Sr or P
Figure 7-30. DISEC CCC Direct
The command may be issued either as a broadcast or as a direct command, as shown in Figure 7-31 and Figure
7-32, with PEC Enabled. In such a case the host controller shall append the PEC byte calculated on all bytes
except the byte with 7'h7E and R/W=0 after the Start or Repeated Start.
S or Sr
1
1
1
1
1
1
0
R/W=0
T
0x01
0x00
ACK/NACK
DISINT
PEC
T
T
Sr or P
Figure 7-31. DISEC CCC Broadcast with PEC Enabled
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
25
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
S or Sr
Sr
1
0
1
SA
1
1
1
1
1
0
R/W=0
ACK/NACK
0x81
T
PEC
T
0
HID2
HID1
HID0
0x00
R/W=0
ACK/NACK
DISINT
T
PEC
T
Sr or P
Figure 7-32. DISEC CCC Direct with PEC Enabled
Note
TMP139 NACKs the DISEC CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
7.4.6.3 RSTDAA CCC
When the RSTDAA CCC is issued by the host controller to the TMP139, it shall switch from I3C basic mode to
I2C mode. The CCC takes effect after a Stop has been issued by the host controller. Once the RSTDAA is
received, the TMP139 shall perform the following actions:
• Update the MR18 register bit INF_SEL as 1'b0 for I2C mode of operation.
• Update the MR18 register bit PEC_EN as 1'b0 to disable PEC, if it was previously enabled.
• Update the MR18 register bit PAR_DIS as 1'b0 to enable parity check, if it was previously disabled.
• Update the MR27 register bit IBI_ERROR_EN as 1'b0 to disable IBI, if it was previously enabled.
The command is always issues as a broadcast command as shown in Figure 7-33.
S or Sr
1
1
1
1
1
1
0
R/W=0
0x06
ACK/NACK
T
Sr or P
Figure 7-33. RSTDAA CCC Broadcast
The command may also be issued with PEC enabled, as shown in Figure 7-34. In such a case, the host
controller shall append the PEC byte calculated on all bytes except the byte with 7'h7E and R/W=0 after the
Start or Repeated Start.
S or Sr
1
1
1
1
1
1
0
R/W=0
ACK/NACK
0x06
T
PEC
T
Sr or P
Figure 7-34. RSTDAA CCC Broadcast with PEC
Note
TMP139 NACKs the RSTDAA CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
7.4.6.4 SETAASA CCC
When the SETAASA CCC is issued by the host controller to the TMP139, it shall switch from I2C mode to I3C
basic mode. The CCC takes effect after a Stop has been issued by the host controller. Once the SETAASA is
received, the TMP139 shall set the MR18 register bit INF_SEL as 1'b1 for I3C basic mode of operation.
The CCC is always issues as a broadcast command, as shown in Figure 7-35, with no PEC bytes since it is
applicable only during I2C mode.
26
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
S or Sr
SNIS217 – DECEMBER 2020
1
1
1
1
1
1
0
R/W=0
0x29
ACK
T
Sr or P
Figure 7-35. SETAASA CCC
Note
TMP139 NACKs the SETAASA CCC if the previous CCC transaction has a parity error and the host
starts the transaction with a Repeated Start.
7.4.6.5 GETSTATUS CCC
The GETSTATUS CCC is issued by the host controller to the TMP139 to get the status of any pending parity
error, PEC error, or interrupt event. Once the GETSTATUS is received, the TMP139 shall not clear the status
and host must issue additional transactions on the bus to clear the status flags individually or by writing 1'b1 to
the MR27 register CLR_GLOBAL bit.
The command is issued only in direct mode as shown in Figure 7-36, when PEC is disabled, and in Figure 7-37,
when PEC is enabled. In the latter case, the host controller shall append the PEC byte calculated on all bytes
except the byte with 7'h7E and R/W=0 after the Start or Repeated Start. The TMP139 calculates the PEC on the
data bytes that are sent to the host.
S or Sr
1
1
1
1
1
1
0
R/W=0
0x90
Sr
ACK/NACK
T
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
PEC_Err
0
0
0
0
0
0
0
T=1
0
0
P_Err
0
T=0
PENDIN G INTERRUPT
Sr or P
Figure 7-36. GETSTATUS CCC Direct
S or Sr
Sr
1
1
1
1
1
1
0
R/W=0
ACK/NACK
0x90
T
PEC
T
0
SA
1
0
HID2
HID1
HID0
R/W=1
ACK/NACK
PEC_Err
0
0
0
0
0
0
0
T=1
0
0
P_Err
0
PENDIN G INTERRUPT
PEC
T=1
T=0
Sr or P
Figure 7-37. GETSTATUS CCC Direct with PEC Enabled
Note
TMP139 NACKs the GETSTATUS CCC if the previous transaction has a parity or PEC error and the
host starts the transaction with a Repeated Start.
7.4.6.6 DEVCAP CCC
The DEVCAP CCC is issued by the host controller to the TMP139, to get the optional device capabilities that are
supported as given in Table 7-7.
The command is issued only in direct mode as shown in Figure 7-38, when PEC is disabled, and in Figure 7-39,
when PEC is enabled. In the latter case the host controller shall append the PEC byte calculated on all bytes
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
27
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
except the byte with 7'h7E and R/W=0 after the Start or Repeated Start. The TMP139 calculates the PEC on the
data bytes that are sent to the host.
S or Sr
1
1
1
1
1
1
0
R/W=0
0xE0
Sr
0
SA
1
0
ACK/NACK
T
HID2
HID1
HID0
R/W=1
ACK/NACK
DEVCAP_MSB[7:0]
T=1
DEVCAP_LSB[7:0]
T=0
Sr or P
Figure 7-38. DEVCAP CCC Direct
S or Sr
1
Sr
0
1
SA
1
1
1
1
1
0
R/W=0
ACK/NACK
0xE0
T
PEC
T
0
HID2
HID1
HID0
R/W=1
ACK/NACK
DEVCAP_MSB[7:0]
T=1
DEVCAP_LSB[7:0]
T=1
PEC
T=0
Sr or P
Figure 7-39. DEVCAP CCC Direct with PEC
Table 7-7. DEVCAP Data Byte Description
Bit
Value
Comments
DEVCAP_MSB[7:3]
00000
Reserved
DEVCAP_MSB[2]
1
0 = No support for Timer Based Reset
1 = Timer Based Reset supported
DEVCAP_MSB[1:0]
00
Reserved
DEVCAP_LSB[7:0]
8'h00
Reserved
Note
TMP139 NACKs the DEVCAP CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
7.4.6.7 SETHID CCC
The SETHID CCC is issued by the host controller to the TMP139 to update the HID code of the device serial
address. The CCC takes effect after a Stop has been issued by the host controller. Once the SETHID is
received, the TMP139 shall update the MR7 register bits DEV_HID_CODE[2:0] to the value HID[2:0] as sent in
the CCC data payload when Stop bus condition is sent by the host.
S or Sr
1
1
1
1
1
1
0
R/W=0
0x61
0
0
0
0
ACK
T
HID2
HID1
HID0
0
T
Sr or P
Figure 7-40. SETHID CCC Broadcast
28
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Note
TMP139 NACKs the SETHID CCC if the previous transaction has a parity error and the host starts the
transaction with a Repeated Start.
7.4.6.8 DEVCTRL CCC
The DEVCTRL CCC is issued by the host controller for enable or disable operations that are common to devices
on the bus and TMP139 shall recognize the DEVCTRL CCC.
The command is generally issued in broadcast mode, but may be issued as unicast or multicast mode as well.
The host may issue the DEVCTRL CCC as a generic access with RegMod field set as 0 or for a specific register
access with RegMod set as 1. When RegMod field is set to 0, Figure 7-41 shows the DEVCTRL CCC packet
structure when PEC is disabled. Figure 7-42 shows the structure of the DEVCTRL CCC when RegMod field is
set to 0 and PEC is enabled. In the latter case the host controller shall append the PEC byte calculated on all
bytes except the byte with 7'h7E and R/W=0 after the Start or Repeated Start.
S or Sr
1
1
1
1
ADDRMASK
[2]
ADDRMASK
[1]
ADDRMASK
[0]
STOFF SET
[1]
1
1
0
R/W=0
ACK
PECBL[0]
REGMOD
=0
T
0
T
0x62
T
STOFF SET
[0]
PECBL[1]
DEVADDR
DEVCTRL DATA 0
T
DEVCTRL DATA 1
T
DEVCTRL DATA 2
T
DEVCTRL DATA 3
T
Sr or P
Figure 7-41. DEVCTRL CCC With REGMOD = 0 and PEC Disabled
S or Sr
1
1
1
1
ADDRMASK
[2]
ADDRMASK
[1]
ADDRMASK
[0]
STOFF SET
[1]
1
1
0
R/W=0
PECBL[0]
REGMOD
=0
T
0
T
ACK
0x62
T
STOFF SET
[0]
PECBL[1]
DEVADDR
DEVCTRL DATA 0
T
DEVCTRL DATA 1
T
DEVCTRL DATA 2
T
DEVCTRL DATA 3
T
PEC
T
Sr or P
Figure 7-42. DEVCTRL CCC With REGMOD = 0 and PEC Enabled
When RegMod field is set to 1, Figure 7-43 shows the DEVCTRL CCC packet structure when PEC is disabled.
Figure 7-44 shows the structure of the DEVCTRL CCC when RegMod field is set to 1 and PEC is enabled. In the
latter case the host controller shall append the PEC byte calculated on all bytes except the byte with 7'h7E and
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
29
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
R/W = 0 after the Start or Repeated Start. If the CMD field indicates that there is only one byte to write, then the
optional register data must not be sent by the host.
S or Sr
1
1
1
1
ADDRMASK
[2]
ADDRMASK
[1]
ADDRMASK
[0]
STOFF SET
[1]
1
1
0
R/W=0
PECBL[0]
REGMOD
=1
T
0
T
0x62
ACK
T
STOFF SET
[0]
PECBL[1]
DEVADDR
REGISTER O FFSET
T
REGISTER DATA 1
T
OPTIONAL REGISTER DATA 2
T
Sr or P
Figure 7-43. DEVCTRL CCC With REGMOD = 1 and PEC Disabled
S or Sr
1
1
1
1
ADDRMASK
[2]
ADDRMASK
[1]
ADDRMASK
[0]
STOFF SET
[1]
1
1
0
R/W=0
PECBL[0]
REGMOD
=1
T
0
T
0x62
T
STOFF SET
[0]
PECBL[1]
DEVADDR
T
REGISTER O FFSET
CMD
ACK
0000
W=0
T
REGISTER DATA 1
T
OPTIONAL REGISTER DATA 2
T
PEC
T
Sr or P
Figure 7-44. DEVCTRL CCC With REGMOD = 1 and PEC Enabled
Note
TMP139 NACKs the DEVCTRL CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
The Table 7-8 describes the definition of the command fields.
Table 7-8. DEVCTRL CCC Command Definitions
Field
ADDRMASK[2:0]
Description
Broadcast, multicast
or unicast selection
Values
TMP139 matches the DEVADDR[6:0] field with its serial address .
011 = Multicast
command
TMP139 matches the DEVADDR[6:3] field with its LID code in the
serial address.
111 = Broadcast
command
TMP139 ignores the DEVADDR[6:0] and performs the required
action.
00 = Byte 0
STOFFSET[1:0]
Start offset byte
Action
000 = Unicast
command
01 = Byte 1
10 = Byte 2
11 = Byte 3
TMP139 identifies which byte is the first byte out of DEVCTRL DATA
0, DEVCTRL DATA 1, DEVCTRL DATA 2 and DEVCTRL DATA 3
and updates its register accordingly.
This field is valid only when REGMOD = 0.
00 = 1 Byte
PECBL[1:0]
Identifies the burst
length for PEC byte
position
01 = 2 Byte
10 = 3 Byte
TMP139 identifies the position of the PEC byte after the DEVCTRL
DATA bytes are sent.
This field is valid only when REGMOD = 0 and PEC is enabled.
11 = 4 Byte
30
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-8. DEVCTRL CCC Command Definitions (continued)
Field
Description
Identifies if it is a
generic or specific
register access
REGMOD
Values
Action
0 = Generic Access
TMP139 understand the DEVCTRL DATA byte as generic data bytes
described in Table 7-9
1 = Register Access
TMP139 understand the DEVCTRL DATA byte as specific register
access bytes.
If PEC is disabled, the format used for specific register access is as
per Figure 7-11.
If PEC is enabled, the format used for specific register access is as
per Figure 7-13
Table 7-9. Generic Data Byte Format
DEVCTRL DATA Bit
Function
DEVCTRL DATA 0 [7]
PEC Enable
DEVCTRL DATA 0 [6]
Parity Disable
DEVCTRL DATA 0 [5:0]
Reserved
DEVCTRL DATA 1 [7:4]
Reserved
Values
0 = Disable
1 = Enable
0 = Enable
1 = Disable
Action
MR18 register PEC_EN bit is updated
MR18 register PAR_DIS bit is updated
Reserved
Reserved
0 = No action
DEVCTRL DATA 1 [3]
Global IBI Clear
1 = Clear all events and
pending IBI
DEVCTRL DATA 1 [2:0]
Reserved
Reserved
DEVCTRL DATA 2 [7:0]
Reserved
Reserved
DEVCTRL DATA 3 [7:0]
Reserved
Reserved
MR27 register CLR_GLOBAL bit is updated
Note
TMP139 NACKs the DEVCTRL CCC if the previous transaction has a parity or PEC error and the host
starts the transaction with a Repeated Start.
7.4.7 I/O Operation
The device comes up in the I2C mode of operation with an open-drain I/O for its interface. However, when the
device is in I3C mode, the I/O may be either open drain or push pull. The dynamic switching between open-drain
and push-pull mode is primarily meant to support In Band Interrupts (IBI). Table 7-10 describes the different
modes of operation for the I/O for each cycle.
Table 7-10. TMP139 Dynamic I/O Operation for I3C Mode
OPERATION
OPEN-DRAIN MODE
PUSH-PULL MODE
Start + Device Address
Yes
No
Start + 7'h7E IBI Header Byte
Yes
No
REPEAT Start + Device Address
No
Yes
REPEAT Start + 7'h7E IBI Header Byte
No
Yes
CCC Bytes (after 7'h7E+R/W=0+ACK)
No
Yes
STOP
No
Yes
ACK/NACK Responses
Yes
No
Interrupt Request by TMP139 + Device Address
Yes
No
Command and address operations
No
Yes
IBI Payload
No
Yes
Write Data, T-bit sequence
No
Yes
Read Data, T-bit sequence
No
Yes
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
31
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-10. TMP139 Dynamic I/O Operation for I3C Mode (continued)
OPERATION
OPEN-DRAIN MODE
PUSH-PULL MODE
PEC, T-bit sequence
No
Yes
7.4.8 Timing Diagrams
The TMP139 is a I2C and I3C interface-compatible device. Figure 6-1 to Figure 6-3 describe the various bus
conditions that are supported on the bus. The following lists the definitions for the bus conditions:
1. Bus Idle: Both SDA and SCL lines remain high after a Stop condition.
2. Start (S) condition: A change in the state of the SDA line from high to low, when the SCL is high defines a
Start condition. The Start condition is preceded by a bus idle.
3. Stop (P) condition: A change in the state of the SDA line from low to high, when the SCL is high defines a
Stop condition.
4. Repeated Start (SR) condition: A change in the state of the SDA line from high to low, when the SCL is high
and is preceded by a data transfer defines a Repeated Start condition.
5. Data Transfer: The number of data bytes transferred between a Start and Stop condition and determined by
the host or device.
6. Acknowledge: Each receiving device, when addressed, is obliged to generate an acknowledge (ACK) bit
during device address and host to device write transfer. A device that acknowledges must pull down the SDA
line during the acknowledge clock pulse in such a way that the SDA line is stable low during the high period
of the acknowledge clock pulse. On a host receive, the termination of the data transfer can be signaled by the
host generating a Not-Acknowledge (NAK) on the last byte that is transmitted by the target device. This
behavior is as per I2C mode of operation.
During I3C mode of operation. each receiving device shall only acknowledge its device address. Additionally,
the host shall acknowledge the device address during a successful IBI address arbitration.
7. T-Bit: The T-bit is only applicable in I3C mode of operation or when the host sends a common command
code (CCC) during I2C mode of operation. The T-bit contains the parity information when the host writes to
the targeted device(s). During a read, if the T-bit is sampled as 1 on the rising edge of the 9th clock, the bit
indicates a continuation of a read by the device. If a host wants to terminate the read, then the host can
activate the pullup while the device drives the line high as shown in Figure 6-2. When the device stops driving
the line and tri-states its output, the pull up keeps the line high momentarily before the host claims control of
the bus to generate a Repeated Start and Stop to end the read. If the host can accept more data from the
device, the host must not drive the line. The device samples the SDA on the falling edge of the 9th clock, and
if the T-bit is sampled as 1, the device resumes driving the SDA for the next byte. During a read, if the T-bit is
sampled as 0 on the rising edge of the 9th clock, the bit is used to indicate a termination of the read by the
device as shown in Figure 6-3. The host shall also drive the SDA low, such that when the device stops driving
the line and tri-states its output, the host has control of the bus to generate a Stop to end the read.
7.5 Programming
This section describes the programming model for specific operations of the TMP139.
7.5.1 Enabling Interrupt Mechanism
IBI can only be enabled in I3C basic mode. Figure 7-45 shows the programming model the host controller must
follow to correctly enable the IBI for the TMP139.
32
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Start
Yes
Is IBI required only
for error events?
No
Send ENEC CCC
Is IBI required only
for all events?
Yes
Send Write Data
Packet to set
MR27[4:0]
No
End
Figure 7-45. Interrupt Enable Flowchart
7.5.2 Clearing Interrupt
While IBI can be generated in I3C basic mode, the TMP139 shall update the status bit for different events (other
than PEC error) even in I2C mode. Figure 7-46 shows the programming model for the host controller to clear an
IBI in I3C basic mode. In I2C mode, the host controller can poll the TMP139 using register data read as already
described in Section 7.4.3.2.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
33
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Start
No
IB I from TMP139?
Yes
Host s en ds
GETSTATUS CCC
No
IB I accepted by ho st?
Wait for TAVA L
Yes
Host s en ds Global
Clear command
TMP139 sends MDB,
MR51[7:0] and
MR52[7:0]
TMP139 sent
co mpl ete IBI
No
Yes
TMP139 cl ears
MR48[7] and Pendi ng
In terru pt Status
End
Figure 7-46. Interrupt Clear Flowchart
34
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6 Register Map
Table 7-11. TMP139 Register Map
ADDRESS
TYPE
RESET
REGISTER NAME
REGISTER DESCRIPTION
SECTION
00h
R
51h
MR0
Device Type; Most Significant Byte
Go
01h
R
10h
MR1
Device Type: Least Significant Byte
Go
02h
R
02h
MR2
Device Revision
Go
03h
R
80h
MR3
Vendor ID Byte 0
Go
04h
R
97h
MR4
Vendor ID Byte 1
Go
07h
RW
0Eh
MR7
Device Configuration - HID
Go
12h
RW
00h
MR18
Device Configuration
Go
13h
W1C
00h
MR19
Clear Register MR51 Temperature Status
Command
Go
14h
W1C
00h
MR20
Clear Register MR52 Error Status Command
Go
1Ah
RW
00h
MR26
TS Configuration
Go
1Bh
RW
00h
MR27
Interrupt Configurations
Go
1Ch
RW
70h
MR28
TS Temp High Limit Configuration - Low Byte
Go
1Dh
RW
03h
MR29
TS Temp High Limit Configuration - High Byte
Go
1Eh
RW
00h
MR30
TS Temp Low Limit Configuration - Low Byte
Go
1Fh
RW
00h
MR31
TS Temp Low Limit Configuration - High Byte
Go
20h
RW
50h
MR32
TS Critical Temp High Limit Configuration - Low
Byte
Go
21h
RW
05h
MR33
TS Critical Temp High Limit Configuration High Byte
Go
22h
RW
00h
MR34
TS Critical Temp Low Limit Configuration - Low
Byte
Go
23h
RW
00h
MR35
TS Critical Temp Low Limit Configuration - High
Byte
Go
30h
R
00h
MR48
Device Status
Go
31h
R
00h
MR49
TS Current Sensed Temperature - Low Byte
Go
32h
R
00h
MR50
TS Current Sensed Temperature - High Byte
Go
33h
R
00h
MR51
TS Temperature Status
Go
34h
R
00h
MR52
Miscellaneous Error Status
Go
Table 7-12. Register Section Access Type Codes
Access Type
Code
Description
R
R
Read
RC
R
C
Read
to Clear
RV
RV
Reserved for future expansion
W
W
Write
W1C
W
1C
W
1 to clear
Read Type
Write Type
Reset or Default Value
-n
Value after reset or the default
value
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
35
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.1 MR0: Device Type, Most Significant Byte (address = 00h) [reset = 51h]
Return to Register Map.
Figure 7-47. MR0: Device Type Register
7
6
5
4
3
2
1
0
MSB_DEV_TYPE[7:0]
R-51h
Table 7-13. MR0: Device Type Field Descriptions
Bit
Field
Type
Reset
Description
7:0
MSB_DEV_TYPE[7:0]
R
51h
Device type most significant byte. Used in conjunction with MR1
register.
7.6.2 MR1: Device Type, Least Significant Byte (address = 01h) [reset = 10h]
Return to Register Map.
Figure 7-48. MR1: Device Type Register
7
6
5
4
3
2
1
0
LSB_DEV_TYPE[7:0]
R-10h
Table 7-14. MR1: Device Type Field Descriptions
Bit
Field
Type
Reset
Description
7:0
LSB_DEV_TYPE[7:0]
R
10h
Device type least significant byte. Used in conjunction with MR0
register.
Indicates a Grade-B temperature sensor
7.6.3 MR2: Device Revision (address = 02h) [reset = 02h]
Return to Register Map.
Figure 7-49. MR2: Device Revision Register
7
6
5
4
3
2
1
0
Reserved
DEV_REV_MAJOR[1:0]
DEV_REV_MINOR[2:0]
Reserved
R-00
R-00
R-001
R-0
Table 7-15. MR2: Device Revision Field Descriptions
Bit
Field
7:6
Reserved
R
00
Reserved
5:4
DEV_REV_MAJOR[1:0]
R
00
Indicates the major revision number
3:1
DEV_REV_MINOR[2:0]
R
001
Indicates the minor revision number
Reserved
R
0
Reserved
0
36
Type
Reset
Description
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.4 MR3: Vendor ID Byte 0 (address = 03h) [reset = 80h]
Return to Register Map.
Figure 7-50. MR3: Vendor ID Byte 0 Register
7
6
5
4
3
2
1
0
VENDOR_ID_BYTE0[7:0]
R-80h
Table 7-16. MR3: Vendor ID Byte 0 Field Descriptions
Bit
Field
Type
Reset
Description
7:6
VENDOR_ID_BYTE0[7:0]
R
80h
Indicates the lower byte of the Vendor ID.
7.6.5 MR4: Vendor ID Byte 1 (address = 04h) [reset = 97h]
Return to Register Map.
Figure 7-51. MR4: Vendor ID Byte 1 Register
7
6
5
4
3
2
1
0
VENDOR_ID_BYTE1[7:0]
R-97h
Table 7-17. MR4: Vendor ID Byte 1 Field Descriptions
Bit
Field
Type
Reset
Description
7:6
VENDOR_ID_BYTE1[7:0]
R
97h
Indicates the upper byte of the Vendor ID.
7.6.6 MR7: Device Configuration - HID (address = 04h) [reset = 0Eh]
The MR7 register reads the HID configured by the host controller. This register can only be updated by the
SETHID CCC when device is in I2C, by the RSTDAA when the device is in I3C mode, or by a bus reset.
Return to Register Map.
Figure 7-52. MR7: Device Configuration - HID Register
7
6
5
4
3
2
1
0
Reserved
DEV_HID_CODE[2:0]
Reserved
R-0h
RW-111
R-0
Table 7-18. MR7: Device Configuration - HID Field Descriptions
Bit
Field
Type
Reset
Description
7:4
Reserved
R
0h
Reserved
3:1
DEV_HID_CODE[2:0]
RW
111
Device HID Code. The TMP139 device responds to unique 7-bit
address as formed by a 4-bit LID code as Table 7-4 and 3-bit
HID code as configured in this register.1
Reserved
R
0
Reserved
0
1. This register is updated only when SETHID CCC is sent to the TMP139 or when the device goes through a
bus reset sequence.
Note
Any host transaction which results in write or update to MR7 register must be immediately followed by
a Stop condition. A Repeated Start may result in unpredictable behavior.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
37
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.7 MR18: Device Configuration (address = 12h) [reset = 00h]
The MR18 register is used to configure the device features. In I3C mode, it allows the PEC to be enabled and
Parity (T-bit) to be disabled. It also controls the default read address mode for both I2C and I3C bus operations.
The burst length for the PEC byte is allowed only in I3C mode and the host controller must not update the bit in
the I2C mode of operation.
Return to Register Map.
Figure 7-53. MR18: Device Configuration Register
7
6
5
PEC_EN
PAR_DIS
INF_SEL
RW-0
RW-0
R-0
4
3
2
1
DEF_RD_ADDR DEF_RD_ADDR_POINT_Star DEF_RD_ADDR_
_POINT_EN
t[1:0]
POINT_BL
RW-0
RW-0
RW-0
0
Reserved
R-0
Table 7-19. MR18: Device Configuration Field Descriptions
Bit
Field
Type
Reset
Description
7
PEC_EN
RW
0
PEC enable1
0 = PEC is disabled
1 = PEC is enabled
6
PAR_DIS
RW
0
Parity (T-bit) disable1
0 = Parity or T-bit is enabled
1 = Parity or T-bit is disabled
5
INF_SEL
R
0
Interface selection
0 = I2C protocol (maximum speed of 1 MHz)
1 = I3C basic protocol
4
DEF_RD_ADDR_POINT_EN
RW
0
Default read address pointer enable
0 = Disable default read address pointer (address pointer is set
by host)
1 = Enable default read address pointer (address selected by
MR7 register, DEF_RD_ADDR_POINT_Start[1:0] bits
DEF_RD_ADDR_POINT_Start[1:0]
RW
00
Default read address pointer starting address2
00 = MR49 register
01 = Reserved
10 = Reserved
11 = Reserved
1
DEF_RD_ADDR_POINT_BL
RW
0
Burst length for read pointer address for PEC calculation
0 = 2 bytes
1 = 4 bytes
0
Reserved
R
0
Reserved
3:2
1. PEC enable and parity disable are automatically updated when RSTDAA CCC is issued on the bus or a bus
reset sequence is applied.
2. Setting any of the reserved values shall result in unpredictable behavior from TMP139.
Note
Any host transaction which results in write or update to MR18 register must be immediately followed
by a Stop condition. A Repeated Start may result in unpredictable behavior.
38
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.8 MR19: Clear MR51 Temperature Status Command (address = 13h) [reset = 00h]
The MR19 register is written by the host to clear status for the temperature comparison after the most recent
conversion.
Return to Register Map.
Figure 7-54. MR19: Clear MR51 Temperature Status Command Register
7
6
5
4
Reserved
3
2
CLR_TS_CRI CLR_TS_CRIT
T_LOW
_HIGH
R-0h
R0-W1C
R0-W1C
1
0
CLR_TS_LOW
CLR_TS_HIGH
R0-W1C
R0-W1C
Table 7-20. MR19: Clear MR51 Temperature Status Command Field Descriptions
Bit
Field
Type
Reset
7:4
Reserved
R
0h
Description
Reserved
3
CLR_TS_CRIT_LOW
R0-W1C
0
Clear temperature sensor critical low status
1 = Write '1' to clear MR51 TS_CRIT_LOW_STATUS bit
Writing a '0' has no effect on MR51 TS_CRIT_LOW_STATUS bit
2
CLR_TS_CRIT_HIGH
R0-W1C
0
Clear temperature sensor critical high status
1 = Write '1' to clear MR51 TS_CRIT_HIGH_STATUS bit
Writing a '0' has no effect on MR51 TS_CRIT_HIGH_STATUS
bit
1
CLR_TS_LOW
R0-W1C
0
Clear temperature sensor low status
1 = Write '1' to clear MR51 TS_LOW_STATUS bit
Writing a '0' has no effect on MR51 TS_LOW_STATUS bit
0
CLR_TS_HIGH
R0-W1C
0
Clear temperature sensor high status
1 = Write '1' to clear MR51 TS_HIGH_STATUS bit
Writing a '0' has no effect on MR51 TS_HIGH_STATUS bit
7.6.9 MR20: Clear MR52 Error Status Command (address = 14h) [reset = 00h]
The MR20 register is written by the host to clear error condition when the PEC checksum is incorrect or when
the last write from the host results in a parity error in the T-bit. This register is valid in I3C mode only.
Return to Register Map.
Figure 7-55. MR20: Clear MR52 Error Status Command Register
7
6
5
4
3
Reserved
2
1
0
CLR_PEC_ERR CLR_PAR_ERR
OR
OR
R-00h
W1C
W1C
Table 7-21. MR20: Clear MR52 Error Status Command Field Descriptions
Bit
Field
Type
Reset
Description
7:2
Reserved
R
00h
Reserved
1
CLR_PEC_ERROR
R0-W1C
0
Clear packet error status
1 = Write '1' to clear MR52 PEC_ERROR_STATUS bit
Writing a '0' has no effect on MR52 PEC_ERROR_STATUS bit
0
CLR_PAR_ERROR
R0-W1C
0
Clear parity error status
1 = Write '1' to clear MR52 PEC_ERROR_STATUS bit
Writing a '0' has no effect on MR52 PAR_ERROR_STATUS bit
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
39
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.10 MR26: TS Configuration (address = 1Ah) [reset = 00h]
The MR26 register may be used by the host to disable the temperature sensor. The device will stop temperature
conversion or, if there is an ongoing conversion when the bit is set, then it shall complete the current conversion
and then disable the temperature sensor.
Return to Register Map.
Figure 7-56. MR26: Temperature Sensor Configuration Register
7
6
5
4
3
2
1
0
Reserved
DIS_TS
R-00h
RW-0
Table 7-22. MR26: Temperature Sensor Configuration Field Descriptions
Bit
Field
Type
Reset
Description
7:1
Reserved
R
00h
Reserved
DIS_TS
RW
0
Disable temperature sensor
0 = Enable temperature sensor.
1 = Disable temperature sensor.
0
7.6.11 MR27: Interrupt Configuration (address = 1Bh) [reset = 00h]
Return to Register Map.
Figure 7-57. MR27: Interrupt Configuration Register
7
6
5
CLR_GLOBAL
Reserved
W1C
R-00
4
3
2
1
IBI_ERROR_EN IBI_TS_CRIT_ IBI_TS_CRIT_
LOW_EN
HIGH_EN
R-0
RW-0
RW-0
0
IBI_TS_LOW_E IBI_TS_HIGH_E
N
N
RW-0
RW-0
Table 7-23. MR27: Interrupt Configuration Field Descriptions
Bit
Field
Type
Reset
Description
CLR_GLOBAL
R0-W1C
0
Global clear event status and In Band Interrupt (IBI) status
1 = Write '1' to clear the registers MR48, MR51 and MR52.
Writing a '0' has no effect on registers MR48, MR51 and MR52.
Reserved
R
00
Reserved
4
IBI_ERROR_EN
R
0
In band interrupt (IBI) enable for MR52 error log.1
0 = Disable. Errors logged in MR52 register bits do not generate
an IBI to host.
1 = Enable. Errors logged in MR52 register bits generate an IBI
to host.
3
IBI_TS_CRIT_LOW_EN
RW
0
In band interrupt (IBI) enable for temperature sensor critical low.
0 = Disable. MR51 register TS_CRIT_LOW_STATUS bit does
not generate an IBI to host.
1 = Enable. MR51 register TS_CRIT_LOW_STATUS bit
generates an IBI to host.
2
IBI_TS_CRIT_HIGH_EN
RW
0
In band interrupt (IBI) enable for temperature sensor critical
high.
0 = Disable. MR51 register TS_CRIT_HIGH_STATUS bit does
not generate an IBI to host.
1 = Enable. MR51 register TS_CRIT_HIGH_STATUS bit
generates an IBI to host.
1
IBI_TS_LOW_EN
RW
0
In band interrupt (IBI) enable for temperature sensor low.
0 = Disable. MR51 register TS_LOW_STATUS bit does not
generate an IBI to host.
1 = Enable. MR51 register TS_LOW_STATUS bit generates an
IBI to host.
7
6:5
40
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-23. MR27: Interrupt Configuration Field Descriptions (continued)
Bit
0
Field
Type
Reset
Description
IBI_TS_HIGH_EN
RW
0
In band interrupt (IBI) enable for temperature sensor high.
0 = Disable. MR51 register TS_HIGH_STATUS bit does not
generate an IBI to host.
1 = Enable. MR51 register TS_HIGH_STATUS bit generates an
IBI to host.
1. IBI_ERROR_EN can only be updated by ENEC CCC, DISEC CCC, RSTDAA CCC or bus reset sequence. A
direct write to the register or through DEVCTRL CCC shall not update the bit and may lead to unpredictable
behavior.
7.6.12 MR28: Temperature Sensor High Limit-Low Byte Configuration (address = 1Ch) [reset = 70h]
The status flag for temperature high limit is set when the result of the temperature conversion is greater than the
programmed value in the MR29 and MR28 registers. The application must ensure that the critical temperature
high limit registers must have a value greater than the temperature high limit registers.
Return to Register Map.
Figure 7-58. MR28: Temperature Sensor High Limit-Low Byte Configuration Register
7
6
5
4
3
2
1
0
R-0
R-0
TS_HIGH_LIMIT_LOW[7:0]
RW-70h
Table 7-24. MR28: Temperature Sensor High Limit-Low Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_HIGH_LIMIT_LOW[7:0]
RW
70h
Low byte of the high limit temperature for the thermal sensor.1
MR29 and MR28 together define the high limit for the thermal
sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.13 MR29: Temperature Sensor High Limit-High Byte Configuration (address = 1Dh) [reset = 03h]
The status flag for temperature high limit is set when the result of the temperature conversion is greater than the
programmed value in the MR29 and MR28 registers. The application must ensure that the critical temperature
high limit registers must have a value greater than the temperature high limit registers.
Return to Register Map.
Figure 7-59. MR29: Temperature Sensor High Limit-High Byte Configuration Register
7
6
5
4
3
2
1
0
TS_HIGH_LIMIT_HIGH[7:0]
R-0
R-0
R-0
RW-03h
Table 7-25. MR29: Temperature Sensor High Limit-High Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_HIGH_LIMIT_HIGH[7:0]
RW
03h
High byte of the high limit temperature for the thermal sensor.1
MR29 and MR28 together define the high limit for the thermal
sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
41
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.14 MR30: Temperature Sensor Low Limit-Low Byte Configuration (address = 1Eh) [reset = 00h]
The status flag for critical low limit is set when the result of the temperature conversion is less than the
programmed value in the MR31 and MR30 registers. The application must ensure that the critical temperature
low limit registers must have a value lower than the temperature low limit registers.
Return to Register Map.
Figure 7-60. MR30: Temperature Sensor Low Limit-Low Byte Configuration Register
7
6
5
4
3
2
1
0
R-0
R-0
TS_LOW_LIMIT_LOW[7:0]
RW-00h
Table 7-26. MR30: Temperature Sensor Low Limit-Low Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_LOW_LIMIT_LOW[7:0]
RW
00h
Low byte of the low limit temperature for the thermal sensor.1
MR31 and MR30 together define the low limit for the thermal
sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.15 MR31: Temperature Sensor Low Limit-High Byte Configuration (address = 1Fh) [reset = 00h]
The status flag for critical low limit is set when the result of the temperature conversion is less than the
programmed value in the MR31 and MR30 registers. The application must ensure that the critical temperature
low limit registers must have a value lower than the temperature low limit registers.
Return to Register Map.
Figure 7-61. MR31: Temperature Sensor Low Limit-High Byte Configuration Register
7
6
5
4
3
2
1
0
TS_LOW_LIMIT_HIGH[7:0]
R-0
R-0
R-0
RW-00h
Table 7-27. MR31: Temperature Sensor Low Limit-High Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_LOW_LIMIT_HIGH[7:0]
RW
00h
High byte of the low limit temperature for the thermal sensor.1
MR31 and MR30 together define the low limit for the thermal
sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.16 MR32: Temperature Sensor Critical High Temperature Limit-Low Byte Configuration (address =
20h) [reset = 50h]
The status flag for critical temperature high limit is set when the result of the temperature conversion is greater
than the programmed value in the MR33 and MR32 registers. The application must ensure that the critical
temperature high limit registers must have a value greater than the temperature high limit registers.
Return to Register Map.
Figure 7-62. MR32: Temperature Sensor Critical Temperature High Limit-Low Byte Configuration Register
7
6
5
4
3
2
1
0
R-0
R-0
TS_CRIT_HIGH_LIMIT_LOW[7:0]
RW-50h
42
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-28. MR32: Temperature Sensor Critical Temperature High Limit-Low Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_CRIT_HIGH_LIMIT_LOW[7:0]
RW
50h
Low byte of the critical high limit temperature for the thermal
sensor.1
MR33 and MR32 together define the critical high limit
temperature for the thermal sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.17 MR33: Temperature Sensor Critical Temperature High Limit-High Byte Configuration (address =
21h) [reset = 05h]
The status flag for critical temperature high limit is set when the result of the temperature conversion is greater
than the programmed value in the MR33 and MR32 registers. The application must ensure that the critical
temperature high limit registers must have a value greater than the temperature high limit registers.
Return to Register Map.
Figure 7-63. MR33: Temperature Sensor Critical Temperature High Limit-High Byte Configuration
Register
7
6
5
4
3
2
1
0
TS_CRIT_HIGH_LIMIT_HIGH[7:0]
R-0
R-0
R-0
RW-05h
Table 7-29. MR33: Temperature Sensor Critical Temperature High Limit-High Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_CRIT_HIGH_LIMIT_HIGH[7:0]
RW
05h
High byte of the critical high limit temperature for the thermal
sensor.1
MR33 and MR32 together define the critical high limit
temperature for the thermal sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.18 MR34: Temperature Sensor Critical Temperature Low Limit-Low Byte Configuration (address =
22h) [reset = 00h]
The status flag for critical temperature low limit is set when the result of the temperature conversion is less than
the programmed value in the MR35 and MR34 registers. The application must ensure that the critical
temperature low limit registers must have a value lesser than the temperature low limit registers.
Return to Register Map.
Figure 7-64. MR34: Temperature Sensor Critical Temperature Low Limit-Low Byte Configuration Register
7
6
5
4
3
2
1
0
R-0
R-0
TS_CRIT_LOW_LIMIT_LOW[7:0]
RW-00h
Table 7-30. MR34: Temperature Sensor Critical Temperature Low Limit-Low Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_CRIT_LOW_LIMIT_LOW[7:0]
RW
00h
Low byte of the critical low limit temperature for the thermal
sensor.1
MR35 and MR34 together define the critical low limit
temperature for the thermal sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
43
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
7.6.19 MR35: Temperature Sensor Critical Temperature Low Limit-High Byte Configuration (address =
23h) [reset = 00h]
The status flag for critical temperature low limit is set when the result of the temperature conversion is less than
the programmed value in the MR35 and MR34 registers. The application must ensure that the critical
temperature low limit registers must have a value lesser than the temperature low limit registers.
Return to Register Map.
Figure 7-65. MR35: Temperature Sensor Critical Temperature Low Limit-High Byte Configuration Register
7
6
5
R-0
R-0
R-0
4
3
2
1
0
TS_CRIT_LOW_LIMIT_HIGH[7:0]
RW-00h
Table 7-31. MR35: Temperature Sensor Critical Temperature Low Limit-High Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_CRIT_LOW_LIMIT_HIGH[7:0]
RW
00h
High byte of the critical low limit temperature for the thermal
sensor.1
MR35 and MR34 together define the critical low limit
temperature for the thermal sensor.
1. The bits marked as R-0, shall not be updated when host writes 1 and shall read as 0.
7.6.20 MR48: Device Status (address = 30h) [reset = 00h]
The MR48 register provides the status of the IBI when the TMP139 is in I3C mode.
Return to Register Map.
Figure 7-66. MR48: Device Status Register
7
6
5
4
3
IBI_STATUS
Reserved
R-0
R-00h
2
1
0
Table 7-32. MR48: Device Status Field Descriptions
Bit
7
6:0
Field
Type
Reset
Description
IBI_STATUS
R
0
Device event In Band Interrupt (IBI) status.
0 = No pending IBI.
1 = Pending IBI.
Reserved
R
00h
Reserved
7.6.21 MR49: Current Sensed Temperature Low Byte (address = 31h) [reset = 00h]
The MR49 register, stores the lower 8-bits of the temperature output from the most recent conversion.
Return to Register Map.
Figure 7-67. MR49: Current Sensed Temperature Low Byte Register
7
6
5
4
3
2
1
0
TS_SENSE_LOW[7:0]
R-00h
44
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-33. MR49: Current Sensed Temperature Low Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_SENSE_LOW[7:0]
R
00h
Low byte of the of the current temperature returned after most
recent conversion by the thermal sensor.
MR50 and MR49 together provide the temperature returned
after the most recent conversion.
7.6.22 MR50: Current Sensed Temperature High Byte (address = 32h) [reset = 00h]
The MR50 register, stores the upper 8-bits of the temperature output from the most recent conversion..
Return to Register Map.
Figure 7-68. MR50: Current Sensed Temperature High Byte Configuration Register
7
6
5
4
3
2
1
0
TS_SENSE_HIGH[7:0]
R-00h
Table 7-34. MR50: Current Sensed Temperature High Byte Field Descriptions
Bit
Field
Type
Reset
Description
7:0
TS_SENSE_HIGH[7:0]
R
00h
High byte of the of the current temperature returned after most
recent conversion by the thermal sensor.
MR49 and MR50 together provide the temperature returned
after the most recent conversion.
7.6.23 MR51: Temperature Status (address = 33h) [reset = 00h]
The MR51 registers stores the status from comparison of the most recent conversion temperature output to each
of the four threshold levels defined in MR28 to MR35.
Return to Register Map.
Figure 7-69. MR51: Temperature Status Register
7
6
5
4
Reserved
3
2
TS_CRIT_LO TS_CRIT_HIG
W_STATUS
H_STATUS
R-0h
R-0
1
0
TS_LOW_STAT TS_HIGH_STAT
US
US
R-0
R-0
R-0
Table 7-35. MR51: Temperature Status Field Descriptions
Bit
Field
6:5
Type
Reset
Description
Reserved
R
00
Reserved
3
TS_CRIT_LOW_STATUS
R
0
Temperature sensor critical low status.
0 = Temperature is above the limit set in registers MR35 and
MR34.
1 = Temperature is below the limit set in registers MR35 and
MR34.
2
TS_CRIT_HIGH_STATUS
R
0
Temperature sensor critical high status.
0 = Temperature is below the limit set in registers MR33 and
MR32.
1 = Temperature is above the limit set in registers MR33 and
MR32.
1
TS_LOW_STATUS
R
0
Temperature sensor low status.
0 = Temperature is above the limit set in registers MR31 and
MR30.
1 = Temperature is below the limit set in registers MR31 and
MR30.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
45
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
Table 7-35. MR51: Temperature Status Field Descriptions (continued)
Bit
0
Field
Type
Reset
Description
TS_HIGH_STATUS
R
0
Temperature sensor high status
0 = Temperature is below the limit set in registers MR29 and
MR28.
1 = Temperature is above the limit set in registers MR29 and
MR28.
7.6.24 MR52: Miscellaneous Error Status (address = 34h) [reset = 00h]
The MR52 register stores the status for PEC checksum failure when PEC mode is enabled and parity error on
the T-bit when the host writes to the device in I3C mode.
Return to Register Map.
Figure 7-70. MR52: Miscellaneous Error Status Register
7
6
5
4
3
Reserved
2
1
0
PEC_ERROR_S PAR_ERROR_S
TATUS
TATUS
R-00h
R-0
R-0
Table 7-36. MR52: Miscellaneous Error Status Field Descriptions
46
Bit
Field
7:2
Type
Reset
Description
Reserved
R
00
Reserved
1
PEC_ERROR_STATUS
R
0
Packet error status.
0 = No PEC error.
1 = PEC error in one or more packets.
0
PAR_ERROR_STATUS
R
0
Parity check error status
0 = No parity error.
1 = Parity error in one or more bytes.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
8 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
8.1 Application Information
The TMP139 is used to measure the temperature of the memory components on a DIMM card. The TMP139
features an I2C and I3C bus, and there can be up to 2 devices on the bus as required by the DDR5 application.
As the TMP139 operates on the I3C bus, the device does not require an external pull up resistor on the SDA or
SCL pin.
8.2 Typical Application
VDDIO = 1.0V
VDDSPD = 1.8V
VDDIO
SDA
SPD Hub
TMP139
VSS
VDDIO
VDDSPD
TMP139
SCL
LSCL
SA
SCL
SDA
LSDA
VDDSPD
SA
VSS
Local Sideband Bus
Figure 8-1. Typical Connections
8.2.1 Design Requirements
The I3C bus does not require an external pullup resistor on the SDA pin as the pullup is embedded in the host
controller. The SCL pin is an input-only pin that is driven by the host controller in push-pull mode, and the pin
must be connected directly. The SA pin can only be connected to the VDDSPD or GND.
8.2.2 Detailed Design Procedure
Place the TMP139 devices in close proximity to the heat source that must be monitored with a proper layout for
good thermal coupling. The placement ensures that the temperature changes are captured within the shortest
possible time interval.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
47
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
8.2.3 Application Curves
Table 8-1 shows the curves for this application example.
Table 8-1. Table of Graphs
NAME
GRAPH
Temperature Error vs Temperature
Figure 6-8
Active Conversion Current vs Temperature
Figure 6-9
Average Current vs Temperature
Figure 6-10
Standby Current vs Temperature
Figure 6-11
Shutdown Current vs Temperature
Figure 6-12
Sampling Rate Change
Figure 6-13
9 Power Supply Recommendations
The TMP139 operates with dual supply pins. The supply VDDIO is used for the bus interface and operates in the
range of 0.95 V to 1.05 V. The pin VDDSPD is used as the supply for the core and operates in the range of 1.7 V
to 1.98 V. A power-supply bypass capacitor is required for precision and stability. Place these power-supply
capacitors as close to the supply and ground pins of the device as possible. A typical value of these supply
bypass capacitor is 0.01 µF. Applications with noisy or high-impedance power supplies can require a bigger
bypass capacitor to reject power-supply noise.
48
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
10 Layout
10.1 Layout Guidelines
Place the power-supply bypass capacitor as close as possible to the supply and ground pins as possible. The
recommended value of this bypass capacitor is 0.01 µF. The SCL does not require a pull up as it is driven in
push-pull mode by the hub device. The SDA does not require an external pull up, as in I3C the pull up resistor is
integrated in the hub device as well.
10.2 Layout Example
Via to Ground Plane
Via to Power Plane or Trace
SCL
VDDIO
SCL
VDDIO
0.01µF
SDA
SA
0.01µF
SDA
SA
0.01µF
VSS
VDDSPD
0.01µF
VSS
VDDSPD
Figure 10-1. Layout Example
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
49
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
11 Device and Documentation Support
11.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on
Subscribe to updates to register and receive a weekly digest of any product information that has changed. For
change details, review the revision history included in any revised document.
11.2 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
11.3 Trademarks
TI E2E™ is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
11.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
11.5 Glossary
TI Glossary
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
50
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
PACKAGE OUTLINE
YAH0006-C01
DSBGA - 0.4 mm max height
SCALE 11.000
DIE SIZE BALL GRID ARRAY
0.848
0.808
B
A
BALL A1
CORNER
1.348
1.308
C
0.4 MAX
SEATING PLANE
0.17
0.11
0.05 C
0.5
TYP
C
SYMM
1
TYP
B
0.5
TYP
A
6X
0.015
0.24
0.20
C A B
1
2
SYMM
4226160/A 08/2020
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
51
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
EXAMPLE BOARD LAYOUT
YAH0006-C01
DSBGA - 0.4 mm max height
DIE SIZE BALL GRID ARRAY
(0.5) TYP
6X ( 0.2)
2
1
A
(0.5) TYP
SYMM
B
C
SYMM
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 50X
0.05 MAX
0.05 MIN
METAL UNDER
SOLDER MASK
( 0.2)
METAL
SOLDER MASK
OPENING
EXPOSED
METAL
( 0.2)
SOLDER MASK
OPENING
EXPOSED
METAL
SOLDER MASK
DEFINED
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK DETAILS
NOT TO SCALE
4226160/A 08/2020
NOTES: (continued)
3. Final dimensions may vary due to manufacturing tolerance considerations and also routing constraints.
See Texas Instruments Literature No. SNVA009 (www.ti.com/lit/snva009).
www.ti.com
52
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
TMP139
www.ti.com
SNIS217 – DECEMBER 2020
EXAMPLE STENCIL DESIGN
YAH0006-C01
DSBGA - 0.4 mm max height
DIE SIZE BALL GRID ARRAY
(0.5) TYP
(R0.05) TYP
6X ( 0.21)
1
2
A
(0.5) TYP
SYMM
B
METAL
TYP
C
SYMM
SOLDER PASTE EXAMPLE
BASED ON 0.075 mm THICK STENCIL
SCALE: 50X
4226160/A 08/2020
NOTES: (continued)
4. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release.
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMP139
53
PACKAGE OPTION ADDENDUM
www.ti.com
1-Jan-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TMP139AIYAHR
ACTIVE
DSBGA
YAH
6
12000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
28VL
TMP139AIYAHT
ACTIVE
DSBGA
YAH
6
250
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
28VL
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
