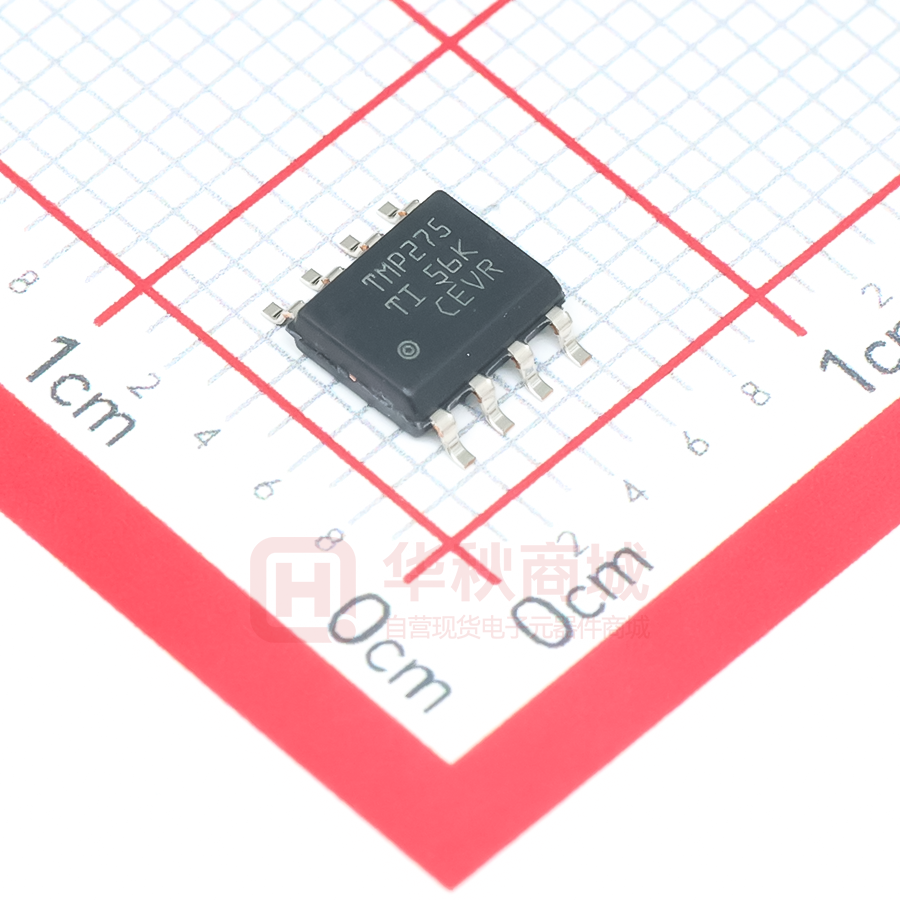

TMP275AIDR

Order Now Product Folder Support & Community Tools & Software Technical Documents TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 TMP275 具有 I2C 和 SMBus 接口的 ±0.5°C 温度传感器（采用行业标准 LM75 尺寸和引脚） 1 特性 • 1 • • • • • • • 3 说明 高精度： – −20°C 至 100°C 范围内为 ±0.5°C（最大值） – −40°C 至 125°C 范围内为 ±1°C（最大值） 低静态电流： – 50μA（典型值） – 0.1μA（待机状态） 分辨率：9 至 12 位，用户可选 数字输出： SMBus™、两线制和 I2C 接口兼容性 8 个 I2C/系统管理总线 (SMBus) 地址 宽电源电压范围：2.7V 至 5.5V 小型 VSSOP-8 和 SOIC-8 封装 无需指定上电序列，可在 V+ 之前使能双线制总线 上拉 2 应用 • • • • • • • • • 电源温度监控 计算机外设过热保护 电池管理 办公机器 服务器 恒温器控制 环境监测和供热通风与空气调节 (HVAC) 机电器件温度 数据记录器 简化电路原理图 TMP275 器件 特有 系统管理总线 (SMBus) 和两线制 接口兼容性，并且可在同一总线上，借助 SMBus 过热 报警功能支持多达 8 个器件。厂家校准的温度精度和 抗扰数字接口使得 TMP275 成为其他传感器和电子元 器件温度补偿的首选解决方案，而且无需针对分布式温 度感测进行额外的系统级校准或复杂的电路板布局布 线。 器件信息(1) 器件型号 封装 TMP275 SDA 1 0.01 µF SCL 2 3 4 SDA SCL TMP275 V+ A0 3.00mm × 3.00mm ALERT Diode Temp. Sensor Control Logic 2 8 7 VSSOP (8) Temperature 5k 1 4.90mm × 3.91mm 内部框图 Supply Bypass Capacitor Two-Wire Host Controller 封装尺寸（标称值） SOIC (8) (1) 如需了解所有可用封装，请参阅数据表末尾的封装选项附录。 Supply Voltage 2.7V to 5.5V Pullup Resistors TMP275是一款具有 12 位模数转换器 (ADC) 的 ±0.5°C 精密集成数字温度传感器，可在低至 2.7V 的 电源电压下运行，并且可与德州仪器 (TI) 的 LM75、 TMP75、TMP75B 和 TMP175 器件实现引脚和寄存器 兼容。此器件采用 SOIC-8 和 VSSOP-8 两种封装，不 需要外部组件便可测温。TMP275 能够以最高 0.0625°C（12 位），最低 0.5°C（9 位）的分辨率读 取温度，从而允许用户编程更高的分辨率或更短的转换 时间来最大限度地提升效率。器件的额定工作温度范围 为 –40°C 至 125°C。 3 8 7 ΔΣ A/D Converter V+ A0 Serial Interface 6 A1 6 ALERT A1 GND A2 5 GND 4 OSC Config. and Temp. Register 5 A2 1 本文档旨在为方便起见，提供有关 TI 产品中文版本的信息，以确认产品的概要。 有关适用的官方英文版本的最新信息，请访问 www.ti.com，其内容始终优先。 TI 不保证翻译的准确 性和有效性。 在实际设计之前，请务必参考最新版本的英文版本。 English Data Sheet: SBOS363 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 目录 1 2 3 4 5 6 7 特性 .......................................................................... 应用 .......................................................................... 说明 .......................................................................... 修订历史记录 ........................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 4 4 4 4 5 6 7 Absolute Maximum Ratings ...................................... ESD Ratings ............................................................ Recommended Operating Conditions....................... Thermal Information ................................................. Electrical Characteristics........................................... Timing Requirements ................................................ Typical Characteristics .............................................. Detailed Description .............................................. 8 7.1 Overview ................................................................... 8 7.2 Functional Block Diagram ......................................... 8 7.3 Feature Description................................................... 8 7.4 Device Functional Modes........................................ 14 7.5 Programming .......................................................... 15 8 Application and Implementation ........................ 19 8.1 Application Information............................................ 19 8.2 Typical Applications ................................................ 19 9 Power Supply Recommendations...................... 22 10 Layout................................................................... 22 10.1 Layout Guidelines ................................................. 22 10.2 Layout Example .................................................... 23 11 器件和文档支持 ..................................................... 24 11.1 11.2 11.3 11.4 11.5 文档支持................................................................ 社区资源................................................................ 商标 ....................................................................... 静电放电警告......................................................... 术语表 ................................................................... 24 24 24 24 24 12 机械、封装和可订购信息 ....................................... 24 4 修订历史记录 注：之前版本的页码可能与当前版本有所不同。 Changes from Revision E (November 2015) to Revision F Page • Added repeatability parameter to the Electrical Characteristics table .................................................................................... 5 • Added long-term drift parameter to the Electrical Characteristics table ................................................................................. 5 Changes from Revision D (August 2007) to Revision E Page • 已添加 处理额定值表，特性 说明部分，器件功能模式，应用和实施部分，电源相关建议部分，布局部分，器件和文档 支持部分以及机械、封装和可订购信息部分 .......................................................................................................................... 1 • Changed the Timing Requirements table with new I2C data. Updated affected values throughout the data sheet .............. 6 2 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 5 Pin Configuration and Functions D and DGK Packages 8-Pin SOIC and 8-Pin VSSOP Top View SDA 1 8 V+ SCL 2 7 A0 ALERT 3 6 A1 GND 4 5 A2 Pin Functions PIN NO. NAME I/O DESCRIPTION Serail data. Open-drain output; requires a pullup resistor. 1 SDA I/O 2 SCL I Serial clock. Open-drain output; requires a pullpup resistor. 3 ALERT O Overtemperature alert. Open-drain output; requires a pullup resistor. 4 GND — Ground 5 A2 I Address select. Connect to GND or V+. 6 A1 I Address select. Connect to GND or V+. 7 A0 I Address select. Connect to GND or V+. 8 V+ I Supply voltage, 2.7 to 5.5 V Copyright © 2006–2018, Texas Instruments Incorporated 3 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN Power supply, V+ Input voltage (2) –0.5 Input current Operating temperature –55 Junction temperature, TJ max, Storage temperature, Tstg (1) (2) –60 MAX UNIT 7 V 7 V 10 mA 127 °C 150 °C 130 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.2 ESD Ratings VALUE Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1) V(ESD) (1) (2) UNIT ±4000 Electrostatic Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2) discharge Machine Model (MM) ±1000 V ±300 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN NOM MAX Supply voltage 2.7 5.5 UNIT V Operating free-air temperature, TA –40 125 °C 6.4 Thermal Information TMP275 THERMAL METRIC (1) D (SOIC) AND DGK (VSSOP) UNIT 8 PINS RθJA Junction-to-ambient thermal resistance 120 °C/W RθJC(top) Junction-to-case (top) thermal resistance 66.7 °C/W RθJB Junction-to-board thermal resistance 60.4 °C/W ψJT Junction-to-top characterization parameter 17.8 °C/W ψJB Junction-to-board characterization parameter 59.9 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W (1) 4 For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 6.5 Electrical Characteristics at TA = −40°C to +125°C, and V+ = 2.7 V to 5.5 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 125 °C –20°C to 100°C, V+ = 3.3 V ±0.0625 ±0.5 °C 0°C to 100°C, V+ = 3 V to 3.6 V ±0.0625 ±0.75 °C –40°C to 125°C, V+ = 3 V to 3.6 V ±0.0625 ±1 °C 25°C to 100°C, V+ = 3.3 V to 5.5 V 0.2 ±1.5 °C TEMPERATURE INPUT Range –40 Accuracy (Temperature Error) Resolution (1) Selectable Repeatability (2) Long-term drift (4) 0.0625 °C 25°C, V+= 3.3 V (3) ±0.0625 °C 500 hours at 150°C ±0.0625 °C DIGITAL INPUT/OUTPUT Input Capacitance 3 Input logic level, HIGH, VIH Input logic level, LOW, VIL pF 0.7(V+) 6 −0.5 0.3(V+) V 1 µA Leakage Input Current, IIN 0 V ≤ VIN ≤ 6 V Input Voltage Hysteresis SCL and SDA pins SDA Output logic level, LOW, VOL IOL = 3 mA 0 0.15 0.4 ALERT Output logic level, HIGH, VOL IOL = 4 mA 0 0.15 0.4 Resolution Selectable 500 Coversion Time mV 9 to 12 9-Bit V V V Bits 27.5 37.5 ms 10-Bit 55 75 ms 11-Bit 110 150 ms 12-Bit 220 300 ms 54 74 ms Time-out time 25 POWER SUPPLY Operating range 2.7 Serial bus inactive Quiescent Current, IQ Shutdown Current, ISD 50 5.5 V 85 µA Serial bus active, SCL freq = 400 kHz 100 Serial bus active, SCL freq = 3.4 MHz 410 µA Serial bus inactive 0.1 Serial bus active, SCL freq = 400 kHz 60 µA Serial bus active, SCL freq = 3.4 MHz 380 µA µA 3 µA TEMPERATURE RANGE Specified Range –40 125 °C Operating Range –55 127 °C (1) (2) (3) (4) Specified for 12-bit resolution. Repeatability is the ability to reproduce a reading when the measured temperature is applied consecutively, under the same conditions. One-shot mode setup, 1 sample per minute for 24 hours. Long-term drift is determined using accelerated operational life testing at a junction temperature of 150°C. Copyright © 2006–2018, Texas Instruments Incorporated 5 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 6.6 Timing Requirements See the Timing Diagrams section for timing diagrams. (1) FAST MODE UNIT MIN MAX MIN MAX 0.001 0.4 0.001 2.38 ƒ(SCL) SCL operating frequency t(BUF) Bus-free time between STOP and START condition t(HDSTA) Hold time after repeated START condition. After this period, the first clock is generated. t(SUSTA) Repeated start condition setup time t(SUSTO) STOP condition setup time t(HDDAT) Data hold time t(SUDAT) Data setup time t(LOW) SCL-clock low period V+ , see Timing Diagrams t(HIGH) SCL-clock high period See Timing Diagrams tFD Data fall time See Timing Diagrams 300 150 ns See Timing Diagrams 300 40 ns tRC Clock rise time SCLK ≤ 100 kHz, See Timing Diagrams tFC Clock fall time See Timing Diagrams (1) 6 V+ HIGH-SPEED MODE See Timing Diagrams MHz 1300 160 ns 600 160 ns 600 160 ns 600 4 160 900 4 ns 120 ns 100 10 ns 1300 280 ns 600 60 ns 1000 300 ns 40 ns Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are not specified and not production tested. Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 6.7 Typical Characteristics at TA = 25°C and V+ = 5 V (unless otherwise noted) 85 1.0 0.9 75 0.8 0.7 0.6 V+ = 5 V ISD (μA) IQ (μA) 65 55 0.5 0.4 0.3 45 0.2 V+ = 2..7V 0.1 35 0.0 Serial Bus Inactive −0.1 25 −55 −35 −15 5 25 45 65 85 105 125 130 −55 −35 −15 5 25 Temperature (°C) 45 65 85 105 125 130 Te mperature (°C) Figure 1. Quiescent Current vs Temperature Figure 2. Shutdown Current vs Temperature 0.500 300 250 200 Tempe rature Error (°C) Conversion Time (ms) 0.375 V+ = 5 V V+ = 2..7 V 150 0.250 0.125 0 −0.125 −0.250 −0.375 12-bit resolution −0.500 100 −55 −35 −15 5 25 45 65 85 105 −55 125 130 −35 −15 5 25 45 65 85 105 125 130 Temperature (° C) Te mperature (°C) Figure 4. Temperature Error vs Temperature Figure 3. Conversion Time vs Temperature 500 Hs MODE FAST MODE 450 400 Population IQ (μA) 350 300 250 200 125°C 150 25°C 100 50 Figure 5. Quiescent Current with Bus Activity vs Temperature Copyright © 2006–2018, Texas Instruments Incorporated 0.50 0.40 0.30 0.20 0.10 0.00 10M −0.10 1M −0.20 100k Frequency (Hz) −0.30 10k −0.40 1k −0.50 −55°C 0 Temperature Error (° C) Figure 6. Temperature Error at 25°C 7 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 7 Detailed Description 7.1 Overview The TMP275 is a digital temperature sensor that is optimal for thermal management and thermal protection applications. The TMP275 is Two-Wire, SMBus, and I2C interface-compatible, and is specified over a temperature range of −40°C to 125°C. The temperature sensor in the TMP275 is the chip itself. Thermal paths run through the package leads as well as the plastic package. The package leads provide the primary thermal path because of the lower thermal resistance of the metal. See Functional Block Diagram for the internal block diagram of TMP275 device. 7.2 Functional Block Diagram Temperature SDA SCL ALERT GND 1 Diode Temp. Sensor Control Logic 2 3 4 8 7 ΔΣ A/D Converter OSC V+ A0 Serial Interface 6 Config. and Temp. Register 5 A1 A2 7.3 Feature Description 7.3.1 Digital Temperature Output The temperature register of the TMP275 is a 12-bit, read-only register that stores the output of the most recent conversion. Two bytes must be read to obtain data, and are described in Figure 13 and Figure 14. Note that byte 1 is the most significant byte, followed by byte 2, the least significant byte. The first 12 bits are used to indicate temperature, with all remaining bits equal to zero. The least significant byte does not have to be read if that information is not needed. Data format for temperature is summarized in Table 1. Following power up or reset, the Temperature Register reads 0°C until the first conversion is complete. The user can obtain 9, 10, 11, or 12 bits of resolution by addressing the Configuration Register and setting the resolution bits accordingly. For 9-, 10-, or 11-bit resolution, the most significant bits in the Temperature Register are used with the unused LSBs set to zero Table 1. Temperature Data Format 8 TEMPERATURE (°C) DIGITAL OUTPUT (BINARY) HEX 128 0111 1111 1111 7FF 127.9375 0111 1111 1111 7FF 100 0110 0100 0000 640 80 0101 0000 0000 500 75 0100 1011 0000 4B0 50 0011 0010 0000 320 25 0001 1001 0000 190 0.25 0000 0000 0100 004 0 0000 0000 0000 000 –0.25 1111 1111 1100 FFC –25 1110 0111 0000 E70 –55 1100 1001 0000 C90 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 7.3.2 Serial Interface The TMP275 operates only as slave devices on the SMBus, Two-Wire, and I2C interface-compatible bus. Connections to the bus are made through the open-drain I/O lines SDA and SCL. The SDA and SCL pins feature integrated spike suppression filters and Schmitt triggers to minimize the effects of input spikes and bus noise. The TMP275 supports the transmission protocol for fast (up to 400 kHz) and high-speed (up to 2.38 MHz) modes. All data bytes are transmitted MSB first. 7.3.3 Bus Overview The device that initiates the transfer is called a master, and the devices controlled by the master are slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates the START and STOP conditions. To address a specific device, a START condition is initiated, indicated by pulling the data-line (SDA) from a HIGH to LOW logic level while SCL is HIGH. All slaves on the bus shift in the slave address byte, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the slave being addressed responds to the master by generating an Acknowledge and pulling SDA LOW. Data transfer is then initiated and sent over eight clock pulses followed by an Acknowledge Bit. During data transfer SDA must remain stable while SCL is HIGH, as any change in SDA while SCL is HIGH will be interpreted as a control signal. Once all data has been transferred, the master generates a STOP condition indicated by pulling SDA from LOW to HIGH, while SCL is HIGH. 7.3.4 Serial Bus Address To communicate with the TMP275, the master must first address slave devices through a slave address byte. The slave address byte consists of 7 address bits, and a direction bit indicating the intent of executing a read or write operation. The TMP275 features three address pins, allowing up to eight devices to be connected per bus. Pin logic levels are described in Table 2. The address pins of the TMP275 are read after reset, at start of communication, or in response to a Two-Wire address acquire request. Following reading the state of the pins the address is latched to minimize power dissipation associated with detection. Table 2. Address Pins and Slave Addresses for the TMP275 A2 A1 A0 SLAVE ADDRESS 0 0 0 1001000 0 0 1 1001001 0 1 0 1001010 0 1 1 1001011 1 0 0 1001100 1 0 1 1001101 1 1 0 1001110 1 1 1 1001111 7.3.4.1 Writing and Reading to the TMP275 Accessing a particular register on the TMP275 is accomplished by writing the appropriate value to the Pointer Register. The value for the Pointer Register is the first byte transferred after the slave address byte with the R/W bit LOW. Every write operation to the TMP275 requires a value for the Pointer Register (see Figure 8). Copyright © 2006–2018, Texas Instruments Incorporated 9 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn When reading from the TMP275, the last value stored in the Pointer Register by a write operation is used to determine which register is read by a read operation. To change the register pointer for a read operation, a new value must be written to the Pointer Register. This is accomplished by issuing a slave address byte with the R/W bit LOW, followed by the Pointer Register Byte. No additional data is required. The master can then generate a START condition and send the slave address byte with the R/W bit HIGH to initiate the read command. See Figure 9 for details of this sequence. If repeated reads from the same register are desired, it is not necessary to continually send the Pointer Register bytes, as the TMP275 remembers the Pointer Register value until it is changed by the next write operation. Note that register bytes are sent most-significant byte first, followed by the least significant byte. 7.3.4.2 Slave Mode Operations The TMP275 can operate as a slave receiver or slave transmitter. 7.3.4.2.1 Slave Receiver Mode The first byte transmitted by the master is the slave address, with the R/W bit LOW. The TMP275 then acknowledges reception of a valid address. The next byte transmitted by the master is the Pointer Register. The TMP275 then acknowledges reception of the Pointer Register byte. The next byte or bytes are written to the register addressed by the Pointer Register. The TMP275 acknowledges reception of each data byte. The master may terminate data transfer by generating a START or STOP condition. 7.3.4.2.2 Slave Transmitter Mode The first byte is transmitted by the master and is the slave address, with the R/W bit HIGH. The slave acknowledges reception of a valid slave address. The next byte is transmitted by the slave and is the most significant byte of the register indicated by the Pointer Register. The master acknowledges reception of the data byte. The next byte transmitted by the slave is the least significant byte. The master acknowledges reception of the data byte. The master may terminate data transfer by generating a Not-Acknowledge on reception of any data byte, or generating a START or STOP condition. 7.3.4.3 SMBus Alert Function The TMP275 supports the SMBus Alert function. When the TMP275 is operating in Interrupt Mode (TM = 1), the ALERT pin of the TMP275 may be connected as an SMBus Alert signal. When a master senses that an ALERT condition is present on the ALERT line, the master sends an SMBus Alert command (00011001) on the bus. If the ALERT pin of the TMP275 is active, the device acknowledges the SMBus Alert command and responds by returning its slave address on the SDA line. The eighth bit (LSB) of the slave address byte indicates if the temperature exceeding THIGH or falling below TLOW caused the ALERT condition. This bit will be HIGH if the temperature is greater than or equal to THIGH. This bit will be LOW if the temperature is less than TLOW. Refer to Figure 10 for details of this sequence. If multiple devices on the bus respond to the SMBus Alert command, arbitration during the slave address portion of the SMBus Alert command determines which device clears its ALERT status. If the TMP275 wins the arbitration, its ALERT pin becomes inactive at the completion of the SMBus Alert command. If the TMP275 loses the arbitration, its ALERT pin remains active. 7.3.4.4 General Call The TMP275 responds to a Two-Wire General Call address (0000000) if the eighth bit is 0. The device acknowledges the General Call address and responds to commands in the second byte. If the second byte is 00000100, the TMP275 latches the status of their address pins, but will not reset. If the second byte is 00000110, the TMP275 latches the status of their address pins and reset their internal registers to their power-up values. 10 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 7.3.4.5 High-Speed Mode For the Two-Wire bus to operate at frequencies above 400 kHz, the master device must issue an Hs-mode master code (00001XXX) as the first byte after a START condition to switch the bus to high-speed operation. The TMP1275 device will not acknowledge this byte, but will switch their input filters on SDA and SCL and their output filters on SDA to operate in Hs-mode, allowing transfers at up to 2.38 MHz. After the Hs-mode master code has been issued, the master will transmit a Two-Wire slave address to initiate a data transfer operation. The bus will continue to operate in Hs-mode until a STOP condition occurs on the bus. Upon receiving the STOP condition, the TMP275 switches the input and output filter back to fast-mode operation. 7.3.4.6 Time-Out Function The TMP275 resets the serial interface if either SCL or SDA is held LOW for 54 ms (typical) between a START and STOP condition. The TMP275 releases the bus if it is pulled LOW and waits for a START condition. To avoid activating the time-out function, it is necessary to maintain a communication speed of at least 1 kHz for SCL operating frequency. 7.3.5 Timing Diagrams The TMP275 is Two-Wire, SMBUs, and I2C interface-compatible. Figure 7 to Figure 10 describe the various operations on the TMP275. Bus definitions are given below. Parameters for Figure 7 are defined in Timing Requirements. Bus Idle: Both SDA and SCL lines remain HIGH. Start Data Transfer: A change in the state of the SDA line, from HIGH to LOW, while the SCL line is HIGH, defines a START condition. Each data transfer is initiated with a START condition. Stop Data Transfer: A change in the state of the SDA line from LOW to HIGH while the SCL line is HIGH defines a STOP condition. Each data transfer is terminated with a repeated START or STOP condition. Data Transfer: The number of data bytes transferred between a START and a STOP condition is not limited and is determined by the master device. The receiver acknowledges the transfer of data. Acknowledge: Each receiving device, when addressed, is obliged to generate an Acknowledge bit. A device that acknowledges must pull down the SDA line during the Acknowledge clock pulse in such a way that the SDA line is stable LOW during the HIGH period of the Acknowledge clock pulse. Setup and hold times must be taken into account. On a master receive, the termination of the data transfer can be signaled by the master generating a Not-Acknowledge on the last byte that has been transmitted by the slave. 7.3.6 Two-Wire Timing Diagrams t(LOW) tF tR t(HDSTA) SCL t(HDSTA) t(HIGH) t(HDDAT) t(SUSTO) t(SUSTA) t(SUDAT) SDA t(BUF) P S S P Figure 7. Two-Wire Timing Diagram Copyright © 2006–2018, Texas Instruments Incorporated 11 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 1 9 1 9 … SCL SDA 1 0 0 1 A2 A1 A0 R/W Start By Master 0 0 0 0 0 0 P1 ACK By TMP275 … P0 ACK By TMP275 Frame 2 Pointer Register Byte Frame 1Two–Wire Slave Address Byte 1 9 1 9 SCL (Continued) SDA (Continued) D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 ACK By TMP275 Frame 3 Data Byte 1 D0 ACK By TMP275 Stop By Master Frame 4 Data Byte 2 Figure 8. Two-Wire Timing Diagram for TMP275 Write Word Format 12 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 1 9 1 9 … SCL SDA 1 0 0 1 0 0 0 R/W Start By Master 0 0 0 0 0 0 P1 … P0 ACK By TMP275 ACK By TMP275 Frame 2 Pointer Register Byte Frame 1 Two–Wire Slave Address Byte 1 9 1 9 … SCL (Continued) SDA (Continued) 1 0 0 0 1 0 0 D7 R/W Start By Master D6 D5 D4 D3 D2 ACK By TMP275 … D0 From TMP275 ACK By Master Frame 4 Data Byte 1 Read Register Frame 3 Two–Wire Slave Address Byte 1 D1 9 SCL (Continued) SDA (Continued) D7 D6 D5 D4 D3 D2 D1 D0 From TMP275 ACK By Master Stop By Master Frame 5 Data Byte 2 Read Register NOTE: Address Pins A0, A1, A2 = 0 Figure 9. Two-Wire Timing Diagram for Read Word Format ALERT 1 9 1 9 SCL SDA 0 0 0 1 1 Start By Master 0 0 R/W 1 0 0 1 0 ACK By TMP275 0 0 S ta t u s From TMP275 NACK By Master Stop By Master Frame 1 SMBus ALERT Response Address Byte NOTE: Address Pins A0, A1, A2 =0 Figure 10. Timing Diagram for SMBus ALERT Copyright © 2006–2018, Texas Instruments Incorporated 13 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 7.4 Device Functional Modes 7.4.1 Shutdown Mode (SD) The Shutdown Mode of the TMP275 allows the user to save maximum power by shutting down all device circuitry other than the serial interface, which reduces current consumption to typically less than 0.1 μA. Shutdown Mode is enabled when the SD bit is 1; the device will shut down once the current conversion is completed. When SD is equal to 0, the device maintains a continuous conversion state. 7.4.2 Thermostat Mode (TM) The Thermostat Mode bit of the TMP275 indicates to the device whether to operate in Comparator Mode (TM = 0) or Interrupt Mode (TM = 1). For more information on comparator and interrupt modes, see the High and Low Limit Registers section. 7.4.2.1 Comparator Mode (TM = 0) In Comparator mode (TM = 0), the ALERT pin is activated when the temperature equals or exceeds the value in the T(HIGH) register and it remains active until the temperature falls below the value in the T(LOW) register. For more information on the comparator mode, see the High and Low Limit Registers section. 7.4.2.2 Interrupt Mode (TM = 1) In Interrupt mode (TM = 1), the ALERT pin is activated when the temperature exceeds T(HIGH) or goes below T(LOW) registers. The ALERT pin is cleared when the host controller reads the temperature register. For more information on the interrupt mode, see the High and Low Limit Registers section. 7.4.3 One-Shot (OS) The TMP275 features a One-Shot Temperature Measurement Mode. When the device is in Shutdown Mode, writing a ‘1’ to the OS bit starts a single temperature conversion. The device returns to the shutdown state at the completion of the single conversion. This mode is useful for reducing power consumption in the TMP275 when continuous temperature monitoring is not required. When the configuration register is read, the OS always reads zero. 14 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 7.5 Programming 7.5.1 Pointer Register Figure 11 shows the internal register structure of the TMP275. The 8-bit Pointer Register of the devices is used to address a given data register. The Pointer Register uses the two LSBs to identify which of the data registers should respond to a read or write command. Figure 12 identifies the bits of the Pointer Register byte. Table 3 describes the pointer address of the registers available in the TMP275. Power-up reset value of P1/P0 is 00. Pointer Register Temperature Register SCL Configuration Register I/O Control Interface TLOW Register SDA THIGH Register Figure 11. Internal Register Structure of the TMP275 7.5.1.1 Pointer Register Byte (offset = N/A) [reset = 00h] Figure 12. Pointer Register Byte P7 0 P6 0 P5 0 P4 0 P3 0 P2 0 P1 P0 Register Bits 7.5.1.2 Pointer Addresses of the TMP275 Table 3. Pointer Addresses of the TMP275 Field Description P1 P0 TYPE REGISTER 0 0 R only, default Temperature Register 0 1 R/W Configuration Register 1 0 R/W TLOW Register 1 1 R/W THIGH Register 7.5.2 Temperature Register The Temperature Register of the TMP275 is a 12-bit, read-only register that stores the output of the most recent conversion. Two bytes must be read to obtain data, and are described in Figure 13 and Figure 14. Note that byte 1 is the most significant byte, followed by byte 2, the least significant byte. The first 12 bits are used to indicate temperature, with all remaining bits equal to zero. The least significant byte does not have to be read if that information is not needed. Data format for temperature is summarized in Table 1. Following power up or reset, the Temperature Register reads 0°C until the first conversion is complete. Copyright © 2006–2018, Texas Instruments Incorporated 15 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn Figure 13. Byte 1 of Temperature Register D7 T11 D6 T10 D5 T9 D4 T8 D3 T7 D2 T6 D1 T5 D0 T4 D1 0 D0 0 Figure 14. Byte 2 of Temperature Register D7 T3 D6 T2 D5 T1 D4 T0 D3 0 D2 0 7.5.3 Configuration Register The Configuration Register is an 8-bit read/write register used to store bits that control the operational modes of the temperature sensor. Read/write operations are performed MSB first. The format of the Configuration Register for the TMP275 is shown in Table 4, followed by a breakdown of the register bits. The power-up/reset value of the Configuration Register is all bits equal to 0. Table 4. Configuration Register Format BYTE D7 D6 D5 D4 D3 D2 D1 D0 1 OS R1 R0 F1 F0 POL TM SD 7.5.4 Shutdown Mode (SD) The Shutdown Mode of the TMP275 allows the user to save maximum power by shutting down all device circuitry other than the serial interface, which reduces current consumption to typically less than 0.1 μA. Shutdown Mode is enabled when the SD bit is 1; the device shuts down once the current conversion is completed. When SD is equal to 0, the device maintains a continuous conversion state. 7.5.5 Thermostat Mode (TM) The Thermostat Mode bit of the TMP275 indicates to the device whether to operate in Comparator Mode (TM = 0) or Interrupt Mode (TM = 1). For more information on Comparator and Interrupt modes, see the High and Low Limit Registers section. 7.5.6 Polarity (POL) The Polarity Bit of the TMP275 allows the user to adjust the polarity of the ALERT pin output. If POL = 0, the ALERT pin is active LOW, as shown in Figure 15. For POL = 1, the ALERT pin is active HIGH, and the state of the ALERT pin is inverted. 16 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 T HIG H Measured Temperature TL O W TMP275 ALER T PIN (Comparator Mode) POL =0 TMP275 ALER T PIN (Interrupt Mode) POL =0 TMP275 ALER T PIN (Comparator Mode) POL =1 TMP275 ALER T PIN (Interrupt Mode) POL =1 Read Read Read Time Figure 15. Output Transfer Function Diagrams 7.5.7 Fault Queue (F1/F0) A fault condition is defined as when the measured temperature exceeds the user-defined limits set in the THIGH and TLOW Registers. Additionally, the number of fault conditions required to generate an alert may be programmed using the fault queue. The fault queue is provided to prevent a false alert as a result of environmental noise. The fault queue requires consecutive fault measurements to trigger the alert function. Table 5 defines the number of measured faults that may be programmed to trigger an alert condition in the device. For THIGH and TLOW register format and byte order, see the section High and Low Limit Registers. Table 5. Fault Settings F1 F0 CONSECUTIVE FAULTS 0 0 1 0 1 2 1 0 4 1 1 6 7.5.8 Converter Resolution (R1/R0) The converter resolution bits control the resolution of the internal analog-to-digital (A/D) converter. This control allows the user to maximize efficiency by programming for higher resolution or faster conversion time. Table 6 identifies the Resolution Bits and the relationship between resolution and conversion time. Table 6. Resolution of the TMP275 RESOLUTION CONVERSION TIME (typical) 0 9 Bits (0.5°C) 27.5ms 1 10 Bits (0.25°C) 55ms 0 11 Bits (0.125°C) 110ms 1 12 Bits (0.0625°C) 220ms R1 R0 0 0 1 1 Copyright © 2006–2018, Texas Instruments Incorporated 17 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 7.5.9 One-Shot (OS) The TMP275 features a One-Shot Temperature Measurement Mode. When the device is in Shutdown Mode, writing a ‘1’ to the OS bit starts a single temperature conversion. The device returns to the shutdown state at the completion of the single conversion. This mode is useful for reducing power consumption in the TMP275 when continuous temperature monitoring is not required. When the configuration register is read, the OS always reads zero. 7.5.10 High and Low Limit Registers In Comparator Mode (TM = 0), the ALERT pin of the TMP275 becomes active when the temperature equals or exceeds the value in THIGH and generates a consecutive number of faults according to fault bits F1 and F0. The ALERT pin remains active until the temperature falls below the indicated TLOW value for the same number of faults. In Interrupt Mode (TM = 1), the ALERT pin becomes active when the temperature equals or exceeds THIGH for a consecutive number of fault conditions. The ALERT pin remains active until a read operation of any register occurs, or the device successfully responds to the SMBus Alert Response Address. The ALERT pin is also cleared if the device is placed in Shutdown Mode. Once the ALERT pin is cleared, it only becomes active again by the temperature falling below TLOW. When the temperature falls below TLOW, the ALERT pin becomes active and remain active until cleared by a read operation of any register or a successful response to the SMBus Alert Response Address. Once the ALERT pin is cleared, the above cycle repeats, with the ALERT pin becoming active when the temperature equals or exceeds THIGH. The ALERT pin can also be cleared by resetting the device with the General Call Reset command. This command also clears the state of the internal registers in the device, returning the device to Comparator Mode (TM = 0). Both operational modes are represented in Figure 15. Table 7, Table 8, Table 9, and Table 10 describe the format for the THIGH and TLOW registers. Note that the most significant byte is sent first, followed by the least significant byte. Power-up reset values for THIGH and TLOW are: THIGH = 80°C and TLOW = 75°C The format of the data for THIGH and TLOW is the same as for the Temperature Register. Table 7. Byte 1 THIGH Register BYTE D7 D6 D5 D4 D3 D2 D1 D0 1 H11 H10 H9 H8 H7 H6 H5 H4 Table 8. Byte 2 of THIGH Register BYTE D7 D6 D5 D4 D3 D2 D1 D0 2 H3 H2 H1 H0 0 0 0 0 Table 9. Byte 1 TLOW Register BYTE D7 D6 D5 D4 D3 D2 D1 D0 1 L11 L10 L9 L8 L7 L6 L5 L4 BYTE D7 D6 D5 D4 D3 D2 D1 D0 2 L3 L2 L1 L0 0 0 0 0 Table 10. Byte 2 of TLOW Register All 12 bits for the Temperature, THIGH, and TLOW registers are used in the comparisons for the ALERT function for all converter resolutions. The three LSBs in THIGH and TLOW can affect the ALERT output even if the converter is configured for 9-bit resolution. 18 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information The TMP275 is digital output temperature sensor with SMBus, Two-Wire, and I2C compatible interfaces. This device features three address pins (A0, A1, A2) allowing up to eight devices to be connected per bus. The TMP275 require no external components for operation except for pullup resistors on SCL, SDA, and ALERT, although TI recommends a 0.1-μF bypass capacitor. The TMP275 measures the PCB temperature of the location it is mounted. The sensing device of the device is the chip itself. Thermal paths run through the package leads as well as the plastic package. The lower thermal resistance of metal causes the leads to provide the primary thermal path. 8.2 Typical Applications 8.2.1 Typical Connections of the TMP275 Supply Voltage 2.7V to 5.5V Supply Bypass Capacitor Pullup Resistors 0.01 µF 5k 1 Two-Wire Host Controller 2 3 4 SDA TMP275 V+ SCL A0 ALERT A1 GND A2 8 7 6 5 Figure 16. Typical Connections of the TMP275 Schematic 8.2.1.1 Design Requirements Figure 16 shows TMP275 typical connections. The TMP275 device requires pullup resistors on the SCL, SDA, and ALERT pins. The recommended value for the pullup resistor is 5 kΩ. In some applications the pullup resistor can be lower or higher than 5 kΩ but must not exceed 3 mA of current on SCL and SDA pins, must not exceed 4 mA on ALERT pin. If the resistors are missing, the SCL and SDA lines will always be low (nearly 0 V) and the I2C bus will not work. TI recommends a 0.1-μF bypass capacitor, as shown in Figure 16. The SCL, SDA, and ALERT lines can be pulled up to a supply that is equal to or higher than V+ through the pullup resistors. The ALERT pin can be configured to respond to one of the two alert functions available, Comparator Mode and Interrupt Mode. To configure one of eight different addresses on the bus, connect A0, A1, and A2 to either a GND pin or V+ pin. In the circuit shown in Figure 16 the comparator mode is selected and the address pins (A0, A1, A2) are connected to ground. Copyright © 2006–2018, Texas Instruments Incorporated 19 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn Typical Applications (continued) 8.2.1.2 Detailed Design Procedure The TMP275 device should be placed in close proximity to the heat source that must be monitored, with a proper layout for good thermal coupling. This placement ensures that temperature changes are captured within the shortest possible time interval. To maintain accuracy in applications that require air or surface temperature measurement, take care to isolate the package and leads from ambient air temperature. A thermally conductive adhesive is helpful in achieving accurate surface temperature measurement. 8.2.1.3 Application Curve Temperature (qC) Figure 17 shows the step response of the TMP275 device to a submersion in an oil bath of 100ºC from room temperature (27ºC). The time-constant, or the time for the output to reach 63% of the input step, is 1.5 s. The time-constant result depends on the printed-circuit board (PCB) that the TMP275 devices are mounted. For this test, the TMP275 device was soldered to a two-layer PCB that measured 0.375 inches × 0.437 inches. 100 95 90 85 80 75 70 65 60 55 50 45 40 35 30 25 -1 1 3 5 7 9 11 Time (s) 13 15 17 19 Figure 17. Temperature Step Response 8.2.2 Connecting Multiple Devices on a Single Bus The TMP275 features three address pins allowing up to eight devices to be connected per bus. When the TMP275 is operating in Interrupt mode (TM = 1) , the ALERT pin of the TMP275 may be connected as an SMBus Alert signal. Figure 18 shows eight TMP275 devices connected to a MCU (master) using one single bus. Each device that exists as a slave on the SMBus has one unique seven bit address, see Table 2 for TMP275 address options. When a master senses that an ALERT condition is present on the ALERT line, the master sends an SMBus Alert command (00011001) on the bus. If the ALERT pin of the TMP275 is active, the device acknowledges the SMBus Alert command and responds by returning its slave address on the SDA line. The eighth bit (LSB) of the slave address byte indicates if the temperature exceeding THIGH or falling below TLOW caused the ALERT condition. This bit will be HIGH if the temperature is greater than or equal to THIGH. This bit will be LOW if the temperature is less than TLOW. This application have eight devices connected to the bus. If multiple devices on the bus respond to the SMBus Alert command, arbitration during the slave address portion of the SMBus Alert command determines which device clears its ALERT status. If the TMP275 wins the arbitration, its ALERT pin becomes inactive at the completion of the SMBus Alert command. If the TMP275 loses the arbitration, its ALERT pin remains active. NOTE Make sure you configure the device to operate in Interrupt Mode to enable the SMBus feature. 20 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 Typical Applications (continued) Supply Voltage 2.7 V to 5.5 V 0.01 µF 5k V+ SDA SCL ALERT 1 SDA TMP275 MCU 2 SCL 3 ALERT 1 4 GND A0 7 6 A1 1 SDA TMP275 2 SCL 2 3 ALERT A0 7 6 A1 1 SDA TMP275 2 SCL 3 3 ALERT A0 7 6 A1 1 SDA TMP275 2 SCL 4 3 ALERT A0 7 A2 5 4 GND A2 5 4 GND A2 5 4 GND A2 5 V+ 8 Slave Address 1001000 V+ 8 Slave Address 1001001 V+ 8 Slave Address 1001010 V+ A1 8 6 Slave Address 1001011 V+ SDA SCL ALERT 1 SDA TMP275 2 SCL 3 ALERT 5 4 GND V+ 8 A0 7 6 A1 A2 5 Slave Address 1001100 1 SDA TMP275 2 SCL V+ 8 3 ALERT 6 A0 7 6 A1 4 GND A2 5 Slave Address 1001101 1 SDA TMP275 2 SCL V+ 8 3 ALERT 7 A0 7 6 A1 4 GND A2 5 Slave Address 1001110 1 SDA TMP275 2 SCL 3 ALERT 8 4 GND V+ 8 A0 7 A1 6 A2 5 Slave Address 1001111 Figure 18. Connecting Multiple Devices on a Single Bus Copyright © 2006–2018, Texas Instruments Incorporated 21 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn Typical Applications (continued) 8.2.3 Temperature Data Logger for Cold Chain Management Applications Cold chain management includes all of the means used to ensure a constant temperature for a product that is not heat stable from the time it is manufactured or farmed until the time it is used. This includes industries such as food, retail, medical, and pharmaceutical. Figure 19 implements a cold chain monitoring system that measures temperature, then logs the sensor data to nonvolatile (FRAM) memory in the MCU. Figure 19 uses a Near Field Communication (NFC) interface for wireless communication and is powered from a CR2032 coin cell battery with a focus on low power to maximize the battery lifetime. The microcontroller communicates with all of the sensor devices through an I2C-compatible interface. The MCU also communicates with the NFC transponder through this interface. An NFC enabled smartphone can be used to send configuration to the application board. For a detailed design procedure and requirements of this application, see Ultralow Power Multi-Sensor Data Logger with NFC Interface Reference Design (TIDU821). Coin Cell Battery (CR2032) 3.0 Volts 5k NFC Enabled Smartphone Dynamic NFC Transponder (RF430CL331H) 2 IC MCU (MSP430FR5969) FRAM 5k 5k 1 DATA 2 CLOCK 3 4 SDA TMP275 V+ SCL A0 ALERT A1 GND A2 8 7 0.01 µF 6 5 Figure 19. Temperature Data Logger 9 Power Supply Recommendations The TMP275 device operates with power supply in the range of 2.7 V to 5.5 V. A power-supply bypass capacitor is required for stability. Place this capacitor as close as possible to the supply and ground pins of the device. A typical value for this supply bypass capacitor is 0.01 μF. Applications with noisy or high impedance power supplies may require additional decoupling capacitors to reject power-supply noise. 10 Layout 10.1 Layout Guidelines Mount the TMP275 to a PCB as shown in Figure 20. For this example the A0, A1, and A2 address pins are connected directly to ground. Connecting these pins to ground configures the device for slave address 1001000b. • Bypass the VS pin to ground with a low-ESR ceramic bypass-capacitor. The typical recommended bypass capacitance is a 0.1-μF ceramic capacitor with a X5R or X7R dielectric. The optimum placement is closest to the VS and GND pins of the device. Take care in minimizing the loop area formed by the bypass-capacitor connection, the VS pin, and the GND pin of the IC. Additional bypass capacitance can be added to compensate for noisy or high-impedance power supplies. • Pull up the open-drain output pins SDA , SCL and ALERT through 5-kΩ pullup resistors. 22 Copyright © 2006–2018, Texas Instruments Incorporated TMP275 www.ti.com.cn ZHCSA58F – JUNE 2006 – REVISED MAY 2018 10.2 Layout Example Via to Power or Ground Plane Via to Internal Layer Pull-Up Resistors Supply Bypass Capacitor Supply Voltage SDA VS SCL A0 ALERT A1 GND A2 Ground Plane for Thermal Coupling to Heat Source Serial Bus Traces Heat Source Figure 20. TMP275 Layout Example 版权 © 2006–2018, Texas Instruments Incorporated 23 TMP275 ZHCSA58F – JUNE 2006 – REVISED MAY 2018 www.ti.com.cn 11 器件和文档支持 11.1 文档支持 11.1.1 相关文档 请参阅如下相关文档： • 《具有 NFC 接口的超低功耗多传感器数据记录器参考设计》(TIDU821) • 《了解 I2C 总线》(SLVA704) 11.2 社区资源 下列链接提供到 TI 社区资源的连接。链接的内容由各个分销商“按照原样”提供。这些内容并不构成 TI 技术规范， 并且不一定反映 TI 的观点；请参阅 TI 的 《使用条款》。 TI E2E™ 在线社区 TI 的工程师对工程师 (E2E) 社区。此社区的创建目的在于促进工程师之间的协作。在 e2e.ti.com 中，您可以咨询问题、分享知识、拓展思路并与同行工程师一道帮助解决问题。 设计支持 TI 参考设计支持 可帮助您快速查找有帮助的 E2E 论坛、设计支持工具以及技术支持的联系信息。 11.3 商标 E2E is a trademark of Texas Instruments. SMBus is a trademark of Intel Corporation. All other trademarks are the property of their respective owners. 11.4 静电放电警告 这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损 伤。 11.5 术语表 SLYZ022 — TI 术语表。 这份术语表列出并解释术语、缩写和定义。 12 机械、封装和可订购信息 以下页面包含机械、封装和可订购信息。这些信息是指定器件的最新可用数据。数据如有变更，恕不另行通知，且 不会对此文档进行修订。如需获取此数据表的浏览器版本，请查阅左侧的导航栏。 24 版权 © 2006–2018, Texas Instruments Incorporated PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TMP275AID ACTIVE SOIC D 8 75 TMP275AIDGKR ACTIVE VSSOP DGK 8 2500 TMP275AIDGKRG4 ACTIVE VSSOP DGK 8 TMP275AIDGKT ACTIVE VSSOP DGK TMP275AIDGKTG4 ACTIVE VSSOP TMP275AIDR ACTIVE TMP275AIDRG4 ACTIVE RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 TMP275 RoHS & Green NIPDAU | NIPDAUAG Level-2-260C-1 YEAR -40 to 125 T275 2500 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 T275 8 250 RoHS & Green NIPDAUAG Level-2-260C-1 YEAR -40 to 125 T275 DGK 8 250 RoHS & Green NIPDAUAG Level-2-260C-1 YEAR -40 to 125 T275 SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 TMP275 SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 TMP275 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
