www.ti.com
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2812,
TMS320F2811, TMS320F2812-Q1
TMS320F2811-Q1
TMS320F2812-Q1
SPRS174V –TMS320F2812,
APRIL 2001 – REVISED
FEBRUARY 2021
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
TMS320F281x Digital Signal Processors
1 Features
•
•
•
•
•
•
•
•
•
•
•
High-performance static CMOS technology
– 150 MHz (6.67-ns cycle time)
– Low-power (1.8-V core at 135 MHz,
1.9-V core at 150 MHz, 3.3-V I/O) design
JTAG boundary scan support
– IEEE Standard 1149.1-1990 IEEE Standard
Test Access Port and Boundary-Scan
Architecture
High-performance 32-bit CPU (TMS320C28x)
– 16 × 16 and 32 × 32 MAC operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Atomic operations
– Fast interrupt response and processing
– Unified memory programming model
– 4M linear program/data address reach
– Code-efficient (in C/C++ and Assembly)
– TMS320F24x/LF240x processor source code
compatible
On-chip memory
– Up to 128K × 16 flash
(Four 8K × 16 and six 16K × 16 sectors)
– 1K × 16 OTP ROM
– L0 and L1: 2 blocks of 4K × 16 each SingleAccess RAM (SARAM)
– H0: 1 block of 8K × 16 SARAM
– M0 and M1: 2 blocks of 1K × 16 each SARAM
Boot ROM (4K × 16)
– With software boot modes
– Standard math tables
External interface (F2812)
– Over 1M × 16 total memory
– Programmable wait states
– Programmable read/write strobe timing
– Three individual chip selects
Endianness: Little endian
Clock and system control
– On-chip oscillator
– Watchdog timer module
Three external interrupts
Peripheral Interrupt Expansion (PIE) block that
supports 45 peripheral interrupts
Three 32-bit CPU timers
•
•
•
•
•
•
•
•
•
•
128-bit security key/lock
– Protects flash/OTP and L0/L1 SARAM
– Prevents firmware reverse-engineering
Motor control peripherals
– Two Event Managers (EVA, EVB)
– Compatible to 240xA devices
Serial port peripherals
– Serial Peripheral Interface (SPI)
– Two Serial Communications Interfaces (SCIs),
standard UART
– Enhanced Controller Area Network (eCAN)
– Multichannel Buffered Serial Port (McBSP)
12-bit ADC, 16 channels
– 2 × 8 channel input multiplexer
– Two Sample-and-Hold
– Single/simultaneous conversions
– Fast conversion rate: 80 ns/12.5 MSPS
Up to 56 General-Purpose I/O (GPIO) pins
Advanced emulation features
– Analysis and breakpoint functions
– Real-time debug via hardware
Development tools include
– ANSI C/C++ compiler/assembler/linker
– Code Composer Studio™ IDE
– DSP/BIOS™
– JTAG scan controllers
• IEEE Standard 1149.1-1990 IEEE Standard
Test Access Port and Boundary-Scan
Architecture
Low-power modes and power savings
– IDLE, STANDBY, HALT modes supported
– Disable individual peripheral clocks
Package options
– 179-ball MicroStar BGA™ with external memory
interface (GHH, ZHH) (F2812)
– 176-pin Low-Profile Quad Flatpack (LQFP) with
external memory interface (PGF) (F2812)
– 128-pin LQFP without external memory
interface (PBK) (F2810, F2811)
Temperature options
– A: –40°C to 85°C (GHH, ZHH, PGF, PBK)
– S: –40°C to 125°C (GHH, ZHH, PGF, PBK)
– Q: –40°C to 125°C (PGF, PBK)
(AEC-Q100 qualification for automotive
applications)
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
2 Applications
•
•
•
•
•
Advanced Driver Assistance Systems (ADAS)
Building automation
Electronic point of sale
Electric Vehicle/Hybrid Electric Vehicle (EV/HEV)
powertrain
Factory automation
•
•
•
•
•
•
•
Grid infrastructure
Industrial transport
Medical, healthcare, and fitness
Motor drives
Power delivery
Telecom infrastructure
Test and measurement
3 Description
The TMS320F2810, TMS320F2811, and TMS320F2812-Q1 devices, members of the TMS320C28x DSP
generation, are highly integrated, high-performance solutions for demanding control applications.
Throughout this document, TMS320F2810, TMS320F2811, and TMS320F2812-Q1 are abbreviated as F2810,
F2811, and F2812-Q1, respectively. F281x denotes all three devices.
Device Information
PART NUMBER(1)
PACKAGE
BODY SIZE
TMS320F2812ZHH
MicroStar BGA (179)
12.0 mm × 12.0 mm
TMS320F2812GHH
MicroStar BGA (179)
12.0 mm × 12.0 mm
TMS320F2812PGF
LQFP (176)
24.0 mm × 24.0 mm

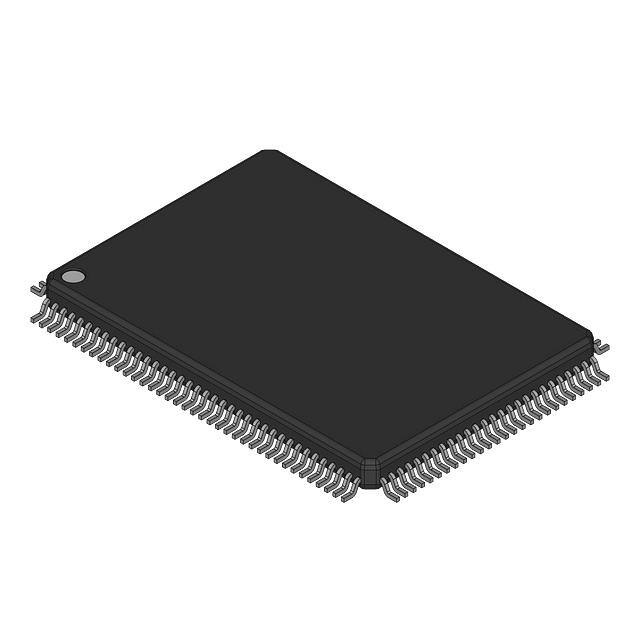

TMS320F2811PBK
LQFP (128)
14.0 mm × 14.0 mm
TMS320F2810PBK
LQFP (128)
14.0 mm × 14.0 mm
(1)
2
For more information on these devices, see Mechanical, Packaging, and Orderable Information.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
4 Functional Block Diagram
Memory Bus
TINT0
CPU-Timer 0
CPU-Timer 1
Real-Time JTAG
CPU-Timer 2
TINT2
INT14
PIE
External Interrupt
Control
(XINT1/2/13, XNMI)
XNMI
G
P
I
O
M
U
X
SCIA/SCIB
FIFO
SPI
FIFO
McBSP
FIFO
eCAN
NMI
X2
XF_XPLLDIS
M0 SARAM
1K x 16
M1 SARAM
1K x 16
L0 SARAM
4K x 16
C28x CPU
L1 SARAM
4K x 16
Flash
128K x 16 (F2812)
128K x 16 (F2811)
64K x 16 (F2810)
12-Bit ADC
16 Channels
X1/XCLKIN
Address (19)
Data (16)
INT[12:1]
EVA/EVB
XRS
Control
(XINTF)
(A)
INT13
XINT13
GPIO Pins
(B)
(96 Interrupts)
TINT1
External
Interface
OTP
1K x 16
System Control
(Oscillator and PLL
+
Peripheral Clocking
+
Low-Power Modes
+
Watchdog)
RS
CLKIN
H0 SARAM
8K x 16
Memory Bus
Boot ROM
4K x 16
Peripheral Bus
Protected by the code-security module.
A. 45 of the possible 96 interrupts are used on the devices.
B. XINTF is available on the F2812 device only.
Figure 4-1. Functional Block Diagram
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
3
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 2
3 Description.......................................................................2
4 Functional Block Diagram.............................................. 3
5 Revision History.............................................................. 4
6 Device Comparison......................................................... 5
6.1 Related Products........................................................ 6
7 Terminal Configuration and Functions..........................7
7.1 Pin Diagrams.............................................................. 7
7.2 Signal Descriptions................................................... 10
8 Specifications................................................................ 19
8.1 Absolute Maximum Ratings...................................... 19
8.2 ESD Ratings – Commercial...................................... 20
8.3 ESD Ratings – Automotive....................................... 20
8.4 Recommended Operating Conditions.......................21
8.5 Power Consumption Summary................................. 22
8.6 Electrical Characteristics...........................................25
8.7 Thermal Resistance Characteristics for 179-Ball
GHH Package............................................................. 25
8.8 Thermal Resistance Characteristics for 179-Ball
ZHH Package.............................................................. 25
8.9 Thermal Resistance Characteristics for 176-Pin
PGF Package.............................................................. 26
8.10 Thermal Resistance Characteristics for 128-Pin
PBK Package.............................................................. 26
8.11 Thermal Design Considerations..............................26
8.12 Timing and Switching Characteristics..................... 27
9 Detailed Description......................................................87
9.1 Brief Descriptions......................................................87
9.2 Peripherals................................................................94
9.3 Memory Maps......................................................... 126
9.4 Register Map...........................................................131
9.5 Device Emulation Registers....................................133
9.6 External Interface, XINTF (F2812 Only)................. 134
9.7 Interrupts.................................................................136
9.8 System Control....................................................... 140
9.9 OSC and PLL Block................................................ 142
9.10 PLL-Based Clock Module..................................... 144
9.11 External Reference Oscillator Clock Option..........144
9.12 Watchdog Block.................................................... 145
9.13 Low-Power Modes Block...................................... 146
10 Applications, Implementation, and Layout............. 147
10.1 TI Reference Design............................................. 147
11 Device and Documentation Support........................148
11.1 Getting Started...................................................... 148
11.2 Device and Development Support Tool
Nomenclature............................................................ 148
11.3 Tools and Software................................................149
11.4 Documentation Support........................................ 150
11.5 Support Resources............................................... 151
11.6 Trademarks........................................................... 152
11.7 Electrostatic Discharge Caution............................ 152
11.8 Glossary................................................................ 152
12 Mechanical, Packaging, and Orderable
Information.................................................................. 153
12.1 Packaging Information.......................................... 153
5 Revision History
Changes from July 12, 2019 to January 14, 2021 (from Revision U (July 2019) to Revision V
(January 2021))
Page
• Global: Updated the numbering format for tables, figures and cross-references throughout the document...... 1
• Device Comparison: Updated part numbers.......................................................................................................5
4
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
6 Device Comparison
Table 6-1 provides a summary of each device’s features.
Table 6-1. Device Comparison
FEATURE(1)
Instruction Cycle (at 150 MHz)
TYPE(2)
F2810
F2810-Q1
F2811
F2811-Q1
F2812
F2812-Q1
–
6.67 ns
6.67 ns
6.67 ns
Single-Access RAM (SARAM) (16-bit word)
–
18K
18K
18K
3.3-V On-Chip Flash (16-bit word)
–
64K
128K
128K
Code Security for On-Chip Flash/SARAM/OTP
–
Yes
Yes
Yes
Boot ROM
–
Yes
Yes
Yes
OTP ROM (1K x 16)
–
Yes
Yes
Yes
External Memory Interface
0
–
–
Yes
Event Managers A and B (EVA and EVB)
–
EVA, EVB
EVA, EVB
EVA, EVB
● General-Purpose (GP) Timers
–
4
4
4
● Compare (CMP)/PWM
0
16
16
16
● Capture (CAP)/QEP Channels
0
6/2
6/2
6/2
–
Yes
Yes
Yes
Yes
Yes
Yes
16
16
16
3
3
3
Watchdog Timer
12-Bit ADC
0
● Channels
32-Bit CPU Timers
–
Serial Peripheral Interface (SPI)
0
Yes
Yes
Yes
Serial Communications Interfaces A and B (SCIA and SCIB)
0
SCIA, SCIB
SCIA, SCIB
SCIA, SCIB
Controller Area Network (CAN)
0
Yes
Yes
Yes
Multichannel Buffered Serial Port (McBSP)
0
Yes
Yes
Yes
Digital I/O Pins (Shared)
–
56
56
56
External Interrupts
–
3
3
3
Supply Voltage
–
Packaging
128-pin PBK
Yes
Yes
–
176-pin PGF
–
–
Yes
–
–
Yes
–
–
Yes
179-ball GHH
–
179-ball ZHH
Temperature Options
(1)
(2)
1.8-V Core (135 MHz), 1.9-V Core (150 MHz), 3.3-V I/O
A: –40°C to 85°C
–
Yes
Yes
Yes
S: –40°C to 125°C
–
Yes
Yes
Yes
Q: –40°C to 125°C
(AEC-Q100 Qualification)
–
Yes
Yes
PGF only
The TMS320F281x DSPs Silicon Errata has been posted on the Texas Instruments (TI) website. It will be updated as needed.
A type change represents a major functional feature difference in a peripheral module. Within a peripheral type, there may be minor
differences between devices that do not affect the basic functionality of the module. These device-specific differences are listed in the
C2000 Real-Time Control Peripherals Reference Guide and in the peripheral reference guides.
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
5
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
6.1 Related Products
For information about other devices in this family of products, see the following links:
Original Delfino™ series:
TMS320F2833x Delfino™ Microcontrollers
The F2833x series is the original Delfino MCU. It is the first C2000™ MCU that is offered with a floating-point unit
(FPU). It has the first-generation ePWM timers that are used throughout the rest of the Delfino and Piccolo™
families. The 12.5-MSPS, 12-bit ADC is still class-leading for an integrated analog-to-digital converter. The
F2833x has a 150-MHz CPU and up to 512KB of on-chip Flash. It is available in a 176-pin QFP or 179-ball BGA
package.
Newest Delfino™ series:
TMS320F2837xD Delfino™ Microcontrollers
The F2837xD series sets a new standard for performance with dual subsystems. Each subsystem consists of a
C28x CPU and a parallel control law accelerator (CLA), each running at 200 MHz. Enhancing performance are
TMU and VCU accelerators. New capabilities include multiple 16-bit/12-bit mode ADCs, DAC, Sigma-Delta
filters, USB, configurable logic block (CLB), on-chip oscillators, and enhanced versions of all peripherals. The
F2837xD is available with up to 1MB of Flash. It is available in a 176-pin QFP or 337-pin BGA package.
TMS320F2837xS Delfino™ Microcontrollers
The F2837xS series is a pin-to-pin compatible version of F2837xD but with only one C28x-CPU-and-CLA
subsystem enabled. It is also available in a 100-pin QFP to enable compatibility with the Piccolo™
TMS320F2807x series.
6
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
7 Terminal Configuration and Functions
7.1 Pin Diagrams
Figure 7-1 shows the ball locations for the 179-ball GHH and ZHH ball grid array (BGA) packages. Figure 7-2
shows the pin assignments for the 176-pin PGF low-profile quad flatpack (LQFP) and Figure 7-3 shows the pin
assignments for the 128-pin PBK LQFP. Table 7-1 describes the function(s) of each pin.
P
XZCS0AND1 PWM8
PWM10
VSS
VDD
CAP6_
QEPI2
XD[8]
VSS
VDD
T3CTRIP_ T4CTRIP/
PDPINTB EVBSOC
N
SPISOMIA
PWM7
PWM9
XR/W
T4PWM_
T4CMP
C4TRIP
TEST2
VDD3VFL
XD[11]
XA[2]
XWE
M
SPISIMOA
XA[1]
XRD
PWM12
CAP4_
QEP3
CAP5_
QEP4
TEST1
XD[9]
X2
VSS
XA[3]
L
VDD
VSS
XD[6]
PWM11
XD[7]
C5TRIP
VDDIO
TDIRB
XD[10]
VDDIO
K
VSS
SPICLKA
XD[4]
SPISTEA
T3PWM_
T3CMP
VSS
C6TRIP
TCLKINB
X1/
XCLKIN
J
MCLKXA
MFSRA
XD[3]
VDDIO
H
VDD
MCLKRA
XD[1]
G
MDXA
MDRA
F
XMP/MC
ADCRESEXT
E
AVDDREFBG
SCITXDB
VDDIO
PWM1
SCIRXDB
PWM2
VSS
PWM3
PWM4
XD[12]
XHOLDA
PWM5
VDD
VSS
PWM6
XD[5]
XD[13]
T1PWM_
T1CMP
XA[4]
T2PWM_
T2CMP
VSS
MFSXA
XD[2]
CAP1_
QEP1
CAP2_
QEP2
CAP3_
QEPI1
XA[5]
T1CTRIP_
PDPINTA
XD[0]
VSS
XA[0]
T2CTRIP/
EVASOC
VDDIO
VDD
VSS
XA[6]
VSSA1
VDDA1
ADCINB7
C3TRIP XCLKOUT
XA[7]
TCLKINA
TDIRA
ADCADCAVSSREFBG
REFP
REFM
ADCINA5
XA[8]
C1TRIP
VSS
EMU0
TDO
TMS
XA[9]
VSS1
SCITXDA
VDD
EMU1
VSS
XA[12]
XA[10]
TDI
VDD
ADCINA3 ADCINA7 XREADY
XA[17]
VSS
XA[15]
VDD
XD[14]
TRST XZCS6AND7
VDDA2
VDD1
SCIRXDA
XA[16]
XD[15]
XA[14]
XF_
XPLLDIS
TCK
TESTSEL
XA[11]
5
6
7
8
9
10
11
12
13
14
BGA™
(Bottom View)
ADCINA0 ADCINA4
3
C2TRIP
VSS
ADCINB2
2
XA[13]
XINT1_
XBIO
B
VSSAIO
VDDIO
XINT2_
ADCSOC
ADCINB3 ADCINB0 ADCINB1 ADCINA2
ADCLO
XNMI_
XINT13
XA[18]
C
VDDAIO
ADCBGREFIN XHOLD
XRS
ADCINB6 ADCINB5 ADCINB4 ADCINA1 ADCINA6
1
XZCS2
CANTXA CANRXA
D
A
VDD
4
VSSA2
Figure 7-1. TMS320F2812 179-Ball GHH/ZHH MicroStar
Copyright © 2021 Texas Instruments Incorporated
VSS
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
7
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
XA[11]
TDI
XA[10]
VSS
VDD
TDO
TMS
XA[9]
C3TRIP
C2TRIP
C1TRIP
XA[8]
VSS
XCLKOUT
XA[7]
TCLKINA
TDIR
T2CTRIP/EVASOC
VDDIO
VSS
VDD
XA[6]
T1CTRIP_PDPINTA
CAP3_QEPI1
XA[5]
CAP2_QEP2
CAP1_QEP1
VSS
T2PWM_T2CMP
XA[4]
T1PWM_T1CMP
PWM6
VDD
VSS
PWM5
XD[13]
XD[12]
PWM4
PWM3
PWM2
PWM1
SCIRXDB
SCITXDB
CANRXA
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
132
89
88
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
133
XZCS6AND7
TESTSEL
TRST
TCK
EMU0
XA[12]
XD[14]
XF_XPLLDIS
XA[13]
VSS
VDD
XA[14]
VDDIO
EMU1
XD[15]
XA[15]
XINT1_XBIO
XNMI_XINT13
XINT2_ADCSOC
XA[16]
VSS
VDD
SCITXDA
XA[17]
SCIRXDA
XA[18]
XHOLD
XRS
XREADY
VDD1
VSS1
ADCBGREFIN
VSSA2
VDDA2
ADCINA7
ADCINA6
ADCINA5
ADCINA4
ADCINA3
ADCINA2
ADCINA1
ADCINA0
ADCLO
VSSAIO
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
176
XZCS2
CANTXA
VSS
XA[3]
XWE
T4CTRIP/EVBSOC
XHOLDA
VDDIO
XA[2]
T3CTRIP_PDPINTB
VSS
X1/XCLKIN
X2
VDD
XD[11]
XD[10]
TCLKINB
TDIRB
VSS
VDD3VFL
XD[9]
TEST1
TEST2
XD[8]
VDDIO
C6TRIP
C5TRIP
C4TRIP
CAP6_QEPI2
CAP5_QEP4
VSS
CAP4_QEP3
VDD
T4PWM_T4CMP
XD[7]
T3PWM_T3CMP
VSS
XR/W
PWM12
PWM11
PWM10
PWM9
PWM8
PWM7
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
44
VDDAIO
ADCINB0
ADCINB1
ADCINB2
ADCINB3
ADCINB4
ADCINB5
ADCINB6
ADCINB7
ADCREFM
ADCREFP
AVSSREFBG
AVDDREFBG
VDDA1
VSSA1
ADCRESEXT
XMP/MC
XA[0]
VSS
MDRA
XD[0]
MDXA
VDD
XD[1]
MCLKRA
MFSXA
XD[2]
MCLKXA
MFSRA
XD[3]
VDDIO
VSS
XD[4]
SPICLKA
SPISTEA
XD[5]
VDD
VSS
XD[6]
SPISIMOA
SPISOMIA
XRD
XA[1]
XZCS0AND1
1
45
Figure 7-2. TMS320F2812 176-Pin PGF LQFP (Top View)
8
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
TDI
VSS
VDD
TDO
TMS
C3TRIP
C2TRIP
C1TRIP
VSS
XCLKOUT
TCLKINA
TDIRA
T2CTRIP/EVASOC
VDDIO
VDD
T1CTRIP_PDPINTA
CAP3_QEPI1
CAP2_QEP2
CAP1_QEP1
T2PWM_T2CMP
T1PWM_T1CMP
PWM6
VDD
VSS
PWM5
PWM4
PWM3
PWM2
PWM1
SCIRXDB
SCITXDB
CANRXA
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
96
65
64
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
97
TESTSEL
TRST
TCK
EMU0
XF_XPLLDIS
VDD
VSS
VDDIO
EMU1
XINT1_XBIO
XNMI_XINT13
XINT2_ADCSOC
VSS
VDD
SCITXDA
SCIRXDA
XRS
VDD1
VSS1
ADCBGREFIN
VSSA2
VDDA2
ADCINA7
ADCINA6
ADCINA5
ADCINA4
ADCINA3
ADCINA2
ADCINA1
ADCINA0
ADCLO
VSSAIO
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
128
CANTXA
VDD
VSS
T4CTRIP/EVBSOC
T3CTRIP_PDPINTB
VSS
X1/XCLKIN
X2
VDD
TCLKINB
TDIRB
VSS
VDD3VFL
TEST1
TEST2
VDDIO
C6TRIP
C5TRIP
C4TRIP
CAP6_QEPI2
CAP5_QEP4
CAP4_QEP3
VDD
T4PWM_T4CMP
T3PWM_T3CMP
VSS
PWM12
PWM11
PWM10
PWM9
PWM8
PWM7
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
VDDAIO
ADCINB0
ADCINB1
ADCINB2
ADCINB3
ADCINB4
ADCINB5
ADCINB6
ADCINB7
ADCREFM
ADCREFP
AVSSREFBG
AVDDREFBG
VDDA1
VSSA1
ADCRESEXT
VSS
MDRA
MDXA
VDD
MCLKRA
MFSXA
MCLKXA
MFSRA
VDDIO
VSS
SPICLKA
SPISTEA
VDD
VSS
SPISIMOA
SPISOMIA
1
Figure 7-3. TMS320F2810 and TMS320F2811 128-Pin PBK LQFP (Top View)
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
9
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
7.2 Signal Descriptions
Table 7-1 specifies the signals on the F281x devices. All digital inputs are TTL-compatible. All outputs are 3.3 V
with CMOS levels. Inputs are not 5-V tolerant. A 100-µA (or 20-µA) pullup/pulldown is used.
Table 7-1. Signal Descriptions
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
DESCRIPTION
XINTF SIGNALS (F2812 ONLY)
XA[18]
D7
158
–
O/Z
–
XA[17]
B7
156
–
O/Z
–
XA[16]
A8
152
–
O/Z
–
XA[15]
B9
148
–
O/Z
–
XA[14]
A10
144
–
O/Z
–
XA[13]
E10
141
–
O/Z
–
XA[12]
C11
138
–
O/Z
–
XA[11]
A14
132
–
O/Z
–
XA[10]
C12
130
–
O/Z
–
XA[9]
D14
125
–
O/Z
–
XA[8]
E12
121
–
O/Z
–
XA[7]
F12
118
–
O/Z
–
XA[6]
G14
111
–
O/Z
–
XA[5]
H13
108
–
O/Z
–
XA[4]
J12
103
–
O/Z
–
XA[3]
M11
85
–
O/Z
–
XA[2]
N10
80
–
O/Z
–
XA[1]
M2
43
–
O/Z
–
XA[0]
G5
18
–
O/Z
–
XD[15]
A9
147
–
I/O/Z
PU
XD[14]
B11
139
–
I/O/Z
PU
XD[13]
J10
97
–
I/O/Z
PU
XD[12]
L14
96
–
I/O/Z
PU
XD[11]
N9
74
–
I/O/Z
PU
XD[10]
L9
73
–
I/O/Z
PU
XD[9]
M8
68
–
I/O/Z
PU
XD[8]
P7
65
–
I/O/Z
PU
XD[7]
L5
54
–
I/O/Z
PU
XD[6]
L3
39
–
I/O/Z
PU
XD[5]
J5
36
–
I/O/Z
PU
XD[4]
K3
33
–
I/O/Z
PU
XD[3]
J3
30
–
I/O/Z
PU
XD[2]
H5
27
–
I/O/Z
PU
XD[1]
H3
24
–
I/O/Z
PU
XD[0]
G3
21
–
I/O/Z
PU
10
Submit Document Feedback
19-bit XINTF Address Bus
16-bit XINTF Data Bus
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
XMP/ MC
XHOLD
179-BALL
GHH/ZHH
F1
E7
176-PIN
PGF
17
159
128-PIN
PBK
–
–
I/O/Z(2)
I
I
PU/PD(3)
DESCRIPTION
PD
Microprocessor/Microcomputer Mode Select.
Switches between microprocessor and
microcomputer mode. When high, Zone 7 is
enabled on the external interface. When low,
Zone 7 is disabled from the external interface,
and on-chip boot ROM may be accessed
instead. This signal is latched into the
XINTCNF2 register on a reset and the user can
modify this bit in software. The state of the
XMP/ MC pin is ignored after reset.
PU
External Hold Request. XHOLD, when active
(low), requests the XINTF to release the
external bus and place all buses and strobes
into a high-impedance state. The XINTF will
release the bus when any current access is
complete and there are no pending accesses
on the XINTF.
XHOLDA
K10
82
–
O/Z
–
External Hold Acknowledge. XHOLDA is driven
active (low) when the XINTF has granted a
XHOLD request. All XINTF buses and strobe
signals will be in a high-impedance state.
XHOLDA is released when the XHOLD signal
is released. External devices should only drive
the external bus when XHOLDA is active (low).
XZCS0AND1
P1
44
–
O/Z
–
XINTF Zone 0 and Zone 1 Chip Select.
XZCS0AND1 is active (low) when an access to
the XINTF Zone 0 or Zone 1 is performed.
XZCS2
P13
88
–
O/Z
–
XINTF Zone 2 Chip Select. XZCS2 is active
(low) when an access to the XINTF Zone 2 is
performed.
XZCS6AND7
B13
133
–
O/Z
–
XINTF Zone 6 and Zone 7 Chip Select.
XZCS6AND7 is active (low) when an access to
the XINTF Zone 6 or Zone 7 is performed.
–
Write Enable. Active-low write strobe. The write
strobe waveform is specified, per zone basis,
by the Lead, Active, and Trail periods in the
XTIMINGx registers.
XWE
N11
84
–
O/Z
XRD
M3
42
–
O/Z
–
Read Enable. Active-low read strobe. The read
strobe waveform is specified, per zone basis,
by the Lead, Active, and Trail periods in the
XTIMINGx registers. NOTE: The XRD and
XWE signals are mutually exclusive.
XR/ W
N4
51
–
O/Z
–
Read Not Write Strobe. Normally held high.
When low, XR/ W indicates write cycle is active;
when high, XR/ W indicates read cycle is
active.
XREADY
B6
Copyright © 2021 Texas Instruments Incorporated
161
–
I
PU
Ready Signal. Indicates peripheral is ready to
complete the access when asserted to 1.
XREADY can be configured to be a
synchronous or an asynchronous input. See
the timing diagrams for more details.
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
11
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
DESCRIPTION
JTAG AND MISCELLANEOUS SIGNALS
X1/XCLKIN
K9
77
58
I
–
Oscillator Input – input to the internal oscillator.
This pin is also used to feed an external clock.
The 28x can be operated with an external clock
source, provided that the proper voltage levels
be driven on the X1/XCLKIN pin. It should be
noted that the X1/XCLKIN pin is referenced to
the 1.8-V (or 1.9-V) core digital power supply
(VDD), rather than the 3.3-V I/O supply (VDDIO).
A clamping diode may be used to clamp a
buffered clock signal to ensure that the logichigh level does not exceed VDD (1.8 V or 1.9 V)
or a 1.8-V oscillator may be used.
X2
M9
76
57
O
–
Oscillator Output
XCLKOUT
F11
119
87
O
–
Output clock derived from SYSCLKOUT to be
used for external wait-state generation and as a
general-purpose clock source. XCLKOUT is
either the same frequency, 1/2 the frequency,
or 1/4 the frequency of SYSCLKOUT. At reset,
XCLKOUT = SYSCLKOUT/4. The XCLKOUT
signal can be turned off by setting bit 3
(CLKOFF) of the XINTCNF2 register to 1.
Unlike other GPIO pins, the XCLKOUT pin is
not placed in a high-impedance state during
reset.
TESTSEL
A13
134
97
I
PD
Test Pin. Reserved for TI. Must be connected to
ground.
Device Reset (in) and Watchdog Reset (out).
Device reset. XRS causes the device to
terminate execution. The PC will point to the
address contained at the location 0x3FFFC0.
When XRS is brought to a high level, execution
begins at the location pointed to by the PC.
This pin is driven low by the DSP when a
watchdog reset occurs. During watchdog reset,
the XRS pin will be driven low for the watchdog
reset duration of 512 XCLKIN cycles. The
output buffer of this pin is an open-drain with an
internal pullup (100 µA, typical). If this pin is
driven by an external device, it should be done
using an open-drain device.
XRS
D6
160
113
I/O
PU
TEST1
M7
67
51
I/O
–
Test Pin. Reserved for TI. On F281x devices,
TEST1 must be left unconnected.
TEST2
N7
66
50
I/O
–
Test Pin. Reserved for TI. On F281x devices,
TEST2 must be left unconnected.
12
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
DESCRIPTION
JTAG
TRST
B12
135
98
I
PD
JTAG test reset with internal pulldown. TRST,
when driven high, gives the scan system
control of the operations of the device. If this
signal is not connected or driven low, the
device operates in its functional mode, and the
test reset signals are ignored. NOTE: Do not
use pullup resistors on TRST; it has an internal
pulldown device. TRST is an active-high test
pin and must be maintained low at all times
during normal device operation. In a low-noise
environment, TRST may be left floating. In
other instances, an external pulldown resistor is
highly recommended. The value of this resistor
should be based on drive strength of the
debugger pods applicable to the design. A 2.2kΩ resistor generally offers adequate
protection. Since this is application-specific, it is
recommended that each target board be
validated for proper operation of the debugger
and the application.
TCK
A12
136
99
I
PU
JTAG test clock with internal pullup
TMS
D13
126
92
I
PU
JTAG test-mode select (TMS) with internal
pullup. This serial control input is clocked into
the TAP controller on the rising edge of TCK.
TDI
C13
131
96
I
PU
JTAG test data input (TDI) with internal pullup.
TDI is clocked into the selected register
(instruction or data) on a rising edge of TCK.
TDO
D12
127
93
O/Z
–
JTAG scan out, test data output (TDO). The
contents of the selected register (instruction or
data) is shifted out of TDO on the falling edge
of TCK.
PU
Emulator pin 0. When TRST is driven high, this
pin is used as an interrupt to or from the
emulator system and is defined as input/output
through the JTAG scan. This pin is also used to
put the device into boundary-scan mode. With
the EMU0 pin at a logic-high state and the
EMU1 pin at a logic-low state, a rising edge on
the TRST pin would latch the device into
boundary-scan mode. NOTE: An external
pullup resistor is recommended on this pin. The
value of this resistor should be based on the
drive strength of the debugger pods applicable
to the design. A 2.2-kΩ to 4.7-kΩ resistor is
generally adequate. Since this is applicationspecific, it is recommended that each target
board be validated for proper operation of the
debugger and the application.
EMU0
D11
Copyright © 2021 Texas Instruments Incorporated
137
100
I/O/Z
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
13
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
EMU1
C9
176-PIN
PGF
146
128-PIN
PBK
105
I/O/Z(2)
I/O/Z
PU/PD(3)
DESCRIPTION
PU
Emulator pin 1. When TRST is driven high, this
pin is used as an interrupt to or from the
emulator system and is defined as input/output
through the JTAG scan. This pin is also used to
put the device into boundary-scan mode. With
the EMU0 pin at a logic-high state and the
EMU1 pin at a logic-low state, a rising edge on
the TRST pin would latch the device into
boundary-scan mode. NOTE: An external
pullup resistor is recommended on this pin. The
value of this resistor should be based on the
drive strength of the debugger pods applicable
to the design. A 2.2-kΩ to 4.7-kΩ resistor is
generally adequate. Since this is applicationspecific, it is recommended that each target
board be validated for proper operation of the
debugger and the application.
ADC ANALOG INPUT SIGNALS
ADCINA7
B5
167
119
I
–
ADCINA6
D5
168
120
I
–
ADCINA5
E5
169
121
I
–
ADCINA4
A4
170
122
I
–
ADCINA3
B4
171
123
I
–
ADCINA2
C4
172
124
I
–
ADCINA1
D4
173
125
I
–
ADCINA0
A3
174
126
I
–
ADCINB7
F5
9
9
I
–
ADCINB6
D1
8
8
I
–
ADCINB5
D2
7
7
I
–
ADCINB4
D3
6
6
I
–
ADCINB3
C1
5
5
I
–
ADCINB2
B1
4
4
I
–
ADCINB1
C3
3
3
I
–
ADCINB0
C2
2
2
I
–
ADCREFP
E2
ADCREFM
14
E4
Submit Document Feedback
11
10
11
10
I/O
I/O
8-channel analog inputs for
Sample-and-Hold A. The ADC pins should not
be driven before the VDDA1, VDDA2, and VDDAIO
pins have been fully powered up.
8-channel analog inputs for
Sample-and-Hold B. The ADC pins should not
be driven before the VDDA1, VDDA2, and VDDAIO
pins have been fully powered up.
–
ADC Voltage Reference Output (2 V). Requires
a low ESR (under 1.5 Ω) ceramic bypass
capacitor of 10 µF to analog ground.
[Can accept external reference input (2 V) if the
software bit is enabled for this mode. 1–10 µF
low ESR capacitor can be used in the external
reference mode.]
NOTE: Use the ADC Clock rate to derive the
ESR specification from the capacitor data sheet
that is used in the system.
–
ADC Voltage Reference Output (1 V). Requires
a low ESR (under 1.5 Ω) ceramic bypass
capacitor of 10 µF to analog ground.
[Can accept external reference input (1 V) if the
software bit is enabled for this mode. 1–10 µF
low ESR capacitor can be used in the external
reference mode.]
NOTE: Use the ADC Clock rate to derive the
ESR specification from the capacitor data sheet
that is used in the system.
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
DESCRIPTION
ADCRESEXT
F2
16
16
O
–
ADC External Current Bias Resistor. Use 24.9
kΩ ± 5% for ADC clock range 1–18.75 MHz;
use 20 kΩ ± 5% for ADC clock range
18.75 MHz–25 MHz.
ADCBGREFIN
E6
164
116
–
–
Test Pin. Reserved for TI. Must be left
unconnected.
AVSSREFBG
E3
12
12
–
–
ADC Analog GND
AVDDREFBG
E1
13
13
–
–
ADC Analog Power (3.3-V)
ADCLO
B3
175
127
–
–
Common Low Side Analog Input. Connect to
analog ground.
VSSA1
F3
15
15
–
–
ADC Analog GND
VSSA2
C5
165
117
–
–
ADC Analog GND
VDDA1
F4
14
14
–
–
ADC Analog 3.3-V Supply
VDDA2
A5
166
118
–
–
ADC Analog 3.3-V Supply
VSS1
C6
163
115
–
–
ADC Digital GND
VDD1
A6
162
114
–
–
ADC Digital 1.8-V (or 1.9-V) Supply
VDDAIO
B2
1
1
–
–
3.3-V Analog I/O Power Pin
VSSAIO
A2
176
128
–
–
Analog I/O Ground Pin
VDD
H1
23
20
–
–
VDD
L1
37
29
–
–
VDD
P5
56
42
–
–
VDD
P9
75
56
–
–
VDD
P12
–
63
–
–
VDD
K12
100
74
–
–
VDD
G12
112
82
–
–
VDD
C14
128
94
–
–
VDD
B10
143
102
–
–
VDD
C8
154
110
–
–
VSS
G4
19
17
–
–
VSS
K1
32
26
–
–
POWER SIGNALS
VSS
L2
38
30
–
–
VSS
P4
52
39
–
–
VSS
K6
58
–
–
–
VSS
P8
70
53
–
–
VSS
M10
78
59
–
–
VSS
L11
86
62
–
–
VSS
K13
99
73
–
–
VSS
J14
105
–
–
–
VSS
G13
113
–
–
–
VSS
E14
120
88
–
–
VSS
B14
129
95
–
–
VSS
D10
142
–
–
–
VSS
C10
–
103
–
–
VSS
B8
153
109
–
–
Copyright © 2021 Texas Instruments Incorporated
1.8-V or 1.9-V Core Digital Power Pins. See
Section 8.4, Recommended Operating
Conditions, for voltage requirements.
Core and Digital I/O Ground Pins
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
15
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
J4
31
25
–
–
VDDIO
L7
64
49
–
–
VDDIO
L10
81
–
–
–
VDDIO
N14
–
–
–
–
VDDIO
G11
114
83
–
–
VDDIO
E9
145
104
–
–
VDD3VFL
N8
69
52
–
–
NAME
VDDIO
DESCRIPTION
3 3-V I/O Digital Power Pins
3.3-V Flash Core Power Pin. This pin should be
connected to 3.3 V at all times after power-up
sequence requirements have been met.
GPIO OR PERIPHERAL SIGNALS
GPIOA OR EVA SIGNALS
GPIOA0 - PWM1 (O)
M12
92
68
I/O
PU
GPIO or PWM Output Pin #1
GPIOA1 - PWM2 (O)
M14
93
69
I/O
PU
GPIO or PWM Output Pin #2
GPIOA2 - PWM3 (O)
L12
94
70
I/O
PU
GPIO or PWM Output Pin #3
GPIOA3 - PWM4 (O)
L13
95
71
I/O
PU
GPIO or PWM Output Pin #4
GPIOA4 - PWM5 (O)
K11
98
72
I/O
PU
GPIO or PWM Output Pin #5
GPIOA5 - PWM6 (O)
K14
101
75
I/O
PU
GPIO or PWM Output Pin #6
GPIOA6 T1PWM_T1CMP (I)
J11
102
76
I/O
PU
GPIO or Timer 1 Output
GPIOA7 T2PWM_T2CMP (I)
J13
104
77
I/O
PU
GPIO or Timer 2 Output
GPIOA8 - CAP1_QEP1 (I)
H10
106
78
I/O
PU
GPIO or Capture Input #1
GPIOA9 - CAP2_QEP2 (I)
H11
107
79
I/O
PU
GPIO or Capture Input #2
GPIOA10 - CAP3_QEPI1 (I)
H12
109
80
I/O
PU
GPIO or Capture Input #3
GPIOA11 - TDIRA (I)
F14
116
85
I/O
PU
GPIO or Timer Direction
GPIOA12 - TCLKINA (I)
F13
117
86
I/O
PU
GPIO or Timer Clock Input
GPIOA13 - C1TRIP (I)
E13
122
89
I/O
PU
GPIO or Compare 1 Output Trip
GPIOA14 - C2TRIP (I)
E11
123
90
I/O
PU
GPIO or Compare 2 Output Trip
GPIOA15 - C3TRIP (I)
F10
124
91
I/O
PU
GPIO or Compare 3 Output Trip
GPIOB OR EVB SIGNALS
GPIOB0 - PWM7 (O)
N2
45
33
I/O
PU
GPIO or PWM Output Pin #7
GPIOB1 - PWM8 (O)
P2
46
34
I/O
PU
GPIO or PWM Output Pin #8
GPIOB2 - PWM9 (O)
N3
47
35
I/O
PU
GPIO or PWM Output Pin #9
GPIOB3 - PWM10 (O)
P3
48
36
I/O
PU
GPIO or PWM Output Pin #10
GPIOB4 - PWM11 (O)
L4
49
37
I/O
PU
GPIO or PWM Output Pin #11
GPIOB5 - PWM12 (O)
M4
50
38
I/O
PU
GPIO or PWM Output Pin #12
GPIOB6 T3PWM_T3CMP (I)
K5
53
40
I/O
PU
GPIO or Timer 3 Output
GPIOB7 T4PWM_T4CMP (I)
N5
55
41
I/O
PU
GPIO or Timer 4 Output
GPIOB8 - CAP4_QEP3 (I)
M5
57
43
I/O
PU
GPIO or Capture Input #4
GPIOB9 - CAP5_QEP4 (I)
M6
59
44
I/O
PU
GPIO or Capture Input #5
GPIOB10 - CAP6_QEPI2 (I)
P6
60
45
I/O
PU
GPIO or Capture Input #6
GPIOB11 - TDIRB (I)
L8
71
54
I/O
PU
GPIO or Timer Direction
GPIOB12 - TCLKINB (I)
K8
72
55
I/O
PU
GPIO or Timer Clock Input
GPIOB13 - C4TRIP (I)
N6
61
46
I/O
PU
GPIO or Compare 4 Output Trip
16
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
GPIOB14 - C5TRIP (I)
L6
62
47
I/O
PU
GPIO or Compare 5 Output Trip
GPIOB15 - C6TRIP (I)
K7
63
48
I/O
PU
GPIO or Compare 6 Output Trip
NAME
DESCRIPTION
GPIOD OR EVA SIGNALS
GPIOD0 T1CTRIP_PDPINTA (I)
H14
110
81
I/O
PU
GPIO or Timer 1 Compare Output Trip
GPIOD1 - T2CTRIP/
EVASOC (I)
G10
115
84
I/O
PU
GPIO or Timer 2 Compare Output Trip or
External ADC Start-of-Conversion EV-A
GPIOD OR EVB SIGNALS
GPIOD5 T3CTRIP_PDPINTB (I)
P10
79
60
I/O
PU
GPIO or Timer 3 Compare Output Trip
GPIOD6 - T4CTRIP/
EVBSOC (I)
P11
83
61
I/O
PU
GPIO or Timer 4 Compare Output Trip or
External ADC Start-of-Conversion EV-B
GPIOE0 - XINT1_ XBIO (I)
D9
149
106
I/O/Z
–
GPIO or XINT1 or XBIO input
GPIOE1 XINT2_ADCSOC (I)
D8
151
108
I/O/Z
–
GPIO or XINT2 or ADC start-of-conversion
GPIOE2 - XNMI_XINT13 (I)
E8
150
107
I/O
PU
GPIOE OR INTERRUPT SIGNALS
GPIO or XNMI or XINT13
GPIOF OR SPI SIGNALS
GPIOF0 - SPISIMOA (O)
M1
40
31
I/O/Z
–
GPIO or SPI slave in, master out
GPIOF1 - SPISOMIA (I)
N1
41
32
I/O/Z
–
GPIO or SPI slave out, master in
GPIOF2 - SPICLKA (I/O)
K2
34
27
I/O/Z
–
GPIO or SPI clock
GPIOF3 - SPISTEA (I/O)
K4
35
28
I/O/Z
–
GPIO or SPI slave transmit enable
GPIOF4 - SCITXDA (O)
C7
155
GPIOF5 - SCIRXDA (I)
A7
157
GPIOF OR SCI-A SIGNALS
111
I/O
PU
GPIO or SCI asynchronous serial port TX data
112
I/O
PU
GPIO or SCI asynchronous serial port RX data
GPIOF OR CAN SIGNALS
GPIOF6 - CANTXA (O)
N12
87
GPIOF7 - CANRXA (I)
N13
89
64
I/O
PU
GPIO or eCAN transmit data
65
I/O
PU
GPIO or eCAN receive data
GPIOF OR McBSP SIGNALS
GPIOF8 - MCLKXA (I/O)
J1
28
23
I/O
PU
GPIO or McBSP transmit clock
GPIOF9 - MCLKRA (I/O)
H2
25
21
I/O
PU
GPIO or McBSP receive clock
GPIOF10 - MFSXA (I/O)
H4
26
22
I/O
PU
GPIO or McBSP transmit frame synch
GPIOF11 - MFSRA (I/O)
J2
29
24
I/O
PU
GPIO or McBSP receive frame synch
GPIOF12 - MDXA (O)
G1
22
19
I/O
–
GPIOF13 - MDRA (I)
G2
20
18
I/O
PU
Copyright © 2021 Texas Instruments Incorporated
GPIO or McBSP transmitted serial data
GPIO or McBSP received serial data
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
17
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
Table 7-1. Signal Descriptions (continued)
PIN NO. (1)
NAME
179-BALL
GHH/ZHH
176-PIN
PGF
128-PIN
PBK
I/O/Z(2)
PU/PD(3)
DESCRIPTION
GPIOF OR XF CPU OUTPUT SIGNAL
GPIOF14 - XF_
XPLLDIS (O)
A11
140
101
I/O
PU
This pin has three functions:
1. XF – General-purpose output pin.
2. XPLLDIS – This pin is sampled during reset
to check whether the PLL must be
disabled. The PLL will be disabled if this pin
is sensed low. HALT and STANDBY modes
cannot be used when the PLL is disabled.
3. GPIO – GPIO function
GPIOG OR SCI-B SIGNALS
GPIOG4 - SCITXDB (O)
P14
90
66
I/O/Z
–
GPIO or SCI asynchronous serial port transmit
data
GPIOG5 - SCIRXDB (I)
M13
91
67
I/O/Z
–
GPIO or SCI asynchronous serial port receive
data
(1)
(2)
(3)
Typical drive strength of the output buffer for all pins is 4 mA except for TDO, XCLKOUT, XF, XINTF, EMU0, and EMU1 pins, which are
8 mA.
I = Input, O = Output, Z = High impedance
PU = pin has internal pullup; PD = pin has internal pulldown. Pullup/pulldown strength is given in Section 8.6, Electrical Characteristics
Over Recommended Operating Conditions. The pullups/pulldowns are enabled in boundary scan mode.
Note
Other than the power supply pins, no pin should be driven before the 3.3-V rail has reached
recommended operating conditions. However, it is acceptable for an I/O pin to ramp along with the
3.3-V supply.
18
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
8 Specifications
8.1 Absolute Maximum Ratings
over operating temperature ranges (unless otherwise noted)(1)
Supply voltage
Supply voltage
MIN
MAX
VDDIO
–0.3
4.6
VDD3VFL
–0.3
4.6
VDDA1
–0.3
4.6
VDDA2
–0.3
4.6
VDDAIO
–0.3
4.6
AVDDREFBG
–0.3
4.6
VDD
–0.5
2.5
VDD1
–0.5
2.5
UNIT
V
V
Input voltage
VIN
–0.3
4.6
V
Output voltage
VO
–0.3
4.6
V
)(2)
Input clamp current
IIK (VIN < 0 or VIN > VDDIO
–20
20
mA
Output clamp current
IOK (VO < 0 or VO > VDDIO)
–20
20
mA
A version (GHH, ZHH, PGF, PBK)(3)
–40
85
S version (GHH, ZHH, PGF, PBK)(3)
–40
125
Operating ambient temperature, TA
Q version (PGF,
Junction temperature
Storage temperature
(1)
(2)
(3)
TJ
Tstg
(3)
PBK)(3)
°C
–40
125
–40
150
°C
–65
150
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Section 8.4 is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values are with respect
to VSS.
Continuous clamp current per pin is ±2 mA
Long-term high-temperature storage and/or extended use at maximum temperature conditions may result in a reduction of overall
device life. For additional information, see the Semiconductor and IC Package Thermal Metrics Application Report.
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
19
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
8.2 ESD Ratings – Commercial
VALUE
UNIT
TMS320F2812 in 179-ball ZHH package
V(ESD)
Electrostatic discharge (ESD)
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22C101(2)
±500
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22C101(2)
±500
V
TMS320F2812 in 179-ball GHH package
V(ESD)
(1)
(2)
Electrostatic discharge (ESD)
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
8.3 ESD Ratings – Automotive
VALUE
UNIT
TMS320F2812 in 176-pin PGF package
V(ESD)
Electrostatic discharge
Human body model (HBM), per
AEC Q100-002(1)
All pins
±2000
Charged device model (CDM),
per AEC Q100-011
All pins
±500
Corner pins on 176-pin PGF:
1, 44, 45, 88, 89, 132, 133, 176
±750
Human body model (HBM), per
AEC Q100-002(1)
All pins
±2000
Charged device model (CDM),
per AEC Q100-011
All pins
±500
Corner pins on 128-pin PBK:
1, 32, 33, 64, 65, 96, 97, 128
±750
V
TMS320F2810 and TMS320F2811 in 128-pin PBK package
V(ESD)
(1)
20
Electrostatic discharge
V
AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
8.4 Recommended Operating Conditions
MIN(1)
Device supply voltage, I/O, VDDIO
Device supply voltage, CPU, VDD, VDD1
NOM
MAX
UNIT
V
3.14
3.3
3.47
1.8 V (135 MHz)
1.71
1.8
1.89
1.9 V (150 MHz)
1.81
1.9
2
Supply ground, VSS
0
ADC supply voltage, VDDA1, VDDA2, AVDDREFBG,
VDDAIO
Flash programming supply voltage, VDD3VFL
V
3.14
3.3
3.47
3.14
3.3
3.47
V
150
MHz
Device clock frequency (system clock), fSYSCLKOUT
VDD = 1.9 V ± 5%
VDD = 1.8 V ± 5%
2
135
High-level input voltage, VIH
All inputs except X1/XCLKIN
2
VDDIO
0.7VDD
VDD
Low-level input voltage, VIL
All inputs except X1/XCLKIN
High-level output source current, VOH = 2.4 V, IOH
All I/Os except Group 2
X1/XCLKIN (@ 50 µA max)
2
0.8
X1/XCLKIN (@ 50 µA max)
Group
Low-level output sink current,
VOL = VOL MAX, IOL
Ambient temperature, TA
(1)
(2)
–4
2(2)
V
V
mA
–8
4
2(2)
A version
V
0.3VDD
All I/Os except Group 2
Group
V
mA
8
–40
85
S version
–40
125
Q version
–40
125
°C
See Section 8.12.2 for power sequencing of VDDIO, VDDAIO, VDD, VDDA1/VDDA2/AVDDREFBG, and VDD3VFL.
Group 2 pins are as follows: XINTF pins, T1CTRIP_PDPINTA, TDO, XCLKOUT, XF, EMU0, and EMU1.
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TMS320F2810 TMS320F2810-Q1 TMS320F2811 TMS320F2811-Q1 TMS320F2812
TMS320F2812-Q1
21
TMS320F2810, TMS320F2810-Q1, TMS320F2811, TMS320F2811-Q1
TMS320F2812, TMS320F2812-Q1
www.ti.com
SPRS174V – APRIL 2001 – REVISED FEBRUARY 2021
8.5 Power Consumption Summary
8.5.1 TMS320F281x Current Consumption by Power-Supply Pins Over Recommended Operating
Conditions During Low-Power Modes at 150-MHz SYSCLKOUT
MODE
Operational
IDLE
STANDBY
HALT
TEST CONDITIONS
All peripheral clocks are enabled. All
PWM pins are toggled at 100 kHz.
Data is continuously transmitted out
of the SCIA, SCIB, and CAN ports.
The hardware multiplier is exercised.
Code is running out of flash with
5 wait-states.
(1)
(2)
(3)
(4)
IDDA (2)
IDD3VFL
TYP
MAX(3)
TYP
MAX(3)
TYP
MAX(3)
TYP
MAX(3)
195 mA(4)
230 mA
15 mA
30 mA
40 mA
45 mA
40 mA
50 mA
125 mA
150 mA
5 mA
10 mA
2 µA
4 µA
1 µA
20 µA
10 mA
5 µA
20 µA
2 µA
4 µA
1 µA
20 µA
5 µA
20 µA
2 µA
4 µA
1 µA
20 µA
•
•
•
Flash is powered down
XCLKOUT is turned off
All peripheral clocks are on,
except ADC
•
•
•
Flash is powered down
Peripheral clocks are turned off
Pins without an internal PU/PD
are tied high/low
5 mA
•
•
•
Flash is powered down
Peripheral clocks are turned off
Pins without an internal PU/PD
are tied high/low
Input clock is disabled
70 µA
•
IDDIO (1)
IDD
IDDIO current is dependent on the electrical loading on the I/O pins.
IDDA includes current into VDDA1, VDDA2, AVDDREFBG, and VDDAIO pins.
MAX numbers are at 125°C, and MAX voltage (VDD = 1.89 V; VDDIO, VDD3VFL, VDDA = 3.47 V).
IDD represents the total current drawn from the 1.8-V rail (VDD). It includes a small amount of current (
工商网监
湘ICP备2023018690号
