TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
TPA6130A2 138-mW DIRECTPATH™ Stereo Headphone Amplifier with I2C Volume Control
1 Features
3 Description
•
The TPA6130A2 is a stereo DirectPath™ headphone
amplifier with I2C digital volume control. The
TPA6130A2
has
minimal
quiescent
current
consumption, with a typical IDD of 4 mA, making it
optimal for portable applications. The I2C control
allows maximum flexibility with a 64 step audio taper
volume control, channel independent enables and
mutes, and the ability to configure the outputs into
stereo, dual mono, or a single receiver speaker BTL
amplifier that drives 300 mW of power into 16 Ω
loads.
1
•
•
•
•
•
•
•
•
•
DirectPath™ Ground-Referenced Outputs
– Eliminates Output DC Blocking Capacitors
– Reduces Board Area
– Reduces Component Height and Cost
– Full Bass Response Without Attenuation
Power Supply Voltage Range: 2.5 V to 5.5 V
64 Step Audio Taper Volume Control
High Power Supply Rejection Ratio
(>100 dB PSRR)
Differential Inputs for Maximum Noise Rejection
(68 dB CMRR)
High-Impedance Outputs When Disabled
Advanced Pop and Click Suppression Circuitry
Digital I2C Bus Control
– Per Channel Mute and Enable
– Software Shutdown
– Multi-Mode Support: Stereo HP, Dual Mono
HP, and Single-Channel BTL Operation
– Amplifier Status
Space Saving Packages
– 20 Pin, 4 mm x 4 mm QFN
– 16 ball, 2 mm x 2 mm DSBGA
ESD Protection of 8 kV HBM and IEC Contact
The TPA6130A2 is a high fidelity amplifier with an
SNR of 98 dB. A PSRR greater than 100 dB enables
direct-to-battery connections without compromising
the listening experience. The output noise of 9 μVrms
(typical A-weighted) provides a minimal noise
background during periods of silence. Configurable
differential inputs and high CMRR allow for maximum
noise rejection in the noisy environment of a mobile
device.
TPA6130A2 packaging includes a 2 by 2 mm chipscale package, and a 4 by 4 mm QFN package.
Device Information(1)
PART NUMBER
TPA6130A2
BODY SIZE (NOM)
4.00mm x 4.00mm
DSBGA (16)
2.00mm x 2.00mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
2 Applications
•
•
•
•
PACKAGE
WQFN (20)
Mobile Phones
Portable Media Players
Notebook Computers
High Fidelity Applications
4 Simplified Schematic
2
I C
GPIO
Audio Source
SCL SDA
SD
LEFTINM
Left Out M
HPLEFT
0.47 mF
Left Out P
LEFTINP
0.47 mF
Right Out M
RIGHTINM
TPA6130A2
HPRIGHT
0.47 mF
Right Out P
RIGHTINP
GND
0.47 mF
GND
CPP CPN
CPVSS
1 mF
VDD
1 mF
VDD
1 mF
1 mF
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Simplified Schematic.............................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
4
5
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
5
5
5
5
6
6
7
8
Absolute Maximum Ratings ......................................
Handling Ratings.......................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Operating Characteristics..........................................
Timing Requirements ...............................................
Typical Characteristics ..............................................
Detailed Description ............................................ 14
8.1 Overview ................................................................. 14
8.2
8.3
8.4
8.5
8.6
9
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
Programming...........................................................
Register Maps .........................................................
14
15
16
18
21
Applications and Implementation ...................... 24
9.1 Application Information............................................ 24
9.2 Typical Application ................................................. 24
10 Power Supply Recommendations ..................... 27
11 Layout................................................................... 27
11.1 Layout Guidelines ................................................. 27
11.2 Layout Example .................................................... 28
12 Device and Documentation Support ................. 30
12.1 Trademarks ........................................................... 30
12.2 Electrostatic Discharge Caution ............................ 30
12.3 Glossary ................................................................ 30
13 Mechanical, Packaging, and Orderable
Information ........................................................... 30
5 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision E (September 2014) to Revision F
•
Page
Changed type from "R" to "R/W" for all bits in Register Address 1 and 2, and for bits 1 and 0 in Register Address 3 ...... 21
Changes from Revision D (July 2014) to Revision E
Page
•
Changed "BALL DSBGA" To "DSBGA NO." in the Pin Functions table ............................................................................... 4
•
Changed "PIN WQFN" To "WOFN NO." in the Pin Functions table ..................................................................................... 4
•
Added the Programming section .......................................................................................................................................... 18
•
Moved the General I2C Operation section through the Multiple-Byte Read section From: Device Functional Modes
To: Programming .................................................................................................................................................................. 18
•
Added a NOTE to the Applications and Implementation section ........................................................................................ 24
•
Added new paragraph to the Application Information section ............................................................................................. 24
•
Deleted title: Simplified Applications Circuit ......................................................................................................................... 24
Changes from Revision C (July 2014) to Revision D
•
Page
Changed the datasheet title From: "TAS6130A2 138-mW DIRECTPATH™ .." To: "TPA6130A2 138-mW
DIRECTPATH™.." .................................................................................................................................................................. 1
Changes from Revision B (February 2008) to Revision C
Page
•
Added Handling Rating table, Feature Description section, Device Functional Modes, Application and
Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation
Support section, and Mechanical, Packaging, and Orderable Information section. .............................................................. 1
•
Change the Abs Max Input voltage for RIGHTINx, LEFTINx From: –2.7 V to 3.6 V To: –2.5 V to 3.6 V ............................. 5
•
Changed TJ in the Abs Max Table From: –40°C to 125°C To: –40°C to 150°C .................................................................... 5
•
Added the Thermal Information table ..................................................................................................................................... 5
•
Corrected the y-axis scale of Figure 10.................................................................................................................................. 8
2
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
•
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
Changed Figure 45 pin 17 From: CPM To: CPN ................................................................................................................ 24
Changes from Revision A (December 2006) to Revision B
•
Page
Changed the YZH package dimensions in the AVAILABLE OPTIONS table From: 16-ball, 2 mm x 2 mm WSCP To:
16-ball, 1,98 mm x 1.98 mm (+0,01mm, –0,09 mm) .............................................................................................................. 5
Changes from Original (November 2006) to Revision A
•
Page
Changed Figure 34 Captions From: DirectPath To: Capless and From: Cap-Free to DirectPath ....................................... 15
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
3
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
6 Pin Configuration and Functions
YZH (DSBGA) PACKAGE
A4
A3
A2
A1
VDD
GND
CPP
CPN
B1
B2
B3
B4
B4
B3
B2
B1
HPLEFT
CPVSS
LEFTINP
LEFTINM
LEFTINM
LEFTINP
CPVSS
HPLEFT
C1
C2
C3
C4
C4
C3
C2
C1
VDD
GND
GND
VDD
RIGHTINM RIGHTINP
RIGHTINP RIGHTINM
D1
D2
D3
D4
D4
D3
D2
D1
HPRIGHT
SCL
SDA
SD
SD
SDA
SCL
HPRIGHT
Top View
CPVSS
A4
VDD
CPN
A3
GND
CPP
A2
CPP
GND
A1
CPN
VDD

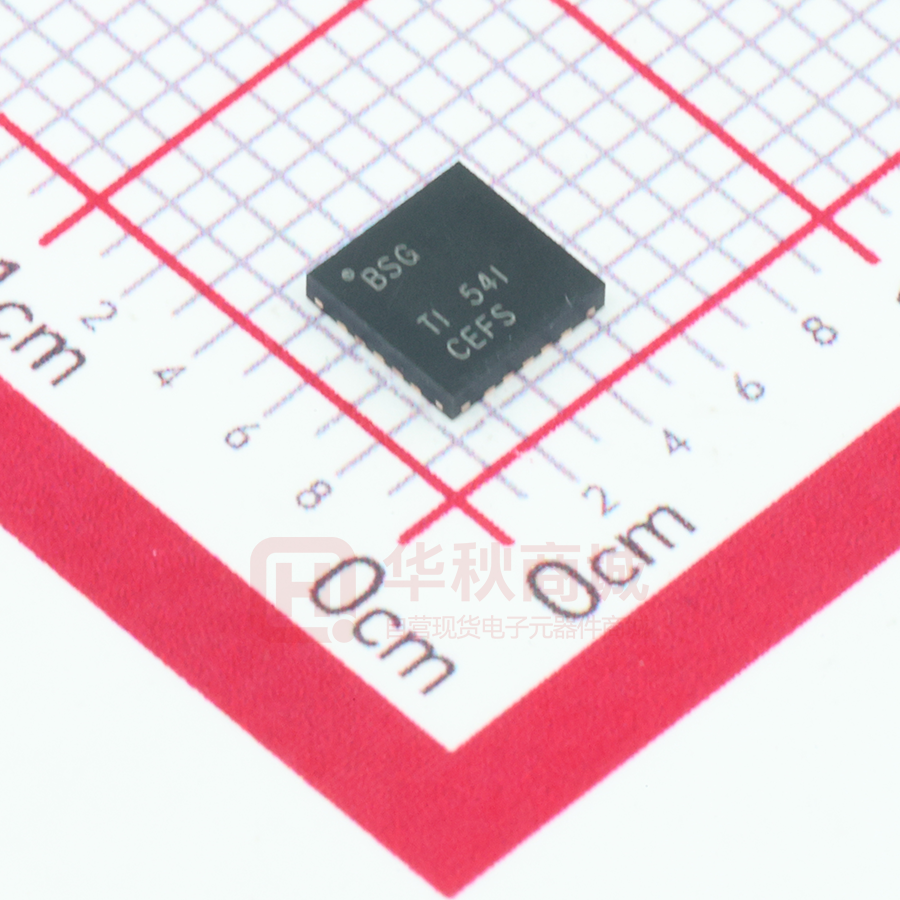

RTJ (WQFN) PACKAGE
TOP VIEW
20
19
18
17
16
LEFTINM
1
15
CPVSS
LEFTINP
2
14
HPLEFT
GND
3
13
GND
RIGHTINP
4
12
VDD
RIGHTINM
5
11
HPRIGHT
6
7
8
9
10
SD
SDA
SCL
GND
GND
Bottom View
Pin Functions
PIN
INPUT/
OUTPUT/
POWER
(I/O/P)
DESCRIPTION
DSBGA
NO.
WQFN NO.
VDD
A4
20
P
Charge pump voltage supply. VDD must be connected to the common VDD voltage supply. Decouple
to GND (pin 19 on the QFN) with its own 1 μF capacitor.
GND
A3
19
P
Charge pump ground. GND must be connected to common supply GND. It is recommended that this
pin be decoupled to the VDD of the charge pump pin (pin 20 on the QFN).
CPP
A2
18
P
Charge pump flying capacitor positive terminal. Connect one side of the flying capacitor to CPP.
CPN
A1
17
P
Charge pump flying capacitor negative terminal. Connect one side of the flying capacitor to CPN.
LEFTINM
B4
1
I
Left channel negative differential input. Impedance must be matched to LEFTINP. Connect the left
input to LEFTINM when using single-ended inputs.
LEFTINP
B3
2
I
Left channel positive differential input. Impedance must be matched to LEFTINM. AC ground
LEFTINP near signal source while maintaining matched impedance to LEFTINM when using singleended inputs.
CPVSS
B2
15, 16
P
Negative supply generated by the charge pump. Decouple to pin 19 on the QFN or a GND plane.
Use a 1 μF capacitor.
HPLEFT
B1
14
O
Headphone left channel output. Connect to left terminal of headphone jack.
RIGHTINM
C4
5
I
Right channel negative differential input. Impedance must be matched to RIGHTINP. Connect the
right input to RIGHTINM when using single-ended inputs.
RIGHTINP
C3
4
I
Right channel positive differential input. Impedance must be matched to RIGHTINM. AC ground
RIGHTINP near signal source while maintaining matched impedance to RIGHTINM when using
single-ended inputs.
GND
C2
3, 9, 10, 13
P
Analog ground. Must be connected to common supply GND. It is recommended that this pin be used
to decouple VDD for analog. Use pin 13 to decouple pin 12 on the QFN package.
VDD
C1
12
P
Analog VDD. VDD must be connected to common VDD supply. Decouple with its own 1-μF capacitor to
analog ground (pin 13 on the QFN).
SD
D4
6
I
Shutdown. Active low logic. 5V tolerant input.
SDA
D3
7
I/O
SDA - I2C Data. 5V tolerant input.
SCL
D2
8
I
SCL - I2C Clock. 5V tolerant input.
HPRIGHT
D1
11
O
Headphone light channel output. Connect to the right terminal of the headphone jack.
Thermal pad
N/A
Die Pad
P
Solder the thermal pad on the bottom of the QFN package to the GND plane of the PCB. It is
required for mechanical stability and will enhance thermal performance.
NAME
4
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1)
MIN
MAX
–0.3
6.0
V
RIGHTINx, LEFTINx
–2.5
3.6
V
SD, SCL, SDA
–0.3
7
V
Supply voltage, VDD
VI
Input voltage
Output continuous total power dissipation
UNIT
See the Thermal Information table
TA
Operating free-air temperature range
–40
85
°C
TJ
Operating junction temperature range
–40
150
°C
Minimum Load Impedance
12.8
12.8
Ω
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
7.2 Handling Ratings
Tstg
Storage temperature range
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001,
output pins (1)
V(ESD)
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
other pins (1)
Electrostatic discharge
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
(1)
(2)
MIN
MAX
UNIT
–65
150
°C
–8
8
kV
–3.5
3.5
kV
–1500
1500
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
VDD
Supply voltage
VIH
High-level input voltage
VIL
SCL, SDA, SD
MIN
MAX
2.5
5.5
V
1.3
SCL, SDA
Low-level input voltage
UNIT
SD
V
0.6
V
0.35
V
7.4 Thermal Information
THERMAL METRIC (1)
RTJ
YZH
20 PINS
16 PINS
RθJA
Junction-to-ambient thermal resistance
34.8
75
RθJCtop
Junction-to-case (top) thermal resistance
32.5
22
RθJB
Junction-to-board thermal resistance
11.6
26
ψJT
Junction-to-top characterization parameter
0.4
0.2
ψJB
Junction-to-board characterization parameter
11.6
24
RθJCbot
Junction-to-case (bottom) thermal resistance
3.1
N/A
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
5
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
7.5 Electrical Characteristics
TA = 25°C (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP MAX
UNIT
|VOS|
Output offset voltage
VDD = 2.5 V to 5.5 V, inputs grounded
150
400
μV
PSRR
Power supply rejection ratio
VDD = 2.5 V to 5.5 V, inputs grounded
–109
–90
dB
CMRR
Common mode rejection ratio
VDD = 2.5 V to 5.5 V
|IIH|
High-level input current
VDD = 5.5 V, VI = VDD
|IIL|
Low-level input current
VDD = 5.5 V, VI = 0 V
–68
1
SD
10
SCL, SDA, SD
VDD = 2.5 V to 5.5 V, SD = VDD
IDD
Supply current
dB
SCL, SDA
4
µA
1
µA
6
mA
Shutdown mode, VDD = 2.5V to 5.5 V, SD = 0 V
0.4
1
µA
SW Shutdown mode, VDD = 2.5V to 5.5 V, SWS = 1
25
75
µA
Both HP amps disabled, VDD = 2.5V to 5.5 V,
SWS = 0, Charge Pump enabled, SD = VDD
1.4
2.5
mA
7.6 Operating Characteristics
VDD = 3.6 V , TA = 25°C, RL = 16 Ω (unless otherwise noted)
PARAMETER
TEST CONDITIONS
Stereo, Outputs out of phase,
THD = 1%, f = 1 kHz,
Gain = 0.1 dB
PO
Output power
Bridge-tied load,
THD = 1%, f = 1 kHz,
Gain = 0.1 dB
THD+N
Total harmonic distortion plus
noise
PO = 35 mW
MIN
TYP
VDD = 2.5V
60
VDD = 3.6V
127
VDD = 5V
138
VDD = 2.5V
110
VDD = 3.6V
230
VDD = 5V
0.0029%
f = 1 kHz
0.0055%
f = 20 kHz
0.0027%
200 mVpp ripple, f = 217 Hz
–97
200 mVpp ripple, f = 1 kHz
–93
200 mVpp ripple, f = 20 kHz
–76
Supply ripple rejection ratio
ΔAv
Gain matching
1%
Slew rate
0.3
Noise output voltage
fosc
Charge pump switching
frequency
VDD = 3.6V, A-weighted, Gain = 0.1 dB
300
Differential input impedance
See Figure 33
Signal-to-noise ratio
Po = 35 mW
Thermal shutdown
ZO
Tri-state HP output impedance
CO
Output capacitance
6
mW
–90
dB
V/µs
9
Start-up time from shutdown
SNR
UNIT
290
f = 100 Hz
kSVR
Vn
MAX
400
µVRMS
500
kHz
5
ms
98
dB
Threshold
180
°C
Hysteresis
35
°C
Hi-Z left and right bits set. HP amps disabled. DC
value.
25
MΩ
80
pF
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
7.7 Timing Requirements (1)
(2)
For I2C Interface Signals Over Recommended Operating Conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
MAX
UNIT
400
kHz
fSCL
Frequency, SCL
tw(H)
Pulse duration, SCL high
0.6
μs
tw(L)
Pulse duration, SCL low
1.3
μs
tsu1
Setup time, SDA to SCL
300
ns
th1
Hold time, SCL to SDA
10
ns
t(buf)
Bus free time between stop and start condition
1.3
μs
tsu2
Setup time, SCL to start condition
0.6
μs
th2
Hold time, start condition to SCL
0.6
μs
tsu3
Setup time, SCL to stop condition
0.6
μs
(1)
(2)
No wait states
TYP
VPull-up = VDD
A pull-up resistor ≤2 kΩ is required for a 5 V I2C bus voltage.
tw(L)
tw(H)
SCL
t su1
th1
SDA
Figure 1. SCL and SDA Timing
SCL
th2
t(buf)
tsu2
tsu3
Start Condition
Stop Condition
SDA
Figure 2. Start and Stop Conditions Timing
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
7
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
7.8 Typical Characteristics
C(PUMP, DECOUPLE, ,BYPASS, CPVSS) = 1 μF, CI = 2.2µF.
All THD + N graphs taken with outputs out of phase (unless otherwise noted).
Table 1. Table of Graphs
FIGURE
Total harmonic distortion + noise
vs Output power
Figure 3–Figure 8
Total harmonic distortion + noise
vs Frequency
Figure 9–Figure 22
Supply voltage rejection ratio
vs Frequency
Figure 23–Figure 25
Common mode rejection ratio
vs Frequency
Figure 26, Figure 27
Output power
vs Load
Figure 28, Figure 29
Output voltage
vs Load
Figure 30, Figure 31
Power Dissipation
vs Output power
Figure 32
Differential Input Impedance
vs Gain
Figure 33
Figure 47
THD+N - Total Harmonic Distortion + Noise - %
Figure 46
Startup time
THD+N - Total Harmonic Distortion + Noise - %
Shutdown time
10
1
In Phase
0.1
Out of Phase
0.01
0.001
100m
1m
10m
100m
1
10
1
In Phase
0.1
Out of Phase
0.01
0.001
100m
PO - Output Power - W
RL = 16 Ω
BTL
Gain = 6.1 dB
fIN = 1 kHz
10
1
VDD = 2.5 V
VDD = 3 V
0.1
VDD = 3.6 V
0.01
VDD = 5 V
0.001
100m
1m
10m
100m
RL = 32 Ω
fIN = 1 kHz
1
Gain = 0.1 dB
VDD = 3.6
1
VDD = 2.5 V
0.1
VDD = 5 V
0.01
VDD = 3.6 V
0.001
100m
VDD = 3 V
1m
10m
100m
1
PO - Output Power - W
fIN = 1 kHz
Figure 5. Total Harmonic Distortion + Noise
vs Output Power
8
Gain = 0.1 dB
Stereo
10
PO - Output Power - W
RL = 16 Ω
Stereo
1
Figure 4. Total Harmonic Distortion + Noise
vs Output Power
THD+N - Total Harmonic Distortion + Noise - %
THD+N - Total Harmonic Distortion + Noise - %
Figure 3. Total Harmonic Distortion + Noise
vs Output Power
1m
10m
100m
PO - Output Power - W
RL = 32 Ω
Stereo
Gain = 0.1 dB
fIN = 1 kHz
Figure 6. Total Harmonic Distortion + Noise
vs Output Power
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
THD+N - Total Harmonic Distortion + Noise - %
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
THD+N - Total Harmonic Distortion + Noise - %
www.ti.com
10
1
VDD = 2.5 V
VDD = 3 V
0.1
VDD = 3.6 V
VDD = 5 V
0.01
0.001
100m
1m
100m
10m
1 2
10
VDD = 5 V
1
VDD = 3.6 V
VDD = 2.5 V
0.1
VDD = 3 V
0.01
0.001
100m
1m
PO - Output Power - W
RL = 16 Ω
BTL
Gain = 6.1 dB
fIN = 1 kHz
RL = 32 Ω
BTL
1
0.1
PO = 20 mW
PO = 1 mW
0.01
PO = 4 mW
100
1k
10k 20k
Gain = 6.1 dB
0.1
PO = 40 mW
PO = 20 mW
0.01
0.001
20
PO = 5 mW
100
Gain = 0.1 dB
THD+N - Total Harmonic Distortion + Noise - %
Figure 9. Total Harmonic Distortion + Noise vs Frequency
1
0.1
PO = 70 mW
PO = 35 mW
0.01
PO = 5 mW
0.001
20
RL = 16 Ω
Stereo
100
1k
f - Frequency - Hz
VDD = 3.6 V
1k
10k 20k
f - Frequency - Hz
10k 20k
Gain = 0.1 dB
Figure 11. Total Harmonic Distortion + Noise vs Frequency
RL = 16 Ω
Stereo
VDD = 3 V
Gain = 0.1 dB
Figure 10. Total Harmonic Distortion + Noise vs Frequency
THD+N - Total Harmonic Distortion + Noise - %
VDD = 2.5 V
fIN = 1 kHz
1
f - Frequency - Hz
RL = 16 Ω
Stereo
1 2
Figure 8. Total Harmonic Distortion + Noise
vs Output Power
THD+N - Total Harmonic Distortion + Noise - %
THD+N - Total Harmonic Distortion + Noise - %
Figure 7. Total Harmonic Distortion + Noise
vs Output Power
0.001
20
100m
10m
PO - Output Power - W
1
PO = 50 mW
0.1
PO = 80 mW
0.01
PO = 5 mW
0.001
20
RL = 16 Ω
Stereo
100
1k
f - Frequency - Hz
VDD = 5 V
10k 20k
Gain = 0.1 dB
Figure 12. Total Harmonic Distortion + Noise vs Frequency
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
9
TPA6130A2
THD+N - Total Harmonic Distortion + Noise - %
www.ti.com
1
0.1
PO = 20 mW
PO = 1 mW
0.01
PO = 4 mW
0.001
20
100
RL = 32 Ω
Stereo
1k
f - Frequency - Hz
VDD = 2.5 V
10k 20k
Gain = 0.1 dB
1
PO = 35 mW
0.1
PO = 70 mW
0.01
PO = 5 mW
0.001
20
100
RL = 32 Ω
Stereo
1k
f - Frequency - Hz
VDD = 3.6 V
10k 20k
Gain = 0.1 dB
THD+N - Total Harmonic Distortion + Noise - %
Figure 15. Total Harmonic Distortion + Noise vs Frequency
1
0.1
PO = 100 mW
PO = 5 mW
0.01
PO = 25 mW
0.001
20
RL = 16 Ω
BTL
100
1k
f - Frequency - Hz
VDD = 2.5 V
10k 20k
Gain = 6.1 dB
Figure 17. Total Harmonic Distortion + Noise vs Frequency
10
0.1
PO = 20 mW
PO = 40 mW
0.01
PO = 5 mW
0.001
20
100
1k
f - Frequency - Hz
10k 20k
VDD = 3 V
Gain = 0.1 dB
Figure 14. Total Harmonic Distortion + Noise vs Frequency
THD+N - Total Harmonic Distortion + Noise - %
THD+N - Total Harmonic Distortion + Noise - %
Figure 13. Total Harmonic Distortion + Noise vs Frequency
1
RL = 32 Ω
Stereo
1
0.1
PO = 50 mW
PO = 70 mW
0.01
PO = 5 mW
0.001
20
100
RL = 32 Ω
Stereo
1k
f - Frequency - Hz
10k 20k
VDD = 5 V
Gain = 0.1 dB
Figure 16. Total Harmonic Distortion + Noise vs Frequency
THD+N - Total Harmonic Distortion + Noise - %
THD+N - Total Harmonic Distortion + Noise - %
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
1
0.1
PO = 200 mW
PO = 25 mW
0.01
PO = 100 mW
0.001
20
RL = 16 Ω
BTL
100
1k
f - Frequency - Hz
VDD = 3.6 V
10k 20k
Gain = 6.1 dB
Figure 18. Total Harmonic Distortion + Noise vs Frequency
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
THD+N - Total Harmonic Distortion + Noise - %
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
1
0.1
PO = 200 mW
0.01
PO = 25 mW
PO = 100 mW
0.001
20
100
RL = 16 Ω
BTL
1k
f - Frequency - Hz
10k 20k
VDD = 5 V
Gain = 6.1 dB
THD+N - Total Harmonic Distortion + Noise - %
Figure 19. Total Harmonic Distortion + Noise vs Frequency
1
0.1
PO = 200 mW
PO = 25 mW
0.01
0.001
20
PO = 100 mW
100
RL = 32 Ω
BTL
1k
f - Frequency - Hz
10k 20k
VDD = 3.6 V
Gain = 6.1 dB
Figure 21. Total Harmonic Distortion + Noise vs Frequency
1
0.1
PO = 100 mW
PO = 5 mW
0.01
PO = 25 mW
0.001
20
VDD = 2.5 V
Gain = 6.1 dB
1
0.1
PO = 200 mW
PO = 25 mW
0.01
0.001
20
PO = 100 mW
100
RL = 32 Ω
BTL
1k
f - Frequency - Hz
10k 20k
VDD = 5 V
Gain = 6.1 dB
Figure 22. Total Harmonic Distortion + Noise vs Frequency
kSVR - Supply Voltage Rejection Ratio - V
kSVR - Supply Voltage Rejection Ratio - V
10k 20k
0
-20
-40
-60
VDD = 3.6 V
VDD = 2.5 V
-80
-100
VDD = 5 V
100
1k
10k 20k
-20
-40
Cp = 1 µF
VDD = 3.6 V
-60
VDD = 2.5 V
-80
-100
-120
20
f - Frequency - Hz
RL = 16 Ω
Stereo
1k
f - Frequency - Hz
Figure 20. Total Harmonic Distortion + Noise vs Frequency
0
-120
20
100
RL = 32 Ω
BTL
THD+N - Total Harmonic Distortion + Noise - %
THD+N - Total Harmonic Distortion + Noise - %
www.ti.com
VDD = 5 V
100
1k
10k 20k
f - Frequency - Hz
Gain = 0.1 dB
Figure 23. Supply Voltage Rejection Ratio vs Frequency
RL = 32 Ω
Stereo
Cp = 1 µF
Gain = 0.1 dB
Figure 24. Supply Voltage Rejection Ratio vs Frequency
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
11
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
CMRR - Common-Mode Rejection Ratio - dB
kSVR - Supply Voltage Rejection Ratio - V
0
-20
-40
-60
VDD = 3.6 V
-80
VDD = 2.5 V
-100
VDD = 5 V
-120
20
100
1k
10k 20k
0
-10
-20
-30
-40
-50
VDD = 2.5 V
-70
VDD = 5 V
-80
20
100
f - Frequency - Hz
RL = 16 Ω
BTL
Cp = 1 µF
1k
10k 20k
f - Frequency - Hz
Gain = 6.1 dB
Figure 25. Supply Voltage Rejection Ratio vs Frequency
RL = 16 Ω
Stereo
CI = 2.2 µF
Gain = 0.1 dB
Figure 26. Common Mode Rejection Ratio vs Frequency
250
0
-10
200
PO - Output Power - mW
CMRR - Common-Mode Rejection Ratio - dB
VDD = 3.6 V
-60
-20
-30
-40
-50
VDD = 3.6 V
VDD = 2.5 V
-60
VDD = 5 V
150
100
VDD = 3.6 V
50
-70
VDD = 2.5 V
VDD = 5 V
-80
20
100
1k
0
10
10k 20k
100
f - Frequency - Hz
RL = 16 Ω
BTL
CI = 2.2 µF
1k
Load - W
Gain = 6.1 dB
fIN = 1 kHz
Stereo
Gain = 0.1 dB
THD+N = 1%
Figure 28. Output Power vs Load
Figure 27. Common Mode Rejection Ratio vs Frequency
500
6
5.5
VDD = 5 V
VO - Output Voltage - VPP
PO - Output Power - mW
400
VDD = 5 V
300
200
VDD = 3.6 V
100
VDD = 2.5 V
0
10
5
4.5
4
3.5
VDD = 2.5 V
3
VDD = 3.6 V
2.5
2
1.5
100
1
10
1k
Load - W
fIN = 1 kHz
BTL
Gain = 6.1 dB
THD+N = 1%
fIN = 1 kHz
Stereo
Figure 29. Output Power vs Load
12
100
1000
Load - W
Submit Documentation Feedback
Gain = 0.1 dB
THD+N = 1%
Figure 30. Output Voltage vs Load
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
1
13
PD - Power Dissipation - W
VO - Output Voltage - VPP
11
VDD = 5 V
9
7
VDD = 3.6 V
5
VDD = 2.5 V
3
0.8
VDD = 5 V
0.6
0.4
VDD = 3.6 V
0.2
VDD = 2.5 V
1
10
fIN = 1 kHz
BTL
0
100
Load - W
1000
Gain = 6.1 dB
0
50
100 150 200 250 300 350
400
PO - Output Power - mW
THD+N = 1%
RL = 16 Ω
Figure 31. Output Voltage vs Load
Gain = 0.1 dB
Stereo
Figure 32. Power Dissipation vs Output Power
Differential Input Impedance - kW
100
90
80
70
60
50
40
30
-60
-50
-40
-30
-20
-10
0
10
Gain - dB
VDD = 3.6 V
Figure 33. Differential Input Impedance vs Gain
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
13
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
8 Detailed Description
8.1 Overview
Headphone channels are independently enabled and muted. The I2C interface controls channel gain, device
modes, and charge pump activation. The charge pump generates a negative supply voltage for the output
amplifiers. This allows a 0 V bias at the outputs, eliminating the need for bulky output capacitors. The thermal
block detects faults and shuts down the device before damage occurs. The I2C register records thermal fault
conditions. The current limit block prevents the output current from getting high enough to damage the device.
The De-Pop block eliminates audible pops during power-up, power-down, and amplifier enable and disable
events.
8.2 Functional Block Diagram
LEFTINM
Left
HPLEFT
LEFTINP
Gain
Control
De-Pop
RIGHTINM
HPRIGHT
Right
RIGHTINP
Thermal
Current
Limit
Charge
Pump
Power
Management
CPP
CPN
SD
I2C Interface
and Control
SCL
CPVSS
VDD
14
SDA
GND
VDD
GND
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
8.3 Feature Description
8.3.1 Headphone Amplifiers
Two different headphone amplifier applications are available that allow for the removal of the output dc blocking
capacitors. The Capless amplifier architecture is implemented in the same manner as the conventional amplifier
with the exception of the headphone jack shield pin. This amplifier provides a reference voltage, which is
connected to the headphone jack shield pin. This is the voltage on which the audio output signals are centered.
This voltage reference is half of the amplifier power supply to allow symmetrical swing of the output voltages. Do
not connect the shield to any GND reference or large currents will result. The scenario can happen if, for
example, an accessory other than a floating GND headphone is plugged into the headphone connector. See the
second block diagram and waveform in Figure 34.
Conventional
VDD
CO
VOUT
CO
VDD/2
GND
Capless
VDD
VOUT
VBIAS
GND
VBIAS
DirectPath
TM
VDD
GND
VSS
Figure 34. Amplifier Applications
The DirectPath™ amplifier architecture operates from a single supply but makes use of an internal charge pump
to provide a negative voltage rail. Combining the user provided positive rail and the negative rail generated by
the IC, the device operates in what is effectively a split supply mode. The output voltages are now centered at
zero volts with the capability to swing to the positive rail or negative rail. The DirectPath™ amplifier requires no
output dc blocking capacitors, and does not place any voltage on the sleeve. The bottom block diagram and
waveform of Figure 34 illustrate the ground-referenced headphone architecture. This is the architecture of the
TPA6130A2.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
15
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
8.4 Device Functional Modes
The TPA6130A2 supports numerous modes of operation.
8.4.1 Hardware Shutdown
Hardware shutdown occurs when the SD pin is set to logic 0. The device is completely shutdown in this mode,
drawing minimal current. This mode overrides all other modes. All information programmed into the registers is
lost. When the device starts up again, the registers go back to their default state.
8.4.2 Software Shutdown
Software shutdown is set by placing a logic 1 in register 1, bit 0. That is the SWS bit. The software shutdown
places the device in a low power state, although the current draw is higher than that of hardware shutdown (see
the Electrical Characteristics Table for values). Engaging software shutdown turns off the charge pump and
disables the outputs. The device is awakened by placing a logic 0 in the SWS bit.
Note that when the device is in SWS mode, register 1, bits 7 and 6 will be cleared to reflect the disabled state of
the amplifier. All other registers maintain their values. Re-enable the amplifier by placing a logic 0 in the SWS bit.
It is necessary to reset the entire register because a full word must be used when writing just one bit.
8.4.3 Charge Pump Enabled, HP Amplifiers Disabled
The output amplifiers of the TPA6130A2 are enabled by placing a logic 1 in register 1, bits 6 and 7. Place a logic
0 in register 1, bits 6 and 7 to disable the output amplifiers. The left and right outputs can be enabled and
disabled individually. When the output amplifiers are disabled, the charge-pump remains on.
8.4.4 Hi-Z State
HiZ is enabled by placing a logic 1 in register 3, bits 0 and 1. Place a logic 0 in register 3, bits 0 and 1 to disable
the HiZ state of the outputs. The left and right outputs can be placed into a HiZ state individually.
The HiZ state puts the outputs into a state of high impedance. Use this configuration when the outputs of the
TPA6130A2 share traces with other devices whose outputs may be active.
Note that to use the HiZ mode, the TPA6130A2 MUST be active (not in SWS or hardware shutdown).
Furthermore, the output amplifiers must NOT be enabled.
8.4.5 Stereo Headphone Drive
The device is in this mode when the MODE bits in register 1 are 00 and both headphone enable bits are
enabled. The two amplifier channels operate independently. This mode is appropriate for stereo playback.
8.4.6 Dual Mono Headphone Drive
The device is in this mode when the MODE bits in register 1 are 01 and both headphone enable bits are
enabled. The left channel is the active input. It is amplified and distributed to both the left and right headphone
outputs.
8.4.7 Bridge-Tied Load Receiver Drive
The device is in this mode when the MODE bits in register 1 are 10 and both headphone enable bits are
enabled. In this mode, the device will take the left channel input and drive a single load connected between
HPLEFT and HPRIGHT in a bridge-tied fashion. The minimum load for bridge-tied mode is the same as for
stereo mode (see table entitled "Absolute Maximum Ratings").
8.4.8 Default Mode
The TPA6130A2 starts up with the following conditions:
• SWS = Off, CHARGE PUMP = On
• HP ENABLES = Off
• HiZ = Off
• MODE = Stereo
• HP MUTES = On, VOLUME = -59.5 dB,
16
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
Device Functional Modes (continued)
8.4.9 Volume Control
The TPA6130A2 volume control is set through the I2C interface. The six volume control register bits are decoded
to 64 volume settings that employ an audio taper. See Table 2 for the gain table. The values listed in this table
are typical. Each gain step has a different input impedance. See Figure 33.
Table 2. Audio Taper Gain Values
Gain Control Word
(Binary) Mute [7:6],
V[5:0]
Nominal Gain (dB)
Nominal Gain (V/V)
Gain Control Word
(Binary) Mute [7:6],
V[5:0]
Nominal Gain
(dB)
Nominal Gain (V/V)
11XXXXXX
–100
0.00001
00100000
–10.9
0.283
00000000
–59.5
0.001
00100001
–10.3
0.305
00000001
–53.5
0.002
00100010
–9.7
0.329
00000010
–50.0
0.003
00100011
–9.0
0.353
00000011
–47.5
0.004
00100100
–8.5
0.379
00000100
–45.5
0.005
00100101
–7.8
0.405
00000101
–43.9
0.007
00100110
–7.2
0.433
00000110
–41.4
0.009
00100111
–6.7
0.462
00000111
–39.5
0.012
00101000
–6.1
0.493
00001000
–36.5
0.015
00101001
–5.6
0.524
00001001
–35.3
0.018
00101010
–5.1
0.557
00001010
–33.3
0.022
00101011
–4.5
0.591
00001011
–31.7
0.026
00101100
–4.1
0.627
00001100
–30.4
0.031
00101101
–3.5
0.664
00001101
–28.6
0.037
00101110
–3.1
0.702
00001110
–27.1
0.043
00101111
–2.6
0.742
00001111
–26.3
0.050
00110000
–2.1
0.783
00010000
–24.7
0.057
00110001
–1.7
0.825
00010001
–23.7
0.065
00110010
–1.2
0.870
00010010
–22.5
0.074
00110011
–0.8
0.915
00010011
–21.7
0.084
00110100
–0.3
0.962
00010100
–20.5
0.093
00110101
0.1
1.010
00010101
–19.6
0.104
00110110
0.5
1.061
00010110
–18.8
0.116
00110111
0.9
1.112
00010111
–17.8
0.129
00111000
1.4
1.165
00011000
–17.0
0.142
00111001
1.7
1.220
00011001
–16.2
0.156
00111010
2.1
1.277
00011010
–15.2
0.172
00111011
2.5
1.335
00011011
–14.5
0.188
00111100
2.9
1.395
00011100
–13.7
0.205
00111101
3.3
1.456
00011101
–13.0
0.223
00111110
3.6
1.520
00011110
–12.3
0.242
00111111
4.0
1.585
00011111
–11.6
0.262
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
17
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
8.5 Programming
8.5.1 General I2C Operation
The I2C bus employs two signals; SDA (data) and SCL (clock), to communicate between integrated circuits in a
system. Data is transferred on the bus serially, one bit at a time. The address and data are transferred in byte (8bit) format with the most-significant bit (MSB) transferred first. In addition, each byte transferred on the bus is
acknowledged by the receiving device with an acknowledge bit. Each transfer operation begins with the master
device driving a start condition on the bus and ends with the master device driving a stop condition on the bus.
The bus uses transitions on the data terminal (SDA) while the clock is high to indicate start and stop conditions.
A high-to-low transition on SDA indicates a start and a low-to-high transition indicates a stop. Normal data-bit
transitions must occur within the low time of the clock period. These conditions are shown in Figure 35. The
master generates the 7-bit slave address and the read/write (R/W) bit to open communication with another
device and then wait for an acknowledge condition. The TPA6130A2 holds SDA low during acknowledge clock
period to indicate an acknowledgment. When this occurs, the master transmits the next byte of the sequence.
Each device is addressed by a unique 7-bit slave address plus R/W bit (1 byte). All compatible devices share the
same signals via a bidirectional bus using a wired-AND connection.
An external pull-up resistor must be used for the SDA and SCL signals to set the HIGH level for the bus. When
the bus level is 5 V, pull-up resistors between 1 kΩ and 2 kΩ in value must be used.
8- Bit Data for
Register (N)
8- Bit Data for
Register (N+1)
Figure 35. Typical I2C Sequence
There is no limit on the number of bytes that can be transmitted between start and stop conditions. When the last
word transfers, the master generates a stop condition to release the bus. A generic data transfer sequence is
shown in Figure 35.
8.5.2 Single-and Multiple-Byte Transfers
The serial control interface supports both single-byte and multi-byte read/write operations for all registers.
During multiple-byte read operations, the TPA6130A2 responds with data, a byte at a time, starting at the register
assigned, as long as the master device continues to respond with acknowledges.
The TPA6130A2 supports sequential I2C addressing. For write transactions, if a register is issued followed by
data for that register and all the remaining registers that follow, a sequential I2C write transaction has taken
place. For I2C sequential write transactions, the register issued then serves as the starting point, and the amount
of data subsequently transmitted, before a stop or start is transmitted, determines to how many registers are
written.
8.5.3 Single-Byte Write
As shown in Figure 36, a single-byte data write transfer begins with the master device transmitting a start
condition followed by the I2C device address and the read/write bit. The read/write bit determines the direction of
the data transfer. For a write data transfer, the read/write bit must be set to 0. After receiving the correct I2C
device address and the read/write bit, the TPA6130A2 responds with an acknowledge bit. Next, the master
transmits the register byte corresponding to the TPA6130A2 internal memory address being accessed. After
receiving the register byte, the TPA6130A2 again responds with an acknowledge bit. Next, the master device
transmits the data byte to be written to the memory address being accessed. After receiving the data byte, the
TPA6130A2 again responds with an acknowledge bit. Finally, the master device transmits a stop condition to
complete the single-byte data write transfer.
18
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
Programming (continued)
Start
Condition
Acknowledge
A6
A5
A4
A3
A2
A1
A0
Acknowledge
R/W ACK A7
A6
A5
I2C Device Address and
Read/Write Bit
A4
A3
A2
A1
Acknowledge
A0 ACK D7
D6
Register
D5
D4
D3
D2
D1
D0 ACK
Stop
Condition
Data Byte
Figure 36. Single-Byte Write Transfer
8.5.4 Multiple-Byte Write and Incremental Multiple-Byte Write
A multiple-byte data write transfer is identical to a single-byte data write transfer except that multiple data bytes
are transmitted by the master device to the TPA6130A2 as shown in Figure 37. After receiving each data byte,
the TPA6130A2 responds with an acknowledge bit.
Register
Figure 37. Multiple-Byte Write Transfer
8.5.5 Single-Byte Read
As shown in Figure 38, a single-byte data read transfer begins with the master device transmitting a start
condition followed by the I2C device address and the read/write bit. For the data read transfer, both a write
followed by a read are actually done. Initially, a write is done to transfer the address byte of the internal memory
address to be read. As a result, the read/write bit is set to a 0.
After receiving the TPA6130A2 address and the read/write bit, the TPA6130A2 responds with an acknowledge
bit. The master then sends the internal memory address byte, after which the TPA6130A2 issues an
acknowledge bit. The master device transmits another start condition followed by the TPA6130A2 address and
the read/write bit again. This time the read/write bit is set to 1, indicating a read transfer. Next, the TPA6130A2
transmits the data byte from the memory address being read. After receiving the data byte, the master device
transmits a not-acknowledge followed by a stop condition to complete the single-byte data read transfer.
Repeat Start
Condition
Start
Condition
Acknowledge
A6
A5
A1
A0 R/W ACK A7
I2C Device Address and
Read/Write Bit
Acknowledge
A6
A5
A4
Register
A0 ACK
Not
Acknowledge
Acknowledge
A6
A5
A1
A0 R/W ACK D7
I2C Device Address and
Read/Write Bit
D6
D1
Data Byte
D0 ACK
Stop
Condition
Figure 38. Single-Byte Read Transfer
8.5.6 Multiple-Byte Read
A multiple-byte data read transfer is identical to a single-byte data read transfer except that multiple data bytes
are transmitted by the TPA6130A2 to the master device as shown in Figure 39. With the exception of the last
data byte, the master device responds with an acknowledge bit after receiving each data byte.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
19
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
Programming (continued)
Repeat Start
Condition
Start
Condition
Acknowledge
A6
A0 R/W ACK A7
I2C Device Address and
Read/Write Bit
Acknowledge
A6
A5
Register
A0 ACK
Acknowledge
A6
A0 R/W ACK D7
I2C Device Address and
Read/Write Bit
Acknowledge
D0
ACK D7
First Data Byte
Acknowledge
Not
Acknowledge
D0 ACK D7
D0 ACK
Other Data Bytes
Last Data Byte
Stop
Condition
Figure 39. Multiple-Byte Read Transfer
20
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
8.6 Register Maps
Table 3. Register Map
Register
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
1
HP_EN_L
HP_EN_R
Mode[1]
Mode[0]
Reserved
Reserved
Thermal
SWS
2
Mute_L
Mute_R
Volume[5]
Volume[4]
Volume[3]
Volume[2]
Volume[1]
Volume[0]
3
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
HiZ_L
HiZ_R
4
Reserved
Reserved
RFT
RFT
Version[3]
Version[2]
Version[1]
Version[0]
5
RFT
RFT
RFT
RFT
RFT
RFT
RFT
RFT
6
RFT
RFT
RFT
RFT
RFT
RFT
RFT
RFT
7
RFT
RFT
RFT
RFT
RFT
RFT
RFT
RFT
8
RFT
RFT
RFT
RFT
RFT
RFT
RFT
RFT
Bits labeled "Reserved" are reserved for future enhancements. They may not be written to. When read, they will
show a "0" value.
Bits labeled "RFT" are reserved for TI testing. Under no circumstances must any data be written to these
registers. Writing to these bits may change the function of the device, or cause complete failure. If read, these
bits may assume any value.
8.6.1 Control Register (Address: 1)
Figure 40. Control Register (Address: 1)
7
HP_EN_L
R/W-0h
6
HP_EN_R
R/W-0h
5
4
3
Mode[1:0]
R/W-0h
2
Reserved
R/W-0h
1
Thermal
R/W-0h
0
SWS
R/W-0h
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Table 4. Control Register (Address: 1)
Bit
Field
Type
Reset
Description
7
HP_EN_L
R/W
0h
Enable bit for the left-channel amplifier. Amplifier is active when
bit is high.
6
HP_EN_R
R/W
0h
Enable bit for the right-channel amplifier. Amplifier is active
when bit is high.
5:4
Mode[1:0]
R/W
0h
Mode bits Mode[1] and Mode[0] select one of three modes of
operation. 00 is stereo headphone mode. 01 is dual mono
headphone mode. 10 is bridge-tied load mode.
3:2
Reserved
R/W
0h
Reserved registers. They may not be written to. When read they
will read as zero.
1
Thermal
R/W
0h
A 1 on this bit indicates a thermal shutdown was initiated by the
hardware. When the temperature drops to safe levels, the
device will start to operate again, regardless of bit status. This
bit is clear-on-read.
0
SWS
R/W
0h
Software shutdown control. When the bit is one, the device is in
software shutdown. When the bit is low, the charge-pump is
active. SWS must be low for normal operation.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
21
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
8.6.2 Volume and Mute Register (Address: 2)
Figure 41. Volume and Mute Register (Address: 2)
7
Mute_L
R/W-1h
6
Mute_R
R/W-1h
5
4
3
2
1
0
Volume[5:0]
R/W-0h
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Table 5. Volume and Mute Register (Address: 2)
Bit
Field
Type
Reset
Description
7
Mute_L
R/W
1h
Left channel mute. If this bit is High the left channel is muted.
6
Mute_R
R/W
1h
Right channel mute. If this bit is High the right channel is muted
Volume[5:0]
R/W
0h
Six bits for volume control.
111111 indicates the highest gain
000000 indicates the lowest gain.
5:0
8.6.3 Output Impedance Register (Address: 3)
Figure 42. Output Impedance Register (Address: 3)
7
6
5
4
3
2
Reserved
R-0h
1
HiZ_L
R/W-0h
0
HiZ_R
R/W-0h
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Table 6. Output Impedance Register (Address: 3)
22
Bit
Field
Type
Reset
Description
7:2
Reserved
R
0h
Reserved registers. They may not be written to. When read they
will read as zero. All writes to these bits will be ignored.
1
HiZ_L
R/W
0h
Puts left-channel amplifier output in tri-state high impedance
mode.
0
HiZ_R
R/W
0h
Puts right-channel amplifier output in tri-state high impedance
mode.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
8.6.4 I2C address and Version Register (Address: 4)
Figure 43. I2C address and Version Register (Address: 4)
7
6
Reserved
R-0h
5
RFT
R-0h
4
Reserved
R-0h
3
2
1
0
Version[3:0]
R-0h
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Table 7. I2C address and Version Register (Address: 4)
Bit
Field
Type
Reset
Description
7:6
Reserved
R
0h
Reserved registers. They may not be written to. When read they
will read as zero.
5
RFT
R
0h
Reserved for Test. Do NOT write to these registers.
4
Reserved
R
0h
Reserved registers. They may not be written to. When read they
will read as zero.
Version[3:0]
R
0h
The version bits track the revision of the silicon. Valid values are
0010 for released TPA6130A2.
3:0
8.6.5 Reserved for test registers (Addresses: 5-8)
Figure 44. Reserved for test registers (Addresses: 5-8)
7
6
5
4
3
2
1
0
RFT
R-x
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Table 8. Reserved for Test Registers (Addresses: 5-8)
Bit
Field
Type
Reset
Description
7:0
RFT
R
x
Reserved for Test. Do NOT write to these registers.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
23
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
9 Applications and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2
has minimal quiescent current consumption, with a typical IDD of 4 mA, making it optimal for portable
applications.
9.2 Typical Application
Figure 45 shows a typical application circuit for the TPA6130A2 with a stereo headphone jack and supporting
power supply decoupling capacitors.
VDD
CPN
CPP
GND
VDD
20
19
CPVSS
1 mF
1 mF
18
17
16
LEFTINM
0.47 mF
0.47 mF
1 mF
1
15
2
14
LEFTINP
GND
13
TPA6130A2
3
CPVSS
HPLEFT
GND
VDD
5
11
7
SDA
SD
SD
8
SCL
6
9
VDD
HPRIGHT
1 mF
10
GND
0.47 mF
GND
RIGHTINM
12
SDA
0.47 mF
4
SCL
RIGHTINP
Figure 45. Typical Application Circuit
9.2.1 Design Requirements
For this design example, use the following as the input parameters.
Table 9. Design Parameters
24
DESIGN PARAMTER
EXAMPLE VALUE
Input voltage
2.5 V – 5.5 V
Minimum current limit
4 mA
Maximum current limit
6 mA
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
9.2.2 Detailed Design Procedure
9.2.2.1 Input-Blocking Capacitors
DC input-blocking capacitors block the dc portion of the audio source, and allow the inputs to properly bias.
Maximum performance is achieved when the inputs of the TPA6130A2 are properly biased. Performance issues
such as pop are optimized with proper input capacitors.
The dc input-blocking capacitors may be removed provided the inputs are connected differentially and within the
input common mode range of the amplifier, the audio signal does not exceed ±3 V, and pop performance is
sufficient.
CIN is a theoretical capacitor used for mathematical calculations only. Its value is the series combination of the dc
input-blocking capacitors, C(DCINPUT-BLOCKING). Use Equation 1 to determine the value of C(DCINPUT-BLOCKING). For
example, if CIN is equal to 0.22 μF, then C(DCINPUT-BLOCKING) is equal to about 0.47 μF.
1 C
CIN =
(DCINPUT-BLOCKING)
2
(1)
The two C(DCINPUT-BLOCKING) capacitors form a high-pass filter with the input impedance of the TPA6130A2. Use
Equation 1 to calculate CIN, then calculate the cutoff frequency using CIN and the differential input impedance of
the TPA6130A2, RIN, using Equation 2. Note that the differential input impedance changes with gain. See
Figure 33 for input impedance values. The frequency and/or capacitance can be determined when one of the two
values are given.
1
1
fc IN +
or C IN + 2p fc R
2p RIN C IN
IN IN
(2)
If a high pass filter with a -3 dB point of no more than 20 Hz is desired over all gain settings, the minimum
impedance would be used in the above equation. Figure 33 shows this to be 37 kΩ. The capacitor value by the
above equation would be 0.215 μF. However, this is CIN, and the desired value is for C(DCINPUT-BLOCKING).
Multiplying CIN by 2 yields 0.43 μF, which is close to the standard capacitor value of 0.47 μF. Place 0.47 μF
capacitors at each input terminal of the TPA6130A2 to complete the filter.
9.2.2.2 Charge Pump Flying Capacitor and CPVSS Capacitor
The charge pump flying capacitor serves to transfer charge during the generation of the negative supply voltage.
The CPVSS capacitor must be at least equal to the flying capacitor in order to allow maximum charge transfer.
Low ESR capacitors are an ideal selection, and a value of 1 µF is typical.
9.2.2.3 Decoupling Capacitors
The TPA6130A2 is a DirectPath™ headphone amplifier that requires adequate power supply decoupling to
ensure that the noise and total harmonic distortion (THD) are low. Use good low equivalent-series-resistance
(ESR) ceramic capacitors, typically 1.0 µF. Find the smallest package possible, and place as close as possible to
the device VDD lead. Placing the decoupling capacitors close to the TPA6130A2 is important for the performance
of the amplifier. Use a 10 μF or greater capacitor near the TPA6130A2 to filter lower frequency noise signals.
The high PSRR of the TPA6130A2 will make the 10 μF capacitor unnecessary in most applications.
9.2.2.4 I2C Control Interface Details
9.2.2.4.1 Addressing the TPA6130A2
The device operates only as a slave device whose address is 1100000 binary.
9.2.2.5 Headphone Amplifiers
Single-supply headphone amplifiers typically require dc-blocking capacitors. The capacitors are required because
most headphone amplifiers have a dc bias on the outputs pin. If the dc bias is not removed, the output signal is
severely clipped, and large amounts of dc current rush through the headphones, potentially damaging them. The
top drawing in Figure 34 illustrates the conventional headphone amplifier connection to the headphone jack and
output signal.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
25
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
DC blocking capacitors are often large in value. The headphone speakers (typical resistive values of 16 Ω or 32
Ω) combine with the dc blocking capacitors to form a high-pass filter. Equation 3 shows the relationship between
the load impedance (RL), the capacitor (CO), and the cutoff frequency (fC).
1
fc +
2pRLC O
(3)
CO can be determined using Equation 4, where the load impedance and the cutoff frequency are known.
1
CO +
2pRLf c
(4)
If fc is low, the capacitor must then have a large value because the load resistance is small. Large capacitance
values require large package sizes. Large package sizes consume PCB area, stand high above the PCB,
increase cost of assembly, and can reduce the fidelity of the audio output signal.
9.2.3 Application Performance Curves
1
Output
SWS
Disable
0.75
Voltage - V
0.5
0.25
0
-0.25
-0.5
-0.75
-1
0
200m
400m
600m
800m
1m
1.2m
1.4m
1.6m
1.8m
2m
8m
9m
10m
t - Time - s
Figure 46. Shutdown Time
1
Output
0.75
SWS Enable
Voltage - V
0.5
0.25
0
-0.25
-0.5
-0.75
-1
0
1m
2m
3m
4m
5m
6m
7m
t - Time - s
Figure 47. Startup Time
26
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
10 Power Supply Recommendations
The device is designed to operate from an input voltage supply range of 2.5 V to 5.5 V. Therefore, the output
voltage range of power supply should be within this range and well regulated. The current capability of upper
power should not exceed the max current limit of the power switch.
11 Layout
11.1 Layout Guidelines
Exposed Pad On TPA6130A2RTJ Package Option:
• Solder the exposed metal pad on the TPA6130A2RTJ QFN package to the a pad on the PCB. The pad on
the PCB may be grounded or may be allowed to float (not be connected to ground or power).
• If the pad is grounded, it must be connected to the same ground as the GND pins (3, 9, 10, 13, and 19).
• Soldering the thermal pad improves mechanical reliability, improves grounding of the device, and enhances
thermal conductivity of the package.
GND Connections:
• The GND pin for charge pump should be decoupled to the charge pump VDD pin, and the GND pin adjacent
to the Analog VDD pin should be separately decoupled to each other.
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
27
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
11.2 Layout Example
It is recommended to place a top layer ground pour for
shielding around TPA6130A2 and connect to lower main
PCB ground plane by multiple vias
Minimize charge pump cap series resistance.
Keep close to pins with zero vias.
VDD
Keep vias to ground plane away
from top layer ground pads to
distribute inductances
TPA6130A2
Place decoupling caps as close to
TPA6120A2 pins as possible
1uf
1uf
1uf
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
D1
D2
D3
D4
0.47uf
HPLEFT
VDD
0.47uf
Audio
Source
1uf
HPRIGHT
0.47uf
0.47uf
Top layer pad with via to lower
signal layer for lead out
Top Layer Ground Pour
Pad to top Layer Ground Pour
Top Layer Signal Traces
Via to bottom Ground Plane
Lower Layer Signal Traces
Via Between Signal Layers
Figure 48. YZH (DSBGA) Package
28
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
TPA6130A2
www.ti.com
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
Layout Example (continued)
It is recommended to place a top layer ground pour for
shielding around TPA6130A2 and connect to lower main
PCB ground plane by multiple vias
Minimize charge pump cap series resistance.
Keep close to pins with zero vias.
Place decoupling caps as close to
1uf
TPA6120A2 pins as possible
VDD
1uf
20
0.47uf
19
18
17
16
TPA6130A2
1
15
HPLEFT
1uf
2
14
3
13
4
12
0.47uf
Audio
Source
0.47uf
VDD
HPRIGHT
1uf
5
11
6
7
8
9
10
0.47uf
Top Layer Ground Pour and PowerPad
Keep vias to ground plane away
from top layer ground pads to
distribute inductances
Pad to top layer ground pour
Top Layer Signal Traces
Via to bottom Ground Plane
Figure 49. RTJ (WQFN) Package
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
29
TPA6130A2
SLOS488F – NOVEMBER 2006 – REVISED MARCH 2015
www.ti.com
12 Device and Documentation Support
12.1 Trademarks
DirectPath is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.2 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.3 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical packaging and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
30
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: TPA6130A2
PACKAGE OPTION ADDENDUM
www.ti.com
24-Aug-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
HPA00929RTJR
ACTIVE
QFN
RTJ
20
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BSG
TPA6130A2RTJR
ACTIVE
QFN
RTJ
20
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BSG
TPA6130A2RTJRG4
ACTIVE
QFN
RTJ
20
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BSG
TPA6130A2RTJT
ACTIVE
QFN
RTJ
20
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BSG
TPA6130A2RTJTG4
ACTIVE
QFN
RTJ
20
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-2-260C-1 YEAR
-40 to 85
BSG
TPA6130A2YZHR
ACTIVE
DSBGA
YZH
16
3000
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
BRU
TPA6130A2YZHT
ACTIVE
DSBGA
YZH
16
250
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
BRU
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
