User's Guide
SLVU501A – August 2011 – Revised January 2012
TPS2291xxEVM-656
This user's guide describes the characteristics, operation, and use of the TPS2291xxEVM-656 evaluation
module (EVM). This EVM demonstrates the Texas Instruments TPS2291xx load switch with controlled
turn on. The device contains a P-channel MOSFET that can operate over an input voltage of 1.4V to 5.5V.
The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage
control signals. This user's guide includes setup instructions, schematic diagram, bill of materials, and
printed-circuit board layout drawings for the EVM.
1
Introduction

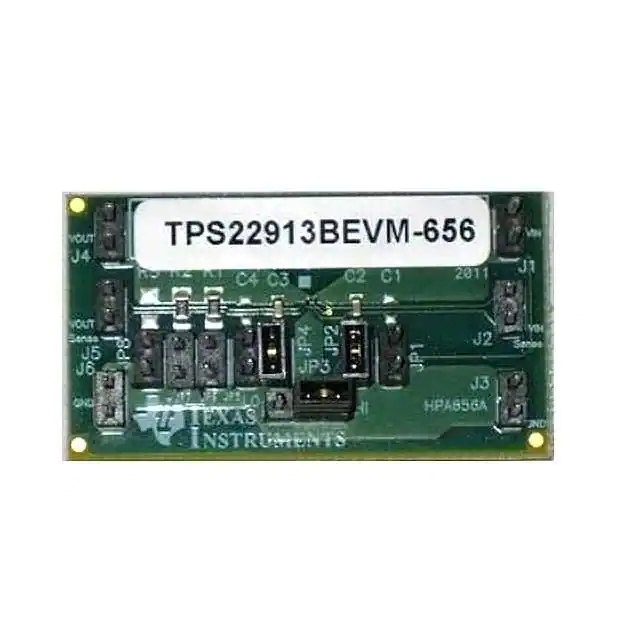

The TPS2291xxEVM-656 evaluation module (EVM) helps designers evaluate the operation and
performance of the TPS2291xx load switches. The board features the small 4-pin CSP package for a
small solution size.
Table 1. TPS22910, TPS22912, TPS22913 Vout Rise Time, Enable, and Discharge
Options
EVM
1.1
Device
Rise Time (µS)
Typ.
VIN(V)
Enable
(ON Pin)
Quick Output
Discharge
No
HPA656-001
TPS22910A
0.5
5
Active Low
HPA656-0011
TPS22912C
1000
5
Active High
No
HPA656-0014
TPS22913B
100
5
Active High
Yes
HPA656-0015
TPS22913C
1000
5
Active High
Yes
Related Documentation From Texas Instruments
TPS2291xx, ULTRA-SMALL, LOW rON LOAD SWITCH data sheet
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
TPS2291xxEVM-656
1
Setup
2
www.ti.com
Setup
This section describes the jumpers and connectors on the EVM as well as how to properly connect, set
up, and use the TPS2291xxEVM-656.
2.1
J1/J3 – Input Connections
This is the connection for the leads from the input source. Connect the positive connection to the VIN J1
and the negative connection to the GND J3.
2.2
J4/J6 – Output Connections
This is the connection for the output of the TPS2291xxEVM. Connect the positive connection of the load to
the VOUT J4 and the negative connection to the GND J6.
2.3
JP3 – ON
This is the enable input for the device. A shorting jumper must be installed on JP3 in either the HI or LO
positions. The TPS2291xx family contains products that are active high and active low (refer to Table 1).
ON must not be left unconnected. An external enable source can be applied to the EVM by removing the
shunt and connecting a signal to the center pin of JP3. Refer to the Datasheet for proper ON and OFF
voltage level settings. A switching signal may also be used and connected at this point.
2.4
J2/J5 – VIN Sense and VOUT Sense
These two connectors are used when very accurate measurements of input or output voltage are required.
Ron measurements should be made using these sense connections and measuring the voltage drop from
VIN to VOUT and then calculating the resistance.
2.5
JP1/JP2 – Input Capacitors
During normal operation a shorting jumper is placed on JP2 and connects C2 capacitor from the input of
the device to ground. JP1 and C1 may be used to connect a user selected capacitor value from the input
of the device to ground. Refer to the Applications Section of the Datasheet for additional information on
selecting the input capacitors.
2.6
JP4/JP5 – Output Capacitors
During normal operation a shorting jumper is placed on JP4 and connects C3 capacitor from the output of
the device to ground. JP5 and C4 may be used to connect a user selected capacitor value from the output
of the device to ground. Refer to the Applications Section of the Datasheet for additional information on
selecting the output capacitors.
2.7
JP6/JP7/JP8 – Output Resistors
During normal operation no shorting jumpers are placed on JP6, JP7, or JP8. A shorting jumper may be
used on JP6 to connect R1 load resistor from the output of the device to ground. JP7 and JP8 may be
used to connect R2 and R3 user selected load resistors from the output of the device to ground. R1, R2,
and R3 are intended for light loads of the output; observe the 1/8W power rating for these parts.
NOTE: R2 is populated on some EVM’s with a 14Ω 1/8W resistor, the maximum power rating for this
part can be easily exceeded, observe the power rating for R2 if it is populated and used on
your EVM.
2
TPS2291xxEVM-656
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
Operation
www.ti.com
3
Operation
Connect the positive input of the power supply to the VIN J1 and the negative lead of the power supply to
GND J3. The input voltage range of the TPS2291xx is 1.4 V to 5.5 V.
Output load can be applied by connecting between J4 VOUT and J6 GND. The TPS2291xx is rated for a
maximum continuous current of 2A. Configure jumper JP3 as required. JP3 must be installed for proper
operation. When the ON pin is asserted, the TPS2291xx will control the slew rate of VOUT. The slew rate
of the device is internally controlled to avoid inrush current. When ON is deasserted, the TPS2291xx will
open the P-Channel MOSFET. Devices equipped with the Quick Output Discharge (QOD) option will
connect a 150Ω on-chip load resistor to the output for quick discharge. Devices equipped with the QOD
function are noted in Table 1.
4
Test Results
See the Typical Characteristics section of the TPS2291xx data sheet.
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
TPS2291xxEVM-656
3
Board Layout, Schematic, and Bill of Materials
5
www.ti.com
Board Layout, Schematic, and Bill of Materials
This section provides the TPS2291xxEVM-656 board layout, schematic, and bill of materials.
5.1
Board Layout
For best performance, all traces should be as short as possible. To be most effective, the input and output
capacitors should be placed close to the device to minimize the effects that parasitic trace inductances
may have on normal and short-circuit operation. Using wide traces for VIN, VOUT, and GND helps minimize
the parasitic electrical effects along with minimizing the case to ambient thermal impedance Figure 1,
Figure 2, and Figure 3 show the board layout for the TPS2291xxEVM-656 PCB.
TEXAS
INSTRUMENTS
Figure 1. Top Assembly Layer
TEXAS
INSTRUMENTS
Figure 2. Top Layer
4
TPS2291xxEVM-656
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
Board Layout, Schematic, and Bill of Materials
www.ti.com
Figure 3. Bottom Layer
5.2
Schematic and Bill of Materials
Figure 4. TPS2291xxEVM-656 Schematic
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
TPS2291xxEVM-656
5
Board Layout, Schematic, and Bill of Materials
www.ti.com
Table 2. Bill of Materials
Count
(1)
(2)
(3)
(4)
RefDes
Value
(1) (2) (3) (4)
Description
Size
Part Number
MFR
HPA656
Any
603
Std
Std
1 µF, use 10 µF Capacitor, Ceramic,6.3-V, X5R, 10%
for A type
devices
603
Std
Std
C1, C4
OPEN
Capacitor, Ceramic
603
Std
Std
R1
560 Ω
Resistor, 5% 1/8W
805
Std
Std
1
R2
OPEN
Resistor, 5% 1/8W
805
Std
Std
0
R3
OPEN
Resistor, 5% 1/8W
805
Std
Std
13
J1 – J6, JP1–2,
JP4–8
PEC02SAAN
Header,2pin, 100mil spacing
0.100 inch x 2
PEC02SAAN
Sullins
1
JP3
PEC03SAAN
Header,3pin, 100mil spacing IC,
0.100 inch x 3
PEC03SAAN
Sullins
1
U1
TPS2291xxYZP Single Chip, Low Input Voltage Current-Limited Load Switch
V
with Shut Off Auto-Restart
YZV
TPS2291xxYZV
TI
3
N/A
N/A
0.100
929950-00
3M
1
–
1
C3
0.1 µF
Capacitor, Ceramic,16-V, X7R, 10%
1
C2
0
1
PCB, 0.9 In x 1.7 In x 0.062 In
Shunt, 100-mil, Black
These assemblies are ESD sensitive, ESD precautions shall be observed.
These assemblies must be clean and free from flux and all contaminants. Use of no clean flux is not acceptable.
These assemblies must comply with workmanship standards IPC-A-610 Class 2.
Ref designators marked with an asterisk (**) cannot be substituted. All other components can be substituted with equivalent components.
Table 3.
6
TPS2291xxEVM-656
Assembly number
Text
HPA656-001
TPS22910AEVM-656
HPA656-011
TPS22912CEVM-656
HPA656-014
TPS22913BEVM-656
HPA656-015
TPS22913CEVM-656
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
Board Layout, Schematic, and Bill of Materials
www.ti.com
5.3
VOUT Rise Time Examples
Figure 5. TPS22910A Trise Example
Figure 6. TPS22913B Trise Example
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
TPS2291xxEVM-656
7
Board Layout, Schematic, and Bill of Materials
www.ti.com
Figure 7. TPS22913C Trise Example
8
TPS2291xxEVM-656
SLVU501A – August 2011 – Revised January 2012
Submit Documentation Feedback
Copyright © 2011–2012, Texas Instruments Incorporated
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 1.4 V to 5.5 V and the output voltage range of unspecified.
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 50°C. The EVM is designed to
operate properly with certain components above 60°C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Mobile Processors
www.ti.com/omap
Wireless Connectivity
www.ti.com/wirelessconnectivity
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
