TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
TPS2375x IEEE 802.3at PoE Interface With Flyback DC-DC Controller
1 Features
3 Description
•
•
•
•
•
•
•
•
•
•
The TPS23751 is a 16-pin integrated circuit that
combines a Power-over-Ethernet (PoE) powered
device (PD) interface and a current-mode DC-DC
controller optimized specifically for applications
requiring high efficiency over a wide load range.
1
•
IEEE 802.3at Classification With Status Flag
High Efficiency Solutions Over Wide Load Range
Powers Up to 25.5 W PDs
Robust 100 V, 0.5 Ω Hotswap MOSFET
Synchronous Rectifier Disable Signal
PowerPAD™ TSSOP Packages
Complete PoE Interface Plus DC-DC Controller
Adapter ORing Support
Programmable Frequency
TPS23752 Supports Ultra-Low Power Sleep
Modes
–40°C to 125°C Junction Temperature Range
The PoE interface implements type-2 hardware
classification per IEEE 802.3at. It also includes an
auxiliary power detect (APD) input and a disable
function (DEN). A 0.5-Ω, 100-V pass MOSFET
minimizes heat dissipation and maximizes power
utilization.
The DC-DC controller features internal soft-start, a
bootstrap startup current source, current-mode
control with slope compensation, blanking, and
current limiting. Efficiency is enhanced at light loads
by disabling synchronous rectification and entering
variable frequency operation (VFO).
2 Applications
•
•
•
•
•
IEEE 802.3at-Compliant Devices
Video and VoIP Telephones
Multiband Access Points
Security Cameras
Pico-Base Stations
The TPS23752 is a 20-pin extended version of the
TPS23751 with the addition of a Sleep Mode feature.
Sleep Mode disables the converter to minimize power
consumption while still generating the Maintain Power
Signature (MPS) required by IEEE802.3at.
Device Information(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)

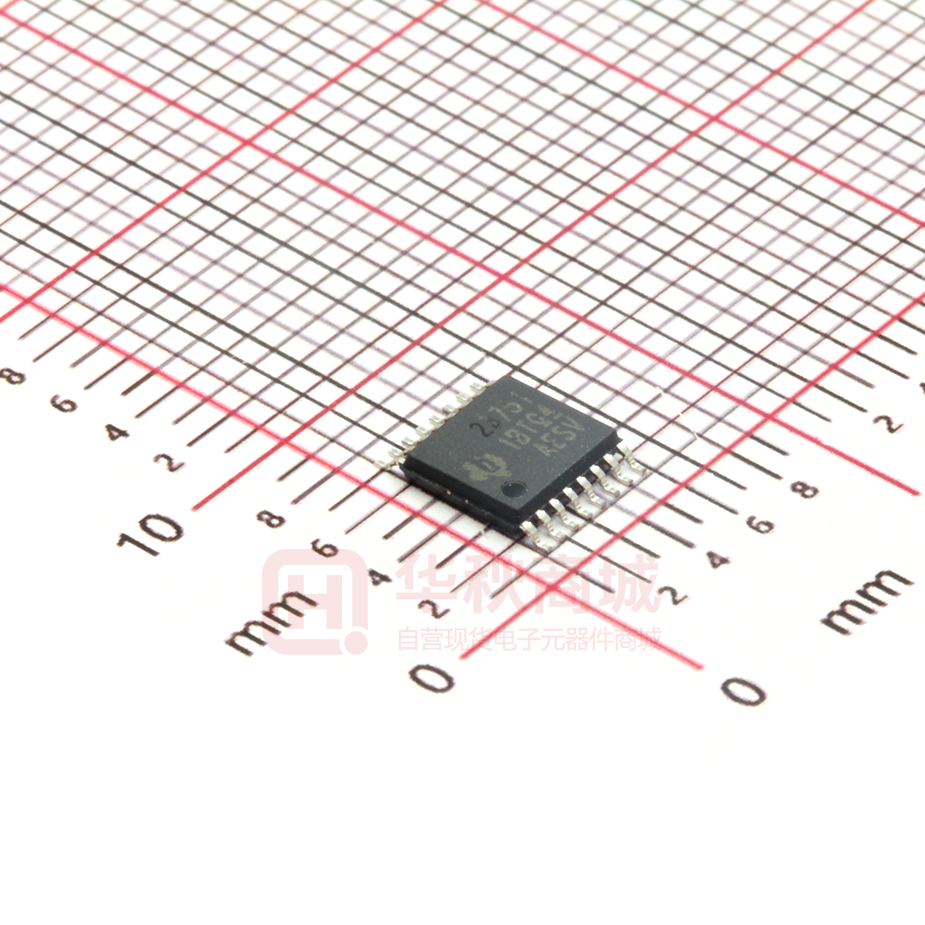

TPS23751
TSSOP (16)
5.00 mm × 4.40 mm
TPS23752
TSSOP (20)
6.50 mm × 4.40 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
From Ethernet
Pairs 1,2
Figure 1. Typical Application Circuit
OPTO2
ROB
RCS
CVC
RSRT2
OPTO1
CIO
OPTO2
CIZ
TLV431
RFBU
RSRD
RSRT1
M2
M1
VOUT
CVB
ARTN
Type 2 PSE
Indicator
RFBL
VDD
RTN
CCTL
RT
OPTO1
SRT
GATE
CS
SRD
OPTO3
DVC1
RVC
VC
VB
TPS23751
58V
RCTL
RAPD2
Adapter
RAPD1
VB
DOUT
T2P
RT2P
CLS
PAD
VSS
APD
CTL
RT
RCLS
0.1uF
From Ethernet
Pairs 3,4
DA
CIN
OPTO3
DEN
VOUT
COUT
RDEN
T1
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
Absolute Maximum Ratings ...................................... 4
ESD Ratings.............................................................. 4
ESD Ratings: Surge .................................................. 4
Recommended Operating Conditions....................... 5
Thermal Information .................................................. 5
Electric Characteristics - Controller Section.............. 6
Electrical Characteristics - Sleep Mode (TPS23752
Only)........................................................................... 8
6.8 Electrical Characteristics - PoE Interface Section .... 9
6.9 Typical Characteristics ............................................ 11
7
Detailed Description ............................................ 14
7.1 Overview ................................................................. 14
7.2 Functional Block Diagrams ..................................... 15
7.3 Feature Description................................................. 17
7.4 Device Functional Modes........................................ 19
8
Application and Implementation ........................ 32
8.1 Application Information............................................ 32
8.2 Typical Application ................................................. 32
9 Power Supply Recommendations...................... 39
10 Layout................................................................... 39
10.1 Layout Guidelines ................................................. 39
10.2 Layout Example ................................................... 39
11 Device and Documentation Support ................. 40
11.1
11.2
11.3
11.4
11.5
Documentation Support ........................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
40
40
40
40
40
12 Mechanical, Packaging, and Orderable
Information ........................................................... 40
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision D (November 2015) to Revision E
•
Page
Changed data sheet title to TPS2375x IEEE 802.3at PoE Interface With Flyback DC-DC Controller ................................. 1
Changes from Revision C (January 2014) to Revision D
•
Page
Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section. ................................................................................................. 1
Changes from Revision B (July 2013) to Revision C
•
Page
Changed the T2P startup delay MAX value From: 0 ms To: 7 ms......................................................................................... 9
Changes from Revision A (August 2012) to Revision B
Page
•
Added "THERMAL SHUTDOWN" to the CONTROLLER SECTION ..................................................................................... 7
•
Added text to the VC Pin Description: "The Sleep Mode output voltage is high enough to drive..." .................................... 19
•
Added text to the Sleep Mode Operation (TPS23752 only) " For more information regarding ..." ...................................... 19
Changes from Original (July 2012) to Revision A
•
2
Page
Changed from PRODUCT PREVIEW to PRODUCTION DATA ............................................................................................ 1
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
5 Pin Configuration and Functions
PWP Package
16-Pin TSSOP
Top View
VDD
DEN
PWP Package
20-Pin TSSOP
Top View
1
16
2
15
CLS
3
APD
4
RT
5
T2P
VSS
RTN
14
ARTN
13
GATE
12
6
SRD
CTL
VDD
DEN
1
20
2
19
VSS
RTN
CLS
3
18
ARTN
APD
4
17
VC
RT
5
16
GATE
VC
11
CS
T2P
6
15
CS
7
10
VB
SRD
7
14
8
9
CTL
8
13
VB
SRT
LED
9
12
MODE
10
11
SLPb
Thermal
Pad
SRT
WAKE
Thermal
Pad
Pin Functions
NAME
PIN
I/O
DESCRIPTION
TPS23751
TPS23752
VDD
1
1
I
DEN
2
2
I/O
Connect 24.9 kΩ to VDD for detection. Pull to VSS to disable pass MOSFET.
CLS
3
3
I/O
Connect resistor from CLS to VSS to program classification current.
APD
4
4
I
Raise 1.5 V above ARTN to disable pass MOSFET and force T2P active.
RT
5
5
I
Connect a resistor from RT to ARTN to set switching frequency.
T2P
6
6
O
Active low indicates type-2 PSE connected or APD active.
SRD
7
7
O
Disable external synchronous rectifiers in VFO Mode.
CTL
8
8
I
Control loop input to PWM
LED
—
9
O
Open-drain drive for external LED controlled by SLPb, MODE, and WAKE.
WAKE
—
10
I/O
Pull WAKE low to re-enable the DC-DC converter from Sleep Mode.
SLPb
—
11
I
Pull low during normal operation to enter Sleep Mode.
MODE
—
12
I
Enables pulsed MPS when entering Sleep Mode. Control LED in normal operation.
SRT
9
13
I
Set the threshold of PWM to VFO transition
VB
10
14
O
5 V bias supply. Bypass with a minimum of 0.1 µF to ARTN.
CS
11
15
I/O
Current sense input. Connect to ARTN-referenced current sense resistor.
VC
12
16
I/O
DC-DC converter bias voltage. Bypass with 0.47 µF or more to ARTN directly at pin.
GATE
13
17
O
Gate driver output for DC-DC converter switching MOSFET.
ARTN
14
18
RTN
15
19
VSS
16
20
Pad
Connect to positive PoE input power rail. Bypass with 0.1 µF to VSS.
PWR DC-DC converter analog return. Connect to RTN.
O
Drain of PoE pass MOSFET. Connect to ARTN.
PWR Connect to negative power rail derived from PoE source.
—
Always connect PowerPAD™ to VSS. A large fill area is required to assist in heat dissipation.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
3
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1) (2)
Voltage
Current, sinking
MIN
MAX
DEN, VDD
–0.3
100
ARTN (2), RTN (3)
–0.6
100
CLS (4)
–0.3
6.5
[CTL, MODE, RT, SLPb, SRT, VB (4), WAKE] to ARTN
–0.3
6.5
CS to ARTN
–0.3
VB
[LED, APD SRD, T2P, VC] to ARTN
–0.3
18
GATE (4) to ARTN
–0.3
VC + 0.3
RTN (5)
Internally limited
LED
15
T2P, SRD
5
DEN
1
CLS
Current, sourcing
Current, average sourcing or
sinking
(2)
(3)
(4)
(5)
V
mA
65
VC
Internally limited
VB
Internally limited
GATE
mA
25
TJMAX
(1)
UNIT
Internally limited
mARMS
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
ARTN must be connected to RTN.
With IRTN = 0.
Do not apply voltages to these pins.
SOA limited to RTN = 80 V at 1.2 A.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 ESD Ratings: Surge
VALUE
V(ESD)
(1)
4
Electrostatic discharge
System level at RJ-45
(1)
Contact
8000
Air
15000
UNIT
V
ESD per EN61000-4-2. A power supply containing the TPS23751 or TPS23752 was subjected to the highest test levels in the standard.
Refer to the ESD section.
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
6.4 Recommended Operating Conditions (1)
over operating free-air temperature range (unless otherwise noted)
MIN NOM
Input voltage
ARTN, RTN, VDD
0
[LED, APD ,SRD, T2P, VC] to ARTN
0
18
[CTL,CS, MODE, SLPb, SRT, WAKE] to ARTN
0
VB
0.5
1.5
SRT to ARTN
UNIT
57
RTN
Sinking current
MAX
V
1.2
SRD, T2P
A
2
LED
mA
10
VB (2)
5
mA
Continuous RTN current (TJ ≤ 125°C) (3)
825
mA
Sourcing current
RCLS (2)
Resistance
60
RWAKE
392
VB (2)
Capacitance
kΩ
0.08
Junction temperature
(1)
(2)
(3)
Ω
µF
–40
125
°C
ARTN tied to RTN
Do not apply voltage supply to these pins.
This is minimum current-limit value. Viable systems will be designed for maximum currents below this value with reasonable margin.
IEEE 802.3at permits 600mA continuous loading.
6.5 Thermal Information
THERMAL METRIC (1)
TPS23751
TPS23752
PWP (TSSOP)
PWP (TSSOP)
UNIT
16 PINS
20 PINS
RθJA
Junction-to-ambient thermal resistance
39.5
38.5
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
25.9
23.8
°C/W
RθJB
Junction-to-board thermal resistance
21.1
25.6
°C/W
ψJT
Junction-to-top characterization parameter
0.7
0.7
°C/W
ψJB
Junction-to-board characterization parameter
20.8
20.3
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
2.0
1.6
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report (SPRA953).
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
5
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
6.6 Electric Characteristics - Controller Section
Unless otherwise noted, 40 V ≤ VDD ≤ 57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,
LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT = 34 kΩ; CVB = CVC = 0.1 µF;
–40 ≤ TJ ≤ 125°C. Typical values are at 25°C. All voltages referred to VSS.
VC = 12 V, VDEN = VVSS, VARTN = VRTN = VSS
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
VVDD = 48 V, Sleep mode
12
12.8
13.8
V
VVDD = 48 V, VC = 0 V
1.1
1.5
2.1
VVDD = 10.9 V, VC = 8.6 V
0.9
1.3
1.8
VC (GATE DRIVE SUPPLY)
Output voltage; TPS23752 only
IVC_ST
Startup source current
IVC_OP
Operating current
VVC = 12 V, VCTL = VB
0.9
1.8
3.0
mA
tST
Bootstrap start up time, CVC = 22 µF
VVDD = 48 V, measure time from VVC (0) → VCUV
103
155
203
ms
VVC rising until VSRD ↓
8.6
8.9
9.2
V
3
3.2
3.4
V
7.5 V ≤ VVC ≤ 18 V, 0 ≤ IVB ≤ 5 mA
4.75
5.00
5.25
V
VAPD ↑, measure with respect to ARTN
1.43
1.50
1.57
V
Hysteresis
0.28
0.30
0.32
V
10
µA
VCUV
UVLO threshold
VCUVH
Hysteresis
mA
VB (BIAS SUPPLY)
Output voltage
APD (AUXILIARY POWER DETECT)
VAPDEN
APD threshold voltage
VAPDH
Leakage current
VAPD = 18 V
RT (OSCILLATOR)
FSW
Switching frequency in PWM mode
RT = 34.0 kΩ. Measure at GATE
226
251
276
kHz
FVFO
Switching frequency in VFO mode
VCTL = 1.75 V, RT = 34.0 kΩ. Measure at GATE
105
135
165
kHz
DMAX
Maximum duty cycle
VCTL = VB, Measure at GATE
75%
80%
85%
1.90
2.00
2.10
CTL (CONTROL – PWM INPUT)
VSRT = 0.5 V
VCTL_VFO
VCTL at PWM/VFO transition point
VSRT = 1.0 V
TSSD
Internal soft start delay time
VCTL ↓ until VSRD↑
Hysteresis
(1)
VCTL ↓ until VSRD↑
Hysteresis
35
2.15
(1)
VCTL = 3.5 V, measure from switching start to VCSMAX
Input resistance
2.25
V
mV
2.35
40.50
V
mV
1.87
3.01
5.09
ms
70
105
145
kΩ
V
VZF
Zero frequency threshold (ZF)
VCTL ↓ until GATE stops switching
1.40
1.50
1.60
VZDC
Zero duty cycle (ZDC) threshold (VFO disabled)
VSRT = VARTN, VCTL ↓ until GATE stops switching
1.55
1.75
1.95
Gain, VCS to VCTL (1)
5.0
V
V/V
CS (CURRENT SENSE)
VCSMAX
VCS↑ until VGATE ↓
Maximum threshold voltage
VCS_VFO
Peak VCS in VFO mode
0.22
0.25
0.28
1.60 V ≤ VCTL ≤ 1.90 V, VSRT = 0.5 V, VCS ↑ until
VGATE↓
V
40
50
60
mV
1.85 V ≤ VCTL ≤ 2.15 V, VSRT = 1.0 V, VCS↑ until VGATE
↓
85
100
115
mV
VPK
Internal slope compensation voltage, see Figure 2
D = DMAX
32
40
50
mV
ICS_RAMP
Ramp component of ICS
D = DMAX
12
16
25
µA
ICSDC
DC component of ICS
1
2
3
µA
DSLOPE_ST
Slope compensation ramp start relative to switching
period. Refer to Figure 2
30%
34%
39%
t1
Turn off delay
50
90
ns
tBLNK
Blanking period
100
150
200
ns
290
500
Ω
VCS = 0.3 V, measure tprf50–50, see Figure 3
Off state pulldown resistance
(1)
6
Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Electric Characteristics - Controller Section (continued)
Unless otherwise noted, 40 V ≤ VDD ≤ 57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,
LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT = 34 kΩ; CVB = CVC = 0.1 µF;
–40 ≤ TJ ≤ 125°C. Typical values are at 25°C. All voltages referred to VSS.
VC = 12 V, VDEN = VVSS, VARTN = VRTN = VSS
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
GATE (GATE DRIVER)
Peak source current
GATE high, pulsed measurement
0.35
0.60
1.00
A
Peak sink current
GATE low, pulsed measurement
0.70
1.00
1.40
A
Rise time
Fall time
(1)
(1)
tprr10–90, CGATE = 1 nF; see Figure 4
40
tpff90–10, CGATE = 1 nF; see Figure 4
27
ns
ns
Pull-up resistance
20
Ω
Pull-down resistance
10
Ω
SRD (SYNCHRONOUS RECTIFIER DISABLE)
Output low voltage
ISRD = 2 mA sinking
Leakage current
VCTL = 1.75 V, VSRD = 18 V
0.25
0.45
V
10
µA
1
µA
155
°C
SRT (SYNCHRONOUS RECTIFIER THRESHOLD)
0 V ≤ VSRT ≤ 5 V
Leakage current
THERMAL SHUTDOWN
Shutdown
TJ rising
Hysteresis (1)
135
145
20
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
°C
7
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
6.7 Electrical Characteristics - Sleep Mode (TPS23752 Only)
Unless otherwise noted, 40 V ≤ VDD ≤ 57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,
LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT = 34 kΩ; CVB = CVC = 0.1 µF;
–40 ≤ TJ ≤ 125°C. Typical values are at 25°C. All voltages referred to VSS.
VDD = 48 V, VAPD = VARTN = VRTN = VVSS, VVC = 13 V
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
1.10
1.66
2.10
V
4
5.7
8
µA
1.10
1.66
2.10
V
SLPb
VSLPb falling until ILED↑
SLPb threshold
Input pullup current
MODE
MODE falling unti ILED ↑
MODE threshold
MODE hysteresis
(1)
1.6
Input pullup current
V
4
5.7
8
µA
2.43
2.50
2.57
V
3.95
5.33
6.88
kΩ
0.60
0.90
1.50
V
10
µA
0.5
1
mA
WAKE
Output voltage
RWKPLUP
Sleep mode
Pull-up resistance
LED
Output low voltage
SLPb ↓, ILED = 10 mA
Leakage current
VLED = 18 V
SLEEP SUPPLY CURRENT
Sleep supply current when
VAPD = 2 V; SLPb ↓, measure IVDD
APD is enabled
MPS supply current
Pulsed mode: VMODE = 0 V; SLPb ↓,
Measure IVDD 0 ≤ ILED ≤ 10 mA
10.0
10.6
11.5
mApk
DC mode: VMODE = VB, then SLPb ↓,
Measure IVDD 0 ≤ ILED ≤ 10 mA
10.0
10.6
11.5
mA
28.80%
28.88%
28.95%
75
87.5
MPS pulsed current duty cycle
MPS pulsed mode duty
cycle
MPS pulsed current ON time
MPS pulsed current OFF time
(1)
8
215
ms
250
ms
Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
6.8 Electrical Characteristics - PoE Interface Section
Unless otherwise noted, 40 V ≤ VDD ≤ 57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,
LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT = 34 kΩ; CVB = CVC = 0.1 µF;
–40 ≤ TJ ≤ 125°C. Typical values are at 25°C. All voltages referred to VSS.
Unless otherwise noted, VVC = VAPD = VCS = VARTN = VRTN.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
3
5
12
µA
0.1
5
µA
IVDD + IDEN + IRTN, VVDD = 1.4 V
53.8
56.5
58.3
IVDD + IDEN + IRTN, VVDD = 10.1 V
395
410
417
DEN (DETECTION AND ENABLE)
Bias current
DEN open, IVDD + IDEN + IRTN, VVDD = 10.1 V, not in
mark
DEN leakage current
VDEN = VVDD = 57 V
Detection current
VPD_DIS
Disable threshold
DEN falling
Hysteresis
3
3.6
5
50
113
200
µA
V
mV
CLS (CLASSIFICATION)
13 V ≤ VVDD ≤ 21 V, Measure IVDD + IDEN + IRTN
ICLS
VCL_ON
VCL_H
Classification current
RCLS = 1270 Ω
1.80
2.17
2.60
RCLS = 243 Ω
9.90
10.60
11.20
RCLS = 137 Ω
17.60
18.60
19.40
RCLS = 90.9 Ω
26.50
27.90
29.30
RCLS = 63.4 Ω
38.00
39.90
42.00
11.9
12.5
13
V
Hysteresis
1.4
1.6
1.7
V
VVDD rising, VCLS ↓
21
22
23
V
0.50
0.75
0.90
V
VVDD rising, VCLS ↑
Class lower threshold
mA
VCU_OFF
VCU_H
Class upper threshold
VMSR
Mark reset threshold
VVDD falling
3
3.9
5
V
Mark state resistance
2-point measurement at 5 V and 10.1 V
6
9.1
12
kΩ
Leakage current
VVDD = 57 V, VCLS = 0 V, measure ICLS
1
µA
Hysteresis
RTN (PASS DEVICE)
rDS(on)
On resistance
VVC = VAPD = VARTN = VCS = VVDD
0.20
0.45
0.75
Ω
Current limit
VVC = VAPD = VARTN = VCS = VVDD, VRTN =1.5 V,
Measure IRTN
0.85
1.00
1.20
A
Inrush current
VVC = VAPD = VARTN = VCS = VDD, VRTN = 2 V, VDD =
20 V → 48 V
100
140
180
mA
Inrush termination
Percentage of inrush current
80%
90%
99%
Foldback threshold
VRTN ↑
11.0
12.3
13.6
V
Foldback deglitch time
VRTN rising to when current limit changes to inrush
current limit
500
800
1500
µs
Input bias current
VVDD = VRTN = 30 V, Measure IRTN
30
µA
RTN leakage current
VRTN = VVDD = 100 V, VDEN = VVSS
50
µA
0.26
0.60
V
4.3
7
ms
10
µA
T2P (TYPE 2 PSE INDICATION)
VT2P
Output low voltage
IT2P = 2 mA, after 2-event classification and softstart
is complete,
VVC = 12 V, VCTL = 3 V, VARTN = VVSS
tT2P
T2P startup delay
VCTL = 3 V, VAPD = 2 V, Measure from switching start
to VT2P ↓
Leakage current
VT2P = 18 V, VARTN = VVSS
2
PoE – PD UVLO
VUVLO_R
UVLO rising threshold
36.3
38.1
40
UVLO falling threshold
30.5
32.0
33.6
210
500
V
SUPPLY CURRENT
Measure IVDD, VVDD = 48 V, 40 V ≤ VVDD ≤ 57 V
Operating current
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
µA
9
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Electrical Characteristics - PoE Interface Section (continued)
Unless otherwise noted, 40 V ≤ VDD ≤ 57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,
LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT = 34 kΩ; CVB = CVC = 0.1 µF;
–40 ≤ TJ ≤ 125°C. Typical values are at 25°C. All voltages referred to VSS.
Unless otherwise noted, VVC = VAPD = VCS = VARTN = VRTN.
PARAMETER
TEST CONDITIONS
Off-state current
MIN
TYP
ARTN and VVC open, VVDD = 30 V, Measure IVDD
MAX
UNIT
300
µA
155
°C
THERMAL SHUTDOWN
Shutdown
Hysteresis
(1)
TJ rising
135
(1)
145
20
°C
Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.
VSLOPE = VPK / (DMAX ± DSLOPE_ST)
VSLOPE
Voltage added to
current sense
VPK
1
DM
T
_S
PE
LO
AX
DS
0
0,
Time normalized to
one switching cycle
Figure 2. Current Mode Compensation Ramp
VGATE
50%
0
Time
VCS
50%
0
Time
tprf50-50
Figure 3. Time Delay from VCS to VGATE
VGATE
tprr10-90
tpff90-10
90%
10%
90%
10%
Time
0
Figure 4. Rise Time and Fall Time of VGATE
10
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
6.9 Typical Characteristics
450
7
TA = −40°C
TA = 25°C
TA = 125°C
350
300
250
200
150
100
5
4
3
2
1
24
29
34
39
44
VDD (V)
49
54
0
57
0
2
4
6
8
10
VDD (V)
G001
Figure 5. Supply Current vs Supply Voltage
G002
Figure 6. DEN BIas Current vs Supply Voltage
6.2
150
TA = 25°C
VC Operating Current (mA)
140
CS VFO Peak Voltage (mV)
TA = −40°C
TA = 25°C
TA = 125°C
6
DEN Blas Current (µA)
IDD, Supply Current (µA)
400
130
120
110
100
90
80
70
RT = 16.9 kΩ
RT = 34 kΩ
RT = 169 kΩ
5.2
TA = 25°C
4.2
3.2
2.2
1.2
60
50
0.5
0.7
0.9
1.1
1.3
0.2
1.5
VSRT (V)
Figure 7. CS VFO Peak Voltage vs SRT Voltage
10
11
12
13
14
VC (V)
15
16
17
18
G004
Figure 8. VC Operating Current vs VC Voltage
18
13.6
VC Voltage in Sleep Mode (V)
17.5
ICS_RAMP Current (µA)
9
G003
17
16.5
16
15.5
15
14.5
14
−40
−20
0
20
40
60
Temperature (°C)
80
100
120
13.4
13.2
13
12.8
12.6
12.4
−40
−20
G005
Figure 9. CS Ramp Current vs Temperature
0
20
40
60
Temperature (°C)
80
100
120
G006
Figure 10. VC Voltage in Sleep Mode vs Temperature
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
11
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Typical Characteristics (continued)
2.6
VC = 8.6 V
TA = −40°C
TA = 25°C
TA = 125°C
1.28
TA = 25°C
CTL PWM/VFO Threshold (V)
VC Bootstrap Current Source (mA)
1.3
1.26
1.24
1.22
1.2
1.18
12
16
20
24
28
32
VDD (V)
36
40
44
2.2
2.1
500
1000
450
900
400
RT = 16.9 kΩ
RT = 34 kΩ
RT = 169 kΩ
350
300
250
200
150
100
0
−40
−20
0
20
40
60
Temperature (°C)
80
100
1.25
1.5
G008
Actual
Ideal
800
700
600
500
400
300
200
0
120
5
30
55
80
105
Programmable Conductance, 106/RT (Ω−1)
G009
125
G010
Figure 14. Switching Frequency vs Programmable
Conductance
250
180
SRT = 0.5 V
RT = 34 kΩ
TJ = 25°C
Blanking Period (ns)
170
150
100
50
0
1.5
1
VSRT (V)
100
Figure 13. Switching Frequency vs Temperature
200
0.75
Figure 12. CTL PWM/VFO Threshold vs SRT Voltage
Switching Frequency (kHz)
Switching Frequency (kHz)
2.3
G007
50
VFO Frequency (kHz)
2.4
2
0.5
48
Figure 11. VC Bootstrap Current Source vs Supply Voltage
160
150
140
130
1.6
1.7
1.8
1.9
VCTL (V)
Submit Documentation Feedback
2
120
−40
−20
G011
Figure 15. VFO Frequency vs CTL Voltage
12
2.5
0
20
40
60
Temperature (°C)
80
100
120
G012
Figure 16. Blanking Period vs Temperature
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Typical Characteristics (continued)
10.8
10.75
MPS Supply Current (mA)
0.7
0.65
0.6
rDS(on) (Ω)
0.55
0.5
0.45
0.4
0.35
0.3
10.6
10.55
10.5
10.45
TA = −40°C
TA = 25°C
TA = 125°C
10.4
0.25
0.2
−40
10.7
10.65
−20
0
20
40
60
Temperature (°C)
80
100
10.35
120
0
2
4
6
8
ILED (mA)
G013
Figure 17. rDS(on) vs Temperature
10
G014
Figure 18. MPS Supply Current vs LED Current
10.9
TA = −40°C
TA = 25°C
TA = 125°C
MPS Supply Current (mA)
10.85
10.8
10.75
10.7
10.65
10.6
10.55
10.5
10.45
10.4
39
44
49
54
VDD (V)
G015
Figure 19. MPS Supply Current vs Supply Voltage
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
13
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
7 Detailed Description
7.1 Overview
The TPS23751 and TPS23572 devices have a PoE that contains all of the features needed to implement an
IEEE802.3at type-2 powered device (PD) such as Detection, Classification, Type 2 Hardware Classification, and
140-mA inrush current mode DC-DC controller optimized specifically for isolated converters.
The TPS23751 and TPS23752 devices integrate a low 0.5-Ω internal switch to allow for up to 0.85 A of
continuous current through the PD during normal operation.
The TPS23751 and TPS23752 devices contain several protection features such as thermal shutdown, current
limit foldback, and a robust 100-V internal switch.
14
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
7.2 Functional Block Diagrams
SLEEP
Voltage Regulator
(TPS23752 only)
VDD
VC
VB
Regulator
OSTD
SLEEP
Control
CONV.ON
Reference
CONV.OFF
VC
RT
VOSC
Oscillator
GATE
0
1
VOSC
CTL
1
D
Q
CK
CLR
VFO
ARTN
ZDC COMP
VFO
COMP
80kŸ
VFO
VZDC,VFO
VFO. OFF
20kŸ
0
VCS,VFO
1
PWM
COMP
VFO
Soft Start
ISLOPE
0.35 V
VFO
0.35 V
1
Blanking
Circuit
1
ILIMIT
COMP
0.25 V
0
CS
ARTN
SRD
RSLOPE
0
VFO
GATE
Soft Start
Complete
ARTN
T2P
VFO
Reference
Generator
SRT
VCS,VFO
t2
VZDC,VFO
T2P Logic
CTL
VFO. OFF
APD
ARTN
0.25 V
Figure 20. DC-DC Controller
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
15
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Functional Block Diagrams (continued)
Detection
Comp.
Class
Comp.
12V &
10V
4V
VDD
Class
Comp.
22V &
21.25V
VSS
Mark
Comp.
5V &
4V
2.5V
REG.
800Ps
800Ps
12V
APD
Comp.
APD
DEN
CLS
VSS
RTN
Mark Comp Output
1.5V &
1.2V
UVLO Comp Output
ARTN
S
R
Q
Type 2
State Eng.
1 = inrush
0 = current limit
R
Inrush latch
S
38.1V &
32V
UVLO
Comp.
t2
Inrush limit
1
threshold
Current limit
0
threshold
CONV.OFF
Q
1
0
OTSD
IRTN sense
High if over
temperauture
VSS
RTN
Signals referenced to VSS unless otherwise noted
Hotswap
MOSFET
IRTN sense,1 if < 90% of inrush and current limit
Figure 21. PoE
VB
1
SLPb
D
Q
Sleep
CLK
D
CLR Q
Q
MPS
CLK
CLR Q
MODE
LED
1
Sleep
D
Q
CLK
Iref
RWKPLUP
VB
Sleep
VC
CLR Q
Sleep
WAKE
Oscillator
Soft Start
Complete
Frequency
Divider
MPS
Sleep
VREF
MPS
Regulator
+
Sleep
MPS
APD
ARTN
Figure 22. Sleep Mode Functionality (TPS23752 Only)
16
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
7.3 Feature Description
7.3.1 Pin Description
The following descriptions refer to the functional block diagrams.
APD: (Auxiliary Power Detect): The APD pin is used in applications that may draw power either from the
Ethernet cable or from an auxiliary power source. A voltage of more than about 1.5 V on the APD pin relative to
RTN turns off the internal pass MOSFET, disables the CLS output, and enables the T2P output. A resistor
divider (RAPD1 – RAPD2 in Figure 32) provides system-level ESD protection for the APD pin, discharges leakage
from the blocking diode (DA in Figure 32), and provides input voltage supervision to ensure that switch-over to
the auxiliary voltage source does not occur at excessively low voltages. If not used, connect APD to ARTN.
When the TPS23752 operates in Sleep Mode, holding APD higher than its rising threshold, VAPDEN, disables the
maintain power signature (MPS).
ARTN: The ARTN pin is the local ground return for the DC-DC controller. Connections to the ARTN pin should
return to a local ground plane beneath the DC-DC converter primary circuitry. For most applications, this ground
plane should also connect to RTN.
CLS: An external resistor (RCLS in Figure 32) connected between the CLS pin and VSS provides a classification
signature to the PSE. The controller places a voltage of approximately 2.5 V across the external resistor
whenever the voltage differential between VDD and VSS lies between about 10.9 V and 22 V. The current drawn
by this resistor, combined with the internal current drain of the controller and any leakage through the internal
pass MOSFET, creates the classification current. Table 1 lists the external resistor values required for each of
the PD power ranges defined by IEEE802.3at. The maximum average power drawn by the PD, including all
losses within the DC-DC converter as well as power supplied to the downstream load, should not exceed the
maximum power indicated in Table 1. Holding APD high disables the classification signature.
High-power PSEs may perform two classification cycles if Class 4 is presented on the first cycle.
Table 1. Class Resistor Selection
CLASS
MINIMUM POWER
at PD (W)
MAXIMUM POWER
at PD (W)
RESISTOR
RCLS (Ω)
0
0.44
12.95
1270
1
0.44
3.84
243
2
3.84
6.49
137
3
6.49
12.95
90.9
4
12.95
25.5
63.4
CS (Current Sense): The CS pin serves as the current sense input for the DC-DC controller. The CS pin senses
the voltage at the high side of the current sense resistor (RCS in Figure 32). This voltage drives the current limit
comparator and the PWM comparator (see Block Diagram of DC-DC controller). A leading-edge blanking circuit
prevents MOSFET turn-on transients from falsely triggering either of these comparators. During the off time, and
also during the blanking time that immediately follows, the CS pin is pulled to ARTN through an internal pulldown
resistor.
The current limit comparator terminates the on-time portion of the switching cycle as soon as VCS exceeds
approximately 250 mV and the leading edge blanking interval has expired. If the converter is not in current limit,
then either the PWM comparator or the maximum duty cycle limiting circuit terminates the on time.
An internal slope compensation circuit generates a current that imposes a voltage ramp at the positive input of
the PWM comparator to suppress sub-harmonic oscillations. This current flows out of the CS pin. If desired, the
magnitude of the slope compensation can be increased by the addition of an external resistor in series with the
CS pin. The beginning of the slope compensation ramp is delayed to provide a smoother transition from PWM to
VFO mode, as shown in Figure 2. Slope compensation, including that generated by any external resistance, is
disabled in VFO mode.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
17
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
CTL (Control): The CTL pin receives the control voltage from the external error amplifier. Typically this error
amplifier consists of a TL431 shunt regulator driving an optocoupler, but other configurations are possible. The
voltage differential between CTL and ARTN regulates power flow through the DC-DC converter. The voltage
VCTL_VFO set by the SRT pin represents the boundary between PWM and VFO mode. In the PWM mode of
operation, the CTL voltage determines the threshold at which the PWM comparator terminates the on-time
interval. During VFO mode, the inductor peak current is fixed and the CTL voltage varies the switching
frequency. During PWM mode the switching frequency is fixed and the CTL voltage varies the duty cycle.
DEN (Detection and Enable): The DEN pin implements two separate functions. A resistor (RDEN in Figure 32)
connected between VDD and DEN generates a detection signature whenever the voltage differential between VDD
and VSS lies between approximately 1.4 and 10.9 V. Beyond this range, the controller disconnects this resistor to
save power. For applications that wish to comply with the requirements of IEEE802.3at, the external resistance
should equal 24.9 kΩ.
If the resistance connected between VDD and DEN is divided into two roughly equal portions, then the application
circuit can disable the PD by grounding the tap point between the two resistances. This action simultaneously
spoils the detection signature and thereby signals the PSE that the PD no longer requires power.
GATE: The gate drive pin drives the main switching MOSFET of the DC-DC converter. The internal gate driver
circuitry draws power from VC and returns it to ARTN. GATE is held low whenever the converter is disabled.
LED (TPS23752 only): The LED pin drives an external status LED. Connect the LED and its series currentlimiting resistor from VC to the LED pin. While in Sleep Mode, the controller pulls the LED pin to ARTN. The LED
pin is also pulled low during normal operation after the soft start is complete whenever the MODE pin is low. The
LED pin should draw as little current as possible to help minimize the power consumed by the PD in Sleep
Mode. If a status LED is not required, leave this pin open.
MODE (TPS23752 only): The MODE pin in combination with the SLPb pin sets the type of MPS (DC or pulsed)
during Sleep Mode. Holding this pin high when the SLPb pin transitions low causes the TPS23752 to generate a
DC MPS by drawing a total of 10.6 mA (typical) from the Ethernet cable. Holding this pin low when the SLPb pin
transitions low causes the TPS23752 to generate a pulsed MPS. Either MPS ensures that the PSE does not
disconnect power from the PD while it is asleep. An MPS is not generated if the APD pin is held high (> 1.5 V).
During normal operation, pulling MODE low causes the LED pin to pull low.
RT (Timing Resistor): A timing resistor (RT in Figure 32) connected between this pin and ARTN sets the PWM
switching frequency fSW according to Figure 32.
¦ SW =
8.5 ´ 109 W
Hz
RT
(1)
The switching frequency remains constant during PWM operation, but decreases as VCTL falls below VCTL_VFO.
RT is a high impedance pin. Keep the connections short and isolate them from potential noise sources.
RTN: The RTN pin provides the negative power return path for the converter. Once VDD exceeds the UVLO
threshold (VUVLO_R), the internal pass MOSFET pulls RTN to VSS. Inrush limiting prevents the RTN current from
exceeding about 140 mA until the bulk capacitance (CIN in Figure 32) is fully charged. Inrush ends and the
converter begins operating when the RTN current drops below about 125 mA. The RTN current is subsequently
limited to about 1 A. If RTN ever exceeds about 12 V, then the controller returns to inrush limiting.
RTN should be connected to ARTN for most applications.
SLPb: (TPS23752 only): The SLPb pin controls entry into Sleep Mode. A falling-edge transition applied to this
pin during normal operation initiates Sleep Mode. This mode of operation disables converter switching, increases
the current limit of the internal VC regulator, and pulls the LED output low. Cycling VDD or pulling the WAKE pin
low terminates the Sleep Mode and restores normal operation.
SRD (Synchronous Rectifier Disable): This open-drain output pulls to ARTN whenever the DC-DC converter is
enabled, inrush and soft start are complete, and the voltage at the CTL pin exceeds the threshold VCTL_VFO set
by the SRT pin. A low voltage on the SRD pin signals the synchronous rectifier to begin operation. If the CTL pin
voltage drops below VCTL_VFO, then the SRD output goes high impedance to disable the synchronous rectifier.
This action ensures that the synchronous rectifier does not operate during VFO mode.
18
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
SRT (Synchronous Rectifier Threshold): The SRT pin sets the thresholds VCTL_VFO and VCS_VFO, at which the DCDC converter switches between PWM and VFO. The application circuit normally uses a resistor divider (RSRT1 –
RSRT2 in Figure 32) to generate a voltage of 0.5 to 1.5 V at the SRT pin. When the voltage on the CTL pin
exceeds VCTL_VFO, the converter operates in PWM mode and the SRD pin is pulled low to enable the
synchronous rectifier. When the voltage on CTL falls below VCTL_VFO, the converter operates in VFO and the
SRD pin goes high impedance to disable the synchronous rectifier. Tying SRT to ARTN disables the VFO mode.
T2P (Type-2 PSE Indicator): The controller pulls this pin to ARTN whenever type-2 hardware classification has
been observed; or the APD pin is pulled high, after the internal T2P delay is complete, and VCTL ≤ 4 V. Once T2P
is valid, VCTL has no effect on the status of T2P. The T2P output will return to a high-impedance state if the part
enters thermal shutdown, the pass MOSFET enters inrush limiting, or if a type-2 PSE was not detected and the
voltage on APD drops below its threshold. The circuitry that watches for type-2 hardware classification latches its
result when the V(VDD-VSS) voltage differential rises above the upper classification threshold. This circuit resets
when the V(VDD-VSS) voltage differential drops below the mark threshold. The T2P pin can be left unconnected if it
is not used.
VB (Bias Voltage): The VB pin is the output of an internal 5 V regulator fed from VC. A ceramic bypass capacitor
with a minimum capacitance of no less than 80 nF must connect from VB to ARTN. VB may be used to bias the
feedback optocoupler. For the TPS23752, VB may also bias pullups for SLPb and MODE.
VC (Controller Voltage): The VC pin connects to the auxiliary bias supply for the DC-DC controller. The MOSFET
gate driver draws current directly from VC. VB is regulated down from VC to provide power for the rest of the
internal control circuitry. A startup current source from VDD to VC controlled by a comparator with hysteresis
implements the converter bootstrap startup. VC must receive power from an auxiliary source, such as an auxiliary
winding on the flyback transformer, to sustain normal operation after startup. A low-ESR bypass capacitor, such
as a ceramic capacitor, must connect from VC to ARTN to supply the gate drive current required to drive the
external switching MOSFET.
The TPS23752 regulates VC to 12.8 V while in Sleep Mode to regulate the brightness of the Sleep-Mode LED.
The Sleep Mode output voltage is high enough to drive at least three LED’s in series when additional brightness
is required. This reduces the required value of RLED and associated power consumption for a given LED bias
current.
VDD: The VDD pin connects to the positive side of the input supply. The VDD pin provides operating power to the
PD controller, allows this circuit to monitor the input line voltage, and serves as the source for DC-DC startup
current. In the TPS23752, it also supplies the LED and MPS current during Sleep-Mode operation
VSS: The VSS pin connects to the negative rail of the input supply. It serves as a local ground for the PD control
circuitry. The PowerPAD™ must connect to VSS to ensure proper operation.
WAKE (TPS23752 only): The WAKE pin performs several functions. During Sleep Mode, it outputs a currentlimited 2.5 V. Pushing the external pushbutton (SWAKE in Figure 32) during Sleep Mode connects the WAKE pin
to optocoupler, OPTO6. An internal current comparator detects this excess current drawn by OPTO6 and reenables the DC-DC converter out of Sleep Mode. The WAKE pin now connects back to the internal pullup
resistor (RWKPLUP in the Sleep Mode block diagram) to provide bias current for OPTO6. The optocoupler alerts
the system controller that the button has been pressed during sleep operation. Circuit board routing should
protect WAKE from noise sources on the board.
7.4 Device Functional Modes
7.4.1 PoE Overview
The following text is intended as an aid in understanding the operation of the TPS23751 and TPS23752 but not
as a substitute for the IEEE 802.3at standard. The IEEE 802.3at standard is an update to IEEE 802.3-2008
clause 33 (PoE), adding high-power options and enhanced classification. Generally speaking, a device compliant
to IEEE 802.3-2008 is referred to as a type 1 device, and devices with high power and enhanced classification
are referred to as type 2 devices. Standards change and should always be referenced when making design
decisions.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
19
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Device Functional Modes (continued)
The IEEE 802.3at standard defines a method of safely powering a PD (powered device) over a cable by power
sourcing equipment (PSE), and then removing power if a PD is disconnected. The process proceeds through an
idle state and three operational states of detection, classification, and operation. The PSE leaves the cable
unpowered (idle state) while it periodically looks to see if something has been plugged in; this operation is
referred to as detection. The low power levels used during detection are unlikely to damage devices not designed
for PoE. If a valid PD signature is present, the PSE may inquire how much power the PD requires; this operation
is referred to as classification. The PSE may then power the PD if it has adequate capacity.
Type 2 PSEs are required to do type 1 hardware classification plus a (new) data-layer classification, or an
enhanced type 2 hardware classification. Type 1 PSEs are not required to do hardware or data link layer (DLL)
classification. A type 2 PD must do type 2 hardware classification as well as DLL classification. The PD may
return the default, 13W current-encoded class, or one of four other choices. DLL classification occurs after
power-on and the Ethernet data link has been established.
0
10.1 14.5
20.5
30
Maximum Input Voltage
Must Turn On by- Voltage Rising
Lower Limit -Operating Range
Must Turn Off by - Voltage Falling
Shutdown
Classify
Detect
6.9
2.7
Classification Upper Limit
Classification Lower Limit
Detection Upper Limit
Detection Lower Limit
IEEE 802.3-2008
Once started, the PD must present a Maintain Power Signature (MPS) to assure the PSE that it is still present.
The PSE monitors its output for a valid MPS and turns the port off if it loses the MPS. Loss of the MPS returns
the PSE to the idle state. Figure 23 shows the operational states as a function of PD input voltage. The upper
half is for IEEE 802.3-2008, and the lower half shows specific differences for IEEE 802.3at. The dashed lines in
the lower half indicate these states are the same (e.g., Detect and Class) for both.
Normal Operation
42.5
37
57
42
Normal Operation
250 s Transient
Lower Limit - 13W Op.
Class-Mark Transition
T2 Reset Range
Mark
IEEE 802.3at
PI Voltage (V)
Figure 23. Threshold Voltages
20
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Device Functional Modes (continued)
The PD input, typically an RJ-45 eight-lead connector, is referred to as the power interface (PI). PD input
requirements differ from PSE output requirements to account for voltage drops and operating margin. The
standard allots the maximum loss to the cable regardless of the actual installation to simplify implementation.
IEEE 802.3-2008 was designed to run over infrastructure including ISO/IEC 11801 class C (CAT3 per TIA/EIA568) that may have had AWG 26 conductors. IEEE 802.3at type 2 cabling power loss allotments and voltage
drops have been adjusted for 12.5 Ω power loops per ISO/IEC11801 class D (CAT5 or higher per TIA/EIA-568,
typically AWG 24 conductors). Table 2 shows key operational limits broken out for the two revisions of the
standard.
Table 2. Comparison of Operational Limits
Standard
Power Loop
Resistance
(max)
PSE Output
Power (min)
PSE Static
Output
Voltage (min)
PD Input
Power (max)
Static PD Input Voltage
Power ≤ 12.95W
Power > 12.95W
IEEE802.3at-2008
802.3at (Type 1)
20 Ω
15.4W
44 V
12.95W
37 V – 57 V
N/A
802.3at (Type 2)
12.5Ω
30W
50 V
25.5W
37 V – 57 V
42.5 V – 57 V
The PSE can apply voltage either between the RX and TX pairs (pins 1 - 2 and 3 - 6 for 10baseT or 100baseT),
or between the two spare pairs (4 - 5 and 7 - 8). Power application to the same pin combinations in 1000baseT
systems is recognized in IEEE 802.3at. 1000baseT systems can handle data on all pairs, eliminating the spare
pair terminology. The PSE may only apply voltage to one set of pairs at a time. The PD uses input diode bridges
to accept power from any of the possible PSE configurations. The voltage drops associated with the input
bridges create a difference between the standard limits at the PI and the TPS23751 and TPS23752
specifications.
A compliant type 2 PD has power management requirements not present with a type 1 PD. These requirements
include the following:
1. Must interpret type 2 hardware classification,
2. Must present hardware class 4,
3. Must implement DLL negotiation,
4. Must behave like a type 1 PD during inrush and startup,
5. Must not draw more than 13W for 80ms after the PSE applies operating voltage (power-up),
6. Must not draw more than 13W if it has not received a type 2 hardware classification or received permission
through DLL,
7. Must meet various operating and transient templates, and
8. Optionally monitor for the presence or absence of an adapter (assume high power).
As a result of these requirements, the PD must be able to dynamically control its loading, and monitor T2P for
changes. In cases where the design needs to know specifically if an adapter is plugged in and operational, the
adapter should be individually monitored, typically with an optocoupler.
7.4.1.1 Threshold Voltages
The TPS23751 and TPS23752 have a number of internal comparators with hysteresis for stable switching
between the various states. Figure 24 relates the parameters in the Electrical Characteristics section to the PoE
states. The mode labeled Idle between Classification and Operation implies that the DEN, CLS, and RTN pins
are all high impedance. The state labeled Mark, which is drawn in dashed lines, is part of the new type 2
hardware class state machine.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
21
TPS23751, TPS23752
www.ti.com
PD Powered
Idle
Classification
Type 1
Type 2
Functional State
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Mark
Detection
VDD-VSS
VCL_H
VUVLO_H
VCU_H
VCL_ON
VCU_OFF
VUVLO_R
VMSR
NOTE: Variable names refer to Electrical Characteristic table parameters
Figure 24. Threshold Voltages
7.4.1.2 PoE Startup Sequence
The waveforms of Figure 25 demonstrate detection, classification, and startup from a PSE with type 2 hardware
classification. The key waveforms shown are V(VDD-VSS), V(RTN-VSS), and IPI. IEEE 802.3at requires a minimum of
two detection levels, two class and mark cycles, and startup from the second mark event. VRTN to VSS falls as the
TPS23751 or TPS23752 charges CIN following application of full voltage. Subsequently, the converter starts up,
drawing current as seen in the IPI waveform.
Converter Starts
Inrush
IPI
100mA/div
V(VDD-VSS)
Class
Mark
Detect
V(RTN-VSS)
10V/div
Time: 50ms/div
Figure 25. Startup
22
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
7.4.1.3 Detection
The TPS23751 or TPS23752 pulls DEN to VSS whenever V(VDD-VSS) is below the lower classification threshold.
When the input voltage rises above VCL-ON, the DEN pin goes to an open-drain condition to conserve power.
While in detection, RTN is high impedance, and almost all the internal circuits are disabled. An RDEN of 24.9 kΩ
(±1%), presents the correct signature. It may be a small, low-power resistor since it only sees a stress of about 5
mW. A valid PD detection signature is an incremental resistance ( ΔV/ΔI ) between 23.75 kΩ and 26.25 kΩ at the
PI.
The detection resistance seen by the PSE at the PI is the result of the input bridge resistance in series with the
parallel combination of RDEN and internal VDD loading. The incremental resistance of the input diode bridge may
be hundreds of ohms at the very low currents drawn when 2.7 V is applied to the PI. The input bridge resistance
is partially compensated by the TPS23751 or TPS23752 effective resistance during detection.
The type 2 hardware classification protocol of IEEE 802.3at specifies that a type 2 PSE drops its output voltage
into the detection range during the classification sequence. The PD is required to have an incorrect detection
signature in this condition, which is referred to as a mark event (see Figure 25). After the first mark event, the
TPS23751 or TPS23752 presents a signature less than 12 kΩ until it has experienced a V(VDD-VSS) voltage below
the mark reset threshold (VMSR). This operation is explained more fully in the Hardware Classification section.
7.4.1.4 Hardware Classification
Hardware classification allows a PSE to determine the power requirements of a PD before powering, and helps
with power management once power is applied. Type 2 hardware classification permits high power PSEs and
PDs to determine whether the connected device can support high-power operation. A type 2 PD presents class 4
in hardware to indicate that it is a high-power device. A type 1 PSE treats a class 4 device like a class 0 device,
allotting 13 W if it chooses to power the PD. A PD that receives a 2-event class understands that it is powered
from a high-power PSE and it may draw up to 25.5 W immediately after the 80 ms startup period completes. A
type 2 PD that does not receive a 2-event hardware classification may choose to not start, or must start in a 13
W condition and request more power through the DLL after startup. The standard requires a type 2 PD to
indicate that it is underpowered if this occurs. Startup of a high-power PD under 13 W implicitly requires some
form of powering down sections of the application circuits.
The maximum power entries in Table 1 determine the class the PD must advertise. The PSE may disconnect a
PD if it draws more than its stated Class power, which may be the hardware class or a lower DLL-derived power
level. The standard permits the PD to draw limited current peaks that increase the instantaneous power above
the Table 1 limit, however the average power requirement always applies.
The TPS23751 and TPS23752 implement two-event classification. Selecting an RCLS of 63.4 Ω provides a valid
type 2 signature. A TPS23751 or TPS23752 may be used as a compatible type 1 device simply by programming
class 0–3 per Table 1. DLL communication is implemented by the Ethernet communication system in the PD and
is not implemented by the TPS23751 or TPS23752.
The TPS23751 and TPS23752 disable classification above VCU_OFF to avoid excessive power dissipation. CLS
voltage is turned off during PD thermal limiting or when DEN is active. The CLS output is inherently current
limited, but should not be shorted to VSS for long periods of time.
Figure 26 shows how classification works for the TPS23751 and TPS23752. Transition from state-to-state occurs
when comparator thresholds are crossed (see Figure 23 and Figure 24). These comparators have hysteresis,
which adds inherent memory to the machine. Operation begins at idle (unpowered by PSE) and proceeds with
increasing voltage from left to right. A 2-event classification follows the (heavy lined) path towards the bottom,
ending up with a latched type 2 decode along the lower branch that is highlighted. This state results in a low T2P
during normal operation. Once the valid path to type 2 PSE detection is broken, the input voltage must transition
below the mark reset threshold to start anew.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
23
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Idle
www.ti.com
Detect
Mark
Reset
Mark
Class
Between
Ranges
Class
Between
Ranges
Class
Between
Ranges
UVLO
Falling
UVLO
Rising
Operating
T2P
Open-Drain
TYPE 1 PSE
Hardware Class
PoE Startup Sequence
Mark
Class
Between
Ranges
UVLO
Rising
Operating
T2P Low
TYPE 2 PSE
Hardware Class
UVLO
Falling
Figure 26. Two-Event Class Internal States
7.4.1.5 Inrush and Startup
IEEE 802.3at has a startup current and time limitation, providing type 2 PSE compatibility for type 1 PDs. A type
2 PSE limits output current to between 400 mA and 450 mA for up to 75 ms after power-up (applying “48 V” to
the PI) in order to mirror type 1 PSE functionality. The type 2 PSE supports higher output current after 75 ms.
The TPS23751 and TPS23752 implement a 140 mA inrush current, which is compatible with all PSE types. A
high-power PD must limit its converter startup peak current. The operational current cannot exceed 400 mA for a
period of 80 ms or longer. The TPS23751 and TPS23752 internal soft-start permits control of the converter
startup, however the application circuits must assure that their power draw does not cause the PD to exceed the
current and time limitation. This requirement implicitly requires some form of powering down sections of the
application circuits. T2P becomes valid within tT2P after switching starts, or if an adapter is plugged in while the
PD is operating from a PSE.
7.4.1.6 Maintain Power Signature
The MPS is an electrical signature presented by the PD to assure the PSE that it is still present after operating
voltage is applied. A valid MPS consists of a minimum dc current of 10 mA (or a 10 mA pulsed current for at
least 75 ms every 325 ms) and an ac impedance lower than 26.3 kΩ in parallel with 0.05 μF. The ac impedance
is usually accomplished by the minimum operating CIN requirement of 5 μF. When DEN is used to force the
hotswap switch off, the dc MPS is not met. A PSE that monitors the dc MPS removes power from the PD when
this occurs. A PSE that monitors only the ac MPS may remove power from the PD. Additional TPS23752 MPS
features are supported as described in the Sleep Mode section.
7.4.1.7 Startup and Converter Operation
The internal PoE UVLO (Under Voltage Lock Out) circuit holds the hotswap switch off before the PSE provides
full voltage to the PD. This prevents the converter circuits from loading the PoE input during detection and
classification. The converter circuits discharge CIN, Cvc, and Cvb while the PD is unpowered. Thus V(VDD-RTN) is a
small voltage just after applying full voltage to the PD, as seen in Figure 25. The PSE drives the PI voltage to the
operating range once the PSE has decided to power up the PD. When VVDD rises above the UVLO turn-on
threshold (VUVLO-R, approximately 38 V) with RTN high, the TPS23751 and TPS23752 enable the hotswap
MOSFET with approximately 140 mA (inrush) current limit as seen in Figure 27. Converter switching is disabled
while CIN charges and VRTN falls from VVDD to nearly VVSS, however the converter startup circuit is allowed to
charge CVC (the bootstrap startup capacitor). Converter switching is allowed if the PD is not in inrush, OTSD is
not active, and the VC UVLO permits it. Once the inrush current falls about 10% below the inrush current limit,
the PD current limit switches to the operational level (approximately 1000 mA). Continuing the startup sequence
24
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
shown in Figure 27, VVC continues to rise until the startup threshold (VCUV approximately 8.9 V) is exceeded,
turning the startup source off and enabling switching. The VB regulator is always active, powering the internal
converter circuits as VVC rises. There is a slight delay between the removal of charge current and the start of
switching as the softstart ramp sweeps above the VZDC threshold. VVC falls as it powers both the internal circuits
and the switching MOSFET gates. If the converter control bias output rises to support VVC before it falls to VCUV –
VCUVH (approximately 5.7 V), a successful startup occurs. In Figure 27, T2P is active if a type 2 PSE is plugged
in.
V(VDD-RTN)
50V/div
Converter Starts
Inrush
IPI
100mA/div
PI Powered
V(VC-RTN)
5V/div
OUTPUT VOLTAGE
5V/div
Type 1 PSE
T2P @ OUTPUT
5V/div
Type 2 PSE
Time: 20ms/div
Figure 27. Power Up and Start
If VVDD- VVSS drops below the lower PoE UVLO (VUVLO-R - VUVLO-H, approximately 32 V), the hotswap MOSFET is
turned off, but the converter still runs. The converter stops if VVC falls below the converter UVLO (VCUV – VCUVH,
approximately 5.7 V), the hotswap is in inrush current limit, 0% duty cycle is demanded by VCTL (VCTL < VZDC,
approximately 1.75 V), or the converter is in thermal shutdown.
7.4.1.8 PD Hotswap Operation
IEEE 802.3at has taken a new approach to PSE output limiting. A type 2 PSE must meet an output current
versus time template with specified minimum and maximum sourcing boundaries. The peak output current may
be as high as 50 A for 10 μs or 1.75 A for 75 ms. This makes robust protection of the PD device even more
important than it was in IEEE 802.3-2008.
The internal hotswap MOSFET is protected against output faults and input voltage steps with a current limit and
deglitched (time-delay filtered) foldback. An overload on the pass MOSFET engages the current limit, with VRTNVVSS rising as a result. If VRTN rises above approximately 12 V for longer than approximately 800 μs, the current
limit reverts to the inrush value, and turns the converter off. The 800 μs deglitch feature prevents momentary
transients from causing a PD reset, provided that recovery lies within the bounds of the hotswap and PSE
protection. Figure 28 shows an example of recovery from a 16 V PSE rising voltage step. The hotswap MOSFET
goes into current limit, overshooting to a relatively low current, recovers to approximately 1000 mA full current
limit and charges the input capacitor while the converter continues to run. The MOSFET did not go into foldback
because VRTN-VVSS was below 12 V after the 800 μs deglitch.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
25
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Recovery from PI Dropout
V(VDD-VSS)
20V/div
CIN Completes Charge
While Converter Operates
IPI
500mA/div
16-V Input Step
VRTN < 12V @ 800 s
V(RTN-VSS)
10V/div
Time: 200 s/div
Figure 28. Response to Output Short Circuit
The PD control has a thermal sensor that protects the internal hotswap MOSFET. Conditions like startup or
operation into a VDD-to-RTN short cause high power dissipation in the MOSFET. An over-temperature shutdown
(OTSD) turns off the hotswap MOSFET and class regulator, which are restarted after the device cools. The
hotswap MOSFET is re-enabled with the inrush current limit when exiting from an over-temperature event.
Pulling DEN to VSS during powered operation causes the internal hotswap MOSFET to turn off. The hotswap
switch is forced off under the following conditions:
1. VAPD above VAPDEN (approximately 1.5 V)
2. V(DEN –VSS) < VPD_DIS when VVDD– VVSS is in the operational range,
3. PD OTSD is active, or
4. V(DEN –VSS) < PoE UVLO falling threshold (approximately 32 V).
7.4.2 Sleep Mode Operation (TPS23752 only)
These features implement a Sleep Mode, permitting power savings at night (or some other system-driven
criteria) by turning the active load circuits off while maintaining enough functionality for the PD to respond to a
local power-up request.
The Sleep Mode is initiated by command of a local device controller (microprocessor) when the SLPb input is
driven low. Sleep Mode is latched by this event, the converter is disabled, VDD regulates VC to 12.8 V, and the
LED output is active. The LED output sinks current to light an LED biased from the VC pin with RLED as shown in
Figure 32. LED can alert a local user that Sleep Mode is active. The TPS23752 signals the PSE that it wants to
remain powered during sleep by drawing enough current to satisfy the IEEE 802.3at DC MPS requirements. If
MODE was low when SLPb fell, a pulsed VDD current-draw scheme is implemented; otherwise a DC current is
drawn. The input current consists of the TPS23752 bias currents and the LED sink current, assuming no
additional loading on VC or VB. The MPS current draw is inhibited when APD is active. A local pushbutton switch
26
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
(SWAKE in Figure 32) is monitored by the WAKE pin and the latched sleep state exits when the button is pressed.
The button is connected to ARTN through an optocoupler LED (OPTO6 in Figure 32) that alerts the device
controller the button was pushed during normal operation. The MODE pin also has a second function, serving to
activate the LED output when driven low during normal converter operation. For more information regarding the
TPS23752 Sleep Mode Feature, see TPS23752 Maintain Power Signature Operation In Sleep Mode (SLVA588).
7.4.2.1 Converter Controller Features
The TPS23751 and TPS23752 DC-DC controller implements typical current-mode control as well as variable
frequency operation for light load efficiency optimization as shown in the Functional Block Diagram. Features
include programmable oscillator, over-current, PWM, VFO, and ZDC comparators, current-sense blanker,
softstart, and gate driver. In addition, an internal slope-compensation ramp generator, thermal shutdown, and
startup current source with control are provided.
The TPS23751 and TPS23752 are targeted at high efficiency, current mode, synchronous, flyback converters
incorporating an external error amplifier. In PWM mode, the external error amplifier and optocoupler drives the
CTL pin to demand current from the PWM. The internal current sense to control (CS to CTL pin) gain is 5 V/V.
VFO mode can be enabled using a voltage divider on the SRT pin. The TPS23751 and TPS23752 enter VFO
mode when VCTL falls below VSRT/2 + 1.75 V.
7.4.2.2 PWM and VFO Operation; CTL, SRT, and SRD Pin Relationships to Output Load Current
As the TPS23751 and TPS23752 transition from PWM to VFO mode with decreasing output load current, several
things happen to help reduce the light load losses of the DC-DC converter. A summary is shown in Table 3.
Table 3. Comparison of PWM and VFO Modes
MODE
SWITCHING FREQUENCY
INDUCTOR Peak CURRENT
SYNCHRONOUS RECTIFIER
(control with SRD pin)
INTERNAL SLOPE
COMPENSATION
PWM
Constant; set by RT
Variable, set by VCTL
Enabled (SRD = LOW)
Enabled
VFO
Variable; set by VCTL
Constant, clamped by VSRT
Disabled (SRD = OPEN)
Disabled
The state of the SRD pin depends on the internal operating mode (PWM or VFO) and is used to enable or
disable the synchronous rectifier. In addition to disabling the synchronous rectifier, the TPS23751 and TPS23752
reduce the switching frequency in VFO mode to maintain output regulation.
Synchronous rectification provides an efficiency advantage over a standard diode rectifier at medium to heavy
loads, but not at lighter loads. The SRD feature can provide a means to recover the light load losses by disabling
the synchronous rectifier and allowing the standard diode rectifier to take over as illustrated in Figure 29 by the
VFO/PWM mode efficiency curve.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
27
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
90
VFO/PWM Mode
85
80
Efficiency (%)
75
70
PWM Mode Only
65
60
55
50
45
40
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Load Current (A)
Figure 29. TPS23751 and TPS23752 Light Load Efficiency versus Mode
Figure 30 illustrates operation through the VFO to PWM to VFO transitions. As load current increases, so does
VCTL. When VCTL exceeds the rising threshold, the TPS23751 and TPS23752 transition from VFO to PWM mode,
and SRD goes low. The converter now operates with fixed frequency and current demand set by VCTL. As load
current decreases, so does VCTL. When VCTL decays below the falling threshold, the TPS23751 and TPS23752
transition from PWM to VFO mode, and SRD goes high. The converter now operates with variable frequency set
by VCTL, and fixed current demand set by VSRT.
28
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
ILOAD
Natural Hysteresis
1A/div
VCTL
VFO
Mode
PWM Mode
VFO
Mode
500mV/div
VSRD
10V/div
Time: 5ms/div
Figure 30. Converter Mode Transition
There is a natural load current hysteresis for ILOAD which can be seen in Figure 30 between the transition points.
For increasing ILOAD, the transition current is slightly higher than for decreasing ILOAD. This condition is due
partially to CTL pin hysteresis (approximately 35mV) and partially due to CTL pin operating point versus mode.
VCTL is slightly higher in PWM mode than in VFO mode for given output load at or near the transition point.
7.4.2.3 Bootstrap Topology
The internal startup current source (IVC_ST) and control logic implement a bootstrap-type startup as discussed in
the Startup and Converter Operation section. The startup current source charges CVC from VDD when the
converter is disabled (either by the PD control or the VC control) to store enough energy to start the converter.
Steady-state operating power must come from a converter (bias winding) output or other source. Loading on VC
and VB must be minimal while CVC charges, otherwise the converter may never start. The optocoupler does not
load VB when the converter is off for most situations, however care should be taken in ORing topologies where
the output is powered when PoE is off.
The converter shuts off when VC falls below its lower UVLO. This can happen when power is removed from the
PD, or during a fault on a converter output rail. When one output is shorted, all the output voltages fall including
the one that powers VC. The control circuit discharges VC until it hits the lower UVLO and turns off. A restart is
initiated as described in the Startup and Converter Operation section if the converter turns off and there is
sufficient VDD voltage. This type of operation is sometimes referred to as hiccup mode which provides robust
output short protection by providing time-average heating reduction of the output rectifier.
Below VCUV, the bootstrap control logic disables most of the converter controller circuits except the VB regulator
and internal reference. GATE is low when the converter is disabled.
The bootstrap source provides reliable startup from widely varying input voltages, and eliminates the continual
power loss of external resistors. The startup current source does not charge above the maximum recommended
VVC if the converter is disabled and there is sufficient VDD to charge higher.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
29
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
7.4.2.4 Current Slope Compensation and Current Limit
Current-mode control requires addition of a compensation ramp to the sensed inductive (transformer or inductor)
current for stability at duty cycles near and over 50%. The TPS23751 and TPS23752 have a maximum duty
cycle limit of 80%, permitting the design of wide input-range converters with lower voltage stress on the output
rectifiers. While the maximum duty cycle is 80%, converters may be designed that run at duty cycles well below
this for a narrower, 36 V to 57 V PI range. The TPS23751 and TPS23752 provide fixed internal slope
compensation which suffices for most applications.
The TPS23751 and TPS23752 provide internal, frequency independent, slope compensation (VPK = 40 mV at
DMAX) starting from DSLOPE_ST to the PWM comparator input for current-mode control-loop stability. This voltage is
not applied to the current-limit comparator whose threshold is 0.25 V (VCSMAX). If the provided slope is not
sufficient, the effective slope may be increased by addition of RS per Figure 33. The additional slope voltage is
provided by (ICS_RAMP × RS). There is also a small dc offset caused by the ICSDC (approximately 2.0 μA) current.
The peak current limit does not have duty cycle dependency unless RS is used which is easier designing the
current limit to a fixed value. See the Current Slope Compensation section for more information.
The internal comparators monitoring CS are isolated from the CS pin by the blanking circuits while GATE is low,
and for a short time (blanking period) just after GATE switches high. A 500 Ω (max) equivalent pulldown resistor
on CS is applied while GATE is low.
7.4.2.5 RT
The RT pin programs the (free-running) oscillator frequency of the TPS23751 and TPS23752 in PWM mode. The
internal oscillator sets the maximum duty cycle at 80% and controls the slope-compensation ramp circuit. In VFO
mode, the RT pin is driven by VCTL.
7.4.2.6 T2P, Startup and Power Management
T2P (type 2 PSE) is an active-low multifunction pin that indicates if
[(PSE = Type_2) + (VAPD > 1.5 V) + (VCTL < 4 V) × (PD current limit ≠ Inrush)].
The term with VCTL prevents an optocoupler connected to the secondary-side from loading VC before the
converter is started. The APD term allows the PD to operate from an adapter at high-power if a type 2 PSE is not
present, assuming the adapter has sufficient capacity. Applications must monitor the state of T2P to detect power
source transitions. Transitions could occur when a local power supply is added or dropped or when a PSE is
enabled on the far end. The PD may be required to adjust the load appropriately. The usage of T2P is
demonstrated in Figure 32.
In order for a type 2 PD to operate at less than 13 W the first 80 ms after power application, the various delays
must be estimated and used by the application controller to meet the requirement. The bootup time of many
applications processors may be long enough to eliminate the need to do any timing. Figure 27 illustrates the T2P
delay after the converter starts.
7.4.2.7 Thermal Shutdown
The DC-DC controller has an OTSD that can be triggered by heat sources including the VB regulator, GATE
driver, bootstrap current source, and bias currents. The controller OTSD turns off VB, the GATE driver, and
forces the VC control into an under-voltage state.
7.4.2.8 Adapter ORing
Many PoE-capable devices are designed to operate from either a wall adapter or PoE power. A local power
solution adds cost and complexity, but allows a product to be used if PoE is not available in a particular
installation. While most applications only require that the PD operate when both sources are present, the
TPS23751 and TPS23752 supports forced operation from either of the power sources. Figure 31 illustrates three
options for diode ORing external power into a PD. Only one option would be used in any particular design.
Option 1 applies power to the TPS23751 and TPS23752 PoE input, option 2 applies power between the
TPS23751 and TPS23752 PoE section and the power circuit, and option 3 applies power to the output side of
the converter. Each of these options has advantages and disadvantages. Many of the basic ORing configurations
and much of the discussion contained in the application note Advanced Adapter ORing Solutions using the
TPS23753 (SLVA306), apply to the TPS23751 and TPS23752.
30
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
VPOE
VDD
RDEN
+
Low Voltage
Output
DEN
CLS
±
VSS
Power
Circuit
TPS23751/2
RCLS
D1
C1
From Spare Pairs From Ethernet
or Transformers
Transformers
www.ti.com
RTN
Adapter
Option 1
Adapter
Option 2
Adapter
Option 3
Figure 31. ORing Configurations
The IEEE standards require that the Ethernet cable be isolated from ground and all other system potentials. The
adapter must meet a minimum 1500 Vac dielectric withstand test between the output and all other connections
for ORing options 1 and 2. The adapter only needs this isolation for option 3 if it is not provided by the converter.
Adapter ORing diodes are shown for all the options to protect against a reverse voltage adapter, a short on the
adapter input pins, or damage to a low-voltage adapter. ORing is sometimes accomplished with a MOSFET in
option 3.
7.4.2.9 Using DEN to Disable PoE
The DEN pin may be used to turn the PoE hotswap switch off by pulling it to VSS while in the operational state, or
to prevent detection when in the idle state. A low voltage on DEN forces the hotswap MOSFET off during normal
operation.
7.4.2.10 ORing Challenges
Preference of one power source presents a number of challenges. Combinations of adapter output voltage
(nominal and tolerance), power insertion point, and which source is preferred determine solution complexity.
Several factors adding to the complexity are the natural high-voltage selection of diode ORing (the simplest
method of combining sources), the current limit implicit in the PSE, and PD inrush and protection circuits
(necessary for operation and reliability). Creating simple and seamless solutions is difficult, if not impossible, for
many of the combinations. However, the TPS23751 and TPS23752 offer several built-in features that simplify
some combinations.
Several examples demonstrate the limitations inherent in ORing solutions. Diode ORing a 48 V adapter with PoE
(option 1) presents the problem that either source may have the higher voltage. A blocking switch would be
required to assure that one source dominates. A second example combines a 12 V adapter with PoE using
option 2. The converter draws approximately four times the current at 12 V from the adapter than it does from
PoE at 48 V. Transition from adapter power to PoE may demand more current than can be supplied by the PSE.
The converter must be turned off while the CIN capacitance charges, with a subsequent converter restart at the
higher voltage and lower input current. A third example involves the loss of the MPS when running from the
adapter, causing the PSE to remove power from the PD. If ac power is then lost, the PD stops operating until the
PSE detects and powers the PD.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
31
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The TPS23751 and TPS23752 support power supply topologies that require a single PWM gate drive with
current-mode control. Figure 32 provides an example of a synchronous rectifier flyback converter.
From Ethernet
Pairs 1,2
8.2 Typical Application
RT2P
RSRD
RSRT1
M2
M1
OPTO1
TLV431
OPTO2
VB
RWAKE
WAKE
RSL
MODE
VOUT
OPTO4
RPB
SLPb
RMODE
RLED
LED
TPS23752
P 2/2
VC
SLPb
RSLN
OPTO5
MODE
SWAKE
RMPS
OPTO6
PBb
RFBU
Sleep Mode
Processor Control Interface
CIO
CIZ
RFBL
ROB
VOUT
CVC
OPTO1
Type 2 PSE
Indicator
OPTO2
RSRT2
ARTN
TPS23752
P 1/2
SRT
GATE
CS
SRD
OPTO3
DVC1
RVC
VC
VB
CVB
RT
CCTL
RCTL
RTN
VSS
APD
CTL
RT
DOUT
RCS
VDD
58V
CLS
PAD
VB
RAPD2
Adapter
RAPD1
DEN
RCLS
0.1uF
From Ethernet
Pairs 3,4
DA
CIN
OPTO3
T2P
VOUT
COUT
RDEN
T1
Figure 32. TPS23752 Application Circuit
8.2.1 Design Requirements
Selecting a converter topology along with a design procedure is beyond the scope of this applications section.
Examples to help in programming the TPS23751 and TPS23752 are shown below. Additional special topics are
included to explain the ORing capabilities, frequency dithering, and other design considerations. For more
specific converter design examples refer to the following application notes:
• Designing with the TPS23753 Powered Device and Power Supply Controller, SLVA305
• Advanced Adapter ORing Solutions using the TPS23753, SLVA306
• TPS23751EVM-104 EVM: Evaluation Module for TPS23751, SLVU754
• TPS23752EVM-145 EVM: Evaluation Module for TPS23752, SLVU753
32
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Typical Application (continued)
8.2.2 Detailed Design Procedure
8.2.2.1 Input Bridges and Schottky Diodes
Using Schottky diodes instead of PN junction diodes for the PoE input bridges reduces the power dissipation in
these devices by about 30%. There are, however, some things to consider when using them.
The IEEE standard specifies a maximum backfeed voltage of 2.8 V. A 100-kΩ resistor is placed between the
unpowered pairs and the voltage is measured across the resistor. Schottky diodes often have a higher reverse
leakage current than PN diodes, making this a harder requirement to meet. To compensate, use conservative
design for diode operating temperature, select lower-leakage devices where possible, and match leakage and
temperatures by using packaged bridges.
Schottky diode leakage currents and lower dynamic resistances can impact the detection signature. Setting
reasonable expectations for the temperature range over which the detection signature is accurate is the simplest
solution. Increasing RDEN slightly may also help meet the requirement.
Schottky diodes have proven less robust to the stresses of ESD transients than PN junction diodes. After
exposure to ESD, Schottky diodes may become shorted or leak. Care must be taken to provide adequate
protection in line with the exposure levels. This protection may be as simple as ferrite beads and capacitors.
As a general recommendation, use 1 A or 2 A, 100-V rated discrete or bridge diodes for the input rectifiers.
8.2.2.2 Protection, D1
A TVS, D1, across the rectified PoE voltage per Figure 32 must be used. A SMAJ58A, or equivalent, is
recommended for general indoor applications. Adequate capacitive filtering or a TVS must limit input transient
voltage to within the absolute maximum ratings. Outdoor transient levels or special applications require additional
protection.
8.2.2.3 Capacitor, C1
The IEEE 802.3at standard specifies an input bypass capacitor (from VDD to VSS) of 0.05 μF to 0.12 μF. Typically
a 0.1 μF, 100 V, 10% ceramic capacitor is used.
8.2.2.4 Detection Resistor, RDEN
The IEEE 802.3at standard specifies a detection signature resistance, RDEN between 23.75 kΩ and 26.25 kΩ, or
25 kΩ ±5%. A resistor of 24.9 kΩ ±1% is recommended for RDEN.
8.2.2.5 Classification Resistor, RCLS
Connect a resistor from CLS to VSS to program the classification current according to the IEEE 802.3at standard.
The class power assigned should correspond to the maximum average power drawn by the PD during operation.
Select RCLS according to Table 1. For a high power design, choose class 4 and RCLS = 63.4 Ω.
8.2.2.6 APD Pin Divider Network, RAPD1, RAPD2
The APD pin can be used to disable the TPS23751 and TPS23752 internal hotswap MOSFET, giving the
adapter source priority over the PoE. For an example calculation, see literature number SLVA306.
8.2.2.7 Setting the PWM-VFO Threshold using the SRT pin
The TPS23751 and TPS23752 internally compares modified voltages at the SRT and CTL pins to determine the
operating mode. The designer should consider the light load operating point (considering the value of VCTL)
where synchronous rectifier (M2 in Figure 32) gate drive and switching losses nearly match conduction losses of
the rectifier diode (DOUT in Figure 32). Typically, the designer characterizes circuit efficiency, output load, and
control pin (VCTL) voltage and then select the transition point. Both VFO → PWM (occurs at higher load current
due to natural hysteresis) and PWM → VFO (occurs at slightly lower load current) transitions should be
considered when choosing the VSRT setpoint. As an example:
1. Assume that the desired efficiency transition threshold occurs at 18% of full load and VCTL = 2.0 V
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
33
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Typical Application (continued)
2. Determine where to set VSRT.
Transition to VFO mode when VCTL = 2.0 V
VSRT = 2 ´ VCTL - 3.5 V = 2 ´ 2.0 V - 3.5 V = 0.5 V
(2)
3. Set VSRT using a voltage divider from VB to ARTN as shown in Figure 32.
4. Choose RSRT1 = 100 kΩ and then calculate RSRT2 as follows:
R
´V
100 k W ´ 0.5 V
RSRT2 = SRT1 SRT =
= 11.1 kW
VB - VSRT
5 V - 0.5 V
(3)
5. Select 11 kΩ for RSRT2.
8.2.2.8 Setting Frequency (RT)
The converter switching frequency in PWM mode is set by connecting resistor, RT from the RT pin to ARTN (see
Figure 32). The frequency may be set as high as 1 MHz with some loss in programming accuracy as well as
converter efficiency. As an example:
1. Assume a desired switching frequency (fSW) of 250 kHz.
2. Compute RT:
RT =
8.5 ´ 109 W 8.5 ´ 109 W
=
= 34000 W
¦ SW (Hz)
250000
(4)
3. Select 34 kΩ for RT.
8.2.2.9 Current Slope Compensation
The TPS23751 and TPS23752 provide a fixed internal compensation ramp that suffices for most applications. RS
(see Figure 33) may be used if the internally provided slope compensation is not enough. Most current-mode
control papers and application notes define the slope values in terms of VPP/TS (peak ramp voltage / switching
period). Assuming that the desired slope, VSLOPE_D (in mV/period), as shown in Figure 2, is based on the full
period, compute RS per the following equation where VPK and ICS_RAMP are from the electrical characteristics
table with voltages in mV and current in μA.
VPK (mV)
VSLOPE _ D (mV) DMAX - DSLOPE _ ST
RS ( W ) =
´ 1000
ICS _ RAMP (mA)
(
)
(DMAX - DSLOPE _ ST )
(5)
VDD
RVFF
ARTN
RTN
GATE
CS
RS
CS
RCS
Figure 33. Additional Slope Compensation
CS may be required if the presence of RS causes increased noise, due to adjacent signals like the gate drive, to
appear at the CS pin.
34
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Typical Application (continued)
8.2.2.10 Voltage Feed-Forward Compensation
Voltage feed-forward compensation can provide additional benefits including a flatter output fold-back current
limit characteristic (versus input voltage), and a reduction of voltage stress on the primary switching MOSFET at
high line and output overload. Voltage feed-forward can simply be applied by adding a resistor, RVFF between
VDD and CS as shown in Figure 33. The current through RVFF and RS provides a small dc offset on the CS pin
which reduces the output fold back current limit.
A simple way to choose RVFF is to first determine the natural circuit output fold back current at minimum line input
voltage. For example, if the circuit requirements are to deliver a regulated 5 V output at 5 A from a 24 V dc
adapter, then low line input could be as low as 21.6 V including tolerance. RVFF must be set large enough to
allow the required current to be delivered prior to output voltage fold back. Natural circuit output fold back current
and primary MOSFET voltage stress should also be characterized at high line in order to assess the
improvement provided by the addition of RVFF.
For a given SRT setpoint, the addition of RVFF reduces the output current at which the VFO to PWM (and PWM
to VFO) transition occurs. This requires that the designer increase VSRT to account for the reduction due to RVFF.
8.2.2.11 Estimating Bias Supply Requirements and Cvc
The bias supply (VC) power requirements determine CVC sizing and hiccup frequency during a fault. The first step
is to determine the power and current requirements of the power supply control circuitry, then select CVC. The
following example assumes that control current draw is constant with voltage with no loading by the feedback
and T2P optocouplers to simplify the process:
1. Let VQG be the gate voltage swing that the MOSFET QG is rated to (often 10 V).
æ
V ö
PGATE = VC ´ ¦ SW ´ ç QGATE ´ C ÷
ç
VQG ÷ø
è
(6)
Compute gate drive power if VC is 12 V and QGATE is 17 nC
12
PGATE = 12 V ´ 250kHz ´ 17nC ´
= 61.2mW
10
(7)
This equation illustrates why MOSFET QG should be an important consideration in selecting the switching
MOSFETs.
2. Estimate the required bias current at some intermediate voltage during the CVC discharge. For the TPS23751
and TPS23752, 12 V provides a reasonable estimate. Add the operating bias current to the gate drive
current.
P
61.2mW
IDRIVE = GATE =
= 5.1mA
VC
12 V
ITOTAL = IDRIVE + IVC _ OP = 5.1mA + 1.8mA = 6.9mA
(8)
3. Compute the required CVC based on startup within the typical softstart delay of 3.01 ms.
T
´I
3.01ms ´ 6.9mA
CVC1 + CVC2 = SSD TOTAL =
= 6.49μF
VCUVH
3.2 V
(9)
4. Choose a 10 μF electrolytic and 0.47 μF ceramic capacitor each rated for 16 V (minimum). Compute the
initial time to start the converter when operating from PoE. Using a typical bootstrap current of 1.5 mA,
compute the time to startup.
TST =
(CVC1 + CVC2 )´ VCUV
IVC _ ST
=
10.47 mF ´ 8.9 V
= 62.1ms
1.5mA
(10)
5. Compute the fault duty cycle and hiccup frequency
TRECHARGE =
(CVC1 + CVC2 )´ VCUVH (10 mF + 0.47 mF ´ 3.2 V )
=
IVC _ ST
1.5mA
= 22.3ms
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
(11)
Submit Documentation Feedback
35
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Typical Application (continued)
TDISCHARGE =
(CVC1 + CVC2 )´ VCUVH (10 mF + 0.47 mF )´ 3.2 V
=
ITOTAL
6.9mA
= 4.9ms
(12)
TDISCHARGE
4.9ms
Duty Cycle : D =
=
= 18.0%
TDISCHARGE + TRECHARGE 4.9ms + 22.3ms
(13)
1
1
Hiccup Frequency : F =
=
= 37Hz
TDISCHARGE + TRECHARGE 4.9ms + 22.3 ms
(14)
8.2.2.12 Switching Transformer Considerations and RVC
Care in design of the transformer and VC bias circuit is required to obtain hiccup overload protection. Leadingedge voltage overshoot on the bias winding may cause VC to peak-charge, preventing the expected tracking with
output voltage. Some method of controlling overshoot is usually required. The method may be as simple as a
series resistor, or an R-C filter in front of DVC1. Good transformer bias-to-output-winding coupling results in
reduced overshoot and better voltage tracking.
DVC1
RVC
VC
CVC
T1
Bias WInding
ARTN
Figure 34. VC Pin Interface
RVC as shown in Figure 34 helps to reduce peak charging from the bias winding. Reduced peak charging
becomes especially important when tuning hiccup mode operation during output overload. Typical values for RVC
are between 10 Ω and 100 Ω.
8.2.2.13 T2P Pin Interface
The T2P pin is an active-low, open-drain output which indicates that a high power source is available. An
optocoupler can interface the T2P pin to circuitry on the secondary side of the converter. A high-gain optocoupler
and a high-impedance (for example, CMOS) receiver are recommended. Design of the T2P optocoupler interface
can be accomplished as follows:
VOUT
RT2P
IT2P-OUT
IT2P
VC
RT2P-OUT
VT2P-OUT
VT2P Low
Indicates
Type 2
T2P From
TPS23751/2
Figure 35. T2P Interface
1. As shown in Figure 35, let VC = 12 V, VOUT = 5 V, RT2P-OUT = 10 kΩ, VT2P = 260 mV, VT2P-OUT = 400 mV.
V
- VT2P -OUT 5 - 0.4
IT2P -OUT = OUT
=
= 0.46 mA
RT2P -OUT
10000
(15)
2. The optocoupler current transfer ratio, CTR, is not needed to determine RT2P. A device with a minimum CTR
of 100% at 1 mA LED bias current, IT2P, is selected. Note that in practice, CTR varies with temperature, LED
bias current, and aging. These variations may require some iteration using the CTR-versus- IDIODE curve on
the optocoupler data sheet.
36
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
Typical Application (continued)
a. The approximate forward voltage of the optocoupler diode, VFWLED , is 1.1 V from the data sheet.
I
0.46mA
IT2P-MIN = T2P-OUT =
= 0.46mA, Select IT2P = 1mA
CTR
1.00
b.
RT2P =
VC - VT2P - VFWLED 12 V - 0.26 V - 1.1V
= 10.6kW
=
1mA
IT2P
c. Select a 10.7 kW resistor.
(16)
8.2.2.14 Softstart
Converters require a softstart on the voltage error amplifier to prevent output overshoot on startup. Figure 36
shows a common implementation of a secondary-side softstart that works with the typical TL431 error amplifier.
The softstart components consist of DSS, RSS, and CSS. They serve to control the output rate-of-rise by pulling
VCTL down as CSS charges through ROB, the optocoupler, and DSS. This has the added advantage that the TL431
output and CIZ are preset to the proper value as the output voltage reaches the regulated value, preventing
voltage overshoot due to the error amplifier recovery. The secondary-side error amplifier does not become active
until there is sufficient voltage on the secondary. The TPS23751 and TPS23752 provide a primary-side softstart
which persists long enough (approximately 3ms) for secondary side voltage-loop softstart to take over. The
primary-side current-loop softstart controls the switching MOSFET peak current by applying a slowly rising ramp
voltage to a second PWM control input. The PWM is controlled by the lower of the softstart ramp or the CTLderived current demand. The actual output voltage rise time is usually much shorter than the internal softstart
period. Initially the internal softstart ramp limits the maximum current demand as a function of time. The current
limit, secondary-side softstart, or output regulation assume control of the PWM before the internal softstart period
is over.
From Regulated
Output Voltage
ROB
RSS
RFBU
CIZ
DSS
CSS
RFBL
TLV431
Figure 36. Error Amplifier Soft Start
8.2.2.15 Special Switching MOSFET Considerations
Special care must be used in selecting the converter switching MOSFET. The TPS23751 and TPS23752
minimum switching MOSFET VGATE is approximately 5.5 V, which is due to the VC lower threshold. This condition
occurs during an output overload, or towards the end of a (failed) bootstrap startup. The MOSFET must be able
to carry the anticipated peak fault current at this gate voltage.
8.2.2.16 ESD
ESD requirements for a unit that incorporates the TPS23751 or TPS23752 have a much broader scope and
operational implications than are used in TI testing. Unit-level requirements should not be confused with
reference design testing that only validates the ruggedness of the TPS23751 and TPS23752.
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
37
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
Typical Application (continued)
8.2.2.17 Thermal Considerations and OTSD
Sources of nearby local PCB heating should be considered during the thermal design. Typical calculations
assume that the TPS23751 and TPS23752 are the only heat sources contributing to the PCB temperature rise. It
is possible for a normally operating TPS23751 or TPS23752 device to experience an OTSD event if it is
excessively heated by a nearby device.
8.2.3 Application Curves
V(VDD-RTN)
Converter Starts
50V/div
Inrush
Converter Starts
Inrush
IPI
IPI
100mA/div
100mA/div
PI Powered
V(VDD-VSS)
Class
V(VC-RTN)
Mark
5V/div
Detect
OUTPUT VOLTAGE
5V/div
Type 1 PSE
V(RTN-VSS)
T2P @ OUTPUT
5V/div
10V/div
Type 2 PSE
Time: 20ms/div
Time: 50ms/div
Figure 37. Startup
38
Submit Documentation Feedback
Figure 38. Power Up and Start
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
TPS23751, TPS23752
www.ti.com
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
9 Power Supply Recommendations
The TPS23751 and TPS23752 converter should be designed such that the input voltage of the converter is
capable of operating within the IEEE802.3at recommended input voltage as shown in Table 3 and the minimum
operating voltage of the adapter if applicable.
10 Layout
10.1 Layout Guidelines
Printed-circuit-board layout recommendations are provided in the evaluation module (EVM) documentation
available for these devices.
10.2 Layout Example
Figure 39. TPS23751EVM-104 EVM Parts Placement and Example Layout
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
Submit Documentation Feedback
39
TPS23751, TPS23752
SLVSB97E – JULY 2012 – REVISED JANUARY 2018
www.ti.com
11 Device and Documentation Support
11.1 Documentation Support
11.1.1 Related Documentation
TPS23752 Maintain Power Signature Operation in Sleep Mode, SLVA588
Lightning Surge Considerations for PoE Powered Devices, SLUA736
IEEE 802.3-2005 PoE Interface and Isolated Converter Controller with Enhanced ESD Ride-Through, SLVA306
High Power/High Efficiency PoE Interface and DC/DC Controller, SLUA469
11.1.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 4. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
TPS23751
Click here
Click here
Click here
Click here
Click here
TPS23752
Click here
Click here
Click here
Click here
Click here
11.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.3 Trademarks
PowerPAD, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
11.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
40
Submit Documentation Feedback
Copyright © 2012–2018, Texas Instruments Incorporated
Product Folder Links: TPS23751 TPS23752
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS23751PWP
ACTIVE
HTSSOP
PWP
16
90
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
23751
TPS23751PWPR
ACTIVE
HTSSOP
PWP
16
2000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
23751
TPS23752PWP
ACTIVE
HTSSOP
PWP
20
70
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
TPS23752
TPS23752PWPR
ACTIVE
HTSSOP
PWP
20
2000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
TPS23752
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
