User's Guide
SLVU462 – June 2011
TPS2554 and TPS2555 Evaluation Module
This user’s guide describes the evaluation module (EVM) for the TPS2554 and TPS2555. TPS2554 and
TPS2555 are precision-adjustable, current-limited, power-distribution switches. The document contains an
operational description of the EVM, schematic, board layout, and bill of materials.
1
2
3
4
5
Contents
Description ...................................................................................................................
1.1
Features .............................................................................................................
1.2
Applications .........................................................................................................
Schematic ....................................................................................................................
General Configuration and Description ..................................................................................
3.1
Physical Access ....................................................................................................
3.2
Current-Limit Setpoint .............................................................................................
3.3
Test Setup ..........................................................................................................
EVM Assembly Drawings and Layout Guidelines ......................................................................
4.1
Layout Guidelines ..................................................................................................
4.2
PCB Drawings ......................................................................................................
Bill of Materials ..............................................................................................................
2
2
2
3
4
4
4
4
5
5
5
8
List of Figures
1
TPS2554/5EVM Schematic ................................................................................................ 3
2
Typical TPS2554/5EVM Test Setup ...................................................................................... 5
3
Top-Side Placement and Routing......................................................................................... 6
4
Layer-Two Routing .......................................................................................................... 6
5
Layer-Three Routing ........................................................................................................ 7
6
Bottom-Side Placement and Routing ..................................................................................... 7
List of Tables
...............................................................................................................
1
User Interface
2
Test Points ................................................................................................................... 4
3
EVM Bill of Materials
SLVU462 – June 2011
Submit Documentation Feedback
.......................................................................................................
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
4
8
1
Description
1
www.ti.com
Description

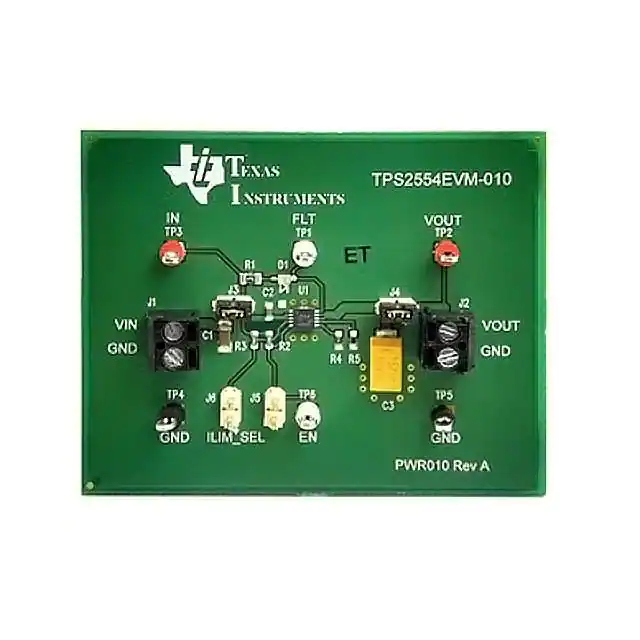

The TPS2554EVM-010 evaluation module allows reference circuit evaluation of the Texas Instruments
TPS2554 and TPS2555 power-distribution switches.
1.1
Features
•
•
•
•
1.2
Applications
•
•
2
Precision adjustable, current-limited, power-distribution switch
Fast overcurrent response – 1 µs typical
80-mΩ, high-side MOSFET
Operating range: 4.5 V to 5.5 V
USB ports/hubs
Notebook personal computers (PC)
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
SLVU462 – June 2011
Submit Documentation Feedback
Schematic
www.ti.com
2
Schematic
Figure 1. TPS2554/5EVM Schematic
spacer
SLVU462 – June 2011
Submit Documentation Feedback
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
3
General Configuration and Description
www.ti.com
3
General Configuration and Description
3.1
Physical Access
Table 1 lists the TPS2554/5EVM connector functionality, and Table 2 describes the test point availability.
Table 1. User Interface
Connector
Label
J1
VIN
Description
J2
VOUT
J3
J3
Input voltage jumper. Shunt can be removed to measure input current.
J4
J4
Output voltage jumper. Shunt can be removed to measure output current.
J5
EN
Enable jumper. Leave open to enable TPS2554 and install shunt to enable TPS2555.
J6
ILIM_SEL
Current limit select. Install shunt to select ILIM0 (2.4 A nominal), and remove shunt to
select ILIM1 (1.2 A nominal).
D1 (RED)
FLT
Input connector
Output connector
Fault LED
Table 2. Test Points
3.2
Test Point
Color
Label
TP3
RED
IN
Description
TP4
BLK
GND
Power switch input ground
TP1
WHT
FLT
Fault pin output
TP2
RED
VOUT
Power switch output
TP5
BLK
GND
Power switch output ground
TP6
WHT
EN
Power switch input (IC side of J3 shunt)
Enable pin input
Current-Limit Setpoint
R4 and R5 configure the current-limit setpoint for ILIM0 and ILIM1, respectively (see J6 in Table 1). ILIM0
or ILIM1 setpoint can be adjusted using the following example by substituting R4 or R5 for RILIMx. In this
example IOS = 2 A.
The following example is an approximation only and does not take into account the resistor tolerance or
the variation of ILIM. For exact variation of ILIM, see the TPS2554/TPS2555 data sheet, SLVSAM0.
IOS = 48000 / RILIMx = 2 A
RILIMx = 48000 / IOS = 48000 / 2 = 24000 Ω
Choose RILIMx = 23.7 kΩ
IOS = 48000 / 23700 = 2.03 A
3.3
Test Setup
Figure 2 shows a typical test setup for TPS2554/5EVM.
4
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
SLVU462 – June 2011
Submit Documentation Feedback
EVM Assembly Drawings and Layout Guidelines
www.ti.com
Oscilloscope
TP2
+
+
D1
TPS2554EVM-010
J2
-
J1
7" Twisted Pair, #20AWG
-
VIN
TP5
Figure 2. Typical TPS2554/5EVM Test Setup
4
EVM Assembly Drawings and Layout Guidelines
4.1
Layout Guidelines
•
•
•
4.2
TPS2554/55 placement: Place the TPS2554/55 near the USB output connector and the 150-µF OUT
pin filter capacitor. Connect the exposed pad to the GND pin and the system ground plane using a via
array.
IN pin bypass capacitance: Place the 100-nF bypass capacitor near the IN and GND pins, and make
the connection using a low-inductance trace.
ILIM0 and ILIM1 pin connections: Current-limit accuracy can be compromised by stray current
leakage from a higher voltage source to the ILIM0 or ILIM1 pins. Ensure that adequate spacing exists
between IN pin copper/trace and ILIM0 pin trace to prevent contaminate buildup during the PCB
assembly process. If a low-current-limit setpoint is required (RILIMx > 200 kΩ), use ILIM1 for this case,
as it is further away from the IN pin.
PCB Drawings
The Figure 3 through Figure 6 show component placement and layout of the EVM.
SLVU462 – June 2011
Submit Documentation Feedback
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
5
EVM Assembly Drawings and Layout Guidelines
www.ti.com
TP3
TP1
D1
R1
J3
U1
C2
J4
J2
1
J1
TP2
+
C1
R3
R2
R4 R5
TP4
J6
J5
TP6
TP5
C3
Figure 3. Top-Side Placement and Routing
Figure 4. Layer-Two Routing
6
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
SLVU462 – June 2011
Submit Documentation Feedback
www.ti.com
EVM Assembly Drawings and Layout Guidelines
Figure 5. Layer-Three Routing
Figure 6. Bottom-Side Placement and Routing
SLVU462 – June 2011
Submit Documentation Feedback
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
7
Bill of Materials
5
www.ti.com
Bill of Materials
Table 3. EVM Bill of Materials
Count
RefDes
Value
Description
Size
Part Number
Mfr
1
C2
0.1 µF
Capacitor, Ceramic, 16V, X7R, 10%
603
Std
Std
1
C1
10 µF
Capacitor, Ceramic, 10V, X5R, 10%
1206
Std
Std
1
C3
150 µF
Capacitor, Tant, Low ESR, 10V, ±10%
7343(D)
TPSD157K010R0100
AVX
1
D1
LN1271R
Diode, LED, Red, 20-mA, 0.9-mcd
0.068 x 0.049 inch
LN1271R
Panasonic
4
J3-6
PEC02SAAN
Header, Male 2-pin, 100mil spacing,
0.100 inch x 2
PEC02SAAN
Sullins
2
R2-3
100k
Resistor, Chip, 1/16W, 1%
603
Std
Std
1
R4
40.2k
Resistor, Chip, 1/16W, 1%
603
Std
Std
1
R5
20k
Resistor, Chip, 1/16W, 1%
603
Std
Std
1
R1
499
Resistor, Chip, 1/10W, 1%
805
Std
Std
2
J1-2
ED555/2DS
Terminal Block, 2-pin, 6-A, 3.5mm
0.27 x 0.25 inch
ED555/2DS
OST
2
TP2-3
5010
Test Point, Red, Thru Hole
0.125 x 0.125 inch
5010
Keystone
2
TP4-5
5011
Test Point, Black, Thru Hole
0.125 x 0.125 inch
5011
Keystone
2
TP1 TP6
5012
Test Point, White, Thru Hole
0.125 x 0.125 inch
5012
Keystone
1
U1
TPS2554DRC or
TPS2555DRC
IC, Power-Distribution Switch, Current-Limited
SON
TPS2554DRC or
TPS2555DRC
TI
SJ-5003
BUMPON HEMISPHERE .44X.20 BLACK
SJ-5003
3M
929950-00
3M
PWR010
Any
4
2
1
8
Shunt, Black
—
100-mil
PCB, 2.5 In x 2.0 In x 0.062 In
SLVU462 – June 2011
Submit Documentation Feedback
TPS2554 and TPS2555 Evaluation Module
Copyright © 2011, Texas Instruments Incorporated
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 0 V to 5.5 V and the output voltage range of 0 V to 5.5 V .
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 85°C. The EVM is designed to
operate properly with certain components above 85°C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
Communications and Telecom www.ti.com/communications
Amplifiers
amplifier.ti.com
Computers and Peripherals
www.ti.com/computers
Data Converters
dataconverter.ti.com
Consumer Electronics
www.ti.com/consumer-apps
DLP® Products
www.dlp.com
Energy and Lighting
www.ti.com/energy
DSP
dsp.ti.com
Industrial
www.ti.com/industrial
Clocks and Timers
www.ti.com/clocks
Medical
www.ti.com/medical
Interface
interface.ti.com
Security
www.ti.com/security
Logic
logic.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and
Automotive
www.ti.com/automotive
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
Wireless
www.ti.com/wireless-apps
RF/IF and ZigBee® Solutions
www.ti.com/lprf
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
