TPS3803-01-EP
TPS3803G15-EP
TPS3805H33-EP
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
VOLTAGE
DETECTOR
FEATURES
DESCRIPTION
D Controlled Baseline
D
D
D
D
D
D
D
D
D
D
− One Assembly/Test Site, One Fabrication
Site
Extended Temperature Performance of Up to
−55°C to +125°C
Enhanced Diminishing Manufacturing
Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree(1)
Single Voltage Detector (TPS3803):
Adjustable/1.5 V
Dual Voltage Detector (TPS3805):
Adjustable/3.3 V
High ±1.5% Threshold Voltage Accuracy
Supply Current: 3 µA Typical at VDD = 3.3 V
Push/Pull Reset Output (TPS3805) Open-Drain
Reset Output (TPS3803)
5-Pin SC−70 Package
The TPS3803 and TPS3805 families of supervisory circuits
provide circuit initialization and timing supervision, primarily
for DSPs and processor-based systems.
The TPS3803G15 device has a fixed-sense threshold voltage
VIT set by an internal voltage divider, whereas the
TPS3803−01 has an adjustable SENSE input that can be
configured by two external resistors. In addition to the fixed
sense threshold monitored at VDD, the TPS3805 devices
provide a second adjustable SENSE input. RESET is
asserted in case any of the two voltages drops below VIT.
During power on, RESET is asserted when supply voltage
VDD becomes higher than 0.8 V. Thereafter, the supervisory
circuit monitors VDD (and/or SENSE) and keeps RESET
active as long as VDD or SENSE remains below the threshold
voltage VIT. As soon as VDD (SENSE) rises above the
threshold voltage VIT, RESET is deasserted again. The
product spectrum is designed for 1.5 V, 3.3 V, and adjustable
supply voltages. The devices are available in a 5-pin SC-70
package.
DCK PACKAGE
(Top View)
TPS3803−01, TPS3803G15, TPS3805
(1) Component qualification in accordance with JEDEC and industry
standards to ensure reliable operation over an extended
temperature range. This includes, but is not limited to, Highly
Accelerated Stress Test (HAST) or biased 85/85, temperature
cycle, autoclave or unbiased HAST, electromigration, bond
intermetallic life, and mold compound life. Such qualification
testing should not be viewed as justifying use of this component
beyond specified performance and environmental limits.
NC
1
GND
2
RESET
3
5
SENSE
NC(1)
4
VDD
(1) NC = No Connection on TPS3803G15
APPLICATIONS
Typical Operating Circuit
D Applications Using DSPs, Microcontrollers,
D
D
D
D
D
D
D
1.6 V
or Microprocessors
Wireless Communication Systems
Portable/Battery-Powered Equipment
Programmable Controls
Intelligent Instruments
Industrial Equipment
Notebook/Desktop Computers
Automotive Systems
3.3 V
DVDD
R1
VDD
RESET
TPS3805H33
SENSE
R2
CVDD
RESET
TMS320VC5416
GND
GND
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
Copyright 2003−2007, Texas Instruments Incorporated
! !
www.ti.com
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible
to damage because very small parametric changes could cause the device not to meet its published specifications.
PACKAGE INFORMATION
THRESHOLD VOLTAGE
TA
DEVICE NAME
−40_C
−40
C to +125
+125_C
C
−55_C
−55
C to +125
+125_C
C
SENSE
MARKING
TPS3803−01QDCKREP(2)
VDD
NA
1.226 V
TPS3803G15QDCKREP(2)
1.4 V
NA
AXT
TPS3805H33QDCKREP(2)
3.05 V
1.226 V
AWY
TPS3803−01MDCKREP(2)
NA
1.226 V
BAY
TPS3803G15MDCKREP(2)
1.40 V
NA
ARH
TPS3805H33MDCKREP(2)
3.05 V
1.226 V
(2) The DCKR passive indicates tape and reel containing 3000 parts.
AWH
ARJ
ORDERING INFORMATION
TPS380
3
G
15
Q
DCK R
EP
Enhanced Plastic Designator
Reel
Package
Temperature Designator
Nominal Supply Voltage
Nominal Threshold Voltage
Functionality
Family
Function/Truth Tables
TPS3803-01
SENSE > VIT
TPS3803G15
RESET
0
L
VDD > VIT
0
1
H
1
H
L
TPS3805H33
2
RESET
VDD > VIT
0
SENSE > VIT
RESET
0
L
0
1
L
1
0
L
1
1
H
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
FUNCTIONAL BLOCK DIAGRAM
TPS3803G15
R1
VDD
VDD
RESET
_
SENSE
+
TPS3803−01
Device
Supply Voltage
_
RESET
+
R2
GND
GND
Reference
Voltage
of 1.215 V
Reference
Voltage
of 1.226 V
TPS3805
_
SENSE
+
R1
VDD
RESET
_
+
R2
GND
Reference
Voltage
of 1.226 V
3
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
TIMING REQUIREMENTS
VDD or SENSE
VIT + Vhys
VIT
0.8 V
RESET
= Undefined
Terminal Functions
TERMINAL
NAME
NO.
I/O
DESCRIPTION
GND
2
I
Ground
RESET
3
O
Active-low reset output (TPS3803—open-drain, TPS3805—push/pull)
SENSE
5
I
Adjustable sense input
NC
1
NC (TPS3803G15)
5
VDD
4
4
No internal connection
No internal connection
I
Input supply voltage, fixed sense input for TPS3803G15 and TPS3805
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
ABSOLUTE MAXIMUM RATINGS(1)
Over operating free-air temperature, unless otherwise noted.
Supply voltage, VDD(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
All other pins(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to +7 V
Maximum low-output current, IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5 mA
Maximum high-output current, IOH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −5 mA
Input clamp current, IIK (VI < 0 or VI > VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Output clamp current, IOK (VO < 0 or VO > VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55°C to +125°C
Storage temperature range, Tstg,(3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to +150°C
(1) Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only,
and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is
not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to GND. For reliable operation the device should not be continuously operated at 7 V for more than
t = 1000 h.
(3) Long-term high-temperature storage and/or extended use at maximum recommended operating conditions may result in a reduction of overall
device life. See www.ti.com/ep_quality for additional information on enhanced plastic packaging.
DISSIPATION RATING TABLE
PACKAGE
TA < +25°C
POWER RATING
DERATING FACTOR
ABOVE TA = +25°C
TA = +70°C
POWER RATING
TA = +85°C
POWER RATING
DCK
321 mW
2.6 mW/°C
206 mW
167 mW
RECOMMENDED OPERATING CONDITIONS
MIN
Supply voltage, VDD
Input voltage, VI
Operating free-air temperature range, TA
MAX
UNIT
1.3
6
V
0
V
Q suffix devices
−40
VDD + 0.3
+125
M suffix devices
−55
+125
°C
5
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
ELECTRICAL CHARACTERISTICS
Over recommended operating free-air temperature range, unless otherwise noted.
PARAMETER
VOH
VOL
TEST CONDITIONS
High-level output voltage (TPS3805 only)
VDD = 1.5 V,
VDD = 3.3 V,
IOH = −0.5 mA
IOH = −1 mA
VDD = 6 V,
VDD = 1.5 V,
IOH = −1.5 mA
IOL = 1 mA
VDD = 3.3 V,
VDD = 6 V,
VIT > 1.5 V, TA = +25°C
Low-level output voltage
Power-up reset voltage(1)
VIT ≤ 1.5 V, TA = +25°C
Negative-going input threshold
voltage(2)
0.3
0.8
V
1.226
1.244
1.379
1.4
1.421
3.004
3.05
3.096
Input current
SENSE
High-level output current at RESET
Open-drain only
1.2 V < VIT < 2.5 V
15
2.5 V < VIT < 3.5 V
30
−25
VDD = VIT + 0.2V, VOH = VDD
TPS3803−01
TPS3805,
TPS3803G15
VDD = 3.3 V, output unconnected
TPS3803−01
TPS3805,
TPS3803G15
VDD = 6 V, output unconnected
V
V
1
TPS3805H33
II
IOH
UNIT
V
TPS3803G15
Hysteresis
Supply current
MAX
0.8 x VDD
1.2
Vhys
IDD
TYP
IOL = 2 mA
IOL = 3 mA
SENSE
VIT
MIN
V
mV
25
nA
300
nA
2
4
3
5
2
4
4
6
CI
Input capacitance
VI = 0 V to VDD
1
(1) The lowest supply voltage at which RESET (VOL(max) = 0.2 V, IOL = 50 µA) becomes active. tr(VDD) ≥ 15 µs/V
(2) To ensure the best stability of the threshold voltage, place a bypass capacitor (ceramic, 0.1 µF) near the supply terminals.
A
µA
pF
TIMING REQUIREMENTS
AT RL = 1 MΩ, CL = 50 PF, over recommended operating free-air temperature range.
PARAMETER
tw
TEST CONDITIONS
At VDD
Pulse width
At SENSE
VIH = 1.05 x VIT, VIL = 0.95 x VIT
MIN
TYP
MAX
UNIT
µss
5.5
SWITCHING CHARACTERISTICS
AT RL = 1 MΩ, CL = 50 PF, over recommended operating free-air temperature range.
PARAMETER
TEST CONDITIONS
tPHL
Propagation (delay) time,
high-to-low-level output
VDD to RESET delay
SENSE to RESET delay
tPLH
Propagation (delay) time,
low-to-high-level output
VDD to RESET delay
SENSE to RESET delay
6
VIH = 1.05 x VIT,
VIL = 0.95 x VIT
MIN
TYP
MAX
5
100
5
100
UNIT
µss
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
TYPICAL CHARACTERISTICS
TPS3805H33
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
TPS3803−01
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
6
3
SENSE = GND
RESET = Open
2.5
I DD − Supply Current − µ A
I DD − Supply Current − µ A
5
4
3
85°C
2
25°C
0°C
−40°C
1
2
1.5
85°C
25°C
1
0°C
−40°C
0.5
0
0
0.5
1
1.5
2 2.5
3 3.5
4
4.5 5
5.5
SENSE = GND
RESET = Open
0
6
0
1.5
2 2.5
3 3.5
4
4.5 5
Figure 1
Figure 2
5.5
6
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
1.60
0.50
VDD = 1.5 V
V(SENSE) = Low
1.40
1.20
85°C
1.00
25°C
0.80
0°C
0.60
−40°C
0.40
0.20
(Expanded View)
VDD = 1.5 V
V(SENSE) = Low
0.45
VOL − Low-Level Output Voltage − V
VOL − Low-Level Output Voltage − V
1
VDD − Supply Voltage − V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
0
0.5
VDD − Supply Voltage − V
0.40
85°C
0.35
25°C
0.30
0°C
0.25
−40°C
0.20
0.15
0.10
0.05
0
1
2
3
4
5
0
0
0.5
1
1.5
2
2.5
IOL − Low-Level Output Current − mA
IOL − Low-Level Output Current − mA
Figure 3
Figure 4
3
7
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
TYPICAL CHARACTERISTICS
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
1
VDD = 6 V
V(SENSE) = Low
3
85°C
2.5
25°C
2
0°C
−40°C
1.5
1
0.5
0
VDD = 6 V
V(SENSE) = Low
0.9
VOL − Low-Level Output Voltage − V
VOL − Low-Level Output Voltage − V
3.5
85°C
0.8
25°C
0.7
0°C
0.6
−40°C
0.5
0.4
0.3
0.2
(Expanded View)
0.1
0
0
5
10
15
20
25
30
35
40
45
50
0
10
14
12
16
Figure 6
18
20
TPS3805H33
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
3.3
VDD = 3.3 V
V(SENSE) = High
VOH − High-Level Output Voltage − V
VOH − High-Level Output Voltage − V
8
Figure 5
3
2.75
85°C
2.5
25°C
2.25
0°C
2
−40°C
1.75
−12
−10
−8
−6
−4
−2
IOH − High-Level Output Current − mA
Figure 7
8
6
IOL − Low-Level Output Current − mA
3.5
1.5
−14
4
IOL − Low-Level Output Current − mA
TPS3805H33
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
3.25
2
0
3.2
VDD = 3.3 V
V(SENSE) = High
3.1
3
85°C
2.9
25°C
0°C
2.8
−40°C
2.7
2.6
2.5
−5
(Expanded View)
−4
−3
−2
−1
IOH − High-Level Output Current − mA
Figure 8
0
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
TYPICAL CHARACTERISTICS
TPS3805H33
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
TPS3805H33
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
6
VDD = 6 V
V(SENSE) = High
VOH − High-Level Output Voltage − V
VOH − High-Level Output Voltage − V
6
5.5
5
85°C
4.5
25°C
4
0°C
3.5
−40°C
3
−4
−3
−2
5.6
5.4
85°C
25°C
5.2
0°C
−40°C
5
(Expanded View)
4.8
4.6
−14
0
−1
VDD = 6 V
V(SENSE) = High
5.8
IOH − High-Level Output Current − mA
−8
−6
−4
−2
0
Figure 10
TPS3803−01
NORMALIZED INPUT THRESHOLD VOLTAGE
vs
FREE-AIR TEMPERATURE AT SENSE
MINIMUM PULSE DURATION AT VDD
vs
VDD THRESHOLD OVERDRIVE VOLTAGE
10
1.0020
VDD = 6 V
RESET = 100 kΩ to VDD
1.0015
tw − Minimum Pulse Duration at VDD − µs
VIT − Normalized Input Threshold Voltage VIT(TA) / VIT(25°C)
−10
IOH − High-Level Output Current − mA
Figure 9
1.0010
1.0005
1.0000
0.9995
0.9990
0.9985
0.9980
−40
−12
−20
0
20
40
60
TA − Free-Air Temperature at SENSE − °C
Figure 11
80
9
8
7
6
5
4
3
2
1
0
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
1
VDD − Threshold Overdrive Voltage − V
Figure 12
9
"#$%#&%'&(
"#$%#)'*&(
"#$%*+##&(
www.ti.com
SGLS227C − DECEMBER 2003 − REVISED JUNE 2007
TYPICAL CHARACTERISTICS
MINIMUM PULSE DURATION AT SENSE
vs
SENSE THRESHOLD OVERDRIVE VOLTAGE
tw − Minimum Pulse Duration at SENSE − µs
10
9
8
7
6
5
4
3
2
1
0
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
SENSE − Threshold Overdrive Voltage − V
Figure 13
10
1
Revision History
DATE
REV
6/07
C
PAGE
SECTION
DESCRIPTION
Front Page
—
Updated front page.
3
—
Functional block diagram change.
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)

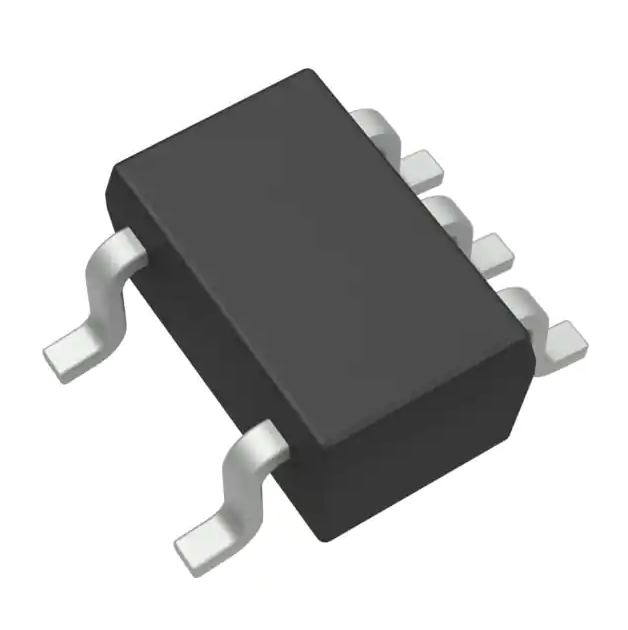

TPS3803-01MDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
BAY
TPS3803-01QDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
AWH
TPS3803G15MDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-55 to 125
ARH
TPS3803G15QDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
AXT
TPS3805H33MDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-55 to 125
ARJ
TPS3805H33QDCKREP
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
AWY
V62/04648-01XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
AWH
V62/04648-02XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
AXT
V62/04648-03XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
AWY
V62/04648-04XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-55 to 125
BAY
V62/04648-05XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-55 to 125
ARH
V62/04648-06XE
ACTIVE
SC70
DCK
5
3000
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-55 to 125
ARJ
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
