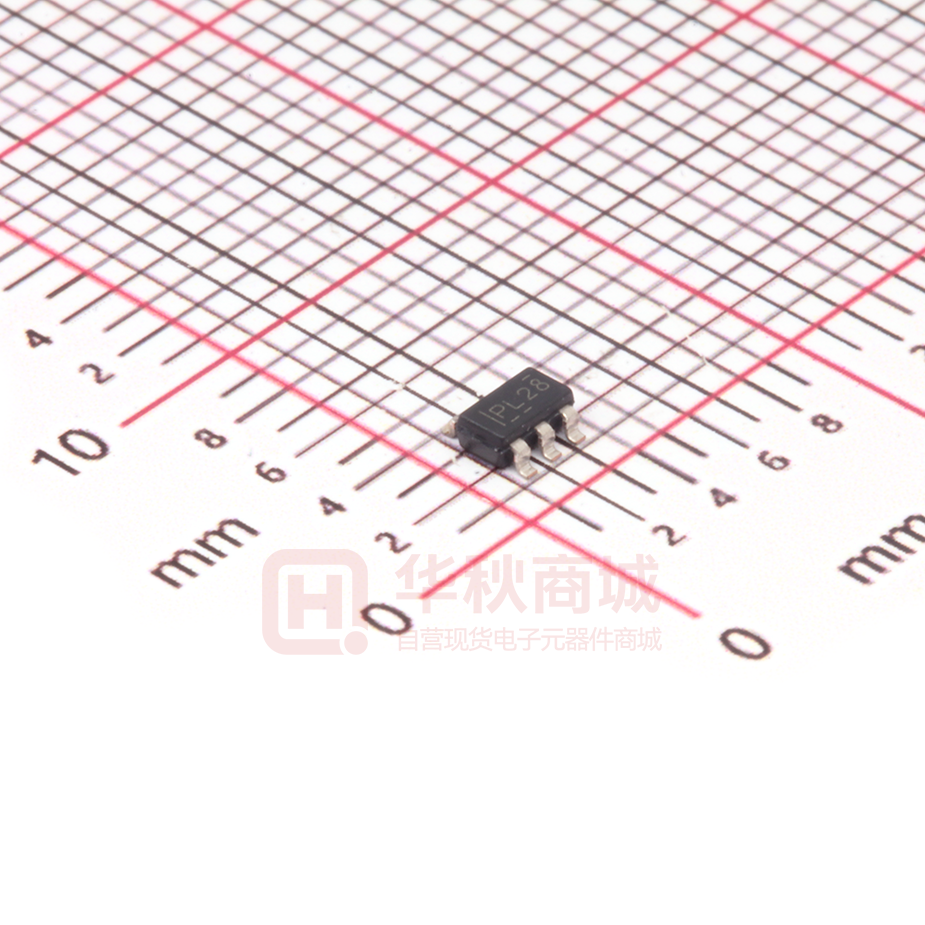

TPS3840PL28DBVR

Order Now Product Folder Support & Community Tools & Software Technical Documents TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 具有 MR 和可编程延迟的 TPS3840 毫微功耗高输入电压监控器 1 特性 • • 1 • • • • • • • 3 说明 宽工作电压范围：1.5V 至 10V 毫微电源电流：300nA（典型值）、700nA（最大 值） 固定阈值电压 (VIT-) – 阈值范围为 1.6V 至 4.9V（阶跃为 0.1V） – 高精度：1%（典型值）、1.5%（最大值） – 内置的迟滞 (VIT+) – 1.6V < VIT- ≤ 3.0V = 100mV（典型值） – 3.1V ≤ VIT- < 4.9V = 200mV（典型值） 快速启动延迟 (tSTRT)：220µs（典型值）、350µs （最大值） 可编程复位延时时间 (tD)： – 50µs（无电容器）至 6.2s (10µF) 低电平有效手动复位 (MR) 三种输出拓扑： – TPS3840DL：漏极开路，低电平有效 (RESET)，需要上拉电阻器 – TPS3840PL：推挽，低电平有效 (RESET) – TPS3840PH：推挽，高电平有效 (RESET) 宽温度范围：-40°C 至 +125°C 封装：SOT23-5 (DBV) • • • • 当 VDD 上的电压降至负电压阈值 (VIT-) 以下或手动复位 (MR) 被拉至低逻辑 (VMR_L) 时，会将复位输出信号置 位。当 VDD 升至 VIT- 加迟滞 (VIT+) 以上以及手动复位 悬空或高于 VMR_H 且复位延时时间 (tD) 已过期时，会 将复位信号清除。可以通过在 CT 引脚和地之间连接一 个电容器对复位延时时间进行编程。对于快速复位，可 以将 CT 引脚悬空。 其他 特性：用于 MR 和 VDD 的内置毛刺抑制保护以及 内置迟滞、低漏极开路输出漏电流 (ILKG(OD))。 器件信息(1) 器件型号 封装 TPS3840 2 应用 • 宽输入电压范围允许在不使用外部组件的情况下监控 9V 电压轨或电池，在使用外部电阻器的情况下监控 24V 电压轨。毫微级 Iq 可以在低功耗应用中延长电池 寿命 ， 并在使用外部电阻器时最大限度降低电流消 耗。快速启动延迟允许在系统的其余部分上电之前检测 电压故障，因此可以在危险的启动故障状况下实现最高 的安全性。低上电复位电压 (VPOR) 可防止错误复位、 过早启用或开启下一个器件，并能够在上电和断电期间 正确控制晶体管。 电网基础设施：断路器、智能仪表、其他监控和保 护设备 工厂自动化：现场发送器、PLC。 楼宇自动化：防火安全、烟雾探测器和 HVAC 电子销售点 便携式电池供电型系统 封装尺寸（标称值） SOT-23 (5) (DBV) 2.90mm × 1.60mm (1) 有关封装详细信息，请参阅数据表末尾的机械制图附录。 典型应用电路 TPS3840 典型电源电流 0.5 DL49 PL49 PH49 9V 1 µF 0.4 MR RESET TPS3840DL49 CT Vout DC/DC GND EN 5V IDD (µA) Vin VDD 0.3 0.2 0.1 0 1 2 3 4 5 6 VDD (V) 7 8 9 10 IDDv 1 本文档旨在为方便起见，提供有关 TI 产品中文版本的信息，以确认产品的概要。 有关适用的官方英文版本的最新信息，请访问 www.ti.com，其内容始终优先。 TI 不保证翻译的准确 性和有效性。 在实际设计之前，请务必参考最新版本的英文版本。 English Data Sheet: SNVSB03 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 目录 1 2 3 4 5 6 7 8 特性 .......................................................................... 应用 .......................................................................... 说明 .......................................................................... 修订历史记录 ........................................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 5 7.1 7.2 7.3 7.4 7.5 7.6 7.7 5 5 5 5 6 7 9 Absolute Maximum Ratings ...................................... ESD Ratings ............................................................ Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Timing Requirements ................................................ Typical Characteristics .............................................. Detailed Description ............................................ 16 8.1 Overview ................................................................. 16 8.2 Functional Block Diagram ....................................... 16 8.3 Feature Description................................................. 16 8.4 Device Functional Modes........................................ 19 9 Application and Implementation ........................ 20 9.1 Application Information............................................ 20 9.2 Typical Application ................................................. 20 10 Power Supply Recommendations ..................... 28 11 Layout................................................................... 28 11.1 Layout Guidelines ................................................. 28 11.2 Layout Example .................................................... 28 12 器件和文档支持 ..................................................... 29 12.1 12.2 12.3 12.4 12.5 器件命名规则......................................................... 社区资源................................................................ 商标 ....................................................................... 静电放电警告......................................................... Glossary ................................................................ 29 30 30 30 30 13 机械、封装和可订购信息 ....................................... 30 4 修订历史记录 注：之前版本的页码可能与当前版本有所不同。 Changes from Revision B (July 2019) to Revision C • Page Changed Device Comparison Table ...................................................................................................................................... 3 Changes from Revision A (May 2019) to Revision B Page • Updated Device Comparison Table ....................................................................................................................................... 3 • Updated Functional Block Diagram ..................................................................................................................................... 16 • 已更改 equation 5 and 6 ....................................................................................................................................................... 17 • Updated Application Design #2 ............................................................................................................................................ 22 Changes from Original (December 2018) to Revision A Page • 已更改 将数据表从“预告信息”更改为“生产数据”...................................................................................................................... 1 2 Copyright © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 5 Device Comparison Table Device Comparison Table shows the available (Active) device variants and variants releasing soon (Preview). Other voltages from 表 3 at the end of datasheet can be sample upon request, please contact TI sales representative for details. PART NUMBER OUTPUT TOPOLOGY THRESHOLD (Vit-) (V) HYSTERESIS (mV) Status TPS3840DL18 Open-Drain, Active-Low 1.8 100 Active TPS3840DL20 Open-Drain, Active-Low 2.0 100 Active TPS3840PL20 Push-Pull, Active-Low 2.0 100 Active TPS3840DL22 Open-Drain, Active-Low 2.2 100 Active TPS3840PL25 Push-Pull, Active-Low 2.5 100 Active TPS3840DL27 Open-Drain, Active-Low 2.7 100 Active TPS3840PL27 Push-Pull, Active-Low 2.7 100 Active TPS3840DL28 Open-Drain, Active-Low 2.8 100 Active TPS3840PL28 Push-Pull, Active-Low 2.8 100 Active TPS3840DL29 Open-Drain, Active-Low 2.9 100 Active TPS3840DL30 Open-Drain, Active-Low 3.0 100 Active TPS3840PL30 Push-Pull, Active-Low 3.0 100 Active TPS3840PH30 Push-Pull, Active-High 3.0 100 Active TPS3840PL43 Push-Pull, Active-Low 4.3 200 Active TPS3840DL45 Open-Drain, Active-Low 4.5 200 Active TPS3840PL45 Push-Pull, Active-Low 4.5 200 Active Copyright © 2018–2019, Texas Instruments Incorporated 3 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 6 Pin Configuration and Functions DBV Package 5-Pin SOT-23 TPS3840PL, TPS3840DL Top View RESET 1 VDD 5 DBV Package 5-Pin SOT-23 TPS3840PH Top View CT RESET 1 VDD 2 GND 3 5 CT 4 MR / NC 2 GND 3 4 MR / NC Not to scale Not to scale Pin Functions PIN NAME TPS3840PL, TPS3840DL TPS3840PH I/O RESET N/A 1 O Active-High Output Reset Signal: This pin is driven high when either the MR pin is driven to a logic low or VDD voltage falls below the negative voltage threshold (VIT-). RESET remains high (asserted) for the delay time period (tD) after both MR is floating or above VMR_L and VDD voltage rise above VIT+. RESET 1 N/A O Active-Low Output Reset Signal: This pin is driven logic when either the MR pin is driven to a logic low or VDD voltage falls below the negative voltage threshold (VIT-). RESET remains low (asserted) for the delay time period (tD) after both MR is floating or above VMR_L and VDD voltage rise above VIT+. VDD 2 2 I Input Supply Voltage. TPS3840 monitors VDD voltage GND 3 3 _ Ground MR / NC 4 4 I Manual Reset. Pull this pin to a logic low (VMR_L) to assert a reset signal in the output pin. After the MR pin is left floating or pull to VMR_H the output goes to the nominal state after the reset delay time(tD) expires. MR can be left floating when not in use. NC stands for "No Connection" or floating. CT 5 5 - Capacitor Time Delay Pin. The CT pin offers a user-programmable delay time. Connect an external capacitor on this pin to adjust time delay. When not in use leave pin floating for the smallest fixed time delay. 4 DESCRIPTION Copyright © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range, unless otherwise noted (1) Voltage Current (2) (3) MAX –0.3 12 RESET (TPS3840PL) –0.3 VDD + 0.3 RESET (TPS3840PH) –0.3 VDD + 0.3 RESET (TPS3840DL) –0.3 12 MR (2) –0.3 12 CT –0.3 5.5 RESET pin and RESET pin Temperature (3) (1) MIN VDD ±70 Operating junction temperature, TJ –40 150 Storage, Tstg –65 150 UNIT V mA °C Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. If the logic signal driving MR is less than VDD, then additional current flows into VDD and out of MR. VMR should not be higher than VDD. As a result of the low dissipated power in this device, it is assumed that TJ = TA. 7.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS001 (1) ± 2000 Charged device model (CDM), per JEDEC specification JESD22-C101 (2) ± 750 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN NOM MAX UNIT VDD Input supply voltage 1.5 10 VRESET, VRESET RESET pin and RESET pin voltage 0 10 V IRESET, IRESET RESET pin and RESET pin current 0 ±5 mA TJ Junction temperature (free air temperature) –40 125 °C 0 VDD V VMR (1) (1) Manual reset pin voltage V If the logic signal driving MR is less than VDD, then additional current flows into VDD and out of MR. VMR should not be higher than VDD. 7.4 Thermal Information TPS3840 THERMAL METRIC (1) DBV (SOT23-5) UNIT 5 PINS RθJA Junction-to-ambient thermal resistance 187.5 °C/W RθJC(top) Junction-to-case (top) thermal resistance 109.2 °C/W RθJB Junction-to-board thermal resistance 92.8 °C/W ψJT Junction-to-top characterization parameter 35.4 °C/W ψJB Junction-to-board characterization parameter 92.5 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Copyright © 2018–2019, Texas Instruments Incorporated 5 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 7.5 Electrical Characteristics At 1.5 V ≤ VDD ≤ 10 V, CT = MR = Open, RESET pull-up resistor (Rpull-up) = 100 kΩ to VDD, output reset load (CLOAD) = 10 pF and over the operating free-air temperature range – 40°C to 125°C, unless otherwise noted. Typical values are at TJ = 25°C. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT COMMON PARAMETERS VDD Input supply voltage 10 V VIT- Negative-going input threshold accuracy (1) -40°C to 125°C –1.5 1.5 1 1.5 % VHYS Hysteresis on VIT- pin VIT- = 3.1 V to 4.9 V 175 200 225 mV VHYS Hysteresis on VIT- pin VIT- = 1.6 V to 3.0 V 75 100 125 mV IDD Supply current into VDD pin VDD = 1.5 V < VDD < 10 V VDD > VIT+ (2) TA = -40°C to 125°C 300 700 nA VMR_L Manual reset logic low input (3) 600 mV VMR_H Manual reset logic high input (3) RMR Manual reset internal pull-up resistance RCT CT pin internal resistance 0.7VDD V 100 350 500 kΩ 650 kΩ VOL(max) = 200 mV IOUT(Sink) = 200 nA 300 mV 1.5 V < VDD < 5 V VDD < VITIOUT(Sink) = 2 mA 200 mV TPS3840PL (Push-Pull Active-Low) VPOR Power on Reset Voltage (4) Low level output voltage VOL High level output voltage VOH 1.5 V < VDD < 5 V VDD > VIT+ (2) IOUT(Source) = 2 mA 0.8VDD V 5 V < VDD < 10 V VDD > VIT+ (2) IOUT(Source) = 5 mA 0.8VDD V TPS3840PH (Push-Pull Active-High) VPOR VOL Power on Reset Voltage (4) VOH, IOUT(Source) = 500 nA 950 mV 200 mV Low level output voltage 1.5 V < VDD < 5 V VDD > VIT+ (2) IOUT(Sink) = 2 mA 1.5 V < VDD < 5 V VDD > VIT+ (2) IOUT(Sink) = 5 mA 200 mV High level output voltage VOH 1.5 V < VDD < 5 V, VDD < VIT-, IOUT(Source) = 2 mA 0.8VDD V TPS3840DL(Open-Drain) VPOR Low level output voltage VOL Ilkg(OD) (1) (2) (3) (4) 6 Power on Reset Voltage (4) Open-Drain output leakage current VOL(max) = 0.2 V IOUT (Sink) = 5.6 uA 950 mV 1.5 V < VDD < 5 V VDD < VITIOUT(Sink) = 2 mA 200 mV 90 nA RESET pin in High Impedance, VDD = VRESET = 5.5 V VIT+ < VDD VIT- threshold voltage range from 1.6 V to 4.9 V in 100 mV steps, for released versions see Device Voltage Thresholds table. VIT+ = VHYS + VITIf the logic signal driving MR is less than VDD, then additional current flows into VDD and out of MR VPOR is the minimum VDD voltage level for a controlled output state. VDD slew rate ≤ 100mV/µs Copyright © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 7.6 Timing Requirements At 1.5 V ≤ VDD ≤ 10 V, CT = MR = Open, RESET pull-up resistor (Rpull-up) = 100 kΩ to VDD, output reset load (CLOAD) = 10 pF and over the operating free-air temperature range – 40°C to 125°C, VDD slew rate < 100mV / us, unless otherwise noted. Typical values are at TJ = 25°C. PARAMETER TEST CONDITIONS tSTRT Startup Delay (1) CT pin open tP_HL Propagation detect delay for VDD falling below VIT- VDD = VIT+ to (VIT-) - 10% (2) MIN TYP MAX UNIT 100 220 350 µs 15 30 µs 50 µs CT pin = open tD Reset time delay CT pin = 10 nF 6.2 ms CT pin = 1 µF 619 ms 10 µs 300 ns 700 ns tD ms 5% VIT- overdrive (3) tGI_VIT- Glitch immunity VIT- tMR_PW MR pin pulse duration to initiate reset tMR_RES Propagation delay from MR low to reset VDD = 4.5 V, MR < VMR_L Delay from release MR to deasert reset VDD = 4.5 V, MR = VMR_L to VMR_H tMR_tD (1) (2) (3) When VDD starts from less than the specified minimum VDD and then exceeds VIT+, reset is release after the startup delay (tSTRT), a capacitor at CT pin will add tD delay to tSTRT time tP_HL measured from threhold trip point (VIT-) to VOL for active low variants and VOH for active high variants. Overdrive % = [(VDD/ VIT-) - 1] × 100% VIT+ VIT- VDD VDD(MIN) VPOR tSTRT + tD RESET tP_HL tD tP_HL tSTRT + tD VOH VOL (1) tD (no cap) is included in tSTRT time delay. If tD delay is programmed by an external capacitor connected to CT pin then tD programmed time will be added to the startup time, VDD slew rate = 100 mV / µs. (2) Open-Drain timing diagram assumes pull-up resistor is connected to RESET (3) RESET output is undefined when VDD is < VPOR 图 3. Timing Diagram TPS3840DL (Open-Drain Active-Low) 版权 © 2018–2019, Texas Instruments Incorporated 7 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn VIT+ VITVDD(MIN) VDD VPOR tP_HL tSTRT + tD RESET tD tP_HL tSTRT + tD VOH VOL (4) tD (no cap) is included in tSTRT time delay. If tD delay is programmed by an external capacitor connected to CT pin, then tD programmed time will be added to the startup time. VDD slew rate = 100 mV / µs. (5) RESET output is undefined when VDD < VPOR and limited to VOL for VDD slew rate = 100 mV / µs 图 4. Timing Diagram TPS3840PL (Push-Pull Active-Low) VIT+ VITVDD(MIN) VDD VPOR tSTRT + tD tP_HL tD tP_HL tSTRT + tD VOH RESET VOL (6) tD (no cap) is included in tSTRT time delay. If tD delay is programmed by an external capacitor connected to CT pin, then tD programmed time will be added to the total startup time. VDD slew rate = 100 mV / µs. 图 5. Timing Diagram TPS3840PH (Push-Pull Active-High) 8 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 7.7 Typical Characteristics Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 0.6 0.6 25°C -40°C 125°C 0.55 0.5 0.5 0.45 0.45 0.4 IDD (µA) IDD (µA) 0.4 0.35 0.3 0.25 0.3 0.2 0.2 0.15 0.15 0.1 0.1 0.05 0.05 2 3 4 5 6 VDD (V) 7 8 9 10 1 2 3 4 IDDv 5 6 VDD (V) 7 8 9 10 IDDv 图 6. Supply Current vs Supply Voltage for TPS3840DL49 图 7. Supply Current vs Supply Voltage for TPS3840PL49 0.6 0.6 25°C -40°C 125°C 0.55 0.5 0.5 0.4 DL16 DL29 DL49 0.3 VIT- Accuracy (%) 0.45 0.4 IDD (µA) 0.35 0.25 1 0.35 0.3 0.25 0.2 0.1 0 -0.1 -0.2 0.2 -0.3 0.15 -0.4 0.1 -0.5 -0.6 -40 0.05 1 2 3 4 5 6 VDD (V) 7 8 9 10 0.4 20 40 60 80 Temperature (°C) 100 120 140 VIT_ 0.6 PL16 PL28 PL49 0.5 0.4 PH16 PH30 PH49 0.3 VIT- Accuracy (%) 0.3 0.2 0.1 0 -0.1 -0.2 0.2 0.1 0 -0.1 -0.2 -0.3 -0.3 -0.4 -0.4 -0.5 -0.5 -0.6 -40 0 图 9. Negative-going Input Threshold Accuracy over Temperature for TPS3840DLXX 0.6 0.5 -20 IDDv 图 8. Supply Current vs Supply Voltage for TPS3840PH49 VIT- Accuracy (%) 25°C -40°C 125°C 0.55 -20 0 20 40 60 80 Temperature (°C) 100 120 140 VIT_ 图 10. Negative-going Input Threshold Accuracy over Temperature for TPS3840PLXX 版权 © 2018–2019, Texas Instruments Incorporated -0.6 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 140 VIT_ 图 11. Negative-going Input Threshold Accuracy over Temperature for TPS3840PHXX 9 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 20 20 DL16 DL29 DL49 10 5 0 -5 -10 -15 10 5 0 -5 -10 -15 -20 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 -20 -40 140 -20 0 20 Vhys 图 12. Input Threshold VIT- Hysteresis Accuracy for TPS3840DLXX 40 60 80 Temperature (°C) 100 120 140 Vhys 图 13. Input Threshold VIT- Hysteresis Accuracy for TPS3840PLXX 20 10 PH16 PH30 PH49 15 25°C -40°C 125°C 9 8 10 7 5 VRESET (V) VHYS Accuracy (%) PL16 PL28 PL49 15 VHYS Accuracy (%) VHYS Accuracy (%) 15 0 -5 6 5 4 3 2 -10 1 -15 0 -20 -40 -1 -20 0 20 40 60 80 Temperature (°C) 100 120 140 0 图 14. Input Threshold VIT- Hysteresis Accuracy for TPS3840PHXX 3 4 5 6 VDD (V) 7 8 9 10 VRES 5.5 25°C -40°C 125°C 9 8 25°C -40°C 125°C 5 4.5 7 4 6 3.5 VRESET (V) VRESET (V) 2 图 15. Output Voltage vs Input Voltage for TPS3840DL49 10 5 4 3 2 3 2.5 2 1.5 1 1 0 0.5 -1 0 0 1 2 3 4 5 VDD (V) 6 7 8 9 10 VRES 图 16. Output Voltage vs Input Voltage for TPS3840PL49 10 1 Vhys 0 1 2 3 4 5 6 VDD (V) 7 8 9 10 VRES 图 17. Output Voltage vs Input Voltage for TPS3840PH49 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 0.055 140 25°C -40°C 125°C 120 25°C -40°C 125°C 0.05 0.045 100 VOL (V) 0.04 VOL (V) 80 60 0.03 40 0.025 20 0.02 0.015 1.5 0 0 0.5 1 1.5 2 2.5 3 IRESET (mA) 3.5 4 4.5 5 2.5 3 3.5 VDD (V) 4 4.5 5 VOLv 图 19. Low Level Output Voltage vs VDD for TPS3840DL49 0.055 140 25°C -40°C 125°C 120 100 0.045 80 0.04 60 0.035 40 0.03 20 0.025 0 0.02 0.015 1.5 -20 0 0.5 1 1.5 2 2.5 3 IRESET (mA) 3.5 4 4.5 5 60 VOL (V) 50 40 30 20 10 0 0 0.5 1 1.5 2 2.5 3 IRESET (mA) 3.5 4 4.5 5 VOL_ 图 22. Low Level Output Voltage vs IRESET for TPS3840PH49 版权 © 2018–2019, Texas Instruments Incorporated 2.5 3 3.5 VDD (V) 4 4.5 5 VOLv 图 21. Low Level Output Voltage vs VDD for TPS3840PL49 25°C -40°C 125°C 70 2 VOL_ 图 20. Low Level Output Voltage vs IRESET for TPS3840PL49 80 25°C -40°C 125°C 0.05 VOL (V) VOL (V) 2 VOL_ 图 18. Low Level Output Voltage vs IRESET for TPS3840DL49 VOL (V) 0.035 0.09 0.085 0.08 0.075 0.07 0.065 0.06 0.055 0.05 0.045 0.04 0.035 0.03 0.025 0.02 0.015 25°C -40°C 125°C 5 5.5 6 6.5 7 7.5 8 VDD (V) 8.5 9 9.5 10 10.5 VOLv 图 23. Low Level Output Voltage vs VDD for TPS3840PH49 11 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 5 10 25°C -40°C 125°C 9.975 9.95 4.5 25°C -40°C 125°C 4 9.9 VOH (V) VOH (V) 9.925 9.875 9.85 3.5 3 2.5 9.825 2 9.8 1.5 9.775 1 1.5 9.75 0 0.5 1 1.5 2 2.5 3 IRESET (mA) 3.5 4 4.5 5 25°C -40°C 125°C 1.55 4.5 4 4.5 5 VOHv 25°C -40°C 125°C 4 VOH (V) 1.5 VOH (V) 3 3.5 VDD (V) 5 1.6 1.45 1.4 3.5 3 2.5 1.35 2 1.3 1.5 1 1.5 1.25 0 0.5 1 1.5 2 2.5 3 IRESET (mA) 3.5 4 4.5 5 2.25 3 3.5 VDD (V) 4 4.5 5 VOHv 2.75 DL16 DL29 DL49 2.5 2.25 V_MR_L (V) 2 1.75 1.5 1.75 1.5 1.25 1 1 0.75 0.75 -20 0 20 40 60 80 Temperature (°C) 100 120 140 MR_L 图 28. Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840DLXX PL16 PL28 PL49 2 1.25 0.5 -40 2.5 图 27. High Level Output Voltage over Temperature for TPS3840PH49 2.75 2.5 2 VOH_ 图 26. High Level Output Voltage vs IRESET for TPS3840PH49 V_MR_L (V) 2.5 图 25. High Level Output Voltage over Temperature for TPS3840PL49 图 24. High Level Output Voltage vs IRESET for TPS3840PL49 12 2 VOH_ 0.5 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 140 MR_L 图 29. Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840PLXX 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 2.75 2.75 2.5 2.25 PH16 PH230 PH49 2.5 2.25 V_MR_H (V) V_MR_L (V) 2 1.75 1.5 1.25 -20 0 20 40 60 80 Temperature (°C) 100 120 0 20 40 60 80 Temperature (°C) 100 120 140 MR_H 图 31. Manual Reset Logic High Voltage Threshold over Temperature for TPS3840DLXX 2.75 PL16 PL28 PL49 2.5 PH16 PH30 PH49 2.25 V_MR_H (V) 2.25 2 1.75 1.5 2 1.75 1.5 1.25 1.25 1 1 0.75 -40 -20 MR_L 2.75 V_MR_H (V) 1.5 0.75 -40 140 图 30. Manual Reset Logic Low Voltage Threshold over Temperature for TPS3840PHXX -20 0 20 40 60 80 Temperature (°C) 100 120 0.75 -40 140 -20 0 20 MR_H 图 32. Manual Reset Logic High Voltage Threshold over Temperature for TPS3840PLXX 40 60 80 Temperature (°C) 100 120 140 MR_H 图 33. Manual Reset Logic High Voltage Threshold over Temperature for TPS3840PHXX 22 478 25°C -40°C 125°C 21 20 DL49 PL49 PH49 476 474 19 472 R_CT (kohm) Glitch Immunity (µs) 1.75 1 0.75 2.5 2 1.25 1 0.5 -40 DL16 DL29 DL49 18 17 16 470 468 466 15 464 14 462 13 460 12 5 10 15 20 25 30 35 Overdrive (%) 40 45 50 Glit 图 34. Glitch Immunity on VIT- vs Overdrive (Data Taken with TPS3840PL28) 版权 © 2018–2019, Texas Instruments Incorporated 458 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 140 RCTv 图 35. CT Pin Internal Resistance over Temperature 13 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 15 215 210 t_D no Capacitor (µs) 205 t_STRT (µs) DL49 PL49 PH49 DL49 PL49 PH49 200 195 190 185 180 12 9 6 175 170 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 3 -40 140 图 36. Startup Delay over Temperature 500 3500 t_D (ms) 20 40 60 80 Temperature (°C) 100 120 140 Dela 600 25°C -40°C 125°C tD with Capacitor (ms) 4000 0 图 37. Reset Time Delay with No Capacitor over Temperature 5000 4500 -20 Star 3000 2500 2000 1500 1000 25°C -40°C 125°C 400 300 200 100 500 0 0.01 0.02 0.05 0.1 0.2 0.3 0.5 Capacitor (µF) 1 2 0 0.01 3 4 5 67 10 图 38. Reset Time Delay vs Capacitor Value (Data Taken with TPS3840PL16) 0.3 0.5 0.7 1 Dela 17.25 25°C -40°C 125°C 4.5 4 DL49 PL49 PH49 17 16.75 16.5 3.5 t_P_HL (µs) tD with Capacitor (s) 0.050.07 0.1 0.2 Capacitor Value (µF) 图 39. Reset Time Delay vs Small Capacitor Values (Data Taken with TPS3840PL16) 5 3 2.5 2 16.25 16 15.75 15.5 1.5 15.25 1 15 0.5 1 2 3 4 5 Capacitor Value (µF) 6 7 8 9 10 Dela 图 40. Reset Time Delay vs Large Capacitor Values (Data Taken with TPS3840PL16) 14 0.02 0.03 Dela 14.75 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 140 TPHL 图 41. Propagation Detect Time Delay for VDD Falling Below VIT- (High-to-Low) over Temperature 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Typical Characteristics (接 接下页) Typical characteristics show the typical performance of the TPS3840 device. Test conditions are TJ = 25°C, VDD = 3.3 V, Rpullup = 100 kΩ, CLoad = 50 pF, unless otherwise noted. 465 460 3.45 450 445 440 435 430 3.4 3.35 3.3 3.25 425 3.2 420 3.15 415 -40 DL49 PL49 PH49 3.5 t_MR_ tD (µs) T_MR_RES (ns) 455 3.55 DL49 PL49 PH49 -20 0 20 40 60 80 Temperature (°C) 100 120 140 MR_r 图 42. Propagation Time Delay from MR Asserted to Reset over Temperature 版权 © 2018–2019, Texas Instruments Incorporated 3.1 -40 -20 0 20 40 60 80 Temperature (°C) 100 120 140 MRde 图 43. Propagation Time Delay from MR Release to Deasserted Reset over Temperature 15 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 8 Detailed Description 8.1 Overview The TPS3840 is a family of wide VDD and nano-quiescent current voltage detectors with fixed threshold voltage. TPS3840 features include programable reset time delay using external capacitor, active-low manual reset, 1% typical monitor threshold accuracy with hysteresis and glitch immunity. Fixed negative threshold voltages (VIT-) can be factory set from 1.6 V to 4.9 V (see the Device Comparison Table for available options). TPS3840 is available in SOT-23 5 pin industry standard package. 8.2 Functional Block Diagram VDD Push-pull variants RMR VDD VDD MR / NC RCT VDD Voltage Divider RESET (PPH) RESET (PPL, DL) + ± VREF GND CT / NC Copyright © 2019, Texas Instruments Incorporated 8.3 Feature Description 8.3.1 Input Voltage (VDD) VDD pin is monitored by the internal comparator to indicate when VDD falls below the fixed threshold voltage. VDD also functions as the supply for the internal bandgap, internal regulator, state machine, buffers and other control logic blocks. Good design practice involve placing a 0.1 uF to 1 uF bypass capacitor at VDD input for noisy applications to ensure enough charge is available for the device to power up correctly. 16 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Feature Description (接 接下页) 8.3.1.1 VDD Hysteresis The internal comparator has built-in hysteresis to avoid erroneous output reset release. If the voltage at the VDD pin falls below VIT- the output reset is asserted. When the voltage at the VDD pin goes above VIT- plus hysteresis (VHYS) the output reset is deasserted after tD delay. Hystersis Width Hystersis Width RESET RESET VIT- VIT- VIT+ VIT+ VDD VDD 图 44. Hysteresis Diagram 8.3.1.2 VDD Transient Immunity The TPS3840 is immune to quick voltage transients or excursion on VDD. Sensitivity to transients depends on both pulse duration and overdrive. Overdrive is defined by how much VDD deviates from the specified threshold. Threshold overdrive is calculated as a percent of the threshold in question, as shown in 公式 1. Overdrive = | (VDD / VIT- – 1) × 100% | (1) VDD VIT+ VITOverdrive Pulse Duration 图 45. Overdrive vs Pulse Duration 8.3.2 User-Programmable Reset Time Delay The reset time delay can be set to a minimum value of 50 µs by leaving the CT pin floating, or a maximum value of approximately 6.2 seconds by connecting 10 µF delay capacitor. The reset time delay (tD) can be programmed by connecting a capacitor no larger than 10 µF between CT pin and GND. The relationship between external capacitor (CCT_EXT) in µF at CT pin and the time delay (tD) in seconds is given by 公式 2. tD = -ln (0.29) x RCT x CCT_EXT + tD (no cap) 公式 2 is simplified to 公式 3 by plugging RCT and tD(no (2) cap) given in Electrical Characteristics section: tD = 618937 x CCT_EXT + 50 µs (3) 公式 4 solves for external capacitor value (CCT_EXT) in units of µF where tD is in units of seconds CCT_EXT = (tD- 50 µs) ÷ 618937 (4) The reset delay varies according to three variables: the external capacitor variance (CCT), CT pin internal resistance (RCT) provided in the Electrical Characteristics table, and a constant. The minimum and maximum variance due to the constant is shown in Equation 5 and Equation 6. tD (minimum) = -ln (0.36) x RCT (min) x CCT (min) + tD (no cap, min) tD (maximum) = -ln (0.26) x RCT (max) x CCT (max) + tD (no cap, max) 版权 © 2018–2019, Texas Instruments Incorporated (5) (6) 17 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn Feature Description (接 接下页) The recommended maximum delay capacitor for the TPS3840 is limited to 10 µF as this ensures there is enough time for the capacitor to fully discharge when the reset condition occurs. When a voltage fault occurs, the previously charged up capacitor discharges, and if the monitored voltage returns from the fault condition before the delay capacitor discharges completely, the delay capacitor will begin charging from a voltage above zero and the reset delay will be shorter than expected. Larger delay capacitors can be used so long as the capacitor has enough time to fully discharge during the duration of the voltage fault. 8.3.3 Manual Reset (MR) Input The manual reset (MR) input allows a processor GPIO or other logic circuits to initiate a reset. A logic low on MR with pulse duration longer than tMR_RES will causes reset output to assert. After MR returns to a logic high (VMR_H) and VDD is above VIT+, reset is deasserted after the user programmed reset time delay (tD) expires. If MR is not controlled externally, then MR can be left disconnected. If the logic signal controlling MR is less than VDD, then additional current flows from VDD into MR internally. For minimum current consumption, drive MR to either VDD or GND. VMR should not be higher than VDD voltage. VDD VIT+ VIT- RESET VIT+ VHYS VHYS VITtP_HL tD tMR_tD tMR_RES MR VMR_H VMR_L Reset not asserted tMR_PW Pulse width less than tMR_PW 图 46. Timing Diagram MR and RESET (TPS3840DL) 8.3.4 Output Logic 8.3.4.1 RESET Output, Active-Low RESET (Active-Low) applies to TPS3840DL (Open-Drain) and TPS3840PL (Push-Pull) hence the "L" in the device name. RESET remains high (deasserted) as long as VDD is above the negative threshold (VIT-) and the MR pin is floating or above VMR_H. If VDD falls below the negative threshold (VIT-) or if MR is driven low, then RESET is asserted. When MR is again logic high or floating and VDD rise above VIT+, the delay circuit will hold RESET low for the specified reset time delay (tD). When the reset time delay has elapsed, the RESET pin goes back to logic high voltage (VOH). The TPS3840DL (Open-Drain) version, denoted with "D" in the device name, requires a pull-up resistor to hold RESET pin high. Connect the pull-up resistor to the desired pull-up voltage source and RESET can be pulled up to any voltage up to 10 V independent of the VDD voltage. To ensure proper voltage levels, give some consideration when choosing the pull-up resistor values. The pull-up resistor value determines the actual VOL, the output capacitive loading, and the output leakage current (ILKG(OD)). The Push-Pull variants (TPS3840PL and TPS3840PH), denoted with "P" in the device name, does not require a pull-up resistor 18 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Feature Description (接 接下页) 8.3.4.2 RESET Output, Active-High RESET (active-high), denoted with no bar above the pin label, applies only to TPS3840PH push-pull active-high version. RESET remains low (deasserted) as long as VDD is above the threshold (VIT-) and the manual reset signal (MR) is logic high or floating. If VDD falls below the negative threshold (VIT-) or if MR is driven low, then RESET is asserted driving the RESET pin to high voltage (VOH). When MR is again logic high and VDD is above VIT+ the delay circuit will hold RESET high for the specified reset time delay (tD). When the reset time delay has elapsed, the RESET pin goes back to low voltage (VOL ) 8.4 Device Functional Modes 表 1 summarizes the various functional modes of the device. Logic high is represented by "H" and logic low is represented by "L". 表 1. Truth Table (1) VDD MR RESET RESET VDD < VPOR Ignored Undefined Undefined VPOR < VDD < VIT- (1) Ignored H L VDD ≥ VIT- L H L VDD ≥ VIT- H L H VDD ≥ VIT- Floating L H When VDD falls below VDD(MIN), undervoltage-lockout (UVLO) takes effect and output reset is held asserted until VDD falls below VPOR. 8.4.1 Normal Operation (VDD > VDD(min)) When VDD is greater than VDD(min), the reset signal is determined by the voltage on the VDD pin with respect to the trip point (VIT-) and the logic state of MR. • MR high: the reset signal corresponds to VDD with respect to the threshold voltage. • MR low: in this mode, the reset is asserted regardless of the threshold voltage. 8.4.2 VDD Between VPOR and VDD(min) When the voltage on VDD is less than the VDD(min) voltage, and greater than the power-on-reset voltage (VPOR), the reset signal is asserted. 8.4.3 Below Power-On-Reset (VDD < VPOR) When the voltage on VDD is lower than VPOR, the device does not have enough bias voltage to internally pull the asserted output low or high and reset voltage level is undefined. 版权 © 2018–2019, Texas Instruments Incorporated 19 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 9 Application and Implementation 注 Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information The following sections describe in detail how to properly use this device, depending on the requirements of the final application. 9.2 Typical Application 9.2.1 Design 1: Dual Rail Monitoring with Power-Up Sequencing A typical application for the TPS3840 is voltage rail monitoring and power-up sequencing as shown in 图 47. The TPS3840 can be used to monitor any rail above 1.6 V. In this design application, two TPS3840 devices monitor two separate voltage rails and sequences the rails upon power-up. The TPS3840PL30 is used to monitor the 3.3V main power rail and the TPS3840DL16 is used to monitor the 1.8-V rail provided by the LDO for other system peripherals. The RESET output of the TPS3840PL30 is connected to the ENABLE input of the LDO. A reset event is initiated on either voltage supervisor when the VDD voltage is less than VIT- or when MR is driven low by an external source. LDO VDD EN 3.3V 1 µF 1.8 V 1 µF 10NŸ VDD MR MR TPS3840PL30 CT GND VCORE Microcontroller VDD RESET VI/O RESET RESET TPS3840DL16 NC CT GND 0.047µF 图 47. TPS3840 Voltage Rail Monitor and Power-Up Sequencer Design Block Diagram 20 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 Typical Application (接 接下页) 9.2.1.1 Design Requirements This design requires voltage supervision on two separate rails: 3.3-V and 1.8-V rails. The voltage rail needs to sequence upon power up with the 3.3-V rail coming up first followed by the 1.8-V rail at least 25 ms after. PARAMETER DESIGN REQUIREMENT DESIGN RESULT Two Rail Voltage Supervision Monitor 3.3-V and 1.8-V rails Two TPS3840 devices provide voltage monitoring with 1% accuracy with device options available in 0.1 V variations Voltage Rail Sequencing Power up the 3.3-V rail first followed by 1.8-V rail 25 ms after The CT capacitor on TPS38240PL28 is set to 0.047 µF for a reset time delay of 29 ms typical Output logic voltage 3.3-V Open-Drain 3.3-V Open-Drain Maximum device current consumption 1 µA Each TPS3840 requires 350 nA typical 9.2.1.2 Detailed Design Procedure The primary constraint for this application is choosing the correct device to monitor the supply voltage of the microprocessor. The TPS3840 can monitor any voltage between 1.6 V and 10 V and is available in 0.1 V increments. Depending on how far away from the nominal voltage rail the user wants the voltage supervisor to trigger determines the correct voltage supervisor variant to choose. In this example, the first TPS3840 triggers when the 3.3-V rail falls to 3.0 V. The second TPS3840 triggers a reset when the 1.8-V rail falls to 1.6 V. The secondary constraint for this application is the reset time delay that must be at least 25 ms to allow the microprocessor, and all other devices using the 3.3-V rail, enough time to startup correctly before the 1.8-V rail is enabled via the LDO. Because a minimum time is required, the user must account for capacitor tolerance. For applications with ambient temperatures ranging from –40°C to +125°C, CCT can be calculated using RCT and solving for CCT in 公式 2. Solving 公式 2 for 25 ms gives a minimum capacitor value of 0.04 µF which is rounded up to a standard value 0.047 µF to account for capacitor tolerance. A 1-µF decoupling capacitor is connected to the VDD pin as a good analog design practice. The pull-up resistor is only required for the Open-Drain device variants and is calculated to maintain the RESET current within the ±5 mA limit found in the Recommended Operating Conditions: RPull-up = VPull-up ÷ 5 mA. For this design, a standard 10-kΩ pull-up resistor is selected to minimize current draw when RESET is asserted. Keep in mind the lower the pull-up resistor, the higher VOL. The MR pin can be connected to an external signal if desired or left floating if not used due to the internal pull-up resistor to VDD. 9.2.1.3 Application Curves VDD 30ms delay from VDD (3.3V) to LDO Enable set by 0.047µF on CT of TPS3840PL30 RESET (LDO Enable) VOUT (LDO) Negligible delay from LDO Enable to 1.8V VOUT 图 48. Startup Sequence Highlighting the Delay Between 3.3V and 1.8V Rails 版权 © 2018–2019, Texas Instruments Incorporated 21 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 9.2.2 Design 2: Battery Voltage and Temperature Monitor A typical application for the TPS3840 is battery voltage and temperature monitoring. The TPS3840 is offered in active-low or active-high output topologies and can operate above or below the voltage threshold meaning the device can be used as an undervoltage monitor as shown in 图 49 or overvoltage monitor as shown in 图 50. The TPS3840 can be used to monitor any rail above 1.6 V. In this design application, one TPS3840DL30 monitors the 3.3-V battery voltage rail and triggers an active-low reset fault condition if the battery voltage falls below the 3-V threshold. For overvoltage monitoring, another TPS3840DL30 monitors a 2.8-V battery and triggers a logic high at the 3-V threshold plus 100 mV hysteresis so at 3.1 V. Both applications monitor the battery temperature using TMP303, a push-pull, active-high temperature switch. A temperature fault is triggered if the battery temperature falls outside of a defined window temperature range set by the TMP303 variant chosen. 3.3V 10Ÿ VCORE VS Microcontroller VDD TMP303 RESET MR SOH FAULT TPS3840DL30 HYSTSET0 OUT HYSTSET1 GND CT GND 10µF 图 49. Low Battery Voltage and Window Temperature Monitoring Solution 2.8V 100k Battery Charger VDD NC MR VS RESET TPS3840DL30 CT 10µF GND TMP303 OFF ON SOH HYSTSET0 OUT HYSTSET1 GND 图 50. Overvoltage and Window Temperature Monitoring Solution 9.2.2.1 Design Requirements This design requires voltage and temperature supervision on a battery voltage rail and the requirements may differ depending on if undervoltage or overvoltage monitoring is required. For this design, both requirements are considered to show the flexibility of the TPS3840 device. The first application example shown in 图 49 uses TPS3840DL30, an open-drain active-low voltage supervisor to monitoring undervoltage and TMP303, a push-pull active-high window temperature switch to monitor under and over temperature. For the undervoltage application, the TPS3840DL30 is operating in the inactive logic high region so an overvoltage fault occurs when the battery voltage falls below VIT- = 3.0 V or when the battery temperature is outside the range from 0°C to 60°C. The second application example uses TPS3840DL30 operating in the active-low region to monitor overvoltage and TMP303 to monitor under and over temperature. For the overvoltage requirement, the fault occurs when the battery voltage rises above 3.1 V or when the battery temperature is outside the range from 0°C to 60°C. 22 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 PARAMETER DESIGN REQUIREMENT Monitor 3.3-V battery for undervoltage condition Battery Voltage Supervision Battery Temperature Supervision Monitor 2.8-V battery for overvoltage condition TMP303A monitors temperature within 0°C to 60°C Monitor battery temperature between 0°C and 60°C with 1°C resolution. Note this is a push-pull, activewith 1°C resolution for undervoltage design high output device. Undervoltage: Active-Low, Open-Drain Output Topology DESIGN RESULT TPS3840 provides voltage monitoring with 1% accuracy with device options available in 0.1 V variations. TPS3840DL30 triggers a reset when VDD falls below 3 V. TPS3840PH30 triggers a reset when VDD rises above 3 V plus hysteresis setting the overvoltage threshold to 3.1 V. Overvoltage: Active-High, Push-Pull TPS3840 is offered in Active-Low Open-drain, Active-Low Push-Pull, and Active-High Push-Pull topologies Maximum device current consumption 10 µA TPS3840 requires 350 nA (typical) and TMP303 requires 3.5 µA (typical) Delay when returning from fault condition Delay of at least 6 seconds when returning from the fault to prevent operation in fault conditions CCT = 10 µF sets 6.18 second delay 9.2.2.2 Detailed Design Procedure The primary constraint for this application is choosing the correct device to monitor the battery supply voltage. The TPS3840 can monitor any voltage between 1.6 V and 10 V and is available in 0.1 V increments. Depending on how far away from the nominal voltage rail the user wants the voltage supervisor to trigger determines the correct voltage supervisor variant to choose. In this design example, the TPS3840DL30 is chosen for both the undervoltage and overvoltage monitoring. For undervoltage monitoring, the undervoltage fault occurs when the 3.3-V rail falls to 3 V and for the overvoltage monitoring, the overvoltage fault occurs when the 2.8-V rail rises above the 3-V threshold (VIT-) plus 100mV hysteresis (VHYS). It's important to note that in the undervoltage application, the TPS3840 RESET output is logic high during normal conditions whereas in the overvoltage application, the TPS3840 RESET output is logic low during normal conditions which is the reason a single device can be used for either type of monitoring depending on the logic required at the output. The opposite RESET output logic is offered in the push-pull, active-high device TPS3840PH noted with the RESET output. The secondary constraint for this application is the battery temperature monitoring accomplished by the TMP303A. Typical Lithium Ion battery discharge temperature range is 0°C to 60°C which is accomplished by the 'A' variante of TMP303A. The TMP303A triggers a fault to the MR pin of the TPS3840 or directly to the battery charger whenever the temperature is outside of the temperature range. The TMP303A offers 1°C resolution to meet the high resolution requirement. Because the undervoltage monitor design uses TMP303A, a push-pull active-high output device, an additional inverter is required before the MR pin because during normal operation, the TMP303 output is low but the MR pin must be logic high during normal operation. If using two TPS3840 devices for both undervoltage and overvoltage monitoring on the same battery, only one single temperature monitoring device is required. The last constraint is the RESET/RESET time delay set by CCT. For applications with ambient temperatures ranging from –40°C to +125°C, CCT can be calculated using RCT and solving for CCT in 公式 2. By choosing a standard 10% capacitor value of 10 µF ensures the RESET/RESET time delay will be at least 6 seconds. Note: active-low devices use the output label RESET and active-high devices use the output label RESET. A 0.1-µF decoupling capacitor is connected to the VDD pin as a good analog design practice. The pull-up resistor is only required for the Open-Drain device variants and is calculated to maintain the RESET current within the ±5 mA limit found in the Recommended Operating Conditions: RPull-up = VPull-up ÷ 5 mA. For this design, a 1-MΩ pull-up resistor is selected to minimize current draw when RESET is asserted and to prevent the battery from unnecessary discharge. Keep in mind the lowering the pull-up resistor, increases VOL and IOUT. The MR pin is used for a second fault condition provided by the temperature switch. 版权 © 2018–2019, Texas Instruments Incorporated 23 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 9.2.3 Design 3: Fast Start Undervoltage Supervisor with Level-shifted Input A typical application for the TPS3840 is a fast startup undervoltage supervisor that operates with an input power supply higher than the recommended maximum of 10 V through the use of a resistor divider at the input as shown in 图 51. The TPS3840 can be used to monitor any rail above 1.6 V and only requires maximum 350 µs upon startup before the device can begin monitoring a voltage. In this design application, a TPS3840 monitors a 12-V rail and triggers a reset fault condition if the voltage rail voltage drops below 10 V using a TPS3840 device with VIT- of 4.9 V. This design also accounts for a wide input range in the case the 12-V rail rises higher, the resistor divider is set so that the voltage at the VDD pin never exceeds 10 V. The resistor values must not be so large that the external resistor divider affects the accuracy or operation of the device. TPS3840 is available in both active-low and active-high topologies providing the flexibility to monitor undervoltage or overvoltage with either output logic. This design uses the active-low, open-drain TPS3840DL49 variant so that when the undervoltage condition occurs, that is when the voltage at VDD pin falls below the voltage threshold set by the external resistor divider, the output transitions to logic-low and can be used to flag an undervoltage condition or used to connect to the ENABLE of the next device to shut it off as a logic low on an ENABLE pin typically disables the device. In this design, the output of the TPS3840 simply connects to a MCU to flag an undervoltage condition. 3.3V 12V 10.5NŸ 125NŸ VCORE 10NŸ Microcontroller VDD NC MR RESET RESET TPS3840DL49 CT GND 0.33µF 图 51. Fast Start Undervoltage Supervisor with Level-shifted Input 9.2.3.1 Design Requirements This design requires voltage supervision on a 12-V power supply voltage rail with possibility of the 12-V rail rising up as high as 18 V. The undervoltage fault occurs when the power supply voltage drops below 10 V. PARAMETER DESIGN REQUIREMENT DESIGN RESULT Power Rail Voltage Supervision Monitor 12-V power supply for undervoltage condition, trigger a undervoltage fault at 10 V. TPS3840 provides voltage monitoring with 1% accuracy with device options available in 0.1 V variations. The TPS3840 monitors voltages above 1.6 V. Maximum Input Power Operate with power supply input up to 18 V. The TPS3840 limits VDD to 10 V but can monitor voltages higher than the maximum VDD voltage with the use of an external resistor divider. Output logic voltage 3.3-V Open-Drain 3.3-V Open-Drain Maximum device current consumption 35 µA when power supply is at 18 V maximum TPS3840 requires 350 nA (typical) and the external resistor divider will also consume current. There is a tradeoff between current consumption and voltage monitor accuracy but generally set the resistor divider to consume 100 times current into VDD. Voltage Monitor Accuracy Typical voltage monitor accuracy of 2.5%. This allows the voltage threshold to range between 11.75 V and 10.25 V. The TPS3840 has 1% typical voltage monitor accuracy. By decreasing the ratio of resistor values, the resistor divider will consume more current but the accuracy will increase. The resistor tolerance also needs to be accounted for. Delay when returning from fault condition RESET delay of at least 200 ms when returning from a undervoltage fault. CCT = 0.33 µF sets 204 ms delay 24 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 9.2.3.2 Detailed Design Procedure The primary constraint for this application is monitoring a 12-V rail while preventing the VDD pin on TPS3840 from exceeding the recommended maximum of 10 V. This is accomplished by sizing the resistor divider so that when the 12-V rail drops to 10 V, the VDD pin for TPS3840 will be at 4.9 V which is the VIT- threshold for triggering a undervoltage condition for TPS3840DL49 as shown in 公式 7. Vrail_trigger = VIT- x (Rbottom ÷ (Rtop + Rbottom)) (7) where Vrail_trigger is the trigger voltage of the rail being monitored, VIT- is the falling threshold on the VDD pin of TPS3840, and Rtop and Rbottom are the top and bottom resistors of the external resistor divider. VIT- is fixed per device variant and is 4.9 V for TPS3840DL49. Substituting in the values from 图 51, the undervoltage trigger threshold for the rail is set to 10.045 V. Since the undervoltage trigger of 10 V on the rail corresponds to 4.9 V undervoltage threshold trigger of the TPS3840 device, there is plenty of room for the rail to rise up while maintaining less than 10 V on the VDD pin of the TPS3840. 公式 8 shows the maximum rail voltage that still meets the 10 V maximum at the VDD pin for TPS3840. Vrail_max = 10 x (10,000 ÷ (10,500 + 10,000)) = 20.5 V (8) This means the monitored voltage rail can go as high as 20.5 V and still not violate the recommended maximum for the VDD pin on TPS3840. This is useful when monitoring a voltage rail that has a wide range that may go much higher than the nominal rail voltage such as in this case with the specification that the 12-V rail can go as high as 18 V. Notice that the resistor values chosen are less than 100kΩ to preserve the accuracy set by the internal resistor divider. Good design practice recommends using a 0.1-µF capacitor on the VDD pin and this capacitance may need to increase when using an external resistor divider. 版权 © 2018–2019, Texas Instruments Incorporated 25 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 9.2.4 Design 4: Voltage Monitor with Back-up Battery Switchover A typical application for the TPS3840 is to monitor a voltage rail and switch the power to a back-up battery if the main supply is in undervoltage condition. Because systems that utilize a back-up battery tend to require low quiescent current, TPS3840 serves as the perfect solution as this device only requires 350 nA typically. The TPS3840 monitors the main power rail via the VDD pin and when the main power rail falls, the RESET output asserts causing a switch to close on the back-up battery rail. The diodes provide an ORing logic function to prevent reverse leakage and to allow either rail to connect to the output depending on the status of the main voltage rail. 5V System Output + ± 3.3V Vbat VDD NC MR RESET TPS3840PL30 NC CT GND 图 52. Voltage Monitor with Back-up Battery Switchover Solution 9.2.4.1 Design Requirements This design requires voltage supervision on a 5-V main supply voltage rail and when the main rail fails, switch to a back-up battery supply to prevent complete power loss in the system. The System Output must remain above 1.8 V even when the main supply completely fails. The design requires less than 500 nA of total current consumption and must prevent battery leakage when the battery is not being used. When the system is using the back-up battery and the main supply voltage rail comes back up, the system must switch back to the main power supply in less than 100 µs to save battery power. PARAMETER DESIGN REQUIREMENT Monitor 5-V main supply for undervoltage Main Supply Voltage Supervision condition. When main supply drops below 3 V, switch to back-up battery. DESIGN RESULT TPS3840 provides voltage monitoring with 1% accuracy with device options available in 0.1 V variations. This design uses TPS3840PL30 to set the undervoltage trigger at 3 V. Batck-up Battery Switchover When undervoltage occurs on the main supply voltage rail, switch to the back-up batter. When undervoltage occurs on the main supply rail, the PMOS switch closes allowing the back-up battery to connect to the system output. The diodes prevent reverse leakage and allow either power supply to connect to the system output. Main Power Supply to Back-up Battery Switch Response Time No more than 50 µs to switch to the back-up battery when the main power supply falls to undervoltage condition. TPS3840 provides a propagation delay for VDD falling below the undervoltage threshold (tP_HL) of 50 µs maximum to meet the requirement. Back-up Battery to Main Power Supply Switch Back Response Time Less than 100 µs when switching from back-up battery back to main power supply when undervoltage condition is removed. By leaving MR disconnected, the RESET delay is set to a maximum of 50 µs to meet the requirement. Device Current Consumption 500 nA TPS3840 requires 350 nA (typical) System Output must remain above 1.8 V in all cases When the main 5-V rail is connected, the System Output will be the rail voltage minus a diode voltage drop so at least 3 V - 0.7 V ~ 2.3 V. When the voltage rail drops below 3 V, the back-up battery switches into the system and the System Output becomes the battery voltage minus a diode voltage drop so 3.3 V - 0.7 V ~ 2.6 V. The threshold at which the battery switches into the system directly depends on the TPS3840 variant chosen. System Output Voltage 26 版权 © 2018–2019, Texas Instruments Incorporated TPS3840 www.ti.com.cn ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 9.2.4.2 Detailed Design Procedure The primary constraints for this application are choosing the correct device variant for the monitored voltage and deciding the preferred solution to switch the back-up battery in and out of the system. For this design, the TPS3840PL30 provides an active-low, push-pull output topology that turns on the PFET when the 5-V rail monitored by VDD drops to 3.0 V. The diodes logically OR the power supply with the back-up battery and prevents reverse current leakage. Using this solution, the System Output remains above 1.8 V in all circumstances unless both the 5-V rail and back-up battery fail. The System Output voltage will follow the 5-V rail minus a diode drop until the 5-V rail drops to 3 V then the back-up battery switches into the system providing 3.3 V minus a diode drop to the System Output. When the 5-V rail comes back above 3.1 V accounting for hysteresis, the PFET turns off to disconnect the back-up battery from the system. Since this design disconnects the battery when not being used, this solution maximizes battery life. 9.2.5 Application Curve: TPS3840EVM These application curves are taken with the TPS3840EVM. Please see the TPS3840EVM User Guide for more information. VDD VDD Reset Delay (tD) = 5.8 ms Reset Delay (tD) = 22 µs RESET RESET 图 53. TPS3840EVM RESET Time Delay (tD) with No Capacitor 图 54. TPS3840EVM RESET Time Delay (tD) with 0.01-µF Capacitor VDD Reset Delay (tD)= 654 ms RESET 图 55. TPS3840EVM RESET Time Delay (tD) with 1-µF Capacitor 版权 © 2018–2019, Texas Instruments Incorporated 27 TPS3840 ZHCSJ38C – DECEMBER 2018 – REVISED AUGUST 2019 www.ti.com.cn 10 Power Supply Recommendations These devices are designed to operate from an input supply with a voltage range between 1.5 V and 10 V. TI recommends an input supply capacitor between the VDD pin and GND pin. This device has a 12-V absolute maximum rating on the VDD pin. If the voltage supply providing power to VDD is susceptible to any large voltage transient that can exceed 12 V, additional precautions must be taken. 11 Layout 11.1 Layout Guidelines Make sure that the connection to the VDD pin is low impedance. Good analog design practice recommends placing a minimum 0.1-µF ceramic capacitor as near as possible to the VDD pin. If a capacitor is not connected to the CT pin, then minimize parasitic capacitance on this pin so the rest time delay is not adversely affected. • Make sure that the connection to the VDD pin is low impedance. Good analog design practice is to place a >0.1-µF ceramic capacitor as near as possible to the VDD pin. • If a CCT capacitor is used, place these components as close as possible to the CT pin. If the CT pin is left unconnected, make sure to minimize the amount of parasitic capacitance on the pin to
