TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
TPS389x 采用超小型封装的单通道可调电压监视器
1 特性
•
•
•
•
•
•
•
•
•
1
3 说明

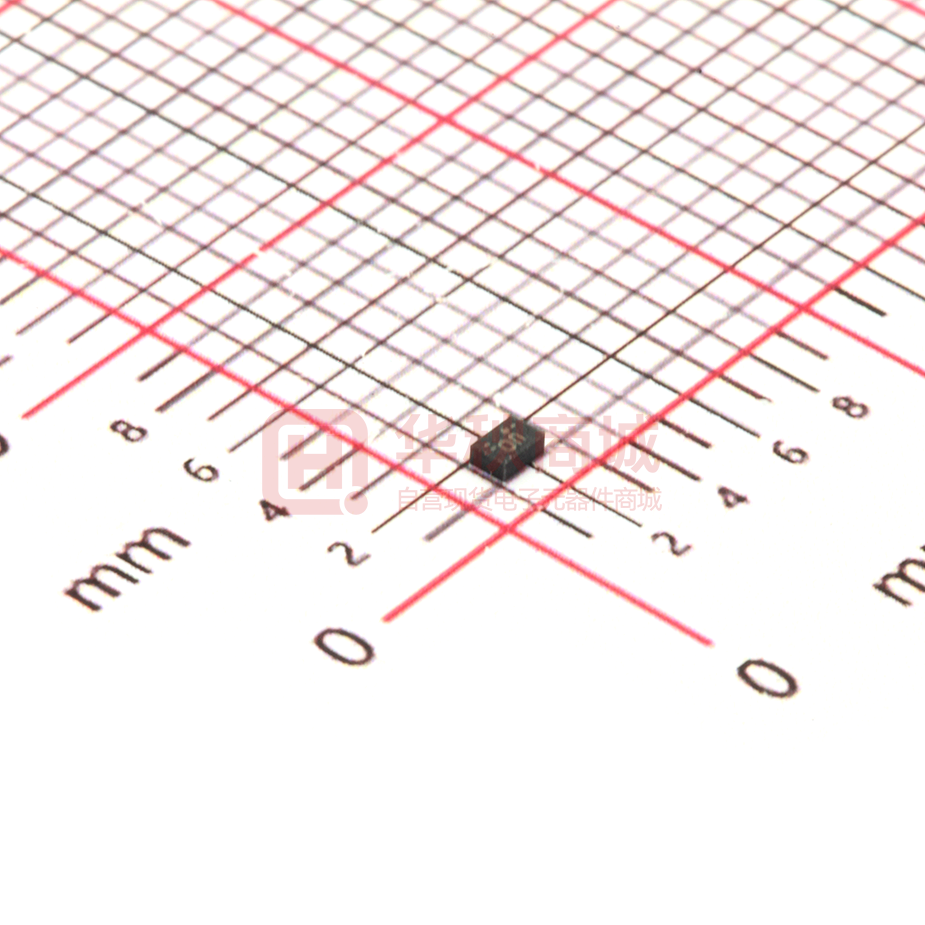

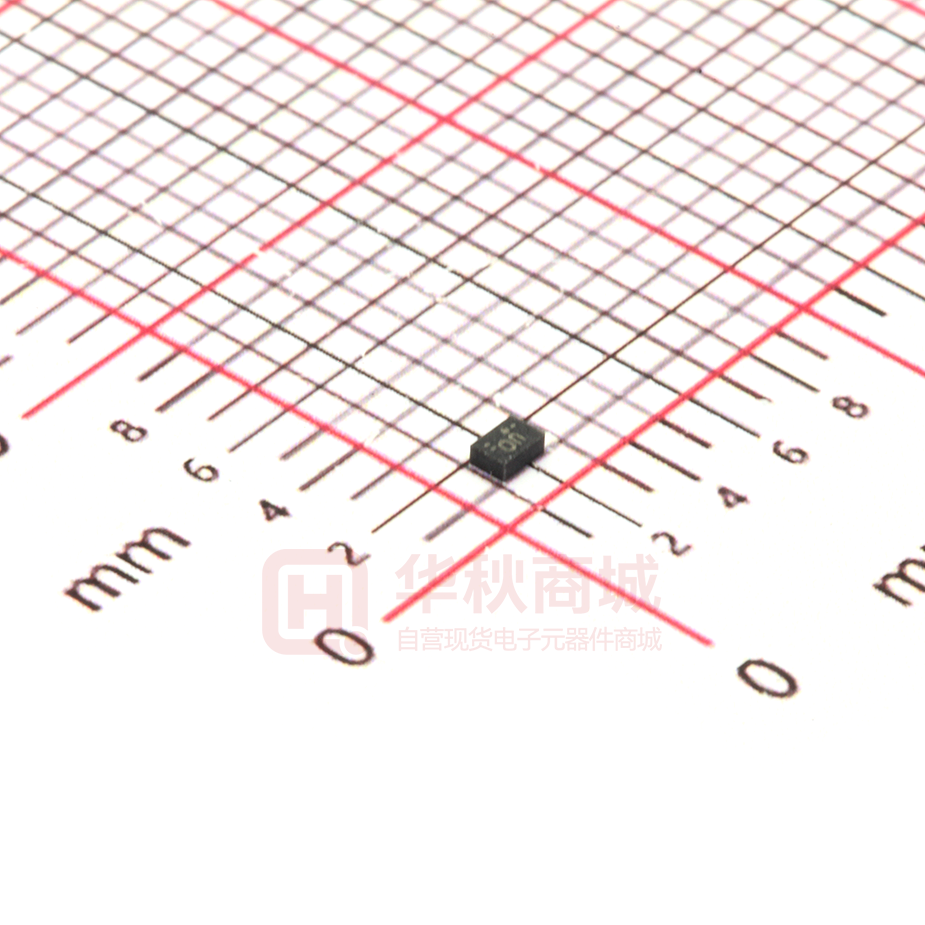

超小型 USON (1.45mm × 1.00mm) 封装
可调阈值低至 500mV
阈值精度：整个温度范围内为 1%
电容可调式延迟时间
低静态电流：6μA（典型值）
外部使能输入
开漏（额定值 18V）和推挽式输出选项
温度范围：–40°C 至 125℃
与 MAX6895/6/7/8 引脚到引脚兼容
TPS3895、TPS3896、TPS3897 和 TPS3898 器件
（TPS389x 系列）为超小型监控电路，用于监视高于
500mV 的电压，阈值精度为 0.25%（典型值），且可
通过外部电容调整延迟时间。 TPS389x 系列还具有用
于导通和关断输出的逻辑使能引脚（ENABLE 或
ENABLE）。 以 TPS3895 为例，当输入电压引脚
(SENSE) 的电压超出阈值且 ENABLE 引脚为高电平
时，输出引脚 (SENSE_OUT) 将在一段电容可调式延
迟时间后变为高电平。 当 SENSE 的电压降至阈值以
下或 ENABLE 为低电平时，SENSE_OUT 将变为低电
平。 有关真值表的信息，请参见表 1 和表 2。
2 应用
•
•
•
•
•
数字信号处理器 (DSP)、微控制器和微处理器
笔记本和台式计算机
PDA 和手持式产品
便携式和电池供电类产品
FPGA 和 ASIC
对于 TPS389xA 版本，SENSE 和 ENABLE 均具有电
容可调式延迟。 当 SENSE 和 ENABLE 输入正常时，
输出将在经过这段电容可调式延迟时间后置为有效。
对于 TPS389xP 器件，如果 SENSE 的电压超出阈
值，则将使能引脚置为有效后，将经过短暂的 0.2µs
传播延迟后，输出引脚才会置为有效。
所有器件的工作电压范围均为 1.7V 至 6.5V，且具有
6µA 的静态电流典型值，开漏输出额定值为 18V。
TPS389x 采用超小型 USON 封装，额定工作温度范围
TJ = –40°C 至 125°C。
器件信息(1)
器件型号
封装
TPS389x
USON (6)
封装尺寸（标称值）
1.45mm x 1.00mm
(1) 要了解所有可用封装，请见数据表末尾的可订购产品附录。
感测阈值电压和温度间的关系
507
VCC = 1.7 V, VIT+
VCC = 3.3 V, VIT+
VCC = 6.5 V, VIT+
VCC = 1.7 V, VIT+ − VHYS
VCC = 3.3 V, VIT+ − VHYS
VCC = 6.5 V, VIT+ − VHYS
VIT+, VIT+ − VHYS (mV)
505
503
501
499
497
495
493
−40 −25 −10
5
20 35 50 65
Temperature (°C)
80
95
110 125
G004
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
English Data Sheet: SBVS172
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
目录
1
2
3
4
5
6
7
8
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
5
7.1
7.2
7.3
7.4
7.5
7.6
7.7
5
5
5
5
6
7
9
Absolute Maximum Ratings ......................................
ESD Ratings ............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Typical Characteristics ..............................................
Detailed Description ............................................ 12
8.1 Overview ................................................................. 12
8.2 Functional Block Diagram ....................................... 12
8.3 Feature Description................................................. 14
8.4 Device Functional Modes........................................ 15
9
Applications and Implementation ...................... 16
9.1 Application Information............................................ 16
9.2 Typical Applications ................................................ 16
10 Power Supply Recommendations ..................... 23
11 Layout................................................................... 23
11.1 Layout Guidelines ................................................. 23
11.2 Layout Example .................................................... 23
12 器件和文档支持 ..................................................... 24
12.1
12.2
12.3
12.4
12.5
器件支持................................................................
文档支持................................................................
商标 .......................................................................
静电放电警告.........................................................
术语表 ...................................................................
24
24
24
24
24
13 机械、封装和可订购信息 ....................................... 24
4 修订历史记录
Changes from Revision A (September 2011) to Revision B
Page
•
已更改 说明部分的第 1 段；已修改说明 ................................................................................................................................. 1
•
Changed Pin Configuration and Functions section; updated table format, renamed pin packages to meet new
standards ............................................................................................................................................................................... 4
2
Copyright © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
5 Device Comparison Table
DEVICE
ENABLE
OUTPUT
INPUT (SENSE) DELAY
ENABLE DELAY
TPS3895A
Active high
Active high, push-pull
Capacitor adjustable
Capacitor adjustable
TPS3895P
Active high
Active high, push-pull
Capacitor adjustable
0.2 µs
TPS3896A
Active low
Active low, push-pull
Capacitor adjustable
Capacitor adjustable
TPS3896P
Active low
Active low, push-pull
Capacitor adjustable
0.2 µs
TPS3897A
Active high
Active high, open drain
Capacitor adjustable
Capacitor adjustable
TPS3897P
Active high
Active high, open drain
Capacitor adjustable
0.2 µs
TPS3898A
Active low
Active low, open drain
Capacitor adjustable
Capacitor adjustable
TPS3898P
Active low
Active low, open drain
Capacitor adjustable
0.2 µs
Copyright © 2011–2015, Texas Instruments Incorporated
3
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
6 Pin Configuration and Functions
DRY Package: TPS3895, TPS3897
6-Pin USON
Top View
ENABLE
1
6
VCC
GND
2
5
CT
SENSE
3
4
SENSE_OUT
DRY Package: TPS3896, TPS3898
6-Pin USON
Top View
ENABLE
1
6
VCC
GND
2
5
CT
SENSE
3
4
SENSE_OUT
Pin Functions
PIN
USON
NAME
CT
ENABLE
TPS3895/
TPS3897
5
1
I/O
DESCRIPTION
I
Capacitor-adjustable delay. The CT pin offers a user-adjustable delay time. Connecting
this pin to a ground referenced capacitor sets the delay time for SENSE rising above
0.5 V to SENSE_OUT asserting (or ENABLE asserting to SENSE_OUT asserting for A
version devices).
tpd(r) (s) = [CCT (µF) × 4] + 40 µs
I
Active high input. Driving ENABLE low immediately makes SENSE_OUT go low,
independent of V(SENSE). With V(SENSE) already above VIT+, drive ENABLE high to
make SENSE_OUT go high after the capacitor-adjustable delay time (A version) or 0.2
µs (P version).
Active low input. Driving ENABLE high immediately makes SENSE_OUT go high,
independent of V(SENSE). With V(SENSE) already above VIT+, drive ENABLE low to make
SENSE_OUT go low after the capacitor-adjustable delay time (A version) or 0.2 µs (P
version).
TPS3896/
TPS3898
5
—
ENABLE
—
1
I
GND
2
2
—
SENSE
3
3
I
This pin is connected to the voltage that is monitored with the use of an external
resistor. The output asserts after the capacitor-adjustable delay time when V(SENSE)
rises above 0.5 V and ENABLE is asserted. The output deasserts after a minimal
propagation delay (16 µs) when V(SENSE) falls below VIT+ – Vhys.
O
SENSE_OUT is an open-drain and push-pull output that is immediately driven low after
V(SENSE) falls below (VIT+ – Vhys) or the ENABLE input is low. SENSE_OUT goes high
after the capacitor-adjustable delay time when V(SENSE) is greater than VIT+ and the
ENABLE pin is high. Open-drain devices (TPS3897/8) can be pulled up to 18 V
independent of VCC; pullup resistors are required for these devices.
SENSE_OUT
4
—
Ground
SENSE_OUT
—
4
O
SENSE_OUT is an open-drain and push-pull output that is immediately driven high
after V(SENSE) falls below (VIT+ – Vhys) or the ENABLE input is high. SENSE_OUT goes
low after the capacitor-adjustable delay time when V(SENSE) is greater than VIT+ and the
ENABLE pin is low. Open-drain devices (TPS3897/8) can be pulled up to 18 V
independent of VCC; pullup resistors are required for these devices.
VCC
6
6
I
Supply voltage input. Connect a 1.7-V to 6.5-V supply to VCC to power the device. It is
good analog design practice to place a 0.1-µF ceramic capacitor close to this pin.
4
Copyright © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
7 Specifications
7.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted). (1)
Voltage (2)
Current
(2)
MAX
–0.3
7
CT
–0.3
VCC + 0.3
ENABLE, SENSE, SENSE_OUT (push-pull)
–0.3
7
SENSE_OUT (open drain)
–0.3
20
SENSE_OUT (push-pull)
–0.3
UNIT
V
7
SENSE_OUT
Temperature
(1)
MIN
VCC
±10
Operating junction, TJ
–40
125
Storage, Tstg
–65
150
mA
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods my affect device reliability.
All voltages are with respect to network ground terminal.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1)
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101,
all pins (2)
±500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
UNIT
VCC
Input supply voltage
1.7
6.5
V
VENABLE, VENABLE
ENABLE and ENABLE pin voltage
0
6.5
V
VSENSE
SENSE pin voltage
0
6.5
V
VSENSE_OUT, VSENSE_OUT (open
SENSE_OUT, SENSE_OUT pin voltage
0
18
V
SENSE_OUT, SENSE_OUT pin voltage
0
VCC
V
SENSE_OUT, SENSE_OUT pin current
0.0003
1
drain)
VSENSE_OUT, VSENSE_OUT
(push-pull)
ISENSE_OUT, ISENSE_OUT
mA
7.4 Thermal Information
TPS389x
THERMAL METRIC (1)
DRY (USON)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
293.8
RθJC(top)
Junction-to-case (top) thermal resistance
165.1
RθJB
Junction-to-board thermal resistance
160.8
ψJT
Junction-to-top characterization parameter
27.3
ψJB
Junction-to-board characterization parameter
65.8
RθJC(bot)
Junction-to-case (bottom) thermal resistance
65.8
(1)
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
版权 © 2011–2015, Texas Instruments Incorporated
5
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
7.5 Electrical Characteristics
Over the operating temperature range of TJ = –40°C to 125°C, and 1.7 V < VCC< 6.5 V, unless otherwise noted. Typical
values are at TJ = 25°C and VCC = 3.3 V.
PARAMETER
VCC
Supply voltage range
V(POR)
Power-on reset voltage (1)
TEST CONDITIONS
MIN
TJ = –40°C to 125°C
TJ = 0°C to 85°C
1.65
6.5
VOL (max) = 0.2 V , I(SENSE_OUT) = 15 µA
0.8
VCC = 3.3 V , no load
6
12
VCC = 6.5 V , no load
7
12
0.5
0.505
Supply current (into VCC pin)
VIT+
Positive-going input threshold voltage
V(SENSE) rising
Vhys
Hysteresis voltage
V(SENSE) falling
I(SENSE)
Input current (2)
V(SENSE) = 0 V or VCC
I(CT)
CT pin charge current
260
V(CT)
CT pin comparator threshold voltage
1.18
R(CT)
CT pin pulldown resistance
VIL
Low-level input voltage (ENABLE pin)
VIH
High-level input voltage (ENABLE pin)
UVLO
Undervoltage lockout (3)
VCC falling
Ilkg
Leakage current
ENABLE = VCC or GND
VOL
Low-level output voltage
High-level output voltage (push-pull)
Ilkg(OD)
Open-drain output leakage current
(1)
(2)
(3)
6
MAX
6.5
ICC
VOH
TYP
1.7
0.495
5
–15
V
V
µA
V
mV
15
nA
310
360
nA
1.238
1.299
V
Ω
200
0.4
1.4
V
V
1.3
1.7
V
–100
100
nA
VCC ≥ 1.2 V, ISINK = 90 µA (TPS3895/7 only)
0.3
VCC ≥ 2.25 V, ISINK = 0.5 mA
0.3
VCC ≥ 4.5 V, ISINK = 1 mA
0.4
VCC ≥ 2.25 V, ISOURCE = 0.5 mA
0.8VCC
VCC ≥ 4.5 V, ISOURCE = 1 mA
0.8VCC
V(SENSE_OUT) high impedance = 18 V
UNIT
V
V
300
nA
The lowest supply voltage (VCC) at which output is active (SENSE_OUT is low, SENSE_OUT is high); tr(VCC) > 15 µs/V. Below V(POR),
the output cannot be determined.
Specified by design.
When VCC falls below the UVLO threshold, the output deasserts (SENSE_OUT goes low, SENSE_OUT goes high). Below V(POR), the
output cannot be determined.
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
7.6 Timing Requirements
MIN
tpd(r)
SENSE (rising) to SENSE_OUT propagation delay
tpd(f)
SENSE (falling) to SENSE_OUT propagation delay
TYP
UNIT
40
µs
V(SENSE) rising, C(CT) =
0.047 µF
190
ms
16
µs
50
µs
V(SENSE) falling
Start-up delay (1)
tw
MAX
V(SENSE) rising, C(CT) =
open
ENABLE pin minimum pulse duration
1
ENABLE pin glitch rejection
µs
100
ns
td(OFF)
ENABLE to SENSE_OUT delay time (output
disabled)
ENABLE deasserted to
output deasserted
200
ns
td(P)
ENABLE to SENSE_OUT delay time (P version)
ENABLE asserted to output
asserted delay
(P version)
200
ns
ENABLE asserted to output
asserted delay
(A version), C(CT) = open
20
µs
ENABLE asserted to output
asserted delay
(A version), C(CT) = 0.047
µF
190
ms
td(A)
(1)
ENABLE to SENSE_OUT delay time (A version)
During power on, VCC must exceed 1.7 V for at least 50 µs (plus propagation delay time, tpd(r)) before output is in the correct state.
VCC
UVLO
V(POR)
ENABLE
VIT+
VIT+
SENSE
VIT+ - Vhys
SENSE_OUT
tpd(r)
tpd(f)
tpd(r)
td(OFF)
td(A)
图 1. TPS3895A and TPS3897A Timing
版权 © 2011–2015, Texas Instruments Incorporated
7
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
VCC
www.ti.com.cn
V(POR)
ENABLE
VIT+
VIT+
SENSE
VIT+ - Vhys
SENSE_OUT
tpd(r)
tpd(r)
tpd(f)
td(P)
td(OFF)
图 2. TPS3895P and TPS3897P Timing
VCC
V(POR)
ENABLE
VIT+
VIT+
SENSE
VIT+ - Vhys
SENSE_OUT
tpd(r)
tpd(f)
td(OFF)
tpd(r)
td(A)
图 3. TPS3896A and TPS3898A Timing
VCC
UVLO
V(POR)
ENABLE
VIT+
VIT+
SENSE
VIT+ - Vhys
SENSE_OUT
tpd(r)
tpd(f)
tpd(r)
td(OFF)
td(P)
图 4. TPS3896P and TPS3898P Timing
8
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
7.7 Typical Characteristics
At TA = 25°C, and VCC = 3.3 V, unless otherwise noted.
12
10
9
10
SENSE_OUT Delay (s)
8
ICC (µA)
7
6
5
−40°C
0°C
25°C
85°C
105°C
125°C
4
3
2
1
0
0
1
2
3
4
VCC (V)
5
6
8
6
4
2
0
7
0
图 5. Supply Current vs Supply Voltage
1
1.5
CCT (µF)
2.5
3
G002
507
195
VCC = 3.3 V
VIT+, VIT+ − VHYS (mV)
194
193
192
VCC = 1.7 V
191
VCC = 1.7 V, VIT+
VCC = 3.3 V, VIT+
VCC = 6.5 V, VIT+
VCC = 1.7 V, VIT+ − VHYS
VCC = 3.3 V, VIT+ − VHYS
VCC = 6.5 V, VIT+ − VHYS
505
190
189
503
501
499
497
188
495
VCC = 6.5 V
187
186
−40 −25 −10
5
20 35 50 65
Temperature (°C)
80
95
493
−40 −25 −10
110 125
G003
图 7. SENSE_OUT Time-Out Period vs Temperature
(CCT = 47 nF)
5
20 35 50 65
Temperature (°C)
80
95
110 125
G004
图 8. SENSE Threshold Voltage vs Temperature
350
450
400
100
VCC = 1.7 V
350
300
VOL (mV)
SENSE Pulse Duration (µs)
2
图 6. SENSE_OUT Time-Out Period vs CCT
196
SENSE_OUT Delay (ms)
0.5
G001
10
VCC = 3.3 V
250
200
150
100
VCC = 6.5 V
50
1
1
10
Overdrive (%)
100
G005
图 9. SENSE Minimum Pulse Duration vs SENSE Threshold
Overdrive Voltage
版权 © 2011–2015, Texas Instruments Incorporated
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Output Sink Current (mA)
0.8
0.9
1
G006
图 10. Output Voltage Low vs Output Current (0 mA to
1 mA)
9
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
Typical Characteristics (接
接下页)
At TA = 25°C, and VCC = 3.3 V, unless otherwise noted.
450
600
400
VCC = 1.7 V
500
VCC = 1.7 V
300
VOL (mV)
VCC − VOH (mV)
350
250
VCC = 3.3 V
200
VCC = 6.5 V
400
VCC = 3.3 V
300
150
100
200
VCC = 6.5 V
50
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
Output Source Current (mA)
0.9
100
−40 −25 −10
1
图 11. Output Voltage High vs Output Current
(0 mA to 1 mA)
20 35 50 65
Temperature (°C)
80
95
110 125
G008
图 12. Output Voltage Low at 1 mA vs Temperature
600
1.6
VCC = 1.7 V
1.4
500
VCC = 1.7 V
1.2
400
1
VCC = 6.5 V
VCC = 3.3 V
VOL (V)
VCC − VOH (mV)
5
G007
300
0.8
VCC = 6.5 V
0.6
200
0.4
100
VCC = 3.3 V
0.2
0
−40 −25 −10
5
20 35 50 65
Temperature (°C)
80
95
110 125
0
0.5
G009
图 13. Output Voltage High at 1 mA vs Temperature
1
1.5
2
2.5 3 3.5 4 4.5
Output Sink Current (mA)
5
5.5
6
G010
图 14. Output Voltage Low vs Output Current
7
CCT = open
6
VOH (V)
5
VENABLE
2V/div
VCC = 6.5 V
VCC = 3.3 V
4
3
VSENSE_OUT
2V/div
2
VCC = 1.7 V
1
0
0.5
1
1.5
2 2.5 3 3.5 4 4.5
Output Source Current (mA)
5
5.5
图 15. Output Voltage High vs Output Current
10
6
Time (50ms/div)
G011
图 16. Enable Power On and Power Off Delay (TPS3895A)
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Typical Characteristics (接
接下页)
At TA = 25°C, and VCC = 3.3 V, unless otherwise noted.
VENABLE
2V/div
VSENSE_OUT
2V/div
Time (200ns/div)
图 17. Enable Power On and Power Off Delay (TPS3895P)
版权 © 2011–2015, Texas Instruments Incorporated
11
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
8 Detailed Description
8.1 Overview
The TPS3895, TPS3896, TPS3897, and TPS3898 devices (TPS389x) are a family of ultra-small supervisory
circuits. The TPS389x is designed to assert the SENSE_OUT or SENSE_OUT signal, as shown in 表 1 and 表 2.
When the SENSE pin rises above 0.5 V and the enable input is asserted (ENABLE = high or ENABLE = low) ,
the output asserts (SENSE_OUT goes high or SENSE_OUT goes low) after the capacitor-adjustable delay time.
The SENSE pin can be set to any voltage threshold above 0.5 V using an external resistor divider. A broad
range of output delay times and voltage thresholds can be supported, allowing these devices to be used in wide
array of applications.
表 1. TPS3895/7 Truth Table
OUTPUT
STATUS
ENABLE = high
CONDITIONS
SENSE < VIT+
SENSE_OUT = low
Output not asserted
ENABLE = low
SENSE < VIT+
SENSE_OUT = low
Output not asserted
ENABLE = low
SENSE > VIT+
SENSE_OUT = low
Output not asserted
ENABLE = high
SENSE > VIT+
SENSE_OUT = high
Output asserted after delay
表 2. TPS3896/8 Truth Table
OUTPUT
STATUS
ENABLE = low
CONDITIONS
SENSE < VIT+
SENSE_OUT = high
Output not asserted
ENABLE = high
SENSE < VIT+
SENSE_OUT = high
Output not asserted
ENABLE = high
SENSE > VIT+
SENSE_OUT = high
Output not asserted
ENABLE = low
SENSE > VIT+
SENSE_OUT = low
Output asserted after delay
8.2 Functional Block Diagram
VCC
SENSE
Delay
SENSE_OUT
500 mV
ENABLE
GND
CT
图 18. TPS3895A Block Diagram
12
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Functional Block Diagram (接
接下页)
VCC
SENSE_OUT
SENSE
Delay
500 mV
ENABLE
GND
CT
图 19. TPS3897A Block Diagram
VCC
SENSE
Delay
SENSE_OUT
500 mV
ENABLE
GND
CT
图 20. TPS3895P Block Diagram
VCC
SENSE_OUT
SENSE
Delay
500 mV
ENABLE
GND
CT
图 21. TPS3897P Block Diagram
版权 © 2011–2015, Texas Instruments Incorporated
13
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
8.3 Feature Description
8.3.1 Input Pin (SENSE)
The SENSE input pin allows any system voltage above 0.5 V to be monitored. If the voltage at the SENSE pin
exceeds VIT+, and provided that the enable pin is asserted (ENABLE = high or ENABLE = low), then the output is
asserted after the capacitor-adjustable delay time elapses. When the voltage at the SENSE pin drops below
(VIT+ – Vhys), then the output is deasserted. The comparator has a built-in hysteresis to ensure smooth output
assertions and deassertions. Although not required in most cases, for extremely noisy applications, it is good
analog design practice to place a 1-nF to 10-nF bypass capacitor at the SENSE input in order to reduce
sensitivity to transients and layout parasitics.
The TPS389x family monitor the voltage at SENSE with the use of external resistor divider, as shown in 图 22.
VIN
0.1 mF
VCC
ENABLE
R1
SENSE_OUT
TPS3897
CT
SENSE
R2
GND
RP
VCC1
GPIO
DSP,
CPU,
or
FPGA
GND
图 22. Using TPS3897 to Monitor User-Defined Threshold Voltage
The target threshold voltage can be calculated by using 公式 1:
VTARGET = (1+R1/R2) × 0.5 (V)
(1)
When the input voltage (VIN) shown in 图 22 is greater than VTARGET, then the output is asserted, provided that
the enable pin is asserted (ENABLE = high or ENABLE = low). R1 and R2 can have high values (> 100 kΩ) to
minimize current consumption as a result of a low SENSE input current without adding significant error to the
resistive divider. Refer to application note SLVA450 to learn more about sizing sense-point resistors.
8.3.2 Enable Pin (ENABLE)
The enable input allows an external logic signal from other processors, logic circuits, and/or discrete sensors to
turn on or turn off the output. The TPS3895 and TPS3897 offer an active-high enable input (ENABLE). The
TPS3896 and TPS3898 offer an active-low enable input (ENABLE). Driving ENABLE low (or ENABLE high)
forces SENSE_OUT to go low (or SENSE_OUT to go high). The 0.4-V (maximum) low and 1.4-V (minimum) high
allow ENABLE to be driven with a 1.5-V or greater system supply.
The TPS389x family is available in two versions: the TPS389xA and TPS389xP. For TPS389xA devices with
VSENSE > VIT+, driving ENABLE high (or ENABLE = low) makes SENSE_OUT go high (or SENSE_OUT go low)
after the capacitor-adjustable delay time. For the TPS389xP versions with VSENSE > VIT+, driving ENABLE high
(or ENABLE low) makes SENSE_OUT go high (or SENSE_OUT go low) after a 0.2-µs delay.
8.3.3 Output Pin (SENSE_OUT)
In a typical TPS389x application, the SENSE_OUT or SENSE_OUT outputs are connected to a reset/enable
input of the processor (DSP, CPU, FPGA, ASIC, and so on) or connected to the enable input of a voltage
regulator.
14
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Feature Description (接
接下页)
The TPS3897 and TPS3898 provide open-drain outputs. Pullup resistors must be used to hold these lines high
when SENSE_OUT is asserted or SENSE_OUT is not asserted. By connecting the pullup resistors to the proper
voltage rails, SENSE_OUT or SENSE_OUT can be connected to other devices at the correct interface voltage
levels. The outputs can be pulled up to 18 V independent of the supply voltage (VCC). To ensure proper voltage
levels, some thought should be given to choosing the correct pullup resistor values. The ability to sink current is
determined by the supply voltage; therefore, if VCC = 5 V and the desired output pullup is 18 V, then to obtain a
sink current of 1 mA or less (as mentioned in the Electrical Characteristics), the pullup resistor value should be
greater than 18 kΩ. By using wired-OR logic, any combination of SENSE_OUT can be merged into one logic
signal.
The TPS3895 and TPS3896 provide push-pull outputs. The logic high level of the outputs is determined by the
VCC pin voltage. With this configuration, pullup resistors are not required and some board area can be saved.
However, all the interface logic levels must be examined. All the SENSE_OUT and SENSE_OUT connections
must be compatible with the VCC pin logic level.
The SENSE_OUT or SENSE_OUT outputs are defined for a VCC voltage higher than 0.8 V. 表 1 and 表 2 are
truth tables that describe how the outputs are asserted or deasserted. When the conditions are met, the device
changes state from deasserted to asserted after a preconfigured delay time. However, the transitions from
asserted to deasserted are performed almost immediately with minimal propagation delay of 16 µs (typical). 图 1
to 图 4 show the timing diagrams and describe the relationship between the threshold voltages (VIT+ and Vhys),
enable inputs, and respective outputs.
8.3.4 Output Delay Time Pin (CT)
To program a user-defined, adjustable delay time, an external capacitor must be connected between the CT pin
and GND. If the CT pin is left open, there will be a delay of 40 µs. The adjustable delay time can be calculated
through 公式 2:
tpd(r) (s) = [CCT (µF) × 4] + 40 µs
(2)
The reset delay time is determined by the time it takes an on-chip, precision 310-nA current source to charge the
external capacitor to 1.24 V. When SENSE > VIT+ and with ENABLE high (or ENABLE low), the internal current
sources are enabled and begin to charge the external capacitors. When the CTn voltage on a capacitor reaches
1.24 V, the corresponding SENSE_OUT or SENSE_OUT is asserted. Note that a low-leakage type capacitor
(such as ceramic) should be used, and that stray capacitance around this pin may cause errors in the reset delay
time.
8.3.5 Immunity To Sense Pin Voltage Transients
The TPS389x is relatively immune to short negative transients on the SENSE pin. Sensitivity to transients
depends on threshold overdrive, as shown in the typical characteristic graph Minimum Pulse Duration vs
Threshold Overdrive Voltage (图 9).
8.4 Device Functional Modes
8.4.1 Normal Operation (VDD > VDD(min))
When the voltage on VDD is greater than VDD(min), the output corresponds to the voltages on the VDD and
ENABLE pins relative to VIT–.
8.4.2 Below VDD(min) (V(POR) < VDD < VDD(min))
When the voltage on VDD is less than VDD(min) but greater than the power-on reset voltage (V(POR)), the output is
deasserted (VSENSE_OUT is low and VSENSE_OUT is high.
8.4.3
Below Power-On Reset (VDD < V(POR))
When the voltage on VDD is lower than the power-on reset voltage (V(POR)), the output is undefined. Do not rely
on the output for proper device function under this condition.
版权 © 2011–2015, Texas Instruments Incorporated
15
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
9 Applications and Implementation
注
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TPS389x family of devices are very small supervisory circuits that monitor voltages greater than 500 mV and
offer an adjustable delay time using external capacitors. The TPS389x family operates from 1.7 V to 6.5 V and
also has an enable pin to power on/off the output. Orderable options include versions with either push-pull or
open-drain outputs as well as versions that use active-high or active-low logic for the output and enable signals.
9.2 Typical Applications
9.2.1 Single-Rail Monitoring
The TPS3895P can be used to monitor the supply rail for devices such as digital signal processors (DSPs),
central processing units (CPUs), or field-programmable gate arrays (FPGAs). The downstream device is enabled
by the TPS3895P once the voltage on the SENSE pin (VSENSE) is above the threshold voltage (VIT+) set by the
resistor divider. The downstream device is disabled by the TPS3895P when VSENSE is falls below the threshold
voltage minus the hysteresis voltage (VIT+ – Vhys).
If active low inputs or outputs are needed, replace the TPS3895P devices with TPS3896P devices. 图 23 shows
the TPS3895P in a typical application.
Microprocessor
I/O
3.3 V
0.1 mF
VCC
ENABLE
R1
(1)
VCC
ENABLE
SENSE_OUT
DSP,
CPU,
or
FPGA
TPS3895A
CT
SENSE
R2
GND
See
Note
(2)
GND
(1)
ENABLE can also be driven with a separate 1.5-V or greater power supply.
(2)
Capacitor is optional. If a capacitor is not used, leave the CT pin open for a 40-µs delay.
图 23. TPS3895 Typical Application
9.2.1.1 Design Requirements
The TPS3895P must drive the enable pin of devices using a logic-high signal to signify that the supply voltage is
above the minimum operating voltage of the device.
9.2.1.2 Detailed Design Procedure
Select R1 and R2 so the voltage at SENSE (VSENSE) is above the positive-going threshold voltage (VIT+) at the
supply voltage required for proper device operation (that is, proper operation of the DSP, CPU, FPGA, and so
on). Also, ensure that the current that flows from the supply voltage to ground through the resistor divider is at
least 100 times larger than the input current (ISENSE).
16
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Typical Applications (接
接下页)
If an output delay time is required, connect a capacitor from CT to GND; see the Output Delay Time Pin (CT)
section for more information. If no CT cap is connected, the delay time is 40 µs.
9.2.1.3 Application Curve
VENABLE
2V/div
VSENSE_OUT
2V/div
Time (200ns/div)
图 24. Enable Power On and Power Off Delay (TPS3895P)
9.2.2 Multiple Voltage Monitoring Sequential Delay
Multiple TPS3895As can be used to monitor multiple supply rails with a single output signifying whether or not all
rails are above the respective thresholds. Some applications may need a minimum total delay time that is the
sum of all the delay times of the supply monitor. To achieve this configuration, connect the output of one
TPS3895A to the ENABLE pin of the next TPS3895A, and repeat until the last TPS3895A is connected to the
device that receives the final Wired-AND signal. The downstream device receives a signal from the last
TPS3895A once VSENSE on all SENSE pins is above the VIT+ set by the resistor dividers. The downstream device
is disabled by the last TPS3895A if the voltage on any SENSE pin in the chain falls below (VIT+ – Vhys).
图 25 shows an example of a configuration for dual-supply monitoring; this concept can be expanded for as
many rails as a given application requires.
If active low inputs or outputs are needed, replace the TPS3895A devices with TPS3896A devices.
1.2 V
3.3 V
VCC
ENABLE
SENSE_OUT
TPS3895A
GND
ENABLE
SENSE_OUT
CT
SENSE
VCC2
GPIO
TPS3895A
CT
SENSE
VCC1
VCC
GND
DSP,
CPU,
or
FPGA
GND
图 25. Multiple Voltage Monitoring Using ENABLE Pin
9.2.2.1 Design Requirements
Two rails must be monitored to ensure that both are above the respective minimum operating voltage for proper
operation pf the device. The TPS3895As must drive a GPIO pin of the final downstream device, and use a logichigh signal to signify that the supply voltages are above the minimum operating voltage of the given device.
版权 © 2011–2015, Texas Instruments Incorporated
17
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
Typical Applications (接
接下页)
9.2.2.2 Detailed Design Procedure
Select the resistor divider of each TPS3895A so the voltage at SENSE (VSENSE) is above the positive-going
threshold voltage (VIT+) at the point where the monitored voltage is required for proper device operation (that is,
proper operation of the DSP, CPU, FPGA, and so on). Also, ensure that the currents that flow from the monitored
voltage to ground through the resistor dividers are at least 100 times larger than the input current (ISENSE).
If an output delay time is required for any of the TPS3895As, connect a capacitor from the CT pin of that
TPS3895A to GND; see the Output Delay Time Pin (CT) section for more information. If no CT caps are
connected, the delay time is 40 µs for each TPS3895A in the chain. Because each of the ENABLE pins is tied to
the TPS3895A preceding it (other than the first), at a minimum the total delay time is the sum of all the delay
times set by the CT pins in the design.
9.2.2.3 Application Curve
CCT = open
VENABLE
2V/div
VSENSE_OUT
2V/div
Time (50ms/div)
图 26. Enable Power On and Power Off Delay (TPS3895A)
9.2.3 Multiple Voltage Monitoring Minimum Delay
Multiple TPS3897Ps can be used to monitor multiple supply rails with a single output that signals if all rails are
above the respective thresholds. Some applications may need a minimum total delay time that is equal to the
delay time of only the final supply monitor to power up. To achieve this configuration, connect the outputs of all
the TPS3897Ps to the device that must receive the final Wired-AND signal and connect that same node to the
appropriate logic-high voltage via a resistor. The downstream device receives a signal once VSENSE on all
SENSE pins are above the VIT+ set by the resistor dividers. The downstream device is disabled if the voltage on
any SENSE pin falls below (VIT+ – Vhys).
See 图 27 for an example of a configuration for dual-supply monitoring. This concept can be expanded for as
many rails as a given application requires.
If active low inputs/outputs are required, replace the TPS3897P devices with TPS3898P devices.
18
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Typical Applications (接
接下页)
5V
3.3 V
RP
VCC
ENABLE
SENSE_OUT
TPS3897P
CT
SENSE
VCC1
VCC1
GPIO
DSP,
ASIC,
or
FPGA
GND
GND
3.3 V
VCC
ENABLE
SENSE_OUT
TPS3897P
CT
SENSE
GND
图 27. Multiple Voltage Monitoring Using Wired-OR Logic at SENSE_OUT
9.2.3.1 Design Requirements
Two rails must be monitored to ensure that both rails are above the respective minimum operating voltage for
proper operation of the device. The TPS3897Ps must drive a GPIO pin of the final downstream device and use a
logic-high signal to signify that the supply voltages are above the minimum operating voltage of the device.
9.2.3.2 Detailed Design Procedure
Select the resistor divider of each TPS3897P so the voltage at SENSE (VSENSE) is above the positive-going
threshold voltage (VIT+) at the point where the monitored voltage is required for proper device operation (that is,
proper operation of the DSP, CPU, FPGA, and so on). Also, ensure that the currents that flow from the monitored
voltage to ground through the resistor dividers are at least 100 times larger than the input current (ISENSE).
If an output delay time is required for any of the TPS3897Ps, connect a capacitor from the CT pin of that
TPS3897P to GND; see the Output Delay Time Pin (CT) section for more information. If no CT caps are
connected, the delay time is 40 µs.
Determine the logic-high voltage by selecting the voltage that the pullup resistor (denoted RP in 图 29) is
connected to. Select RP so that current that flows to ground allows for a low-level output voltage that is low
enough for the specific application. See the Output Pin (SENSE_OUT) section for more information.
版权 © 2011–2015, Texas Instruments Incorporated
19
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
Typical Applications (接
接下页)
9.2.3.3 Application Curves
1.6
VCC = 1.7 V
1.4
1.2
VOL (V)
1
0.8
VCC = 6.5 V
0.6
0.4
VCC = 3.3 V
0.2
0
0.5
1
1.5
2
2.5 3 3.5 4 4.5
Output Sink Current (mA)
5
5.5
6
G010
图 28. Output Voltage Low vs Output Current
9.2.4 Voltage Sequencing
TPS3895As can be used to implement voltage rail sequencing by connecting a resistor divider and the SENSE
pin of a TPS3895A to the first rail to be monitored, and then feeding the output from the first TPS3895A to the
ENABLE pin of the next voltage rail. The downstream voltage rail is enabled by the TPS3895A once the voltage
on the SENSE pin (VSENSE) is above the threshold voltage (VIT+) set by the resistor divider. This process can be
repeated for as many rails as the application requires. The downstream voltage rail is disabled by the TPS3895A
when VSENSE falls below the threshold voltage minus the hysteresis voltage (VIT+ – Vhys).
If active low inputs/outputs are required, replace the TPS3895A devices with TPS3896A devices.
See 图 29 for an example for a system with four voltage rails that must sequence the three LDOs.
20
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
Typical Applications (接
接下页)
5V
Microprocessor
I/O
IN
3.3 V
EN
3.3 V
OUT
LDO
VCC
SENSE
ENABLE
TPS3895A
CT
GND
SENSE_OUT
5V
IN
3.0 V
EN
3.0 V
OUT
LDO
VCC
SENSE
ENABLE
TPS3895A
CT
GND
SENSE_OUT
IN
1.8 V
EN
1.8 V
OUT
LDO
图 29. Voltage Sequencing (5 V → 3.3 V → 3 V → 1.8 V)
9.2.4.1 Design Requirements
Three rails must be sequenced to ensure proper start-up sequencing. The TPS3895As must drive the ENABLE
pins of each LDO, and use a logic-high signal to signify that the supply preceding it is above the desired
operating voltage for that rail. The ENABLE pin of the TPS3895As must be controlled by a microprocessor to
allow it to be shut down even when the rails are above the threshold.
9.2.4.2 Detailed Design Procedure
Select the resistor divider of each TPS3895A so the voltage at SENSE (VSENSE) is above the positive-going
threshold voltage (VIT+) at the point where the monitored voltage is required for proper device operation (that is,
proper operation of the DSP, CPU, FPGA, and so on). Also, ensure that the currents that flow from the monitored
voltage to ground through the resistor dividers are at least 100 times larger than the input current (ISENSE).
If an output delay time is required for any of the TPS3895As, connect a capacitor from the CT pin of that
TPS3895A to GND; see the Output Delay Time Pin (CT) section for more information. If no CT caps are
connected, the delay time is 40 µs for each TPS3895A in the chain. Because each of the ENABLE pins is tied to
the TPS3895A that precedes it (other than the first device in the chain), at a minimum the total delay time is the
sum of all the delay times set by the CT pins.
版权 © 2011–2015, Texas Instruments Incorporated
21
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
Typical Applications (接
接下页)
9.2.4.3 Application Curve
196
SENSE_OUT Delay (ms)
195
VCC = 3.3 V
194
193
192
VCC = 1.7 V
191
190
189
188
VCC = 6.5 V
187
186
−40 −25 −10
5
20 35 50 65
Temperature (°C)
80
95
110 125
G003
图 30. SENSE_OUT Time-out Period vs Temperature (CCT = 47 nF)
22
版权 © 2011–2015, Texas Instruments Incorporated
TPS389
www.ti.com.cn
ZHCS329B – JULY 2011 – REVISED APRIL 2015
10 Power Supply Recommendations
These devices are designed to operate from an input supply with a voltage range from 1.7 V to 6.5 V. Though
not required, it is good analog design practice to place a 0.1-μF ceramic capacitor close to the VCC pin.
11 Layout
11.1 Layout Guidelines
Follow these guidelines to lay out the printed-circuit-board (PCB) that is used for the TPS389x family of devices.
• Place the VCC decoupling capacitor close to the device.
• Avoid using long traces for the VCC supply node. The VCC capacitor (CVCC), along with parasitic inductance
from the supply to the capacitor, can form an LC tank and create ringing with peak voltages above the
maximum VCC voltage.
11.2 Layout Example
Enable
Signal
Input
Supply
TPS3897P
CVCC
1
6
2
5
CCT
3
4
R2
SENSE_OUT
Flag
R1
Monitored
Supply
RP
Pullup
Voltage
图 31. TPS3897P Layout Example (DRY Package)
版权 © 2011–2015, Texas Instruments Incorporated
23
TPS389
ZHCS329B – JULY 2011 – REVISED APRIL 2015
www.ti.com.cn
12 器件和文档支持
12.1 器件支持
12.1.1 开发支持
12.1.1.1 评估模块
评估模块 (EVM) 可与 TPS389x 配套使用，帮助评估初始电路性能。 TPS3897A-6P-EVM047 评估模块（和相关的
用户指南）可在德州仪器 (TI) 网站上的产品文件夹中获取，也可直接从 TI 网上商店购买。
12.1.1.2 Spice 模型
分析模拟电路和系统的性能时，使用 SPICE 模型对电路性能进行计算机仿真非常有用。 您可以从产品文件夹中的
工具和软件下获取 TPS389x 的 SPICE 模型。
12.1.2 器件命名规则
表 3. 器件命名规则
产品
TPS389wxyyyz
说明
w 为输出配置（请参见Device Comparison Table）
x 为使能引脚的不同延迟（请参见Device Comparison Table）
yyy 为封装标识符
z 为封装数量
12.2 文档支持
12.2.1 相关文档
•
•
《为开漏输出选择合适的上拉/下拉电阻》，SLVA485
《TPS3897A-6P-EVM047 用户指南》，SLVU524
12.3 商标
All trademarks are the property of their respective owners.
12.4 静电放电警告
这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损
伤。
12.5 术语表
SLYZ022 — TI 术语表。
这份术语表列出并解释术语、首字母缩略词和定义。
13 机械、封装和可订购信息
以下页中包括机械、封装和可订购信息。 这些信息是针对指定器件可提供的最新数据。 这些数据会在无通知且不
对本文档进行修订的情况下发生改变。 欲获得该数据表的浏览器版本，请查阅左侧的导航栏。
24
版权 © 2011–2015, Texas Instruments Incorporated
PACKAGE OPTION ADDENDUM
www.ti.com
25-May-2022
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
TPS3895ADRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UN
Samples
TPS3895ADRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UN
Samples
TPS3895PDRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UO
Samples
TPS3895PDRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UO
Samples
TPS3896ADRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UJ
Samples
TPS3896ADRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UJ
Samples
TPS3896PDRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UK
Samples
TPS3896PDRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UK
Samples
TPS3897ADRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
Call TI | NIPDAUAG
| NIPDAU
Level-1-260C-UNLIM
-40 to 125
UL
Samples
TPS3897ADRYT
ACTIVE
SON
DRY
6
250
RoHS & Green NIPDAU | NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
UL
Samples
TPS3897PDRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green NIPDAU | NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
UM
Samples
TPS3897PDRYT
ACTIVE
SON
DRY
6
250
RoHS & Green NIPDAU | NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
UM
Samples
TPS3898ADRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UH
Samples
TPS3898ADRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UH
Samples
TPS3898PDRYR
ACTIVE
SON
DRY
6
5000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UI
Samples
TPS3898PDRYT
ACTIVE
SON
DRY
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
UI
Samples
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
25-May-2022
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
