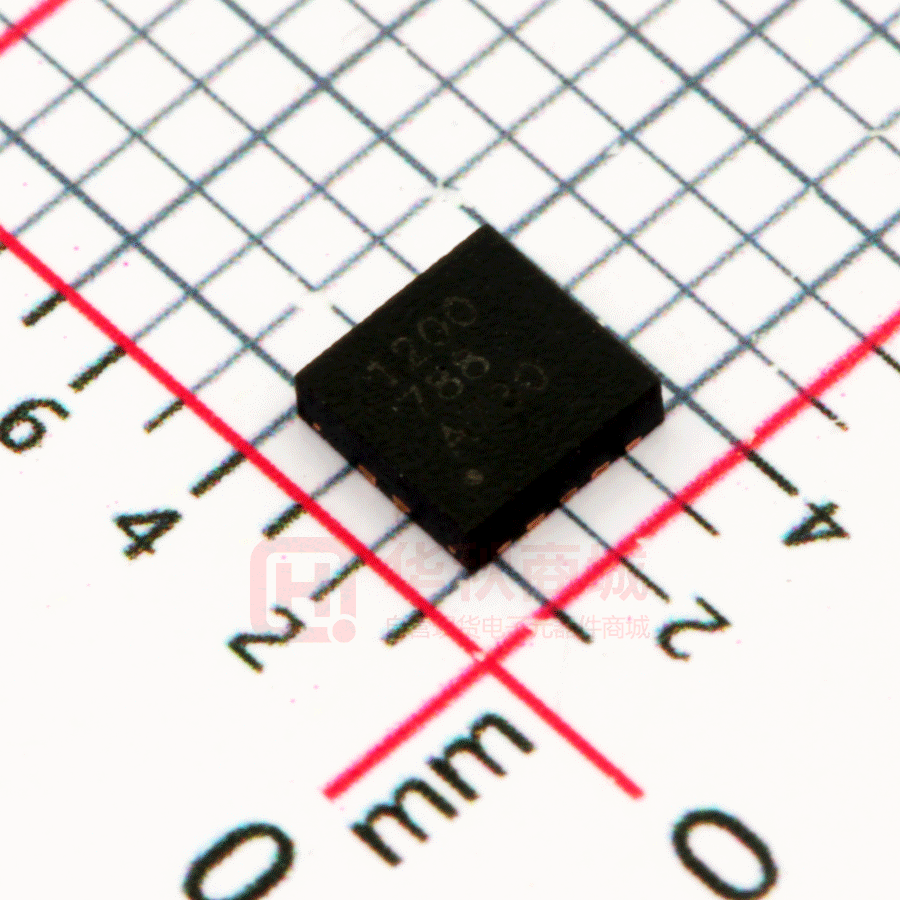

TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
TPS51200 Sink and Source DDR Termination Regulator
1 Features
3 Description
•
•
•
The TPS51200 device is a sink and source double
data rate (DDR) termination regulator specifically
designed for low input voltage, low-cost, low-noise
systems where space is a key consideration.
1
•
•
•
•
•
•
•
•
•
•
Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
VLDOIN Voltage Range: 1.1 V to 3.5 V
Sink and Source Termination Regulator Includes
Droop Compensation
Requires Minimum Output Capacitance of 20-μF
(Typically 3 × 10-μF MLCCs) for Memory
Termination Applications (DDR)
PGOOD to Monitor Output Regulation
EN Input
REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
Remote Sensing (VOSNS)
±10-mA Buffered Reference (REFOUT)
Built-in Soft Start, UVLO, and OCL
Thermal Shutdown
Supports DDR, DDR2, DDR3, DDR3L, LowPower DDR3, and DDR4 VTT Applications
10-Pin VSON Package With Thermal Pad
The TPS51200 maintains a fast transient response
and requires a minimum output capacitance of only
20 μF. The TPS51200 supports a remote sensing
function and all power requirements for DDR, DDR2,
DDR3, DDR3L, Low-Power DDR3 and DDR4 VTT
bus termination.
In addition, the TPS51200 provides an open-drain
PGOOD signal to monitor the output regulation and
an EN signal that can be used to discharge VTT
during S3 (suspend to RAM) for DDR applications.
The TPS51200 is available in the thermally efficient
10-pin VSON thermal pad package, and is rated both
Green and Pb-free. It is specified from –40°C to
+85°C.
Device Information(1)
PART NUMBER
PACKAGE
2 Applications
•
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
•
•
•
•
•
•
Memory Termination Regulator for DDR, DDR2,
DDR3, DDR3L, Low-Power DDR3 and DDR4
Notebooks, Desktops, and Servers
Telecom and Datacom
Base Stations
LCD-TVs and PDP-TVs
Copiers and Printers
Set-Top Boxes
VSON (10)
BODY SIZE (NOM)
TPS51200
3.00 mm × 3.00 mm
Simplified DDR Application
VDDQ
1
REFIN
VIN 10
3.3 VIN
TPS51200
PGOOD
VLDOIN
2
VLDOIN PGOOD
9
VTT
3
VO
GND
8
4
PGND
EN
7
SLP_S3
5
VOSNS REFOUT
6
VTTREF
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
5
6.1
6.2
6.3
6.4
6.5
6.6
5
5
5
5
6
8
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 11
7.1
7.2
7.3
7.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
11
11
11
17
8
Application and Implementation ........................ 18
8.1 Application Information............................................ 18
8.2 Typical Application ................................................. 18
8.3 System Examples ................................................... 21
9 Power Supply Recommendations...................... 27
10 Layout................................................................... 27
10.1 Layout Guidelines ................................................. 27
10.2 Layout Example .................................................... 28
10.3 Thermal Design Considerations............................ 28
11 Device and Documentation Support ................. 30
11.1
11.2
11.3
11.4
11.5
11.6
Device Support......................................................
Documentation Support .......................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
30
30
30
30
30
30
12 Mechanical, Packaging, and Orderable
Information ........................................................... 30
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision C (November 2016) to Revision D
•
Page
Added "keep total REFOUT capacitance below 0.47 μF" in Pin Functions table ................................................................. 4
Changes from Revision B (September 2016) to Revision C
Page
•
Added references to DDR3L DRAM technology throughout .................................................................................................. 1
•
Added DDR3L test conditions to Output DC voltage, VO and REFOUT specification .......................................................... 6
•
Added Figure 4 ....................................................................................................................................................................... 8
•
Added Figure 9 ....................................................................................................................................................................... 9
•
Updated Figure 16 to include DDR3L data .......................................................................................................................... 10
Changes from Revision A (September 2015) to Revision B
Page
•
Changed " –10 mA < IREFOUT < 10 mA" to "–1 mA < IREFOUT < 1 mA" in all test conditions for the REFOUT voltage
tolerance to VREFIN specification ............................................................................................................................................. 7
•
Changed all MIN and MAX values from "15" to "12" for all test conditions for the REFOUT voltage tolerance to
VREFIN specification ................................................................................................................................................................. 7
•
Updated Figure 19 ............................................................................................................................................................... 12
•
Added REFOUT (VREF) Consideration for DDR2 Applications section................................................................................. 16
•
Updated Figure 28 and Table 3............................................................................................................................................ 21
•
Added clarity to Layout Guidelines section. ......................................................................................................................... 27
Changes from Original (February 2008) to Revision A
Page
•
Added Pin Configuration and Functions section, ESD Rating table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section. .............................. 1
•
Changed “PowerPAD” references to “thermal pad” throughout ............................................................................................. 4
2
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
•
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Deleted Dissipation Ratings table .......................................................................................................................................... 5
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
3
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
5 Pin Configuration and Functions
DRC Package
10-Pin VSON
Top View
REFIN 1
10 VIN
VLDOIN 2
9 PGOOD
VO 3
PGND 4
Thermal
Pad
VOSNS 5
8
GND
7
EN
6
REFOUT
Pin Functions
PIN
NAME
NO.
I/O (1)
DESCRIPTION
EN
7
I
For DDR VTT application, connect EN to SLP_S3. For any other application, use the EN pin as the ON/OFF
function.
GND
8
G
Signal ground.
PGND (2)
4
G
Power ground for the LDO.
PGOOD
9
O
Open-drain, power-good indicator.
REFIN
1
I
Reference input.
REFOUT
6
O
Reference output. Connect to GND through 0.1-μF ceramic capacitor. If there is a REFOUT capacitors at DDR
side, keep total capacitance on REFOUT pin below 0.47 μF. The REFOUT pin can not be open.
VIN
10
I
2.5-V or 3.3-V power supply. A ceramic decoupling capacitor with a value between 1-μF and 4.7-μF is required.
VLDOIN
2
I
Supply voltage for the LDO.
VO
3
O
Power output for the LDO.
VOSNS
5
I
Voltage sense input for the LDO. Connect to positive terminal of the output capacitor or the load.
(1)
(2)
4
I = Input, O = Output , G = Ground
Thermal pad connection. See Figure 35 in the Thermal Design Considerations section for additional information.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1)
MIN
MAX
REFIN, VIN, VLDOIN, VOSNS
–0.3
3.6
EN
–0.3
6.5
PGND to GND
–0.3
0.3
REFOUT, VO
–0.3
3.6
PGOOD
–0.3
6.5
Operating junction temperature, TJ
–40
150
°C
Storage temperature, Tstg
–55
150
°C
Input voltage (2)
Output voltage (2)
(1)
(2)
UNIT
V
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to the network ground terminal unless otherwise noted.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
UNIT
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
V
±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
Supply voltages
VIN
EN, VLDOIN, VOSNS
REFIN
Voltage
MAX
UNIT
2.375
NOM
3.500
V
–0.1
3.5
0.5
1.8
PGOOD, VO
–0.1
3.5
REFOUT
–0.1
1.8
PGND
–0.1
0.1
–40
85
Operating free-air temperature, TA
V
°C
6.4 Thermal Information
TPS51200
THERMAL METRIC (1)
DRC (VSON)
UNIT
10 PINS
RθJA
Junction-to-ambient thermal resistance
55.6
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
84.6
°C/W
RθJB
Junction-to-board thermal resistance
30.0
°C/W
ψJT
Junction-to-top characterization parameter
5.5
°C/W
ψJB
Junction-to-board characterization parameter
30.1
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
10.9
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
5
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
6.5 Electrical Characteristics
Over recommended free-air temperature range, VVIN = 3.3 V, VVLDOIN = 1.8 V, VREFIN = 0.9 V, VVOSNS = 0.9 V, VEN = VVIN, COUT
= 3 × 10 μF and circuit shown in Figure 24. (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
TA = 25 °C, VEN = 3.3 V, No Load
0.7
1
TA = 25 °C, VEN = 0 V, VREFIN = 0,
No Load
65
80
200
400
1
50
μA
0.1
50
μA
1
μA
15
mV
15
mV
15
mV
15
mV
–15
15
mV
SUPPLY CURRENT
IIN
Supply current
IIN(SDN)
Shutdown current
μA
TA = 25 °C, VEN = 0 V, VREFIN > 0.4 V, No
Load
ILDOIN
Supply current of VLDOIN
TA = 25 °C, VEN = 3.3 V, No Load
ILDOIN(SDN)
Shutdown current of VLDOIN
TA = 25 °C, VEN = 0 V, No Load
mA
INPUT CURRENT
IREFIN
Input current, REFIN
VEN = 3.3 V
VO OUTPUT
VREFOUT = 1.25 V (DDR1), IO = 0 A
VREFOUT = 0.9 V (DDR2), IO = 0 A
VVOSNS
Output DC voltage, VO
VREFOUT = 0.75 V (DDR3), IO = 0 A
VREFOUT = 0.675 V (DDR3L), IO = 0 A
VREFOUT = 0.6 V (DDR4), IO = 0 A
VVOTOL
1.25
–15
V
0.9
–15
V
0.75
–15
V
0.675
–15
V
0.6
V
Output voltage tolerance to REFOUT
–2 A < IVO < 2 A
–25
25
mV
IVOSRCL
VO source current Limit
With reference to REFOUT,
VOSNS = 90% × VREFOUT
3
4.5
A
IVOSNCL
VO sink current Limit
With reference to REFOUT,
VOSNS = 110% × VREFOUT
3.5
5.5
A
IDSCHRG
Discharge current, VO
VREFIN = 0 V, VVO = 0.3 V, VEN = 0 V, TA
= 25°C
18
25
Ω
POWERGOOD COMPARATOR
VTH(PG)
VO PGOOD threshold
PGOOD window lower threshold with
respect to REFOUT
–23.5%
–20%
–17.5%
PGOOD window upper threshold with
respect to REFOUT
17.5%
20%
23.5%
PGOOD hysteresis
tPGSTUPDLY
PGOOD start-up delay
Start-up rising edge, VOSNS within 15%
of REFOUT
VPGOODLOW
Output low voltage
ISINK = 4 mA
tPBADDLY
PGOOD bad delay
VOSNS is outside of the ±20% PGOOD
window
IPGOODLK
Leakage current (1)
VOSNS = VREFIN (PGOOD high
impedance), VPGOOD = VVIN + 0.2 V
5%
2
ms
0.4
10
V
μs
1
μA
REFIN AND REFOUT
VREFIN
REFIN voltage range
VREFINUVLO
REFIN undervoltage lockout
VREFINUVHYS
REFIN undervoltage lockout
hysteresis
VREFOUT
REFOUT voltage
(1)
6
0.5
REFIN rising
360
390
20
REFIN
1.8
V
420
mV
mV
V
Ensured by design. Not production tested.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Electrical Characteristics (continued)
Over recommended free-air temperature range, VVIN = 3.3 V, VVLDOIN = 1.8 V, VREFIN = 0.9 V, VVOSNS = 0.9 V, VEN = VVIN, COUT
= 3 × 10 μF and circuit shown in Figure 24. (unless otherwise noted)
PARAMETER
VREFOUTTOL
REFOUT voltage tolerance to VREFIN
TEST CONDITIONS
MIN
TYP
MAX
–1 mA < IREFOUT < 1 mA,
VREFIN = 1.25 V
–12
12
–1 mA < IREFOUT < 1 mA,
VREFIN = 0.9 V
–12
12
–1 mA < IREFOUT < 1 mA,
VREFIN = 0.75 V
–12
12
–1 mA < IREFOUT < 1 mA,
VREFIN = 0.675 V
–12
12
–1 mA < IREFOUT < 1 mA,
VREFIN = 0.6 V
–12
12
UNIT
mV
IREFOUTSRCL
REFOUT source current limit
VREFOUT = 0 V
10
40
mA
IREFOUTSNCL
REFOUT sink current limit
VREFOUT = 0 V
10
40
mA
Wake up, TA = 25°C
2.2
2.3
UVLO AND EN LOGIC THRESHOLD
VVINUVVIN
UVLO threshold
VENIH
High-level input voltage
Enable
VENIL
Low-level input voltage
Enable
VENYST
Hysteresis voltage
Enable
IENLEAK
Logic input leakage current
EN, TA = 25°C
Hysteresis
2.375
50
V
mV
1.7
0.3
V
1
μA
0.5
–1
THERMAL SHUTDOWN
TSON
Thermal shutdown threshold (1)
Shutdown temperature
Hysteresis
150
25
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
°C
7
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
6.6 Typical Characteristics
3 × 10-µF MLCCs (0805) are used on the output
1.3
± 40°C
0°C
25°C
85°C
1.26
TA
± 40°C
0°C
25°C
85°C
930
Output Voltage (mV)
1.28
Output Voltage (V)
940
TA
1.24
1.22
1.2
920
910
900
890
880
1.18
870
±3
±2
±1
0
1
Output Current (A)
2
VVIN = 3.3 V
3
±3
±1
0
1
Output Current (A)
±2
DDR
2
VVIN = 3.3 V
Figure 1. Load Regulation
DDR2
Figure 2. Load Regulation
720
790
TA
780
700
Output Voltage (mV)
Output Voltage (mV)
760
TA
±40°C
0°C
25°C
85°C
710
± 40°C
0°C
25°C
85°C
770
750
740
730
720
690
680
670
660
650
710
700
640
±3
±2
±1
0
1
Output Current (A)
2
VVIN = 3.3 V
±3
3
±2
670
Output Voltage (V)
Output Voltage (mV)
1.15
1.1
1.05
TA
1
570
± 40°C
0°C
25°C
85°C
0.95
550
0.9
±1
0
1
Output Current (A)
VVIN = 3.3 V
DDR3L
1.2
590
±2
3
1.25
610
±3
2
1.3
± 40°C
0°C
25°C
85°C
630
0
1
Output Current (A)
Figure 4. Load Regulation
TA
650
±1
VVIN = 3.3 V
DDR3
Figure 3. Load Regulation
2
3
±3
LP DDR3 or DDR4
Figure 5. Load Regulation
8
3
±2
±1
0
1
Output Current (A)
VVIN = 2.5 V
2
3
DDR
Figure 6. Load Regulation
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Typical Characteristics (continued)
1
800
0.95
825
Output Voltage (mV)
Output Voltage (V)
3 × 10-µF MLCCs (0805) are used on the output
0.9
0.85
0.8
TA
± 40°C
0°C
25°C
85°C
0.75
0.8
±3
±2
TA
± 40°C
0°C
25°C
85°C
750
725
700
675
650
±1
0
1
Output Current (A)
2
VVIN = 2.5 V
3
±3
DDR2
±2
2
VVIN = 2.5 V
Figure 7. Load Regulation
3
DDR3
Figure 8. Load Regulation
750
720
TA
±40°C
0°C
25°C
85°C
700
690
TA
± 40°C
0°C
25°C
85°C
700
Output Voltage (mV)
710
Output Voltage (mV)
±1
0
1
Output Current (A)
680
670
660
650
640
650
600
550
630
620
±3
±2
±1
0
1
Output Current (A)
VVIN = 2.5 V
500
3
2
±3
DDR3L
±2
VVIN = 2.5 V
Figure 9. Load Regulation
1.255
3
LP DDR3 or DDR4
905
TA
± 40°C
25°C
85°C
TA
± 40°C
25°C
85°C
904
Output Voltage (mV)
1.253
Output Voltage (V)
2
Figure 10. Load Regulation
1.254
1.252
1.251
1.25
1.249
1.248
1.247
±15
±1
0
1
Output Current (A)
903
902
901
900
899
898
±10
±5
0
5
REFOUT Output Current (mA)
10
15
897
±15
±10
±5
0
5
REFOUT Output Current (mA)
10
DDR
Figure 11. REFOUT Load Regulation
DDR2
Figure 12. REFOUT Load Regulation
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
15
9
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
Typical Characteristics (continued)
3 × 10-µF MLCCs (0805) are used on the output
680
755
TA
678
Output Voltage (mV)
Output Voltage (mV)
753
752
751
750
749
677
676
675
674
673
748
747
±15
TA
±40°C
25°C
85°C
679
± 40°C
25°C
85°C
754
672
±10
±5
0
5
REFOUT Output Current (mA)
10
-15
15
-10
15
-5
0
5
10
REFOUT Output Current (mA)
DDR3L
DDR3
Figure 14. REFOUT Load Regulation
Figure 13. REFOUT Load Regulation
605
± 40°C
25°C
85°C
603
1.2
DROPOUT Voltage (V)
604
Output Voltage (mV)
1.4
TA
602
601
600
599
1
0.8
0.6
0.2
598
597
±15
VOUT (V)
0.6
0.675
0.75
0.9
1.25
0.4
0
±10
±5
0
5
REFOUT Output Current (mA)
10
15
0
0.5
1
2
2.5
1.5
Output Current (A)
3
3.5
LP DDR3 or DDR4
50
40
60
200
150
50
150
40
100
0
10
±50
0
±10
Gain
Phase
±20
±30
1k
10 k
100 k
Frequency (Hz)
1M
Phase (°)
50
20
100
30
Phase (°)
30
Gain (dB)
Figure 16. DROPOUT Voltage vs. Output Current
200
0
10
±50
0
±100
±10
±150
±20
±200
10 M
50
20
±100
Gain
Phase
±30
1k
DDR2
Figure 17. Bode Plot
10
Gain (dB)
Figure 15. REFOUT Load Regulation
60
10 k
±150
100 k
Frequency (Hz)
1M
±200
10 M
DDR3
Figure 18. Bode Plot
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
7 Detailed Description
7.1 Overview
The TPS51200 device is a sink and source double data rate (DDR) termination regulator specifically designed for
low input voltage, low-cost, low-noise systems where space is a key consideration.
The device maintains a fast transient response and only requires a minimum output capacitance of 20 μF. The
device supports a remote sensing function and all power requirements for DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, and DDR4 VTT bus termination.
7.2 Functional Block Diagram
REFIN
+
1
2.3 V
VIN 10
VOSNS
2
VLDOIN
6
REFOUT
3
VO
4
PGND
9
PGOOD
UVLO
+
Gm
DchgREF
5
+
7
GND
8
ENVTT
DchgVTT
Gm
REFINOK
+
+
+
EN
Start-up
Delay
+
Copyright © 2016, Texas Instruments Incorporated
7.3 Feature Description
7.3.1 Sink and Source Regulator (VO Pin)
The TPS51200 is a sink and source tracking termination regulator specifically designed for low input voltage,
low-cost, and low external component count systems where space is a key application parameter. The device
integrates a high-performance, low-dropout (LDO) linear regulator that is capable of both sourcing and sinking
current. The LDO regulator employs a fast feedback loop so that small ceramic capacitors can be used to
support the fast load transient response. To achieve tight regulation with minimum effect of trace resistance,
connect a remote sensing terminal, VOSNS, to the positive terminal of each output capacitor as a separate trace
from the high current path from VO.
7.3.2 Reference Input (REFIN Pin)
The output voltage, VO, is regulated to REFOUT. When REFIN is configured for standard DDR termination
applications, REFIN can be set by an external equivalent ratio voltage divider connected to the memory supply
bus (VDDQ). The TPS51200 device supports REFIN voltages from 0.5 V to 1.8 V, making it versatile and ideal
for many types of low-power LDO applications.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
11
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
Feature Description (continued)
7.3.3 Reference Output (REFOUT Pin)
When it is configured for DDR termination applications, REFOUT generates the DDR VTT reference voltage for
the memory application. It is capable of supporting both a sourcing and sinking load of 10 mA. REFOUT
becomes active when REFIN voltage rises to 0.390 V and VIN is above the UVLO threshold. When REFOUT is
less than 0.375 V, it is disabled and subsequently discharges to GND through an internal 10-kΩ MOSFET.
REFOUT is independent of the EN pin state.
7.3.4 Soft-Start Sequencing
A current clamp implements the soft-start function of the VO pin. The current clamp allows the output capacitors
to be charged with low and constant current, providing a linear ramp-up of the output voltage. When VO is
outside of the powergood window, the current clamp level is one-half of the full overcurrent limit (OCL) level.
When VO rises or falls within the PGOOD window, the current clamp level switches to the full OCL level. The
soft-start function is completely symmetrical and the overcurrent limit works for both directions. The soft-start
function works not only from GND to the REFOUT voltage, but also from VLDOIN to the REFOUT voltage.
7.3.5 Enable Control (EN Pin)
When EN is driven high, the VO regulator begins normal operation. When the device drives EN low, VO
discharges to GND through an internal 18-Ω MOSFET. REFOUT remains on when the device drives EN low.
Ensure that the EN pin voltage remains lower than or equal to VVIN at all times.
7.3.6 Powergood Function (PGOOD Pin)
The TPS51200 device provides an open-drain PGOOD output that goes high when the VO output is within ±20%
of REFOUT. PGOOD de-asserts within 10 μs after the output exceeds the size of the powergood window. During
initial VO start-up, PGOOD asserts high 2 ms (typ) after the VO enters power good window. Because PGOOD is
an open-drain output, a pull-up resistor with a value between 1 kΩ and 100 kΩ, placed between PGOOD and a
stable active supply voltage rail is required.
7.3.7
Current Protection (VO Pin)
The LDO has a constant overcurrent limit (OCL). The OCL level reduces by one-half when the output voltage is
not within the powergood window. This reduction is a non-latch protection.
7.3.8 UVLO Protection (VIN Pin)
For VIN undervoltage lockout (UVLO) protection, the TPS51200 monitors VIN voltage. When the VIN voltage is
lower than the UVLO threshold voltage, both the VO and REFOUT regulators are powered off. This shutdown is
a non-latch protection.
7.3.9 Thermal Shutdown
The TPS51200 monitors junction temperature. If the device junction temperature exceeds the threshold value,
(typically 150°C), the VO and REFOUT regulators both shut off, discharged by the internal discharge MOSFETs.
This shutdown is a non-latch protection.
7.3.10 Tracking Start-up and Shutdown
The TPS51200 also supports tracking start-up and shutdown when the EN pin is tied directly to the system bus
and not used to turn on or turn off the device. During tracking start-up, VO follows REFOUT once REFIN voltage
is greater than 0.39 V. REFIN follows the rise of VDDQ rail through a voltage divider. The typical soft-start time
(tSS) for the VDDQ rail is approximately 3 ms, however it may vary depending on the system configuration. The
soft-start time of the VO output no longer depends on the OCL setting, but it is a function of the soft-start time of
the VDDQ rail. PGOOD is asserted 2 ms after VVO is within ±20% of REFOUT. During tracking shutdown, the VO
pin voltage falls following REFOUT until REFOUT reaches 0.37 V. When REFOUT falls below 0.37 V, the
internal discharge MOSFETs turn on and quickly discharge both REFOUT and VO to GND. PGOOD is
deasserted when VO is beyond the ±20% range of REFOUT. Figure 20 shows the typical timing diagram for an
application that uses tracking start-up and shutdown.
12
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Feature Description (continued)
3.3VIN
VVDDQ = 1.5 V
VLDOIN
REFIN
REFOUT
(VTTREF)
EN
(S3_SLP)
VVO = 0.75 V
tSS .
VO
tSS =
PGOOD
COUT x VO
IOOCL
2 ms
Figure 19. Typical Timing Diagram for S3 and Pseudo-S5 Support
3.3VIN
EN
VLDOIN
REFIN
REFOUT
(VTTREF)
VO
tSS determined
by the SS time
of VLDOIN
VVO = 0.75 V
PGOOD
2 ms
Figure 20. Typical Timing Diagram of Tracking Start-up and Shutdown
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
13
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
Feature Description (continued)
7.3.11 Output Tolerance Consideration for VTT DIMM Applications
The TPS51200 is specifically designed to power up the memory termination rail (as shown in Figure 21). The
DDR memory termination structure determines the main characteristics of the VTT rail, which is to be able to sink
and source current while maintaining acceptable VTT tolerance. See Figure 22 for typical characteristics for a
single memory cell.
Vtt
SPD
DQ
CA
Vdd
Vtt
Vdd
CA
Vdd
DQ
DDR3 240 Pin Socket
VO
TPS51200
10 mF
10 mF
10 mF
UDG-08022
Figure 21. Typical Application Diagram for DDR3 VTT DIMM using TPS51200
VDDQ
VTT
Q1
25 W
RS
20 W
Ouput
Buffer
(Driver)
Receiver
Q2
VOUT
VIN
VSS
UDG-08023
Figure 22. DDR Physical Signal System Bi-Directional SSTL Signaling
In Figure 22, when Q1 is on and Q2 is off:
• Current flows from VDDQ via the termination resistor to VTT
• VTT sinks current
In Figure 22, when Q2 is on and Q1 is off:
• Current flows from VTT via the termination resistor to GND
• VTT sources current
14
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Feature Description (continued)
Because VTT accuracy has a direct impact on the memory signal integrity, it is imperative to understand the
tolerance requirement on VTT. Equation 1 applies to both DC and AC conditions and is based on JEDEC VTT
specifications for DDR and DDR2 (JEDEC standard: DDR JESD8-9B May 2002; DDR2 JESD8-15A Sept 2003).
VVTTREF – 40 mV < VVTT < VVTTREF + 40 mV
(1)
The specification itself indicates that VTT must keep track of VTTREF for proper signal conditioning.
The TPS51200 ensures the regulator output voltage to be as shown in Equation 2, which applies to both DC and
AC conditions.
VVTTREF –25 mV < VVTT < VVTTREF + 25 mV
where
•
–2 A < IVTT < 2 A
(2)
The regulator output voltage is measured at the regulator side, not the load side. The tolerance is applicable to
DDR, DDR2, DDR3, DDR3L, Low Power DDR3, and DDR4 applications (see Table 1 for detailed information).
To meet the stability requirement, a minimum output capacitance of 20 μF is needed. Considering the actual
tolerance on the MLCC capacitors, three 10-μF ceramic capacitors sufficiently meet the VTT accuracy
requirement.
Table 1. DDR, DDR2, DDR3 and LP DDR3 Termination Technology
DDR
DDR2
FSB Data
Rates
200, 266, 333, and 400 MHz
400, 533, 677, and 800 MHz
800, 1066, 1330, and 1600 MHz
Termination
Motherboard termination to
VTT for all signals
On-die termination for data
group. VTT termination for
address, command and
control signals
On-die termination for data group. VTT termination for
address, command and control signals
Not as demanding
Not as demanding
Termination
Current
Demand
Voltage Level
Only 34 signals (address,
command, control) tied to
Maximum source/sink
transient currents of up to 2.6 VTT
A to 2.9 A
ODT handles data signals
2.5-V Core and
I/O 1.25-V VTT
DR3
LOW POWER DDR3
Only 34 signals (address, command, control) tied to VTT
ODT handles data signals
Less than 1-A of burst
current
Less than 1-A of burst current
1.8-V Core and
I/O 0.9-V VTT
1.5-V Core and
I/O 0.75-V VTT
1.2-V Core and
I/O 0.6-V VTT
The TPS51200 uses transconductance (gM) to drive the LDO. The transconductance and output current of the
device determine the voltage droop between the reference input and the output regulator. The typical
transconductance level is 250 S at 2 A and changes with respect to the load in order to conserve the quiescent
current (that is, the transconductance is very low at no load condition). The (gM) LDO regulator is a single pole
system. Only the output capacitance determines the unity gain bandwidth for the voltage loop, as a result of the
bandwidth nature of the transconductance (see Equation 3).
gM
ƒUGBW =
2 ´ p ´ COUT
where
•
•
•
ƒUGBW is the unity gain bandwidth
gM is transconductance
COUT is the output capacitance
(3)
Consider these two limitations to this type of regulator that come from the output bulk capacitor requirement. In
order to maintain stability, the zero location contributed by the ESR of the output capacitors must be greater than
the –3-dB point of the current loop. This constraint means that higher ESR capacitors should not be used in the
design. In addition, the impedance characteristics of the ceramic capacitor should be well understood in order to
prevent the gain peaking effect around the transconductance (gM) –3-dB point because of the large ESL, the
output capacitor and parasitic inductance of the VO pin voltage trace.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
15
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
7.3.12 REFOUT (VREF) Consideration for DDR2 Applications
During TPS51200 tracking start-up, the REFIN voltage follows the rise of the VDDQ rail through a voltage
divider, and REFOUT (VREF) follows REFIN once the REFIN voltage is greater than 0.39 V. When the REFIN
voltage is lower than 0.39 V, VREF is 0 V.
The JEDEC DDR2 SDRAM Standard (JESD79-2E) states that VREF must track VDDQ/2 within ±0.3 V accuracy
during the start-up period. To allow the TPS51200
device to meet the JEDEC DDR2 specification, a resistor divider can be used to provide the VREF signal to the
DIMM. The resistor divider ratio is 0.5 to ensure that the VREF voltage equals VDDQ/2.
VVDDQ
DDR
RREF
VREF
RREF
Figure 23. Resistor Divider Circuit
When selecting the resistor value, consider the impact of the leakage current from the DIMM VREF pin on the
reference voltage. Use Equation 4 to calculate resistor values.
R REF Q
2 × ¿VREF
IREF
where
•
•
•
RREF is the resistor value
∆VREF is the VREF DC variation requirement
IREF is the maximum total VREF leakage current from DIMMs
(4)
Consider the MT47H64M16 DDR2 SDRAM component from Micron as an example. The MT47H64M16
datasheet shows the maximum VREF leakage current of each DIMM is ±2 µA, and VREF(DC) variation must be
within ±1% of VDDQ. In this DDR2 application, the VDDQ voltage is 1.8 V. Assuming one TPS51200 device
needs to power 4 DIMMs, the maximum total VREF leakage current is ±8 µA. Based on the calculations, the
resistor value should be lower than 4.5 kΩ. To ensure sufficient margin, 100 Ω is the suggested resistor value.
With two 100-Ω resistors, the maximum VREF variation is 0.4 mV, and the power loss on each resistor is 8.1 mW.
16
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
7.4 Device Functional Modes
7.4.1 Low Input Voltage Applications
TPS51200 can be used in an application system that offers either a 2.5-V rail or a 3.3-V rail. If only a 5-V rail is
available, consider using the TPS51100 device as an alternative. The TPS51200 device has a minimum input
voltage requirement of 2.375 V. If a 2.5-V rail is used, ensure that the absolute minimum voltage (both DC and
transient) at the device pin is be 2.375 V or greater. The voltage tolerance for a 2.5-V rail input is between –5%
and 5% accuracy, or better.
7.4.2 S3 and Pseudo-S5 Support
The TPS51200 provides S3 support by an EN function. The EN pin could be connected to an SLP_S3 signal in
the end application. Both REFOUT and VO are on when EN = high (S0 state). REFOUT is maintained while VO
is turned off and discharged via an internal discharge MOSFET when EN = low (S3 state). When EN = low and
the REFIN voltage is less than 0.390 V, TPS51200 enters pseudo-S5 state. Both VO and REFOUT outputs are
turned off and discharged to GND through internal MOSFETs when pseudo-S5 support is engaged (S4 or S5
state). Figure 19 shows a typical start-up and shutdown timing diagram for an application that uses S3 and
pseudo-S5 support.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
17
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
8.2 Typical Application
This design example describes a 3.3-VIN, DDR3 configuration.
R1
10 kW
TPS51200
1
VVDDQ = 1.5 V
R2
10 kW
VVLDOIN = VVDDQ = 1.5 V
C7
10 mF
C2
10 mF
3.3 VIN
R3
100 kW
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
5
VOSNS REFOUT
6
C6
4.7 mF
PGOOD
C8
10 mF
VVTT = 0.75 V
C1
10 mF
VIN 10
REFIN
C4
1000 pF
C3
10 mF
SLP_S3
VTTREF
C5
0.1 mF
UDG-08029
Figure 24. 3.3-VIN, DDR3 Configuration
Table 2. 3.3-VIN, DDR3 Application List of Materials
REFERENCE
DESIGNATOR
R1, R2
DESCRIPTION
Resistor
R3
C1, C2, C3
PART NUMBER
MANUFACTURER
GRM21BR70J106KE76L
Murata
10 kΩ
100 kΩ
10 μF, 6.3 V
C4
C5
SPECIFICATION
1000 pF
Capacitor
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
18
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
8.2.1 Design Requirements
• VIN = 3.3 V
• VDDDQ = 1.5 V
• VVLDOIN = VVDDQ = 1.5 V
• VVTT = 0.75 V
8.2.2 Detailed Design Procedure
8.2.2.1 Input Voltage Capacitor
Add a ceramic capacitor, with a value between 1.0-μF and 4.7-μF, placed close to the VIN pin, to stabilize the
bias supply (2.5-V rail or 3.3-V rail) from any parasitic impedance from the supply.
8.2.2.2 VLDO Input Capacitor
Depending on the trace impedance between the VLDOIN bulk power supply to the device, a transient increase of
source current is supplied mostly by the charge from the VLDOIN input capacitor. Use a 10-μF (or greater)
ceramic capacitor to supply this transient charge. Provide more input capacitance as more output capacitance is
used at the VO pin. In general, use one-half of the COUT value for input.
8.2.2.3 Output Capacitor
For stable operation, the total capacitance of the VO output pin must be greater than 20 μF. Attach three, 10-μF
ceramic capacitors in parallel to minimize the effect of equivalent series resistance (ESR) and equivalent series
inductance (ESL). If the ESR is greater than 2 mΩ, insert an RC filter between the output and the VOSNS input
to achieve loop stability. The RC filter time constant should be almost the same as or slightly lower than the time
constant of the output capacitor and its ESR.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
19
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
8.2.3 Application Curves
Figure 25 shows the bode plot simulation for this DDR3 design example of the TPS51200 device.
The unity-gain bandwidth is approximately 1 MHz and the phase margin is 52°. The 0-dB level is crossed, the
gain peaks because of the ESL effect. However, the peaking maintains a level well below 0 dB.
0
40
±90
0
±180
Gain (dB)
80
Phase (°)
Figure 26 shows the load regulation and Figure 27 shows the transient response for a typical DDR3
configuration. When the regulator is subjected to ±1.5-A load step and release, the output voltage measurement
shows no difference between the dc and ac conditions.
±270
±40
Gain
Phase
±80
1
10
100
1000
10 k
100 k
1M
10 M
±360
100 M
Frequency (Hz)
VIN = 3.3 V
IIO = 2 A
VVLDOIN = 1.5 V
3 × 10-μF capacitors
VVO = 0.75 V
ESR = 2.5 mΩ
ESL = 800 pH
Figure 25. DDR3 Design Example Bode Plot
790
TA
780
± 40°C
0°C
25°C
85°C
Output Voltage (mV)
770
760
750
740
730
720
710
700
±3
±2
±1
0
1
Output Current (A)
VVIN = 3.3 V
2
3
DDR3
Figure 26. Load Regulation
20
Figure 27. Transient Waveform
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
8.3 System Examples
8.3.1 3.3-VIN, DDR2 Configuration
This section describes a 3.3-VIN, DDR2 configuration application.
R1
10 k:
TPS51200
1
VVDDQ = 1.8 V
R2
10 k:
C7
10 PF
VVTT = 0.9 V
C2
10 PF
VIN 10
3.3 VIN
R3
100 k:
2
VVLDOIN = VVDDQ = 1.8 V
C1
10 PF
REFIN
C4
1000 pF
C3
10 PF
VLDOIN PGOOD
C6
4.7 PF
PGOOD
9
C8
10 PF
VVDDQ = 1.8 V
3
VO
GND
8
4
PGND
EN
7
5
VOSNS REFOUT
6
SLP_S3
R4
100 Ÿ
VTTREF
R5
100 Ÿ
C5
0.1 PF
Figure 28. 3.3-VIN, DDR2 Configuration
Table 3. 3.3-VIN, DDR2 Configuration List of Materials
REFERENCE
DESIGNATOR
DESCRIPTION
R1, R2
R3
SPECIFICATION
MANUFACTURER
GRM21BR70J106KE76L
Murata
10 kΩ
Resistor
100 kΩ
R4, R5
100 Ω
C1, C2, C3
10 μF, 6.3 V
C4
C5
PART NUMBER
1000 pF
Capacitor
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
21
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
8.3.2 2.5-VIN, DDR3 Configuration
This design example describes a 2.5-VIN, DDR3 configuration application.
R1
10 kW
TPS51200
1
VVDDQ = 1.5 V
R2
10 kW
VVLDOIN = VVDDQ = 1.5 V
C7
10 mF
C2
10 mF
2.5 VIN
R3
100 kW
C6
4.7 mF
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
SLP_S3
5
VOSNS REFOUT
6
VTTREF
PGOOD
C8
10 mF
VVTT = 0.75 V
C1
10 mF
VIN 10
REFIN
C4
1000 pF
C3
10 mF
C5
0.1 mF
UDG-08030
Figure 29. 2.5-VIN, DDR3 Configuration
Table 4. 2.5-VIN, DDR3 Configuration List of Materials
REFERENCE
DESIGNATOR
R1, R2
DESCRIPTION
Resistor
R3
C1, C2, C3
PART NUMBER
MANUFACTURER
GRM21BR70J106KE76L
Murata
10 kΩ
100 kΩ
10 μF, 6.3 V
C4
C5
SPECIFICATION
1000 pF
Capacitor
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
22
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
8.3.3 3.3-VIN, LP DDR3 or DDR4 Configuration
This example describes a 3.3-VIN, LP DDR3 or DDR4 configuration application.
R1
10 kW
TPS51200
1
VVDDQ = 1.2 V
R2
10 kW
VVLDOIN = VVDDQ = 1.2 V
C7
10 mF
C2
10 mF
3.3 VIN
R3
100 kW
C6
4.7 mF
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
SLP_S3
5
VOSNS REFOUT
6
VTTREF
PGOOD
C8
10 mF
VVTT = 0.6 V
C1
10 mF
VIN 10
REFIN
C4
1000 pF
C3
10 mF
C5
0.1 mF
UDG-08031
Figure 30. 3.3-VIN, LP DDR3 or DDR4 Configuration
Table 5. 3.3-VIN, LP DDR3 or DDR4 Configuration
REFERENCE
DESIGNATOR
R1, R2
R3
DESCRIPTION
Resistor
C1, C2, C3
PART NUMBER
MANUFACTURER
GRM21BR70J106KE76L
Murata
10 kΩ
100 kΩ
10 μF, 6.3 V
C4
C5
SPECIFICATION
1000 pF
Capacitor
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
23
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
8.3.4 3.3-VIN, DDR3 Tracking Configuration
This design example describes a 3.3-VIN, DDR3 tracking configuration application.
R1
10 kW
TPS51200
1
VVDDQ = 1.5 V
R2
10 kW
VVLDOIN = VVDDQ = 1.5 V
C7
10 mF
C2
10 mF
VIN 10
3.3 VIN
R3
100 kW
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
5
VOSNS REFOUT
6
C6
4.7 mF
PGOOD
C8
10 mF
VVTT = 0.75 V
C1
10 mF
REFIN
C4
1000 pF
C3
10 mF
VTTREF
C5
0.1 mF
UDG-08032
Figure 31. 3.3-VIN, DDR3 Tracking Configuration
Table 6. 3.3-VIN, DDR3 Tracking Configuration List of Materials
REFERENCE
DESIGNATOR
R1, R2
DESCRIPTION
Resistor
R3
SPECIFICATION
GRM21BR70J106KE76L
Murata
100 kΩ
10 μF, 6.3 V
C4
1000 pF
Capacitor
MANUFACTURER
10 kΩ
C1, C2, C3
C5
PART NUMBER
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
24
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
8.3.5 3.3-VIN, LDO Configuration
This example describes a 3.3-VIN, LDO configuration application.
R1
3.86 k:
TPS51200
2.5 V
1
R2
10 k:
VVLDOIN = VVLDOREF = 2.5 V
C7
10 PF
C2
10 PF
VIN 10
3.3 VIN
R3
100 k:
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
5
VOSNS REFOUT
6
C6
4.7 PF
PGOOD
C8
10 PF
VVLDO = 1.8 V
C1
10 PF
REFIN
C4
1000 pF
C3
10 PF
ENABLE
REFOUT
C5
0.1 PF
UDG-08033
Figure 32. 3.3-VIN, LDO Configuration
Table 7. 3.3-VIN, LDO Configuration List of Materials
REFERENCE
DESIGNATOR
DESCRIPTION
R1
R2
SPECIFICATION
MANUFACTURER
GRM21BR70J106KE76L
Murata
3.86 kΩ
Resistor
10 kΩ
R3
100 kΩ
C1, C2, C3
10 μF, 6.3 V
C4
1000 pF
C5
PART NUMBER
Capacitor
0.1 μF
C6
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
C7, C8
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
25
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
8.3.6 3.3-VIN, DDR3 Configuration with LFP
This design example describes a 3.3-VIN, DDR3 configuration with LFP application.
R1
10 kW
TPS51200
1
VVDDQ = 1.5 V
R2
10 kW
VIN 10
REFIN
C4
1000 pF
R3
100 kW
VVLDOIN = VVDDQ = 1.5 V
C7
10 mF
3.3 VIN
C6
4.7 mF
2
VLDOIN PGOOD
9
3
VO
GND
8
4
PGND
EN
7
SLP_S3
5
VOSNS REFOUT
6
VTTREF
PGOOD
C8
10 mF
VVTT = 0.75 V
R4(1)
C1
10 mF
C2
10 mF
C3
10 mF
C5
0.1 mF
C9(1)
UDG-08034
Figure 33. 3.3-VIN, DDR3 Configuration with LFP
Table 8. 3.3-VIN, DDR3 Configuration with LFP List of Materials
REFERENCE
DESIGNATOR
DESCRIPTION
R1, R2
SPECIFICATION
PART NUMBER
MANUFACTURER
GRM21BR70J106KE76L
Murata
4.7 μF, 6.3 V
GRM21BR60J475KA11L
Murata
10 μF, 6.3 V
GRM21BR70J106KE76L
Murata
10 kΩ
R3
Resistor
100 kΩ
R4 (1)
C1, C2, C3
10 μF, 6.3 V
C4
1000 pF
C5
Capacitor
C6
C7, C8
0.1 μF
C9 (1)
(1)
26
Choose values for R4 and C9 to reduce the parasitic effect of the trace (between VO and the output MLCCs) and the output capacitors
(ESR and ESL).
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
9 Power Supply Recommendations
This device is designed to operate from an input bias voltage from 2.375 V to 3.5 V, with LDO input from 1.1 V to
3.5 V. Refer to Figure 19 and Figure 20 for recommended power-up sequence. Maintain a EN voltage equal or
lower than VVIN at all times. VLDOIN can ramp up earlier than VIN if the sequence in Figure 19 and Figure 20
cannot be used. The input supplies should be well regulated. VLDOIN decoupling capacitance
of 2 × 10 µF is recommended, and VIN decoupling capacitance of 1 × 4.7 µF is recommended.
10 Layout
10.1 Layout Guidelines
Consider the following points before starting the TPS51200 device layout design.
• Place the input capacitors as close to VDLOIN pin as possible with short and wide connection.
• Place the output capacitor as close to VO pin as possible with short and wide connection. Place a ceramic
capacitor with a value of at least 10-µF as close to VO pin if the rest of output capacitors need to be placed
on the load side.
• Connect the VOSNS pin to the positive node of output capacitors as a separate trace. In DDR VTT
application, connect the VO sense trace to DIMM side to ensure the VTT voltage at DIMM side is well
regulated.
• Consider adding low-pass filter at VOSNS if the VO sense trace is very long.
• Connect the GND pin and PGND pin to the thermal pad directly.
• TPS51200 uses its thermal pad to dissipate heat. In order to effectively remove heat fromTPS51200 package,
place numerous ground vias on the thermal pad. Use large ground copper plane, especially the copper plane
on surface layer, to pour over those vias on thermal pad.
• Consult the TPS51200EVM User's Guide (SLUU323) for detailed layout recommendations.
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
27
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
10.2 Layout Example
VDDQ Trace
VIN Trace
To
GND
Plane
VLDOIN
GND
PGOOD Trace
EN Trace
VTT Sense Trace,
terminate near the load
VTT
Figure 34. Layout Recommendation
10.3 Thermal Design Considerations
Because the TPS51200 is a linear regulator, the VO current flows in both source and sink directions, thereby
dissipating power from the device. When the device is sourcing current, the voltage difference shown in
Equation 5 calculates the power dissipation.
PD _ SRC = (VVLDOIN - VVO ) ´ IO _ SRC
(5)
In this case, if the VLDOIN pin is connected to an alternative power supply lower than the VDDQ voltage, overall
power loss can be reduced. During the sink phase, the device applies the VO voltage across the internal LDO
regulator. Equation 6 calculates he power dissipation, PD_SNK can be calculated by .
PD _ SNK = VVO ´ ISNK
(6)
Because the device does not sink and source current at the same time and the I/O current may vary rapidly with
time, the actual power dissipation should be the time average of the above dissipations over the thermal
relaxation duration of the system. The current used for the internal current control circuitry from the VIN supply
and the VLDOIN supply are other sources of power consumption. This power can be estimated as 5 mW or less
during normal operating conditions and must be effectively dissipated from the package.
28
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
TPS51200
www.ti.com
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
Thermal Design Considerations (continued)
Maximum power dissipation allowed by the package is calculated by Equation 7.
TJ(max) - TA(max)
PPKG =
qJA
where
•
•
•
TJ(max) is 125°C
TA(max) is the maximum ambient temperature in the system
θJA is the thermal resistance from junction to ambient
(7)
NOTE
Because Equation 7 demonstrates the effects of heat spreading in the ground plane, use it
as a guideline only. Do not use Equation 7 to estimate actual thermal performance in real
application environments.
In an application where the device is mounted on PCB, TI strongly recommends using ψJT and ψJB, as explained
in the section pertaining to estimating junction temperature in the Semiconductor and IC Package Thermal
Metrics application report, SPRA953. Using the thermal metrics ψJT and ψJB, as shown in the Thermal
Information table, estimate the junction temperature with corresponding formulas shown in Equation 8. The older
θJC top parameter specification is listed as well for the convenience of backward compatibility.
TJ = TT + Y JT ´ PD
(8)
TJ = TB + Y JB ´ PD
where
•
•
•
PD is the power dissipation shown in Equation 5 and Equation 6
TT is the temperature at the center-top of the IC package
TB is the PCB temperature measured 1-mm away from the thermal pad package on the PCB surface (see
Figure 36).
(9)
NOTE
Both TT and TB can be measured on actual application boards using a thermo-gun (an
infrared thermometer). For more information about measuring TT and TB, see the
application report Using New Thermal Metrics (SBVA025).
.
TT on top of package
Land Pad
3 mm x 1.9 mm
TB on PCB surface
Exposed Thermal
Die Pad,
2.48 mm x 1.74 mm
1 mm
UDG-08018
Figure 35. Recommended Land Pad Pattern
Figure 36. Package Thermal Measurement
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
29
TPS51200
SLUS812D – FEBRUARY 2008 – REVISED FEBRUARY 2020
www.ti.com
11 Device and Documentation Support
11.1 Device Support
11.1.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
11.1.2 Development Support
11.1.2.1 Evaluation Modules
An evaluation module (EVM) is available to assist in the initial circuit performance evaluation using the
TPS51200 device. The TPS51200EVM evaluation module and related user's guide (SLUU323) can be requested
at the Texas Instruments website through the product folders or purchased directly from the TI eStore.
11.1.2.2 Spice Models
Computer simulation of circuit performance using SPICE is often useful when analyzing the performance of
analog circuits and systems. A SPICE model for the TPS51200 device is available here.
11.2 Documentation Support
11.2.1 Related Documentation
• Using New Thermal Metrics, SBVA025
• Semiconductor and IC Package Thermal Metrics, SPRA953
• Using the TPS51200 EVM Sink/Source DDR Termination Regulator, SLUU323
• For more information on the TPS51100 device, see the product folder on ti.com.
11.3 Community Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
11.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
30
Submit Documentation Feedback
Copyright © 2008–2020, Texas Instruments Incorporated
Product Folder Links: TPS51200
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS51200DRCR
ACTIVE
VSON
DRC
10
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
1200
TPS51200DRCRG4
ACTIVE
VSON
DRC
10
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
1200
TPS51200DRCT
ACTIVE
VSON
DRC
10
250
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
1200
TPS51200DRCTG4
ACTIVE
VSON
DRC
10
250
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
1200
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
