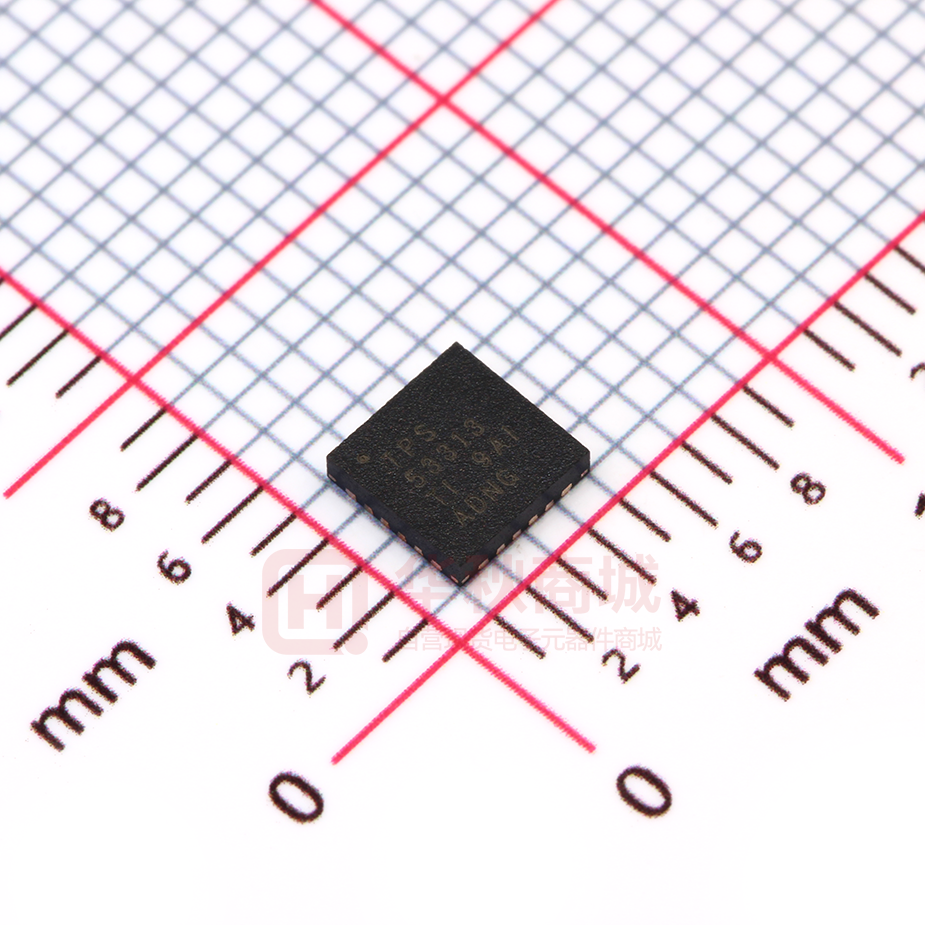

TPS53313RGER

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 TPS53313 6-A Step-Down Regulator With Integrated Switcher 1 Features 2 Applications • • • • 1 • • • • • • • • • • • • • • • • 4.5-V to 16-V Conversion Voltage Range Adjustable Output Voltage Ranging from 0.6 V to 0.7 × VIN Continuous 6-A Output Current Supports All MLCC Output Capacitors Selectable SKIP Mode or Forced CCM Selectable Soft-Start Time (1 ms, 3 ms, or 6 ms) Selectable 4-5 A, 6-A or 9-A Peak Current Limit Optimized Efficiency at Light and Heavy Loads Voltage Mode Control Programmable Switching Frequency from 250 kHz to 1.5 MHz Synchronizes to External Clock RDS(on) Sensing for Zero Crossing Detection and Overcurrent Protection Soft-Stop Output Discharge During Disable Overcurrent, Overvoltage, and Undervoltage Protection With Hiccup Overtemperature Protection Open-Drain, Power Good Indication Internal Bootstrap Switch 4 mm × 4 mm, 24-Pin VQFN Package POL Applications for 5-V 12-V Step-Down Rails 3 Description TPS53313 provides a 5-V or 12-V synchronous buck converter that integrates two N-Channel MOSFETs. Due to low RDS(on) and TI proprietary SmoothPWM™ skip mode of operation, it optimizes the efficiency at light-load condition without compromising the output voltage ripple. The TPS53313 features programmable (from 250 kHz to 1.5 MHz) switching frequency with selectable skip mode or forced CCM mode operation. The device provides prebiased startup, soft-stop, integrated bootstrap switch, power good function, and EN/input UVLO protection. It supports input voltages from 4.5 V to 16 V and no extra bias voltage is needed. The output voltage is adjustable from 0.6 V up to 0.7 × VIN. The TPS53313 is available in a 4 mm × 4 mm, 24-pin VQFN package (Green RoHs compliant and Pb free) and operates from –40°C to 85°C. Device Information(1) PART NUMBER TPS53313 PACKAGE VQFN (24) BODY SIZE (NOM) 4.00 mm × 4.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Typical Application Circuit Output All MLCCs VIN VOUT BP7 VIN CBST SW VIN VBST BP3 AGND EN TPS53313 PG PGOOD EN RT/SYNC FB MODE/SS PowerPad COMP PGND UDG-11254 Copyright © 2016, Texas Instruments Incorporated 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 5 6.1 6.2 6.3 6.4 6.5 6.6 5 5 5 6 6 8 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Typical Characteristics .............................................. Detailed Description ............................................ 10 7.1 Overview ................................................................. 10 7.2 Functional Block Diagram ....................................... 10 7.3 Feature Description................................................. 10 7.4 Device Functional Modes........................................ 12 8 Application and Implementation ........................ 14 8.1 Application Information............................................ 14 8.2 Typical Application .................................................. 14 9 Power Supply Recommendations...................... 20 10 Layout................................................................... 20 10.1 Layout Guidelines ................................................. 20 10.2 Layout Example .................................................... 20 11 Device and Documentation Support ................. 21 11.1 11.2 11.3 11.4 11.5 Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 21 21 21 21 21 12 Mechanical, Packaging, and Orderable Information ........................................................... 21 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (December 2011) to Revision A Page • Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .................................................................................................. 1 • Deleted Ordering Information table; see POA at the end of the data sheet........................................................................... 1 2 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 5 Pin Configuration and Functions FB COMP MODE/SS RT/SYNC AGND BP3 24 23 22 21 20 19 RGE Package 24-Pin VQFN Top View EN 1 18 BP7 PG 2 17 VBST VIN 3 16 SW VIN 4 15 SW VIN 5 14 SW VIN 6 13 SW 7 8 9 10 11 12 PGND PGND PGND PGND PGND PGND EP Not to scale Pin Functions PIN NO. NAME TYPE (1) DESCRIPTION 1 EN I Enable pin 2 PG O Power good output flag. Open drain output. Pull up to an external rail through a resistor. 3 VIN P Gate driver supply and power conversion voltage 4 VIN P Gate driver supply and power conversion voltage 5 VIN P Gate driver supply and power conversion voltage 6 VIN P Gate driver supply and power conversion voltage 7 PGND P Device power ground terminal 8 PGND P Device power ground terminal 9 PGND P Device power ground terminal 10 PGND P Device power ground terminal 11 PGND P Device power ground terminal 12 PGND P Device power ground terminal 13 SW O Output inductor connection to integrated power devices 14 SW O Output inductor connection to integrated power devices 15 SW O Output inductor connection to integrated power devices 16 SW O Output inductor connection to integrated power devices 17 VBST P Supply input for high-side MOSFET (bootstrap terminal). Connect capacitor from this pin to SW terminal. 18 BP7 P Bias for internal circuitry and driver 19 BP3 P Input bias supply for analog functions 20 AGND G Device analog ground terminal 21 RT/SYNC I/O Synchronized to external clock. Program the switching frequency by connecting with a resistor to GND. (1) B = Bidirectional, G = Ground, I = Input, O = Output, P = Supply Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 3 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com Pin Functions (continued) PIN NO. NAME TYPE (1) DESCRIPTION 22 MODE/SS I Mode configuration pin. Connect with a resistor to GND sets different modes and soft-start time, parallel a capacitor (or no capacitor) with the resistor changes the current limit threshold. Shorting MODE/SS pin to supply inhibits the device; shorting MODE/SS pin to AGND is equivalent to 10-kΩ resistor setting is not recommended (see Table 1 and Table 2 for resistor and capacitor settings). 23 COMP O Error amplifier compensation terminal. Type III compensation method is generally recommended for stability. 24 FB I Voltage feedback pin. Use for OVP, UVP, and power good determination 4 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) (2) (3) Input voltage MIN MAX VIN –0.3 20 VBST –0.3 27 VBST to SW –0.3 7 DC –2 20 transient < 20 ns –3 20 SW (bidirectional) V VVIN ≥ 17 –0.3 17 VVIN < 17 –0.3 VVIN + 0.1 FB, MODE/SS –0.3 3.6 COMP, RT/SYNC, BP3 –0.3 3.6 BP7 –0.3 7 PGD –0.3 17 –0.3 0.3 EN Output voltage UNIT Ground pin (GND) Output current V V 6 A Operating temperature, TJ –40 150 °C Storage temperature, Tstg –55 150 °C (1) (2) (3) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values are with respect to the network ground terminal unless otherwise noted. Voltage values are with respect to the corresponding LL terminal. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2000 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±500 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) (2) VIN (main supply) Input voltage Output voltage MIN MAX 4.5 16 VBST –0.1 22 VBST to SW –0.1 6.5 dc –1 18 transient < 20 ns –2 18 EN –0.1 VVIN + 0.1 FB, MODE/SS –0.1 3.5 COMP, RT/SYNC, BP3 –0.1 3.5 BP7 –0.1 6.5 PGD SW (bidirectional) UNIT V V –0.1 14 Ground pin (GND) –0.1 0.1 V TA Ambient temperature –40 85 °C TJ Junction temperature –40 125 °C (1) (2) Voltage values are with respect to the corresponding LL terminal. All voltage values are with respect to the network ground terminal unless otherwise noted. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 5 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 6.4 Thermal Information TPS53313 THERMAL METRIC (1) RGE (VQFN) UNIT 24 PINS RθJA Junction-to-ambient thermal resistance 44.1 °C/W RθJC(top) RθJB Junction-to-case (top) thermal resistance 35 °C/W Junction-to-board thermal resistance 19 °C/W ψJT Junction-to-top characterization parameter 0.5 °C/W ψJB Junction-to-board characterization parameter 18.8 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 8.9 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics over operating free-air temperature range, VVIN = 12 V, PGND = GND (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX 4.23 4.4 UNIT INPUT SUPPLY VVIN VIN supply voltage Nominal input voltage range VPOR VIN POR threshold Ramp up, EN = HIGH VPOR(hys) VIN POR hysteresis ISTBY Standby current RBOOT Bootstrap on-resistance VVREF Internal precision reference voltage TOLVREF VREF tolerance 4.5 4 EN = LOW, VIN = 12 V 16 V V 200 mV 58 µA 10 Ω 0.6 V REFERENCE –1% 1% ERROR AMPLIFIER UGBW (1) Unity gain bandwidth 14 AOL (1) Open loop gain 80 IFBINT FB input leakage current IEA(max) SR (1) Sourced from FB pin MHz dB 50 nA Output sinking and sourcing current 5 mA Slew rate 5 V/µs ENABLE RENPD (1) Enable pulldown resistor VENH EN logic high VVIN = 4.5 V VENHYS EN hysteresis VVIN = 4.5 V IEN EN pin current 800 kΩ 1.8 V 0.6 VEN = 0 V V 1 VEN = 3.3 V 3.3 5 VEN = 14 V 17.8 27.5 EN = High 0.65 µA SOFT-START tSS_1 Delay after EN asserts tSS_2 Soft start ramp_up time tPGDENDLY (1) 6 PGD startup delay time 0 V ≤ VSS ≤ 0.6 V, 39-kΩ or no resistor to MODE/SS pin 1 0 V ≤ VSS ≤ 0.6 V, 20-kΩ or 160-kΩ resistor to MODE/SS pin 3 0 V ≤ VSS ≤ 0.6 V, 10-kΩ or 82-kΩ resistor to MODE/SS pin 6 VSS = 0.6 V to PGD (SSOK) going high, tSS = 1 ms 0.2 ms ms ms Ensured by design. Not production tested. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 Electrical Characteristics (continued) over operating free-air temperature range, VVIN = 12 V, PGND = GND (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT RAMP Ramp amplitude 4.5 V ≤ VVIN ≤ 14.4 V VVIN/9 14.4 V ≤ VVIN ≤ 16 V 1.6 150 V PWM tMIN(off) Minimum OFF time fSW = 1 MHz tMIN(on) Minimum ON time No load DMAX Maximum duty cycle fSW = 1 MHz ns 90 ns 80% SWITCHING FREQUENCY fSW Switching frequency tolerance fSW = 1 MHz, RT = 45.3 kΩ –10% 10% SOFT DISCHARGE RSFTDIS Soft-discharge transistor resistance EN = Low, VIN = 4.5 V, VOUT = 0.6 V 120 Ω When IOUT exceeds this threshold for 4 consecutive cycles, 2.2-nF capacitor to MODE/SS pin 4.5 A When IOUT exceeds this threshold for 4 consecutive cycles, no capacitor to MODE/SS pin 6 A When IOUT exceeds this threshold for 4 consecutive cycles, 10-nF capacitor to MODE/SS pin 9 OVERCURRENT AND ZERO CROSSING IOCPL IOCPH VZXOFF Overcurrent limit on high-side FET (peak) One time overcurrent shut-off on the low-side FET (peak) Immediately shut down when sensed current reach this value, 2.2-nF capacitor to MODE/SS pin 4.5 A Immediately shut down when sensed current reach this value, no capacitor to MODE/SS pin 6 A Immediately shut down when sensed current reach this value, 10-nF capacitor to MODE/SS pin 9 Zero crossing comparator internal SW – PGND, SKIP mode offset –3 mV POWER GOOD VPGDL Power good low threshold Measured at the FB pin w/r/t VREF 80% 83% 86% VPGDH Power good high threshold Measured at the FB pin w/r/t VREF 114% 117% 120% VPG(hys) Power good hysteresis VIN(min_pg) Minimum Vin voltage for valid PG at startup. Measured at VIN with 1-mA (or 2-mA) sink current on PG pin at startup VPG(pd) Power good pull-down voltage Pull down voltage with 4-mA sink current 0.2 0.4 V IPG(leak) Power good leakage current Hi-Z leakage current, apply 3.3-V in off state 12 16.2 µA 2 1 V OUTPUT OVERVOLTAGE AND UNDERVOLTAGE PROTECTION TOVPDLY Overvoltage protection delay time Time from FB out of +17% of VREF to OVP fault TUVPDLY Undervoltage protection delay time Time from FB out of –17% of VREF to UVP fault 2 µs 10 µs THERMAL SHUTDOWN THSD (1) Thermal shutdown Shutdown controller, attempt soft-stop THSDHYST (1) Thermal shutdown hysteresis Controller restarts after temperature drops 130 140 150 40 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 °C °C 7 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 6.6 Typical Characteristics 16 100 Sourcing Current Sinking Current No Load 12 90 Efficiency (%) Minimum Duty Cycle (%) 14 10 8 6 80 70 60 4 50 2 0 200 400 600 800 1000 1200 Switching Frequency (kHz) 1400 40 1600 0 1 90 90 80 80 Efficiency (%) Efficiency (%) 100 70 60 TA = –40°C TA = 25°C TA = 85°C VIN = 5 V VOUT = 1.2 V 0 1 2 3 4 Load Current (A) 5 40 6 G002 TA = –40°C TA = 25°C TA = 85°C VIN = 14 V VOUT = 1.2 V 0 1 2 G002 3 4 Load Current (A) 5 6 G002 Figure 4. Efficiency, VIN = 14 V 1600 88 1400 87 PGOOD Lower Threshold (%) Switching Frequency (kHz) 6 60 50 1200 1000 800 600 400 200 With Respect to VSEN 86 85 84 83 82 81 80 79 25 50 75 100 125 150 175 Timing Resistance (kΩ) 200 225 250 78 −40 −25 −10 G005 Figure 5. Switching Frequency vs Timing Resistance (RT) 8 5 70 Figure 3. Efficiency, VIN = 5 V 0 3 4 Load Current (A) Figure 2. Efficiency, VIN = 12 V 100 40 2 G001 Figure 1. Ensured Minimum Duty Ratio 50 TA = –40°C TA = 25°C TA = 85°C VIN = 12 V VOUT = 1.2 V Submit Documentation Feedback 5 20 35 50 65 80 Junction Temperature (°C) 95 110 125 G006 Figure 6. PGOOD Lower Threshold vs Junction Temperature Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 Typical Characteristics (continued) 2.0 119 With Respect to VSEN 1.5 118 MODE/SS Leakage (µA) PGOOD Upper Threshold (%) 120 117 116 115 114 113 112 1.0 0.5 0.0 −0.5 −1.0 −1.5 111 110 −40 −25 −10 5 20 35 50 65 80 Junction Temperature (°C) 95 −2.0 −40 −25 −10 110 125 G007 95 110 125 G008 Figure 8. MODE/SS Leakage Current vs Junction Temperature 10 10 9 9 PGOOD Upper Hysteresis (%) PGOOD Lower Hysteresis (%) Figure 7. PGOOD Upper Threshold vs Junction Temperature 5 20 35 50 65 80 Junction Temperature (°C) 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 0 −40 −25 −10 5 20 35 50 65 80 Junction Temperature (°C) 95 110 125 0 −40 −25 −10 G009 Figure 9. PGOOD Lower Hysteresis vs Junction Temperature 5 20 35 50 65 80 Junction Temperature (°C) 95 110 125 G010 Figure 10. PGOOD Upper Hysteresis vs Junction Temperature 340 160−kΩ Resistor to RT/SYNC Pin Switching Frequency (kHz) 330 320 310 300 290 280 270 260 −40 −25 −10 5 20 35 50 65 80 Junction Temperature (°C) 95 110 125 G011 Figure 11. Switching Frequency vs Junction Temperature Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 9 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 7 Detailed Description 7.1 Overview The TPS53313 is a high-efficiency switching regulator with two integrated N-channel MOSFETs and is capable of delivering up to 6 A of load current. The TPS53316 provides output voltage from 0.6 V up to 0.7 × VIN from 4.5-V to 16-V wide input voltage range. The output voltage accuracy is better than ±1% over load, line, and temperature. This device can operate in either forced continuous conduction mode (FCCM) or skip mode with selectable softstart time to fit various application needs. Skip mode operation provides reduced power loss and increases the efficiency at light load. The unique, patented PWM modulator enables smooth light load to heavy load transition while maintaining fast load transient. 7.2 Functional Block Diagram BP3 BP7 VIN TPS53313 LDO LDO VIN UVLO 0.6 V VBST 0.6 V±17% UV/OV Threshold Generation + FB 0.6 V+17% + UV UV OV OV Control Logic HDRV PWM E/A + COMP + 0.6 V Ramp SW + XCON Skip or FCCM PWM VOUT Discharge SS LDRV PGND Osc Enable Control Mode/SS RT/SYNC EN MODE/SS OCP Logic PG AGND UDG-11255 Copyright © 2016, Texas Instruments Incorporated 7.3 Feature Description 7.3.1 Soft-Start Operation The soft-start operation reduces the inrush current during the start-up time. A slow rising reference is generated by the soft-start circuitry and sent to the input of the error amplifier. When the soft-start ramp voltage is less than 600 mV, the error amplifier uses this ramp voltage as the reference. When the ramp voltage reaches 600 mV, a fixed 600-mV reference voltage is used for the error amplifier. The soft-start time has selectable values of 1 ms, 3 ms, and 6 ms. 10 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 Feature Description (continued) 7.3.2 Power Good The TPS53313 monitors the output voltage through the FB pin. If the FB voltage is within 117% and 83% of the reference voltage, the power good signal remains high. If the FB voltage is outside of this range, the PG pin pin is pulled low by the internal open drain output. During start up, the power good signal has a 200-µs delay after the FB voltage falls into the power good range limit when the soft-start time is set to 1 ms. There is also 10-µs delay during shut down. 7.3.3 UVLO Function The TPS53313 provides UVLO protection for input voltage, VIN. If the input voltage is lower than UVLO threshold voltage minus the hysteresis, the device shut off. When the voltage rises above the threshold voltage, the device restarts. The typical UVLO rising threshold is 4.23 V. Hysteresis of 200 mV for input voltage is provided to prevent glitch. 7.3.4 Overcurrent (OC) Protection The TPS53313 provides peak current protection and continuously monitors the current flowing through high-side and low-side MOSFETs. If the current through the high-side FET exceeds the current limit threshold, the highside FET turns off and the low-side FET turns on. An overcurrent (OC) counter starts to increment every switching cycle to count the occurrence of the overcurrent events. The converter shuts down immediately when the OC counter reaches 4. The OC counter resets if the detected current is less than 6 A (with 6-A OC setting) after an OC event. Another set of overcurrent circuitry monitors the current through low-side FET. If the current through the low-side FET exceeds 6 A (with 6-A OC setting), the overcurrent protection is engaged and turns off both high-side and low-side FETs immediately. Therefore, the device is fully protected against overcurrent during both on-time and off-time. Also, the OC threshold is selectable and can be set to 4.5 A, 6 A, or 9 A by connecting different capacitor in parallel with MODE/SS pin. After OC events, the device stops switching and enters hiccup mode. A re-start is attempted after a hiccup waiting time. If the fault condition is not cleared, hiccup mode operation may continue indefinitely 7.3.5 Overvoltage and Undervoltage Protection The TPS53313 monitors the voltage divided feedback voltage to detect the overvoltage and undervoltage conditions. When the feedback voltage is greater than 117% of the reference, overvoltage protection is triggered, the high-side MOSFET turns off and the low-side MOSFET turns on. Then the output voltage drops and the FB voltage reaches the undervoltage threshold. At that point the low-side MOSFET turns off and the device goes into tri-state logic. When the feedback voltage is lower than 83% of the reference voltage, the undervoltage protection counter starts. If the feedback voltage remains lower than the undervoltage threshold voltage after 10 µs, the device turns off both the high-side and low-side MOSFETs and then goes into tri-state logic. After the undervoltage events, the device stops switching and enters hiccup mode. A restart is attempted after a hiccup waiting time. If the fault condition is not cleared, hiccup mode operation may continue indefinitely. 7.3.6 Overtemperature Protection The TPS53313 continuously monitors the die temperature. If the die temperature exceeds the threshold value (140°C typical), the device shuts off. When the device is cooled to 40°C below the overtemperature threshold, it restarts and returns to normal operation. 7.3.7 Output Discharge When the EN pin is low, the TPS53313 discharges the output capacitors through an internal MOSFET switch between SW and GND while the high-side and low-side MOSFETs are maintained in the OFF state. The typical discharge switch on resistance is 120 Ω. This function is disabled when VVIN is less than 1 V. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 11 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com Feature Description (continued) 7.3.8 Switching Frequency Setting and Synchronization The clock frequency is programmed by the value of the resistor connected from the RT/SYNC pin to GND. The switching frequency is programmable between 250 kHz and 1.5 MHz. Also, TPS53313 is able to synchronize to external clock. The synchronization is fulfilled by connecting the RT/SYNC pin to external clock source. If no external pulse is received from RT/SYNC pin, the device continues to operate the internal clock. 7.4 Device Functional Modes 7.4.1 Operation Mode The TPS53313 has 6 operation modes determined by the MODE/SS pin connection as listed in Table 1. The current limit thresholds and associated capacitance selections are shown in Table 2. Table 1. Operation Mode Selection MODE/SS PIN CONNECTION OPERATION MODE tSS SOFT-START TIME (ms) 10 kΩ to GND FCCM 6 20 kΩ to GND FCCM 3 39 kΩ to GND FCCM 1 82 kΩ to GND Skip mode 6 160 kΩ to GND Skip mode 3 Floating Skip mode 1 Table 2. Capacitor Selection MODE/SS PIN SETTING (nF) CURRENT LIMIT THRESHOLD (A) No capacitor 6 2.2 4.5 10 9 In forced continuous conduction mode (FCCM), the high-side FET is ON during the on-time and low-side FET is ON during the off-time. The switching is synchronized to the internal clock thus the switching frequency is fixed. In this mode, the switching frequency remains constant over the entire load range which is suitable for applications that need tight control of switching frequency. In skip mode, the high-side FET is on during the on-time and low-side FET is on during the off-time until the inductor current reaches zero. An internal zero-crossing comparator detects the zero crossing of inductor current from positive to negative. When the inductor current reaches zero, the comparator sends a signal to the logic control and turns off the low-side FET. The on-pulse in skip mode is designed to be 25% higher than CCM to provide hysteresis to avoid chattering between CCM and skip mode. Also, the overcurrent protection threshold can be set to 4.5 A, 6 A or 9 A by changing the capacitor that is in parallel with MODE/SS pin. Specifically, a 6-A current limit threshold is set without an external capacitor, the 4.5 A current limit threshold is set with a 2.2-nF capacitor, and the 9-A current limit threshold is set when a 10-nF capacitor is in parallel with MODE/SS pin. 7.4.2 Light Load Operation In skip mode, when the load current is less than half of inductor ripple current, the inductor current reaches zero by the end of OFF-Time. The light load control scheme then turns off the low-side MOSFET when inductor current reaches zero. Since there is no negative inductor current, the energy delivered to the load per switching cycle is increased compared to the normal PWM mode operation. The controller then reduces the switching frequency to maintain the output voltage regulation. The switching loss is reduced and thus efficiency is improved. 12 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 In skip mode, when the load current decreases, the switching frequency also decreases continuously in discontinuous conduction mode (DCM). When the load current is 0 A, the minimum switching frequency is reached. It is also required that the difference between VVBST and VSW to be higher than 3.3 V to ensure the supply for high-side gate driver. IL(ripple)/2 Output Current Internal Clock PWM, FCCM PWM, Skip Mode No Zero-Crossing for two PWM cycles, and the device enters CCM In Skip mode, the PWM sync to internal clock after entering CCM UDG-11279 Figure 12. TPS53313 Operation Modes in Light and Heavy Load Conditions 7.4.3 Forced Continuous Conduction Mode When choosing FCCM, the TPS53313 is operating in continuous conduction mode in both light and heavy load condition. In this mode, the switching frequency remains constant over the entire load range which is suitable for applications need tight control of switching frequency at a cost of lower efficiency at light load. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 13 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information The TPS53313 device is a high-efficiency synchronous-buck converter. The device suits low output voltage point-of-load applications with 6-A or lower output current in computing and similar digital consumer applications. 8.2 Typical Application This design example describes a voltage-mode, 6-A synchronous buck converter with integrated MOSFETs. The device provides a fixed 1.2-V output at up to 6-A from a 12-V input bus. OPEN= ENABLE 2 1 J1 R1 22.0k R2 51.0k J2 C10 C11 C12 C13 C14 2 22uF 22uF 22uF 22uF 22uF VOUT 2 1 EN PG 4 RT/SYNC PGND AGND PGND BP3 14 13 1 MODE/SS PGND J5 GND 1.2V/6A COMP TPS53313RGE PGND SW 12 U1 PGND R5 10.0k C5 10nF 24 560pF 23 600kHz 22 80.6k R3 21 20 19 BP7 11 10.0k 300 C8 C9 1.0uF 1.0uF 18 9 10 R8 C7 FB VBST GND R4 5.60k 220pF PGND 17 8 C6 PWPD SW 7 VIN 6 VIN 25 3 R7 GND 16 22uF 5 C4 22uF VIN C3 22uF SW C2 1.0uF 15 C1 2 VIN 1 SW VIN 8V - 14V SKIP 6ms SS R14 L1 1.0uH R12 82.0k GND 0 9A OC C15 0.1uF C16 R16 10nF 10.0 R17 TP11 CHB 1.00 C18 1.0nF GND TP12 CHA GND TP13 CONTROL LOOP INJECTION & MEASURING R18 0 Copyright © 2016, Texas Instruments Incorporated Figure 13. Typical Application Schematic 14 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 Typical Application (continued) 8.2.1 Design Requirements This design example illustrates the design process and component selection for a single-output synchronous buck converter using the TPS53313. The design example schematic of a is shown in Figure 13. The specification of the converter is listed in Table 3. Table 3. Design Example Converter Specifications PARAMETER VIN Input voltage VOUT Output voltage VRIPPLE Output ripple IOUT Output current fSW Switching frequency TEST CONDITION MIN TYP MAX UNIT 10.8 12 13.2 V 1.2 IOUT = 6 A V 1% of VOUT V 6 600 A kHz 8.2.2 Detailed Design Procedure 8.2.2.1 Output Inductor Selection The inductance value should be determined to give the ripple current of approximately 20% to 40% of maximum output current. The inductor ripple current is determined by Equation 1. (V - VOUT )´ VOUT 1 IL(ripple) = ´ IN L ´ fSW VIN (1) The inductor also requires a low DCR to achieve good efficiency, as well as enough room above peak inductor current before saturation. 8.2.2.2 Output Capacitor Selection The output capacitor selection is determined by output ripple and transient requirement. When operating in CCM, the output ripple has three components: VRIPPLE = VRIPPLE(C) + VRIPPLE(ESR) + VRIPPLE(ESL) (2) VRIPPLE(C) = IL(ripple) 8 ´ COUT ´ fSW (3) VRIPPLE(ESR) = IL(ripple) ´ ESR VRIPPLE(ESL) (4) V ´ ESL = IN L (5) When ceramic output capacitor is chosen, the ESL component is usually negligible. In the case when multiple output capacitors are used, the total ESR and ESL should be the equivalent of the all output capacitors in parallel. When operating in DCM, the output ripple is dominated by the component determined by capacitance. It also varies with load current and can be expressed as shown in Equation 6. 2 VRIPPLE(DCM) = (a ´ IL(ripple) - IOUT ) 2 ´ fSW ´ COUT ´ IL(ripple) where • a= α is the DCM on-time coefficient and can be expressed as shown in Equation 7. (6) tON(DCM) tON(CCM) (7) Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 15 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com IL VOUT a x IL(ripple) VRIPPLE IOUT T1 axT UDG-11253 Figure 14. DCM Output Voltage Ripple 8.2.2.3 Input Capacitor Selection The selection of input capacitor should be determined by the ripple current requirement. The ripple current generated by the converter needs to be absorbed by the input capacitors as well as the input source. The RMS ripple current from the converter can be expressed as shown in Equation 8. IIN(ripple) = IOUT ´ D ´ (1 - D ) where • D is the duty cycle and can be expressed as shown in Equation 9. (8) V D = OUT VIN (9) To minimize the ripple current drawn from the input source, sufficient input decoupling capacitors should be placed close to the device. The ceramic capacitor is recommended due to its low ESR and low ESL. The input voltage ripple can be calculated as below when the total input capacitance is determined by Equation 10. I ´D VIN(ripple) = OUT fSW ´ CIN (10) 8.2.2.4 Output Voltage Setting Resistors Selection The output voltage is programmed by the voltage-divider resistor, R1 and R2 shown in Equation 11. R1 is connected between VFB pin and the output, and R2 is connected between the VFB pin and GND. Recommended value for R1 is from 1k to 5k. Determine R2 using Equation 11. 0.6 R2 = ´ R1 VOUT - 0.6 (11) 8.2.2.5 Compensation Design The TPS53313 employs voltage mode control. To effectively compensate the power stage and ensure fast transient response, Type III compensation is typically used. 1 + s ´ COUT ´ ESR GCO = 4 ´ æ ö L + COUT ´ (ESR + DCR) ÷ + s2 ´ L ´ COUT 1+ s ´ ç + DCR R LOAD è ø (12) The output LC filter introduces a double pole which can be calculated as shown in Equation 13. 16 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 fDP = 1 2 ´ p ´ L ´ COUT (13) The ESR zero of can be calculated as shown in Equation 14. 1 fESR = 2 ´ p ´ ESR ´ COUT (14) Figure 15 and Figure 16 shows the configuration of Type III compensation and typical pole and zero locations. Equation 15 through Equation 17 describe the compensator transfer function and poles and zeros of the Type III network. (1 + s ´ C1´ (R1 + R3))(1 + s ´ R4 ´ C2 ) GEA = C2 ´ C3 ö (s ´ R1´ (C2 + C3))´ (1 + s ´ C1´ R3 )´ æç 1 + s ´ R4 C2 + C3 ÷ø è (15) 1 fZ1 = 2 ´ p ´ R4 ´ C2 (16) 1 1 fZ2 = @ 2 ´ p ´ (R1 + R3 )´ C1 2 ´ p ´ R1´ C1 (17) C3 C1 C2 R4 R3 COMP VREF R2 Gain (dB) R1 + UGD-11238 fZ1 fZ2 fP2 fP3 Frequency UDG-11237 Figure 15. Type III Compensation Network Schematic Figure 16. Type III Compensation Network Waveform fP1 = 0 (18) 1 2 ´ p ´ R3 ´ C1 1 1 @ fP3 = æ C2 ´ C3 ö 2 ´ p ´ R4 ´ C3 2 ´ p ´ R4 ´ ç ÷ è C2 + C3 ø fP2 = (19) (20) The two zeros can be placed near the double pole frequency to cancel the response from the double pole. One pole can be used to cancel ESR zero, and the other non-zero pole can be placed at half switching frequency to attenuate the high frequency noise and switching ripple. Suitable values can be selected to achieve a compromise between high phase margin and fast response. A phase margin higher than 45° is required for stable operation. For DCM operation, a capacitor with a value between 100 pF and 220 pF is recommended for C3 when the output capacitance is between 22 µF and 220 µF. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 17 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 8.2.3 Application Curves 1.22 85 1.215 VOUT - Output Voltage - V 90 H - Efficiency - % 80 75 70 65 60 VIN = 12 V, fsw = 600 kHz, Skip Mode 55 VIN = 12 V, fsw = 1.00 MHz, Skip Mode 50 VIN = 12 V, fsw = 600 kHz, FCCM Mode VIN = 12 V, fsw = 1.00 MHz, FCCM Mode 45 VIN = 12 V, fsw =600 kHz, Skip Mode VIN = 12 V, fsw = 1.00 MHz, Skip Mode 1.21 VIN = 12 V, fsw = 600 kHz, FCCM Mode 1.205 VIN = 12 V, fsw = 1.00 MHz, FCCM Mode 1.2 1.195 1.19 1.185 40 1.18 0 1 2 3 4 5 6 0 1 2 3 4 ILOAD - Load Current - A ILOAD - Load Current - A Figure 17. Efficiency Figure 18. Load Regulation 5 6 1.22 Skip Mode, fsw = 600 kHz, IOUT = 6 A VOUT - Output Voltage - V 1.215 Skip Mode, fsw = 1.00 MHz, IOUT = 6 A 1.21 FCCM Mode, fsw = 600 kHz, IOUT = 6 A FCCM Mode, fsw = 1.00 MHz, IOUT = 6 A 1.205 1.2 1.195 1.19 1.185 1.18 8 9 10 11 12 13 14 VIN - Input Voltage - V 12-V VIN, 1.2-V VOUT, fSW = 600 kHz Figure 20. Output Load, 0-A to 3-A Transient Under FCCM Mode Figure 19. Line Regulation 12-V VIN, 1.2-V VOUT, fSW = 600 kHz Figure 21. Output Load, 0-A to 3-A Transient Under Skip Mode 18 12-V VIN, 1.2-V VOUT, 6-A IOUT, 1-ms SS Figure 22. Start-Up Waveform Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 12-V VIN, 1.2-V VOUT, 0-A IOUT, 1-ms SS Figure 23. Pre-bias Start-Up Waveform 12-V VIN, 1.2-V VOUT, 0-A IOUT Figure 24. Shut-Down Waveform 12-V VIN, 1.2-V VOUT, IOUT increases from 6 A to 7.8 A Figure 25. Overcurrent Protection Waveform Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 19 TPS53313 SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 www.ti.com 9 Power Supply Recommendations The devices are designed to operate from an input voltage supply range from 4.5 V to 16 V. This input supply must be well regulated. Proper bypassing of input supplies and internal regulators is also critical for noise performance, as is PCB layout and grounding scheme (see recommendations in Layout). 10 Layout 10.1 Layout Guidelines Good layout is essential for stable power supply operation. Follow these guidelines for an efficient PCB layout: • Separate the power ground and analog ground planes. Connect them together at one location. • Use 6 vias to connect the thermal pad to power ground. • Place VIN, BP7 and BP3 decoupling capacitors as close to the device as possible. • Use wide traces for VIN, PGND and SW. These nodes carry high-current and also serve as heat sinks. • Place feedback and compensation components as close to the device as possible. • Keep analog signals (FB, COMP) away from noisy signals (SW, VBST). 10.2 Layout Example VOUT SW SW SW VBST BP7 SW SW AGND Shape BP3 PGND AGND PGND RT/SYNC PGND MODE/SS PGND COMP PGND FB PGND VIN VIN VIN VIN PG EN PGND Shape GND Via VIN Shape Trace under component To BP7 Copyright © 2016, Texas Instruments Incorporated Figure 26. TPS53313 Layout Example 20 Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 TPS53313 www.ti.com SLUSAS8A – DECEMBER 2011 – REVISED OCTOBER 2016 11 Device and Documentation Support 11.1 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 11.2 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.3 Trademarks SmoothPWM, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. 11.4 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 11.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Documentation Feedback Copyright © 2011–2016, Texas Instruments Incorporated Product Folder Links: TPS53313 21 PACKAGE OPTION ADDENDUM www.ti.com 14-Mar-2016 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) TPS53313RGER ACTIVE VQFN RGE 24 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-2-260C-1 YEAR -40 to 85 TPS 53313 TPS53313RGET ACTIVE VQFN RGE 24 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-2-260C-1 YEAR -40 to 85 TPS 53313 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) (3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. (4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device. (5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device. (6) Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 14-Mar-2016 In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 2 PACKAGE MATERIALS INFORMATION www.ti.com 14-Mar-2016 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant TPS53313RGER VQFN RGE 24 3000 330.0 12.4 4.25 4.25 1.15 8.0 12.0 Q2 TPS53313RGET VQFN RGE 24 250 180.0 12.4 4.25 4.25 1.15 8.0 12.0 Q2 Pack Materials-Page 1 PACKAGE MATERIALS INFORMATION www.ti.com 14-Mar-2016 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) TPS53313RGER VQFN RGE 24 3000 367.0 367.0 35.0 TPS53313RGET VQFN RGE 24 250 210.0 185.0 35.0 Pack Materials-Page 2 GENERIC PACKAGE VIEW RGE 24 VQFN - 1 mm max height PLASTIC QUAD FLATPACK - NO LEAD Images above are just a representation of the package family, actual package may vary. Refer to the product data sheet for package details. 4204104/H PACKAGE OUTLINE RGE0024B VQFN - 1 mm max height SCALE 3.000 PLASTIC QUAD FLATPACK - NO LEAD 4.1 3.9 A B 0.5 0.3 PIN 1 INDEX AREA 4.1 3.9 0.3 0.2 DETAIL OPTIONAL TERMINAL TYPICAL C 1 MAX SEATING PLANE 0.05 0.00 0.08 C 2X 2.5 (0.2) TYP 2.45 0.1 7 SEE TERMINAL DETAIL 12 EXPOSED THERMAL PAD 13 6 2X 2.5 SYMM 25 18 1 20X 0.5 24 PIN 1 ID (OPTIONAL) 0.3 0.2 0.1 C A B 0.05 24X 19 SYMM 24X 0.5 0.3 4219013/A 05/2017 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. 3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance. www.ti.com EXAMPLE BOARD LAYOUT RGE0024B VQFN - 1 mm max height PLASTIC QUAD FLATPACK - NO LEAD ( 2.45) SYMM 24 19 24X (0.6) 1 18 24X (0.25) (R0.05) TYP 25 SYMM (3.8) 20X (0.5) 13 6 ( 0.2) TYP VIA 12 7 (0.975) TYP (3.8) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:15X 0.07 MIN ALL AROUND 0.07 MAX ALL AROUND SOLDER MASK OPENING METAL EXPOSED METAL SOLDER MASK OPENING EXPOSED METAL NON SOLDER MASK DEFINED (PREFERRED) METAL UNDER SOLDER MASK SOLDER MASK DEFINED SOLDER MASK DETAILS 4219013/A 05/2017 NOTES: (continued) 4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271). 5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown on this view. It is recommended that vias under paste be filled, plugged or tented. www.ti.com EXAMPLE STENCIL DESIGN RGE0024B VQFN - 1 mm max height PLASTIC QUAD FLATPACK - NO LEAD 4X ( 1.08) (0.64) TYP 24 19 24X (0.6) 1 25 18 24X (0.25) (R0.05) TYP (0.64) TYP SYMM (3.8) 20X (0.5) 13 6 METAL TYP 12 7 SYMM (3.8) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL EXPOSED PAD 25 78% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE SCALE:20X 4219013/A 05/2017 NOTES: (continued) 6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations. www.ti.com IMPORTANT NOTICE Texas Instruments Incorporated (TI) reserves the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. TI’s published terms of sale for semiconductor products (http://www.ti.com/sc/docs/stdterms.htm) apply to the sale of packaged integrated circuit products that TI has qualified and released to market. Additional terms may apply to the use or sale of other types of TI products and services. Reproduction of significant portions of TI information in TI data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such reproduced documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Buyers and others who are developing systems that incorporate TI products (collectively, “Designers”) understand and agree that Designers remain responsible for using their independent analysis, evaluation and judgment in designing their applications and that Designers have full and exclusive responsibility to assure the safety of Designers' applications and compliance of their applications (and of all TI products used in or for Designers’ applications) with all applicable regulations, laws and other applicable requirements. Designer represents that, with respect to their applications, Designer has all the necessary expertise to create and implement safeguards that (1) anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that might cause harm and take appropriate actions. Designer agrees that prior to using or distributing any applications that include TI products, Designer will thoroughly test such applications and the functionality of such TI products as used in such applications. TI’s provision of technical, application or other design advice, quality characterization, reliability data or other services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products; by downloading, accessing or using TI Resources in any way, Designer (individually or, if Designer is acting on behalf of a company, Designer’s company) agrees to use any particular TI Resource solely for this purpose and subject to the terms of this Notice. TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections, enhancements, improvements and other changes to its TI Resources. TI has not conducted any testing other than that specifically described in the published documentation for a particular TI Resource. Designer is authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI. TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS. TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY DESIGNER AGAINST ANY CLAIM, INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Unless TI has explicitly designated an individual product as meeting the requirements of a particular industry standard (e.g., ISO/TS 16949 and ISO 26262), TI is not responsible for any failure to meet such industry standard requirements. Where TI specifically promotes products as facilitating functional safety or as compliant with industry functional safety standards, such products are intended to help enable customers to design and create their own applications that meet applicable functional safety standards and requirements. Using products in an application does not by itself establish any safety features in the application. Designers must ensure compliance with safety-related requirements and standards applicable to their applications. Designer may not use any TI products in life-critical medical equipment unless authorized officers of the parties have executed a special contract specifically governing such use. Life-critical medical equipment is medical equipment where failure of such equipment would cause serious bodily injury or death (e.g., life support, pacemakers, defibrillators, heart pumps, neurostimulators, and implantables). Such equipment includes, without limitation, all medical devices identified by the U.S. Food and Drug Administration as Class III devices and equivalent classifications outside the U.S. TI may expressly designate certain products as completing a particular qualification (e.g., Q100, Military Grade, or Enhanced Product). Designers agree that it has the necessary expertise to select the product with the appropriate qualification designation for their applications and that proper product selection is at Designers’ own risk. Designers are solely responsible for compliance with all legal and regulatory requirements in connection with such selection. Designer will fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of Designer’s noncompliance with the terms and provisions of this Notice. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated
