TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
TPS54302 4.5-V to 28-V Input, 3-A Output, EMI Friendly
Synchronous Step-Down Converter
1 Features
3 Description
•
•
The TPS54302 is a 4.5-V to 28-V input voltage range,
3-A synchronous buck converter. The device includes
two integrated switching FETs, internal loop
compensation and 5-ms internal soft start to reduce
component count.
1
•
•
•
•
•
•
•
•
•
•
•
4.5-V to 28-V Wide Input Voltage Range
Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A,
Continuous Output Current
Low 2-μA Shutdown, 45-μA Quiescent Current
Internal 5-mS Soft-Start
Fixed 400-kHz Switching Frequency
Frequency Spread Spectrum to Reduce EMI
Advanced Eco-mode™ Pulse Skip
Peak Current Mode Control
Internal Loop Compensation
Overcurrent Protection for Both MOSFETs with
Hiccup Mode Protection
Over Voltage Protection
Thermal Shutdown
SOT-23 (6) Package
2 Applications
•
•
•
12-V, 24-V Distributed Power-Bus Supply
Industry Application
– White Goods
Consumer Application
– Audio
– STB, DTV
– Printer
Simplified Schematic
By integrating the MOSFETs and employing the SOT23 package, the TPS54302 achieves the high power
density and offers a small footprint on the PCB.
Advanced Eco-mode implementation maximizes the
light load efficiency and reduces the power loss.
In the TPS54302, the frequency spread spectrum
operation is introduced for EMI reduction.
Cycle-by-cycle current limit in both high-side
MOSFET protects the converter in an overload
condition and is enhanced by a low-side MOSFET
freewheeling current limit which prevents current
runaway. Hiccup mode protection is triggered if the
overcurrent condition has persisted for longer than
the present time.
Device Information(1)
PART NUMBER
TPS54302
VIN
Efficiency vs Output Current
6
VIN
100
BOOT
Cin
Cboot
Lo
90
2
1
GND
80
VOUT
SW
Rfb1
70
4
EN
FB
Co
Rfb2
Copyright © 2016, Texas Instruments Incorporated
Efficiency (%)
5
EN
BODY SIZE (NOM)
1.60 mm × 2.90 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
TPS54302
3
PACKAGE
SOT-23(6)
60
50
40
30
VIN = 12 V, VOUT = 5 V
VIN = 12 V, VOUT = 3.3 V
VIN = 24 V, VOUT = 5 V
VIN = 24 V, VOUT = 3.3 V
20
10
0
0.001
0.01
0.1
Output Current (A)
1
D100
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
4
4
4
4
5
5
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Typical Characteristics ..............................................
Detailed Description .............................................. 8
7.1 Overview ................................................................... 8
7.2 Functional Block Diagram ......................................... 8
7.3 Feature Description................................................... 9
7.4 Device Functional Modes........................................ 12
8
Application and Implementation ........................ 13
8.1 Application Information............................................ 13
8.2 Typical Application ................................................. 13
9 Power Supply Recommendations...................... 20
10 Layout................................................................... 21
10.1 Layout Guidelines ................................................. 21
10.2 Layout Example .................................................... 21
11 Device and Documentation Support ................. 22
11.1
11.2
11.3
11.4
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
22
22
22
22
12 Mechanical, Packaging, and Orderable
Information ........................................................... 22
4 Revision History
Changes from Original (May 2016) to Revision A
•
2
Page
Changed from Product Preview to Production Data .............................................................................................................. 1
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
5 Pin Configuration and Functions
DDC Package
6-Pin SOT-23
Top View
GND
1
6
BOOT
SW
2
5
EN
VIN
3
4
FB
Pin Functions
PIN
TYPE (1)
DESCRIPTION
6
O
Supply input for the high-side NFET gate drive circuit. Connect a 0.1-μF capacitor between BOOT and
SW pins.
EN
5
I
This pin is the enable pin. Float the EN pin to enable.
FB
4
I
Converter feedback input. Connect to output voltage with feedback resistor divider.
GND
1
–
Ground pin Source terminal of low-side power NFET as well as the ground terminal for controller
circuit. Connect sensitive VFB to this GND at a single point.
SW
2
O
Switch node connection between high-side NFET and low-side NFET.
VIN
3
–
Input voltage supply pin. The drain terminal of high-side power NFET.
NAME
NO.
BOOT
(1)
O = Output; I = Input
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
3
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VIN
–0.3
30
V
EN
–0.3
7
V
FB
–0.3
7
V
BOOT-SW
–0.3
7
V
SW
–0.3
30
V
–5
30
V
Operating junction temperature, TJ
–40
150
°C
Storage temperature range, Tstg
–65
150
°C
Input voltage range, VI
Output voltage range, VO
SW (20 ns transient)
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE
Electrostatic
discharge
V(ESD)
(1)
(2)
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
UNIT
±4000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
V
±1500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
VI
Input voltage range
MIN
MAX
VIN
4.5
28
UNIT
V
EN
–0.1
7
V
FB
–0.1
7
V
BOOT-SW
–0.1
7
V
VO
Output voltage range
SW
–0.1
28
V
TJ
Operating junction temperature
–40
125
°C
6.4 Thermal Information
TPS54302
THERMAL METRIC (1)
DDC (SOT-23)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
87.1
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
35.5
°C/W
RθJB
Junction-to-board thermal resistance
14.4
°C/W
ψJT
Junction-to-top characterization parameter
0.9
°C/W
ψJB
Junction-to-board characterization parameter
14.2
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
6.5 Electrical Characteristics
The electrical ratings specified in this section apply to all specifications in this document, unless otherwise noted. These
specifications are interpreted as conditions that do not degrade the device parametric or functional specifications for the life of
the product containing it. TJ = –40°C to +125°C, VIN = 4.5 V to 28 V, (unless otherwise noted).
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
INPUT SUPPLY
VIN
Input voltage range
IQ
Non switching quiescent current
EN =5 V, VFB = 1 V
IOFF
Shut down current
EN = GND
VIN(UVLO)
VIN under voltage lockout
4.5
28
45
µA
2
Rising VIN
3.8
Falling VIN
Hysteresis
4.1
V
µA
4.4
V
3.3
3.6
3.9
V
400
480
560
mV
1.21
1.28
V
ENABLE (EN PIN)
V(EN_RISING)
V(EN_FALLING)
Enable threshold
Rising
Falling
I(EN_INPUT)
Input current
VEN = 1 V
I(EN_HYS)
Hysteresis current
VEN = 1.5 V
1.1
1.19
V
0.7
μA
1.55
μA
FEEDBACK AND ERROR AMPLIFIER
VFB
Feedback Voltage
VIN = 12 V
0.581
0.596
0.611
V
PULSE SKIP MODE
I(SKIP) (1)
Pulse skip mode peak inductor current threshold VIN = 12 V, VOUT = 5 V, L = 10 µH
500
mA
POWER STAGE
R(HSD)
High-side FET on resistance
TA = 25°C, VBST – SW = 6 V
85
mΩ
R(LSD)
Low-side FET on resistance
TA = 25°C, VIN = 12
40
mΩ
CURRENT LIMIT
I(LIM_HS)
High side current limit
Maximum inductor peak current
I(LIM_LS)
Low side source current limit
Maximum inductor valley current
4
5
5.9
A
3.1
4
5.5
A
290
400
510
kHz
OSCILLATOR
Fsw
Centre switching frequency
OVER TEMPERATURE PROTECTION
Rising temperature
Thermal
Shutdown (1)
165
Hysteresis
Hiccup time
(1)
°C
10
°C
32768
Cycles
Not production tested
6.6 Timing Requirements
MIN
TYP
MAX
UNIT
OVER CURRENT PROTECTION
tHIC_WAIT
Hiccup wait time
tHIC_RESTART
Hiccup time before restart
tSS
Soft-start time
512
Cycles
16384
Cycles
5
ms
110
ns
ON TIME CONTROL
tMIN_ON (1)
(1)
Minimum on time, measured at 90% to 90% and 1-A loading
Not production tested
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
5
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
6.7 Typical Characteristics
Shutdown Quiescent Current (PA)
2.5
2
1.5
1
0.5
0
-50
-25
0
25
50
75
Junction Temperature (qC)
100
125
Non-Switching Operating Quiescent Current (PA)
VIN = 12, unless otherwise specified
80
60
40
20
-50
-25
D001
Figure 1. Shutdown Quiescent Current vs Junction
Temperature
0
25
50
75
Junction Temperature (qC)
100
125
D002
Figure 2. Non-Switching Operating Quiescent Current vs
Junction Temperature
240
80
200
Low side FET Rds(on) (m:)
High side FET Rds(on) (m:)
220
180
160
140
120
100
80
70
60
50
40
30
60
40
-50
-25
0
25
50
75
Junction Temperature (qC)
100
20
-50
125
-25
D003
Figure 3. High-Side Resistance vs Junction Temperature
0
25
50
75
Junction Temperature (qC)
100
125
D004
Figure 4. Low-Side FET On Resistance vs Junction
Temperature
420
0.600
Switching Frequency (kHz)
Reference Voltage (mV)
415
0.598
0.596
0.594
0.592
410
405
400
395
390
385
0.590
-50
-25
0
25
50
75
Junction Temperature (qC)
100
125
D005
Figure 5. Reference Voltage vs Junction Temperature
6
380
-50
-25
0
25
50
75
Junction Temperature (qC)
100
125
D006
Figure 6. Centre Switching Frequency vs Junction
Temperature
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
5.8
4.3
5.3
4.1
Low Side Current Limit (A)
High Side Current Limit (A)
Typical Characteristics (continued)
4.8
4.3
3.8
3.3
3.7
3.5
3.3
2.8
-50
-25
0
25
50
75
Junction Temperature (qC)
100
3.1
-50
125
-25
D007
Figure 7. High-Side Current Limit Threshold vs Junction
Temperature
0
25
50
75
Junction Temperature (qC)
100
125
D008
Figure 8. Low-Side Current Limit Threshold vs Junction
Temperature
2.20
4.5
4.3
VIN UVLO Threshold (V)
BOOT UVLO Threshold (V)
3.9
2.15
2.10
2.05
4.1
3.9
3.7
3.5
L->H
H->L
2.00
-50
-25
0
25
50
75
Junction Temperature (qC)
100
3.3
-50
125
Figure 9. BOOT-SW UVLO Threshold vs Junction
Temperature
0
25
50
75
Junction Temperature (qC)
100
125
D010
Figure 10. VIN UVLO Threshold vs Junction Temperature
1.3
1.70
1.26
EN Hysteresis Current (PA)
EN UVLO Threshold (V)
-25
D009
1.22
1.18
1.14
L->H
H->L
1.1
-50
-25
0
25
50
75
Junction Temperature (qC)
100
125
1.65
1.60
1.55
1.50
1.45
1.40
-50
D011
Figure 11. EN Threshold vs Junction Temperature
-25
0
25
50
75
Junction Temperature (qC)
100
125
D012
Figure 12. EN Hysteresis Current vs Junction Temperature
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
7
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
7 Detailed Description
7.1 Overview
The device is a 28-V, 3-A, synchronous step-down (buck) converter with two integrated n-channel MOSFETs. To
improve performance during line and load transients the device implements a constant-frequency, peak current
mode control which reduces output capacitance. The optimized internal compensation network minimizes the
external component counts and simplifies the control loop design.
The TPS54302’s switching frequency is fixed to 400 kHz.
The TPS54302 starts switching at VIN equal to 4.5 V. The operating current is 45 μA typically when not switching
and under no load. When the device is disabled, the supply current is 2 µA typically.
The integrated 85-mΩ high-side MOSFET and 40-mΩ low-side MOSFET allow for high efficiency power supply
designs with continuous output currents up to 3 A.
The TPS54302 reduces the external component count by integrating the boot recharge diode. The bias voltage
for the integrated high-side MOSFET is supplied by an external capacitor on the BOOT to PH pins. The boot
capacitor voltage is monitored by an UVLO circuit and will turn the high-side MOSFET off when the voltage falls
below a preset threshold of 2.1 V typically.
The device minimizes excessive output overvoltage transients by taking advantage of the overvoltage
comparator. When the regulated output voltage is greater than 108% of the nominal voltage, the overvoltage
comparator is activated, and the high-side MOSFET is turned off and masked from turning on until the output
voltage is lower than 104%.
The TPS54302 device has internal 5-ms soft-start time to minimize inrush currents.
7.2 Functional Block Diagram
EN
VIN
Ip
-
Thermal
Hiccup
Ih
UVLO
OV comparator
Shutdown
Logic
+
Hiccup
Shutdown
EN Compatator
Boot Charge
Minimum Clamp
Pulse Skip
FB
Current
Sense
BOOT
Boot UVLO
-
+ ERROR AMPLIFIER
HS MOSFET
Current
Comparator
+
0.596V
Power Stage
And
Dead time
Control
Logic
20kohm
2pF
Voltage
Reference
SW
VIN
Regulator
2.04nF
Slope
Compensation
Soft Start
Hiccup
Shutdown
Overload
Recovery
Maximum
Clamp
Current
Sense
Oscillator
LS MOSFET
Current Limit
GND
Copyright © 2016, Texas Instruments Incorporated
8
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
7.3 Feature Description
7.3.1 Fixed-Frequency PWM Control
The device uses a fixed-frequency, peak current-mode control. The output voltage is compared through external
resistors on the FB pin to an internal voltage reference by an error amplifier. An internal oscillator initiates the
turn on of the high-side power switch. The error amplifier output is compared to the current of the high-side
power switch. When the power-switch current reaches the error amplifier output voltage level, the high side
power switch is turned off and the low-side power switch is turned on. The error amplifier output voltage
increases and decreases as the output current increases and decreases. The device implements a current-limit
by clamping the error amplifier voltage to a maximum level and also implements a minimum clamp for improved
transient-response performance.
7.3.2 Pulse Skip Mode
The TPS54302 is designed to operate in pulse skipping mode at light load currents to boost light load efficiency.
When the peak inductor current is lower than 500 mA typically, the device enters pulse skipping mode. When the
device is in pulse skipping mode, the error amplifier output voltage is clamped which prevents the high side
integrated MOSFET from switching. The peak inductor current must rise above 500 mA and exit pulse skip
mode. Since the integrated current comparator catches the peak inductor current only, the average load current
entering pulse skipping mode varies with the applications and external output filters.
7.3.3 Error Amplifier
The device has a trans-conductance amplifier as the error amplifier. The error amplifier compares the FB voltage
to the lower of the internal soft-start voltage or the internal 0.596-V voltage reference. The transconductance of
the error amplifier is 240 µA/V typically. The frequency compensation components are placed internal between
the output of the error amplifier and ground.
7.3.4 Slope Compensation and Output Current
The device adds a compensating ramp to the signal of the switch current. This slope compensation prevents
sub-harmonic oscillations as the duty cycle increases. The available peak inductor current remains constant over
the full duty-cycle range.
7.3.5 Enable and Adjusting Undervoltage Lockout
The EN pin provides electrical on and off control of the device. When the EN pin voltage exceeds the threshold
voltage, the device begins operation. If the EN pin voltage is pulled below the threshold voltage, the regulator
stops switching and enters the low-quiescent (IQ) state.
The EN pin has an internal pullup-current source which allows the user to float the EN pin to enable the device. If
an application requires control of the EN pin, use open-drain or open-collector output logic to interface with the
pin.
The device implements internal undervoltage-lockout (UVLO) circuitry on the VIN pin. The device is disabled
when the VIN pin voltage falls below the internal VIN UVLO threshold. The internal VIN UVLO threshold has a
hysteresis of 480 mV.
If an application requires a higher UVLO threshold on the VIN pin, then the EN pin can be configured as shown
in Figure 13. When using the external UVLO function, setting the hysteresis at a value greater than 500 mV is
recommended.
The EN pin has a small pull-up current, Ip, which sets the default state of the pin to enable when no external
components are connected. The pull-up current is also used to control the voltage hysteresis for the UVLO
function because it increases by Ih when the EN pin crosses the enable threshold. Use Equation 1 and
Equation 2 to calculate the values of R4 and R5 for a specified UVLO threshold.
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
9
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
Feature Description (continued)
VIN
Device
R4
Ip
Ih
EN
R5
Figure 13. Adjustable VIN Undervoltage Lockout
æ VENfalling ö
VSTART ç
÷ - VSTOP
ç VENri sin g ÷
è
ø
R4 =
æ
VENfalling ö
Ip ç 1 ÷ +I
ç
VENri sin g ÷ø h
è
Where:
Ip = 0.7 µA
Ih = 1.55 µA
VENfalling = 1.19 V
VENrising = 1.22 V
R4 ´ VENfalling
R5 =
VSTOP - VENfalling + R4 Ip + Ih
(
(1)
)
(2)
7.3.6 Safe Startup into Pre-Biased Outputs
The device has been designed to prevent the low-side MOSFET from discharging a pre-biased output. During
monotonic pre-biased startup, both high-side and low-side MOSFETs are not allowed to be turned on until the
internal soft-start voltage is higher than FB pin voltage.
7.3.7 Voltage Reference
The voltage reference system produces a precise ±2.5% voltage-reference over temperature by scaling the
output of a temperature stable bandgap circuit. The typical voltage reference is designed at 0.596 V.
7.3.8 Adjusting Output Voltage
The output voltage is set with a resistor divider from the output node to the FB pin. It is recommended to use
divider resistors with 1% tolerance or better. Start with 100 kΩ for the upper resistor divider, use Equation 3 to
calculate the output voltage. To improve efficiency at light loads consider using larger value resistors. If the
values are too high the regulator is more susceptible to noise and voltage errors from the FB input current are
noticeable.
é R2 ù
Vout = Vref ´ ê
+ 1ú
ë R3 û
(3)
7.3.9 Internal Soft-Start
The TPS54302 device uses the internal soft-start function. The internal soft start time is set to 5 ms typically.
10
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
Feature Description (continued)
7.3.10 Bootstrap Voltage (BOOT)
The TPS54302 has an integrated boot regulator and requires a 0.1-µF ceramic capacitor between the BOOT and
SW pins to provide the gate drive voltage for the high-side MOSFET. A ceramic capacitor with an X7R or X5R
grade dielectric is recommended because of the stable characteristics over temperature and voltage. To improve
drop out, the TPS54302 is designed to operate at 100% duty cycle as long as the BOOT to SW pin voltage is
greater than 2.1 V typically.
7.3.11 Overcurrent Protection
The device is protected from overcurrent conditions by cycle-by-cycle current limiting on both the high-side
MOSFET and the low-side MOSFET.
7.3.11.1 High-Side MOSFET Overcurrent Protection
The device implements current mode control which uses the internal COMP voltage to control the turn off of the
high-side MOSFET and the turn on of the low-side MOSFET on a cycle-by-cycle basis. During each cycle, the
switch current and the current reference generated by the internal COMP voltage are compared. When the peak
switch current intersects the current reference the high-side switch turns off.
7.3.11.2 Low-Side MOSFET Overcurrent Protection
While the low-side MOSFET is turned on, the conduction current is monitored by the internal circuitry. During
normal operation the low-side MOSFET sources current to the load. At the end of every clock cycle, the low-side
MOSFET sourcing current is compared to the internally set low-side sourcing current-limit. The inductor valley
current is exceeded the low-side source current limit, the high-side MOSFET does not turn on and the low-side
MOSFET stays on for the next cycle. The high-side MOSFET turns on again when the inductor valley current is
below the low-side sourcing current-limit at the start of a cycle as shown in Figure 14.
IL
ILIM_HS
ILIM_LS
High-Side
MOS FET
Skip pulse when IL is
higher than ILIM_LS
Skip pulse when IL is
higher than ILIM_LS
Low-Side
MOS FET
T
T
T
T
Note: T=1/Fsw
Figure 14. Overcurrent Protection for Both MOSFETs
Furthermore, if an output overload condition occurs for more than the hiccup wait time, which is programmed for
512 switching cycles, the device shuts down and restarts after the hiccup time of 16384 cycles. The hiccup mode
helps to reduce the device power dissipation under severe overcurrent conditions.
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
11
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
Feature Description (continued)
7.3.12 Spread Spectrum
In order to reduce EMI, the TPS54302 introduces frequency spread spectrum. The jittering span is ±6% of the
switching frequency with 1/512 swing frequency.
7.3.13 Output Overvoltage Protection (OVP)
The TPS54302 incorporates an overvoltage transient protection (OVTP) circuit to minimize output voltage
overshoot when recovering from output fault conditions or strong unload transients. The OVTP circuit includes an
overvoltage comparator to compare the FB pin voltage and internal thresholds. When the FB pin voltage goes
above 108% × Vref, the high-side MOSFET is forced off. When the FB pin voltage falls below 104% × Vref, the
high-side MOSFET is enabled again.
7.3.14 Thermal Shutdown
The internal thermal-shutdown circuitry forces the device to stop switching if the junction temperature exceeds
165°C typically. When the junction temperature drops below 155°C typically, the internal thermal-hiccup timer
begins to count. The device reinitiates the power-up sequence after the built-in thermal-shutdown hiccup time
(32768 cycles) is over.
7.4 Device Functional Modes
7.4.1 Normal Operation
When the input voltage is above the UVLO threshold, the TPS54302 can operate in their normal switching
modes. Normal continuous conduction mode (CCM) occurs when inductor peak current is above 0 A. In CCM,
the TPS54302 operates at a fixed frequency.
7.4.2 Eco-mode™ Operation
The device is designed to operate in high-efficiency pulse-skipping mode under light load conditions. Pulse
skipping initiates when the switch current falls to 500 mA typically. During pulse skipping, the low-side FET turns
off when the switch current falls to 0 A. The switching node (the SW pin) waveform takes on the characteristics
of discontinuous conduction mode (DCM) operation and the apparent switching frequency decreases. As the
output current decreases, the perceived time between switching pulses increases.
12
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The TPS54302 is typically used as a step down converter, which converts an input voltage from 8 V - 28 V to a
fixed output voltage of 5 V.
8.2 Typical Application
8.2.1 TPS54302 8-V to 28-V Input, 5-V Output Converter
U1
TPS54302
VIN
VIN= 8V ~ 28V
3 VIN
BOOT
6
C3
0.1uF
C1
10uF
C2
0.1uF
R4
511l Q
1
GND
SW
L1 10uH
FB 4
5 EN
VOUT=5V,3A
2
C4
22uF
C5
22uF
C6
75pF
R5
105l Q
VOUT
R1
49.9 Q
R2
100l Q
R3
13.3l Q
Copyright © 2016, Texas Instruments Incorporated
Figure 15. 5-V, 3-A Reference Design
8.2.2 Design Requirements
For this design example, use the parameters in Table 1.
Table 1. Design Parameters
PARAMETER
VALUE
Input voltage range
8 V to 28 V
Output voltage
5V
Output current
3A
Transient response, 1.5-A load step
ΔVOUT = ±5 %
Input ripple voltage
400 mV
Output voltage ripple
30 mVpp
Switching frequency
400 kHz
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
13
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
8.2.3 Detailed Design Procedure
8.2.3.1 Input Capacitor Selection
The device requires an input decoupling capacitor and a bulk capacitor is needed depending on the application.
A ceramic capacitor over 10 µF is recommended for the decoupling capacitor. An additional 0.1-µF capacitor
(C2) from VIN to GND is optional to provide additional high frequency filtering. The capacitor voltage rating needs
to be greater than the maximum input voltage.
Use Equation 4 to calculate the input ripple voltage (ΔVIN).
IOUT(MAX ) ´0.25
DVIN =
+ IOUT(MAX ) ´ ESRMAX
CBULK ´ fsw
(
)
(4)
where:
CBULK is the bulk capacitor value
fSW is the switching frequency
IOUT(MAX) is the maximum loading current
ESRMAX is maximum series resistance of the bulk capacitor
The maximum RMS (root mean square) ripple current must also be checked. For worst case conditions, use
Equation 5 to calculate ICIN(RMS).
IO(MAX)
ICIN(RMS) =
(5)
2
The actual input-voltage ripple is greatly affected by parasitic associated with the layout and the output
impedance of the voltage source. Design Requirements show the actual input voltage ripple for this circuit which
is larger than the calculated value. This measured value is still below the specified input limit of 400 mV. The
maximum voltage across the input capacitors is VIN (MAX) + ΔVIN/2. The selected bypass capacitor is rated for
35 V and the ripple current capacity is greater than 2 A. Both values provide ample margin. The maximum
ratings for voltage and current must not be exceeded under any circumstance.
8.2.3.2 Bootstrap Capacitor Selection
A 0.1-µF ceramic capacitor must be connected between the BOOT to SW pin for proper operation. It is
recommended to use a ceramic capacitor.
8.2.3.3 Output Voltage Set Point
The output voltage of the TPS54302 device is externally adjustable using a resistor divider network. In the
application circuit of Figure 15, this divider network is comprised of R2 and R3. Use Equation 6 and Equation 7
to calculate the relationship of the output voltage to the resistor divider.
R2 ´ Vref
R3 =
VOUT - Vref
(6)
é R2 ù
Vout = Vref ´ ê
+ 1ú
ë R3 û
(7)
Select a value of R2 to be approximately 100 kΩ. Slightly increasing or decreasing R3 can result in closer output
voltage matching when using standard value resistors. In this design, R2 = 100 kΩ and R3 = 13.3 kΩ which
results in a 5-V output voltage. The 49.9-Ω resistor, R1, is provided as a convenient location to break the control
loop for stability testing.
8.2.3.4 Undervoltage Lockout Set Point
The undervoltage lockout (UVLO) set point can be adjusted using the external-voltage divider network of
R5. R4 is connected between the VIN and EN pins of the TPS54302 device. R5 is connected between
and GND pins. The UVLO has two thresholds, one for power up when he input voltage is rising and
power down or brown outs when the input voltage is falling. For the example design, the minimum input
is 8 V, so the start voltage threshold is set to 6.74 V and the stop voltage threshold is set to 5.83
Equation 1 and Equation 2 to calculate the values for the upper and lower resistor values of R4 and R5.
14
Submit Documentation Feedback
R4 and
the EN
one for
voltage
V. Use
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
8.2.3.5 Output Filter Components
Two components must be selected for the output filter, the output inductor (LO) and CO.
8.2.3.5.1 Inductor Selection
Use Equation 8 to calculate the minimum value of the output inductor (LMIN).
LMIN =
(
VOUT ´ VIN(MAX ) - VOUT
)
VIN(MAX ) ´ KIND ´ IOUT ´ fsw
(8)
Where:
KIND is a coefficient that represents the amount of inductor ripple current relative to the maximum output
current.
In general, the value of KIND is at the discretion of the designer; however, the following guidelines may be used.
For designs using low-ESR output capacitors, such as ceramics, a higher KIND can be used. When using higher
ESR output capacitors, KIND = 0.2 yields better results.
For this design example, use KIND = 0.35. The minimum inductor value is calculated as 9.78 μH. For this design,
a close standard value of 10 μH was selected for LMIN.
For the output filter inductor, the RMS current and saturation current ratings must not be exceeded. Use
Equation 9 to calculate the RMS inductor current (IL(RMS)).
IL(MAX)
)
(
æ
ö
1 ç VOUT ´ VIN(MAX ) - VOUT ÷
2
= IOUT
+
´
÷
(MAX ) 12 ç V
ç IN(MAX ) ´ LOUT ´ fSW ´ 0.8 ÷
è
ø
2
(9)
Use Equation 10 to calculate the peak inductor current (IL(PK)).
IL(PK ) = IOUT(MAX ) +
(
VOUT ´ VIN(MAX ) - VOUT
)
1.6 ´ VIN(MAX ) ´ LOUT ´ fSW
(10)
Smaller or larger inductor values can be used depending on the amount of ripple current the designer wants to
allow so long as the other design requirements are met. Larger value inductors have lower AC current and result
in lower output voltage ripple. Smaller inductor values increase AC current and output voltage ripple.
8.2.3.5.2 Output Capacitor Selection
Consider three primary factors when selecting the value of the output capacitor. The output capacitor determines
the modulator pole, the output voltage ripple, and how the regulator responds to a large change in load current.
The output capacitance must be selected based on the more stringent of these three criteria.
The desired response to a large change in the load current is the first criterion. The output capacitor must supply
the load with current when the regulator cannot. This situation occurs if the desired hold-up times are present for
the regulator. In this case, the output capacitor must hold the output voltage above a certain level for a specified
amount of time after the input power is removed. The regulator is also temporarily unable to supply sufficient
output current if a large, fast increase occurs affecting the current requirements of the load, such as a transition
from no load to full load. The regulator usually requires two or more clock cycles for the control loop to notice the
change in load current and output voltage and to adjust the duty cycle to react to the change. The output
capacitor must be sized to supply the extra current to the load until the control loop responds to the load change.
The output capacitance must be large enough to supply the difference in current for 2 clock cycles while only
allowing a tolerable amount of drop in the output voltage. Use Equation 11 to calculate the minimum required
output capacitance.
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
15
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
CO >
www.ti.com
2 ´ DIOUT
ƒ sw ´ DVOUT
(11)
where:
∆IOUT is the change in output current
ƒSW is the switching frequency of the regulator
∆V(OUT )b is the allowable change in the output voltage
For this example, the transient load response is specified as a 5% change in the output voltage, VOUT, for a load
step of 1.5 A. For this example, ΔIOUT = 1.5 A and ΔVOUT = 0.05 × 5 = 0.25 V. Using these values results in a
minimum capacitance of 30 μF. This value does not consider the ESR of the output capacitor in the output
voltage change. For ceramic capacitors, the ESR is usually small enough to ignore in this calculation.
Equation 12 calculates the minimum output capacitance required to meet the output voltage ripple specification.
In this case, the maximum output voltage ripple is 30 mV. Under this requirement, Equation 12 yields 10.7 μF.
1
1
CO >
´
8 ´ fSW VOUTripple
Iripple
(12)
where:
ƒSW is the switching frequency
V(OUTripple) is the maximum allowable output voltage ripple
I(ripple) is the inductor ripple current
Use Equation 13 to calculate the maximum ESR an output capacitor can have to meet the output-voltage ripple
specification. Equation 13 indicates the ESR should be less than 29.2 mΩ. In this case, the ESR of the ceramic
capacitor is much smaller than 29.2 mΩ.
VOUTripple
RESR <
Iripple
(13)
The output capacitor can affect the crossover frequency ƒo. Considering to the loop stability and effect of the
internal parasitic parameters, choose the crossover frequency less than 40 kHz without considering the feed
forward capacitor. A simple estimation for the crossover frequency without feed forward capacitor C6 is shown in
Equation 14, assuming COUT has small ESR.
fo =
5.1
VOUT u COUT
(14)
Additional capacitance deratings for aging, temperature, and DC bias should be considered which increases this
minimum value. For this example, two 22-uF 25-V, X7R ceramic capacitors are used. Capacitors generally have
limits to the amount of ripple current they can handle without failing or producing excess heat. An output
capacitor that can support the inductor ripple current must be specified. Some capacitor data sheets specify the
RMS value of the maximum ripple current. Use Equation 15 to calculate the RMS ripple current that the output
capacitor must support. For this application, Equation 15 yields 296 mA for each capacitor.
æ V
ö
1
ç OUT ´ VIN(MAX ) - VOUT ÷
ICOUT(RMS ) =
´ç
÷
12 ç VIN(MAX ) ´ LOUT ´ fSW ´ NC ÷
è
ø
(15)
(
16
)
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
8.2.3.5.3 Feed-Forward Capacitor
The TPS54302 is internally compensated and the internal compensation network is composed of two capacitors
and one resister shown on the block diagram. Depending on the VOUT, if the output capacitor COUT is dominated
by low ESR (ceramic types) capacitors, it could result in low phase margin. To improve the phase boost an
external feedforward capacitor C6 can be added in parallel with R2. C6 is chosen such that phase margin is
boosted at the crossover frequency.
Equation 16 for C6 was tested:
C6 =
1
1
u
2Sf o R2
(16)
For this design, C6 = 75 pF. C6 is not needed when COUT has high ESR, and C6 calculated from Equation 16
should be reduced with medium ESR. Table 2 can be used as a starting point.
Table 2. Recommended Component Values
VOUT (V)
L (µH)
COUT (µF)
R2 (kΩ)
R3 (kΩ)
C8 (pF)
1.8
4.7
66
100
49.9
33
2.5
5.6
66
100
31.6
47
3.3
6.8
44
100
22.1
47
5
10
44
100
13.3
75
12
15
44
100
5.23
100
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
17
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
8.2.4 Application Curves
0.5
90
0.4
80
0.3
Line Regulation (%)
100
Efficiency (%)
70
60
50
40
30
20
0.2
0.1
0
-0.1
-0.2
-0.3
VIN = 24 V, VOUT = 5 V
VIN = 12 V, VOUT = 5 V
10
0
0.001
-0.4
-0.5
0.01
0.1
Output Current (A)
1
6
8
10
D013
Figure 16. Efficiency
12
14 16 18 20
Input Voltage (V)
22
24
26
28
D014
Figure 17. Line Regulation
0.8
Load Regulation (%)
0.6
VIN = 200 mV/div (ac coupled)
0.4
0.2
0
PH = 10 V/div
-0.2
-0.4
-0.6
VIN = 24 V
VIN = 12 V
-0.8
0.1
0.6
1.1
1.6
2.1
Output Current (A)
2.6
3.1
Time - 2 ms/div
D015
Figure 18. Load Regulation
Figure 19. Input Voltage Ripple
VOUT = 20 mV/div (ac coupled)
VOUT = 20 mV/div (ac coupled)
PH = 10 V/div
PH = 10 V/div
Time - 40 ms/div
Time - 4 ms/div
IOUT = 0 A
IOUT = 10 mA
Figure 20. Output Voltage Ripple
18
Submit Documentation Feedback
Figure 21. Output Voltage Ripple
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
VOUT = 20 mV/div (ac coupled)
VOUT = 20 mV/div (ac coupled)
PH = 10 V/div
PH = 10 V/div
Time - 2 ms/div
Time - 4 ms/div
IOUT = 1.5 A
IOUT = 100 mA
Figure 23. Output Voltage Ripple
Figure 22. Output Voltage Ripple
VOUT - 20 mV/div (ac coupled)
VOUT = 100 mV/div (ac coupled)
PH = 10 V/div
IOUT = 1 A/div
Time - 200 ms/div
Time - 200 ms/div
IOUT = 3 A
0.75 to 2.25-A load step, slew rate = 250 mA/μsec
Figure 24. Transient Response
Vin = 10 V/div
Figure 25. Transient Response
Vin = 10 V/div
EN = 2 V/div
EN = 2 V/div
Vout = 2 V/div
Vout = 2 V/div
Time - 4 ms/div
Time - 2 ms/div
Figure 26. Start-Up Relative to VIN
Figure 27. Shutdown Relative to VIN
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
19
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
Vin = 10 V/div
Vin = 10 V/div
EN = 2 V/div
EN = 2 V/div
Vout = 2 V/div
Vout = 2 V/div
Time - 2 ms/div
Time - 2 ms/div
Figure 28. Start-Up Relative to EN
Figure 29. Shutdown Relative to EN
9 Power Supply Recommendations
The device is designed to operate from an input voltage supply range between 4.5 V and 28 V. This input supply
must be well regulated. If the input supply is located more than a few inches from the device or converter,
additional bulk capacitance may be required in addition to the ceramic bypass capacitors. An electrolytic
capacitor with a value of 47 µF is a typical choice.
20
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
TPS54302
www.ti.com
SLVSDG6A – MAY 2016 – REVISED MAY 2016
10 Layout
10.1 Layout Guidelines
•
•
•
•
•
•
•
•
•
•
VIN and GND traces should be as wide as possible to reduce trace impedance. The wide areas are also of
advantage from the view point of heat dissipation.
The input capacitor and output capacitor should be placed as close to the device as possible to minimize
trace impedance.
Provide sufficient vias for the input capacitor and output capacitor.
Keep the SW trace as physically short and wide as practical to minimize radiated emissions.
Do not allow switching current to flow under the device.
A separate VOUT path should be connected to the upper feedback resistor.
Make a Kelvin connection to the GND pin for the feedback path.
Voltage feedback loop should be placed away from the high-voltage switching trace, and preferably has
ground shield.
The trace of the VFB node should be as small as possible to avoid noise coupling.
The GND trace between the output capacitor and the GND pin should be as wide as possible to minimize its
trace impedance.
10.2 Layout Example
VOUT
GND
Additional
Vias to the
GND plane
OUTPUT
CAPACITOR
Vias to the
internal SW
node copper
BOOST
CAPACITOR
OUTPUT
INDUCTOR
GND
SW
Vias to the
internal SW
node copper
VIN
VIN
VBST
EN
TO ENABLE
CONTROL
FEEDBACK
RESISTORS
VFB
INPUT BYPAS
CAPACITOR
SW node copper
pour area on internal
or bottom layer
Figure 30. Board Layout
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
21
TPS54302
SLVSDG6A – MAY 2016 – REVISED MAY 2016
www.ti.com
11 Device and Documentation Support
11.1 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.2 Trademarks
Eco-mode, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
11.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
22
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
Product Folder Links: TPS54302
PACKAGE OPTION ADDENDUM
www.ti.com
16-Jan-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)

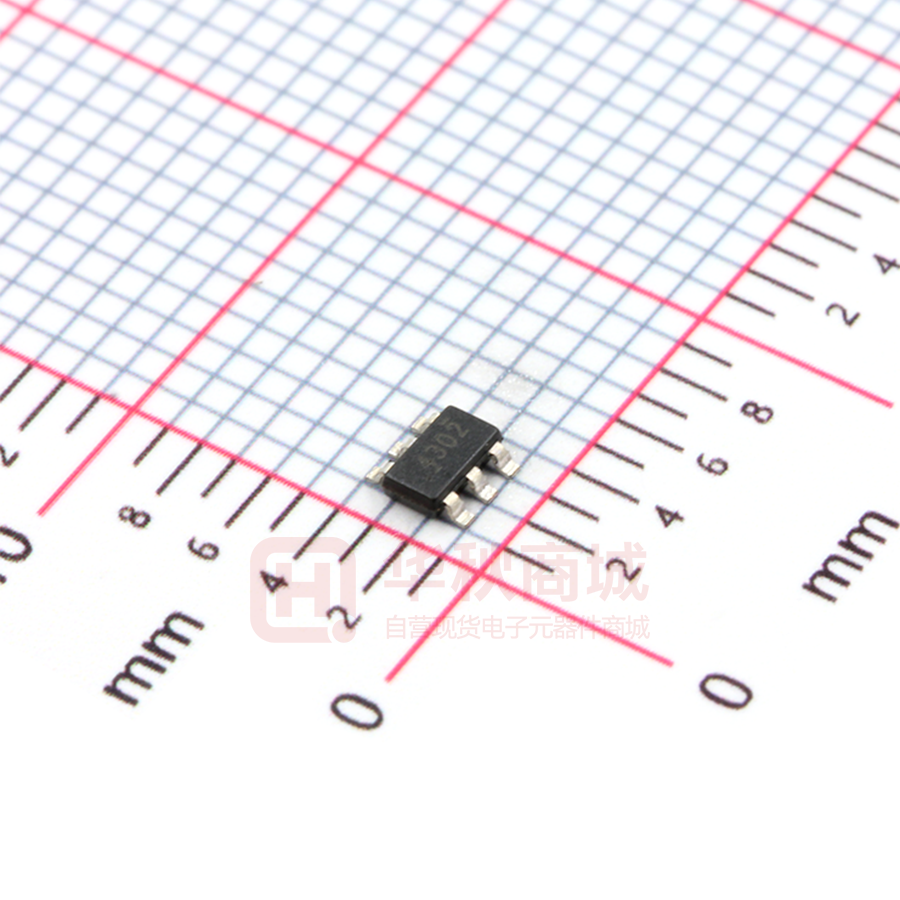

TPS54302DDCR
ACTIVE
SOT-23-THIN
DDC
6
3000
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
4302
TPS54302DDCT
ACTIVE
SOT-23-THIN
DDC
6
250
Green (RoHS
& no Sb/Br)
CU SN
Level-1-260C-UNLIM
-40 to 125
4302
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
