TPS54340B
ZHCSJ42 – DECEMBER 2018
具有 Eco-Mode™ 的 TPS54340B 42V 输入、3.5A、
、降压直流/直
直流转换器
1 特性
•
•
•
•
1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
3 说明
输入电压范围 4.5V 至 42V（绝对最大值 45V）
3.5A 持续电流、4.5A 最低峰值电感器电流限制
电流模式控制直流/直流转换器
92mΩ 高侧金属氧化物半导体场效应晶体管
(MOSFET)
轻负载条件下使用脉冲跳跃实现的高效率 Ecomode。™
轻负载条件下使用集成型引导 (BOOT) 再充电场效
应晶体管 (FET) 实现的低压降
146μA 静态工作电流
2μA 关断电流
100kHz 至 2.5MHz 的固定开关频率
同步至外部时钟
可调欠压闭锁 (UVLO) 电压和滞后
内部软启动
精确逐周期电流限制
过热、过压和频率折返保护
0.8V 1% 内部电压基准
8 引脚 HSOIC PowerPAD™封装
-40°C 至 150°C TJ 运行范围
使用 TPS54340B 并借助 WEBENCH® 电源设计器
创建定制设计方案
2 应用
TPS54340B 是一款具有集成型高侧 MOSFET 的
42V、3.5A 降压稳压器。它采用电流模式控制，可实
现简单的外部补偿和灵活的组件选择。低纹波脉冲跳跃
模式可将无负载电源电流减小至 146μA。当启用引脚
被拉至低电平时，关断电源电流被减少至 2μA。
欠压闭锁在内部设定为 4.3V，但可用使能引脚将之提
高。该器件可在内部控制输出电压启动斜坡，从而控制
启动过程并消除过冲。
宽开关频率范围可实现对效率或者外部组件尺寸的优
化。频率折返和热关断功能在过载情况下保护内部和外
部组件不受损坏。
TPS54340B 采用 8 引脚热增强型 HSOIC PowerPAD
™封装。
器件信息
器件编号
封装

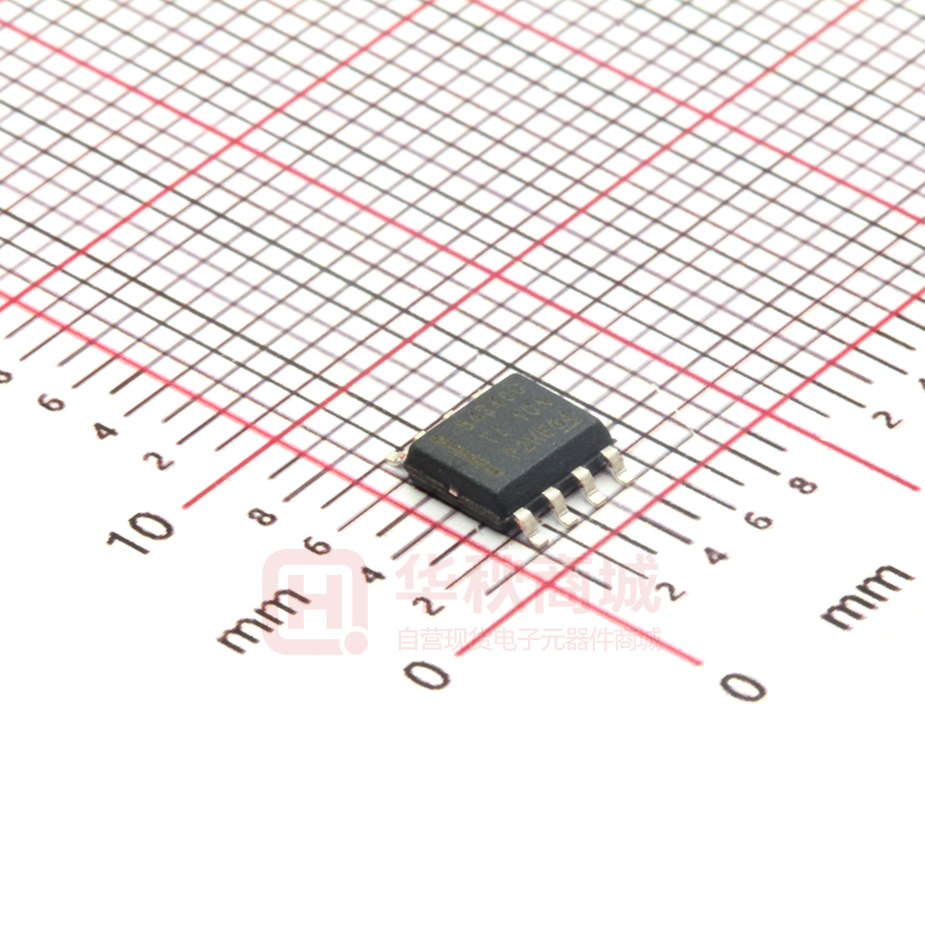

TPS54340B
封装尺寸
HSOIC (8)
4.89mm × 3.90mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附
录。
空白
空白
空白
12V 和 24V 工业和通信电力系统
空白
空白
简化原理图
效率与负载电流间的关系
100
VIN
90
VIN
80
TPS54340B
EN
VOUT
SW
RT/CLK
GND
COMP
FB
Efficiency - %
70
BOOT
5V
3.3 V
60
50
40
VIN = 12 V
30
20
VOUT = 5 V, fsw = 600 kHz
10
VOUT = 3.3 V, fsw = 300 kHz
0
GND
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
IO - Output Current - A
Copyright © 2018, Texas Instruments Incorporated
1
本文档旨在为方便起见，提供有关 TI 产品中文版本的信息，以确认产品的概要。 有关适用的官方英文版本的最新信息，请访问 www.ti.com，其内容始终优先。 TI 不保证翻译的准确
性和有效性。 在实际设计之前，请务必参考最新版本的英文版本。
English Data Sheet: SNVSB92
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
目录
1
2
3
4
5
6
7
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
4
4
4
4
5
6
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Typical Characteristics ..............................................
7.4 Device Functional Modes........................................ 21
8
Application and Implementation ........................ 22
8.1 Application Information............................................ 22
8.2 Typical Application: Buck Converter ....................... 22
8.3 Other Applications................................................... 34
9 Power Supply Recommendations...................... 35
10 Layout................................................................... 36
10.1 Layout Guidelines ................................................. 36
10.2 Layout Example .................................................... 36
11 器件和文档支持 ..................................................... 37
11.1
11.2
11.3
11.4
11.5
Detailed Description ............................................ 10
7.1 Overview ................................................................. 10
7.2 Functional Block Diagram ....................................... 11
7.3 Feature Description................................................. 11
器件支持................................................................
接收文档更新通知 .................................................
社区资源................................................................
商标 .......................................................................
静电放电警告.........................................................
37
37
37
37
37
12 机械、封装和可订购信息 ....................................... 37
4 修订历史记录
注：之前版本的页码可能与当前版本有所不同。
2
日期
修订版本
说明
2018 年 12 月
*
最初发布版本
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
5 Pin Configuration and Functions
DDA Package
8-Pin HSOIC
Top View
BOOT
1
VIN
2
8
SW
7
GND
PowerPAD
9
EN
3
6
COMP
RT/CLK
4
5
FB
Pin Functions
PIN
NAME
NO.
I/O
DESCRIPTION
BOOT
1
O
A bootstrap capacitor is required between BOOT and SW. If the voltage on this capacitor is below the
minimum required to operate the high-side MOSFET, the output is switched off until the capacitor is
refreshed.
VIN
2
I
Input supply voltage with 4.5 V to 42 V operating range.
EN
3
I
Enable pin, with internal pullup current source. Pull below 1.2 V to disable. Float to enable. Adjust the input
undervoltage lockout with two resistors. See the Enable and Adjusting Undervoltage Lockout section.
RT/CLK
4
I
Resistor Timing and External Clock. An internal amplifier holds this pin at a fixed voltage when using an
external resistor to ground to set the switching frequency. If the pin is pulled above the PLL upper threshold,
a mode change occurs and the pin becomes a synchronization input. The internal amplifier is disabled and
the pin is a high impedance clock input to the internal PLL. If clocking edges stop, the internal amplifier is reenabled and the operating mode returns to resistor frequency programming.
FB
5
I
Inverting input of the transconductance (gm) error amplifier.
COMP
6
O
Error amplifier output and input to the output switch current (PWM) comparator. Connect frequency
compensation components to this pin.
GND
7
–
Ground
SW
8
I
The source of the internal high-side power MOSFET and switching node of the converter.
Thermal Pad
9
–
GND pin must be electrically connected to the exposed pad on the printed circuit board for proper operation.
Copyright © 2018, Texas Instruments Incorporated
3
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
6 Specifications
6.1 Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
VIN
–0.3
45
EN
–0.3
8.4
BOOT
Input voltage
53
FB
–0.3
COMP
–0.3
3
RT/CLK
–0.3
3.6
V
3
BOOT-SW
Output voltage
UNIT
8
SW
–0.6
45
–2
45
Operating junction temperature
–40
150
°C
Storage temperature, Tstg
–65
150
°C
SW, 10-ns transient
(1)
V
Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings
only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating
conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
MAX
VESD
(1)
(2)
(3)
(1)
Human body model (HBM) esd stress voltage
(2)
Charged device model (HBM) ESD stress voltage
UNIT
±2000
(3)
V
±500
Electrostatic discharge (ESD) to measure device sensitivity and immunity to damage caused by assembly line electrostatic discharges
into the device.
Level listed above is the passing level per ANSI/ESDA/JEDEC JS-001. JEDEC document JEP155 states that 500V HBM allows safe
manufacturing with a standard ESD control process. pins listed as 1000 V may actually have higher performance.
Level listed above is the passing level per EIA-JEDEC JESD22-C101. JEDEC document JEP157 states that 250V CDM allows safe
manufacturing with a standard ESD control process. pins listed as 250 V may actually have higher performance.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
VO + VDO
42
V
Output voltage
0.8
41.1
V
IO
Output current
0
3.5
A
TJ
Junction temperature
–40
150
°C
VIN
Supply input voltage (1)
VO
(1)
UNIT
See Equation 1
6.4 Thermal Information
TPS54340B
THERMAL METRIC (1)
DDA (HSOIC)
UNIT
8 PINS
RθJA
Junction-to-ambient thermal resistance
42
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
45.8
°C/W
RθJB
Junction-to-board thermal resistance
23.4
°C/W
ψJT
Junction-to-top characterization parameter
5.9
°C/W
ψJB
Junction-to-board characterization parameter
23.4
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
3.6
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
6.5 Electrical Characteristics
TJ = –40°C to +150°C, VIN = 4.5 to 42V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
42
V
4.3
4.48
V
SUPPLY VOLTAGE (VIN PINS)
Operating input voltage
Internal undervoltage lockout threshold
4.5
Rising
4.1
Internal undervoltage lockout threshold
hysteresis
325
mV
Shutdown supply current
EN = 0 V, 25°C, 4.5 V ≤ VIN ≤ 42 V
2.25
4.5
Operating: nonswitching supply current
FB = 0.9 V, TA = 25°C
146
175
1.2
1.3
μA
ENABLE AND UVLO (EN pinS)
Enable threshold voltage
Input current
No voltage hysteresis, rising and falling
1.1
Enable threshold +50 mV
Enable threshold –50 mV
Hysteresis current
–4.6
V
μA
–0.58
–1.2
-1.8
–2.2
–3.4
-4.5
μA
0.792
0.8
0.808
V
92
190
VOLTAGE REFERENCE
Voltage reference
HIGH-SIDE MOSFET
On-resistance
VIN = 12 V, BOOT-SW = 6 V
mΩ
ERROR AMPLIFIER
Input current
Error amplifier transconductance (gM)
–2 μA < ICOMP < 2 μA, VCOMP = 1 V
Error amplifier transconductance (gM) during
–2 μA < ICOMP < 2 μA, VCOMP = 1 V, VFB = 0.4 V
soft-start
Error amplifier DC gain
VFB = 0.8 V
Min unity gain bandwidth
Error amplifier source/sink
V(COMP) = 1 V, 100-mV overdrive
COMP to SW current transconductance
50
nA
350
μS
77
μS
10,000
V/V
2500
kHz
±30
μA
12
A/V
CURRENT LIMIT
Current limit threshold
All VIN and temperatures, Open Loop (1)
4.5
5.5
6.8
All temperatures, VIN = 12 V, Open Loop (1)
4.5
5.5
6.25
VIN = 12 V, TA = 25°C, Open Loop (1)
5.2
5.5
5.85
A
THERMAL SHUTDOWN
Thermal shutdown
Thermal shutdown hysteresis
176
°C
12
°C
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK pinS)
Switching frequency range using RT mode
fSW
Switching frequency
Switching frequency range using CLK mode
100
RT = 200 kΩ
450
160
RT/CLK high threshold
RT/CLK low threshold
(1)
500
2500
kHz
550
kHz
2300
kHz
1.55
0.5
1.2
2
V
V
Open Loop current limit measured directly at the SW pin and is independent of the inductor value and slope compensation.
Copyright © 2018, Texas Instruments Incorporated
5
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
6.6 Timing Requirements
MIN
NOM
MAX
UNIT
INTERNAL SOFT-START TIME
Soft-start time
fSW = 500 kHz, 10% to 90%
2.1
ms
Soft-start time
fSW = 2.5 MHz, 10% to 90%
0.42
ms
VIN = 12 V, TA = 25°C
135
ns
60
ns
15
ns
HIGH-SIDE MOSFET
Minimum controllable on time
CURRENT LIMIT
Current limit threshold delay
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PINS)
Minimum CLK input pulse width
RT/CLK falling edge to SW rising edge
delay
Measured at 500 kHz with RT resistor in series
55
ns
PLL lock-in time
Measured at 500 kHz
78
μs
6.7 Typical Characteristics
0.25
0.814
VIN = 12 V
VFB − Voltage Reference (V)
RDS(ON) − On-State Resistance (Ω)
BOOT-SW = 3 V
BOOT-SW = 6 V
0.2
0.15
0.1
0.05
0
−50
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
0.799
0.794
0.789
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
G001
125
150
G002
Figure 2. Voltage Reference vs Junction Temperature
6.5
6.5
VIN = 12 V
TJ = −40°C
TJ = 25°C
TJ = 150°C
6.3
High-Side Switch Current (A)
6.3
High-Side Switch Current (A)
0.804
0.784
−50
150
Figure 1. On-Resistance vs Junction Temperature
6.1
5.9
5.7
5.5
5.3
5.1
4.9
4.7
4.5
−50
0.809
6.1
5.9
5.7
5.5
5.3
5.1
4.9
4.7
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
G003
4.5
0
5
10
15
20
25
30
VIN − Input Voltage (V)
35
40
45
G004
Figure 3. Switch Current Limit vs Junction Temperature
Figure 4. Switch Current Limit vs Input Voltage
6
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Typical Characteristics (continued)
500
RT = 200 kΩ, VIN = 12 V
540
ƒSW − Switching Frequency (kHz)
ƒSW − Switching Frequency (kHz)
550
530
520
510
500
490
480
470
460
450
−50
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
350
300
250
200
150
100
50
0
200
300
G005
400
500
600
700
800
RT/CLK − Resistance (kΩ)
900
1000
G006
Figure 6. Switching Frequency vs RT/CLK Resistance
Low Frequency Range
500
2500
VIN = 12 V
450
2000
400
1500
gm (uS)
ƒSW − Switching Frequency (kHz)
400
150
Figure 5. Switching Frequency vs Junction Temperature
1000
350
300
500
0
250
0
50
100
150
RT/CLK − Resistance (kΩ)
200
−50
200
VIN = 12 V
EN − Threshold (V)
100
90
80
70
60
50
40
30
20
−50
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
G009
Figure 9. EA Transconductance During Soft Start vs
Junction Temperature
Copyright © 2018, Texas Instruments Incorporated
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
G008
Figure 8. EA Transconductance vs Junction Temperature
120
110
−25
G007
Figure 7. Switching Frequency vs RT/CLK Resistance
High Frequency Range
gm (uS)
ƒSW (kHz) = 92417 × RT (kΩ)−0.991
RT (kΩ) = 101756 × fSW (kHz)−1.008
450
1.3
1.29
1.28
1.27
1.26
1.25
1.24
1.23
1.22
1.21
1.2
1.19
1.18
1.17
1.16
1.15
−50
VIN = 12 V
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
G010
Figure 10. EN Pin Voltage vs Junction Temperature
7
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Typical Characteristics (continued)
−4
−0.5
VIN = 5 V, I EN = Threshold+50mV
−0.9
−4.2
−1.1
−4.3
−1.3
−4.4
−1.5
−1.7
−4.5
−4.6
−1.9
−4.7
−2.1
−4.8
−2.3
−4.9
−2.5
−50
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
−5
−50
150
0
25
50
75
100
Tj − Junction Temperature (°C)
% of Nominal Switching Frequency
−2.9
−3.1
−3.3
−3.5
−3.7
−3.9
−4.1
−4.3
VIN = 12 V
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
75
50
25
0
150
0
0.1
0.2
G112
0.3
0.4
VFB (V)
0.5
0.6
0.7
0.8
G013
Figure 14. Switching Frequency vs FB
3
3
VIN = 12 V
TJ = 25°C
Shutdown Supply Current (µA)
Shutdown Supply Current (µA)
G012
VFB Falling
VFB Rising
Figure 13. EN Pin Current Hysteresis vs Junction
Temperature
2.5
2
1.5
1
0.5
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
Figure 15. Shutdown Supply Current vs Junction
Temperature
8
150
100
−2.7
0
−50
125
Figure 12. EN pin Current vs Junction Temperature
−2.5
EN PIN Current Hysteresis (µA)
−25
G011
Figure 11. EN pin Current vs Junction Temperature
−4.5
−50
VIN = 12 V, I EN = Threshold+50mV
−4.1
IEN (µA)
IEN (µA)
−0.7
G014
2.5
2
1.5
1
0.5
0
0
5
10
15
20
25
30
VIN − Input Voltage (V)
35
40
45
G016
Figure 16. Shutdown Supply Current vs Input Voltage (VIN)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Typical Characteristics (continued)
210
210
VIN = 12 V
190
VIN − Supply Current (µA)
VIN − Supply Current (uA)
190
170
150
130
110
90
70
−50
170
150
130
110
90
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
70
150
5
0
10
G016
15
20
25
30
VIN − Input Voltage (V)
35
40
45
G018
Figure 17. VIN Supply Current vs Junction Temperature
Figure 18. VIN Supply Current vs Input Voltage
2.6
4.4
2.4
4.3
Input Voltage (V)
BOOT-SW UVLO (V)
2.5
4.5
BOOT-SW UVLO Falling
BOOT-SW UVLO Rising
2.3
2.2
2.1
4.2
4.1
4
2
3.9
1.9
3.8
1.8
−50
−25
0
25
50
75
100
TJ − Junction Temperature (°C)
125
150
3.7
−50
UVLO Start Switching
UVLO Stop Switching
−25
G018
Figure 19. BOOT-SW UVLO vs Junction Temperature
0
25
50
75
100
Tj − Junction Temperature (°C)
125
150
G019
Figure 20. Input Voltage UVLO vs Junction Temperature
10
VIN = 12V,
o
TJ = 25 C
9
Soft-Start Time (ms)
8
7
6
5
4
3
2
1
0
100 300 500 700 900 11001300 1500 17001900 2100 2300 2500
Switching Frequency (kHz)
G021
Figure 21. Soft-Start Time vs Switching Frequency
Copyright © 2018, Texas Instruments Incorporated
9
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
7 Detailed Description
7.1 Overview
The TPS54340B is a 42-V, 3.5-A, step-down (buck) regulator with an integrated high side n-channel MOSFET.
The device implements constant frequency, current mode control which reduces output capacitance and
simplifies external frequency compensation. The wide switching frequency range of 100 kHz to 2500 kHz allows
either efficiency or size optimization when selecting the output filter components. The switching frequency is
adjusted using a resistor to ground connected to the RT/CLK pin. The device has an internal phase-locked loop
(PLL) connected to the RT/CLK pin that synchronizes the power switch turnon to a falling edge of an external
clock signal.
The TPS54340B has a default input start-up voltage of approximately 4.3 V. The EN pin can be used to adjust
the input voltage undervoltage lockout (UVLO) threshold with two external resistors. An internal pull up current
source enables operation when the EN pin is floating. The operating current is 146 μA under no load condition
(not switching). When the device is disabled, the supply current is 2 μA.
The integrated 92-mΩ high side MOSFET supports high efficiency power supply designs capable of delivering
3.5 Amperes of continuous current to a load. The gate drive bias voltage for the integrated high side MOSFET is
supplied by a bootstrap capacitor connected from the BOOT to SW pins. The TPS54340B reduces the external
component count by integrating the bootstrap recharge diode. The BOOT pin capacitor voltage is monitored by a
UVLO circuit which turns off the high side MOSFET when the BOOT to SW voltage falls below a preset
threshold. An automatic BOOT capacitor recharge circuit allows the TPS54340B to operate at high duty cycles
approaching 100%. Therefore, the maximum output voltage is near the minimum input supply voltage of the
application. The minimum output voltage is the internal 0.8-V feedback reference.
Output overvoltage transients are minimized by an overvoltage transient protection (OVP) comparator. When the
OVP comparator is activated, the high side MOSFET is turned off and remains off until the output voltage is less
than 106% of the desired output voltage.
The TPS54340B includes an internal soft-start circuit that slows the output rise time during start-up to reduce inrush current and output voltage overshoot. Output overload conditions reset the soft-start timer. When the
overload condition is removed, the soft-start circuit controls the recovery from the fault output level to the nominal
regulation voltage. A frequency foldback circuit reduces the switching frequency during start-up and overcurrent
fault conditions to help maintain control of the inductor current.
10
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
7.2 Functional Block Diagram
EN
VIN
Thermal
Shutdown
UVLO
Enable
Comparator
OV
Shutdown
Shutdown
Logic
Enable
Threshold
Boot
Charge
Voltage
Reference
Boot
UVLO
Minimum
Clamp
Pulse
Skip
Error
Amplifier
Current
Sense
PWM
Comparator
FB
BOOT
Logic
Shutdown
6
Slope
Compensation
SW
COMP
Frequency
Foldback
Reference
DAC for
Soft- Start
Maximum
Clamp
Oscillator
with PLL
8/8/ 2012 A 0192789
GND
POWERPAD
RT/ CLK
Copyright © 2016, Texas Instruments Incorporated
7.3 Feature Description
7.3.1 Fixed Frequency PWM Control
The TPS54340B uses fixed-frequency, peak-current-mode control with adjustable switching frequency. The
output voltage is compared through external resistors connected to the FB pin to an internal voltage reference by
an error amplifier. An internal oscillator initiates the turnon of the high side power switch. The error amplifier
output at the COMP pin controls the high side power switch current. When the high side MOSFET switch current
reaches the threshold level set by the COMP voltage, the power switch is turned off. The COMP pin voltage
increases and decreases as the output current increases and decreases. The device implements current limiting
by clamping the COMP pin voltage to a maximum level. The pulse skipping Eco-mode is implemented with a
minimum voltage clamp on the COMP pin.
7.3.2 Slope Compensation Output Current
The TPS54340B adds a compensating ramp to the MOSFET switch current sense signal. This slope
compensation prevents sub-harmonic oscillations at duty cycles greater than 50%. The peak current limit of the
high-side switch is not affected by the slope compensation and remains constant over the full duty cycle range.
Copyright © 2018, Texas Instruments Incorporated
11
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Feature Description (continued)
7.3.3 Pulse Skip Eco-mode
The TPS54340B operates in a pulse-skipping Eco-mode at light load currents to improve efficiency by reducing
switching and gate drive losses. If the output voltage is within regulation and the peak switch current at the end
of any switching cycle is below the pulse-skipping-current threshold, the device enters Eco-mode. The pulseskipping-current threshold is the peak switch current level corresponding to a nominal COMP voltage of 600 mV.
When in Eco-mode, the COMP pin voltage is clamped at 600 mV and the high side MOSFET is inhibited. Since
the device is not switching, the output voltage begins to decay. The voltage control loop responds to the falling
output voltage by increasing the COMP pin voltage. The high side MOSFET is enabled and switching resumes
when the error amplifier lifts COMP above the pulse skipping threshold. The output voltage recovers to the
regulated value, and COMP eventually falls below the Eco-mode pulse skipping threshold at which time the
device again enters Eco-mode. The internal PLL remains operational when in Eco-mode. When operating at light
load currents in Eco-mode, the switching transitions occur synchronously with the external clock signal.
During Eco-mode operation, the TPS54340B senses and controls peak switch current, not the average load
current. Therefore the load current at which the device enters Eco-mode is dependent on the output inductor
value. The circuit in Figure 32 enters Eco-mode at about 24-mA output current. As the load current approaches
zero, the device enters a pulse-skip mode during which it draws only 146-μA input quiescent current.
7.3.4 Low Dropout Operation and Bootstrap Voltage (BOOT)
The TPS54340B provides an integrated bootstrap voltage regulator. A small capacitor between the BOOT and
SW pins provides the gate-drive voltage for the high side MOSFET. The BOOT capacitor is refreshed when the
high side MOSFET is off and the external low side diode conducts. The recommended value of the BOOT
capacitor is 0.1 μF. TI recommends a ceramic capacitor with an X7R or X5R grade dielectric with a voltage rating
of 10 V or higher for stable performance over temperature and voltage.
When operating with a low voltage difference from input to output, the high side MOSFET of the TPS54340B
operate at 100% duty cycle as long as the BOOT to SW pin voltage is greater than 2.1 V. When the voltage from
BOOT to SW drops below 2.1 V, the high side MOSFET is turned off and an integrated low-side MOSFET pulls
SW low to recharge the BOOT capacitor. To reduce the losses of the small low-side MOSFET at high output
voltages, it is disabled at 24-V output and re-enabled when the output reaches 21.5 V.
Because the gate drive current sourced from the BOOT capacitor is small, the high-side MOSFET can remain on
for many switching cycles before the MOSFET is turned off to refresh the capacitor. Thus the effective duty cycle
of the switching regulator can be high, approaching 100%. The effective duty cycle of the converter during
dropout is mainly influenced by the voltage drops across the power MOSFET, the inductor resistance, the lowside diode voltage and the printed-circuit-board resistance.
Equation 1 calculates the minimum input voltage required to regulate the output voltage and ensure normal
operation of the device. This calculation must include tolerance of the component specifications and the variation
of these specifications at their maximum operating temperature in the application.
VIN min
VOUT
VF Rdc u IOUT
0.99
RDS on u IOUT
VF
where
•
•
•
12
VF = Schottky diode forward voltage
Rdc = DC resistance of inductor and PCB
RDS(on) = High-side MOSFET RDS(on)
(1)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Feature Description (continued)
At heavy loads, the minimum input voltage must be increased to ensure a monotonic start-up. Use Equation 2 to
calculate the minimum input voltage for this condition.
V OUT(max) = D (max) x (V IN(min) - I OUT(max) x R DS(on) + V F ) - V F + I OUT(max) x R dc
where
•
•
•
•
•
•
D(max) ≥ 0.9
IB2SW = 100 µA
tSW = 1 / fSW(MHz)
VB2SW = VBOOT + VF
VBOOT = (1.41 × VIN – 0.554 – VF / tSW – 1.847 × 103 × IB2SW) / (1.41 + 1 / tSW)*
RDS(on) = 1 / (–0.3 × VB2SW2 + 3.577 × VB2SW – 4.246)
*VBOOT is clamped by the IC. If VBOOT calculates to greater than 6 V, set VBOOT = 6 V
(2)
7.3.5 Error Amplifier
The TPS54340B voltage regulation loop is controlled by a transconductance error amplifier. The error amplifier
compares the FB pin voltage to the lower of the internal soft-start voltage or the internal 0.8-V voltage reference.
The transconductance (gm) of the error amplifier is 350 μA/V during normal operation. During soft-start operation,
the transconductance is reduced to 78 μA/V, and the error amplifier is referenced to the internal soft-start
voltage.
The frequency compensation components (capacitor, series resistor, and capacitor) are connected between the
error-amplifier-output COMP pin and GND pin.
7.3.6 Adjusting the Output Voltage
The internal voltage reference produces a precise 0.8 V ±1% voltage reference over the operating temperature
and voltage range by scaling the output of a bandgap reference circuit. The output voltage is set by a resistor
divider from the output node to the FB pin. It is recommended to use 1% tolerance or better divider resistors.
Select the low side resistor RLS for the desired divider current and use Equation 3 to calculate RHS. To improve
efficiency at light loads consider using larger value resistors. However, if the values are too high, the regulator is
more susceptible to noise and voltage errors from the FB input current may become noticeable.
æ Vout - 0.8V ö
RHS = RLS ´ ç
÷
0.8 V
è
ø
(3)
7.3.7 Enable and Adjusting Undervoltage Lockout
The TPS54340B is enabled when the VIN pin voltage rises above 4.3 V, and the EN pin voltage exceeds the
enable threshold of 1.2 V. The TPS54340B is disabled when the VIN pin voltage falls below 4 V or when the EN
pin voltage is below 1.2 V. The EN pin has an internal pullup current source, i1, of 1.2 μA that enables operation
of the TPS54340B when the EN pin floats.
If an application requires a higher undervoltage lockout (UVLO) threshold, use the circuit shown in Figure 22 to
adjust the input voltage UVLO with two external resistors. When the EN pin voltage exceeds 1.2 V, an additional
3.4 μA of hysteresis current, Ihys, is sourced out of the EN pin. When the EN pin is pulled below 1.2 V, the 3.4
μA Ihys current is removed. This addional current facilitates adjustable input voltage UVLO hysteresis. Use
Equation 4 to calculate RUVLO1 for the desired UVLO hysteresis voltage. Use Equation 5 to calculate RUVLO2 for
the desired VIN start voltage.
In applications designed to start at relatively low input voltages (for example, from 4.5 V to 9 V) and withstand
high input voltages (for example, from 40 V to 42 V), the EN pin may experience a voltage greater than the
absolute maximum voltage of 8.4 V during the high input voltage condition. It is recommended to use a zener
diode to clamp the pin voltage below the absolute maximum rating.
Copyright © 2018, Texas Instruments Incorporated
13
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Feature Description (continued)
VIN
TPS54340
i1
ihys
RUVLO1
EN
Optional
VEN
RUVLO2
Figure 22. Adjustable Undervoltage Lockout (UVLO)
- VSTOP
V
RUVLO1 = START
IHYS
RUVLO2 =
VENA
VSTART - VENA
+ I1
RUVLO1
(4)
(5)
7.3.8 Internal Soft Start
The TPS54340B has an internal digital soft start that ramps the reference voltage from zero volts to its final value
in 1024 switching cycles. The internal soft-start time (10% to 90%) is calculated using Equation 6.
1024
tSS (ms) =
fSW (kHz)
(6)
If the EN pin is pulled below the stop threshold of 1.2 V, switching stops and the internal soft-start resets. The
soft start also resets in thermal shutdown.
7.3.9 Constant Switching Frequency and Timing Resistor (RT/CLK) pin)
The switching frequency of the TPS54340B is adjustable over a wide range from 100 kHz to 2500 kHz by placing
a resistor between the RT/CLK pin and GND pin. The RT/CLK pin voltage is typically 0.5 V and must have a
resistor to ground to set the switching frequency. To determine the timing resistance for a given switching
frequency, use Equation 7 or Equation 8 or the curves in Figure 6 and Figure 7. To reduce the solution size one
would typically set the switching frequency as high as possible, but tradeoffs of the conversion efficiency,
maximum input voltage and minimum controllable on time should be considered. The minimum controllable ontime is typically 135 ns, which limits the maximum operating frequency in applications with high input to output
step down ratios. The maximum switching frequency is also limited by the frequency foldback circuit. A more
detailed discussion of the maximum switching frequency is provided in Accurate Current Limit Operation and
Maximum Switching Frequency.
101756
RT (kW) =
f sw (kHz)1.008
(7)
f sw (kHz) =
14
92417
RT (kW)0.991
(8)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Feature Description (continued)
7.3.10 Accurate Current Limit Operation and Maximum Switching Frequency
The TPS543040B implements peak-current-mode control in which the COMP pin voltage controls the peak
current of the high side MOSFET. A signal proportional to the high-side switch current and the COMP pin voltage
are compared each cycle. When the peak switch current intersects the COMP control voltage, the high side
switch is turned off. During overcurrent conditions that pull the output voltage low, the error amplifier increases
switch current by driving the COMP pin high. The error amplifier output is clamped internally at a level which sets
the peak switch current limit. The TPS54340B provides an accurate current limit threshold with a typical current
limit delay of 60 ns. With smaller inductor values, the delay results in a higher peak inductor current. The
relationship between the inductor value and the peak inductor current is shown in Figure 23.
Peak Inductor Current
Inductor Current (A)
ΔCLPeak
Open Loop Current Limit
ΔCLPeak = VIN/L x tCLdelay
tCLdelay
tON
Figure 23. Current Limit Delay
To protect the converter in overload conditions at higher switching frequencies and input voltages, the
TPS54340B implements a frequency foldback. The oscillator frequency is divided by 1, 2, 4, and 8 as the FB pin
voltage falls from 0.8 V to 0 V. The TPS54340B uses a digital frequency foldback to enable synchronization to an
external clock during normal start-up and fault conditions. During short-circuit events, the inductor current can
exceed the peak current limit because of the high input voltage and the minimum controllable on time. When the
output voltage is forced low by the shorted load, the inductor current decreases slowly during the switch off time.
The frequency foldback effectively increases the off time by increasing the period of the switching cycle providing
more time for the inductor current to ramp down.
With a maximum frequency foldback ratio of 8, there is a maximum frequency at which the inductor current can
be controlled by frequency foldback protection. Equation 9 calculates the maximum switching frequency at which
the inductor current remains under control when VOUT is forced to VOUT(SC). The selected operating frequency
should not exceed the calculated value.
Equation 10 calculates the maximum switching frequency limitation set by the minimum controllable on time and
the input to output step down ratio. Setting the switching frequency above this value causes the regulator to skip
switching pulses to achieve the low duty cycle required at maximum input voltage.
æ I ´R + V
dc
OUT + Vd
´ç O
ç VIN - IO ´ RDS(on ) + Vd
è
ö
÷
÷
ø
(9)
fDIV æç ICL ´ Rdc + VOUT(sc ) + Vd
´
tON ç VIN - ICL ´ RDS(on ) + Vd
è
ö
÷
÷
ø
(10)
fSW (max skip ) =
fSW(shift) =
1
tON
Copyright © 2018, Texas Instruments Incorporated
15
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Feature Description (continued)
Where:
IO
Output current
ICL
Current limit
Rdc
inductor resistance
VIN
maximum input voltage
VOUT
output voltage
VOUTSC
output voltage during short
Vd
diode voltage drop
RDS(on)
switch on resistance
tON
controllable on time
ƒDIV
frequency divide equals (1, 2, 4, or 8)
7.3.11 Synchronization to RT/CLK pin
The RT/CLK pin can receive a frequency synchronization signal from an external system clock. To implement
this synchronization feature connect a square wave to the RT/CLK pin through either circuit network shown in
Figure 24. The square wave applied to the RT/CLK pin must switch lower than 0.5 V and higher than 1.7 V and
have a pulsewidth greater than 15 ns. The synchronization frequency range is 160 kHz to 2300 kHz. The rising
edge of the SW is synchronized to the falling edge of RT/CLK pin signal. Design the external synchronization
circuit so that the default frequency set resistor is connected from the RT/CLK pin to ground when the
synchronization signal is off. When using a low-impedance-signal source, the frequency set resistor is connected
in parallel with an AC-coupling capacitor to a termination resistor (for example, 50 Ω) as shown in Figure 24. The
two resistors in series provide the default frequency setting resistance when the signal source is turned off. The
sum of the resistance must set the switching frequency close to the external CLK frequency. TI recommends AC
coupling the synchronization signal through a 10-pF ceramic capacitor to RT/CLK pin.
The first time the RT/CLK is pulled above the PLL threshold the TPS54340B switches from the RT resistor freerunning frequency mode to the PLL synchronized mode. The internal 0.5-V voltage source is removed, and the
RT/CLK pin becomes high impedance as the PLL starts to lock onto the external signal. The switching frequency
can be higher or lower than the frequency set with the RT/CLK resistor. The device transitions from the resistor
mode to the PLL mode and locks onto the external clock frequency within 78 microseconds. During the transition
from the PLL mode to the resistor programmed mode, the switching frequency falls to 150 kHz and then
increases or decreases to the resistor programmed frequency when the 0.5-V bias voltage is reapplied to the
RT/CLK resistor.
The switching frequency is divided by 8, 4, 2, and 1 as the FB pin voltage ramps from 0 to 0.8 volts. The device
implements a digital frequency foldback to enable synchronizing to an external clock during normal start-up and
fault conditions. Figure 25, Figure 26, and Figure 27 show the device synchronized to an external system clock in
continuous conduction mode (CCM), discontinuous conduction (DCM), and pulse-skip mode (Eco-Mode).
SPACER
RT/CLK
TPS54340B
TPS54340B
RT/CLK
PLL
RT
Clock
Source
PLL
Hi-Z
Clock
Source
RT
Copyright © 2018, Texas Instruments Incorporated
Figure 24. Synchronizing to a System Clock
16
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Feature Description (continued)
SW
SW
EXT
EXT
IL
IL
Figure 25. Plot of Synchronizing in CCM
Figure 26. Plot of Synchronizing in DCM
SW
EXT
IL
Figure 27. Plot of Synchronizing in Eco-Mode
Copyright © 2018, Texas Instruments Incorporated
17
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Feature Description (continued)
7.3.12 Overvoltage Protection
The TPS54340B incorporates an output overvoltage protection (OVP) circuit to minimize voltage overshoot when
recovering from output fault conditions or strong unload transients in designs with low output capacitance. For
example, when the power supply output is overloaded the error amplifier compares the actual output voltage to
the internal reference voltage. If the FB pin voltage is lower than the internal reference voltage for a considerable
time, the output of the error amplifier increases to a maximum voltage corresponding to the peak current limit
threshold. When the overload condition is removed, the regulator output rises and the error amplifier output
transitions to the normal operating level. In some applications, the power supply output voltage can increase
faster than the response of the error amplifier output resulting in an output overshoot.
The OVP feature minimizes output overshoot when using a low value output capacitor by comparing the FB pin
voltage to the rising OVP threshold, which is nominally 109% of the internal voltage reference. If the FB pin
voltage is greater than the rising OVP threshold, the high side MOSFET is immediately disabled to minimize
output overshoot. When the FB voltage drops below the falling OVP threshold which is nominally 106% of the
internal voltage reference, the high-side MOSFET resumes normal operation.
7.3.13 Thermal Shutdown
The TPS54340B provides an internal thermal shutdown to protect the device when the junction temperature
exceeds 176°C. The high side MOSFET stops switching when the junction temperature exceeds the thermal trip
threshold. Once the die temperature falls below 164°C, the device reinitiates the power up sequence controlled
by the internal soft-start circuitry.
7.3.14 Small Signal Model for Loop Response
Figure 28 shows an equivalent model for the TPS54340B control loop which can be simulated to check the
frequency response and dynamic load response. The error amplifier is a transconductance amplifier with a gmEA
of 350 μA/V. The error amplifier can be modeled using an ideal voltage controlled current source. The resistor Ro
and capacitor Co model the open loop gain and frequency response of the amplifier. The 1-mV AC voltage
source between the nodes a and b effectively breaks the control loop for the frequency response measurements.
Plotting c/a provides the small signal response of the frequency compensation. Plotting a/b provides the small
signal response of the overall loop. The dynamic loop response can be evaluated by replacing RL with a current
source with the appropriate load step amplitude and step rate in a time domain analysis. This equivalent model is
only valid for continuous conduction mode (CCM) operation.
SW
VO
Power Stage
gmps 12 A/V
a
b
RESR
R1
RL
COMP
c
0.8 V
R3
C2
CO
RO
FB
COUT
gmea
350 mA/V
R2
C1
Copyright © 2016, Texas Instruments Incorporated
Figure 28. Small Signal Model for Loop Response
18
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Feature Description (continued)
7.3.15 Simple Small Signal Model for Peak-Current-Mode Control
Figure 29 describes a simple small signal model that can be used to design the frequency compensation. The
TPS54340B power stage can be approximated by a voltage-controlled current source (duty cycle modulator)
supplying current to the output capacitor and load resistor. The control to output transfer function is shown in
Equation 11 and consists of a DC gain, one dominant pole, and one ESR zero. The quotient of the change in
switch current and the change in COMP pin voltage (node c in Figure 28) is the power stage transconductance,
gmPS. The gmPS for the TPS54340B is 12 A/V. The low-frequency gain of the power stage is the product of the
transconductance and the load resistance as shown in Equation 12.
As the load current increases and decreases, the low-frequency gain decreases and increases, respectively. This
variation with the load may seem problematic at first glance, but fortunately the dominant pole moves with the
load current (see Equation 13). The combined effect is highlighted by the dashed line in the right half of
Figure 29. As the load current decreases, the gain increases and the pole frequency lowers, keeping the 0-dB
crossover frequency the same with varying load conditions. The type of output capacitor chosen determines
whether the ESR zero has a profound effect on the frequency compensation design. Using high ESR aluminum
electrolytic capacitors may reduce the number frequency compensation components needed to stabilize the
overall loop because the phase margin is increased by the ESR zero of the output capacitor (see Equation 14).
VO
Adc
VC
RESR
fp
RL
gmps
COUT
fz
Copyright © 2017, Texas Instruments Incorporated
Figure 29. Simple Small Signal Model and Frequency Response for Peak-Current-Mode Control
æ
s ö
ç1 +
÷
2p ´ fZ ø
VOUT
è
= Adc ´
VC
æ
s ö
ç1 +
÷
2
p
´ fP ø
è
Adc = gmps ´ RL
(11)
(12)
1
fP =
COUT ´ RL ´ 2p
(13)
1
fZ =
COUT ´ RESR ´ 2p
(14)
Copyright © 2018, Texas Instruments Incorporated
19
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Feature Description (continued)
7.3.16 Small Signal Model for Frequency Compensation
The TPS54340B uses a transconductance amplifier for the error amplifier and supports three of the commonlyused frequency compensation circuits. Compensation circuits Type 2A, Type 2B, and Type 1 are shown in
Figure 30. Type 2 circuits are typically implemented in high bandwidth power-supply designs using low ESR
output capacitors. The Type 1 circuit is used with power-supply designs with high-ESR aluminum electrolytic or
tantalum capacitors. Equation 15 and Equation 16 relate the frequency response of the amplifier to the small
signal model in Figure 30. The open-loop gain and bandwidth are modeled using the RO and CO shown in
Figure 30. See Application and Implementation for a design example using a Type 2A network with a low ESR
output capacitor.
Equation 15 through Equation 24 are provided as a reference. An alternative is to use WEBENCH software tools
to create a design based on the power supply requirements.
VO
R1
FB
gmea
Type 2A
COMP
Type 2B
Type 1
Vref
R2
RO
R3
CO
C1
C2
R3
C2
C1
Copyright © 2016, Texas Instruments Incorporated
Figure 30. Types of Frequency Compensation
Aol
A0
P1
Z1
P2
A1
BW
Figure 31. Frequency Response of the Type 2A and Type 2B Frequency Compensation
Aol(V/V)
gmea
gmea
=
2p ´ BW (Hz)
Ro =
CO
20
(15)
(16)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Feature Description (continued)
æ
ö
s
ç1 +
÷
2p ´ fZ1 ø
è
EA = A0 ´
æ
ö æ
ö
s
s
ç1 +
÷ ´ ç1 +
÷
2
2
p
´
p
´
f
f
P1 ø è
P2 ø
è
R2
R1 + R2
R2
´ Ro| | R3 ´
R1 + R2
A0 = gmea ´ Ro ´
A1 = gmea
P1 =
Z1 =
P2 =
(18)
(19)
1
2p ´ Ro ´ C1
(20)
1
2p ´ R3 ´ C1
(21)
1
2p ´ R3 | | RO ´ (C2 + CO )
type 2a
1
P2 =
type 2b
2p ´ R3 | | RO ´ CO
P2 =
2p ´ R O
(17)
1
type 1
´ (C2 + C O )
(22)
(23)
(24)
7.4 Device Functional Modes
7.4.1 Operation with VIN ≤ 4.5 V (Minimum VIN)
TI recommends operating the device with input voltages above 4.5 V. The typical VIN UVLO threshold is 4.3 V,
and the device may operate at input voltages down to the UVLO voltage. At input voltages below the actual
UVLO voltage, the device does not switch. If EN is externally pulled up to VIN or left floating, when VIN passes the
UVLO threshold the device become actives. Switching is enabled, and the soft start sequence is initiated. The
TPS54340B starts at the soft-start time determined by the internal soft-start time.
7.4.2 Operation with EN Control
The enable threshold voltage is 1.2 V typical. With EN held below that voltage the device is disabled and
switching is inhibited even if VIN is above its UVLO threshold. The IC quiescent current is reduced in this state. If
the EN voltage is increased above the threshold while VIN is above its UVLO threshold, the device becomes
active. Switching is enabled, and the soft start sequence is initiated. The TPS54340B starts at the soft-start time
determined by the internal soft start time.
Copyright © 2018, Texas Instruments Incorporated
21
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The TPS54340B is a 42-V, 3.5-A, step-down regulator with an integrated high-side MOSFET. Ideal applications
are: 12 V and 24 V industrial and communications power systems.
8.2 Typical Application: Buck Converter
L1
5.6 µH
C4
3.3 V, 3.5 A
0.1 …F
U1
TPS54340BDDA
VIN
6 V to 42 V
C1
C2
2.2 …F
2
3
R1
365k
4
2.2 …F
R2
86.6k
BOOT
VIN
GND
COMP
EN
RT/CLK
FB
8
100 …F
B560C
7
R5
31.6k
6
5
FB
C8
R4
11.5k
9
R3
162k
C6
D1
SW
PWRPD
1
GND
47 pF
FB
C5
R6
10.2k
5600 pF
GND
VOUT
GND
GND
GND
GND
Copyright © 2018, Texas Instruments Incorporated
Figure 32. 3.3 V Output TPS54340B Design Example
8.2.1 Design Requirements
This guide illustrates the design of a high frequency switching regulator using ceramic output capacitors. A few
parameters must be known in order to start the design process. These requirements are typically determined at
the system level. For this example, we will start with the following known parameters:
Table 1. Design Parameters
DESIGN PARAMETERS
22
EXAMPLE VALUES
Output voltage
3.3 V
Transient response 0.875 A to 2.625 A load step
ΔVOUT = 4%
Maximum output current
3.5 A
Input voltage
12 V nom. 6 V to 42 V
Output voltage ripple
0.5% of VOUT
Start input voltage (rising VIN)
5.75 V
Stop input voltage (falling VIN)
4.5 V
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
8.2.2 Detailed Design Procedures
8.2.2.1 Custom Design with WEBENCH® Tools
Click here to create a custom design using the TPS54340B device with the WEBENCH® Power Designer.
1. Start by entering your VIN, VOUT, and IOUT requirements.
2. Optimize your design for key parameters like efficiency, footprint and cost using the optimizer dial and
compare this design with other possible solutions from Texas Instruments.
3. The WEBENCH Power Designer provides you with a customized schematic along with a list of materials with
real time pricing and component availability.
4. In most cases, you will also be able to:
– Run electrical simulations to see important waveforms and circuit performance
– Run thermal simulations to understand the thermal performance of your board
– Export your customized schematic and layout into popular CAD formats
– Print PDF reports for the design, and share your design with colleagues
5. Get more information about WEBENCH tools at www.ti.com/WEBENCH.
8.2.2.2 Selecting the Switching Frequency
The first step is to choose a switching frequency for the regulator. Typically, the designer uses the highest
switching frequency possible since this produces the smallest solution size. High switching frequency allows for
lower value inductors and smaller output capacitors compared to a power supply that switches at a lower
frequency. The switching frequency that can be selected is limited by the minimum on-time of the internal power
switch, the input voltage, the output voltage and the frequency foldback protection.
Equation 9 and Equation 10 should be used to calculate the upper limit of the switching frequency for the
regulator. Choose the lower value result from the two equations. Switching frequencies higher than these values
results in pulse skipping or the lack of overcurrent protection during a short circuit.
The typical minimum on time, tonmin, is 135 ns for the TPS54340. For this example, the output voltage is 3.3 V
and the maximum input voltage is 42 V, which allows for a maximum switch frequency up to 712 kHz to avoid
pulse skipping from Equation 9. To ensure overcurrent runaway is not a concern during short circuits use
Equation 10 to determine the maximum switching frequency for frequency foldback protection. With a maximum
input voltage of 42 V, assuming a diode voltage of 0.7 V, inductor resistance of 21 mΩ, switch resistance of 92
mΩ, a current limit value of 4.7 A and short circuit output voltage of 0.1 V, the maximum switching frequency is
1260 kHz.
For this design, a lower switching frequency of 600 kHz is chosen to operate comfortably below the calculated
maximums. To determine the timing resistance for a given switching frequency, use Equation 7 or the curve in
Figure 6. The switching frequency is set by resistor R3 shown in Figure 32. For 600 kHz operation, the closest
standard value resistor is 162 kΩ.
1
æ 3.5 A x 21 mW + 3.3 V + 0.7 V ö
fSW(max skip) =
´ ç
÷ = 712 kHz
135ns
è 42 V - 3.5 A x 92 mW + 0.7 V ø
(25)
8
æ 4.7 A x 21 mW + 0.1 V + 0.7 V ö
´ ç
÷ = 1260 kHz
135 ns
è 42 V - 4.7 A x 92 mW + 0.7 V ø
101756
RT (kW) =
= 161 kW
600 (kHz)1.008
fSW(shift) =
(26)
(27)
8.2.2.3 Output Inductor Selection (LO)
To calculate the minimum value of the output inductor, use Equation 28.
KIND is a ratio that represents the amount of inductor ripple current relative to the maximum output current. The
inductor ripple current is filtered by the output capacitor. Therefore, choosing high inductor ripple currents
impacts the selection of the output capacitor since the output capacitor must have a ripple current rating equal to
or greater than the inductor ripple current. In general, the inductor ripple value is at the discretion of the designer,
however, the following guidelines may be used.
Copyright © 2018, Texas Instruments Incorporated
23
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
For designs using low ESR output capacitors such as ceramics, a value as high as KIND = 0.3 may be desirable.
When using higher ESR output capacitors, KIND = 0.2 yields better results. Since the inductor ripple current is
part of the current mode PWM control system, the inductor ripple current should always be greater than 150 mA
for stable PWM operation. In a wide input voltage regulator, it is best to choose relatively large inductor ripple
current. This provides sufficient ripple current with the input voltage at the minimum.
For this design example, KIND = 0.3 and the minimum inductor value is calculated to be 4.8 μH. The nearest
standard value is 5.6 μH. It is important that the RMS current and saturation current ratings of the inductor not be
exceeded. The RMS and peak inductor current can be found from Equation 30 and Equation 31. For this design,
the RMS inductor current is 3.5 A, and the peak inductor current is 3.95 A. The chosen inductor is a WE
7443552560, which has a saturation current rating of 7.5 A and an RMS current rating of 6.7 A.
As the equation set demonstrates, lower ripple currents will reduce the output voltage ripple of the regulator but
will require a larger value of inductance. Selecting higher ripple currents will increase the output voltage ripple of
the regulator but allow for a lower inductance value.
The current flowing through the inductor is the inductor ripple current plus the output current. During power up,
faults or transient load conditions, the inductor current can increase above the peak inductor current level
calculated above. In transient conditions, the inductor current can increase up to the switch current limit of the
device. For this reason, the most conservative design approach is to choose an inductor with a saturation current
rating equal to or greater than the switch current limit of the TPS54340 which is nominally 5.5 A.
LO(min ) =
VIN(max ) - VOUT
IOUT ´ KIND
´
VOUT
42 V - 3.3 V
3.3 V
=
´
= 4.8 mH
VIN(max ) ´ fSW
3.5 A x 0.3
42 V ´ 600 kHz
(28)
spacer
IRIPPLE =
VOUT ´ (VIN(max ) - VOUT )
VIN(max ) ´ LO ´ fSW
=
3.3 V x (42 V - 3.3 V)
= 0.905 A
42 V x 5.6 mH x 600 kHz
(29)
spacer
(
æ
1 ç VOUT ´ VIN(max ) - VOUT
2
´ç
IL(rms ) = (IOUT ) +
12 ç
VIN(max ) ´ LO ´ fSW
è
)÷ö
2
÷ =
÷
ø
2
(3.5 A )2 +
æ 3.3 V ´ (42 V - 3.3 V ) ö
1
´ ç
÷ = 3.5 A
ç 42 V ´ 5.6 mH ´ 600 kHz ÷
12
è
ø
(30)
spacer
IL(peak ) = IOUT +
IRIPPLE
0.905 A
= 3.5 A +
= 3.95 A
2
2
(31)
8.2.2.4 Output Capacitor
There are three primary considerations for selecting the value of the output capacitor. The output capacitor
determines the modulator pole, the output voltage ripple, and how the regulator responds to a large change in
load current. The output capacitance needs to be selected based on the most stringent of these three criteria.
The desired response to a large change in the load current is the first criteria. The output capacitor needs to
supply the increased load current until the regulator responds to the load step. The regulator does not respond
immediately to a large, fast increase in the load current such as transitioning from no load to a full load. The
regulator usually needs two or more clock cycles for the control loop to sense the change in output voltage and
adjust the peak switch current in response to the higher load. The output capacitance must be large enough to
supply the difference in current for 2 clock cycles to maintain the output voltage within the specified range.
Equation 32 shows the minimum output capacitance necessary, where ΔIOUT is the change in output current, ƒsw
is the regulators switching frequency and ΔVOUT is the allowable change in the output voltage. For this example,
the transient load response is specified as a 4% change in VOUT for a load step from 0.875 A to 2.625 A.
Therefore, ΔIOUT is 2.625 A – 0.875 A = 1.75 A and ΔVOUT = 0.04 × 3.3 = 0.13 V. Using these numbers gives a
minimum capacitance of 44.9 μF. This value does not take the ESR of the output capacitor into account in the
output voltage change. For ceramic capacitors, the ESR is usually small enough to be ignored. Aluminum
electrolytic and tantalum capacitors have higher ESR that must be included in load step calculations.
24
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
The output capacitor must also be sized to absorb energy stored in the inductor when transitioning from a high to
low load current. The catch diode of the regulator can not sink current so energy stored in the inductor can
produce an output voltage overshoot when the load current rapidly decreases. A typical load step response is
shown in Figure Figure 33. The excess energy absorbed in the output capacitor will increase the voltage on the
capacitor. The capacitor must be sized to maintain the desired output voltage during these transient periods.
Equation 33 calculates the minimum capacitance required to keep the output voltage overshoot to a desired
value, where LO is the value of the inductor, IOH is the output current under heavy load, IOL is the output under
light load, Vf is the peak output voltage, and VI is the initial voltage. For this example, the worst case load step
will be from 2.625 A to 0.875 A. The output voltage increases during this load transition and the stated maximum
in our specification is 4 % of the output voltage. This makes Vf = 1.04 × 3.3 = 3.432. Vi is the initial capacitor
voltage which is the nominal output voltage of 3.3 V. Using these numbers in Equation 33 yields a minimum
capacitance of 38.6 μF.
Equation 34 calculates the minimum output capacitance needed to meet the output voltage ripple specification,
where ƒsw is the switching frequency, VORIPPLE is the maximum allowable output voltage ripple, and IRIPPLE is the
inductor ripple current. Equation 34 yields 11.4 μF.
Equation 35 calculates the maximum ESR an output capacitor can have to meet the output voltage ripple
specification. Equation 35 indicates the ESR should be less than 18 mΩ.
The most stringent criteria for the output capacitor is 44.9 μF required to maintain the output voltage within
regulation tolerance during a load transient.
Capacitance de-ratings for aging, temperature and DC bias increases this minimum value. For this example,
100-μF ceramic capacitors with 5 mΩ of ESR is used. The derated capacitance is 70 µF, well above the
minimum required capacitance of 44.9 µF.
Capacitors are generally rated for a maximum ripple current that can be filtered without degrading capacitor
reliability. Some capacitor data sheets specify the root mean square (RMS) value of the maximum ripple current.
Equation 36 can be used to calculate the RMS ripple current that the output capacitor must support. For this
example, Equation 36 yields 261 mA.
2 ´ DIOUT
2 ´ 1.75 A
=
= 44.9 mF
COUT >
fSW ´ DVOUT 600 kHz x 0.13 V
(32)
((I ) - (I ) ) = 5.6 mH x (2.625 A - 0.875 A ) = 38.6 mF
x
(3.432 V - 3.3 V )
((V ) - (V ) )
2
OH
COUT > LO
2
2
2
OL
2
f
2
2
2
I
1
1
1
1
´
=
= 11.4 mF
COUT >
x
8 ´ fSW æ VORIPPLE ö 8 x 600 kHz
æ 16.5 mV ö
ç 0.905 A ÷
ç
÷
è
ø
è IRIPPLE ø
V
16.5 mV
= 18 mW
RESR < ORIPPLE =
IRIPPLE
0.905 A
ICOUT(rms) =
(
VOUT ´ VIN(max ) - VOUT
)=
12 ´ VIN(max ) ´ LO ´ fSW
3.3 V ´
(42 V
- 3.3 V )
12 ´ 42 V ´ 5.6 mH ´ 600 kHz
(33)
(34)
(35)
= 261 mA
(36)
8.2.2.5 Catch Diode
The TPS54340B requires an external catch diode between the SW terminal and GND. The selected diode must
have a reverse voltage rating equal to or greater than VIN(max). The peak current rating of the diode must be
greater than the maximum inductor current. Schottky diodes are typically a good choice for the catch diode due
to their low forward voltage. The lower the forward voltage of the diode, the higher the efficiency of the regulator.
Typically, diodes with higher voltage and current ratings have higher forward voltages. A diode with a minimum of
42 V reverse voltage is preferred to allow input voltage transients up to the rated voltage of the TPS54340.
For the example design, the B560C-13-F Schottky diode is selected for its lower forward voltage and good
thermal characteristics compared to smaller devices. The typical forward voltage of the B560C-13-F is 0.7 volts
at 5 A.
Copyright © 2018, Texas Instruments Incorporated
25
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
The diode must also be selected with an appropriate power rating. The diode conducts the output current during
the off-time of the internal power switch. The off-time of the internal switch is a function of the maximum input
voltage, the output voltage, and the switching frequency. The output current during the off-time is multiplied by
the forward voltage of the diode to calculate the instantaneous conduction losses of the diode. At higher
switching frequencies, the AC losses of the diode need to be taken into account. The AC losses of the diode are
due to the charging and discharging of the junction capacitance and reverse recovery charge. Equation 37 is
used to calculate the total power dissipation, including conduction losses and AC losses of the diode.
The B560C-13-F diode has a junction capacitance of 300 pF. Using Equation 37, the total loss in the diode is
2.42 Watts.
If the power supply spends a significant amount of time at light load currents or in sleep mode, consider using a
diode which has a low leakage current and slightly higher forward voltage drop.
PD =
(V
IN(max ) - VOUT
)´ I
OUT
+
VIN(max )
(42 V
2
´ Vf d
- 3.3 V ) ´ 3.5 A x 0.7 V
42 V
C j ´ fSW ´ (VIN + Vf d)
=
2
+
300 pF x 600 kHz x (42 V + 0.7 V)2
= 2.42 W
2
(37)
8.2.2.6 Input Capacitor
The TPS54340B requires a high quality ceramic type X5R or X7R input decoupling capacitor with at least 3 μF of
effective capacitance. Some applications will benefit from additional bulk capacitance. The effective capacitance
includes any loss of capacitance due to DC bias effects. The voltage rating of the input capacitor must be greater
than the maximum input voltage. The capacitor must also have a ripple current rating greater than the maximum
input current ripple of the TPS54340. The input ripple current can be calculated using Equation 38.
The value of a ceramic capacitor varies significantly with temperature and the DC bias applied to the capacitor.
The capacitance variations due to temperature can be minimized by selecting a dielectric material that is more
stable over temperature. X5R and X7R ceramic dielectrics are usually selected for switching regulator capacitors
because they have a high capacitance to volume ratio and are fairly stable over temperature. The input capacitor
must also be selected with consideration for the DC bias. The effective value of a capacitor decreases as the DC
bias across a capacitor increases.
For this example design, a ceramic capacitor with at least a 42 V voltage rating is required to support the
maximum input voltage. Common standard ceramic capacitor voltage ratings include 4 V, 6.3 V, 10 V, 16 V, 25
V, 50 V, or 100 V. For this example, two 2.2-μF, 100-V capacitors in parallel are used. Table 2 shows several
choices of high voltage capacitors.
The input capacitance value determines the input ripple voltage of the regulator. The input voltage ripple can be
calculated using Equation 39. Using the design example values, IOUT = 3.5 A, CIN = 4.4 μF, ƒsw = 600 kHz, yields
an input voltage ripple of 331 mV and a rms input ripple current of 1.74 A.
ICI(rms ) = IOUT x
VOUT
x
VIN(min )
(V
IN(min ) - VOUT
VIN(min )
) = 3.5 A
´ 0.25
I
3.5 A ´ 0.25
DVIN = OUT
=
= 331 mV
CIN ´ fSW
4.4 mF ´ 600 kHz
26
3.3 V
´
6V
(6 V
- 3.3 V )
6V
= 1.74 A
(38)
(39)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Table 2. Capacitor Types
VALUE (μF)
1 to 2.2
1 to 4.7
1
1 to 2.2
1 to 1.8
1 to 1.2
1 to 3.9
1 to 1.8
1 to 2.2
1.5 to 6.8
1 to 2.2
1 to 3.3
1 to 4.7
1
1 to 4.7
1 to 2.2
EIA Size
1210
1206
2220
2225
1812
1210
1210
1812
VOLTAGE
DIALECTRIC
100 V
COMMENTS
GRM32 series
50 V
100 V
GRM31 series
50 V
50 V
100 V
VJ X7R series
50 V
100 V
100 V
X7R
50 V
100 V
50 V
C series C4532
C series C3225
50 V
100 V
50 V
X7R dielectric series
100 V
8.2.2.7 Bootstrap Capacitor Selection
A 0.1-μF ceramic capacitor must be connected between the BOOT and SW terminals for proper operation. A
ceramic capacitor with X5R or better grade dielectric is recommended. The capacitor should have a 10 V or
higher voltage rating.
8.2.2.8 Undervoltage Lockout Setpoint
The undervoltage lockout (UVLO) can be adjusted using an external voltage divider on the EN terminal of the
TPS54340. The UVLO has two thresholds, one for power up when the input voltage is rising and one for power
down or brownouts when the input voltage is falling. For the example design, the supply must turn on and start
switching once the input voltage increases above 5.75 V (UVLO start). After the regulator starts switching, it
should continue to do so until the input voltage falls below 4.5 V (UVLO stop).
Programmable UVLO threshold voltages are set using the resistor divider of RUVLO1 and RUVLO2 between VIN and
ground connected to the EN terminal. Equation 4 and Equation 5 calculate the resistance values necessary. For
the example application, a 365 kΩ between VIN and EN (RUVLO1) and a 86.6 kΩ between EN and ground (RUVLO2)
are required to produce the 8-V and 6.25-V start and stop voltages.
V
- VSTOP
5.75 V - 4.5 V
=
= 368 kW
RUVLO1 = START
IHYS
3.4 mA
(40)
RUVLO2 =
VENA
1.2 V
=
= 87.8 kW
VSTART - VENA
5.75 V - 1.2 V
+ 1.2 mA
+ I1
365 kW
RUVLO1
(41)
8.2.2.9 Output Voltage and Feedback Resistors Selection
The voltage divider of R5 and R6 sets the output voltage. For the example design, 10.2 kΩ was selected for R6.
Using Equation 3, R5 is calculated as 31.9 kΩ. The nearest standard 1% resistor is 31.6 kΩ. Due to the input
current of the FB terminal, the current flowing through the feedback network should be greater than 1 μA to
maintain the output voltage accuracy. This requirement is satisfied if the value of R6 is less than 800 kΩ.
Choosing higher resistor values decreases quiescent current and improves efficiency at low output currents but
may also introduce noise immunity problems.
V
- 0.8 V
æ 3.3 V - 0.8 V ö
= 10.2 kW x ç
RHS = RLS x OUT
÷ = 31.9 kW
0.8 V
0.8 V
è
ø
(42)
Copyright © 2018, Texas Instruments Incorporated
27
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
8.2.2.10 Minimum VIN
To ensure proper operation of the device and to keep the output voltage in regulation, the input voltage at the
device must be above the value calculated with Equation 43. Using the typical values for the RHS, RDC and VF in
this application example, the minimum input voltage is 5.56 V. The BOOT-SW = 3 V curve in Figure 1 was used
for RDS(on) = 0.12 Ω because the device operates with low drop out. When operating with low dropout, the BOOTSW voltage is regulated at a lower voltage because the BOOT-SW capacitor is not refreshed every switching
cycle. In the final application, the values of RDS(on), Rdc and VF used in this equation must include tolerance of the
component specifications and the variation of these specifications at their maximum operating temperature in the
application. In this application example the calculated minimum input voltage is near the input voltage UVLO for
the TPS54340B so the device may turn off before going into drop out.
VOUT VF Rdc u IOUT
VIN min
RDS on u IOUT VF
0.99
3.3 V 0.5 V 0.0206 : u 3.5 A
VIN min
0.12 : u 3.5 A 0.5 V 3.83 V
0.99
(43)
8.2.2.11 Compensation
There are several methods to design compensation for DC/DC regulators. The method presented here is easy to
calculate and ignores the effects of the slope compensation that is internal to the device. Since the slope
compensation is ignored, the actual crossover frequency is lower than the crossover frequency used in the
calculations. This method assumes the crossover frequency is between the modulator pole and the ESR zero
and the ESR zero is at least 10 times greater the modulator pole.
To get started, the modulator pole, ƒp(mod), and the ESR zero, ƒz1 must be calculated using Equation 44 and
Equation 45. For COUT, use a derated value of 70 μF. Use equations Equation 46 and Equation 47 to estimate a
starting point for the crossover frequency, ƒco. For the example design, ƒp(mod) is 2411 Hz and ƒz(mod) is 455 kHz.
Equation 45 is the geometric mean of the modulator pole and the ESR zero and Equation 47 is the mean of
modulator pole and the switching frequency. Equation 46 yields 33.1 kHz and Equation 47 gives 26.9 kHz. Use
the lower value of Equation 46 or Equation 47 for an initial crossover frequency. For this example, the target ƒco
is 26.9 kHz.
Next, the compensation components are calculated. A resistor in series with a capacitor is used to create a
compensating zero. A capacitor in parallel to these two components forms the compensating pole.
IOUT(max )
3.5 A
fP(mod) =
=
= 2411 Hz
2 ´ p ´ VOUT ´ COUT 2 ´ p ´ 3.3 V ´ 70 mF
(44)
f Z(mod) =
1
1
=
= 455 kHz
2 ´ p ´ RESR ´ COUT
2 ´ p ´ 5 mW ´ 70 mF
fco =
fp(mod) x f z(mod) =
fco =
fp(mod) x
fSW
2
=
2411 Hz x 455 kHz
2411 Hz x
600 kHz
2
= 33.1 kHz
= 26.9 kHz
(45)
(46)
(47)
To determine the compensation resistor, R4, use Equation 48. Assume the power stage transconductance,
gmps, is 12 A/V. The output voltage, VO, reference voltage, VREF, and amplifier transconductance, gmea, are 5
V, 0.8 V and 350 μA/V, respectively. R4 is calculated to be 11.6 kΩ and a standard value of 11.5 kΩ is selected.
Use Equation 49 to set the compensation zero to the modulator pole frequency. Equation 49 yields 5740 pF for
compensating capacitor C5. 5600 pF is used for this design.
ö
VOUT
æ 2 ´ p ´ fco ´ COUT ö æ
ö
3.3 V
æ 2 ´ p ´ 26.9 kHz ´ 70 mF ö æ
R4 = ç
xç
÷ = ç
÷ x ç
÷ = 11.6 kW
÷
gmps
12 A / V
è
ø è 0.8 V x 350 mA / V ø
è
ø è VREF x gmea ø
(48)
C5 =
28
1
1
=
= 5740 pF
2 ´ p ´ R4 x fp(mod)
2 ´ p ´ 11.5 kW x 2411 Hz
(49)
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
A compensation pole can be implemented if desired by adding capacitor C8 in parallel with the series
combination of R4 and C5. Use the larger value calculated from Equation 50 and Equation 51 for C8 to set the
compensation pole. The selected value of C8 is 47 pF for this design example.
C
x RESR
70 mF x 5 mW
=
= 30.4 pF
C8 = OUT
R4
11.5 kW
(50)
1
1
=
= 46.1 pF
C8 =
R4 x f sw x p
11.5 kW x 600 kHz x p
(51)
8.2.2.12 Discontinuous Conduction Mode and Eco-mode Boundary
With an input voltage of 12 V, the power supply enters discontinuous conduction mode when the output current
is less than 342 mA. The power supply enters Eco-mode when the output current is lower than 31.4 mA. The
input current draw is 237 μA with no load.
8.2.2.13 Power Dissipation
The following formulas show how to estimate the TPS54340B power dissipation under continuous conduction
mode (CCM) operation. Do not use these equations if the device is operating in discontinuous conduction mode
(DCM).
The power dissipation of the IC includes conduction loss (PCOND), switching loss (PSW), gate drive loss (PGD) and
supply current (PQ). Example calculations are shown with the 12-V typical input voltage of the design example.
æV
ö
3.3 V
2
PCOND = (IOUT ) ´ RDS(on ) ´ ç OUT ÷ = 3.5 A 2 ´ 92 mW ´
= 0.31 W
V
12 V
è IN ø
(52)
spacer
PSW = VIN ´ fSW ´ IOUT ´ trise = 12 V ´ 600 kHz ´ 3.5 A ´ 4.9 ns = 0.123 W
(53)
spacer
PGD = VIN ´ QG ´ fSW = 12 V ´ 3nC ´ 600 kHz = 0.022 W
(54)
spacer
PQ = VIN ´ IQ = 12 V ´ 146 mA = 0.0018 W
(55)
Where:
IOUT
is the output current (A).
RDS(on)
is the on-resistance of the high-side MOSFET (Ω).
VOUT
is the output voltage (V).
VIN
is the input voltage (V).
ƒsw
is the switching frequency (Hz).
trise
is the SW terminal voltage rise time and can be estimated by trise = VIN x 0.16ns/V + 3.0ns.
QG
is the total gate charge of the internal MOSFET.
IQ
is the operating nonswitching supply current.
Copyright © 2018, Texas Instruments Incorporated
29
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
Therefore,
PTOT = PCOND + PSW + PGD + PQ = 0.31 W + 0.123 W + 0.022 W + 0.0018 W = 0.457 W
(56)
For given TA,
TJ = TA + RTH ´ PTOT
(57)
For given TJMAX = 150°C
TA (max ) = TJ(max ) - RTH ´ PTOT
(58)
Where:
Ptot
is the total device power dissipation (W),
TA
is the ambient temperature (°C).
TJ
is the junction temperature (°C).
RTH
is the thermal resistance of the package (°C/W).
TJMAX
is maximum junction temperature (°C)
TAMAX
is maximum ambient temperature (°C).
There will be additional power losses in the regulator circuit due to the inductor AC and DC losses, the catch
diode, and PCB trace resistance impacting the overall efficiency of the regulator.
30
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
10 V/div
1 A/div
8.2.3 Application Curves
C4: IOUT
VIN
C3
C3: VOUT ac coupled
20 mV/div
100 mV/div
C4
VOUT
Time = 4 ms/div
Figure 34. Line Transient (8 V to 40 V)
5 V/div
5 V/div
Time = 100 ms/div
Figure 33. Load Transient
C1: VIN
-3.3 V offset
C1: VIN
C3: EN
C3
C2: VOUT
2 V/div
C1
2 V/div
2 V/div
2 V/div
C1
C2
C3: EN
C3
C2: VOUT
C2
Time = 2 ms/div
Figure 35. Start-up With VIN
500 mA/div
C4: IL
C2: VOUT ac coupled
10 mV/div
20 mV/div
10 V/div
C1
1 A/div
10 V/div
C1: SW
Time = 2 ms/div
Figure 36. Start-up With EN
C2
C4
C1: SW
C1
C4: IL
C4
C2
C2: VOUT ac coupled
Time = 2 ms/div
IOUT = 3.5 A
Figure 37. Output Ripple CCM
Copyright © 2018, Texas Instruments Incorporated
Time = 2 ms/div
IOUT = 100 mA
Figure 38. Output Ripple DCM
31
TPS54340B
10 V/div
www.ti.com.cn
C1: SW
C1
C1: SW
C1
1 A/div
C4: IL
C4: IL
C4
C2: VOUT ac coupled
C3: VIN ac coupled
C2
200 mV/div
20 mV/div
200 mA/div
10 V/div
ZHCSJ42 – DECEMBER 2018
C2
C4
Time = 2 ms/div
Time = 2 ms/div
No Load
IOUT = 3.5 A
Figure 40. Input Ripple CCM
C1: SW
2 V/div
C1: SW
C1
200 mA/div
C4: IL
C4
C3: VIN ac coupled
20 mV/div
50 mV/div
500 mA/div
10 V/div
Figure 39. Output Ripple PSM
C3
C4
C4: IL
C3
C3: VOUT ac coupled
Time = 2 ms/div
IOUT = 100 mA
VIN = 12V
VIN = 5.5 V
VOUT = 5 V
Figure 42. Low Dropout Operation
100
100
90
90
80
80
70
70
Efficiency - %
Efficiency - %
Figure 41. Input Ripple DCM
60
50
40
30
20
60
50
40
30
20
6Vin
12Vin
24Vin
10
36Vin
42Vin
0
0.5
1.0
1.5
2.0
2.5
3.0
6Vin
12Vin
24Vin
10
0
3.5
0
0.001
0.01
IO - Output Current - A
VOUT = 3.3 V
ƒsw = 600 kHz
Figure 43. Efficiency vs Load Current
32
Time = 20 ms/div
No Load
EN Floating
36Vin
42Vin
0.1
1
IO - Output Current - A
VOUT = 3.3 V
ƒsw = 600 kHz
Figure 44. Light Load Efficiency
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
90
80
80
70
70
Efficiency - %
100
90
Efficiency - %
100
60
50
40
30
20
60
50
40
30
20
6Vin
12Vin
24Vin
10
36Vin
42Vin
0
0
0.5
1.0
1.5
2.5
2.0
3.0
3.5
6Vin
12Vin
24Vin
10
0
0.001
4.0
VOUT = 5 V
ƒsw = 600 kHz
VOUT = 5 V
180
1
0.8
40
Phase - degree
120
60
20
Gain - dB
Output Voltage Deviation - %
Phase
Gain
0
0
-20
-60
-40
-120
-180
-60
VIN = 12 V
1000
ƒsw = 600 kHz
Figure 46. Light Load Efficiency
60
100
1
IO - Output Current - A
Figure 45. Efficiency vs Load Current
10
0.1
0.01
IO - Output Current - A
36Vin
42Vin
10000
100000
0.6
0.4
0.2
0
-0.2
0.4
-0.6
-0.8
-1
0
1000000
0.5
1.0
1.5
2.0
2.5
3.0
3.5
IO - Output Current - A
Frequency - Hz
VOUT = 3.3 V
IOUT = 3.5 A
VIN = 12 V
Figure 47. Overall Loop Frequency Response
VOUT = 3.3 V
ƒsw = 600 kHz
Figure 48. Regulation vs Load Current
Output Voltage Deviation - %
0.3
0.2
0.1
0
-0.1
0.2
-0.3
5
10
15
20
25
30
35
40
45
VIN - Input Voltage - V
VOUT = 3.3 V
IOUT = 3.5 A
ƒsw = 600 kHz
Figure 49. Regulation vs Input Voltage
Copyright © 2018, Texas Instruments Incorporated
33
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
8.3 Other Applications
8.3.1 Inverting Power
The TPS54340B can be used to convert a positive input voltage to a negative output voltage. Idea applications
are amplifiers requiring a negative power supply. For a more detailed example, see Create an Inverting Power
Supply from a Step-Down Regulator.
VIN
+
Cin
Cboot
Lo
BOOT
VIN
Cd
GND
SW
TPS54340B
R1
GND
+
Co
FB
R2
VOUT
EN
COMP
RT/CLK
Rcomp
RT
Czero
Cpole
Copyright © 2018, Texas Instruments Incorporated
Figure 50. TPS54340B Inverting Power Supply
8.3.2 Split-Rail Power Supply
The TPS54340 can be used to convert a positive input voltage to a split rail positive and negative output voltage
by using a coupled inductor. Idea applications are amplifiers requiring a split rail positive and negative voltage
power supply. For a more detailed example see Create a Split-Rail Power Supply with a Wide Input Voltage
Buck Regulator.
34
Copyright © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
Other Applications (continued)
VIN
+
VOPOS
Cin
Cboot
+
GND
Copos
BOOT
VIN
Cd
GND
SW
TPS54340B
R1
GND
+
Coneg
FB
R2
VONEG
EN
COMP
RT/CLK
Rcomp
RT
Czero
Cpole
Copyright © 2018, Texas Instruments Incorporated
Figure 51. TPS54360B Split Rail Power Supply
9 Power Supply Recommendations
The device is designed to operate from an input voltage supply range between 4.5 V and 42 V. This input supply
must be well regulated. If the input supply is located more than a few inches from the TPS54340B converter
additional bulk capacitance may be required in addition to the ceramic bypass capacitors. A 100-μF electrolytic
capacitor is a typical choice
Copyright © 2018, Texas Instruments Incorporated
35
TPS54340B
ZHCSJ42 – DECEMBER 2018
www.ti.com.cn
10 Layout
10.1 Layout Guidelines
Layout is a critical portion of good power supply design. There are several signal paths that conduct fast
changing currents or voltages that can interact with stray inductance or parasitic capacitance to generate noise
or degrade performance.
• To reduce parasitic effects, bypass the VIN pin to ground with a low ESR ceramic bypass capacitor with X5R
or X7R dielectric.
• Take care to minimize the loop area formed by the bypass capacitor connections, the VIN pin, and the anode
of the catch diode.
• Tie the GND pin directly to the power pad under the IC and the PowerPAD.
• Connect the PowerPAD to internal PCB ground planes using multiple vias directly under the device. Route
the SW pin to the cathode of the catch diode and to the output inductor.
• Because the SW connection is the switching node, the catch diode and output inductor must be located close
to the SW pins, and the area of the PCB conductor minimized to prevent excessive capacitive coupling.
• For operation at full rated load, the top-side ground area must provide adequate heat dissipating area.
• The RT/CLK pin is sensitive to noise so place the RT resistor as close as possible to the IC and routed with
minimal lengths of trace.
• The additional external components can be placed approximately as shown.
• Acceptable performance can be attained with alternate PCB layouts; however, this layout has been shown to
produce good results and is meant as a guideline.
10.2 Layout Example
Vout
Output
Capacitor
Topside
Ground
Area
Input
Bypass
Capacitor
Vin
UVLO
Adjust
Resistors
Output
Inductor
Route Boot Capacitor
Trace on another layer to
provide wide path for
topside ground
BOOT
Catch
Diode
SW
VIN
GND
EN
COMP
RT/CLK
Frequency
Set Resistor
FB
Compensation
Network
Resistor
Divider
Thermal VIA
Signal VIA
Figure 52. PCB Layout Example
10.2.1 Estimated Circuit Area
Boxing in the components in the design of Figure 32 the estimated printed circuit board area is 1.025 in2 (661
mm2). This area does not include test points or connectors.
36
版权 © 2018, Texas Instruments Incorporated
TPS54340B
www.ti.com.cn
ZHCSJ42 – DECEMBER 2018
11 器件和文档支持
11.1 器件支持
11.1.1 第三方产品免责声明
TI 发布的与第三方产品或服务有关的信息，不能构成与此类产品或服务或保修的适用性有关的认可，不能构成此类
产品或服务单独或与任何 TI 产品或服务一起的表示或认可。
11.1.2 使用 WEBENCH® 工具定制设计方案
请单击此处，使用 TPS54340B 器件并借助 WEBENCH®电源设计器创建定制设计。
1. 首先输入您的 VIN、VOUT 和 IOUT 要求。
2. 使用优化器拨盘可优化效率、封装和成本等关键设计参数并将您的设计与德州仪器 (TI) 的其他可行解决方案进
行比较。
3. WEBENCH Power Designer 提供一份定制原理图以及罗列实时价格和组件可用性的物料清单。
4. 在多数情况下，您还可以：
– 运行电气仿真，观察重要波形以及电路性能
– 运行热性能仿真，了解电路板热性能
– 将定制原理图和布局方案导出至常用 CAD 格式
– 打印设计方案的 PDF 报告并与同事共享
5. 有关 WEBENCH 工具的详细信息，请访问 www.ti.com.cn/WEBENCH。
11.2 接收文档更新通知
要接收文档更新通知，请导航至 TI.com.cn 上的器件产品文件夹。单击右上角的通知我进行注册，即可每周接收产
品信息更改摘要。有关更改的详细信息，请查看任何已修订文档中包含的修订历史记录。
11.3 社区资源
下列链接提供到 TI 社区资源的连接。链接的内容由各个分销商“按照原样”提供。这些内容并不构成 TI 技术规范，
并且不一定反映 TI 的观点；请参阅 TI 的 《使用条款》。
TI E2E™ 在线社区 TI 的工程师对工程师 (E2E) 社区。此社区的创建目的在于促进工程师之间的协作。在
e2e.ti.com 中，您可以咨询问题、分享知识、拓展思路并与同行工程师一道帮助解决问题。
设计支持
TI 参考设计支持 可帮助您快速查找有帮助的 E2E 论坛、设计支持工具以及技术支持的联系信息。
11.4 商标
Eco-mode。, PowerPAD, E2E are trademarks of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 静电放电警告
这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损
伤。
12 机械、封装和可订购信息
以下页面包含机械、封装和可订购信息。这些信息是指定器件的最新可用数据。数据如有变更，恕不另行通知，且
不会对此文档进行修订。如需获取此数据表的浏览器版本，请查阅左侧的导航栏。
版权 © 2018, Texas Instruments Incorporated
37
重要声明和免责声明
TI 均以“原样”提供技术性及可靠性数据（包括数据表）、设计资源（包括参考设计）、应用或其他设计建议、网络工具、安全信息和其他资
源，不保证其中不含任何瑕疵，且不做任何明示或暗示的担保，包括但不限于对适销性、适合某特定用途或不侵犯任何第三方知识产权的暗示
担保。
所述资源可供专业开发人员应用TI 产品进行设计使用。您将对以下行为独自承担全部责任：(1) 针对您的应用选择合适的TI 产品；(2) 设计、
验证并测试您的应用；(3) 确保您的应用满足相应标准以及任何其他安全、安保或其他要求。所述资源如有变更，恕不另行通知。TI 对您使用
所述资源的授权仅限于开发资源所涉及TI 产品的相关应用。除此之外不得复制或展示所述资源，也不提供其它TI或任何第三方的知识产权授权
许可。如因使用所述资源而产生任何索赔、赔偿、成本、损失及债务等，TI对此概不负责，并且您须赔偿由此对TI 及其代表造成的损害。
TI 所提供产品均受TI 的销售条款 (http://www.ti.com.cn/zh-cn/legal/termsofsale.html) 以及ti.com.cn上或随附TI产品提供的其他可适用条款的约
束。TI提供所述资源并不扩展或以其他方式更改TI 针对TI 产品所发布的可适用的担保范围或担保免责声明。IMPORTANT NOTICE
邮寄地址：上海市浦东新区世纪大道 1568 号中建大厦 32 楼，邮政编码：200122
Copyright © 2019 德州仪器半导体技术（上海）有限公司
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS54340BDDA
ACTIVE SO PowerPAD
DDA
8
75
RoHS & Green
NIPDAUAG
Level-2-260C-1 YEAR
-40 to 150
54340C
TPS54340BDDAR
ACTIVE SO PowerPAD
DDA
8
2500
RoHS & Green
NIPDAUAG
Level-2-260C-1 YEAR
-40 to 150
54340C
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
