TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
具有 Eco-mode™ 的 TPS54540B-Q1 4.5V 至 42V 输入、5A 降压直流/直
直
流转换器
1 特性
•
•
1
•
•
•
•
•
•
•
•
•
•
•
•
符合汽车应用 应用认证
具有符合 AEC-Q100 标准的下列结果：
– 器件温度 1 级：-40°C 至 125°C 的环境运行温
度范围
– 器件人体放电模式 (HBM) 静电放电 (ESD) 分类
等级 H1C
– 器件组件充电模式 (CDM) ESD 分类等级 C3B
可在轻负载条件下使用脉冲跳跃 Eco-mode™ 实现
高效率 Eco-mode™
92mΩ 高侧金属氧化物半导体场效应晶体管
(MOSFET)
146μA 静态运行电流和 2μA 关断电流
100kHz 至 2.5MHz 可调开关频率
同步至外部时钟
可在轻负载条件下使用集成型引导 (BOOT) 再充电
场效应晶体管 (FET) 实现低压降
可调欠压闭锁 (UVLO) 电压和迟滞
0.8V 1% 内部电压基准
8 引脚 HSOP PowerPAD™的封装
-40°C 至 150°C TJ 运行范围
由 WEBENCH®软件工具支持
•
•
3 说明
TPS54540B-Q1 是一款具有集成型高侧 MOSFET 的
42V、5A 降压稳压器。按照 ISO 7637 标准，此器件
能够耐受高达 65V 的负载突降脉冲。电流模式控制提
供简单的外部补偿和灵活的组件选择。低纹波脉冲跳跃
模式可将无负载电源电流减小至 146μA。当使能引脚
被拉至低电平时，关断电源电流将降至 2μA。
欠压闭锁在内部设定为 4.3V，但可用一个使能引脚上
的外部电阻分压器将之提高。该器件可在内部控制输出
电压启动斜坡，从而控制启动过程并消除过冲。
宽开关频率范围可实现对效率或者外部组件尺寸进行的
优化。输出电流是受限的逐周期电流。频率折返和热关
断功能在过载情况下保护内部和外部组件不受损坏。

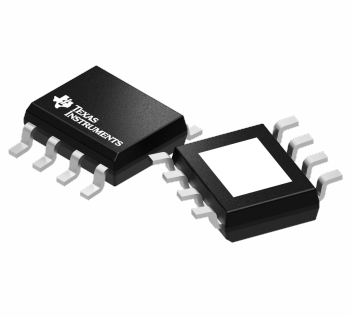

TPS54540B-Q1 采用 8 引脚热增强型 HSOP
PowerPAD 封装。
器件信息(1)
器件型号
封装
TPS54540B-Q1
封装尺寸（标称值）
HSOP (8)
4.89mm × 3.90mm
(1) 如需了解所有可用封装，请参阅产品说明书末尾的可订购产品
附录。
2 应用
•
12V、24V 和 48V 工业、汽车及通信用电源系统
车辆附件：全球卫星定位 (GPS)（请参见
SLVA412），娱乐系统，高级驾驶员辅助系统
(ADAS)，紧急呼叫系统 (eCall)
USB 专用充电端口和电池充电器（请参阅
SLVA464）
工业自动化和电机控制
sp
简化原理图
效率与负载电流间的关系
100
VIN
VIN
BOOT
90
80
TPS54540B-Q1
EN
VOUT
SW
COMP
Efficiency (%)
70
60
50
40
30
20
RT/CLK
FB
VSeries1
IN = 12 V
VSeries2
IN = 36 V
VSeries4
IN = 60 V
10
0
GND
0
0.5
1
1.5
2
2.5
3
3.5
IO - Output Current (A)
4
4.5
5
5.5
C024
Copyright © 2017, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
English Data Sheet: SLVSDX6
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
目录
1
2
3
4
5
6
7
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
4
4
4
4
5
5
6
7
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
7.4 Device Functional Modes........................................ 22
8
Application and Implementation ........................ 23
8.1 Application Information............................................ 23
8.2 Typical Applications ................................................ 23
9 Power Supply Recommendations...................... 36
10 Layout................................................................... 36
10.1 Layout Guidelines ................................................. 36
10.2 Layout Example .................................................... 36
10.3 Estimated Circuit Area .......................................... 37
11 器件和文档支持 ..................................................... 37
11.1
11.2
11.3
11.4
11.5
11.6
Detailed Description ............................................ 11
7.1 Overview ................................................................. 11
7.2 Functional Block Diagram ....................................... 12
7.3 Feature Description................................................. 12
器件支持................................................................
文档支持................................................................
社区资源................................................................
商标 .......................................................................
静电放电警告.........................................................
Glossary ................................................................
37
37
37
37
37
37
12 机械、封装和可订购信息 ....................................... 38
4 修订历史记录
注：之前版本的页码可能与当前版本有所不同。
2
日期
修订版本
注释
2017 年2 月
*
初始发行版。
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
5 Pin Configuration and Functions
DDA Package
8-Pin HSOP With PowerPAD
Top View
BOOT
1
VIN
2
8
SW
7
GND
PowerPAD
9
EN
3
6
COMP
RT/CLK
4
5
FB
Pin Functions
PIN
I/O
DESCRIPTION
NAME
NO.
BOOT
1
I
A bootstrap capacitor is required between BOOT and SW. If the voltage on this capacitor is below the
minimum required to operate the high side MOSFET, the MOSFET stops switching until the capacitor is
refreshed.
COMP
6
I
Error amplifier output and input to the output switch current (PWM) comparator. Connect frequency
compensation components to this pin.
EN
3
I
Enable pin, with internal pullup current source. Pull below 1.2 V to disable. Float to enable. Adjust the input
undervoltage lockout with two resistors. See the Enable and Adjusting Undervoltage Lockout section.
FB
5
I
Inverting input of the transconductance (gm) error amplifier.
GND
7
—
Ground
RT/CLK
4
I
Resistor Timing and External Clock. An internal amplifier holds this pin at a fixed voltage when using an
external resistor to ground to set the switching frequency. If the pin is pulled above the PLL upper threshold,
a mode change occurs and the pin becomes a synchronization input. The internal amplifier is disabled and
the pin is a high impedance clock input to the internal PLL. If clocking edges stop, the internal amplifier is
reenabled and the operating mode returns to resistor frequency programming.
SW
8
O
The source of the internal high-side power MOSFET and switching node of the converter.
VIN
2
I
Input supply voltage is connected to this pin with a 4.5-V to 42-V operating range.
PowerPAD
9
—
GND pin must be electrically connected to the exposed pad on the printed-circuit-board for proper operation.
Copyright © 2017, Texas Instruments Incorporated
3
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
Voltage
MIN
MAX
VIN
–0.3
65
EN
–0.3
8.4
FB
–0.3
3
COMP
–0.3
3
RT/CLK
–0.3
3.6
BOOT-SW
–0.3
8
SW
–0.6
65
SW, 10-ns Transient
UNIT
V
–2
65
Operating junction temperature
–40
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic
discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±750
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
VIN
Input supply voltage (1)
VO
NOM
MAX
UNIT
VO + Vdo
60
V
Output voltage
0.8
58.8
V
IO
Output current
0
5
A
TJ
Junction Temperature
–40
150
°C
(1)
See Equation 1 in the Feature Description section.
6.4 Thermal Information
TPS54540B-Q1
THERMAL METRIC (1)
DDA (HSOP)
UNIT
8 PINS
RθJA
Junction-to-ambient thermal resistance
41.7
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
52.7
°C/W
RθJB
Junction-to-board thermal resistance
22.6
°C/W
ψJT
Junction-to-top characterization parameter
7.9
°C/W
ψJB
Junction-to-board characterization parameter
22.5
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
2.6
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
6.5 Electrical Characteristics
TJ = –40°C to 150°C, VIN = 4.5 V to 42 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
4.3
4.48
UNIT
SUPPLY VOLTAGE (VIN PIN)
Operating input voltage
Internal undervoltage lockout threshold
4.5
Rising
4.1
Internal undervoltage lockout threshold hysteresis
42
325
V
V
mV
Shutdown supply current
EN = 0 V, 25°C, 4.5 V ≤ VIN ≤ 42 V
2.25
4.5
Operating: nonswitching supply current
FB = 0.9 V, TA = 25°C
146
175
1.2
1.3
μA
ENABLE AND UVLO (EN PIN)
Enable threshold voltage
Input current
No voltage hysteresis, rising and falling
1.1
Enable threshold 50 mV
–4.6
Enable threshold –50 mV
Hysteresis current
–0.58
–1.2
–1.8
–2.2
–3.4
–4.5
V
μA
μA
INTERNAL SOFT-START TIME
Soft-start time
fSW = 500 kHz, 10% to 90%
2.1
ms
Soft-start time
fSW = 2.5 MHz, 10% to 90%
0.42
ms
VOLTAGE REFERENCE
Voltage reference
0.792
0.8
0.808
92
190
V
HIGH-SIDE MOSFET
On-resistance
VIN = 12 V, BOOT-SW = 6 V
mΩ
ERROR AMPLIFIER
Input current
Error amplifier transconductance (gM)
–2 μA < ICOMP < 2 μA, VCOMP = 1 V
Error amplifier transconductance (gM) during soft-start
–2 μA < ICOMP < 2 μA, VCOMP = 1 V, VFB = 0.4 V
Error amplifier DC gain
VFB = 0.8 V
Minimum unity gain bandwidth
Error amplifier source and sink
V(COMP) = 1 V, 100-mV overdrive
COMP to SW current transconductance
50
nA
350
μS
77
μS
10000
V/V
2500
kHz
±30
μA
17
A/V
CURRENT LIMIT
Current limit threshold
All VIN and temperatures, Open Loop
6.3
7.9
9.5
All temperatures, VIN = 12 V, Open Loop
6.3
7.9
9.5
VIN = 12 V, TA = 25°C, Open Loop (1)
7.0
7.9
8.8
A
THERMAL SHUTDOWN
Thermal shutdown
Thermal shutdown hysteresis
176
°C
12
°C
346
µs
ERROR AMPLIFIER
Enable to COMP active
(1)
VIN = 12 V, TA = 25°C
Open-loop current limit measured directly at the SW pin and is independent of the inductor value and slope compensation.
6.6 Timing Requirements
TJ = –40°C to 150°C, VIN = 4.5 V to 42 V (unless otherwise noted)
MIN
NOM
MAX
UNIT
RT/CLK
Minimum CLK input pulse width
Copyright © 2017, Texas Instruments Incorporated
15
ns
5
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
6.7 Switching Characteristics
TJ = –40°C to 150°C, VIN = 4.5 V to 42 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
CURRENT LIMIT
Current limit threshold delay
60
ns
RT/CLK
Switching frequency range using RT
mode
fSW
Switching frequency
100
RT = 200 kΩ
Switching frequency range using
CLK mode
450
160
RT/CLK high threshold
1.55
RT/CLK low threshold
6
500
0.5
2500
kHz
550
kHz
2300
kHz
2
V
1.2
V
RT/CLK falling edge to SW rising
edge delay
Measured at 500 kHz with RT
resistor in series
55
ns
PLL lock in time
Measured at 500 kHz
78
μs
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
6.8 Typical Characteristics
0.814
VFB - Voltage Referance ( V)
RDSON - On-State Resistance ( )
0.25
0.2
0.15
0.1
0.05
BOOT-SW = 3 V
0.809
0.804
0.799
0.794
0.789
BOOT-SW = 6 V
0
0.784
±50
±25
0
25
50
75
100
125
±50
150
TJ - Junction Temperature (ƒC)
Figure 1. ON-Resistance vs Junction Temperature
25
50
75
100
125
150
C026
Figure 2. Voltage Reference vs Junction Temperature
9
4.5
12
60
9
High Side Switch Current (A)
High Side Switch Current (A)
0
TJ - Junction Temperature (ƒC)
9.5
8.5
8
7.5
7
6.5
6
-40
8.5
8
7.5
7
-40 qC
25 qC
150 qC
6.5
6
-10
20
50
80
110
Temperature Junction (Tj)
140
170
0
10
20
D001
Figure 3. High-side Switch Current Limit vs Junction
Temperature
550
500
540
450
530
520
510
500
490
480
470
460
450
30
40
Input Voltage (V)
50
60
D002
Figure 4. High-side Switch Current Limit vs Input Voltage
FSW - Switching Frequency (kHz)
FS - Switching Frequency (kHz)
±25
C025
400
350
300
250
200
150
100
50
0
±50
±25
0
25
50
75
100
TJ - Junction Temperature (ƒC)
125
150
C029
Figure 5. Switching Frequency vs Junction Temperature
Copyright © 2017, Texas Instruments Incorporated
200
300
400
500
600
700
RT/CLK - Resistance (k )
800
900
1000
C030
Figure 6. Switching Frequency vs RT/CLK Resistance LowFrequency Range
7
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Typical Characteristics (continued)
500
2300
450
2100
1900
400
gm (µA/V)
FSW - Switching Frequency (kHz)
2500
1700
1500
1300
300
1100
900
250
700
500
200
0
50
100
150
±50
200
RT/CLK - Resistance (k )
EN - Threshold (V)
100
gm (µA/V)
80
70
60
50
40
30
20
±25
0
25
50
75
100
125
TJ - Junction Temperature (ƒC)
±50
100
125
150
C032
0
25
50
75
100
125
150
C034
Figure 10. EN Pin Voltage vs Junction Temperature
±0.5
±3.7
±0.7
±3.9
±0.9
±4.1
±1.1
±4.3
±1.3
IEN (µA)
±3.5
±1.5
±1.7
±4.9
±1.9
±5.1
±2.1
±5.3
±2.3
±5.5
75
TJ - Junction Temperature (ƒC)
Figure 9. EA Transconductance During Soft-Start vs
Junction Temperature
IEN (uA)
±25
C033
±4.7
50
1.3
1.29
1.28
1.27
1.26
1.25
1.24
1.23
1.22
1.21
1.2
1.19
1.18
1.17
1.16
1.15
150
±4.5
25
Figure 8. EA Transconductance vs Junction Temperature
110
90
0
TJ - Junction Temperature (ƒC)
120
±50
±25
C031
Figure 7. Switching Frequency vs RT/CLK Resistance
High-Frequency Range
±2.5
±50
±25
0
25
50
75
100
TJ - Junction Temperature (ƒC)
125
150
C035
Figure 11. EN Pin Current vs Junction Temperature
8
350
±50
±25
0
25
50
75
100
TJ - Junction Temperature (ƒC)
125
150
C036
Figure 12. EN Pin Current vs Junction Temperature
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Typical Characteristics (continued)
100
% of Nominal Switching Frequency
±2.5
±2.7
IEN - Hysteresis (µA)
±2.9
±3.1
±3.3
±3.5
±3.7
±3.9
±4.1
±4.3
Series2
VSENSE
Falling
VSENSE
Rising
Series4
75
50
25
0
±4.5
±50
±25
0
25
50
75
100
125
0.0
150
TJ - Junction Temperature (ƒC)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
VSENSE (V)
C037
Figure 13. EN Pin Current Hysteresis vs Junction
Temperature
0.8
C038
Figure 14. Switching Frequency vs VSENSE
3
3
2.5
2.5
2
2
IVIN (µA)
IVIN (µA)
TJSeries2
= 25ƒC
1.5
1.5
1
1
0.5
0.5
0
0
±50
±25
0
25
50
75
100
125
0
150
TJ - Junction Temperature (ƒC)
5
10
Figure 15. Shutdown Supply Current vs Junction
Temperature
15
20
25
30
35
40
VIN - Input Voltage (V)
C039
45
C040
Figure 16. Shutdown Supply Current vs Input Voltage (VIN)
210
210
190
190
170
170
IVIN (µA)
IVIN (µA)
TJSeries2
= 25ƒC
150
130
150
130
110
110
90
90
70
70
±50
±25
0
25
50
75
100
TJ - Junction Temperature (ƒC)
125
150
C041
Figure 17. VIN Supply Current vs Junction Temperature
Copyright © 2017, Texas Instruments Incorporated
0
5
10
15
20
25
30
35
40
VIN - Input Voltage (V)
45
C042
Figure 18. VIN Supply Current vs Input Voltage
9
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Typical Characteristics (continued)
2.6
2.5
UVLO Start Switching
UVLO Stop Switching
4.4
2.4
4.3
2.3
4.2
VIN (V)
VI - BOOT-PH (V)
4.5
BOOT-PH UVLO Falling
BOOT-PH UVLO Rising
2.2
4.1
2.1
4.0
2.0
3.9
1.9
3.8
3.7
1.8
±50
±25
0
25
50
75
100
125
±50
150
TJ - Junction Temperature (ƒC)
±25
0
25
50
75
100
TJ - Junction Temperature (ƒC)
C043
Figure 19. BOOT-SW UVLO vs Junction Temperature
125
150
C044
Figure 20. Input Voltage UVLO vs Junction Temperature
10
9
Soft-Start Time (ms)
8
7
6
5
4
3
2
1
0
2500
2300
2100
1900
1700
1500
1300
1100
900
700
500
300
100
Switching Frequency (kHz)
C045
Figure 21. Soft-Start Time vs Switching Frequency
10
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
7 Detailed Description
7.1 Overview
The TPS54540-Q1 device is a 42-V, 5-A, step-down (buck) regulator with an integrated high-side N-channel
MOSFET. The device implements constant frequency, current mode control that reduces output capacitance and
simplifies external frequency compensation. The wide switching frequency range of 100 kHz to 2500 kHz allows
either efficiency or size optimization when selecting the output filter components. The switching frequency is
adjusted using a resistor to ground connected to the RT/CLK pin. The device has an internal phase-locked loop
(PLL) connected to the RT/CLK pin that will synchronize the power switch turnon to a falling edge of an external
clock signal.
The TPS54540-Q1 device has a default input start-up voltage of approximately 4.3 V. The EN pin can be used to
adjust the input voltage undervoltage lockout (UVLO) threshold with two external resistors. An internal pullup
current source enables operation when the EN pin is floating. The operating current is 146 μA under no load
condition (not switching). When the device is disabled, the supply current is 2 μA.
The integrated 92-mΩ high-side MOSFET supports high-efficiency power supply designs capable of delivering
5 A of continuous current to a load. The gate drive bias voltage for the integrated high-side MOSFET is supplied
by a bootstrap capacitor connected from the BOOT to SW pins. The TPS54540-Q1 device reduces the external
component count by integrating the bootstrap recharge diode. The BOOT pin capacitor voltage is monitored by a
UVLO circuit which turns off the high-side MOSFET when the BOOT to SW voltage falls below a preset
threshold. An automatic BOOT capacitor recharge circuit allows the TPS54540-Q1 device to operate at high duty
cycles approaching 100%. Therefore, the maximum output voltage is near the minimum input supply voltage of
the application. The minimum output voltage is the internal 0.8-V feedback reference.
Output overvoltage transients are minimized by an Overvoltage Protection (OVP) comparator. When the OVP
comparator is activated, the high-side MOSFET is turned off and remains off until the output voltage is less than
106% of the desired output voltage.
The TPS54540-Q1 device includes an internal soft-start circuit that slows the output rise time during start-up to
reduce in-rush current and output voltage overshoot. Output overload conditions reset the soft-start timer. When
the overload condition is removed, the soft-start circuit controls the recovery from the fault output level to the
nominal regulation voltage. A frequency foldback circuit reduces the switching frequency during start-up and
overcurrent fault conditions to help maintain control of the inductor current.
Copyright © 2017, Texas Instruments Incorporated
11
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
7.2 Functional Block Diagram
EN
VIN
Thermal
Shutdown
UVLO
Enable
Comparator
OV
Shutdown
Shutdown
Logic
Enable
Threshold
Boot
Charge
Voltage
Reference
Boot
UVLO
Minimum
Clamp
Pulse
Skip
Error
Amplifier
PWM
Comparator
FB
Current
Sense
BOOT
Logic
Shutdown
6
Slope
Compensation
SW
COMP
Frequency
Foldback
Reference
DAC for
Soft- Start
Maximum
Clamp
Oscillator
with PLL
8/8/ 2012 A 0192789
GND
POWERPAD
RT/ CLK
Copyright © 2017, Texas Instruments Incorporated
7.3 Feature Description
7.3.1 Fixed Frequency PWM Control
The TPS54540-Q1 device uses fixed frequency, peak current mode control with adjustable switching frequency.
The output voltage is compared through external resistors connected to the FB pin to an internal voltage
reference by an error amplifier. An internal oscillator initiates the turnon of the high-side power switch. The error
amplifier output at the COMP pin controls the high-side power switch current. When the high-side MOSFET
switch current reaches the threshold level set by the COMP voltage, the power switch is turned off. The COMP
pin voltage will increase and decrease as the output current increases and decreases. The device implements
current limiting by clamping the COMP pin voltage to a maximum level. The pulse skipping Eco-mode is
implemented with a minimum voltage clamp on the COMP pin.
7.3.2 Slope Compensation Output Current
The TPS54540-Q1 device adds a compensating ramp to the MOSFET switch current sense signal. This slope
compensation prevents sub-harmonic oscillations at duty cycles greater than 50%. The peak current limit of the
high-side switch is not affected by the slope compensation and remains constant over the full duty cycle range.
12
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Feature Description (continued)
7.3.3 Pulse-Skip Eco-mode
The TPS54540-Q1 device operates in a pulse-skipping Eco-mode at light load currents to improve efficiency by
reducing switching and gate drive losses. If the output voltage is within regulation and the peak switch current at
the end of any switching cycle is below the pulse skipping current threshold, the device enters Eco-mode. The
pulse skipping current threshold is the peak switch current level corresponding to a nominal COMP voltage of
600 mV.
When in Eco-mode, the COMP pin voltage is clamped at 600 mV and the high-side MOSFET is inhibited.
Because the device is not switching, the output voltage begins to decay. The voltage control loop responds to the
falling output voltage by increasing the COMP pin voltage. The high-side MOSFET is enabled and switching
resumes when the error amplifier lifts COMP above the pulse skipping threshold. The output voltage recovers to
the regulated value, and COMP eventually falls below the Eco-mode pulse skipping threshold at which time the
device again enters Eco-mode. The internal PLL remains operational when in Eco-mode. When operating at light
load currents in Eco-mode, the switching transitions occur synchronously with the external clock signal.
During Eco-mode operation, the TPS54540-Q1 device senses and controls peak switch current, not the average
load current. Therefore the load current at which the device enters Eco-mode is dependent on the output inductor
value. As the load current approaches zero, the device enters a pulse-skip mode during which it draws only
152 µA of input quiescent current. The circuit in Figure 33 enters Eco-mode at about 18-mA output current, and
with no external load has an average input current of 240 µA.
7.3.4 Low Dropout Operation and Bootstrap Voltage (BOOT)
The TPS54540-Q1 device provides an integrated bootstrap voltage regulator. A small capacitor between the
BOOT and SW pins provides the gate drive voltage for the high-side MOSFET. The BOOT capacitor is refreshed
when the high-side MOSFET is off and the external low-side diode conducts. The recommended value of the
BOOT capacitor is 0.1 μF. For stable performance over temperature and voltage, TI recommends a ceramic
capacitor with an X7R or X5R grade dielectric with a voltage rating of 10 V or higher.
When operating with a low voltage difference from input to output, the high-side MOSFET of the TPS54540-Q1
device will operate at 100% duty cycle as long as the BOOT to SW pin voltage is greater than 2.1 V. When the
voltage from BOOT to SW drops to less than 2.1 V, the high-side MOSFET is turned off and an integrated lowside MOSFET pulls SW low to recharge the BOOT capacitor. To reduce the losses of the small low-side
MOSFET at high-output voltages, it is disabled at 24-V output and reenabled when the output reaches 21.5 V.
Because the gate drive current sourced from the BOOT capacitor is small, the high-side MOSFET can remain on
for many switching cycles before the MOSFET is turned off to refresh the capacitor. Thus, the effective duty
cycle of the switching regulator can be high, approaching 100%. The effective duty cycle of the converter during
dropout is mainly influenced by the voltage drops across the power MOSFET, the inductor resistance, the lowside diode voltage and the printed-circuit-board resistance.
Equation 1 calculates the minimum input voltage required to regulate the output voltage and ensure proper
operation of the device. This calculation must include tolerance of the component specifications and the variation
of these specifications at their maximum operating temperature in the application.
+ VF + Rdc ´ IOUT
V
+ RDS (on ) ´ IOUT - VF
VIN (min ) = OUT
D
where
•
•
•
•
VF = Schottky diode forward voltage
Rdc = DC resistance of inductor
RDS(on) = High-side MOSFET resistance
D = Effective duty cycle of 99%
(1)
During high duty cycle (low dropout) conditions, inductor current ripple increases when the BOOT capacitor is
being recharged resulting in an increase in output voltage ripple. Increased ripple occurs when the off time
required to recharge the BOOT capacitor is longer than the high-side off time associated with cycle-by-cycle
PWM control.
Copyright © 2017, Texas Instruments Incorporated
13
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Feature Description (continued)
At heavy loads, the minimum input voltage must be increased to insure a monotonic start-up. Equation 2 can be
used to calculate the minimum input voltage for this condition.
VOmax = Dmax × (VVINmin – IOmax × RDS(on) + VF) – VF – IOmax × Rdc
where
•
•
•
•
•
Dmax ≥ 0.9
RDS(on) = 1 / (–0.3 × VB2SW2 + 3.577 × VB2SW – 4.246)
VB2SW = VBOOT + VF
VBOOT = (1.41 × VVIN – 0.554 – VF × ƒSW – 1.847 × 103 × IB2SW) / (1.41 + ƒSW)
IB2SW = 100 × 10–6A
(2)
7.3.5 Error Amplifier
The TPS54540-Q1 voltage regulation loop is controlled by a transconductance error amplifier. The error amplifier
compares the FB pin voltage to the lower of the internal soft-start voltage or the internal 0.8-V voltage reference.
The transconductance (gm) of the error amplifier is 350 μA/V during normal operation. During soft-start operation,
the transconductance is reduced to 78 μA/V and the error amplifier is referenced to the internal soft-start voltage.
The frequency compensation components (capacitor, series resistor and capacitor) are connected between the
error amplifier output COMP pin and GND pin.
7.3.6 Adjusting the Output Voltage
The internal voltage reference produces a precise 0.8 V ±1% voltage reference over the operating temperature
and voltage range by scaling the output of a bandgap reference circuit. The output voltage is set by a resistor
divider from the output node to the FB pin. TI recommends using 1% tolerance or better divider resistors. Select
the low-side resistor RLS for the desired divider current and use Equation 3 to calculate RHS. To improve
efficiency at light loads consider using larger value resistors. However, if the values are too high, the regulator
will be more susceptible to noise and voltage errors from the FB input current may become noticeable.
æ Vout - 0.8V ö
RHS = RLS ´ ç
÷
0.8 V
è
ø
(3)
7.3.7 Enable and Adjusting Undervoltage Lockout
The TPS54540-Q1 device is enabled when the VIN pin voltage is greater than 4.3 V and the EN pin voltage
exceeds the enable threshold of 1.2 V. The TPS54540-Q1 device is disabled when the VIN pin voltage falls less
than 4 V or when the EN pin voltage is less than 1.2 V. The EN pin has an internal pullup current source, I1, of
1.2 μA that enables operation of the TPS54540-Q1 device when the EN pin floats.
If an application requires a higher undervoltage lockout (UVLO) threshold, use the circuit shown in Figure 22 to
adjust the input voltage UVLO with two external resistors. When the EN pin voltage exceeds 1.2 V, an additional
3.4 μA of hysteresis current, IHYS, is sourced out of the EN pin. When the EN pin is pulled to less than 1.2 V, the
3.4-μA Ihys current is removed. This additional current facilitates adjustable input voltage UVLO hysteresis. Use
Equation 4 to calculate RUVLO1 for the desired UVLO hysteresis voltage. Use Equation 5 to calculate RUVLO2 for
the desired VIN start voltage.
In applications designed to start at relatively low input voltages (that is, from 4.5 V to 9 V) and withstand high
input voltages (for example, 40 V), the EN pin may experience a voltage greater than the absolute maximum
voltage of 8.4 V during the high input voltage condition. To avoid exceeding this voltage when using the EN
resistors, the EN pin is clamped internally with a 5.8 V Zener diode that will sink up to 150 μA.
14
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Feature Description (continued)
VIN
TPS54540B-Q1
i1
VIN
ihys
RUVLO1
RUVLO1
EN
EN
10 kW
Node
VEN
RUVLO2
RUVLO2
Copyright © 2017, Texas Instruments Incorporated
Figure 22. Adjustable Undervoltage Lockout
(UVLO)
Copyright © 2016, Texas Instruments Incorporated
Figure 23. Internal EN Clamp
- VSTOP
V
RUVLO1 = START
IHYS
RUVLO2 =
5.8 V
VENA
VSTART - VENA
+ I1
RUVLO1
(4)
(5)
7.3.8 Internal Soft Start
The TPS54540-Q1 device has an internal digital soft start that ramps the reference voltage from zero volts to its
final value in 1024 switching cycles. The internal soft-start time (10% to 90%) is calculated using Equation 6.
1024
tSS (ms) =
fSW (kHz)
(6)
If the EN pin is pulled below the stop threshold of 1.2 V, switching stops and the internal soft start resets. The
soft start also resets in thermal shutdown.
7.3.9 Constant Switching Frequency and Timing Resistor (RT/CLK) Pin)
The switching frequency of the TPS54540-Q1 device is adjustable over a wide range from 100 kHz to 2500 kHz
by placing a resistor between the RT/CLK pin and GND pin. The RT/CLK pin voltage is typically 0.5 V, and must
have a resistor to ground to set the switching frequency. To determine the timing resistance for a given switching
frequency, use Equation 7 or Equation 8 or the curves in Figure 5 and Figure 6. To reduce the solution size one
would typically set the switching frequency as high as possible, but tradeoffs of the conversion efficiency,
maximum input voltage and minimum controllable on time should be considered. The minimum controllable on
time is typically 135 ns, which limits the maximum operating frequency in applications with high input to output
step down ratios. The maximum switching frequency is also limited by the frequency foldback circuit. See
Accurate Current Limit for a more detailed discussion of the maximum switching frequency.
101756
RT (kW) =
f sw (kHz)1.008
(7)
f sw (kHz) =
92417
RT (kW)0.991
Copyright © 2017, Texas Instruments Incorporated
(8)
15
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Feature Description (continued)
7.3.10 Synchronization to RT/CLK Pin
The RT/CLK pin can receive a frequency synchronization signal from an external system clock. To implement
this synchronization feature connect a square wave to the RT/CLK pin through either circuit network shown in
Figure 24. The square wave applied to the RT/CLK pin must switch lower than 0.5 V and higher than 1.7 V and
have a pulse-width greater than 15 ns. The synchronization frequency range is from 160 kHz to 2300 kHz. The
rising edge of the SW will be synchronized to the falling edge of RT/CLK pin signal. The external synchronization
circuit should be designed such that the default frequency set resistor is connected from the RT/CLK pin to
ground when the synchronization signal is off. When using a low impedance signal source, the frequency set
resistor is connected in parallel with an ac coupling capacitor to a termination resistor (for example, 50 Ω) as
shown in Figure 24. The two resistors in series provide the default frequency setting resistance when the signal
source is turned off. The sum of the resistance should set the switching frequency close to the external CLK
frequency. TI recommends ac-coupling the synchronization signal through a 10-pF ceramic capacitor to RT/CLK
pin.
The first time the RT/CLK is pulled above the PLL threshold, the TPS54540-Q1 device switches from the RT
resistor free-running frequency mode to the PLL synchronized mode. The internal 0.5-V voltage source is
removed, and the RT/CLK pin becomes high impedance as the PLL starts to lock onto the external signal. The
switching frequency can be higher or lower than the frequency set with the RT/CLK resistor. The device
transitions from the resistor mode to the PLL mode, and locks onto the external clock frequency within 78 µs.
During the transition from the PLL mode to the resistor programmed mode, the switching frequency will fall to
150 kHz and then increase or decrease to the resistor programmed frequency when the 0.5-V bias voltage is
reapplied to the RT/CLK resistor.
The switching frequency is divided by 8, 4, 2, and 1 as the FB pin voltage ramps from 0 V to 0.8 V. The device
implements a digital frequency foldback to enable synchronizing to an external clock during normal start-up and
fault conditions. Figure 25, Figure 26, and Figure 27 show the device synchronized to an external system clock in
continuous conduction mode (CCM), discontinuous conduction (DCM), and pulse skip mode (Eco-mode).
SPACER
TPS54540B-Q1
TPS54540B-Q1
RT/CLK
RT/CLK
PLL
PLL
RT
Clock
Source
Hi-Z
Clock
Source
RT
Copyright © 2017, Texas Instruments Incorporated
Figure 24. Synchronizing to a System Clock
16
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Feature Description (continued)
SW
SW
EXT
EXT
IL
IL
Figure 25. Plot of Synchronizing in CCM
Figure 26. Plot of Synchronizing in DCM
SW
EXT
IL
Figure 27. Plot of Synchronizing in Eco-mode™
7.3.11 Maximum Switching Frequency
To protect the converter in overload conditions at higher switching frequencies and input voltages, the
TPS54540-Q1 device implements a frequency foldback. The oscillator frequency is divided by 1, 2, 4, and 8 as
the FB pin voltage falls from 0.8 V to 0 V. The TPS54540-Q1 device uses a digital frequency foldback to enable
synchronization to an external clock during normal start-up and fault conditions. During short circuit events, the
inductor current can exceed the peak current limit because of the high input voltage and the minimum
controllable on time. When the output voltage is forced low by the shorted load, the inductor current decreases
slowly during the switch off time. The frequency foldback effectively increases the off time by increasing the
period of the switching cycle providing more time for the inductor current to ramp down.
With a maximum frequency foldback ratio of 8, there is a maximum frequency at which the inductor current can
be controlled by frequency foldback protection. Equation 10 calculates the maximum switching frequency at
which the inductor current will remain under control when VOUT is forced to VOUT(SC). The selected operating
frequency should not exceed the calculated value.
Copyright © 2017, Texas Instruments Incorporated
17
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Feature Description (continued)
Equation 9 calculates the maximum switching frequency limitation set by the minimum controllable on time and
the input to output step down ratio. Setting the switching frequency above this value will cause the regulator to
skip switching pulses to achieve the low duty cycle required at maximum input voltage.
æ I ´R + V
dc
OUT + Vd
´ç O
ç VIN - IO ´ RDS(on ) + Vd
è
ö
÷
÷
ø
fDIV æç ICL ´ Rdc + VOUT(sc ) + Vd
´
tON ç VIN - ICL ´ RDS(on ) + Vd
è
ö
÷
÷
ø
fSW (max skip ) =
fSW(shift) =
1
tON
(9)
where
•
•
•
•
•
•
•
•
•
•
IO = Output current
ICL = Current limit
Rdc = inductor resistance
VIN = maximum input voltage
VOUT = output voltage
VOUTSC = output voltage during short
Vd = diode voltage drop
RDS(on) = switch on resistance
tON = controllable on time
ƒDIV = frequency divide equals (1, 2, 4, or 8)
(10)
7.3.12 Accurate Current Limit
The TPS54540-Q1 device implements peak current mode control in which the COMP pin voltage controls the
peak current of the high-side MOSFET. A signal proportional to the high-side switch current and the COMP pin
voltage are compared each cycle. When the peak switch current intersects the COMP control voltage, the highside switch is turned off. During overcurrent conditions that pull the output voltage low, the error amplifier
increases switch current by driving the COMP pin high. The error amplifier output is clamped internally at a level
which sets the peak switch current limit. The TPS54540-Q1 device provides an accurate current limit threshold
with a typical current limit delay of 60 ns. With smaller inductor values, the delay will result in a higher peak
inductor current. The relationship between the inductor value and the peak inductor current is shown in
Figure 28.
Inductor Current (A)
Peak Inductor Current
ΔCLPeak
Open Loop Current Limit
ΔCLPeak = VIN/L x tCLdelay
tCLdelay
tON
Figure 28. Current Limit Delay
18
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Feature Description (continued)
7.3.13 Overvoltage Protection
The TPS54540-Q1 device incorporates an output overvoltage protection (OVP) circuit to minimize voltage
overshoot when recovering from output fault conditions or strong unload transients in designs with low-output
capacitance. For example, when the power supply output is overloaded the error amplifier compares the actual
output voltage to the internal reference voltage. If the FB pin voltage is lower than the internal reference voltage
for a considerable time, the output of the error amplifier will increase to a maximum voltage corresponding to the
peak current limit threshold. When the overload condition is removed, the regulator output rises and the error
amplifier output transitions to the normal operating level. In some applications, the power supply output voltage
can increase faster than the response of the error amplifier output resulting in an output overshoot.
The OVP feature minimizes output overshoot when using a low value output capacitor by comparing the FB pin
voltage to the rising OVP threshold which is nominally 109% of the internal voltage reference. If the FB pin
voltage is greater than the rising OVP threshold, the high-side MOSFET is immediately disabled to minimize
output overshoot. When the FB voltage drops below the falling OVP threshold which is nominally 106% of the
internal voltage reference, the high-side MOSFET resumes normal operation.
7.3.14 Thermal Shutdown
The TPS54540-Q1 device provides an internal thermal shutdown to protect the device when the junction
temperature exceeds 176°C. The high-side MOSFET stops switching when the junction temperature exceeds the
thermal trip threshold. Once the die temperature falls to less than 164°C, the device reinitiates the power-up
sequence controlled by the internal soft-start circuitry.
7.3.15 Small Signal Model for Loop Response
Figure 29 shows an equivalent model for the TPS54540-Q1 device control loop, which can be simulated to check
the frequency response and dynamic load response. The error amplifier is a transconductance amplifier with a
gmEA of 350 μA/V. The error amplifier can be modeled using an ideal voltage controlled current source. The
resistor Ro and capacitor Co model the open loop gain and frequency response of the amplifier. The 1-mV AC
voltage source between the nodes a and b effectively breaks the control loop for the frequency response
measurements. Plotting c/a provides the small signal response of the frequency compensation. Plotting a/b
provides the small signal response of the overall loop. The dynamic loop response can be evaluated by replacing
RL with a current source with the appropriate load step amplitude and step rate in a time domain analysis. This
equivalent model is only valid for continuous conduction mode (CCM) operation.
SW
VO
Power Stage
gmps 17 A/V
a
b
R1
RESR
RL
COMP
c
0.8 V
R3
CO
C2
RO
FB
COUT
gmea
350 mA/V
R2
C1
Copyright © 2016, Texas Instruments Incorporated
Figure 29. Small Signal Model for Loop Response
Copyright © 2017, Texas Instruments Incorporated
19
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Feature Description (continued)
7.3.16 Simple Small Signal Model for Peak Current Mode Control
Figure 30 describes a simple small signal model that can be used to design the frequency compensation. The
TPS54540-Q1 power stage can be approximated by a voltage-controlled current source (duty cycle modulator)
supplying current to the output capacitor and load resistor. The control to output transfer function is shown in
Equation 11 and consists of a DC gain, one dominant pole, and one ESR zero. The quotient of the change in
switch current and the change in COMP pin voltage (node c in Figure 29) is the power stage transconductance,
gmPS. The gmPS for the TPS54540-Q1 device is 17 A/V. The low-frequency gain of the power stage is the
product of the transconductance and the load resistance as shown in Equation 12.
As the load current increases and decreases, the low-frequency gain decreases and increases, respectively. This
variation with the load may seem problematic at first glance, but fortunately the dominant pole moves with the
load current (see Equation 13). The combined effect is highlighted by the dashed line in the right half of
Figure 30. As the load current decreases, the gain increases and the pole frequency lowers, keeping the 0-dB
crossover frequency the same with varying load conditions. The type of output capacitor chosen determines
whether the ESR zero has a profound effect on the frequency compensation design. Using high ESR aluminum
electrolytic capacitors may reduce the number frequency compensation components needed to stabilize the
overall loop because the phase margin is increased by the ESR zero of the output capacitor (see Equation 14).
VO
Adc
VC
RESR
fp
RL
gmps
COUT
fz
Figure 30. Simple Small Signal Model and Frequency Response for Peak Current Mode Control
æ
s ö
ç1 +
÷
2
p
´ fZ ø
VOUT
= Adc ´ è
VC
æ
s ö
ç1 +
÷
2p ´ fP ø
è
Adc = gmps ´ RL
1
fP =
COUT ´ RL ´ 2p
fZ =
20
1
COUT ´ RESR ´ 2p
(11)
(12)
(13)
(14)
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Feature Description (continued)
7.3.17 Small Signal Model for Frequency Compensation
The TPS54540-Q1 uses a transconductance amplifier for the error amplifier and supports three of the commonlyused frequency compensation circuits. Compensation circuits Type 2A, Type 2B, and Type 1 are shown in
Figure 31. Type 2 circuits are typically implemented in high bandwidth power-supply designs using low ESR
output capacitors. The Type 1 circuit is used with power-supply designs with high-ESR aluminum electrolytic or
tantalum capacitors. Equation 15 and Equation 16 relate the frequency response of the amplifier to the small
signal model in Figure 31. The open-loop gain and bandwidth are modeled using the RO and CO shown in
Figure 31. See the Typical Applications section for a design example using a Type 2A network with a low ESR
output capacitor.
Equation 15 through Equation 24 are provided as a reference. An alternative is to use WEBENCH software tools
to create a design based on the power supply requirements.
VO
R1
FB
gmea
Type 2A
COMP
Type 2B
Type 1
Vref
R2
RO
R3
CO
C1
C2
R3
C2
C1
Copyright © 2016, Texas Instruments Incorporated
Figure 31. Types of Frequency Compensation
Aol
A0
P1
Z1
P2
A1
BW
Figure 32. Frequency Response of the Type 2A and Type 2B Frequency Compensation
Aol(V/V)
gmea
gmea
=
2p ´ BW (Hz)
Ro =
CO
Copyright © 2017, Texas Instruments Incorporated
(15)
(16)
21
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Feature Description (continued)
æ
ö
s
ç1 +
÷
2p ´ fZ1 ø
è
EA = A0 ´
æ
ö æ
ö
s
s
ç1 +
÷ ´ ç1 +
÷
2
2
p
´
p
´
f
f
P1 ø è
P2 ø
è
R2
R1 + R2
R2
´ Ro| | R3 ´
R1 + R2
A0 = gmea ´ Ro ´
A1 = gmea
P1 =
Z1 =
P2 =
(18)
(19)
1
2p ´ Ro ´ C1
(20)
1
2p ´ R3 ´ C1
(21)
1
2p ´ R3 | | RO ´ (C2 + CO )
type 2a
1
P2 =
type 2b
2p ´ R3 | | RO ´ CO
P2 =
2p ´ R O
(17)
1
type 1
´ (C2 + C O )
(22)
(23)
(24)
7.4 Device Functional Modes
The TPS54540-Q1 device is designed to operate with input voltages greater than 4.5 V. When the VIN voltage is
greater than the 4.3 V typical rising UVLO threshold and the EN voltage is above the 1.2 V typical threshold the
device is active. If the VIN voltage falls below the typical 4-V UVLO turnoff threshold, the device stops switching.
If the EN voltage falls below the 1.2-V threshold the device stops switching and enters a shutdown mode with low
supply current of 2 μA typical.
The TPS54540-Q1 device operates in CCM when the output current is enough to keep the inductor current
greater than 0 A at the end of each switching period. As a nonsynchronous converter, it will enter DCM at lowoutput currents when the inductor current falls to 0 A before the end of a switching period. At very low-output
current the COMP voltage will drop to the pulse-skipping threshold and the device operates in a pulse-skipping
Eco-mode. In this mode, the high-side MOSFET does not switch every switching period. This operating mode
reduces power loss while keeping the output voltage regulated. For more information on Eco-mode, see the
Pulse-Skip Eco-mode section.
22
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The TPS54540-Q1 device is a 42-V, 5-A, step-down regulator with an integrated high-side MOSFET. This device
is typically used to convert a higher DC voltage to a lower DC voltage with a maximum available output current of
5 A. Example applications are: 12-V and 24-V industrial, automotive, and communications power systems. Use
the following design procedure to select component values for the TPS54540-Q1 device. This procedure
illustrates the design of a high-frequency switching regulator using ceramic output capacitors. Calculations can
be done with the excel spreadsheet (SLVC452) located on the product page. Alternately, use the WEBENCH
software to generate a complete design. The WEBENCH software uses an iterative design procedure and
accesses a comprehensive database of components when generating a design. This section presents a
simplified discussion of the design process.
8.2 Typical Applications
8.2.1 Buck Converter With 6-V to 42-V Input and 3.3-V at 5-A Output
L1
5.5 μH
0.1 μF
C4
3.3V, 5A
U1
TPS54540B-Q1
6V to 42V
2
3
C10
C3
C1
C2
4.7 μF
4.7 μF
4.7 μF
4.7 μF
R1
365 kΩ
4
SW
BOOT
VIN
GND
EN
COMP
RT/CLK
PWRPD
1
VIN
9
R2
88.7 kΩ
R3
243 kΩ
FB
C6
D1
8
C7
100 μF
B 560 C
VOUT
100 μF
R5
31.6 kΩ
7
6
5
FB
FB
R4
16.9 kΩ
C8
R6
10.2 kΩ
47 pF
C5
4700 pF
Copyright © 2017, Texas Instruments Incorporated
Figure 33. 3.3-V Output TPS54540 Design Example
8.2.1.1 Design Requirements
This guide illustrates the design of a high-frequency switching regulator using ceramic output capacitors. A few
parameters must be known to start the design process. These requirements are typically determined at the
system level. This example in Figure 33 is designed with the known parameters listed in Table 1.
Table 1. Design Parameters
DESIGN PARAMETERS
EXAMPLE VALUE
Output Voltage
3.3 V
Transient Response 1.25-A to
3.75-A load step
ΔVOUT = 4 %
Maximum Output Current
5A
Input Voltage
12 V nom. 6 V to 42 V
Output Voltage Ripple
0.5% of VOUT
Copyright © 2017, Texas Instruments Incorporated
23
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Table 1. Design Parameters (continued)
DESIGN PARAMETERS
EXAMPLE VALUE
Start Input Voltage (rising VIN)
5.75 V
Stop Input Voltage (falling VIN)
4.5 V
8.2.1.2 Detailed Design Procedure
8.2.1.2.1 Selecting the Switching Frequency
The first step is to choose a switching frequency for the regulator. Typically, the designer uses the highest
switching frequency possible because this produces the smallest solution size. High switching frequency allows
for lower value inductors and smaller output capacitors compared to a power supply that switches at a lower
frequency. The switching frequency that can be selected is limited by the minimum on-time of the internal power
switch, the input voltage, the output voltage and the frequency foldback protection.
Equation 9 and Equation 10 should be used to calculate the upper limit of the switching frequency for the
regulator (see Equation 25 and Equation 26). Choose the lower value result from the two equations. Switching
frequencies higher than these values results in pulse skipping or the lack of overcurrent protection during a short
circuit.
The typical minimum on time, tonmin, is 135 ns for the TPS54540-Q1 device. Equation 9 and Equation 10 should
be used to calculate the upper limit of the switching for the regulator (see Equation 25 and Equation 26). For this
example, the output voltage is 3.3 V and the maximum input voltage is 42 V. Assuming a diode voltage of 0.52
V, inductor DC resistance of 10.3 mΩ, typical switch resistance of 92-mΩ and 5-A load, from Equation 9 the
maximum switch frequency to avoid pulse skipping is 680 kHz. To ensure overcurrent runaway is not a concern
during short circuits use Equation 10 to determine the maximum switching frequency for frequency fold-back
protection. With a current limit value of 6.3 A and short circuit output voltage of 0.1 V, the maximum switching
frequency is 960 kHz.
For this design, a lower switching frequency of 400 kHz is chosen to operate comfortably below the calculated
maximums. To determine the timing resistance for a given switching frequency, use Equation 7 or the curve in
Equation 7. The switching frequency is set by resistor R3 shown in Figure 33. For 400-kHz operation, the closest
standard value resistor is 243 kΩ (see Equation 27).
1
æ 5 A x 10.3 mW + 3.3 V + 0.52 V ö
fSW(max skip) =
´ ç
÷ = 680 kHz
135ns
è 42 V - 5 A x 92 mW + 0.52 V ø
(25)
8
æ 6.3 A x 10.3 mW + 0.1 V + 0.52 V ö
´ ç
÷ = 960 kHz
135 ns
è 42 V - 6.3 A x 92 mW + 0.52 V ø
101756
RT (kW) =
= 242 kW
400 (kHz)1.008
fSW(shift) =
(26)
(27)
8.2.1.2.2 Output Inductor Selection (LO)
To calculate the minimum value of the output inductor, use Equation 28.
KIND is a ratio that represents the amount of inductor ripple current relative to the maximum output current. The
inductor ripple current is filtered by the output capacitor. Therefore, choosing high inductor ripple currents
impacts the selection of the output capacitor because the output capacitor must have a ripple current rating equal
to or greater than the inductor ripple current. In general, the inductor ripple value is at the discretion of the
designer, however, the following guidelines may be used.
For designs using low ESR output capacitors such as ceramics, a value as high as KIND = 0.3 may be desirable.
When using higher ESR output capacitors, KIND = 0.2 yields better results. Because the inductor ripple current is
part of the current mode PWM control system, the inductor ripple current should always be greater than 150 mA
for stable PWM operation. In a wide input voltage regulator, it is best to choose relatively large inductor ripple
current. This provides sufficient ripple current with the input voltage at the minimum.
24
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
For this design example, KIND = 0.3 and the inductor value is calculated to be 5.1 μH. It is important that the RMS
current and saturation current ratings of the inductor not be exceeded. The RMS and peak inductor current can
be found from Equation 30 and Equation 31 (using Equation 29). For this design, the RMS inductor current is 5 A
and the peak inductor current is 5.79 A. The chosen inductor is a WE 744325550, which has a saturation current
rating of 12 A and an RMS current rating of 10 A. This inductor also has a typical inductance of 5.5 µH at no load
and 4.8 µH at a 5-A load. Lastly, the chosen inductor has a DCR of 10.3 mΩ.
As the equation set demonstrates, lower ripple currents will reduce the output voltage ripple of the regulator but
will require a larger value of inductance. Selecting higher ripple currents will increase the output voltage ripple of
the regulator but allow for a lower inductance value.
The current flowing through the inductor is the inductor ripple current plus the output current. During power-up,
faults or transient load conditions, the inductor current can increase above the peak inductor current level
calculated previously. In transient conditions, the inductor current can increase up to the switch current limit of
the device. For this reason, the most conservative design approach is to choose an inductor with a saturation
current rating equal to or greater than the switch current limit of the TPS54540 device, which is nominally 7.5 A.
VIN(max ) - VOUT
VOUT
42 V - 3.3 V
3.3 V
´
=
´
= 5.1 mH
LO(min ) =
IOUT ´ KIND
VIN(max ) ´ fSW
5 A x 0.3
42 V ´ 400 kHz
(28)
spacer
IRIPPLE =
VOUT ´ (VIN(max ) - VOUT )
VIN(max ) ´ LO ´ fSW
=
3.3 V x (42 V - 3.3 V)
= 1.58 A
42 V x 4.8 mH x 400 kHz
(29)
spacer
(
æ
1 ç VOUT ´ VIN(max ) - VOUT
2
IL(rms ) = (IOUT ) +
´
12 çç
VIN(max ) ´ LO ´ fSW
è
)÷ö
2
÷ =
÷
ø
2
(5 A )2 +
æ 3.3 V ´ (42 V - 3.3 V ) ö
1
´ ç
÷ =5A
ç
÷
12
è 42 V ´ 4.8 mH ´ 400 kHz ø
(30)
spacer
IL(peak ) = IOUT +
IRIPPLE
1.58 A
= 5A +
= 5.79 A
2
2
(31)
8.2.1.2.3 Output Capacitor
There are three primary considerations for selecting the value of the output capacitor. The output capacitor
determines the modulator pole, the output voltage ripple, and how the regulator responds to a large change in
load current. The output capacitance must be selected based on the most stringent of these three criteria.
The desired response to a large change in the load current is the first criteria. The output capacitor needs to
supply the increased load current until the regulator responds to the load step. A regulator does not respond
immediately to a large, fast increase in the load current such as transitioning from no load to a full load. The
regulator usually needs two or more clock cycles for the control loop to sense the change in output voltage and
adjust the peak switch current in response to the higher load. The output capacitance must be large enough to
supply the difference in current for 2 clock cycles to maintain the output voltage within the specified range.
Equation 32 shows the minimum output capacitance necessary, where ΔIOUT is the change in output current, ƒsw
is the regulators switching frequency and ΔVOUT is the allowable change in the output voltage. For this example,
the transient load response is specified as a 4% change in VOUT for a load step from 1.25 A to 3.75 A. Therefore,
ΔIOUT is 3.75 A – 1.25 A = 2.5 A and ΔVOUT = 0.04 × 3.3 V = 0.13 V. Using these numbers gives a minimum
capacitance of 95 μF. This value does not take the ESR of the output capacitor into account in the output voltage
change. For ceramic capacitors, the ESR is usually small enough to be ignored. Aluminum electrolytic and
tantalum capacitors have higher ESR that must be included in load step calculations.
The output capacitor must also be sized to absorb energy stored in the inductor when transitioning from a high to
low load current. The catch diode of the regulator can not sink current so energy stored in the inductor can
produce an output voltage overshoot when the load current rapidly decreases. A typical load step response is
shown in Figure 38. The excess energy absorbed in the output capacitor will increase the voltage on the
capacitor. The capacitor must be sized to maintain the desired output voltage during these transient periods.
Copyright © 2017, Texas Instruments Incorporated
25
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Equation 33 calculates the minimum capacitance required to keep the output voltage overshoot to a desired
value, where LO is the value of the inductor, IOH is the output current under heavy load, IOL is the output under
light load, Vf is the peak output voltage, and Vi is the initial voltage. For this example, the worst case load step
will be from 3.75 A to 1.25 A. The output voltage increases during this load transition and the stated maximum in
our specification is 4 % of the output voltage. This makes Vf = 1.04 × 3.3 V = 3.43 V. Vi is the initial capacitor
voltage that is the nominal output voltage of 3.3 V. Using these numbers in Equation 33 yields a minimum
capacitance of 68 μF.
Equation 34 calculates the minimum output capacitance needed to meet the output voltage ripple specification,
where ƒsw is the switching frequency, VORIPPLE is the maximum allowable output voltage ripple, and IRIPPLE is the
inductor ripple current. Equation 34 yields 30 μF.
Equation 35 calculates the maximum ESR an output capacitor must meet the output voltage ripple specification.
Equation 35 indicates the equivalent ESR should be less than 10 mΩ.
The most stringent criteria for the output capacitor is 95 μF required to maintain the output voltage within
regulation tolerance during a load transient.
Capacitance deratings for aging, temperature and Eco-mode bias increases this minimum value. For this
example, 2 × 100-μF, 6.3-V type X5R ceramic capacitors with 2 mΩ of ESR will be used. The derated
capacitance is 130 µF, well above the minimum required capacitance of 95 µF.
Capacitors are generally rated for a maximum ripple current that can be filtered without degrading capacitor
reliability, especially non ceramic capacitors. Some capacitor data sheets specify the root mean square (RMS)
value of the maximum ripple current. Equation 36 can be used to calculate the RMS ripple current that the output
capacitor must support. For this example, Equation 36 yields 460 mA.
2 ´ DIOUT
2 ´ 2.5 A
COUT >
=
= 95 mF
fSW ´ DVOUT 400 kHz x 0.13 V
(32)
((I ) - (I ) ) = 4.8 mH x (3.75 A - 1.25 A ) = 68 mF
x
(3.43 V - 3.3 V )
((V ) - (V ) )
2
OH
COUT > LO
2
2
2
2
2
OL
2
f
2
I
(33)
1
1
1
1
x
´
=
= 30 mF
8 ´ fSW æ VORIPPLE ö 8 x 400 kHz
æ 16 mV ö
ç 1.58 A ÷
ç
÷
è
ø
è IRIPPLE ø
V
16 mV
RESR < ORIPPLE =
= 10 mW
IRIPPLE
1.58 A
COUT >
ICOUT(rms) =
(
VOUT ´ VIN(max ) - VOUT
)=
12 ´ VIN(max ) ´ LO ´ fSW
3.3 V ´
(42 V
(34)
(35)
- 3.3 V )
12 ´ 42 V ´ 4.8 mH ´ 400 kHz
= 460 mA
(36)
8.2.1.2.4 Catch Diode
The TPS54540 device requires an external catch diode between the SW pin and GND. The selected diode must
have a reverse voltage rating equal to or greater than VIN(max). The peak current rating of the diode must be
greater than the maximum inductor current. Schottky diodes are typically a good choice for the catch diode due
to their low forward voltage. The lower the forward voltage of the diode, the higher the efficiency of the regulator.
Typically, diodes with higher voltage and current ratings have higher forward voltages. A diode with a minimum of
42-V reverse voltage is preferred to allow input voltage transients up to the rated voltage of the TPS54540-Q1
device.
For the example design, the PDS760-13 Schottky diode is selected for its lower forward voltage and good
thermal characteristics compared to smaller devices. The typical forward voltage of the PDS760-13 is 0.52 V at
5 A and 25°C.
26
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
The diode must also be selected with an appropriate power rating. The diode conducts the output current during
the off-time of the internal power switch. The off-time of the internal switch is a function of the maximum input
voltage, the output voltage, and the switching frequency. The output current during the off-time is multiplied by
the forward voltage of the diode to calculate the instantaneous conduction losses of the diode. At higher
switching frequencies, the AC losses of the diode must be taken into account. The AC losses of the diode are
due to the charging and discharging of the junction capacitance and reverse recovery charge. Equation 37 is
used to calculate the total power dissipation, including conduction losses and AC losses of the diode.
The PDS760-13 diode has a junction capacitance of 300 pF. Using Equation 37, the total loss in the diode at the
nominal input voltage is 1.9 W.
If the power supply spends a significant amount of time at light load currents or in sleep mode, consider using a
diode, which has a low leakage current and slightly higher forward voltage drop.
PD =
(V
IN(max ) - VOUT
)´ I
OUT
+
VIN
(12 V
2
´ Vf d
- 3.3 V ) ´ 5 A x 0.52 V
12 V
C j ´ fSW ´ (VIN + Vf d)
=
2
+
300 pF x 400 kHz x (12 V + 0.52 V)2
= 1.9 W
2
(37)
8.2.1.2.5 Input Capacitor
The TPS54540-Q1 device requires a high quality ceramic type X5R or X7R input decoupling capacitor with at
least 3 μF of effective capacitance. Some applications will benefit from additional bulk capacitance. The effective
capacitance includes any loss of capacitance due to DC bias effects. The voltage rating of the input capacitor
must be greater than the maximum input voltage. The capacitor must also have a ripple current rating greater
than the maximum input current ripple of the TPS54540-Q1 device. The input ripple current can be calculated
using Equation 38.
The value of a ceramic capacitor varies significantly with temperature and the Eco-mode bias applied to the
capacitor. The capacitance variations due to temperature can be minimized by selecting a dielectric material that
is more stable over temperature. X5R and X7R ceramic dielectrics are usually selected for switching regulator
capacitors because they have a high capacitance to volume ratio and are fairly stable over temperature. The
input capacitor must also be selected with consideration for the DC bias. The effective value of a capacitor
decreases as the DC bias across a capacitor increases.
For this example design, a ceramic capacitor with at least a 42-V voltage rating is required to support transients
up to the maximum input voltage. Common standard ceramic capacitor voltage ratings include 4 V, 6.3 V, 10 V,
16 V, 25 V, 50 V or 100 V. For this example, four 4.7-μF, 50-V capacitors in parallel are used. Table 2 lists
several choices of high voltage capacitors.
The input capacitance value determines the input ripple voltage of the regulator. The maximum input voltage
ripple occurs at 50% duty cycle and can be calculated using Equation 39. Using the design example values,
IOUT = 5 A, CIN = 18.8 μF, ƒsw = 400 kHz, yields an input voltage ripple of 170 mV and a rms input ripple current
of 2.5 A.
ICI(rms ) = IOUT x
VOUT
x
VIN(min )
(V
IN(min ) - VOUT
VIN(min )
) = 5A
I
´ 0.25
5 A ´ 0.25
DVIN = OUT
=
= 170 mV
CIN ´ fSW
18.8 mF ´ 400 kHz
Copyright © 2017, Texas Instruments Incorporated
3.3 V
´
6V
(6 V
- 3.3 V )
6V
= 2.5 A
(38)
(39)
27
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Table 2. Capacitor Types
VENDOR
VALUE (μF)
1 to 2.2
Murata
1 to 4.7
1
1 to 2.2
1 to 1.8
Vishay
1 to 1.2
1 to 3.9
1 to 1.8
1 to 2.2
TDK
1.5 to 6.8
1 to 2.2
1 to 3.3
1 to 4.7
AVX
1
1 to 4.7
1 to 2.2
EIA SIZE
1210
1206
2220
2225
1812
1210
1210
1812
VOLTAGE
DIALECTRIC
100 V
COMMENTS
GRM32 series
50 V
100 V
GRM31 series
50 V
50 V
100 V
VJ X7R series
50 V
100 V
X7R
100 V
C series C4532
50 V
100 V
C series C3225
50 V
50 V
100 V
X7R dielectric series
50 V
100 V
8.2.1.2.6 Bootstrap Capacitor Selection
A 0.1-μF ceramic capacitor must be connected between the BOOT and SW pins for proper operation. A ceramic
capacitor with X5R or better grade dielectric is recommended. The capacitor should have a 10-V or higher
voltage rating.
8.2.1.2.7 Undervoltage Lockout Set Point
The undervoltage lockout (UVLO) can be adjusted using an external voltage divider on the EN pin of the
TPS54540-Q1device. The UVLO has two thresholds, one for power-up when the input voltage is rising and one
for power-down or brown outs when the input voltage is falling. For the example design, the supply should turn
on and start switching once the input voltage is greater than 5.75 V (UVLO start). After the regulator starts
switching, it should continue to do so until the input voltage falls below 4.5 V (UVLO stop).
Programmable UVLO threshold voltages are set using the resistor divider of RUVLO1 and RUVLO2 between VIN and
ground connected to the EN pin. Equation 4 and Equation 5 calculate the resistance values necessary. For the
example application, a 365 kΩ between VIN and EN (RUVLO1) and a 88.7 kΩ between EN and ground (RUVLO2) are
required to produce the 5.75-V and 4.5-V start and stop voltages.
V
- VSTOP
5.75 V - 4.5 V
RUVLO1 = START
=
= 368 kW
IHYS
3.4 mA
(40)
RUVLO2 =
VENA
1.2 V
=
= 88.7 kW
VSTART - VENA
5.75 V - 1.2 V
+
m
1.2
A
+ I1
365 kW
RUVLO1
(41)
8.2.1.2.8 Output Voltage and Feedback Resistors Selection
The voltage divider of R5 and R6 sets the output voltage. For the example design, 10.2 kΩ was selected for R6.
Using Equation 3, R5 is calculated as 31.9 kΩ. The nearest standard 1% resistor is 31.6 kΩ. Due to the input
current of the FB pin, the current flowing through the feedback network should be greater than 1 μA to maintain
the output voltage accuracy. This requirement is satisfied if the value of R6 is less than 800 kΩ. Choosing higher
resistor values decreases quiescent current and improves efficiency at low-output currents but may also
introduce noise immunity problems. For more details about adjusting the output voltage, see Equation 42.
V
- 0.8 V
æ 3.3 V - 0.8 V ö
RHS = RLS x OUT
= 10.2 kW x ç
÷ = 31.9 kW
0.8 V
0.8 V
è
ø
(42)
28
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
8.2.1.2.9 Minimum VIN
To ensure proper operation of the device and to keep the output voltage in regulation, the input voltage at the
device must be above the value calculated with Equation 43 . Using the typical values for the RDS(on), Rdc and VF
in this application example, the minimum input voltage is 3.99 V. The BOOT-SW = 3 V curve in Figure 1 was
used for RDS(on) = 0.12 Ω because the device will be operating with low drop out. When operating with low
dropout, the BOOT-SW voltage is regulated at a lower voltage because the BOOT-SW capacitor is not refreshed
every switching cycle. In the final application, the values of RDS(on), Rdc and VF used in this equation must include
tolerance of the component specifications and the variation of these specifications at their maximum operating
temperature in the application.
In this application example the calculated minimum input voltage is near the input voltage UVLO for the
TPS54540B-Q1 so the device may turn off before going into drop out.
VOUT VF Rdc u IOUT
VIN min
RDS on u IOUT VF
0.99
3.3V 0.5V 0.0103: u 5A
VIN min
0.12: u 5A 0.5V 3.99V
0.99
(43)
8.2.1.2.10 Compensation
There are several methods to design compensation for DC-DC regulators. The method presented here is easy to
calculate and ignores the effects of the slope compensation that is internal to the device. Because the slope
compensation is ignored, the actual crossover frequency will be lower than the crossover frequency used in the
calculations. This method assumes the crossover frequency is between the modulator pole and the ESR zero
and the ESR zero is at least 10 times greater the modulator pole.
To get started, the modulator pole, ƒp(mod), and the ESR zero, ƒz1 must be calculated using Equation 44 and
Equation 45. For COUT, use a derated value of 130 μF. Use equations Equation 46 and Equation 47 to estimate a
starting point for the crossover frequency, ƒco. For the example design, ƒp(mod) is 1850 Hz and ƒz(mod) is 610 kHz.
Equation 45 is the geometric mean of the modulator pole and the ESR zero and Equation 47 is the mean of
modulator pole and half of the switching frequency. Equation 46 yields 34 kHz and Equation 47 gives 19 kHz.
Use the geometric mean value of Equation 46 and Equation 47 for an initial crossover frequency. For this
example, after lab measurement, the crossover frequency target was increased to 30 kHz for an improved
transient response.
Next, the compensation components are calculated. A resistor in series with a capacitor is used to create a
compensating zero. A capacitor in parallel to these two components forms the compensating pole.
IOUT(max )
5A
fP(mod) =
=
= 1850 Hz
2 ´ p ´ VOUT ´ COUT 2 ´ p ´ 3.3 V ´ 130 mF
(44)
f Z(mod) =
1
=
2 ´ p ´ RESR ´ COUT
fco1 =
fp(mod) x f z(mod) =
fco2 =
fp(mod) x
fSW
2
=
1
= 610 kHz
2 ´ p ´ 1 mW ´ 130 mF
1850 Hz x 610 kHz
= 34 kHz
400 kHz
2
= 19 kHz
1850 Hz x
(45)
(46)
(47)
To determine the compensation resistor, R4, use Equation 48. The typical power stage transconductance, gmps,
is 17 A/V. The output voltage, VO, reference voltage, VREF, and amplifier transconductance, gmea, are 3.3 V,
0.8 V and 350 μA/V, respectively. R4 is calculated to be 17 kΩ and a standard value of 16.9 kΩ is selected. Use
Equation 49 to set the compensation zero to the modulator pole frequency. Equation 49 yields 5100 pF for
compensating capacitor C5. 4700 pF is used for this design.
ö
VOUT
æ 2 ´ p ´ fco ´ COUT ö æ
ö
3.3V
æ 2 ´ p ´ 30 kHz ´ 130 mF ö æ
R4 = ç
xç
÷ = ç
÷ x ç
÷ = 17 kW
÷
gmps
17 A / V
è
ø è 0.8 V x 350 mA / V ø
è
ø è VREF x gmea ø
(48)
C5 =
1
1
=
= 5100 pF
2 ´ p ´ R4 x fp(mod)
2 ´ p ´ 16.9 kW x 1850 Hz
Copyright © 2017, Texas Instruments Incorporated
(49)
29
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
A compensation pole can be implemented if desired by adding capacitor C8 in parallel with the series
combination of R4 and C5. Use the larger value calculated from Equation 50 and Equation 51 for C8 to set the
compensation pole. The selected value of C8 is 47 pF for this design example.
C
x RESR
130 mF x 1 mW
=
= 15 pF
C8 = OUT
R4
16.9 kW
(50)
1
1
C8 =
=
= 47 pF
R4 x f sw x p
16.9 kW x 400 kHz x p
(51)
8.2.1.2.11 Power Dissipation Estimate
The formulas in Equation 52 and Equation 58 show how to estimate the TPS54540-Q1 power dissipation under
continuous conduction mode (CCM) operation. These equations should not be used if the device is operating in
discontinuous conduction mode (DCM).
The power dissipation of the IC includes conduction loss (PCOND), switching loss (PSW), gate drive loss (PGD) and
supply current (PQ). Example calculations are shown with the 12-V typical input voltage of the design example.
æV
ö
5V
2
PCOND = (IOUT ) ´ RDS(on ) ´ ç OUT ÷ = 5 A 2 ´ 92 mW ´
= 0.958 W
12 V
è VIN ø
(52)
spacer
PSW = VIN ´ fSW ´ IOUT ´ trise = 12 V ´ 400 kHz ´ 5 A ´ 4.9 ns = 0.118 W
(53)
spacer
PGD = VIN ´ QG ´ fSW = 12 V ´ 3nC ´ 400 kHz = 0.014 W
(54)
spacer
PQ = VIN ´ IQ = 12 V ´ 146 mA = 0.0018 W
where
•
•
•
•
•
•
•
•
IOUT is the output current (A)
RDS(on) is the on-resistance of the high-side MOSFET (Ω)
VOUT is the output voltage (V)
VIN is the input voltage (V)
fsw is the switching frequency (Hz)
trise is the SW pin voltage rise time and can be estimated by trise = VIN × 0.16 ns/V + 3 ns
QG is the total gate charge of the internal MOSFET
IQ is the operating nonswitching supply current
(55)
Therefore,
PTOT = PCOND + PSW + PGD + PQ = 0.958 W + 0.118 W + 0.014 W + 0.0018 W = 1.092 W
(56)
For given TA,
TJ = TA + RTH ´ PTOT
(57)
For given TJMAX = 150°C
TA (max ) = TJ(max ) - RTH ´ PTOT
where
•
•
•
•
•
•
30
Ptot is the total device power dissipation (W)
TA is the ambient temperature (°C)
TJ is the junction temperature (°C)
RTH is the thermal resistance of the package (°C/W)
TJMAX is maximum junction temperature (°C)
TAMAX is maximum ambient temperature (°C)
(58)
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
There will be additional power losses in the regulator circuit due to the inductor AC and Eco-mode losses, the
catch diode and PCB trace resistance impacting the overall efficiency of the regulator.
8.2.1.2.12 Safe Operating Area
90
90
80
80
70
70
60
60
TA (ƒC)
TA (ƒC)
The safe operating area (SOA) of the device is shown in Figure 34, through Figure 37 for 3.3-V, 5-V, and 12-V
outputs and varying amounts of forced air flow. The temperature derating curves represent the conditions at
which the TPS54540-Q1 device is at or below the maximum operating temperature. The device is soldered
directly to the EVM, which is a 4-layer double-sided PCB with 2-oz. copper. Careful attention must be paid to the
other components chosen for the design, especially the catch diode.
50
40
40
6V
12 V
24 V
36 V
30
20
0.0
0.5
50
8V
12 V
24 V
36 V
30
20
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
IOUT (Amps)
5.0
0.0
0.5
1.0
2.0
2.5
3.0
3.5
4.0
4.5
IOUT (Amps)
Figure 34. 3.3-V Outputs
5.0
C048
Figure 35. 5-V Outputs
90
90
80
80
70
70
60
60
TA (ƒC)
TA (ƒC)
1.5
C047
50
50
400 LFM
40
40
18 V
24 V
30
36 V
20
0.0
0.5
1.0
200 LFM
100 LFM
30
Nat Conv
20
1.5
2.0
2.5
3.0
3.5
IOUT (Amps)
4.0
4.5
5.0
0.0
C048
Figure 36. 12-V Outputs
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
IOUT (Amps)
4.5
5.0
C048
Figure 37. Air Flow Conditions
VIN = 36 V, VO = 12 V
8.2.1.2.13 Discontinuous Conduction Mode and Eco-mode Boundary
With an input voltage of 12 V, the power supply enters discontinuous conduction mode when the output current
is less than 560 mA. The power supply enters Eco-mode when the output current is lower than 18 mA. The input
current draw is 240 μA with no load.
Copyright © 2017, Texas Instruments Incorporated
31
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
8.2.1.3 Application Curves
10 V/div
1 A/div
Measurements are taken with standard EVM using a 12-V input, 3.3-V output, and 5-A load unless otherwise noted.
IOUT
VIN
100 mV/div
10 mV/div
VOUT ±3.3V offset
VOUT ±3.3V offset
Time = 4 ms/div
Time = 100 Ps/div
Figure 39. Line Transient (8 V to 40 V)
Figure 38. Load Transient
5 V/div
VIN
VOUT
2 V/div
EN
EN
2 V/div
2 V/div
2 V/div
5 V/div
VIN
VOUT
Time = 2 ms/div
Time = 20 ms/div
Figure 41. Start-Up With EN
Figure 40. Start-Up With VIN
10 V/div
SW
500 mA/div
IL
10 mV/div
IL
10 mV/div
1 A/div
10 V/div
SW
VOUT ± AC Coupled
VOUT ± AC Coupled
IOUT = 100 mA
Time = 4 Ps/div
Figure 42. Output Ripple CCM
32
Time = 4 Ps/div
Figure 43. Output Ripple DCM
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
Measurements are taken with standard EVM using a 12-V input, 3.3-V output, and 5-A load unless otherwise noted.
10 V/div
IL
1 A/div
10 V/div
200 mA/div
SW
SW
200 mV/div
10 mV/div
IL
VOUT ± AC Coupled
No Load
VIN ± AC Coupled
Time = 1 ms/div
Time = 4 Ps/div
Figure 44. Output Ripple PSM
Figure 45. Input Ripple CCM
10 V/div
2 V/div
SW
SW
VIN ± AC Coupled
IL
VOUT = 5 V
20 mV/div
10 mV/div
200 mA/div
500 mA/div
IL
IOUT = 100 mA
No Load
EN Floating
VIN = 5.5 V
Time = 4 Ps/div
Time = 40 Ps/div
Figure 46. Input Ripple DCM
Figure 47. Low Dropout Operation
100
100
90
95
80
70
Efficiency (%)
Efficiency (%)
90
85
80
75
VOUT = 5 V, fsw = 400 kHz
70
65
60
0
0.5
1
1.5
Series4
VIN = 7 V
12V
VIN = 12 V
VIN = 24 V
24V
VIN = 36 V
36V
2
2.5
3
3.5
4
IO - Output Current (A)
Figure 48. Efficiency vs Load Current
Copyright © 2017, Texas Instruments Incorporated
4.5
60
50
30
V
VIN=12V
IN = 12 V
20
VIN=24V
V
IN = 24 V
10
5
C024
VIN=6V
V
IN = 7 V
40
0
0.001
VIN=24V
V
IN = 36 V
VOUT = 5 V, fsw = 400 kHz
0.01
0.1
IO - Output Current (A)
1
C024
Figure 49. Light Load Efficiency
33
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
Measurements are taken with standard EVM using a 12-V input, 3.3-V output, and 5-A load unless otherwise noted.
100
100
95
90
80
70
Efficiency (%)
85
80
75
65
VOUT = 3.3 V, fsw = 400 kHz
0
0.5
1
1.5
2
2.5
50
40
30
VIN
V
IN ==66VV
V
VIN
12VV
IN ==12
V
VIN
24VV
IN ==24
V
VIN
36VV
IN ==36
70
60
60
3
3.5
4
4.5
Load Current (A)
10
VOUT = 3.3 V, fsw = 400 kHz
0
0.001
5
0.01
60
180
50
150
95
40
120
90
30
90
20
60
85
Gain (dB)
Efficiency (%)
1
C051
Figure 51. Light Load Efficiency
100
80
75
V
18in
IN = 18 V
70
10
30
0
0
±10
±30
±20
±60
±30
±90
±40
Series1
V
IN = 24 V
65
±50
VOUT = 12 V, fsw = 800 kHz
Series3
V
IN = 36 V
VIN = 12 V, VOUT = 3.3 V, IOUT = 5 A
0.5
1
1.5
2
2.5
3
3.5
4
4.5
IO - Output Current (A)
±150
100
1k
5
10k
100k
1M
Frequency (Hz)
C053
C024
Figure 52. Efficiency vs Output Current
Figure 53. Overall Loop Frequency Response
0.20
0.4
0.15
Output Voltage Normalized (%)
0.5
0.3
0.2
0.1
0
-0.1
-0.2
-0.3
±120
Phase
±180
10
0
Gain
±60
60
Output Voltage Normalized (%)
0.1
Load Current (A)
C050
Figure 50. Efficiency vs Load Current
VIN = 12 V, VOUT = 3.3 V, fsw = 400 kHz
-0.4
VIN = 12 V, IOUT = 5 A, fsw = 400 kHz
0.10
0.05
0.00
±0.05
±0.10
±0.15
±0.20
0
0.5
1
1.5
2
2.5
3
3.5
4
Output Current (A)
Figure 54. Regulation vs Load Current
34
VIN
V
IN ==66VV
V
VIN
12VV
IN ==12
V
VIN
24VV
IN ==24
V
VIN
36VV
IN ==36
20
Phase (£)
Efficiency (%)
90
4.5
5
C054
0
5
10
15
20
25
30
35
40
Input Voltage (V)
45
C055
Figure 55. Regulation vs Input Voltage
Copyright © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
8.2.2 Inverting Buck-Boost Topology for Positive Input to Negative Output
The TPS54540-Q1 device can be used to convert a positive input voltage to a split-rail positive and negative
output voltage by using a coupled inductor. Example applications are amplifiers requiring a split-rail positive and
negative voltage power supply. For a more detailed example, see SLVA317.
VIN
+
CIN
CBOOT
LO
VIN
BOOT
GND
SW
CD
R1
+
GND
CO
R2
TPS54540B-Q1 FB
EN
VOUT
COMP
RCOMP
RT/CLK
CZERO
CPOLE
RT
Copyright © 2017, Texas Instruments Incorporated
Figure 56. TPS54540-Q1 Inverting Power Supply from SLVA317 Application Note
8.2.3 Split-Rail Power Supply
The TPS54540-Q1 device can be used to convert a positive input voltage to a split-rail positive and negative
output voltage by using a coupled inductor. Example applications are amplifiers requiring a split-rail positive and
negative voltage power supply. For a more detailed example, see SLVA369.
VOPOS
+
VIN
COPOS
+
CIN
VIN
CBOOT
BOOT
GND
SW
Lo
CD
R1
GND
+
CONEG
R2
TPS54540B-Q1
VONEG
FB
EN
COMP
RCOMP
RT /CLK
RT
CZERO
CPOLE
Copyright © 2017, Texas Instruments Incorporated
Figure 57. TPS54540-Q1 Split Rail Power Supply Based on the SLVA369 Application Note
Copyright © 2017, Texas Instruments Incorporated
35
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
9 Power Supply Recommendations
The device is designed to operate from an input voltage supply range from 4.5 V to 42 V. This input supply must
remain within this range. If the input supply is located more than a few inches from the TPS54540-Q1 converter,
additional bulk capacitance may be required in addition to the ceramic bypass capacitors. An electrolytic
capacitor with a value of 100 μF is a typical choice.
10 Layout
10.1 Layout Guidelines
Layout is a critical portion of good power supply design. There are several signal paths that conduct fast
changing currents or voltages that can interact with stray inductance or parasitic capacitance to generate noise
or degrade performance. To reduce parasitic effects, the VIN pin should be bypassed to ground with a low-ESR
ceramic bypass capacitor with X5R or X7R dielectric. Take care to minimize the loop area formed by the bypass
capacitor connections, the VIN pin, and the anode of the catch diode. See Figure 58 for a PCB layout example.
The GND pin should be tied directly to the power pad under the IC and the power pad.
The power pad must be connected to internal PCB ground planes using multiple vias directly under the IC. The
SW pin should be routed to the cathode of the catch diode and to the output inductor. Because the SW
connection is the switching node, the catch diode and output inductor must be located close to the SW pins, and
the area of the PCB conductor minimized to prevent excessive capacitive coupling. For operation at full rated
load, the top side ground area must provide adequate heat dissipating area. The RT/CLK pin is sensitive to noise
so the RT resistor should be located as close as possible to the IC and routed with minimal lengths of trace. The
additional external components can be placed approximately as shown. It may be possible to obtain acceptable
performance with alternate PCB layouts; however, this layout has been shown to produce good results and is
meant as a guideline.
10.2 Layout Example
Vout
Output
Capacitor
Topside
Ground
Area
Input
Bypass
Capacitor
Vin
UVLO
Adjust
Resistors
Output
Inductor
Route Boot Capacitor
Trace on another layer to
provide wide path for
topside ground
BOOT
Catch
Diode
SW
VIN
GND
EN
COMP
RT/CLK
Frequency
Set Resistor
FB
Compensation
Network
Resistor
Divider
Thermal VIA
Signal VIA
Figure 58. PCB Layout Example
36
版权 © 2017, Texas Instruments Incorporated
TPS54540B-Q1
www.ti.com.cn
ZHCSG12 – FEBRUARY 2017
10.3 Estimated Circuit Area
Boxing in the components in the design of Figure 33 the estimated printed-circuit-board area is 1.025 in2
(661 mm2). This area does not include test points or connectors. If the area needs to be reduced, this can be
done by using a two sided assembly and replacing the 0603 sized passives with a smaller sized equivalent.
11 器件和文档支持
11.1 器件支持
11.1.1 开发支持
有关 TPS54360 和 TPS54361 系列设计 Excel 工具，请参阅以下资料：
• 设计计算器 zip 文件 (SLVC452)
11.1.2 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
11.2 文档支持
11.2.1 相关文档
请参阅如下相关文档：
• 《利用 TPS54260 创建 GSM 电源》(SLVA412)
• 《利用 TPS54240 和 TPS2511 创建供 USB 设备使用的通用车载充电器》(SLVA464)
• 《利用降压稳压器创建反向电源》(SLVA317)
• 《使用宽输入电压降压稳压器创建分裂轨电源》(SLVA369)
11.3 社区资源
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.4 商标
Eco-mode, PowerPAD, E2E are trademarks of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 静电放电警告
这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损
伤。
11.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
版权 © 2017, Texas Instruments Incorporated
37
TPS54540B-Q1
ZHCSG12 – FEBRUARY 2017
www.ti.com.cn
12 机械、封装和可订购信息
以下页面包括机械、封装和可订购信息。这些信息是指定器件的最新可用数据。这些数据发生变化时，我们可能不
会另行通知或修订此文档。如欲获取此产品说明书的浏览器版本，请参见左侧的导航栏。
38
版权 © 2017, Texas Instruments Incorporated
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS54540BQDDAQ1
ACTIVE SO PowerPAD
DDA
8
75
RoHS & Green
NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
5454BQ
TPS54540BQDDARQ1
ACTIVE SO PowerPAD
DDA
8
2500
RoHS & Green
NIPDAUAG
Level-2-260C-1 YEAR
-40 to 125
5454BQ
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
