TPS55340
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
TPS55340 Integrated 5-A Wide Input Range Boost/SEPIC/Flyback DC/DC Regulator
1 Features
3 Description
•
•
•
•
•
•
•
•
•
•
•
The TPS55340 is a monolithic, nonsynchronous,
switching regulator with integrated 5-A, 40-V power
switch. The device can be configured in several
standard switching-regulator topologies, including
boost, SEPIC, and isolated flyback. The device has
a wide input voltage range to support applications with
input voltage from multicell batteries or regulated
3.3-V, 5-V, 12-V, and 24-V power rails.
•
•
2 Applications
•
•
•
•
•
3.3-V, 5-V, 12-V, 24-V power conversion
Boost, SEPIC, and flyback topologies
Thunderbolt port, USB type-C power delivery,
power docking for tablets, and portable PCs
Industrial power systems
ADSL modems
The TPS55340 regulates the output voltage with
current mode PWM (pulse width modulation) control,
and has an internal oscillator. The switching frequency
of PWM is set by either an external resistor or by
synchronizing to an external clock signal. The user
can program the switching frequency from
100 kHz to 1.2 MHz.
The device features a programmable soft-start
function to limit inrush current during start-up and
has other built-in protection features including cycleby-cycle overcurrent limit and thermal shutdown.
The TPS55340 is available in a small 3-mm × 3-mm
16-pin QFN as well as 14-pin HTSSOP packages with
PowerPAD for enhanced thermal performance.
The 5-A, 40-V TPS55340 boost converter in the
HTSSOP-14 package is pin-to-pin compatible with the
3-A, 40-V TPS61175, and it extends the maximum
input voltage from 18 V to 32 V.
Device Information
PART NUMBER
TPS55340
(1)
L
VIN
D
PACKAGE(1)
BODY SIZE (NOM)

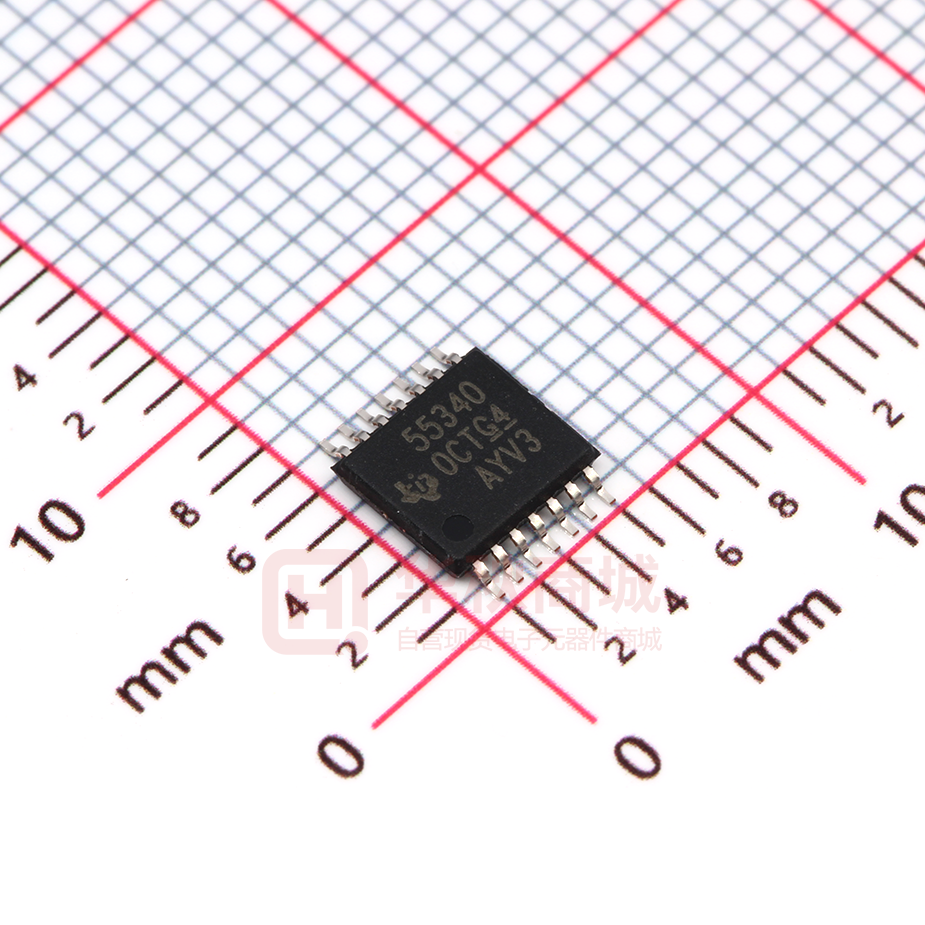

HTSSOP (14)
5.00 mm × 4.40 mm
WQFN (16)
3.00 mm × 3.00 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
100
VOUT
95
CI
CO
TPS55340
VIN
SW
EN
SW
FREQ
SW
RSH
SS
FB
COMP
PGND
SYNC
PGND
AGND
PGND
CSS
RFREQ
RC
RSL
90
Efficiency (%)
•
Internal 5-A, 40-V low-side MOSFET switch
2.9-V to 32-V input voltage range
±0.7% reference voltage
0.5-mA operating quiescent current
2.7-µA shutdown supply current
Fixed frequency current mode PWM control
Frequency adjustable from 100 kHz to 1.2 MHz
Synchronization capability to external clock
Adjustable soft-start time
Pulse skipping for higher efficiency at light loads
Cycle-by-cycle current limit, thermal shutdown,
and UVLO protection
QFN-16 (3-mm × 3-mm) and HTSSOP-14
packages with PowerPAD™
Wide –40°C to 150°C operating TJ range
Create a custom design using the TPS55340 with
the WEBENCH Power Designer
85
VOUT = 24 V
fSW = 600 kHz
80
75
70
65
VIN = 15 V
VIN = 12 V
VIN = 5 V
60
CC
55
50
Typical Application (Boost)
0
0.4
0.8
1.2
1.6
Output Current (A)
2
2.4
G031
Efficiency vs Output Current
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings........................................ 4
6.2 ESD Ratings............................................................... 4
6.3 Recommended Operating Conditions.........................4
6.4 Thermal Information....................................................4
6.5 Electrical Characteristics.............................................5
6.6 Typical Characteristics................................................ 6
7 Detailed Description........................................................9
7.1 Overview..................................................................... 9
7.2 Functional Block Diagram........................................... 9
7.3 Feature Description.....................................................9
7.4 Device Functional Modes..........................................12
8 Application and Implementation.................................. 13
8.1 Application Information............................................. 13
8.2 Typical Applications.................................................. 13
9 Power Supply Recommendations................................27
10 Layout...........................................................................28
10.1 Layout Guidelines................................................... 28
10.2 Layout Example...................................................... 28
10.3 Thermal Considerations..........................................28
11 Device and Documentation Support..........................29
11.1 Device Support........................................................29
11.2 Receiving Notification of Documentation Updates.. 29
11.3 Support Resources................................................. 29
11.4 Trademarks............................................................. 29
11.5 Electrostatic Discharge Caution.............................. 29
11.6 Glossary.................................................................. 29
12 Mechanical, Packaging, and Orderable
Information.................................................................... 30
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision D (June 2019) to Revision E (September 2021)
Page
• Updated the numbering format for tables, figures, and cross-references throughout the document. ................1
Changes from Revision C (October 2014) to Revision D (June 2019)
Page
• Added text note under pin configuration diagrams. ........................................................................................... 3
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
SW
SW
NC
PGND
5 Pin Configuration and Functions
16
15
14
13
SW
1
12
PGND
VIN
2
11
PGND
EN
3
10
NC
SS
4
9
PowerPAD
1
14
PGND
SW
2
13
PGND
VIN
3
12
PGND
EN
4
11
NC
SS
5
10
FREQ
5
6
7
8
SYNC
6
9
FB
AGND
COMP
FB
PowerPAD
SYNC
FREQ
SW
AGND
7
8
COMP
TI recommends connecting NC with AGND.
TI recommends connecting NC with AGND.
Figure 5-1. RTE Package 16-Pin WQFN Top View
Figure 5-2. PWP Package 14-Pin HTSSOP (Top
View)
Table 5-1. Pin Functions
PIN
NAME
QFN-16
DESCRIPTION
HTSSOP-14
AGND
6
7
Signal ground of the IC
COMP
7
8
Output of the transconductance error amplifier. An external RC network connected to this pin
compensates the regulator feedback loop.
EN
3
4
Enable pin. When the voltage of this pin falls below the enable threshold for more than 1 ms,
the IC turns off.
FB
8
9
Error amplifier input and feedback pin for positive voltage regulation. Connect to the center tap
of a resistor divider to program the output voltage.
FREQ
9
10
Switching frequency program pin. An external resistor connected between the FREQ pin and
AGND sets the switching frequency.
NC
10, 14
11
Reserved pin that must be connected to ground
PGND
11, 12, 13
12, 13, 14
Power ground of the IC. It is connected to the source of the internal power MOSFET switch.
PowerPAD
—
—
The PowerPAD should be soldered to the AGND. If possible, use thermal vias to connect to
internal ground plane for improved power dissipation.
SS
4
5
Soft-start programming pin. A capacitor between the SS pin and AGND pin programs soft-start
timing.
SW
1, 15, 16
1, 2
SW is the drain of the internal power MOSFET. Connect SW to the switched side of the boost or
SEPIC inductor or the flyback transformer.
SYNC
5
6
Switching frequency synchronization pin. An external clock signal can be used to set the
switching frequency between 200 kHz and 1.0 MHz. If not used, this pin should be tied to
AGND.
VIN
2
3
The input supply pin to the IC. Connect VIN to a supply voltage between 2.9 V and 32 V. It is
acceptable for the voltage on the pin to be different from the boost power stage input.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
3
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
6 Specifications
6.1 Absolute Maximum Ratings
over operating temperature range (unless otherwise noted)(1)
Supply voltages on pin VIN(2)
Voltage on pin
EN(2)
Voltage on pins FB, FREQ, and COMP(2)
Voltage on pin
SS(2)
Voltage on pin SYNC(2)
Voltage on pin
SW(2)
MIN
MAX
UNIT
–0.3
34
V
–0.3
34
V
–0.3
3
V
–0.3
5
V
–0.3
7
V
–0.3
40
V
Operating junction temperature
–40
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
(2)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only and functional operation of the device at these or any other conditions beyond those indicated under Section 6.3 is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to network ground terminal
6.2 ESD Ratings
VALUE
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
V(ESD)
(1)
(2)
Electrostatic discharge
pins(1)
UNIT
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101, all
pins(2)
V
±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
MIN
NOM
MAX
UNIT
VIN
Input voltage range
2.9
32
V
VOUT
Output voltage range
VIN
38
V
VEN
EN voltage range
0
32
V
VSYN
External switching frequency logic input range
0
5
V
TA
Operating free-air temperature
–40
125
°C
TJ
Operating junction temperature
–40
150
°C
6.4 Thermal Information
TPS55340
THERMAL METRIC(1)
HTSSOP
(14 PINS)
RθJA
Junction-to-ambient thermal resistance
43.3
43.2
RθJC(top)
Junction-to-case (top) thermal resistance
38.7
33.3
RθJB
Junction-to-board thermal resistance
14.5
28.3
ψJT
Junction-to-top characterization parameter
0.4
1.3
ψJB
Junction-to-board characterization parameter
14.5
28.1
RθJC(bot)
Junction-to-case (bottom) thermal resistance
3.5
3.9
(1)
4
QFN
(16 PINS)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report (SPRA953).
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
6.5 Electrical Characteristics
VIN = 5 V, TJ = –40°C to 150°C, unless otherwise noted. Typical values are at TA = 25°C.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
SUPPLY CURRENT
VIN
Input voltage range
2.9
32
IQ
Operating quiescent current into VIN
Device nonswitching, VFB = 2 V
0.5
ISD
Shutdown current
EN = GND
2.7
VUVLO
Undervoltage lockout threshold
VIN falling
Vhys
Undervoltage lockout hysteresis
V
mA
10
µA
2.5
2.7
V
120
140
160
mV
ENABLE AND REFERENCE CONTROL
VEN
EN threshold voltage
EN rising input
0.9
1.08
1.30
V
VEN
EN threshold voltage
EN falling input
0.74
0.92
1.125
V
VENh
EN threshold hysteresis
REN
EN pulldown resistor
1600
kΩ
Toff
Shutdown delay, SS discharge
VSYNh
SYN logic high voltage
VSYNl
SYN logic low voltage
0.16
400
EN high to low
950
V
1.0
ms
1.2
V
0.4
V
VOLTAGE AND CURRENT CONTROL
VREF
Voltage feedback regulation voltage
IFB
Voltage feedback input bias current
Isink
COMP pin sink current
Isource
COMP pin source current
VCCLP
COMP pin clamp voltage
VCTH
COMP pin threshold
Gea
Error amplifier transconductance
Rea
Error amplifier output resistance
fea
Error amplifier crossover frequency
1.204
1.229
1.254
1.220
1.229
1.238
TA = 25°C
1.6
20
VFB = VREF + 200 mV, VCOMP = 1 V
42
µA
VFB = VREF – 200 mV, VCOMP = 1 V
42
µA
High Clamp, VFB = 1 V
3.1
TA = 25°C
Low Clamp, VFB = 1.5 V
0.75
Duty cycle = 0%
1.04
240
360
V
nA
V
V
440
µS
10
MΩ
500
kHz
FREQUENCY
fSW
Frequency
Dmax
Maximum duty cycle
VFREQ
FREQ pin voltage
Tmin_on
Minimum on pulse width
RFREQ = 480 kΩ
75
94
130
RFREQ = 80 kΩ
460
577
740
920
1140
1480
89%
96%
RFREQ = 40 kΩ
VFB = 1.0 V, RFREQ = 80 kΩ
kHz
1.25
V
RFREQ = 80 kΩ
77
ns
VIN = 5 V
60
110
VIN = 3 V
70
120
POWER SWITCH
RDS(ON)
N-channel MOSFET on-resistance
ILN_NFET
N-channel leakage current
VDS = 25 V, TA = 25°C
mΩ
2.1
µA
7.75
A
OCP and SS
ILIM
N-channel MOSFET current limit
D = Dmax
ISS
Soft-start bias current
VSS = 0 V
5.25
6.6
6
µA
THERMAL SHUTDOWN
Tshutdown
Thermal shutdown threshold
165
°C
Thysteresis
Thermal shutdown threshold
hysteresis
15
°C
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
5
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
6.6 Typical Characteristics
VIN = 5 V, TA = 25°C (unless otherwise noted)
8
Current Limit Threshold (A)
Transconductance (µA/V)
400
380
360
340
320
7
6
5
4
3
2
300
−50
−25
0
25
50
75
Temperature (°C)
100
125
1
−50
150
Figure 6-1. Error Amplifier Transconductance vs
Temperature
125
150
G002
VIN = 3 V
Resistance (mΩ)
Voltage Reference (V)
100
100
1.228
1.226
1.224
80
60
VIN = 12 V
40
VIN = 5 V
20
1.22
−50
−25
0
25
50
75
Temperature (°C)
100
125
0
−50
150
−25
0
G003
Figure 6-3. Feedback Voltage Reference vs
Temperature
25
50
75
Temperature (°C)
1600
1400
1400
1200
Frequency (kHz)
1000
800
600
400
100
Resistance (kΩ)
500
150
G004
800
600
RFREQ = 40 kΩ
RFREQ = 80 kΩ
RFREQ = 480 kΩ
400
0
−50
G005
Figure 6-5. Frequency vs FREQ Resistance
125
1000
200
200
30
100
Figure 6-4. RDS(ON) vs Temperature
1200
Frequency (kHz)
25
50
75
Temperature (°C)
120
1.222
6
0
Figure 6-2. Switch Current Limit vs Temperature
1.23
0
−25
G001
−25
0
25
50
75
Temperature (°C)
100
125
150
G006
Figure 6-6. Frequency vs Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
400
700
350
600
RFREQ = 80 kΩ
500
Frequency (kHz)
Frequency (kHz)
300
250
200
150
400
100
200
50
100
0
0
5
10
15
20
25
30
Voltage on the VIN Pin (V)
35
0
−50
40
100
125
150
G007
2.66
Input Voltage (V)
COMP Voltage (V)
25
50
75
Temperature (°C)
2.7
3
2.5
COMP Pin Clamp High
COMP Pin Clamp Low
2
1.5
2.62
UVLO Start
UVLO Stop
2.58
2.54
1
−25
0
25
50
75
Temperature (°C)
100
125
2.5
−50
150
−25
0
G008
Figure 6-9. COMP Clamp Voltage vs Temperature
25
50
75
Temperature (°C)
100
125
150
G009
Figure 6-10. Input Voltage UVLO vs Temperature
1.3
100
RFREQ = 80 kΩ
EN Voltage Rising
EN Voltage Falling
Maximum Duty Cycle (%)
1.2
Enable Voltage (V)
0
Figure 6-8. Nonfoldback Frequency vs Foldback
Frequency
3.5
1.1
1
0.9
0.8
0.7
−50
−25
D006
Figure 6-7. Minimum Switching Frequency for
Quick Recovery from Frequency Foldback
0.5
−50
Non-Foldback
Foldback
300
−25
0
25
50
75
Temperature (°C)
100
125
150
99
98
97
96
95
94
−50
G010
Figure 6-11. Enable Voltage vs Temperature
−25
0
25
50
75
Temperature (°C)
100
125
150
G011
Figure 6-12. Maximum Duty Cycle vs Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
7
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
100
8
RFREQ = 80 kΩ
7
Shutdown Current (µA)
Minimum On Time (ns)
95
90
85
80
75
70
−50
6
5
4
3
2
−25
0
25
50
75
Temperature (°C)
100
125
1
−50
150
−25
0
25
50
75
Temperature (°C)
G012
Figure 6-13. Minimum On-Time vs Temperature
100
125
150
G013
Figure 6-14. Shutdown Current vs Temperature
2.1
Supply Current (mA)
1.8
1.5
Switching
Non-Switching
1.2
0.9
0.6
0.3
−50
−25
0
25
50
75
Temperature (°C)
100
125
150
G014
Figure 6-15. Supply Current vs Temperature
8
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
7 Detailed Description
7.1 Overview
The TPS55340 device is a monolithic, nonsynchronous, switching regulator with an integrated 5-A, 40-V power
switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC,
and isolated flyback. The device has a wide input voltage range to support applications with input voltage from
multicell batteries or regulated 3.3-V, 5-V, 12-V, and 24-V power rails.
7.2 Functional Block Diagram
VIN
SW
FB
Error
Amp
EN
1.229V
Reference
COMP
PWM
Control
Ramp
Generator
Gate
Driver
Lossless
Current Sense
S
Oscillator
SS
FREQ
SYNC
AGND
PGND
7.3 Feature Description
7.3.1 Operation
If designed as a boost converter, the TPS55340 device regulates the output with current-mode, pulse-widthmodulation (PWM) control. The PWM control circuitry turns on the switch at the beginning of each oscillator
clock cycle. The input voltage is applied across the inductor and stores the energy as inductor current ramps up.
During this portion of the switching cycle, the load current is provided by the output capacitor. When the inductor
current reaches a threshold level set by the error amplifier output, the power switch turns off and the external
Schottky diode is forward biased to allow the inductor current to flow to the output. The inductor transfers stored
energy to replenish the output capacitor and supply the load current. This operation repeats every switching
cycle. The duty cycle of the converter is determined by the PWM control comparator which compares the
error amplifier output and the current signal. The oscillator frequency is programmed by the external resistor or
synchronized to an external clock signal.
A ramp signal from the oscillator is added to the inductor current ramp to provide slope compensation. Slope
compensation is required to avoid subharmonic oscillation that is intrinsic to peak-current mode control at duty
cycles higher than 50%. If the inductor value is too small, the internal slope compensation may not be adequate
to maintain stability.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
9
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
The PWM control feedback loop regulates the FB pin to a reference voltage through a transconductance error
amplifier. The output of the error amplifier is connected to the COMP pin. An external RC compensation network
connected to the COMP pin is chosen for feedback loop stability and optimum transient response.
7.3.2 Switching Frequency
The switching frequency is set by a resistor (RFREQ) connected to the FREQ pin of the TPS55340. The
relationship between the timing resistance RFREQ and frequency is shown in the Figure 6-5. Do not leave this pin
open. A resistor must always be connected from the FREQ pin to ground for proper operation. The resistor value
required for a desired frequency can be calculated using Equation 1.
RFREQ(kΩ) = 57500 × ƒsw(kHz)–1.03
(1)
For the given resistor value, the corresponding frequency can be calculated by Equation 2.
ƒsw(kHz) = 41600 × RFREQ(kΩ)–0.97
(2)
The TPS55340 switching frequency can be synchronized to an external clock signal that is applied to the SYNC
pin. The required logic levels of the external clock are shown in Section 6.3. The recommended duty cycle of
the clock is in the range of 10% to 90%. A resistor must be connected from the FREQ pin to ground when the
converter is synchronized to the external clock and the external clock frequency must be within ±20% of the
corresponding frequency set by the resistor. For example, if the frequency programmed by the FREQ pin resistor
is 600 kHz, the external clock signal should be in the range of 480 kHz to 720 kHz.
With a switching frequency below 280 kHz (typical) after the TPS55340 enters frequency foldback as described
in Section 7.3.3, if a load remains when the overcurrent condition is removed, then the output may not recover to
the set value. For the output to return to the set value, the load must be removed completely or the TPS55340
power cycled with the EN pin or VIN pin. Select a nominal switching frequency of 350 kHz for quicker recovery
from frequency foldback.
7.3.3 Overcurrent Protection and Frequency Foldback
The TPS55340 provides cycle-by-cycle overcurrent protection that turns off the power switch once the inductor
current reaches the overcurrent limit threshold. The PWM circuitry resets itself at the beginning of the next
switch cycle. During an overcurrent event, the output voltage begins to drop as a function of the load on the
output. When the FB voltage through the feedback resistors drops lower than 0.9 V, the switching frequency is
automatically reduced to 1/4 of the normal value. Figure 6-8 shows the nonfoldback frequency with an 80-kΩ
timing resistor and the corresponding foldback frequency. The switching frequency does not return to normal
until the overcurrent condition is removed and the FB voltage increases above 0.9 V. The frequency foldback
feature is disabled during soft-start.
7.3.3.1 Minimum On-Time and Pulse Skipping
The TPS55340 PWM control system has a minimum PWM pulse width of 77 ns (typical). This minimum on-time
determines the minimum duty cycle of the PWM for any set switching frequency. When the voltage regulation
loop of the TPS55340 requires a minimum on-time pulse width less than 77 ns, the IC enters pulse skipping
mode. In this mode, the device will hold the power switch off for several switching cycles to prevent the output
voltage from rising above the desired regulated voltage. This operation typically occurs in light load conditions
when the PWM operates in discontinuous conduction mode. Pulse skipping increases the output ripple as shown
in Figure 8-7.
7.3.4 Voltage Reference and Setting Output Voltage
An internal voltage reference provides a precise 1.229-V voltage reference at the error amplifier noninverting
input. To set the output voltage, select the FB pin resistor RSH and RSL according to Equation 3.
æR
ö
VOUT = 1.229 V ´ ç SH + 1÷
è R SL
ø
10
Submit Document Feedback
(3)
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340
TPS55340
www.ti.com
SLVSBD4E – MAY 2012 – REVISED SEPTEMBER 2021
7.3.5 Soft-Start
The TPS55340 has a built-in soft-start circuit which significantly reduces the start-up current spike and output
voltage overshoot. When the IC is enabled, an internal bias current source (6 µA, typical) charges a capacitor
(CSS) on the SS pin. The voltage at the capacitor clamps the output of the internal error amplifier that determines
the peak current and duty cycle of PWM controller. Limiting the peak switch current during start-up with a slow
ramp on the SS pin will reduce in-rush current and output voltage overshoot. Once the capacitor reaches 1.8 V,
the soft-start cycle is completed and the soft-start voltage no longer clamps the error amplifier output. When the
EN is pulled low for at least 1 ms, the IC enters the shutdown mode and the SS capacitor is discharged through
a 5-kΩ resistor to prepare for the next soft-start sequence.
7.3.6 Slope Compensation
The TPS55340 has internal slope compensation to prevent subharmonic oscillations. The sensed current slope
of boost converter can be expressed as Equation 4:
V
Sn = IN ´ RSENSE
L
(4)
The slope compensation dv/dt can be calculated using Equation 5.
Se =
0.32 V RFREQ 0.5 mA
+
16 ´ (1 - D) ´ 6 pF
6 pF
(5)
In a converter with current mode control, in addition to the output voltage feedback loop, the inner current loop
including the inductor current sampling effect as well as the slope compensation on the small signal response
should be taken into account, which can be modeled as seen in Equation 6:
He(s) =
1+
éæ
S
s ´ êç 1 + e
Sn
êëçè
1
ù
ö
÷ ´ (1 - D) - 0.5 ú
÷
úû
ø
+
fsw
s2
(p ´ fsw )
2
(6)
where
•
•
•
RSENSE (15 mΩ) is the equivalent current sense resistor.
RFREQ is timing resistor used to set frequency.
D is the duty cycle.
Note
If Sn
