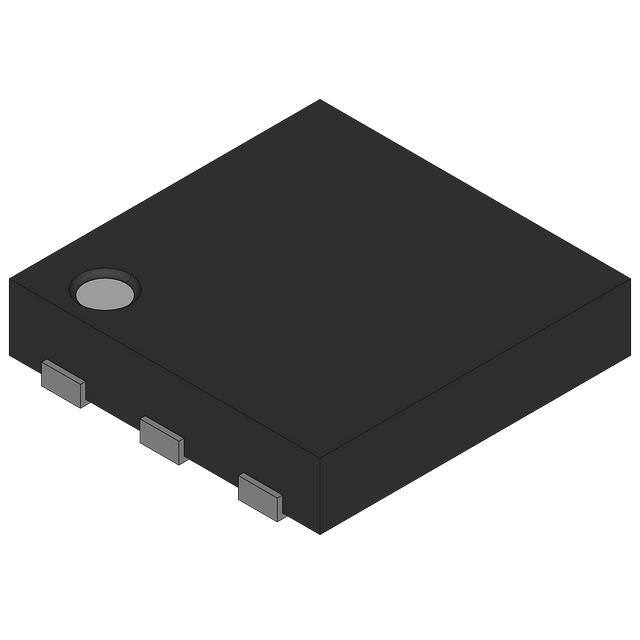

TPS62243DRVT

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents Reference Design TPS62240, TPS62242, TPS62243 SLVS762C – JUNE 2007 – REVISED JULY 2015 TPS6224x 2.25-MHz 300-mA Step-Down Converter in 2 x 2 WSON and SOT Package 1 Features • • • 1 • • • • • • • • High Efficiency - Greater Than 94% Output Current up to 300 mA VIN Range from 2 V to 6 V for Li-ion Batteries With Extended Voltage Range 2.25-MHz Fixed-Frequency Operation Power Save Mode at Light Load Currents Output Voltage Accuracy in PWM Mode ±1.5% Adjustable Output Voltage from 0.6 V to VIN Typical 15-μA Quiescent Current 100% Duty Cycle for Lowest Dropout Available in a SOT (5) and 2-mm × 2-mm × 0.8mm WSON (6) Package Allows
