TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
TPS6305x Single Inductor Buck-Boost With 1-A Switches and Adjustable Soft Start
1 Features
3 Description
•
The TPS6305x family of devices is a high efficiency,
low quiescent-current buck-boost converter, suitable
for applications where the input voltage is higher or
lower than the output.
Real buck or boost with seamless transition
between buck and boost mode
2.5 V to 5.5 V Input voltage range
0.5-A Continuous output current: VIN ≥ 2.5 V,
VOUT = 3.3 V
Adjustable and fixed output voltage version
Efficiency > 90% in boost mode and > 95% in
buck mode
2.5-MHz Typical switching frequency
Adjustable average input current limit
Adjustable soft-start time
Device quiescent current < 60 μA
Automatic power save mode or forced PWM mode
Load disconnect during shutdown
Overtemperature protection
Small 1.6mm x 1.2mm, 12-pin WCSP and 2.5mm
x 2.5mm 12-pin HotRod™ QFN package
Create a custom design using the:
– TPS63050 With the WEBENCH® Power
Designer
– TPS63051 With the WEBENCH® Power
Designer
1
•
•
•
•
•
•
•
•
•
•
•
•
•
2 Applications
•
•
•
•
•
Cellular and smart phones
Tablets PC
PC and smart phone accessories
Battery powered applications
Smart grid/smart meter
Continuous output current can go as high as 500 mA
in boost mode and as high as 1 A in buck mode. The
maximum average current in the switches is limited to
a typical value of 1 A. The TPS6305x family of
devices regulate the output voltage over the complete
input voltage range by automatically switching
between buck or boost mode depending on the input
voltage, ensuring seamless transition between
modes.
The buck-boost converter is based on a fixedfrequency, pulse-width-modulation (PWM) controller
using synchronous rectification to obtain the highest
efficiency. At low load currents, the converter enters
Power Save Mode to maintain high efficiency over
the complete load current range.
The PFM/PWM pin allows the user to select between
automatic-PFM/PWM mode operation and forcedPWM operation. During PWM mode a fixed-frequency
of typically 2.5 MHz is used. The output voltage is
programmable using an external resistor divider, or is
fixed internally on the chip. The converter can be
disabled to minimize battery drain. During shutdown,
the load is disconnected from the battery. The device
is packaged in a 12-pin DSBGA and in a 12-pin
HotRod package.
Device Information(1)
PART NUMBER
TPS63050
TPS63051
PACKAGE
BODY SIZE (NOM)
DSBGA (12)
1.56 mm x 1.16 mm

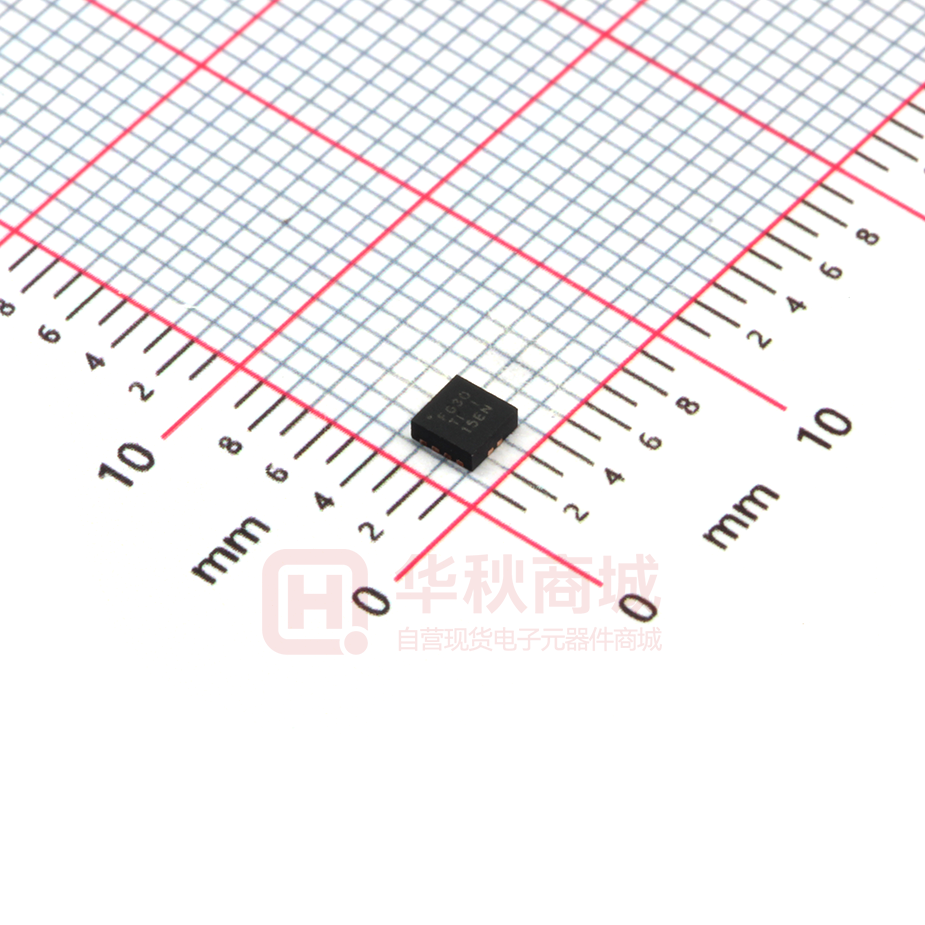

VQFN (12)
2.50 mm × 2.50 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
Simplified Schematic (WCSP)
Efficiency vs Output Current
L1 1.5 µH
TPS63051
VIN
C1
L2
VIN
VOUT
EN
FB
ILIM0
PG
PFM/
PWM
ILIM1
GND
SS
3.3 V / 500mA
R2
1MΩ
10µF
VIH or VIL
VIH or VIL
C3
C2
C3
10µF
10µF
VOUT
Efficiency (%)
L1
2.5 V to 5.5 V
1nF
VIN = 2.8V, V OUT = 3.3V
VIN = 3.6V, V OUT = 3.3V
TPS63051
Output Current (mA)
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
4
5
7.1
7.2
7.3
7.4
7.5
7.6
7.7
5
5
5
5
6
7
8
Absolute Maximum Ratings ......................................
ESD Ratings ............................................................
Recommended Operating Conditions.......................
Thermal Information .................................................
Electrical Characteristics...........................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Detailed Description .............................................. 9
8.1
8.2
8.3
8.4
Overview ................................................................... 9
Functional Block Diagrams ....................................... 9
Feature Description................................................. 11
Device Functional Modes........................................ 12
9
Application and Implementation ........................ 15
9.1 Application Information............................................ 15
9.2 Typical Application ................................................. 15
10 Power Supply Recommendations ..................... 23
11 Layout................................................................... 23
11.1
11.2
11.3
11.4
Layout Guidelines .................................................
Layout Example (WCSP) ......................................
Layout Example (HotRod).....................................
Thermal Considerations ........................................
23
23
23
24
12 Device and Documentation Support ................. 24
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
Custom Design With WEBENCH® Tools .............
Device Support ....................................................
Related Links ........................................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
24
24
24
25
25
25
25
25
13 Mechanical, Packaging, and Orderable
Information ........................................................... 25
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision C (July 2015) to Revision D
Page
•
Added Webench links to the data sheet................................................................................................................................. 1
•
Changed the Pin Configurations............................................................................................................................................. 4
•
Changed the quiescent current VIN max value From: 60 µA To: 65 µA in the Electrical Characteristics ............................. 6
•
Added Note: Conditions: TJ = –40°C to 85°C To the quiescent current and shutdown current in the Electrical
Characteristics ........................................................................................................................................................................ 6
Changes from Revision B (April 2015) to Revision C
Page
•
Added new package option to Features................................................................................................................................. 1
•
Added VQFN package to Device Information table .............................................................................................................. 1
•
Added HotRod Pin Configuration and Functions ................................................................................................................... 4
•
Added Parameter Measurement Circuit for HotRod package option ................................................................................... 15
Changes from Revision A (February 2014) to Revision B
Page
•
Changed Description section ................................................................................................................................................. 1
•
Changed graphic image ........................................................................................................................................................ 1
•
Changed Ordering Information table To:Device Comparison Table ..................................................................................... 4
•
Changed "Handling Ratings" table to "ESD Rating" table and moved Tstg spec to the Absolute Maximum Ratings table.... 5
•
Moved some Typical Characteristics graphs to the Application Curves section ................................................................... 8
2
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
Changes from Original (July 2013) to Revision A
Page
•
Added Device Information and ESD Rating tables, Feature Description section, Device Functional Modes,
Application and Implementation section, Power Supply Recommendations section, Layout section, Device and
Documentation Support section, and Mechanical, Packaging, and Orderable Information section ..................................... 1
•
Added TPS63050 device specifications and description throughout data sheet .................................................................. 1
•
Changed Figure 34, PCB Layout ........................................................................................................................................ 23
•
Changed Figure 35, PCB Layout ........................................................................................................................................ 23
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
3
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
5 Device Comparison Table
PART NUMBER
(1)
(1)
VOUT
TPS63050
Adjustable
TPS63051
3.3 V
For all available packages, see the orderable addendum at the end of the datasheet
6 Pin Configuration and Functions
YFF Package
12-Pin DSBGA
Top View
L1
VIN
EN
L1
ILIM0
GND
2
9
GND
L2
3
8
PG
VOUT
4
7
SS
ILIM1
L2
PFM/PWM
PG
FB
C
D
VOUT
6
ILIM0
10
FB
SS
PFM/PWM
GND
1
5
B
EN
3
11
2
VIN
1
12
A
RMW Package
12-Pin HotRod
Top View
No t to scale
No t to scale
Pin Functions
PIN
NAME
I/O
DESCRIPTION
WCSP
HotRod
EN
A3
11
I
Enable input. (1 enabled, 0 disabled). It must not be left floating
FB
D2
5
I
Voltage feedback of adjustable versions, must be connected to VOUT on fixed output
voltage versions1
GND
B1
2,9
ILIM0
B2
10
ILIM1
B3
See
L1
A1
1
Connection for Inductor
L2
C1
3
Connection for Inductor
PFM/PWM
C2
6
I
0 for PFM mode 1 for forced PWM mode. It must not be left floating
PG
C3
8
O
Power good open drain output
SS
D3
7
I
Adjustable Soft-Start. If left floating default soft-start time is set
VIN
A2
12
I
Supply voltage for power stage and control stage
VOUT
D1
4
O
Buck-boost converter output
(1)
4
Ground for Power stage and Control stage
I
(1)
I
Programmable inrush current limit input works together with lLIM1. See table on page 1.
It must not be left floating
Programmable inrush current limit input works together with lLIM0.
See Efficiency vs Output Current on page 1. Do not leave floating
Only available with DSBGA package, for VQFN package ILIM1 is internally connected to voltage level > VIH
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
7 Specifications
7.1 Absolute Maximum Ratings
over junction temperature range (unless otherwise noted)
(1)
MIN
MAX
VIN, L1, EN, VOUT, FB, VINA, PFM/PWM
–0.3
7
L2 (3)
–0.3
7
L2 (4)
–0.3
9.5
Operating junction temperature, TJ
–40
150
°C
Operating ambient temperature, TA
–40
85
°C
Storage temperature, Tstg
–65
150
°C
Voltage (2)
(1)
(2)
(3)
(4)
UNIT
V
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to network ground pin.
DC voltage rating.
AC voltage rating.
7.2 ESD Ratings
VALUE
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
V(ESD)
(1)
(2)
Electrostatic discharge
(1)
UNIT
±1500
Charged-device model (CDM), per JEDEC specification JESD22C101 (2)
V
±700
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
(1)
See
VIN
Input voltage
IOUT
Output current
(2)
MIN
NOM MAX
2.5
5.5
V
0.5
A
2.2
µH
L
Inductance
COUT
Output capacitance (3)
TA
Operating ambient temperature
–40
85
°C
TJ
Operating virtual junction temperature
–40
125
°C
(1)
(2)
(3)
1
1.5
UNIT
10
µF
Refer to the Application Information section for further information
Effective inductance value at operating condition. The nominal value given matches a typical inductor to be chosen to meet the
inductance required.
Due to the DC bias effect of ceramic capacitors, the effective capacitance is lower then the nominal value when a voltage is applied.
This is why the capacitance is specified to allow the selection of the nominal capacitor required with the DC bias effect for this type of
capacitor. The nominal value given matches a typical capacitor to be chosen to meet the minimum capacitance required.
7.4 Thermal Information
TPS6305x
THERMAL METRIC (1)
WCSP
RMW
UNIT
12 PINS
12 PINS
RθJA
Junction-to-ambient thermal resistance
89.9
37.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
0.7
30.4
°C/W
RθJB
Junction-to-board thermal resistance
43.9
8.0
°C/W
ψJT
Junction-to-top characterization parameter
2.9
0.4
°C/W
ψJB
Junction-to-board characterization parameter
43.7
7.8
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
2.5
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
5
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
7.5 Electrical Characteristics
VIN = 3.6 V, TJ = –40°C to 125°C, typical values are at TA = 25°C (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP MAX
UNIT
SUPPLY
VIN
Input voltage range
VIN_Min
Minimum input voltage to turn on in full load
IOUT = 500 mA
2.7
V
IOUT
Output current (1)
ILIM0 = VIH, ILIM1 = VIH,
500
mA
IQ
2.5
VIN
IOUT = 0 mA, EN = VIN = 3.6 V,
VOUT = 3.3 V
VOUT
IOUT = 0 mA, EN = VIN = 3.6 V,
VOUT = 3.3 V
(2)
Quiescent current
(2)
Isd
Shutdown current
UVLOTH
Undervoltage lockout threshold
UVLOhys
Undervoltage lockout hysteresis
TSD
Thermal shutdown
TSD(hys)
Thermal shutdown hysteresis
43
V
65
μA
10
EN = 0 V
VIN falling
5.5
1.6
Temperature rising
0.1
1
1.7
1.8
μA
V
200
mV
140
°C
20
°C
LOGIC SIGNALS EN, ILIM0, ILIM1
VIH
High level input voltage
VIN = 2.5 V to 5.5 V
VIL
Low level voltage Input Voltage
VIN = 2.5 V to 5.5 V
Input leakage current
PFM / PWM, EN, ILIM0, ILIM1 = GND or
VIN
Ilkg
1.2
V
0.01
0.3
V
0.1
μA
POWER GOOD
VOL
Low level voltage
Isink = 100 μA
0.3
V
IPG
PG sinking current
V = 0.3 V
0.1
mA
Ilkg
Input leakage current
VPG = 3.6 V
0.1
μA
5.5
V
0.01
OUTPUT
VOUT
Output voltage range
2.5
VFB
TPS63050 feedback regulation voltage
VFB
TPS63050 feedback voltage accuracy
PWM mode
VFB
TPS63050 feedback voltage accuracy (3)
PFM mode
–1%
VOUT
TPS63051 output voltage accuracy
PWM mode
3.27
PFM mode
3.27
(3)
0.8
–1.1%
V
1.1%
3%
3.3
3.34
3.3
3.39
V
VOUT
TPS63051 output voltage accuracy
IPWM->PFM
Minimum output current to enter PFM mode
VIN = 3 V; VOUT = 3.3 V
IFB
TPS63050 feedback input bias current
VFB = 0.8 V
Input high-side FET on-resistance
ISW = 500 mA
145
mΩ
Output high-side FET on-resistance
ISW = 500 mA
95
mΩ
Input low-side FET on-resistance
ISW = 500 mA
170
mΩ
Output low-side FET on-resistance
ISW = 500 mA
115
mΩ
RDS(on)
IIN_MAX
(1)
(2)
(3)
6
Input current-limit boost mode
150
10
V
mA
100
nA
ILIM0 = VIH, ILIM1 = VIH,VIN = 2.7 V to 3
V, VOUT = 3 V
480
1240
mA
ILIM0 = VIH, ILIM1 = VIH,VIN = 2.7 V to
3.3 V, VOUT = 3.3 V,
550
1400
mA
ILIM0 = VIH, ILIM1 = VIH,VIN = 2.7 V to
4.5 V, VOUT = 4.5 V,
630
1950
mA
For minimum and maximum output current in a specific working point see Figure 1 and Figure 2; and Equation 1 through Equation 4.
Conditions: TJ = –40°C to 85°C
Conditions: f = 2.5 MHz, L = 1.5 µH, COUT = 10 µF
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
Electrical Characteristics (continued)
VIN = 3.6 V, TJ = –40°C to 125°C, typical values are at TA = 25°C (unless otherwise noted)
PARAMETER
ISS_IN
Programmable inrush current limit (4)
ISS
Soft-start current TPS63051
ISS
Soft-start current TPS63050
(4)
TEST CONDITIONS
MIN
TYP MAX
ILIM0 = VIL, ILIM1 = VIL,
VIN = 3 V,VOUT = 3.3 V, (Available for
DBGA only)
0.4×IIN_MAX
ILIM0 = VIH, ILIM1 = VIL,
VIN = 3 V,VOUT = 3.3 V, (Available for
DBGA only)
0.5×IIN_MAX
ILIM0 = VIL, ILIM1 = VIH,
VIN = 3 V,VOUT = 3.3 V
0.65×IIN_MAX
ILIM0 = VIH, ILIM1 = VIH,
VIN = 3 V,VOUT = 3.3 V
IIN_MAX
UNIT
mA
1
μA
3.2
μA
Line regulation
VIN = 2.5 V to 5.5 V, IOUT = 500 mA,
PWM mode
0.963
mV/V
Load regulation
VIN = 3.6 V, IOUT = 0 mA to 500 mA,
PWM mode
4
mV/A
For variation of this parameter with Input voltage see Figure 3.
7.6 Switching Characteristics
VIN = 3.6 V, TJ = –40°C to 125°C, typical values are at TA = 25°C (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
OUTPUT
fs
tSS
td
(1)
Switching frequency
2.5
Softstart time
Start up delay
VOUT = EN = low to high, SS = floating, Buck mode
VIN = 3.6 V, VOUT = 3.3 V, IOUT = 500 mA (1)
280
VOUT = EN = low to high, SS = floating, Boost mode
VIN = 2.5 V, VOUT = 3.3 V, IOUT = 500 mA (1)
600
Time from when EN = high to when device starts
switching
100
MHz
µs
µs
For variation of this parameter with Input voltage see Figure 3.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
7
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
TPS63051
TPS63051
TA = -40 °C
TA = 25 °C
TA = 85 °C
TA = -40 °C
TA = 25 °C
TA = 85 °C
Minimum Average Input Current (A)
Maximum Average Input Current (A)
7.7 Typical Characteristics
Input Voltage (V)
Input Voltage (V)
VOUT = 3.3 V
VOUT = 3.3 V
Figure 1. Maximum Average Input Current vs Input Voltage
Figure 2. Minimum Average Input Current vs Input Voltage
Soft Start programmable Average Input Current (A)
TPS63051
ILM0 = VIL, ILM1 = VIL
ILM0 = VIH, ILM1 = VIL
ILM0 = VIL, ILM1 = VIH
Input Voltage (V)
Figure 3. Programmable Average Input Current vs Input Voltage (1)
(1)
8
All options only available with the DSBGA package. For VQFN package ILIM1 is internally connected to voltage level > VIH
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
8 Detailed Description
8.1 Overview
The TPS6305x devices use 4 internal N-channel MOSFETs to maintain synchronous power conversion at all
possible operating conditions. This enables the device to keep high efficiency over the complete input voltage
and output power range. To regulate the output voltage at all possible input voltage conditions, the device
automatically switches from buck operation to boost operation and back as required by the configuration. It
always uses one active switch, one rectifying switch, one switch held on, and one switch held off. Therefore, it
operates as a buck converter when the input voltage is higher than the output voltage, and as a boost converter
when the input voltage is lower than the output voltage. There is no mode of operation in which all 4 switches are
switching at the same time. Keeping one switch on and one switch off eliminates their switching losses. The
RMS current through the switches and the inductor is kept at a minimum, to minimize switching and conduction
losses. Controlling the switches this way allows the converter to always keep higher efficiency.
The device provides a seamless transition from buck to boost or from boost to buck operation.
8.2 Functional Block Diagrams
L1
L2
VIN
VOUT
Current
Sensor
VIN
VOUT
GND
Gate
Control
_
Modulator
SS
ILIM1
ILIM0
PG
PFM/PWM
+
Oscillator
Device
Control
EN
GND
_
FB
+
+
-
Temperature
Control
GND
VREF
GND
GND
Figure 4. TPS63050 Block Diagram
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
9
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
Functional Block Diagrams (continued)
L1
L2
VIN
VOUT
Current
Sensor
VIN
VOUT
GND
GND
Gate
Control
FB
_
Modulator
SS
ILIM1
ILIM0
PG
PFM/PWM
_
+
+
Oscillator
+
-
Device
Control
EN
VREF
Temperature
Control
GND
GND
GND
Figure 5. TPS63051 Block Diagram
10
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
8.3 Feature Description
8.3.1 Power Good
The TPS6305x devices have a PG output. The power good goes high impedance once the output is above 95%
of the nominal voltage, and is driven low once the output voltage falls below typically 90% of the nominal voltage.
The PG pin is an open drain output and is specified to sink up to 0.1 mA. The power good output requires a
pullup resistor connecting to any voltage rail less than 5.5 V. The power good is valid as long as the converter is
enabled and VIN is present. The power good goes low when the device is in undervoltage lockout, in thermal
shutdown or in current limit.
If EN is pulled low and one of the pins ILIM0 or ILIM1 is high, then the PG pin is low. If both pins, ILIM0 and ILIM1 are
low, the PG is open drain. In this case the PG pin, follows its pullup voltage. If this is not desired, one of the two
pins ILIM0 or ILIM1, must be set high. Table 1 lists the PG pin functionality.
Table 1. Power Good Settings
EN
ILIM1
ILIM0
PG
0
1
1
0
0
1
0
0
0
0
1
0
0
0
0
Open Drain
8.3.2 Overvoltage Protection
Overvoltage protection is implemented to limit the maximum output voltage. In case of overvoltage condition, the
voltage amplifier regulates the output voltage to typically 6.7 V.
8.3.3 Undervoltage Lockout (UVLO)
To avoid mis-operation of the device at low input voltages, an undervoltage lockout is included. UVLO shuts
down the device at input voltages lower than typically 1.7 V with a 200-mV hysteresis.
8.3.4 Thermal Shutdown
The device goes into thermal shutdown once the junction temperature exceeds typically 140°C with a 20°C
hysteresis.
8.3.5
Soft Start
To minimize inrush current and output voltage overshoot during start up, the device has a soft start. At turn on,
the input current raises monotonically until the output voltage reaches regulation. The TPS6305x devices charge
the soft start capacitor, at the SS pin, with a constant current of typically 1 µA. The input current follows the
current used to charge the capacitor at the SS pin. The soft start operation is completed once the voltage at the
SS pin has reached typically 1.3 V. Figure 3 shows the value of the soft start capacitor in respect to the soft-start
time.
The soft-start time is the time from when the EN pin is asserted to when the output voltage has reached 90% of
its nominal value. There is typically a 100-µs delay time from EN pin assertion to the start of the switching
activity. The soft-start time depends on the load current, the input voltage, and the output capacitor. The soft-start
time in boost mode is longer then the time in buck mode and it also depends on the load current, input voltage
and output capacitor.
The soft-start time in Figure 3 is referred to typical application with 10-µF effective output capacitance.
The inductor current is able to increase and always assure a soft start unless a real short circuit is applied at the
output.
8.3.6
Short Circuit Protection
The TPS6305x devices provide short circuit protection. When the output voltage does not increase above 1.2 V,
a short circuit is detected and the output current is limited to 1.5 A.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
11
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
8.4 Device Functional Modes
8.4.1
Control Loop Description
0.8V
Ramp and Clock
Generator
Figure 6. Average Current Mode Control
The controller circuit of the device is based on an average current mode topology. The average inductor current
is regulated by a fast current regulator loop which is controlled by a voltage control loop. Figure 6 shows the
control loop.
The noninverting input of the transconductance amplifier, gmv, is assumed to be constant. The output of gmv
defines the average inductor current. The inductor current is reconstructed by measuring the current through the
high side buck MOSFET. This current corresponds exactly to the inductor current in boost mode. In buck mode
the current is measured during the on time of the same MOSFET. During the off time, the current is
reconstructed internally starting from the peak value at the end of the on time cycle. The average current and the
feedback from the error amplifier gmv forms the correction signal gmc. This correction signal is compared to the
buck and the boost sawtooth ramp giving the PWM signal. Depending on which of the two ramps the gmc output
crosses either the Buck or the Boost stage is initiated. When the input voltage is close to the output voltage, one
buck cycle is always followed by a boost cycle. In this condition, no more than three cycles in a row of the same
mode are allowed. This control method in the buck-boost region ensures a robust control and the highest
efficiency.
12
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
Device Functional Modes (continued)
8.4.2 Power Save Mode Operation
Heavy Load transient step
PFM mode at light load
current
Comparator High
30mV ripple
Vo+1.3%*Vo
Comparator low
Vo
PWM mode
Absolute Voltage drop
with positioning
Figure 7. Power Save Mode Operation
Depending on the load current, the device works in PWM mode at load currents of approximately 350 mA or
higher to provide the best efficiency over the complete load range. At lighter loads, the device switches
automatically into Power Save Mode to reduce power consumption and extend battery life. The PFM/PWM pin is
used to select between the two different operation modes. To enable Power Save Mode, the PFM/PWM pin must
be set low.
During Power Save Mode, the part operates with a reduced switching frequency and lowest supply current to
maintain high efficiency. The output voltage is monitored with a comparator at every clock cycle by the thresholds
comp low and comp high. When the device enters Power Save Mode, the converter stops operating and the
output voltage drops. The slope of the output voltage depends on the load and the output capacitance. When the
output voltage reaches the comp low threshold, at the next clock cycle the device ramps up the output voltage
again, by starting operation. Operation can last for one or several pulses until the comp high threshold is
reached. At the next clock cycle, if the load is still lower than 150 mA, the device switches off again and the
same operation is repeated. If at the next clock cycle the load is above 150 mA, the device automatically
switches to PWM mode.
To keep high efficiency in PFM mode, there is only one comparator active to keep the output voltage regulated.
The AC ripple in this condition is increased, compared to the PWM mode. The amplitude of this voltage ripple in
the worst case scenario is 50 mV peak to peak, (typically 30 mV peak-to-peak), with 10 µF of effective output
capacitance. To avoid a critical voltage drop when switching from 0 A to full load, the output voltage in PFM
mode is typically 1.5% above the nominal value in PWM mode. This is called Dynamic Voltage Positioning and
allows the converter to operate with a small output capacitor and still have a low absolute voltage drop during
heavy load transients.
Power Save Mode is disabled by setting the PFM/PWM pin high.
8.4.3 Adjustable Current Limit
The TPS6305x devices have an internal user programmable current limit that monitors the input current during
start-up. This prevents high inrush current protecting the device and the application. During start-up the input
current does not exceed the current limit that is set by ILIM0 pin and ILIM1 pin. Depending on the logic level applied
at these two pins, switching between four different current limit-levels is possible. The variation of those values
over input voltage and temperature is shown in Figure 1 through Figure 2. Adjusting the soft-start time further
using the soft-start capacitor is possible.
ILIM0 and ILIM1 set the current limit as listed in Table 2.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
13
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
Device Functional Modes (continued)
Table 2. Adjustable Current Limit
ILIM1
ILIM0
CURRENT LIMIT SET (WCSP)
CURRENT LIMIT SET (HotRod)
Low
Low
0.4 × IIN_MAX
Not Available
Low
High
0.5 × IIN_MAX
Not Available
High
Low
0.65 × IIN_MAX
0.65 × IIN_MAX
High
High
IIN_MAX
IIN_MAX
The ILIM0, ILIM1 pins can be changed during operation.
Given the curves provided in Figure 1 through Figure 2, calculating the output current in the different condition in
boost mode is possible using Equation 1 and Equation 2 and in buck mode using Equation 3 and Equation 4.
V
-V
IN
OUT
V
OUT
Duty Cycle Boost
D=
Output Current Boost
IOUT = 0 x IIN (1-D)
(1)
where
•
•
η = Estimated converter efficiency (use the number from the efficiency curves or 0.9 as an assumption)
IIN = Minimum average input current (Figure 2 to Figure 2)
Duty Cycle Buck
V
D = OUT
V
IN
Output Current Buck
IOUT = ( 0 x IIN ) / D
(2)
(3)
where
•
For η, use the number from the efficiency curves or 0.9 as an assumption.
(4)
8.4.4 Device Enable
The device starts operation when the EN pin is set high. The device enters shutdown mode when the EN pin is
set low. In shutdown mode, the regulator stops switching, all internal control circuitry is switched off, and the load
is disconnected from the input.
14
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers must
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TPS6305x is a high efficiency, low quiescent current buck-boost converter suitable for applications where
the input voltage is higher or lower than the output voltage. Continuous output current can go as high as 500 mA
in boost mode and as high as 1 A in buck mode. The maximum average current in the switches is limited to a
typical value of 1 A.
The efficiency measurements
9.2 Typical Application
L1 1.5 µH
TPS63051
VIN
L2
L1
2.5 V to 5.5 V
C1
VIN
VOUT
EN
FB
3.3 V / 500mA
R2
1MΩ
10µF
VIH or VIL
ILIM0
PG
PFM/
PWM
ILIM1
GND
SS
VOUT
C2
C3
10µF
10µF
VIH or VIL
C4
1nF
Figure 8. Parameter Measurement Circuit (WCSP)
L1 1.5 µH
TPS63050
L2
L1
2.5 V to 5.5 V
VIN
VIN
R1
EN
C1
560kΩ
10µF
VIH or VIL
3.3 V / 500mA
VOUT
ILIM0
FB
PFM/
PWM
PG
GND
SS
R2
180kΩ
R3
C5
10pF
C2
C3
10µF
10µF
VOUT
1MΩ
C4
1nF
Figure 9. Parameter Measurement Circuit (HotRod)
9.2.1 Design Requirements
The design guidelines provide a component selection to operate the device within the recommended operating
conditions.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
15
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
Typical Application (continued)
9.2.2 Detailed Design Procedure
9.2.2.1 Custom Design With WEBENCH® Tools
Click here to create a custom design using the TPS63050 device with the WEBENCH® Power Designer.
Click here to create a custom design using the TPS63051 device with the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance
• Run thermal simulations to understand board thermal performance
• Export customized schematic and layout into popular CAD formats
• Print PDF reports for the design, and share the design with colleagues
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
The first step is the selection of the output filter components, listed in Table 3. To simplify this process, Table 4
outlines possible inductor and capacitor value combinations.
Table 3. Components for Application Characteristic Curves
REFERENCE
DESCRIPTION
MANUFACTURER
TPS6305x
Texas Instruments
L1
1.5 µH, 2.1 A, 108 mΩ
1269AS-H-1R5M, TOKO
C1, C2, C3
10 μF, 6.3 V, 0603, X5R ceramic
GRM188R60J106ME84D, Murata
C4
CSS
C5
10pF, only needed for the HotRod package version to filter ground noise when using external resistor divider
R1
Depending on the output voltage of TPS6305x, 0 Ω with TPS63051
R2
Depending on the output voltage of TPS6305x, not used withTPS63051
R3
1 MΩ
9.2.2.2 Output Filter Design
Table 4. Matrix of Output Capacitor and Inductor Combinations
NOMINAL
INDUCTOR
VALUE [µH] (1)
NOMINAL OUTPUT CAPACITOR VALUE [µF] (2)
10
20
+
+ (3)
1
1.5
2.2
(1)
(2)
(3)
16
44
66
100
+
+
+
+
+
+
+
+
+
Inductor tolerance and current de-rating is anticipated. The effective inductance can vary by 20% and –30%.
Capacitance tolerance and bias voltage de-rating is anticipated. The effective capacitance can vary by 20% and –50%.
Typical application. Other check mark indicates recommended filter combinations
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
9.2.2.3 Inductor Selection
The inductor selection is affected by several parameter like inductor ripple current, output voltage ripple,
transition point into power save mode, and efficiency. See Table 5 for typical inductors.
Table 5. List of Recommended Inductors
INDUCTOR VALUE
(1)
COMPONENT SUPPLIER (1)
SIZE (L × W × H mm)
Isat / DCR
2.1 A / 68 mΩ
1 µH
TOKO 1286AS-H-1R0M
2 × 1.6 × 1.2
1.5 µH
TOKO, 1286AS-H-1R5M
2 × 1.6 × 1.2
2.5 A / 95 mΩ
1.5 µH
TOKO, 1269AS-H-1R5M
2.5 × 2 × 1
2.1 A / 90 mΩ
2.2 µH
TOKO 1286AS-H-2R2M
2 × 1.6 × 1.2
2 A / 160 mΩ
See the Third Party Product Disclaimer section.
For high efficiencies, the inductor must have a low dc resistance to minimize conduction losses. Especially at
high-switching frequencies, the core material has a high impact on efficiency. When using small chip inductors,
the efficiency is reduced mainly due to higher inductor core losses. This needs to be considered when selecting
the appropriate inductor. The inductor value determines the inductor ripple current. The larger the inductor value,
the smaller the inductor ripple current and the lower the conduction losses of the converter. Conversely, larger
inductor values cause a slower load transient response. To avoid saturation of the inductor, the peak current for
the inductor in steady state operation is calculated using Equation 6. Only the equation which defines the switch
current in boost mode is shown, because this provides the highest value of current and represents the critical
current value for selecting inductor.
Duty Cycle Boost
D=
V
-V
IN
OUT
V
OUT
where
•
D = Duty Cycle in Boost mode
(5)
Iout
Vin ´ D
=
+
η ´ (1 - D)
2 ´ f ´ L
IPEAK
where
•
η = Estimated converter efficiency (use the number from the efficiency curves or 0.80 as an assumption)
f = Converter switching frequency (typical 2.5MHz)
L = Inductor value
(6)
NOTE
The calculation must be done for the minimum input voltage that is possible to have in
boost mode.
Calculating the maximum inductor current using the actual operating conditions gives the minimum saturation
current of the inductor needed. It's recommended to choose an inductor with a saturation current 20% higher
than the value calculated using Equation 6. Possible inductors are listed in Table 5.
9.2.2.4 Capacitor selection
9.2.2.4.1
Input Capacitor
At least a 10-μF input capacitor is recommended to improve line transient behavior of the regulator and EMI
behavior of the total power supply circuit. An X5R or X7R ceramic capacitor placed as close as possible to the
VIN and GND pins of the IC is recommended. This capacitance can be increased without limit.
9.2.2.4.2
Output Capacitor
Use of small ceramic capacitors placed as close as possible to the VOUT and PGND pins of the IC, is
recommended for the output capacitor. The recommended nominal output capacitance value is 10 µF with a
variance as outlined in Table 4.
There is also no upper limit for the output capacitance value. Larger capacitors causes lower output voltage
ripple as well as lower output voltage drop during load transients.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
17
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
9.2.2.5 Setting the Output Voltage
When the adjustable output voltage version TPS63050 is used, the output voltage is set by the external resistor
divider. The resistor divider must be connected between VOUT, FB and GND. When the output voltage is
regulated properly, the typical value of the voltage at the FB pin is 800 mV. The current through the resistive
divider must be 100 times greater than the current into the FB pin. The typical current into the FB pin is 0.1 μA,
and the voltage across the resistor between FB and GND, R2, is typically 800 mV. Based on these two values,
the recommended value for R2 must be lower than 200 kΩ, in order to set the divider current at 3 μA or higher. It
is recommended to keep the value for this resistor in the range of 200 kΩ. The value of the resistor connected
between VOUT and FB, R1, depending on the needed output voltage (VOUT), can be calculated using
Equation 7:
æV
ö
R1 = R2 × ç OUT - 1÷
è VFB
ø
(7)
When using the HotRod package version of the TPS63050, it is recommended to add capacitor C5, as shown in
Figure 9. The capacitor on the feedback node is required to help filtering ground noise and matching the
efficiency result shown in the Application Curves paragraph.
18
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
Efficiency (%)
Efficiency (%)
9.2.3 Application Curves
VIN = 2.8V, V OUT = 3.3V
VIN = 3.6V, V OUT = 3.3V
VIN = 2.8V, V OUT = 3.3V
VIN = 3.6V, V OUT = 3.3V
TPS63051
TPS63051
Output Current (mA)
PFM/PWM = Low
Output Current (mA)
VOUT = 3.3 V
PFM/PWM = High
Figure 11. Efficiency vs Output Current
Efficiency (%)
Efficiency (%)
Figure 10. Efficiency vs Output Current
VOUT = 3.3 V
VIN = 2.5V, V OUT = 2.5V
VIN = 4.8V, V OUT = 2.5V
VIN = 2.5V, V OUT = 2.5V
VIN = 4.8V, V OUT = 2.5V
VIN = 2.5V, V OUT = 4.5V
VIN = 4.8V, V OUT = 4.5V
VIN = 2.5V, V OUT = 4.5V
VIN = 4.8V, V OUT = 4.5V
TPS63050
TPS63050
Output Current (mA)
PFM/PWM = Low
Output Current (mA)
VOUT = 2.5 V, 4.5 V
PFM/PWM = High
Figure 12. Efficiency vs Output Current
VOUT = 2.5 V, 4.5 V
Efficiency (%)
Efficiency (%)
Figure 13. Efficiency vs Output Current
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
TPS63051
TPS63051
Input Voltage (V)
Input Voltage (V)
PFM/PWM = Low
VOUT= 3.3 V
Figure 14. Efficiency vs Input Voltage
PFM/PWM = High
VOUT= 3.3 V
Figure 15. Efficiency vs Input Voltage
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
19
TPS63050, TPS63051
www.ti.com
Efficiency (%)
Efficiency (%)
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
TPS63050
TPS63050
Input Voltage (V)
Input Voltage (V)
PFM/PWM = Low
VOUT = 2.5 V
PFM/PWM = High
Figure 17. Efficiency vs Input Voltage
Efficiency (%)
Efficiency (%)
Figure 16. Efficiency vs Input Voltage
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
IOUT = 10mA
IOUT = 500mA
IOUT = 620mA
TPS63050
TPS63050
Input Voltage (V)
Input Voltage (V)
PFM/PWM = Low
VOUT = 4.5 V
PFM/PWM =High
VOUT= 4.5 V
Figure 19. Efficiency vs Input Voltage
Power Save enabled
Power Save disabled
Power Save enabled
Power Save disabled
Output Voltage (V)
Output Voltage (V)
Figure 18. Efficiency vs Input Voltage
TPS63051
TPS63050
Output Current (A)
Output Current (A)
VIN = 2.5 V
VIN = 3.3 V
Figure 20. Output Voltage vs Output Current
20
VOUT = 2.5 V
Submit Documentation Feedback
Figure 21. Output Voltage vs Output Current
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
Power Save enabled
Power Save disabled
Output Voltage (V)
L2
L1
VOUT_Ripple 50mV/div
TPS63050
Output Current (A)
TPS63051
Time 2µs/div
VIN = 4.5 V
VIN = 3.3 V
Figure 22. Output Voltage vs Output Current
IOUT = 145 mA
Figure 23. Output Voltage ripple in Buck-Boost mode and
PFM to PWM transition
L2
L2
L1
L1
VOUT_Ripple 50mV/div
Time 2µs/div
TPS63051
VIN = 2.8 V
IOUT = 16 mA
Figure 24. Output Voltage Ripple in Boost Mode and PFM
to PWM Transition
VOUT_Ripple 50mV/div
TPS63051
Time 2µs/div
VIN = 4.2 V
IOUT = 16 mA
Figure 25. Output Voltage Ripple in Buck Mode and PFM
to PWM Transition
L2 2V/div
L2 2V/div
L1 2V/div
L1 2V/div
VOUT 20mV/div
VOUT 20mV/div
Iinductor 500mA/div
Time 400ns/div
VIN = 2.5 V
Iinductor 500mA/div
TPS63051
IOUT = 300 mA
Figure 26. Switching Waveform in Boost Mode and PWM
Time 400ns/div
VIN = 4.5 V
TPS63051
IOUT = 300 mA
Figure 27. Switching Waveform in Buck Mode and PWM
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
21
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
L2 2V/div
Output Current
200 mA/div, DC
Output Voltage
50 mV/div, AC
L1 2V/div
VOUT 20mV/div
Iinductor 500mA/div
TPS63051
Time 400ns/div
VIN = 3.4 V
IOUT = 300 mA
Figure 28. Switching Waveform in Buck-Boost Mode and
PWM
Time 1 ms/div
VIN = 2.8 V
TPS63051
Load change from 0 mA to 300 mA
Figure 29. Load Transient Response
Output Current
200 mA/div, DC
Input Voltage
200 mV/div,
Offset 3V
Output Voltage
50 mV/div, AC
Output Voltage
20 mV/div
TPS63051
Time 1 ms/div
VIN = 3.6 V
Load change from 0 mA to 300 mA
Figure 30. Load Transient Response
Time 1 ms/div
Enable
5 V/div, DC
Output Voltage
2V/div, DC
Output Voltage
2V/div, DC
Inductor Current
500 mA/div, DC
VOUT = 3.3 V
Inductor Current
500 mA/div, DC
TPS63051
VIN = 2.5 V
IOUT = 0 mA
Figure 32. Start Up After Enable
22
Submit Documentation Feedback
IOUT = 500 mA
Figure 31. Line Transient Response
Enable
5 V/div, DC
Time 400 ms/div
TPS63051
VOUT = 3.3 V
TPS63051
Time 400 ms/div
VOUT = 3.3 V
VIN = 4.2 V
IOUT = 0 mA
Figure 33. Start Up After Enable
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
10 Power Supply Recommendations
The TPS6305x device family has no special requirements for its input power supply. The input power supply
output current needs to be rated according to the supply voltage, output voltage and output current of the
TPS6305x devices.
11 Layout
11.1 Layout Guidelines
The PCB layout is an important step to maintain the high performance of the TPS6305x devices.
• Place input and output capacitors as close as possible to the IC. Traces need to be kept short. Routing wide
and direct traces to the input and output capacitor results in low-trace resistance and low parasitic inductance.
• Use a common-power GND.
• The sense trace connected to FB is signal trace. Keep these traces away from L1 and L2 nodes.
• For the HotRod package option it is important to add a capacitor between FB node and ground to filter ground
noise and to match efficiency results documented in these datasheet.
11.2 Layout Example (WCSP)
C4
R1
R2
VIN
C2
C1
VOUT
C3
GND
L1
Figure 34. TPS6305x Layout (WCSP)
11.3 Layout Example (HotRod)
AGND
PAC302
PAR201 PAC802
C4
R2
R1
PAU107
COR1 VOUT
VINCOU1
PAU104
PAC401 C3
PAC101
PAC202
C1
GND
C2
COC2
PAL101 PAL102
PAC402
COC4GND
L1
Figure 35. TPS6305x Layout (HotRod)
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
23
TPS63050, TPS63051
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
www.ti.com
11.4 Thermal Considerations
Implementation of integrated circuits in low-profile and fine-pitch surface-mount packages typically requires
special attention to power dissipation. Many system-dependent issues such as thermal coupling, airflow, added
heat sinks and convection surfaces, and the presence of other heat-generating components affect the
powerdissipation limits of a given component.
Two basic approaches for enhancing thermal performance are listed below:
• Improving the power dissipation capability of the PCB design
• Introducing airflow in the system
For more details on how to use the thermal parameters, see the application notes: Thermal Characteristics
(SZZA017), and Semiconductor and IC Package Thermal Metrics (SPRA953)
12 Device and Documentation Support
12.1 Custom Design With WEBENCH® Tools
Click here to create a custom design using the TPS63050 device with the WEBENCH® Power Designer.
Click here to create a custom design using the TPS63051 device with the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance
• Run thermal simulations to understand board thermal performance
• Export customized schematic and layout into popular CAD formats
• Print PDF reports for the design, and share the design with colleagues
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
12.2 Device Support
12.2.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
12.3 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 6. Related Links
24
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
TPS63050
Click here
Click here
Click here
Click here
Click here
TPS63051
Click here
Click here
Click here
Click here
Click here
Submit Documentation Feedback
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
TPS63050, TPS63051
www.ti.com
SLVSAM8D – JULY 2013 – REVISED AUGUST 2019
12.4 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.5 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.6 Trademarks
E2E is a trademark of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.7 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.8 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2013–2019, Texas Instruments Incorporated
Product Folder Links: TPS63050 TPS63051
Submit Documentation Feedback
25
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS63050RMWR
ACTIVE
VQFN-HR
RMW
12
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
F630
TPS63050RMWT
ACTIVE
VQFN-HR
RMW
12
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
F630
TPS63050YFFR
ACTIVE
DSBGA
YFF
12
3000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
63050
TPS63050YFFT
ACTIVE
DSBGA
YFF
12
250
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
63050
TPS63051RMWR
ACTIVE
VQFN-HR
RMW
12
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
F631
TPS63051RMWT
ACTIVE
VQFN-HR
RMW
12
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
F631
TPS63051YFFR
ACTIVE
DSBGA
YFF
12
3000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
63051
TPS63051YFFT
ACTIVE
DSBGA
YFF
12
250
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 125
63051
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
