TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
TPS7B69xx-Q1 High-Voltage Ultra-Low IQ Low-Dropout Regulator
1 Features
2 Applications
•
•
•
•
•
1
•
•
•
•
•
•
•
•
Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
4 to 40-V Wide VI Input Voltage Range With up to
45-V Transient
Maximum Output Current: 150 mA
Low Quiescent Current (IQ):
– 15 µA Typical at Light Loads
– 25 µA Maximum Under Full Temperature
450-mV Typical Low Dropout Voltage at 100 mA
Load Current
Stable With Low ESR Ceramic Output Capacitor
(2.2 to 100 µF)
Fixed 2.5-V, 3.3-V, and 5-V Output Voltage
Options
Integrated Fault Protection:
– Thermal Shutdown
– Short-Circuit Protection
Packages:
– 4-Pin SOT-223 Package
– 5-Pin SOT-23 Package
Automotive
Infotainment Systems With Sleep Mode
Always-On Battery Applications
– Door Modules
– Remote Keyless-Entry Systems
– Immobilizers
3 Description
The TPS7B69xx-Q1 device is a low-dropout linear
regulator designed for up to 40-V VI operations. With
only 15-µA (typical) quiescent current at light load,
the device is suitable for standby microcontrol-unit
systems especially in automotive applications.
The devices feature an integrated short-circuit and
overcurrent protection. The TPS7B69xx-Q1 device
operates over a –40°C to 125°C temperature range.
Because of these features, the TPS7B6925-Q1,
TPS7B6933-Q1, and TPS7B6950-Q1 devices are
well suited in power supplies for various automotive
applications.
Device Information(1)
PART NUMBER
TPS7B6925-Q1
TPS7B6933-Q1
TPS7B6950-Q1
PACKAGE
BODY SIZE (NOM)
SOT-223 (4)
6.50 mm × 3.50 mm
SOT-23 (5)
2.90 mm × 1.60 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
4 Typical Application Schematic
TPS7B69xx-Q1
IN
Vbat
OUT
VI
VO
10 µF
GND
Vreg
4.7 µF
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Typical Application Schematic.............................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
3
4
7.1
7.2
7.3
7.4
7.5
7.6
4
4
4
4
5
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 11
9
Application and Implementation ........................ 12
9.1 Application Information............................................ 12
9.2 Typical Application .................................................. 12
10 Power Supply Recommendations ..................... 14
11 Layout................................................................... 14
11.1 Layout Guidelines ................................................. 14
11.2 Layout Example .................................................... 14
12 Device and Documentation Support ................. 15
12.1
12.2
12.3
12.4
12.5
Documentation Support ........................................
Related Links ........................................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
15
15
15
15
15
13 Mechanical, Packaging, and Orderable
Information ........................................................... 15
5 Revision History
Changes from Revision A (December 2014) to Revision B
Page
•
Changed the TPS7B6933-Q1 device status from Product Preview to Production Data ....................................................... 1
•
Added the TPS7B6933-Q1 device test results to the Typical Characteristics section .......................................................... 6
Changes from Original (November 2014) to Revision A
•
2
Page
Changed the device status from Product Preview to Production Data ................................................................................. 1
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
6 Pin Configuration and Functions

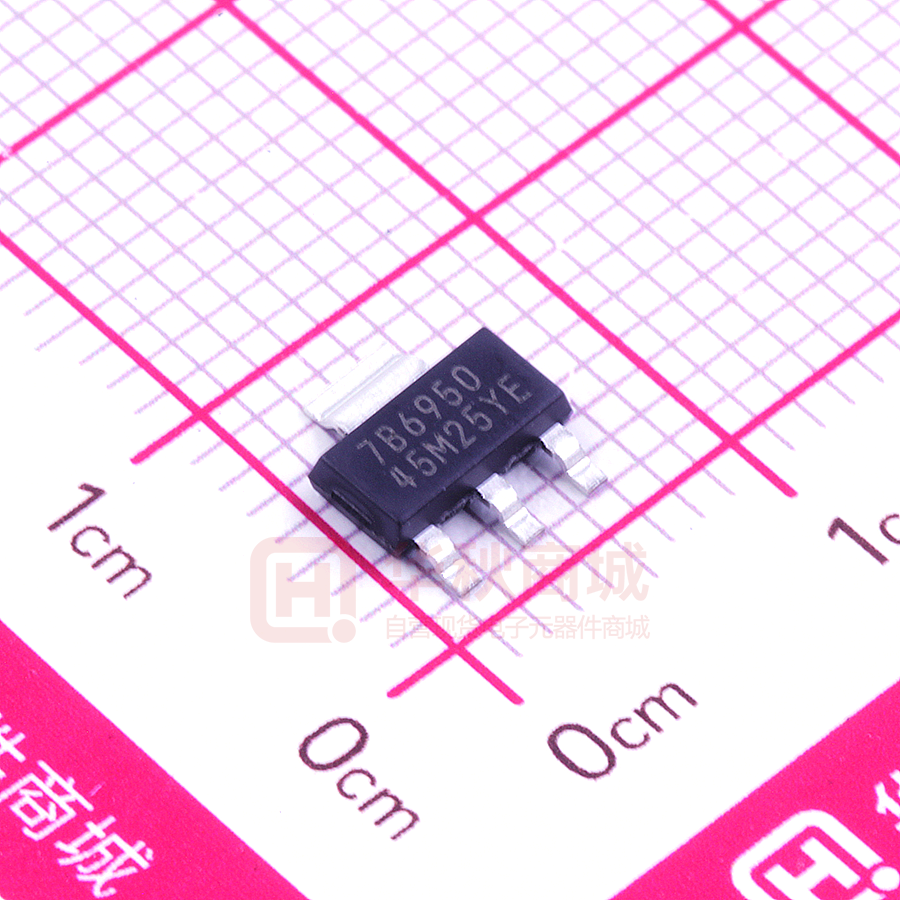

DCY Package
4-Pin SOT-223
Top View
DBV Package
5-Pin SOT-23
Top View
GND
4
1
2
3
IN
GND
OUT
IN
1
NC
2
GND
3
5
OUT
4
GND
NC - No internal connection
Pin Functions
PIN
NAME
NO.
TYPE
SOT-223
SOT-23
2
3
4
4
IN
1
NC
OUT
GND
DESCRIPTION
G
Ground reference
1
P
Input power-supply voltage
—
2
—
Not connected pin
3
5
P
Output voltage
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
3
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
Unregulated input voltage
Regulated output voltage
MIN
MAX
UNIT
IN (2) (3) (4)
–0.3
45
V
(2) (3)
–0.3
7
V
Operating junction temperature range, TJ
–40
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
(2)
(3)
(4)
OUT
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to the GND terminal.
Absolute negative voltage on these pins must not to go below –0.3 V.
Absolute maximum voltage, withstands 45 V for 200 ms.
7.2 ESD Ratings
VALUE
Human body model (HBM), per AEC Q100-002 (1)
Electrostatic
discharge
V(ESD)
(1)
Charged device model (CDM), per
AEC Q100-011
UNIT
±2000
Other pins
±500
Corner pins (4 pin: 1, 3, and 4;
5 pin: 1, 3, 4, and 5)
±750
V
AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
VI
Unregulated input voltage
4
40
V
VO
Output voltage
0
5.5
V
µF
(1)
CO
Output capacitor requirements
ESRCO
Output ESR requirements (2)
TJ
Operating junction temperature range
(1)
(2)
UNIT
2.2
100
0.001
2
Ω
–40
150
°C
The output capacitance range specified in this table is the effective value.
Relevant ESR value at ƒ = 10 kHz.
7.4 Thermal Information
THERMAL METRIC (1) (2)
DCY
DBV
4 PINS
5 PINS
RθJA
Junction-to-ambient thermal resistance
64.2
210.4
RθJC(top)
Junction-to-case (top) thermal resistance
46.8
126.1
RθJB
Junction-to-board thermal resistance
13.3
38.4
ψJT
Junction-to-top characterization parameter
6.3
16
ψJB
Junction-to-board characterization parameter
13.2
37.5
(1)
(2)
4
UNIT
°C/W
The thermal data is based on the JEDEC standard high-K profile, JESD 51-7, 2s2p four layer board with 2-oz copper. The copper pad is
soldered to the thermal land pattern. Also correct attachment procedure must be incorporated.
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
7.5 Electrical Characteristics
VIN = 14 V, 1 mΩ < ESR < 2 Ω, TJ = –40°C to 150 °C (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
SUPPLY VOLTAGE AND CURRENT (IN)
VI
Input voltage
Fixed 2.5-V output, IO = 1 mA
4
40
Fixed 3.3-V output, IO = 1 mA
4
40
5.5
40
Fixed 5-V output, IO = 1 mA
Fixed 2.5-V and 3.3-V version, VI = 4 to 40 V,
Fixed 5-V version, VI = 5.5 to 40 V, IO = 0.2 mA
IQ
Quiescent current
VIN(UVLO)
IN undervoltage detection
15
Ramp VI up until the output turns on
25
3.65
Ramp VI down until the output turns OFF
3
V
µA
V
REGULATED OUTPUT (OUT)
VO
Regulated output
Fixed 2.5-V version, VI = 4 to 40 V, IO = 1 to 150 mA
–3%
3%
Fixed 3.3-V version, VI = 5 to 40 V, IO = 1 to 150 mA
–3%
3%
Fixed 5-V version, VI = 6.5 to 40 V, IO = 1 to 150 mA
–3%
3%
ΔVO(ΔVI)
Line regulation
VI = 6 to 40 V, ∆VO, IO = 10 mA
ΔVO(ΔIL)
Load regulation
IO = 1 to 150 mA, ∆VO
VDROP
mV
20
mV
Fixed 2.5-V version, VI – VO, IO = 50 mA
1.575
Fixed 2.5-V version, VI – VO, IO = 100 mA
1.575
Fixed 3.3-V version, VI – VO, IO = 50 mA
Dropout voltage
10
V
799
Fixed 3.3-V version, VI – VO, IO = 100 mA
800
Fixed 5-V version, VI – VO, IO = 50 mA
220
400
Fixed 5-V version, VI – VO, IO = 100 mA
450
800
IO
Output current
VO in regulation
IOCL
Output current-limit
OUT short to ground
PSRR
Power supply ripple
rejection (1)
Vrip = 0.5 Vpp, Load = 10 mA, ƒ = 100 Hz, CO = 2.2 µF
mV
0
150
mA
150
500
mA
60
dB
175
°C
25
°C
OPERATING TEMPERATURE RANGE
Tsd
Junction shutdown
temperature
Thys
Hysteresis of thermal
shutdown
(1)
Design Information—Not tested, ensured by characterization.
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
5
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
7.6 Typical Characteristics
6
3.8
IO = 1 mA
IO = 80 mA
5.6
3.6
5.4
3.5
5.2
5
4.8
4.6
3.4
3.3
3.2
3.1
4.4
3
4.2
2.9
4
-55
-25
5
35
65
95
Junction Temperature (qC)
IO = 1 mA
IO = 80 mA
3.7
Output Voltage (V)
Output Voltage (V)
5.8
2.8
-55
125
-25
5
35
65
95
Junction Temperature (qC)
D001
125
D011
VI = 14 V
Figure 1. 5-V Output Voltage vs Junction Temperature
Figure 2. 3.3-V Output Voltage vs Junction Temperature
3
6
IO = 1 mA
IO = 80 mA
2.9
5
2.7
Output Voltage (V)
Output Voltage (V)
2.8
2.6
2.5
2.4
2.3
2.2
4
3
2
1
2.1
2
-55
0
-25
5
35
65
95
Junction Temperature (qC)
125
0
5
10
D008
VI = 14 V
15
20
25
Supply Voltage (V)
30
35
40
D002
IO = 0 mA
Figure 3. 2.5-V Output Voltage vs Junction Temperature
Figure 4. 5-V Output Voltage vs Supply Voltage
3
4
3.5
2.5
Output Voltage (V)
Output Voltage (V)
3
2.5
2
1.5
2
1.5
1
1
0.5
0.5
0
0
0
5
10
15
20
25
Supply Voltage (V)
30
35
40
D012
IO = 0 mA
Figure 5. 3.3-V Output Voltage vs Supply Voltage
6
Submit Documentation Feedback
0
5
10
15
20
25
Supply Voltage (V)
30
35
40
D009
IO = 0 mA
Figure 6. 2.5-V Output Voltage vs Supply Voltage
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
Typical Characteristics (continued)
160
30
40qC
25qC
125qC
25
120
Qiescent Current (PA)
Qiescent Current (PA)
140
100
80
60
40
40qC
25qC
125qC
20
20
15
10
5
0
0
0
30
60
90
Output Current (mA)
120
150
0
5
10
D003
15
20
25
Supply Voltage (V)
30
35
40
D010
IO = 0.2 mA
Figure 7. Quiescent Current vs Output Current
Figure 8. Quiescent Current vs Supply Voltage
1100
80
Power Supply Rejection Ratio (dB)
1000
Dropout Voltage (mV)
900
800
700
600
500
400
300
200
40qC
25qC
125qC
100
0
0
30
60
90
Output Current (mA)
120
70
60
50
40
30
20
10
0
1E+1
150
1E+2
D004
1E+3
1E+4
1E+5
Frequency (Hz)
IO = 100 mA
CO = 2.2 µF
Figure 9. Dropout Voltage vs Output Current
VI = 14 V
1E+7 5E+7
D005
TA = 25°C
Figure 10. Power Supply Rejection Ratio
100
90
80
80
70
Load Capacitance (µF)
Power Supply Rejection Ratio (dB)
1E+6
60
50
40
30
20
60
Stable Region
40
20
10
0
1E+1
2.2
1E+2
IO = 10 mA
CO = 2.2 µF
1E+3
1E+4
1E+5
Frequency (Hz)
1E+6
VI = 14 V
1E+7 5E+7
D006
0.5
1
1.5
ESR of Output Capacitance (Ω)
2
D007
TA = 25°C
Figure 11. Power Supply Rejection Ratio
Copyright © 2014–2015, Texas Instruments Incorporated
0.001
Figure 12. ESR Stability vs Output Capacitance
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
7
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
Typical Characteristics (continued)
VO (AC)
100 mV/div
VO (AC)
100 mV/div
IO (DC)
50 mA/div
IO (DC)
50 mA/div
VI = 14 V
VO = 5 V
CO = 2.2 µF
1 ms/div
VI = 14 V
VO = 3.3 V
Figure 13. Load Transient (1 to 100 mA, 5 V)
VO (AC)
100 mV/div
IO (DC)
50 mA/div
IO (DC)
50 mA/div
CO = 2.2 µF
VI = 14 V
VO = 5 V
1 ms/div
1 ms/div
VO (AC)
100 mV/div
IO (DC)
50 mA/div
IO (DC)
50 mA/div
VI = 14 V
VO = 3.3 V
CO = 2.2 µF
1 ms/div
Figure 17. Load Transient (1 to 150 mA, 3.3 V)
8
CO = 2.2 µF
Figure 16. Load Transient (1 to 150 mA, 5 V)
Figure 15. Load Transient (1 to 100 mA, 2.5 V)
VO (AC)
100 mV/div
1 ms/div
Figure 14. Load Transient (1 to 100 mA, 3.3 V)
VO (AC)
100 mV/div
VI = 14 V
VO = 2.5 V
CO = 2.2 µF
Submit Documentation Feedback
VI = 14 V
VO = 2.5 V
CO = 2.2 µF
1 ms/div
Figure 18. Load Transient (1 to 150 mA, 2.5 V)
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
Typical Characteristics (continued)
VO
20 mV/div
VO
20 mV/div
VI
5 V/div
VI
5 V/div
VI = 9 to 16 V
IO = 10 mA
CO = 2.2 µF
VI = 9 to 16 V
IO = 10 mA
1 ms/div
CO = 2.2 µF
1 ms/div
Figure 20. Line Transient (VO = 3.3 V)
Figure 19. Line Transient (VO = 5 V)
VO
20 mV/div
VI
5 V/div
VI
5 V/div
VO
2 V/div
VI = 9 to 16 V
IO = 10 mA
CO = 2.2 µF
1 ms/div
CO = 2.2 µF, 400 µs/div
Figure 21. Line Transient (VO = 2.5 V)
Figure 22. 5-V Power Up
VI
5 V/div
VI
5 V/div
VO
1 V/div
VO
1 V/div
CO = 2.2 µF, 400 µs/div
CO = 2.2 µF, 400 µs/div
Figure 23. 3.3-V Power Up
Figure 24. 2.5-V Power Up
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
9
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
8 Detailed Description
8.1 Overview
The TPS7B69xx-Q1 high-voltage linear regulator operates over a 4-V to 40-V input voltage range. The device
has an output current capability of 150 mA and offers fixed output voltages of 2.5 V (TPS7B6925-Q1), 3.3 V
(TPS7B6933-Q1) or 5 V (TPS7B6950-Q1). The device features a thermal shutdown and short-circuit protection
to prevent damage during over-temperature and overcurrent conditions.
8.2 Functional Block Diagram
IN
OUT
Overcurrent
detection
UVLO
Regulator
control
Band gap
Thermal
shutdown
+
Vref
GND
8.3 Feature Description
8.3.1 Input (IN)
The IN pin is a high-voltage-tolerant pin. A capacitor with a value higher than 0.1 µF is recommended to be
connected close to this pin to better the transient performance.
8.3.2 Output (OUT)
The OUT pin is the regulated output based on the required voltage. The output has current limitation. During the
initial power up, the regulator has a soft start incorporated to control the initial current through the pass element
and the output capacitor.
In the event that the regulator drops out of regulation, the output tracks the input minus a drop based on the load
current. When the input voltage drops below the UVLO threshold, the regulator shuts down until the input voltage
recovers above the minimum startup level.
8.3.3 Output Capacitor Selection
For stable operation over the full temperature range and with load currents up to 150 mA, use a capacitor with an
effective value between 2.2 µF and 100 µF and ESR smaller than 2 Ω. To better the load transient performance,
an output capacitor, such as a ceramic capacitor with low ESR, is recommended.
8.3.4 Low-Voltage Tracking
At low input voltages, the regulator drops out of regulation and the output voltage tracks input minus a voltage
based on the load current (IL) and switch resistor. This tracking allows for a smaller input capacitor and can
possibly eliminate the need for a boost converter during cold-crank conditions.
10
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
Feature Description (continued)
8.3.5 Thermal Shutdown
The TPS7B69xx-Q1 family of devices incorporates a thermal-shutdown (TSD) circuit as a protection from
overheating. For continuous normal operation, the junction temperature should not exceed the TSD trip point. If
the junction temperature exceeds the TSD trip point, the output turns off. When the junction temperature falls
below the TSD trip point minus the hysteresis of TSD, the output turns on again. This cycling limits the
dissipation of the regulator, protecting it from damage as a result of overheating.
The purpose of the design of the internal protection circuitry of the TPS7B69xx-Q1 family of devices is for
protection against overload conditions, not as a replacement for proper heat-sinking. Continuously running the
TPS7B69xx-Q1 family of devices into thermal shutdown degrades device reliability.
8.4 Device Functional Modes
8.4.1 Operation With VI Less Than 4 V
The TPS7B69xx-Q1 family of devices operates with input voltages above 4 V. The maximum UVLO voltage is 3
V and the device operates at an input voltage above 4 V. The device can also operate at lower input voltages; no
minimum UVLO voltage is specified. At input voltages below the actual UVLO, the device shuts down.
8.4.2 Operation With VI Greater Than 4 V
When VI is greater than 4 V, if the input voltage is higher than VO plus the dropout voltage, the output voltage is
equal to the set value. Otherwise, the output voltage is equal to VI minus the dropout voltage.
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
11
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TPS7B69xx-Q1 family of devices is a 150-mA low-dropout linear regulator designed for up to 40-V VI
operation with only 15-µA quiescent current at light loads. Use the PSpice transient model to evaluate the base
function of the device. To download the PSpice transient model, go to the device product folder on www.TI.com.
In addition to this model, specific evaluation modules (EVM) are available for these devices. For the EVM and
the EVM user guide, go to the device product folder.
9.2 Typical Application
Figure 25 shows the typical application circuit for the TPS7B69xx-Q1 family of devices. Based on the endapplication, different values of external components can be used. An application can require a larger output
capacitor during fast load steps to achieve better load transient response. TI recommends a low-ESR ceramic
capacitor with a dielectric of type X5R or X7R for better load transient response.
TPS7B69xx-Q1
IN
OUT
VI
Vbat
VO
10 µF
Vreg
4.7 µF
GND
Figure 25. Typical Application Schematic for TPS7B69xx-Q1
9.2.1 Design Requirements
For this design example, use the parameters listed in Table 1.
Table 1. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUES
Input voltage range
4 to 40 V
Output voltage
2.5 V, 3.3 V, 5 V
Output current rating
150 mA
Output capacitor range
2.2 to 100 µF
Output capacitor ESR range
1 mΩ to 2 Ω
9.2.2 Detailed Design Procedure
To
•
•
•
12
begin the design process, determine the following:
Input voltage range
Output Voltage
Output current rating
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
9.2.2.1 Input Capacitor
The device requires an input decoupling capacitor, the value of which depends on the application. The typical
recommend value for the decoupling capacitor is higher than 0.1 µF. The voltage rating must be greater than the
maximum input voltage.
9.2.2.2 Output Capacitor
The device requires an output capacitor to stabilize the output voltage. The output capacitor value should be
between 2.2 µF and 100 µF. The ESR value range should be between 1 mΩ and 2 Ω. TI recommends a ceramic
capacitor with low ESR to improve the load transient response.
9.2.2.3 Power Dissipation and Thermal Considerations
Use Equation 1 to calculate the power dissipated in the device.
PD = IO × (VI – VO) + IQ × VI
where
•
•
•
•
PD = continuous power dissipation
IO = output current
VI = input voltage
VO = output voltage
(1)
Because IQ « IO, the term IQ × VI in Equation 1 can be ignored.
For a device under operation at a given ambient air temperature (TA), use Equation 2 to calculate the junction
temperature (TJ).
TJ = TA + (ZθJA × PD)
where
•
ZθJA = junction-to-ambient air thermal impedance
(2)
Use Equation 3 to calculate the rise in junction temperature because of power dissipation.
ΔT = TJ – TA = (ZθJA × PD)
(3)
For a given maximum junction temperature (TJmax), use Equation 4 to calculate the maximum ambient air
temperature (TAmax) at which the device can operate.
TAmax = TJmax – (ZθJA × PD)
(4)
9.2.3 Application Curve
VI
5 V/div
VO
2 V/div
CO = 2.2 µF, 400 µs/div
Figure 26. Power Up (5 V)
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
13
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
www.ti.com
10 Power Supply Recommendations
The device is designed to operate from an input-voltage supply range between 4 V and 40 V. This input supply
must be well regulated. If the input supply is located more than a few inches from the TPS7B69xx-Q1 device, TI
recommends adding an electrolytic capacitor with a value of 10 µF and a ceramic bypass capacitor at the input.
11 Layout
11.1 Layout Guidelines
For the layout of TPS7B69xx-Q1 family of devices, place the input and output capacitors close to the devices as
shown in Figure 27 and Figure 28. To enhance the thermal performance, TI recommends surrounding the device
with some vias.
Minimize equivalent series inductance (ESL) and ESR to maximize performance and ensure stability. Place
every capacitor as close as possible to the device and on the same side of the PCB as the regulator.
Do not place any of the capacitors on the opposite side of the PCB from where the regulator is installed. TI
strongly discourages the use of long traces because they can impact system performance negatively and even
cause instability.
If possible, and to ensure the maximum performance specified in this product data sheet, use the same layout
pattern used for the TPS7B69xx-Q1 evaluation board.
11.2 Layout Example
GND
4
1
2
3
IN
GND
OUT
Figure 27. Layout Example for SOT-223 Package
14
Submit Documentation Feedback
Copyright © 2014–2015, Texas Instruments Incorporated
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
TPS7B6925-Q1, TPS7B6933-Q1, TPS7B6950-Q1
www.ti.com
SLVSCJ8B – NOVEMBER 2014 – REVISED JANUARY 2015
Layout Example (continued)
1
IN
5
OUT
2
NC
GND
3
4
GND
Figure 28. Layout Example for SOT-23 Package
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
TPS7B6950EVM User's Guide, SLVUAC0.
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 2. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
TPS7B6925-Q1
Click here
Click here
Click here
Click here
Click here
TPS7B6933-Q1
Click here
Click here
Click here
Click here
Click here
TPS7B6950-Q1
Click here
Click here
Click here
Click here
Click here
12.3 Trademarks
All trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2014–2015, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: TPS7B6925-Q1 TPS7B6933-Q1 TPS7B6950-Q1
15
PACKAGE OPTION ADDENDUM
www.ti.com
23-May-2025
PACKAGING INFORMATION
Orderable part number
(1)
Status
Material type
(1)
(2)
Package | Pins
Package qty | Carrier
RoHS
(3)
Lead finish/
Ball material
MSL rating/
Peak reflow
(4)
(5)
Op temp (°C)
Part marking
(6)
TPS7B6925QDBVRQ1
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
TPS7B6925QDBVRQ1.A
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
ZBE2
ZBE2
TPS7B6925QDCYRQ1
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6925
TPS7B6925QDCYRQ1.A
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6925
TPS7B6933QDBVRQ1
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
ZBF2
TPS7B6933QDBVRQ1.A
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
ZBF2
TPS7B6933QDCYRQ1
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6933
TPS7B6933QDCYRQ1.A
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6933
ZAZ2
TPS7B6950QDBVRQ1
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
TPS7B6950QDBVRQ1.A
Active
Production
SOT-23 (DBV) | 5
3000 | LARGE T&R
Yes
SN
Level-2-260C-1 YEAR
-40 to 125
ZAZ2
TPS7B6950QDCYRQ1
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6950
TPS7B6950QDCYRQ1.A
Active
Production
SOT-223 (DCY) | 4
2500 | LARGE T&R
Yes
SN
Level-3-260C-168 HR
-40 to 125
7B6950
Status: For more details on status, see our product life cycle.
(2)
Material type: When designated, preproduction parts are prototypes/experimental devices, and are not yet approved or released for full production. Testing and final process, including without limitation quality assurance,
reliability performance testing, and/or process qualification, may not yet be complete, and this item is subject to further changes or possible discontinuation. If available for ordering, purchases will be subject to an additional
waiver at checkout, and are intended for early internal evaluation purposes only. These items are sold without warranties of any kind.
(3)
RoHS values: Yes, No, RoHS Exempt. See the TI RoHS Statement for additional information and value definition.
(4)
Lead finish/Ball material: Parts may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two lines if the finish value exceeds the maximum
column width.
(5)
MSL rating/Peak reflow: The moisture sensitivity level ratings and peak solder (reflow) temperatures. In the event that a part has multiple moisture sensitivity ratings, only the lowest level per JEDEC standards is shown.
Refer to the shipping label for the actual reflow temperature that will be used to mount the part to the printed circuit board.
(6)
Part marking: There may be an additional marking, which relates to the logo, the lot trace code information, or the environmental category of the part.
Multiple part markings will be inside parentheses. Only one part marking contained in parentheses and separated by a "~" will appear on a part. If a line is indented then it is a continuation of the previous line and the two
combined represent the entire part marking for that device.
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
23-May-2025
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and
makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative
and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers
and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF TPS7B69-Q1 :
• Catalog : TPS7B69
NOTE: Qualified Version Definitions:
• Catalog - TI's standard catalog product
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Apr-2020
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
TPS7B6925QDBVRQ1
SOT-23
DBV
5
3000
178.0
9.0
TPS7B6925QDCYRQ1
SOT-223
DCY
4
2500
330.0
TPS7B6933QDBVRQ1
SOT-23
DBV
5
3000
178.0
TPS7B6933QDCYRQ1
SOT-223
DCY
4
2500
TPS7B6950QDBVRQ1
SOT-23
DBV
5
TPS7B6950QDCYRQ1
SOT-223
DCY
4
3.3
3.2
1.4
4.0
8.0
Q3
12.4
7.05
7.4
1.9
8.0
12.0
Q3
9.0
3.3
3.2
1.4
4.0
8.0
Q3
330.0
12.4
7.05
7.4
1.9
8.0
12.0
Q3
3000
178.0
9.0
3.3
3.2
1.4
4.0
8.0
Q3
2500
330.0
12.4
7.05
7.4
1.9
8.0
12.0
Q3
Pack Materials-Page 1
W
Pin1
(mm) Quadrant
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Apr-2020
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
TPS7B6925QDBVRQ1
SOT-23
DBV
5
3000
190.0
190.0
30.0
TPS7B6925QDCYRQ1
SOT-223
DCY
4
2500
340.0
340.0
38.0
TPS7B6933QDBVRQ1
SOT-23
DBV
5
3000
190.0
190.0
30.0
TPS7B6933QDCYRQ1
SOT-223
DCY
4
2500
340.0
340.0
38.0
TPS7B6950QDBVRQ1
SOT-23
DBV
5
3000
180.0
180.0
18.0
TPS7B6950QDCYRQ1
SOT-223
DCY
4
2500
340.0
340.0
38.0
Pack Materials-Page 2
PACKAGE OUTLINE
DBV0005A
SOT-23 - 1.45 mm max height
SCALE 4.000
SMALL OUTLINE TRANSISTOR
C
3.0
2.6
1.75
1.45
PIN 1
INDEX AREA
1
A
5
(0.1)
2X 0.95
1.9
0.1 C
B
3.05
2.75
1.9
2
(0.15)
4
0.5
5X
0.3
0.2
3
C A B
NOTE 5
4X 0 -15
(1.1)
0.15
TYP
0.00
1.45
0.90
4X 4 -15
0.25
GAGE PLANE
8
TYP
0
0.22
TYP
0.08
0.6
TYP
0.3
SEATING PLANE
4214839/K 08/2024
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. Refernce JEDEC MO-178.
4. Body dimensions do not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.25 mm per side.
5. Support pin may differ or may not be present.
www.ti.com
EXAMPLE BOARD LAYOUT
DBV0005A
SOT-23 - 1.45 mm max height
SMALL OUTLINE TRANSISTOR
PKG
5X (1.1)
1
5
5X (0.6)
SYMM
(1.9)
2
2X (0.95)
3
4
(R0.05) TYP
(2.6)
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE:15X
SOLDER MASK
OPENING
METAL
SOLDER MASK
OPENING
METAL UNDER
SOLDER MASK
EXPOSED METAL
EXPOSED METAL
0.07 MIN
ARROUND
0.07 MAX
ARROUND
NON SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
4214839/K 08/2024
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
www.ti.com
EXAMPLE STENCIL DESIGN
DBV0005A
SOT-23 - 1.45 mm max height
SMALL OUTLINE TRANSISTOR
PKG
5X (1.1)
1
5
5X (0.6)
SYMM
(1.9)
2
2X(0.95)
4
3
(R0.05) TYP
(2.6)
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE:15X
4214839/K 08/2024
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
www.ti.com
MECHANICAL DATA
MPDS094A – APRIL 2001 – REVISED JUNE 2002
DCY (R-PDSO-G4)
PLASTIC SMALL-OUTLINE
6,70 (0.264)
6,30 (0.248)
3,10 (0.122)
2,90 (0.114)
4
0,10 (0.004) M
3,70 (0.146)
3,30 (0.130)
7,30 (0.287)
6,70 (0.264)
Gauge Plane
1
2
0,84 (0.033)
0,66 (0.026)
2,30 (0.091)
4,60 (0.181)
1,80 (0.071) MAX
3
0°–10°
0,10 (0.004) M
0,25 (0.010)
0,75 (0.030) MIN
1,70 (0.067)
1,50 (0.059)
0,35 (0.014)
0,23 (0.009)
Seating Plane
0,08 (0.003)
0,10 (0.0040)
0,02 (0.0008)
4202506/B 06/2002
NOTES: A.
B.
C.
D.
All linear dimensions are in millimeters (inches).
This drawing is subject to change without notice.
Body dimensions do not include mold flash or protrusion.
Falls within JEDEC TO-261 Variation AA.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, regulatory or other requirements.
These resources are subject to change without notice. TI grants you permission to use these resources only for development of an
application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license
is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you
will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these
resources.
TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with
such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for
TI products.
TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2025, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
