TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
5-V/3.3-V SINGLE-CHANNEL 2:1 MULTIPLEXER/DEMULTIPLEXER
FEATURES
APPLICATIONS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1
2
•
Isolation in the Powered-Off Mode, V+ = 0
Specified Break-Before-Make Switching
Low ON-State Resistance (1 Ω)
Control Inputs Are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model
(A114-B, Class II)
– 1000-V Charged-Device Model (C101)
Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals
DCU PACKAGE
(TOP VIEW)
YZP PACKAGE
(BOTTOM VIEW)
COM 1
8
V+
GND
D1 4
EN 2
7
NC
GND
GND 3
6
NO
5
IN
GND 4
Logic
Control
Logic
Control
5 D2
IN
C1 3
6 C2
NO
EN
B1 2
7 B2
NC
COM
A1 1
8 A2
V+
DESCRIPTION/ORDERING INFORMATION
The TS5A3153 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to
5.5 V. The device offers a low ON-state resistance and an excellent on-resistance matching with the
break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to
another. The device has an excellent total harmonic distortion (THD) performance and consumes very low
power. These features make this device suitable for portable audio applications.
ORDERING INFORMATION
PACKAGE (1) (2)
TA
–40°C to 85°C
(1)
(2)
(3)
ORDERABLE PART NUMBER
TOP-SIDE MARKING (3)
NanoStar™ – WCSP (DSBGA)
0.23-mm Large Bump – YZP
(Pb-free)
Reel of 3000
TS5A3153YZPR
_ _ _J57

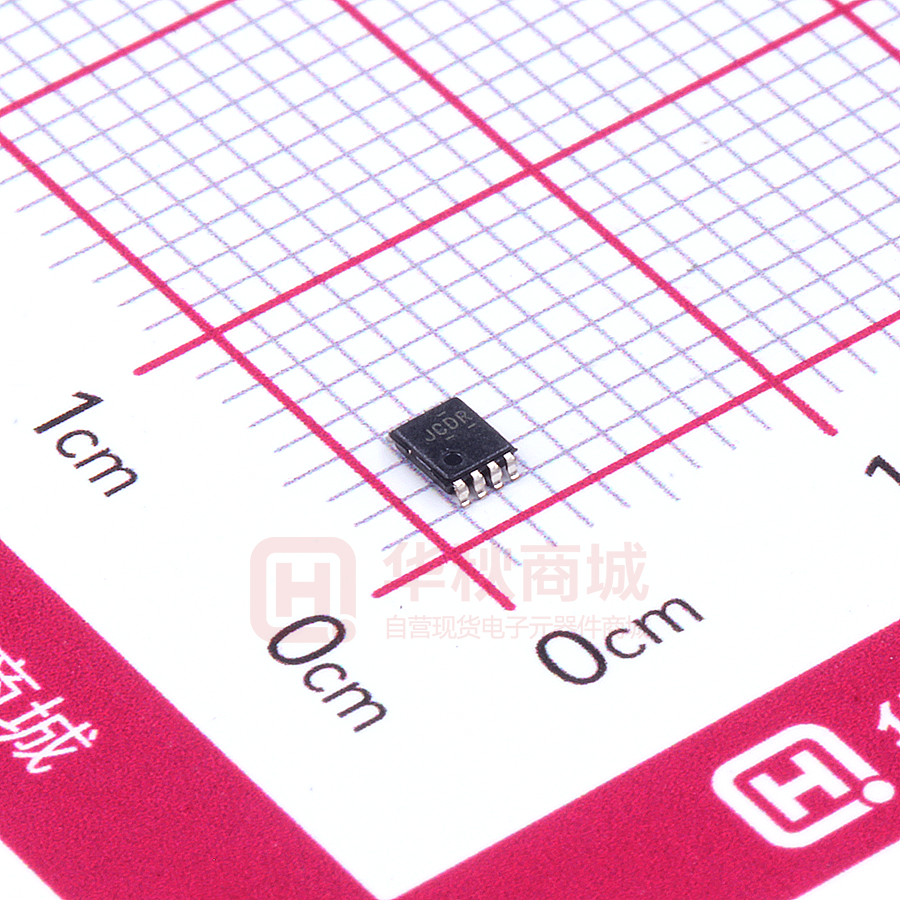

SSOP – DCU
Reel of 3000
TS5A3153DCUR
JCD_
Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
website at www.ti.com.
DCU: The actual top-side marking has one additional character that designates the assembly/test site.
YZP: The actual top-side marking has three preceding characters to denote year, month, and sequence code, and one following
character to designate the assembly/test site. Pin 1 identifier indicates solder-bump composition (1 = SnPb, • = Pb-free).
1
2
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
NanoStar is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright © 2005–2008, Texas Instruments Incorporated
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
FUNCTION TABLE
EN
IN
NC TO COM,
COM TO NC
NO TO COM,
COM TO NO
L
L
ON
OFF
L
H
OFF
ON
H
X
OFF
OFF
Summary of Characteristics (1)
Single-Pole, Double-Throw
2:1 Multiplexer/Demultiplexer (SPDT)
Configuration
Number of channels
1
ON-state resistance (ron)
1.1 Ω
ON-state resistance match (Δron)
0.1 Ω
0.15 Ω
ON-state resistance flatness (ron(flat))
Turn-on/turn-off time (tON/tOFF)
20 ns/15 ns
Make-before-break time (tMBB)
12 ns
Charge injection (QC)
36 pC
Bandwidth (BW)
OFF isolation (OISO)
–65 dB at 1 MHz
Crosstalk (XTALK)
–68 dB at 1 MHz
Total harmonic distortion (THD)
0.01%
Leakage current (ICOM(OFF)/INC(OFF))
±20 nA
Power-supply current (I+)
0.1 µA
Package option
(1)
2
100 MHz
8-pin SSOP or DSBGA
V+ = 5 V, TA = 25°C
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
ABSOLUTE MINIMUM AND MAXIMUM RATINGS (1) (2)
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
V+
Supply voltage range (3)
–0.5
6.5
V
VNC,
VNO,
VCOM
Analog voltage range (3) (4) (5)
–0.5
V+ + 0.5
V
IK
Analog port diode current
INC,
ICOM,
INO
On-state switch current
VI
Digital input voltage range (3) (4)
IIK
Digital input clamp current
I+
Continuous current through V+
IGND
Continuous current through GND
θJA
Package thermal impedance (7)
Tstg
Storage temperature range
(1)
(2)
(3)
(4)
(5)
(6)
(7)
On-state peak switch current (6)
VNC, VNO, VCOM < 0 or VNO, VNC, VCOM > V+
VNC, VNO, VCOM = 0 to V+
VI < 0
–50
mA
–200
200
–400
400
–0.5
6.5
–50
–100
mA
V
mA
100
mA
100
mA
DCU package
227
YZP package
102
–65
UNIT
150
°C/W
°C
Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may
degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those specified is not implied.
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
All voltages are with respect to ground, unless otherwise specified.
The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
This value is limited to 5.5 V maximum.
Pulse at 1-ms duration < 10% duty cycle.
The package thermal impedance is calculated in accordance with JESD 51-7.
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
3
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
ELECTRICAL CHARACTERISTICS FOR 5-V SUPPLY (1)
V+ = 4.5 V to 5.5 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
TYP MAX
0
V+
UNIT
Analog Switch
Analog signal
range
VCOM, VNO,
VNC
Peak ON
resistance
rpeak
ON-state
resistance
ron
ON-state
resistance
matching
between
channels
ON-state
resistance
flatness
NC, NO
OFF leakage
current
COM
OFF leakage
current
Δron
ron(flat)
25°C
VNO or VNC = 2.5 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C
VNO or VNC = 2.5 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
VNO or VNC = 1 V, 1.5 V,
2.5 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
VNC or VNO = 1 V,
VCOM = 4.5 V,
or
VNC or VNO = 4.5 V,
VCOM = 1 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 5.5 V,
VCOM = 5.5 V to 0,
Switch OFF,
See Figure 14
INC(ON),
INO(ON)
VNC or VNO = 1 V,
VCOM = Open,
or
VNC or VNO = 4.5 V,
VCOM = Open,
Switch ON,
See Figure 15
ICOM(OFF)
VCOM = 1 V, VNC or
VNO = 4.5 V,
or
VCOM = 4.5 V,
VNC or VNO = 1 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 5.5 V,
VCOM = 5.5 V to 0,
Switch OFF,
See Figure 14
VCOM = 1 V,
VNC or VNO = Open,
or
VCOM = 4.5 V,
VNC or VNO = Open,
Switch ON,
See Figure 15
INC(OFF),
INO(OFF)
ICOM(PWROFF)
COM
ON leakage
current
Switch ON,
See Figure 13
Full
Full
0.9
4.5 V
ICOM(ON)
Full
1.1
1.3
0.8
4.5 V
0.9
1.1
25°C
INC(PWROFF),
INO(PWROFF)
NC, NO
ON leakage
current
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –100 mA,
0.05
4.5 V
Ω
Ω
0.1
0.1
25°C
V
Ω
0.15
Full
25°C
4.5 V
0.09
Full
25°C
Full
–20
5.5 V
0V
25°C
Full
5.5 V
25°C
Full
0V
25°C
Full
–5
5
25
2
2
–25
5
25
2
µA
nA
20
150
0.7
nA
20
150
–150
–20
5.5 V
0.7
–150
–5
20
150
–25
–20
5.5 V
2
–150
–20
25°C
Full
Ω
0.15
25°C
Full
0.15
nA
µA
20
–150
150
nA
Digital Control Inputs (IN, EN) (2)
Input logic high
VIH
Full
2.4
5.5
V
Input logic low
VIL
Full
0
0.8
V
25°C
–100
Input leakage
current
(1)
(2)
4
IIH, IIL
VI = 5.5 V or 0 V
Full
5.5 V
–100
25
100
100
nA
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
All unused digital inputs of the device must be held at V+ or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
ELECTRICAL CHARACTERISTICS FOR 5-V SUPPLY (continued)
V+ = 4.5 V to 5.5 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
25°C
5V
1
Full
4.5 V to
5.5 V
1
25°C
5V
Full
4.5 V to
5.5 V
2
25°C
5V
1
Full
4.5 V to
5.5 V
TYP MAX
UNIT
Dynamic
12.5
16
Turn-on time
tON
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Turn-off time
tOFF
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Break-beforemake time
tMBB
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 18
Charge injection
QC
VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 22
25°C
5V
12
pC
2.5
17.5
8.5
15
18
7
0.5
ns
ns
12
15
ns
NC, NO
OFF
capacitance
CNC(OFF),
CNO(OFF)
VNC or VNO = V+ or GND,
Switch OFF,
See Figure 16
25°C
5V
19
pF
NC, NO
ON
capacitance
CNC(ON),
CNO(ON)
VNC or VNO = V+ or GND,
Switch ON,
See Figure 16
25°C
5V
57
pF
COM OFF
capacitance
CCOM(OFF)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
5V
36
pF
COM ON
capacitance
CCOM(ON)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
5V
57
pF
Digital input
capacitance
CI
VI = V+ or GND,
See Figure 16
25°C
5V
2
pF
Bandwidth
BW
RL = 50 Ω,
Switch ON,
See Figure 19
25°C
5V
97
MHz
OFF isolation
OISO
RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 20
25°C
5V
–64
dB
Crosstalk
XTALK
RL = 50 Ω,
f = 1 MHz,
Switch ON,
See Figure 21
25°C
5V
–64
dB
Total harmonic
distortion
THD
RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz,
See Figure 23
25°C
5V
0.004
%
VI = V+ or GND,
Switch ON or OFF
Supply
Positive supply
current
I+
25°C
Full
5.5 V
0.02
0.1
0.5
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
µA
5
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
ELECTRICAL CHARACTERISTICS FOR 3.3-V SUPPLY (1)
V+ = 3 V to 3.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
TYP MAX
0
V+
UNIT
Analog
Switch
Analog signal
range
VCOM, VNO,
VNC
Peak ON
resistance
rpeak
ON-state
resistance
ron
ON-state
resistance
match
between
channels
ON-state
resistance
flatness
NC, NO
OFF leakage
current
NC, NO
ON leakage
current
COM
OFF leakage
current
COM
ON leakage
current
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C
VNO or VNC = 2 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C
Full
Full
1.3
3V
1.8
1.2
3V
VNO or VNC = 2 V, 0.8 V
ICOM = –100 mA,
Switch ON,
See Figure 13
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C
VNO or VNC = 2 V, 0.8 V,
ICOM = –100 mA,
Switch ON,
See Figure 13
25°C
ron(flat)
INC(OFF),
INO(OFF)
INC(PWROFF),
INO(PWROFF)
INC(ON),
INO(ON)
ICOM(OFF)
ICOM(PWROFF)
ICOM(ON)
VNC or VNO = 1 V, VCOM = 3 V,
or
VNC or VNO = 3 V, VCOM = 1 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 3.6 V,
VCOM = 3.6 V to 0 V,
Switch OFF,
See Figure 14
VNC or VNO = 1 V, VCOM = Open,
or
VNC or VNO = 3 V, VCOM = Open,
Switch ON,
See Figure 15
VCOM = 1 V, VNC or VNO = 3 V,
or
VCOM = 3 V, VNC or VNO = 1 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 3.6 V,
VCOM = 3.6 V to 0,
Switch OFF,
See Figure 14
VCOM = 1 V, VNC or VNO = Open,
or
VCOM = 3 V, VNC or VNO = Open
Switch ON,
See Figure 15
Full
Full
0.08
3V
Full
3V
0.09
3.6 V
0V
25°C
Full
0V
25°C
Full
0.15
Ω
–1
1
15
2
2
0.2
1
15
2
µA
nA
20
50
–15
nA
20
50
–50
–20
3.6 V
0.2
–50
–1
20
50
–15
–20
3.6 V
2
–50
–20
3.6 V
25°C
Full
Ω
0.15
–20
25°C
Full
Ω
0.15
0.15
Full
25°C
Ω
0.2
25°C
Full
1.5
1.7
25°C
Δron
1.6
V
nA
µA
20
–50
50
nA
Digital Control Inputs (IN, EN) (2)
Input logic high
VIH
Full
2
5.5
V
Input logic low
VIL
Full
0
0.8
V
25°C
–100
Input leakage
current
(1)
(2)
6
IIH, IIL
VI = 5.5 V or 0
Full
3.6 V
–100
25
100
100
nA
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
All unused digital inputs of the device must be held at V+ or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
ELECTRICAL CHARACTERISTICS FOR 3.3-V SUPPLY (continued)
V+ = 3 V to 3.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
25°C
3.3 V
1
Full
3 V to
3.6 V
1
25°C
3.3 V
4.3
Full
3 V to
3.6 V
4
25°C
3.3 V
2
Full
3 V to
3.6 V
1
TYP MAX
UNIT
Dynamic
17
22
Turn-on time
tON
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Turn-off time
tOFF
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Break-beforemake time
tMBB
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 18
VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 22
25°C
3.3 V
8
pC
Charge
injection
QC
24
9.5
16
19
12
ns
ns
22
25
ns
NC, NO
OFF
capacitance
CNC(OFF),
CNO(OFF)
VNC or VNO = V+ or GND,
Switch OFF,
See Figure 16
25°C
3.3 V
19
pF
NC, NO
ON
capacitance
CNC(ON),
CNO(ON)
VNC or VNO = V+ or GND,
Switch ON,
See Figure 16
25°C
3.3 V
57
pF
COM OFF
capacitance
CCOM(OFF)
VCOM = V+ or GND,
Switch ON,
See
25°C
3.3 V
36
pF
COM
ON
capacitance
CCOM(ON)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
3.3 V
57
pF
Digital input
capacitance
CI
VI = V+ or GND,
See Figure 16
25°C
3.3 V
2
pF
Bandwidth
BW
RL = 50 Ω,
Switch ON,
See Figure 19
25°C
3.3 V
97
MHz
OFF isolation
OISO
RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 20
25°C
3.3 V
–64
dB
Crosstalk
XTALK
RL = 50 Ω,
f = 1 MHz,
Switch ON,
See Figure 21
25°C
3.3 V
–64
dB
Total harmonic
distortion
THD
RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20
kHz,
See Figure 23
25°C
3.3 V
0.01
%
VI = V+ or GND,
Switch ON or
OFF
Supply
Positive supply
current
I+
25°C
Full
3.6 V
0.01
0.1
0.25
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
µA
7
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
ELECTRICAL CHARACTERISTICS FOR 2.5-V SUPPLY (1)
V+ = 3 V to 3.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
TYP MAX
0
V+
UNIT
Analog Switch
Analog signal
range
VCOM, VNO,
VNC
Peak ON
resistance
rpeak
ON-state
resistance
ron
ON-state
resistance
matching
between
channels
ON-state
resistance
flatness
NC, NO
OFF leakage
current
COM
OFF leakage
current
Δron
ron(flat)
INC(OFF),
INO(OFF)
INC(ON),
INO(ON)
ICOM(OFF)
ICOM(PWROFF)
COM
ON leakage
current
Switch ON,
See Figure 13
25°C
VNO or VNC = 1.8 V,
ICOM = –8 mA,
Switch ON,
See Figure 13
25°C
Full
Full
1.9
2.3 V
ICOM(ON)
VNO or VNC = 1.8 V,
ICOM = –8 mA,
Switch ON,
See Figure 13
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –8 mA,
Switch ON,
See Figure 13
VNO or VNC = 0.8 V, 1.8 V,
ICOM = –8 mA,
Switch ON,
See Figure 13
VNC or VNO = 0.5 V,
VCOM = 2.2 V,
or
VNC or VNO = 2.2 V,
VCOM = 0.5 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 2.7 V,
VCOM = 2.7 V to 0,
Switch OFF,
See Figure 14
VNC or VNO = 0.5 V,
VCOM = Open,
or
VNC or VNO = 2.2 V,
VCOM = Open,
Switch ON,
See Figure 15
VCOM = 0.5 V, VNC or
VNO = 2.2 V,
or
VCOM = 2.2 V, VNC or
VNO = 0.5V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 2.7 V,
VCOM = 2.7 V to 0,
Switch OFF,
See Figure 14
VCOM = 0.5 V, VNC or
VNO = Open,
or
VCOM = 2.2 V, VNC or
VNO = Open,
Switch ON,
See Figure 15
Full
1.6
2.3 V
0.12
2.3 V
Full
0.5
–20
2.7 V
0V
2.7 V
25°C
Full
25°C
Full
2.7 V
0V
25°C
Full
Ω
1
Ω
1
25°C
Full
Ω
0.65
2.3 V
25°C
25°C
Ω
0.2
0.2
Full
Full
2.1
2.5
25°C
25°C
2.5
2.7
25°C
INC(PWROFF),
INO(PWROFF)
NC, NO
ON leakage
current
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –8 mA,
V
2.7 V
2
–50
–1
20
50
0.1
1
–10
10
–20
20
–50
50
–20
20
–50
50
nA
µA
nA
nA
–1
1
–10
10
–20
20
–50
50
1.8
5.5
V
0.6
V
µA
nA
Digital Control Inputs (IN, EN) (2)
Input logic high
VIH
Input logic low
VIL
Input leakage
current
(1)
(2)
8
IIH, IIL
Full
VI = 5.5 V or 0
Full
0
25°C
–100
Full
2.7 V
–100
25
100
100
nA
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
All unused digital inputs of the device must be held at V+ or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
ELECTRICAL CHARACTERISTICS FOR 2.5-V SUPPLY (continued)
V+ = 3 V to 3.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
25°C
2.5 V
1.7
Full
2.3 V to
2.7 V
1.5
25°C
2.5 V
5.2
Full
2.3 V to
2.7 V
5
25°C
2.5 V
3
Full
2.3 V to
2.7 V
2
TYP MAX
UNIT
Dynamic
24
31
Turn-on time
tON
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Turn-off time
tOFF
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Break-beforemake time
tMBB
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 18
Charge injection
QC
VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 22
25°C
2.5 V
6
pC
33.5
10.5
17
20
10
ns
ns
30
40
ns
NC, NO
OFF
capacitance
CNC(OFF),
CNO(OFF)
VNC or VNO = V+ or GND,
Switch OFF,
See Figure 16
25°C
2.5 V
19
pF
NC, NO
ON
capacitance
CNC(ON),
CNO(ON)
VNC or VNO = V+ or GND,
Switch ON,
See Figure 16
25°C
2.5 V
57
pF
COM OFF
capacitance
CCOM(OFF)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
2.5 V
36
pF
COM ON
capacitance
CCOM(ON)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
2.5 V
57
pF
Digital input
capacitance
CI
VI = V+ or GND,
See Figure 16
25°C
2.5 V
2
pF
Bandwidth
BW
RL = 50 Ω,
Switch ON,
See Figure 19
25°C
2.5 V
100
MHz
OFF isolation
OISO
RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 20
25°C
2.5 V
–64
dB
Crosstalk
XTALK
RL = 50 Ω,
f = 1 MHz,
Switch ON,
See Figure 21
25°C
2.5 V
–64
dB
Total harmonic
distortion
THD
RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20 kHz,
See Figure 23
25°C
2.5 V
0.020
%
VI = V+ or GND,
Switch ON or OFF
Supply
Positive supply
current
I+
25°C
Full
2.7 V
0.001
0.05
0.15
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
µA
9
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
ELECTRICAL CHARACTERISTICS FOR 1.8-V SUPPLY (1)
V+ = 1.65 V to 1.95 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
TYP MAX
0
V+
UNIT
Analog
Switch
Analog signal
range
VCOM, VNO,
VNC
Peak ON
resistance
rpeak
ON-state
resistance
ron
ON-state
resistance
matching
between
channels
ON-state
resistance
flatness
NC, NO
OFF leakage
current
COM
OFF leakage
current
Δron
ron(flat)
25°C
VNO or VNC = 1.5 V,
ICOM = –2 mA,
Switch ON,
See Figure 13
25°C
VNO or VNC = 1.5 V,
ICOM = –2 mA,
Switch ON,
See Figure 13
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –2 mA,
Switch ON,
See Figure 13
VNO or VNC = 0.6 V, 1.5 V,
ICOM = –2 mA,
Switch ON,
See Figure 13
VNC or VNO = 0.3 V,
VCOM = 1.65 V,
or
VNC or VNO = 1.65 V,
VCOM = 0.3 V,
Switch OFF,
See Figure 14
VNC or VNO = 0 to 1.95 V,
VCOM = 1.95 V to 0,
Switch OFF,
See Figure 14
INC(ON),
INO(ON)
VNC or VNO = 0.3 V,
VCOM = Open,
or
VNC or VNO = 1.65 V,
VCOM = Open,
Switch ON,
See Figure 15
ICOM(OFF)
VNC or VNO = 1.65 V,
VCOM = 0.3 V,
or
VNC or VN O = 0.3 V,
VCOM = 1.65 V,
Switch OFF,
See Figure 14
VNC or VNO = 1.95 V to 0,
VCOM = 0 to 1.95 V,
Switch OFF,
See Figure 14
VNC or VNO = Open,
VCOM = 0.3 V,
or
VNC or VNO = Open,
VCOM = 1.65 V,
Switch ON,
See Figure 15
INC(OFF),
INO(OFF)
ICOM(PWROFF)
COM
ON leakage
current
Switch ON,
See Figure 13
Full
Full
5.2
1.65 V
ICOM(ON)
Full
2
1.65 V
0.16
1.65 V
Full
1.95 V
0V
3
6
1.5
20
25°C
Full
1.95 V
–1
1.95 V
0V
0.1
1.5
Ω
1.5
–10
1
10
1.5
µA
nA
20
50
0.06
nA
20
50
–50
–1
1
10
–50
–20
1.95 V
50
–10
–20
25°C
Full
–50
–20
25°C
Full
Ω
8
–20
25°C
Full
Ω
3
Full
25°C
Ω
0.3
0.3
1.65 V
25°C
Full
2.7
3.1
25°C
25°C
15
20
25°C
INC(PWROFF),
INO(PWROFF)
NC, NO
ON leakage
current
0 ≤ (VNO or VNC) ≤ V+,
ICOM = –2 mA,
V
nA
µA
20
–50
50
nA
Digital Control Inputs (IN, EN) (2)
Input logic high
VIH
Full
1.5
5.6
V
Input logic low
VIL
Full
0
0.6
V
25°C
–100
Input leakage
current
(1)
(2)
10
IIH, IIL
VI = 5.5 V or 0
Full
1.95 V
–100
25
100
100
nA
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
All unused digital inputs of the device must be held at V+ or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
ELECTRICAL CHARACTERISTICS FOR 1.8-V SUPPLY (continued)
V+ = 1.65 V to 1.95 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
TA
V+
MIN
25°C
5V
4.5
Full
1.65 V to
1.95 V
25°C
5V
Full
1.65 V to
1.95 V
5
25°C
5V
4
Full
1.65 V to
1.95 V
3
TYP MAX
UNIT
Dynamic
45
61
Turn-on time
tON
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Turn-off time
tOFF
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 17
Break-beforemake time
tBBM
VCOM = V+,
RL = 50 Ω,
CL = 35 pF,
See Figure 18
Charge
injection
QC
VGEN = 0,
RGEN = 0,
CL = 1 nF,
See Figure 22
25°C
1.8 V
4
pC
4
5.4
63
12
19
21
31
ns
ns
60
65
ns
NC, NO
OFF
capacitance
CNC(OFF),
CNO(OFF)
VNC or VNO = V+ or GND,
Switch OFF,
See Figure 16
25°C
1.8 V
19
pF
NC, NO
ON
capacitance
CNC(ON),
CNO(ON)
VNC or VNO = V+ or GND,
Switch ON,
See Figure 16
25°C
1.8 V
57
pF
COM OFF
capacitance
CCOM(OFF)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
1.8 V
36
pF
COM ON
capacitance
CCOM(ON)
VCOM = V+ or GND,
Switch ON,
See Figure 16
25°C
1.8 V
57
pF
Digital input
capacitance
CI
VI = V+ or GND,
See Figure 16
25°C
1.8 V
2
pF
Bandwidth
BW
RL = 50 Ω,
Switch ON,
See Figure 19
25°C
1.8 V
100
MHz
OFF isolation
OISO
RL = 50 Ω,
f = 1 MHz,
Switch OFF,
See Figure 20
25°C
1.8 V
–64
dB
Crosstalk
XTALK
RL = 50 Ω,
f = 1 MHz,
Switch ON,
See Figure 21
25°C
1.8 V
–64
dB
Total harmonic
distortion
THD
RL = 600 Ω,
CL = 50 pF,
f = 20 Hz to 20
kHz,
See Figure 23
25°C
1.8 V
0.060
%
VI = V+ or GND,
Switch ON or OFF
Supply
Positive supply
current
I+
25°C
Full
1.95 V
0.001
0.05
0.1
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
µA
11
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
TYPICAL PERFORMANCE
ron (Ω)
ron (Ω)
TA = 25°C
TA = 85°C
TA = 25°C
TA = –40°C
Figure 2. ron vs VCOM (V+ = 3 V)
Leakage Current (nA)
ron (Ω)
Figure 1. ron vs VCOM
TA = 85°C
TA = 25°C
TA = –40°C
50
45
40
35
30
25
20
15
ICOM(OFF)
INO/NC(OFF)
INO/NC(ON)
ICOM(ON)
10
5
0
−40
Figure 3. ron vs VCOM (V+ = 5 V)
25
TA (°C)
Figure 4. Leakage Current vs Temperature
(V+ = 5.5 V)
50
20
tON
40
0
−10
V+ = 5 V
−20
tON/tOFF (ns)
Charge Injection (QC)
10
−30
−40
V+ = 3 V
−50
30
20
tOFF
10
−60
−70
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
VCOM (V)
Figure 5. Charge Injection (QC) vs VCOM
12
85
0
0
Submit Documentation Feedback
1
Figure 6. tON
2
3
4
V+ (V)
and tOFF vs Supply Voltage
5
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
TYPICAL PERFORMANCE (continued)
16
14
tON
tON/tOFF (ns)
12
10
tOFF
8
6
4
2
0
−40
25
TA (C)
85
Figure 7. tON and tOFF vs Temperature (V+ = 5 V)
Figure 8. Logic-Level Threshold vs V+
0
0
−2
−10
−20
−30
Gain (dB)
Gain (dB)
−4
−6
−8
−40
−50
−60
−10
−70
−12
−80
−90
−14
0.1
1
10
100
Frequency (Mhz)
Figure 9. Bandwidth (V+ = 5 V)
V+ = 3 V
10
100
1000
Frequency (MHz)
Figure 10. OFF Isolation and Crosstalk (V+ = 5 V)
120
0.008
100
0.007
I+ (nA)
THD + Noise (%)
1
140
0.010
0.009
0.1
1000
0.006
0.005
V+ = 5 V
20
0.002
0
0.001
0.000
0
0.001
60
40
0.004
0.003
80
0
0.1
1
10
Frequency (kHz)
Figure 11. Total Harmonic Distortion (THD)
vs Frequency
0.5
1
1.5
2
TA (C)
2.5
3
3.5
4
100
Figure 12. Power Supply Current vs Temperature
(V+ = 5 V)
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
13
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
PIN DESCRIPTION
PIN NO.
NAME
1
COM
DESCRIPTION
2
EN
3
GND
Digital ground
4
GND
Digital ground
5
IN
Digital control to connect the COM to NO or NC
6
NO
Normally open
7
NC
Normally closed
8
V+
Power supply
Common
Enable control input
PARAMETER DESCRIPTION
SYMBOL
VCOM
Voltage at COM
VNC
Voltage at NC
VNO
Voltage at NO
ron
Resistance between COM and NC or COM and NO ports when the channel is ON
rpeak
Peak on-state resistance over a specified voltage range
Δron
Difference of ron between channels in a specific device
ron(flat)
Difference between the maximum and minimum value of ron in a channel over the specified range of conditions
INC(OFF)
Leakage current measured at the NC port, with the corresponding channel (NC to COM) in the OFF state under
worst-case input and output conditions
INC(PWROFF)
INO(OFF)
INO(PWROFF)
Leakage current measured at the NC port during the power-off condition, V+ = 0
Leakage current measured at the NO port, with the corresponding channel (NO to COM) in the OFF state under
worst-case input and output conditions
Leakage current measured at the NO port during the power-off condition, V+ = 0
INC(ON)
Leakage current measured at the NC port, with the corresponding channel (NC to COM) in the ON state and the output
(COM) open
INO(ON)
Leakage current measured at the NO port, with the corresponding channel (NO to COM) in the ON state and the output
(COM) open
ICOM(ON)
Leakage current measured at the COM port, with the corresponding channel (COM to NO or COM to NC) in the ON state
and the output (NC or NO) open
ICOM(OFF)
Leakage current measured at the COM port, with the corresponding channel (COM to NO or COM to NC) in the OFF
state and the output (NC or NO) open
ICOM(PWROFF)
Leakage current measured at the COM port during the power-off condition, V+ = 0
VIH
Minimum input voltage for logic high for the control input (IN, EN)
VIL
Maximum input voltage for logic low for the control input (IN, EN)
VI
Voltage at the control input (IN, EN)
IIH, IIL
14
DESCRIPTION
Leakage current measured at the control input (IN, EN)
tON
Turn-on time for the switch. This parameter is measured under the specified range of conditions and by the propagation
delay between the digital control (IN) signal and analog output (COM, NC, or NO) signal when the switch is turning ON.
tOFF
Turn-off time for the switch. This parameter is measured under the specified range of conditions and by the propagation
delay between the digital control (IN) signal and analog output (COM, NC, or NO) signal when the switch is turning OFF.
tBBM
Break-before-make time. This parameter is measured under the specified range of conditions and by the propagation
delay between the output of two adjacent analog channels (NC and NO) when the control signal changes state.
QC
Charge injection is a measurement of unwanted signal coupling from the control (IN) input to the analog (NC, NO, or
COM) output. This is measured in coulomb (C) and measured by the total charge induced due to switching of the control
input. Charge injection, QC = CL × ΔVCOM, CL is the load capacitance, and ΔVCOM is the change in analog output
voltage.
CNC(OFF)
Capacitance at the NC port when the corresponding channel (NC to COM) is OFF
CNO(OFF)
Capacitance at the NO port when the corresponding channel (NO to COM) is OFF
CNC(ON)
Capacitance at the NC port when the corresponding channel (NC to COM) is ON
CNO(ON)
Capacitance at the NO port when the corresponding channel (NO to COM) is ON
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
PARAMETER DESCRIPTION (continued)
SYMBOL
DESCRIPTION
CCOM(ON)
Capacitance at the COM port when the corresponding channel (COM to NC or COM to NO) is ON
CCOM(OFF)
Capacitance at the COM port when the corresponding channel (COM to NC or COM to NO) is OFF
CI
Capacitance of control input (IN)
OISO
OFF isolation of the switch is a measurement of OFF-state switch impedance. This is measured in dB in a specific
frequency, with the corresponding channel (NC to COM or NO to COM) in the OFF state.
XTALK
Crosstalk is a measurement of unwanted signal coupling from an ON channel to an OFF channel (NC to NO or NO to
NC). This is measured in a specific frequency and in dB.
BW
Bandwidth of the switch. This is the frequency where the gain of an ON channel is –3 dB below the DC gain.
THD
Total harmonic distortion describes the signal distortion caused by the analog switch. This is defined as the ratio of root
mean square (RMS) value of the second, third, and higher harmonic to the absolute magnitude of fundamental harmonic.
I+
Static power-supply current with the control (IN, EN) pin at V+ or GND
PARAMETER MEASUREMENT INFORMATION
V+
VNC NC
COM
+
VCOM
Channel ON
VNO NO
VI
r on +
IN or EN
ICOM
VCOM * VNO or VNC
W
I COM
VI = VIH or VIL
+
GND
Figure 13. ON-State Resistance (ron)
V+
VNC NC
COM
+
VI
VCOM
+
VNO NO
IN or EN
OFF-State Leakage Current
Channel OFF
VI = VIH or VIL
+
GND
Figure 14. OFF-State Leakage Current (INC(OFF), INO(OFF), INO(PWROFF), ICOM(PWROFF))
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
15
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
PARAMETER MEASUREMENT INFORMATION (continued)
V+
VNC NC
COM
+
VCOM
VNO NO
VI
ON-State Leakage Current
Channel ON
VI = VIH or VIL
IN or EN
+
GND
Figure 15. ON-State Leakage Current (ICOM(ON), INC(ON), INO(ON))
V+
Capacitance
Meter
VNC
NC
VNO
NO
VBIAS = V+ or GND
VI = VIH or VIL
VCOM COM
Capacitance is measured at NC,
NO, COM, and IN inputs during
ON and OFF conditions.
VBIAS
VI
IN or EN
GND
Figure 16. Capacitance (CI, CCOM(OFF), CCOM(ON), CNC(OFF), CNO(OFF), CNC(ON), CNO(ON))
16
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
PARAMETER MEASUREMENT INFORMATION (continued)
V+
VCOM
NC or NO
VNC or VNO
NC or NO
CL(2)
TEST
RL
CL
VCOM
tON
50 Ω
35 pF
V+
tOFF
50 Ω
35 pF
V+
COM
RL
IN or EN
V+
Logic
Input
(VI)
VI
Logic
Input(1)
GND
50%
0
tON
tOFF
Switch
Output
(VNC or VNO)
(1)
(2)
50%
90%
90%
All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
CL includes probe and jig capacitance.
Figure 17. Turn-On (tON) and Turn-Off Time (tOFF)
V+
NC or NO
V+
Logic
Input
(VI)
VNC or VNO
VCOM
50%
0
COM
NC or NO
CL(2)
VI
Logic
Input(1)
(1)
(2)
RL
Switch
Output
(VCOM)
90%
IN
90%
tBBM
VNC or VNO = V+
RL = 50 Ω
CL = 35 pF
GND
All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
CL includes probe and jig capacitance.
Figure 18. Make-Before-Break Time (tMBB)
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
17
TS5A3153
SCDS215A – OCTOBER 2005 – REVISED JULY 2008 ..................................................................................................................................................... www.ti.com
PARAMETER MEASUREMENT INFORMATION (continued)
V+
Network Analyzer
50 W
VNC
NC
Channel ON: NC to COM
COM
Source
Signal
VCOM
VI = V+ or GND
NO
Network Analyzer Setup
INor EN
VI
50 W
Source Power = 0 dBm
(632-mV P-P at 50-W load)
+
GND
DC Bias = 350 mV
Figure 19. Bandwidth (BW)
V+
Network Analyzer
Channel OFF: NC to COM
50 W
VNC
NC
VI = V+ or GND
COM
Source
Signal
50 W
VCOM
NO
Network Analyzer Setup
IN or EN
Source Power = 0 dBm
(632-mV P-P at 50-W load)
VI
50 W
+
GND
DC Bias = 350 mV
Figure 20. OFF Isolation (OISO)
V+
Network Analyzer
Channel ON: NC to COM
50 W
VNC
Channel OFF: NO to COM
NC
VCOM
Source
Signal
VNO
NO
IN or EN
50 W
VI
50 W
+
VI = V+ or GND
GND
Network Analyzer Setup
Source Power = 0 dBm
(632-mV P-P at 50-W load)
DC Bias = 350 mV
Figure 21. Crosstalk (XTALK)
18
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
TS5A3153
www.ti.com ..................................................................................................................................................... SCDS215A – OCTOBER 2005 – REVISED JULY 2008
PARAMETER MEASUREMENT INFORMATION (continued)
V+
RGEN
VGEN
Logic
Input
(VI)
OFF
ON
OFF V
IL
NC or NO
COM
+
VIH
VCOM
∆VCOM
VCOM
NC or NO
CL(2)
IN or EN
VGEN = 0 to V+
VI
Logic
Input(1)
(1)
(2)
RGEN = 0
CL = 0.1 nF
QC = CL × ∆VCOM
VI = VIH or VIL
GND
All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
CL includes probe and jig capacitance.
Figure 22. Charge Injection (QC)
Channel ON: COM to NC
VSOURCE = V+ P-P
VI = VIH or VIL
RL = 600 Ω
fSOURCE = 20 Hz to 20 kHz
CL = 50 pF
V+/2
V+
Audio Analyzer
RL
10 mF
Source
Signal
10 mF
NC
COM
CL(1)
NO
600 W
600 W
VI
IN
+
GND
600 W
(1)
CL includes probe and jig capacitance.
Figure 23. Total Harmonic Distortion (THD)
Submit Documentation Feedback
Copyright © 2005–2008, Texas Instruments Incorporated
Product Folder Link(s): TS5A3153
19
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TS5A3153DCUR
ACTIVE
VSSOP
DCU
8
3000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 85
(JCDQ, JCDR)
TS5A3153YZPR
ACTIVE
DSBGA
YZP
8
3000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-40 to 85
J5N
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
