TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
TSB81BA3E IEEE 1394b Three-Port Cable Transceiver/Arbiter
1 Features
•
1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fully Supports Provisions of IEEE P1394b
Revision 1.33+ at 1-Gigabit Signaling Rates
Fully Supports Provisions of IEEE 1394a-2000
and 1394-1995 Standard for High Performance
Serial Bus
Fully Interoperable With Firewire, i.LINK, and
SB1394™, Implementation of IEEE Std 1394
Provides Three Fully Backward Compatible,
(1394a-2000 Fully Compliant) Bilingual P1394b
Cable Ports at up to 800 Megabits per Second
(Mbits/s)
Provides Three 1394a-2000 Fully Compliant
Cable Ports at 100/200/400 Mbits/s
Full 1394a-2000 Support Includes:
– Connection Debounce
– Arbitrated Short Reset
– Multispeed Concatenation
– Arbitration Acceleration
– Fly-By Concatenation
– Port Disable/Suspend/Resume
– Extended Resume Signaling for Compatibility
With Legacy DV Devices
Power-Down Features to Conserve Energy in
Battery Powered Applications
Low-Power Sleep Mode
Fully Compliant With Open Host Controller
Interface (HCI) Requirements
Cable Power Presence Monitoring
Cable Ports Monitor Line Conditions for Active
Connection to Remote Node
Register Bits Give Software Control of Contender
Bit, Power Class Bits, Link Active Control Bit, and
1394a-2000 Features
Data Interface to Link-Layer Controller Pin
Selectable From 1394a-2000 Mode (2/4/8 Parallel
Bits at 49.152 MHz) or 1394b Mode
(8 Parallel Bits at 98.304 MHz)
Interface to Link-Layer Controller Supports Low
Cost TI Bus-Holder Isolation
Interoperable With Link-Layer Controllers Using
3.3-V Supplies
Interoperable With Other 1394 Physical Layers
•
•
•
•
•
•
•
•
(PHYs) Using 1.8-V, 3.3-V, and 5-V Supplies
Low Jitter, External Crystal Oscillator Provides
Transmit and Receive Data at 100/200/400/800
Mbits/s, and Link-Layer Controller Clock at 49.152
MHz and 98.304 MHz
Separate Bias (TPBIAS) for Each Port
Low Cost, High Performance 80-Pin TQFP (PFP)
Thermally Enhanced Package and 168-Pin ZAJ
(BGA) Package
Software Device Reset (SWR)
Fail-Safe Circuitry Senses Sudden Loss of Power
to the Device and Disables the Ports to Ensure
That the TSB81BA3E Does Not Load the TPBIAS
of Any Connected Device and Blocks any
Leakage From the Port Back to Power Plane
The TSB81BA3E Has a 1394a-2000 Compliant
Common-Mode Noise Filter on the Incoming Bias
Detect Circuit to Filter Out Cross-Talk Noise
The TSB81BA3E Is Port Programmable to Force
1394a Mode to Allow Use of 1394a Connectors
(1394b Signaling Must Not Be Put Across 1394a
Connectors or Cables)
Internal Voltage Regulator Option
2 Description
The TSB81BA3E provides the digital and analog
transceiver functions needed to implement a threeport node in a cable-based IEEE 1394 network. Each
cable port incorporates two differential line
transceivers. The transceivers include circuitry to
monitor the line conditions as needed for determining
connection status, for initialization and arbitration, and
for packet reception and transmission. The
TSB81BA3E is designed to interface with a link-layer
controller (LLC), such as the TSB82AA2,
TSB12LV21, TSB12LV26, TSB12LV32, TSB42AA4,
TSB42AB4, TSB12LV01B, or TSB12LV01C. It also
may be connected cable port to cable port to an
integrated 1394 Link + PHY layer such as the
TSB43AB2.
Device Information(1)
PART NUMBER
TSB81BA3E
PACKAGE
BODY SIZE (NOM)
HTQFP (80)
12.00 mm x 12.00 mm
NFBGA (167) 12.00 mm x 12.00 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
Features .................................................................. 1
Description ............................................................. 1
Revision History..................................................... 2
Description Continued .......................................... 3
Pin Configuration and Function ........................... 4
Electrical Specfications....................................... 10
6.1
6.2
6.3
6.4
6.5
6.6
6.7
7
8
Absolute Maximum Ratings ...................................
Thermal Information ................................................
Recommended Operating Conditions.....................
Electrical Characteristics, Driver .............................
Electrical Characteristics, Receiver ........................
Electrical Characteristics, Device............................
Switching Characteristics ........................................
10
10
11
12
12
12
13
Parameter Measurement Information ................ 14
Detailed Description ............................................ 15
8.1
8.2
8.3
8.4
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
15
17
17
19
8.5 Programming........................................................... 20
8.6 Register Maps ......................................................... 22
9
Application and Implementation ........................ 28
9.1 Application Information............................................ 28
9.2 Typical Application .................................................. 28
10 Power Supply Recommendations ..................... 30
11 Layout................................................................... 31
11.1 Layout Guidelines ................................................. 31
12 Device and Documentation Support ................. 35
12.1
12.2
12.3
12.4
12.5
12.6
Device Support......................................................
Related Links ........................................................
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
35
35
35
35
35
35
13 Mechanical, Packaging, and Orderable
Information ........................................................... 36
13.1 Designing With PowerPAD™ Devices (PFP
Package Only) ......................................................... 36
3 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (October 2015) to Revision C
Page
•
Changed the ADDRESS column of Table 8 ........................................................................................................................ 27
•
Changed the ADDRESS column of Table 10 ...................................................................................................................... 27
Changes from Revision A (May 2010) to Revision B
Page
•
Added Feature Description section, Device Functional Modes, Application and Implementation section, Power
Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical,
Packaging, and Orderable Information section ..................................................................................................................... 1
•
Replaced the Dissipation Ratings with the Thermal Information.......................................................................................... 10
•
Changed the Address column of Table 6 ............................................................................................................................ 24
Changes from Original (May 2009) to Revision A
Page
•
Universal change of the pin name from TESTW to VREG_PD ............................................................................................ 1
•
Deleted paragraph form the TPBIASx pins in the Pin Functions table "When a port is configured as a Beta-mode
port (B1, B2, B4...: ................................................................................................................................................................. 9
2
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
4 Description Continued
The TSB81BA3E can be powered by a single 3.3-V supply when the VREG_PD terminal (terminal 73 on the PFP
package and terminal B7 on the ZAJ package) is tied to GND. VREG_PD enables the internal 3.3-V to 1.95-V
regulator which provides the 1.95-V to the core. The When VREG_PD is pulled high to VDD through at least a 1kΩ resistor the TSB81BA3E internal regulator is off and the device can be powered by two separate external
regulated supplies: 3.3-V for the I/Os and 1.95-V for the core. The core voltage is supplied to the PLLVDD-CORE
and DVDD-CORE terminals to the requirements in the recommended operating conditions (1.95-V nominal). The
PLLVDD-CORE terminals must be separated from the DVDD-CORE terminals. The PLLVDD-CORE and the
DVDD-CORE terminals must be decoupled with 1 uF capacitors to stabilze the respective supply. Additional 0.10
µF and 0.01 µF high-frequency bypass capacitors may also be used. The separation between DVDD-CORE and
PLLVDD-CORE may be implemented by separate power supply rails, or by a single power supply rail, where the
DVDD-CORE and PLLVDD-CORE are separated by a filter network to keep noise from the PLLVDD-CORE
supply.
The TSB81BA3E requires an external 98.304-MHz crystal oscillator to generate a reference clock. The external
clock drives an internal phase-locked loop (PLL), which generates the required reference signal. This reference
signal provides the clock signals that control transmission of the outbound encoded information. A 49.152-MHz
clock signal is supplied to the associated LLC for synchronization of the two devices and is used for
resynchronization of the received data when operating the PHY-link interface in compliance with the IEEE 1394a2000 standard. A 98.304-MHz clock signal is supplied to the associated LLC for synchronization of the two
devices when operating the PHY-link interface in compliance with the IEEE P1394b standard. The power down
(PD) function, when enabled by asserting the PD terminal high, stops operation of the PLL.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
3
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
5 Pin Configuration and Function
TPA0+
TPA0−
AVDD−3.3
AGND
TPB0+
TPB0−
TPBIAS1
TPA1+
TPA1−
AVDD−3.3
AGND
TPB1+
TPB1−
TPBIAS0
TPA2+
TPA2−
AVDD−3.3
TPB2+
TPB2−
TPBIAS2
PFP PACKAGE
(TOP VIEW)
60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41
61
40
62
39
63
38
64
37
65
36
66
35
67
34
68
33
69
32
70
TSB81BA3E
30
72
29
73
28
74
27
75
26
76
25
77
24
78
23
79
22
80
2 3
4 5
PINT
LKON/DS2
LREQ
DGND
PCLK
1
4
31
71
6
21
7 8 9 10 11 12 13 14 15 16 17 18 19 20
AGND
AVDD−3.3
DGND
DVDD−CORE
SM
SE
CPS
DS0
DS1
PLLVDD−3.3
PLLVDD−CORE
PLLVDD−CORE
PLLGND
XI
RSVD
PLLGND
AVDD−3.3
R0
R1
AGND
DVDD−3.3
LCLK
DVDD−CORE
CTL0
CTL1
D0
D1
D2
DGND
D3
D4
D5
DVDD−3.3
D6
D7
AGND
AGND
AVDD−3.3
DGND
DVDD−CORE
PC0
PC1
PC2
DVDD−3.3
DVDD−3.3
DVDD−CORE
DGND
VREG_PD
BMODE
RESETz
DGND
PD
TESTM
CNA
LPS
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016

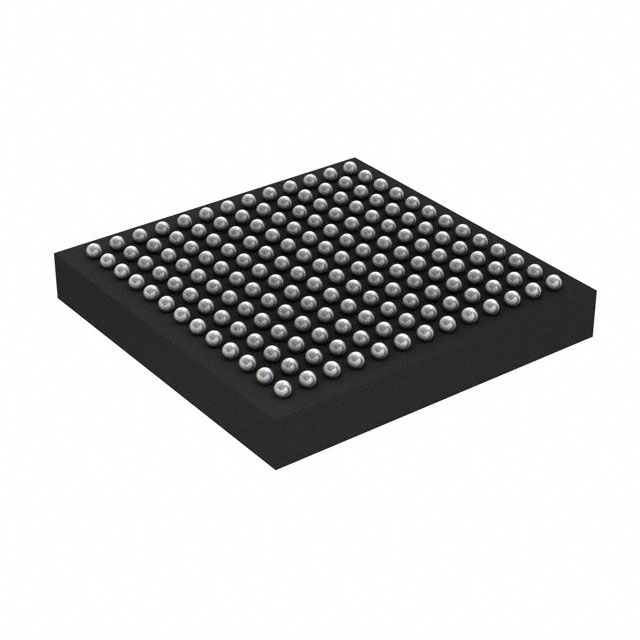

ZAJ PACKAGE
(TOP VIEW)
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
5
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Pin Functions
NAME
AGND (1)
TYPE
Supply
AVDD-3.3
BMODE
Supply
CMOS
PFP
ZAJ
NO.
NO.
21, 40, 43, 50,
61, 62
See DGND
24, 39, 44, 51,
57, 63
74
I/O
M4, F10, H10,
J10, E10
B6
DESCRIPTION
–
Analog circuit ground terminals. These terminals must be tied together to the lowimpedance circuit board ground plane.
–
Analog circuit power terminals. A combination of high-frequency decoupling
capacitors near each terminal is suggested, such as paralleled 0.1 μF and
0.001 μF. Lower frequency 10-μF filtering capacitors are also
recommended. These supply terminals are separated from the PLLVDDCORE, PLLVDD-3.3, DVDD-CORE, and DVDD-3.3 terminals internal to the
device to provide noise isolation. The PLLVDD-3.3, AVDD, and DVDD-3.3
terminals must be tied together with a low dc impedance connection on the
circuit board.
I
Beta-mode input. This terminal determines the PHY-link interface
connection protocol. When logic-high (asserted), the PHY-link interface
complies with the 1394b-2002 B PHY-link interface. When logic-low
(deasserted), the PHY-link interface complies with the legacy 1394a-2000
standard. When using an LLC such as the 1394b-2002 TSB82AA2, this
terminal must be pulled high. When using an LLC such as the 1394a-2000
TSB12LV26, this terminal must be tied low.
NOTE: The PHY-link interface cannot be changed between the different
protocols during operation.
CNA
CMOS
79
A2
O
Cable not active output. This terminal is asserted high when there are no ports
receiving incoming bias voltage. When any port receives bias, this terminal goes low.
CPS
CMOS
34
N9
I
Cable-power status input. This terminal is normally connected to cable
power through a 400-kΩ resistor. This circuit drives an internal comparator
that detects the presence of cable power. This transition from cable power
sensed to cable power not sensed can be used to generate an interrupt to
the LLC.
CTL0
CTL1
CMOS
9
10
F1
G1
I/O
Control I/Os. These bidirectional signals control communication between the
TSB81BA3E and the LLC. Bus holders are built into these terminals.
D0-D7
CMOS
11, 12, 13, 15,
16, 17, 19, 20
H1, H2, J2, J1,
K2, K1, L1, M1
I/O
Data I/Os. These are bidirectional data signals between the TSB82BA3 and
the LLC. Bus holders are built into these terminals.
4, 14, 38, 64,
72, 76
E5, F4, F5, F6,
F7, F9, G4, G5,
G6, G7, G8,
G9, G10, H4,
H5, H6, H7,
H8, J4, J5, J6,
J7, J8, K7, L7
–
Digital circuit ground terminals. These terminals must be tied together to the
low-impedance circuit board ground plane.
I
Data-strobe-only mode for port 0. 1394a-only port 0 enable programming terminal. On
hardware reset, this terminal allows the user to select whether port 0 acts like a 1394b
bilingual port (terminal at logic 0) or as a 1394a-2000-only port (terminal at logic 1).
Programming is accomplished by tying the terminal low through a 1-kΩ or less resistor
(to enable 1394b bilingual mode) or high through a 1-kΩ or less resistor (to enable
1394a-2000-only mode). A bus holder is built into this terminal.
I
Data-strobe-only mode for port 1. 1394a-only port 1 enable programming terminal. On
hardware reset, this terminal allows the user to select whether port 1 acts like a 1394b
bilingual port (terminal at logic 0) or as a 1394a-2000-only port (terminal at logic 1).
Programming is accomplished by tying the terminal low through a 1-kΩ or less resistor
(to enable 1394b bilingual mode) or high through a 1-kΩ or less resistor (to enable
1394a-2000-only mode). A bus holder is built into this terminal.
–
Digital core circuit power terminals. A combination of high-frequency
decoupling capacitors near each terminal is suggested, such as paralleled
0.1 μF and 0.001 μF. An additional 1-μF capacitor is required for voltage
regulation. These supply terminals are separated from the DVDD-3.3,
PLLVDD-CORE, PLLVDD-3.3, and AVDD terminals internal to the device to
provide noise isolation.
DGND (1)
DS0
CMOS
DS1
CMOS
DVDD-CORE
(1)
6
Supply
Supply
33
32
8, 37, 65, 71
N8
M7
D9, K9, D8
All AGND and DGND terminals are internally tied together in the ZAJ package.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Pin Functions (continued)
NAME
TYPE
PFP
ZAJ
NO.
NO.
I/O
DESCRIPTION
DVDD-3.3
Supply
6, 18, 69, 70
E4, K5, K6
–
Digital 3.3-V circuit power terminals. A combination of high-frequency
decoupling capacitors near each terminal is suggested, such as paralleled
0.1 μF and 0.001 μF. Lower-frequency 10-μF filtering capacitors are also
recommended. The DVDD-3.3 terminals must be tied together at a lowimpedance point on the circuit board. These supply terminals are separated
from the PLLVDD-CORE, PLLVDD-3.3, DVDD-CORE, and AVDD terminals
internal to the device to provide noise isolation. The PLLVDD-3.3, AVDD,
and DVDD-3.3 terminals must be tied together with a low dc impedance
connection on the circuit board.
LCLK
CMOS
7
G2
I
Link clock. Link-provided 98.304-MHz clock signal to synchronize data transfers from
link to the PHY when the PHY-link interface is in the 1394b mode. A bus holder is built
into this terminal.
Link-on output/Data-strobe-only input for port 2. This terminal may be
connected to the link-on input terminal of the LLC through a 1-kΩ resistor if
the link-on input is available on the link layer.
Data-strobe-only mode for port 2. 1394a-only port 0 enable programming
terminal. On hardware reset, this terminal allows the user to select whether
port 2 acts like a 1394b bilingual port (terminal at logic 0) or as a 1394a2000-only port (terminal at logic 1). Programming is accomplished by tying
the terminal low through a 1-kΩ or less resistor to enable 1394b bilingual
mode or high through a 1-kΩ or less resistor to enable 1394a-2000-only
mode. A bus holder is built into this terminal.
After hardware reset, this terminal is the link-on output, which notifies the
LLC or other power-up logic to power up and become active. The link-on
output is a square wave signal with a period of approximately 163 ns
(8 PCLK cycles) when active. The link-on output is otherwise driven low,
except during hardware reset when it is high impedance.
LKON/DS2
CMOS
2
D2
I/O
The link-on output is activated if the LLC is inactive (the LPS input inactive
or the LCtrl bit cleared) and when one:
a.
The PHY receives a link-on PHY packet addressed to this node.
b.
The PEI (port-event interrupt) register bit is 1.
c.
Any of the CTOI (configuration-timeout interrupt), CPSI (cable-power-status
interrupt), or STOI (state-time-out interrupt) register bits is 1 and the RPIE
(resuming-port interrupt enable) register bit is also 1.
d.
The PHY is power-cycled and the power class is 0 through 4.
Once activated, the link-on output is active until the LLC becomes active
(both the LPS input active and the LCtrl bit set). The PHY also deasserts
the link-on output when a bus-reset occurs unless the link-on output is
otherwise active because one of the interrupt bits is set (that is, the link-on
output is active due solely to the reception of a link-on PHY packet).
In the case of power-cycling the PHY, the LKON signal must stop after
167 μs if the preceding conditions have not been met.
NOTE: If an interrupt condition exists, which otherwise would cause the linkon output to be activated if the LLC were inactive, then the link-on output is
activated when the LLC subsequently becomes inactive.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
7
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Pin Functions (continued)
NAME
TYPE
PFP
ZAJ
NO.
NO.
I/O
DESCRIPTION
Link power status input. This terminal monitors the active/power status of
the link-layer controller (LLC) and controls the state of the PHY-LLC
interface. This terminal must be connected to either the VDD supplying the
LLC through an approximately 1-kΩ resistor or to a pulsed output that is
active when the LLC is powered. A pulsed signal must be used when an
isolation barrier exists between the LLC and PHY (see Figure 8).
The LPS input is considered inactive if it is sampled low by the PHY for
more than an LPS_RESET time (~2.6 μs), and is considered active
otherwise (that is, asserted steady high or an oscillating signal with a low
time less than 2.6 μs). The LPS input must be high for at least 22 ns to be
observed as high by the PHY.
LPS
CMOS
80
D3
I
When the TSB81BA3E detects that the LPS input is inactive, it places the
PHY-LLC interface into a low-power reset state. In the reset state, the CTL
(CTL0 and CTL1) and D (D0 to D7) outputs are held in the logic 0 state and
the LREQ input is ignored; however, the PCLK output remains active. If the
LPS input remains low for more than an LPS_DISABLE time (~26 μs), then
the PHY-LLC interface is put into a low-power disabled state in which the
PCLK output is also held inactive.
The LLC state that is communicated in the self-ID packet is considered
active only if both the LPS input is active and the LCtrl register bit is set to
1. The LLC state that is communicated in the self-ID packet is considered
inactive if either the LPS input is inactive or the LCtrl register bit is cleared
to 0.
LREQ
PC0
PC1
PC2
CMOS
3
E1
CMOS
66
67
68
C11
A9
B8
I
LLC request input. The LLC uses this input to initiate a service request to
the TSB81BA3E. A bus holder is built into this terminal.
I
Power class programming inputs. On hardware reset, these inputs set the
default value of the power class indicated during self-ID. Programming is
done by tying the terminals high through a 1-kΩ or smaller resistor or by
tying directly to ground through a 1-kΩ or smaller resistor. Bus holders are
built into these terminals.
PCLK
CMOS
5
F2
O
PHY clock. Provides a 98.304-MHz clock signal, synchronized with data
transfers, to the LLC when the PHY-link interface is operating in the 1394b
mode (BMODE asserted). PCLK output provides a 49.152-MHz clock
signal, synchronized with data transfers, to the LLC when the PHY-link
interface is in legacy 1394a-2000 (BMODE input deasserted).
PD
CMOS
77
B3
I
Power-down input. A high on this terminal turns off all internal circuitry
except the cable-active monitor circuits, which control the CNA output.
Asserting the PD input high also activates an internal pulldown on the
RESET terminal to force a reset of the internal control logic.
PINT
CMOS
1
E3
O
PHY interrupt. The PHY uses this output to serially transfer status and
interrupt information to the link when PHY-link interface is in the 1394b
mode. A bus holder is built into this terminal.
PLLGND
Supply
25, 28
F8, N4
–
PLL circuit ground terminals. These terminals must be tied together to the
low-impedance circuit board ground plane.
–
PLL core circuit power terminals. A combination of high-frequency
decoupling capacitors near each terminal is suggested, such as paralleled
0.1 μF and 0.001 μF. An additional 1-μF capacitor is required for voltage
regulation. The PLLVDD-CORE terminals must be separate from the
DVDD-CORE terminals. These supply terminals are separated from the
DVDD-CORE, DVDD-3.
–
PLL 3.3-V circuit power terminal. A combination of high-frequency
decoupling capacitors near the terminal are suggested, such as paralleled
0.1 μF and 0.001 μF. Lower frequency 10-μF filtering capacitors are also
recommended. This supply terminal is separated from the DVDD-CORE,
DVDD-3.3, PLLVDD-CORE, and AVDD-3.3 terminals internal to the device
to provide noise isolation. The DVDD-3.3 terminals must be tied together at
a low-impedance point on the circuit board. The PLLVDD-3.3, AVDD-3.3,
and DVDD-3.3 terminals must be tied together with a low dc impedance
connection.
PLLVDDCORE
PLLVDD-3.3
8
Supply
Supply
29, 30
31
N6
N7
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Pin Functions (continued)
NAME
RESET
TYPE
CMOS
PFP
ZAJ
NO.
NO.
75
A6
I/O
DESCRIPTION
I
Logic reset input. Asserting this terminal low resets the internal logic. An
internal pullup resistor to VDD is provided so only an external delay
capacitor is required for proper power-up operation (see power-up reset in
the Applications Information section).
The RESET terminal also incorporates an internal pulldown, which is
activated when the PD input is asserted high. This input is otherwise a
standard logic input, and can also be driven by an open-drain-type driver.
RSVD
Osc Out
26
M5
O
This terminal must normally be left unconnected. When this terminal is probed, the
terminal shows a 98.304-MHz signal. If this is perceived as an EMI problem, then the
terminal may be pulled to ground through a 10-kΩ resistor. However, this causes an
increase of up to 340 μA in device current consumption.
R0
R1
Bias
23
22
N3
N2
–
Current setting resistor terminals. These terminals are connected to a
precision external resistance to set the internal operating currents and cable
driver output currents. A resistance of 6.34 kΩ, ±1%, is required to meet the
IEEE Std 1394-1995 output voltage limits.
SE
CMOS
35
M10
I
Test control input. This input is used in the manufacturing test of the TSB81BA3E. For
normal use this terminal must be pulled low either through a 1-kΩ resistor to GND or
directly to GND.
SM
CMOS
36
N10
I
Test control input. This input is used in the manufacturing test of the TSB81BA3E. For
normal use this terminal must be pulled low either through a 1-kΩ resistor to GND or
directly to GND.
TESTM
CMOS
78
A3
I
Test control input. This input is used in the manufacturing test of the
TSB81BA3E. For normal use this terminal must be pulled high through a 1kΩ resistor to VDD.
I
Voltage regulator power-down input. When asserted logic high, this pin will powerdown the internal 3.3-V to 1.95-V regulator. For single 3.3-V supply operation, this pin
should be tied to GND. If an external regulator is used to supply the 1.95-V PLLVDDCORE and DVDD-CORE power rails this terminals should be pulled to Vcc through a
1-kΩ resistor to VDD.
VREG_PD
TPA0–
TPA0+
TPB0–
TPB0+
TPA1–
TPA1+
TPB1–
TPB1+
TPA2–
TPA2+
TPB2–
TPB2+
TPBIAS0
TPBIAS1
TPBIAS2
XI
CMOS
73
B7
Cable
45
46
41
42
K13
J13
M13
L13
Cable
52
53
48
49
F13
E13
H13
G13
Cable
58
59
55
56
B13
A13
D13
C13
Cable
Osc In
47
54
60
27
J12
E12
A12
N5
I/O
Port-0 twisted-pair differential-signal terminals. Board traces from each pair
of positive and negative differential signal terminals must be kept matched
and as short as possible to the external load resistors and to the cable
connector. Request the S800 1394b layout recommendations document
from your Texas Instruments representative.
I/O
Port-1 twisted-pair differential-signal terminals. Board traces from each pair
of positive and negative differential signal terminals must be kept matched
and as short as possible to the external load resistors and to the cable
connector. Request the S800 1394b layout recommendations document
from your Texas Instruments representative.
I/O
Port-2 twisted-pair differential-signal terminals. Board traces from each pair
of positive and negative differential signal terminals must be kept matched
and as short as possible to the external load resistors and to the cable
connector. Request the S800 1394b layout recommendations document
from your Texas Instruments representative.
I/O
Twisted-pair bias output and signal detect input. This provides the 1.86-V
nominal bias voltage needed for proper operation of the twisted-pair cable
drivers and receivers, and for signaling to the remote nodes that there is an
active cable connection in 1394a-2000 mode. Each of these terminals,
except for an unused port, must be decoupled with a 1-μF capacitor to
ground. For the unused port, this terminal can be left unconnected. Please
request the S800 1394b layout recommendation documents from your TI
representative.
–
Oscillator input. This terminal connects to a 98.304-MHz low jitter external
oscillator.
The
XI
terminal
is
a
1.8-V
CMOS
input.
Oscillator
jitter
must
be
5
ps
RMS
or
better.
If only 3.3-V oscillators can be acquired, then great care must be taken to
not introduce significant jitter by the means used to level shift from 3.3 V to
1.8 V. If a resistor divider is used, then a high current oscillator and lowvalue resistors must be used to minimize RC time constants. If a levelshifting circuit is used, then it must introduce very little jitter. Please see
layout recommendations document.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
9
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
6 Electrical Specfications
6.1 Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)
Supply voltage range (2)
VDD
(2)
VI
Input voltage range
VO
Output voltage range at any output
MIN
MAX
–0.3
4
V
–0.5
VDD + 0.5
V
–0.5
VDD + 0.5
V
Continuous total power dissipation
TA
Operating free-air temperature
Tstg
Storage temperature range
See Dissipation Ratings Table
TSB81BA3E
0
70
TSB81BA3EI
–40
85
65
150
°C
260
°C
Lead temperature 1.6 mm (1/16 in) from case for 10 s
(1)
(2)
UNIT
°C
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values, except differential I/O bus voltages, are with respect to network ground.
6.2 Thermal Information
TSB81BA3E
THERMAL METRIC (1)
PFP
(HTQFP)
ZJA
(NFBGA)
UNIT
80 PINS
167 PINS
Junction-to-ambient thermal resistance
Low K JEDEC Test Board, 1s (single
signal layer), no air flow
27.2
46.2
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
High K JEDEC Test Board 2s2p (double
signal layer, double buried power plane)
8.9
23.5
°C/W
RθJB
Junction-to-board thermal resistance
Cu Cold Plate Measurement Process
11.1
27.8
°C/W
ψJT
Junction-to-top characterization parameter EIA/JESD 51-8
0.3
0.45
°C/W
ψJB
Junction-to-board characterization
parameter
EIA/JESD 51-2
11.0
27.4
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal
resistance
EIA/JESD 51-6
0.3
N/A
°C/W
RθJA
(1)
10
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
6.3 Recommended Operating Conditions
Source power node
3.3 VDD Supply voltage
Core
VDD
Nonsource power node
Supply voltage
LREQ, CTL0, CTL1, D0-D7, LCLK
VIH
High-level input voltage
MIN
TYP (1)
MAX
3.0
3.3
3.6
3.0 (2)
3.3
3.6
1.85
1.95
2.05
Low-level input voltage
V
V
2.6
LKON/DS2, PC0, PC1, PC2, PD, BMODE
0.7 ×
VDD
RESETz
0.6 ×
VDD
V
LREQ, CTL0, CTL1, D0-D7, LCLK
VIL
UNIT
1.2
LKON/DS2, PC0, PC1, PC2, PD, BMODE
0.2 × VDD
RESETz
0.3 × VDD
V
VOD
1394b Differential output voltage
700
mV
VCM
1394b Common-mode output
voltage
1.5
V
IDD
Supply current in low
power/suspend (3)
IOL/OH
Output current
CTL0, CTL1, D0-D7, CNA, LKON/DS2, PINT, and
PCLK
IO
Output current
TPBIAS outputs
TA
Operating ambient temperature
range
(4)
VD D = 3.3 V
4
mA
VD D = 3 V
3
mA
TSB81BA3E
TJ
Junction temperature
VID
1394b Differential input voltage
TSB81BA3E
VID
1394a Differential input voltage
VIC
1394a Common-mode input
voltage
tpu
Power-up reset time
RESETz input
–4
4
mA
–5.6
1.3
mA
0
70
°C
0
105
°C
Cable inputs, during data reception
200
800
mV
Cable inputs, during data reception
118
260
Cable inputs, during arbitration
168
265
TPB cable inputs, source power node
0.4706
2.515
TPB cable inputs, nonsource power node
0.4706
2.015 (2)
2 (5)
TPA, TPB cable inputs, S100 operation
Receive input jitter
Receive input skew
(1)
(2)
(3)
(4)
(5)
mV
V
ms
±1.08
TPA, TPB cable inputs, S200 operation
±0.5
TPA, TPB cable inputs, S400 operation
±0.315
Between TPA and TPB cable inputs, S100
operation
±0.8
Between TPA and TPB cable inputs, S200
operation
±0.55
Between TPA and TPB cable inputs, S400
operation
±0.5
ns
ns
All typical values are at VDD = 3.3 V and TA = 25°C.
For a node that does not source power, see Section 4.2.2.2 in IEEE 1394a-2000.
The low power/suspend mode assumes that the device is not receiving packets and it is toning.
The junction temperature reflects simulated conditions. The customer is responsible for verifying junction temperature.
Time after valid clock received at PHY XI input terminal.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
11
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
6.4 Electrical Characteristics, Driver
over recommended ranges of operating conditions (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
56 Ω, See Figure 1
TYP
MAX
UNIT
172
265
mV
(1)
(1)
mA
VOD
Differential output voltage
IDIFF
Drivers enabled, speed signaling
Driver difference current, TPA+, TPA–, TPB+, TPB–
off
–1.05
ISP200
Common-mode speed signaling current, TPB+,
TPB–
S200 speed signaling enabled
–4.84 (2)
–2.53 (2)
mA
ISP400
Common-mode speed signaling current, TPB+,
TPB–
S400 speed signaling enabled
–12.4 (2)
–8.1 (2)
mA
VOFF
Off-state differential voltage
Drivers disabled, See Figure 1
20
mV
(1)
(2)
1.05
Limits defined as algebraic sum of TPA+ and TPA– driver currents. Limits also apply to TPB+ and TPB– algebraic sum of driver
currents.
Limits defined as absolute limit of each of TPB+ and TPB– driver currents.
6.5 Electrical Characteristics, Receiver
PARAMETER
ZID
TEST CONDITIONS
Differential impedance
Drivers disabled
ZIC
Common-mode impedance
Drivers disabled
VTH-R
Receiver input threshold voltage
Drivers disabled
VTH-CB
Cable bias detect threshold, TPBx cable inputs
Drivers disabled
VTH+
Positive arbitration comparator threshold
voltage
VTH–
Negative arbitration comparator threshold
voltage
VTH-SP200
Speed signal threshold
VTH-SP400
Speed signal threshold
MIN
TYP
4
7
MAX
UNIT
kΩ
4
pF
20
kΩ
24
pF
–30
30
mV
0.6
1
V
Drivers disabled
89
168
mV
Drivers disabled
–168
–89
mV
49
131
mV
314
396
mV
TYP
MAX
UNIT
120
150
TPBIAS-TPA common-mode voltage,
drivers disabled
6.6 Electrical Characteristics, Device
PARAMETER
TEST CONDITIONS
3.3 VDD
MIN
(1)
IDD
Supply current
VTH
Power status threshold, CPS input (2)
400-kΩ resistor (2)
4.7
VOH
High-level output voltage, CTL0, CTL1, D0-D7, PCLK,
LKON/DS2 outputs
VDD = 3 to 3.6 V,
IOH = 4 mA
2.8
VOL
Low-level output voltage, CTL0, CTL1, D0-D7, PCLK,
LKON/DS2 outputs
IOL = 4 mA
IBH+
Positive peak bus holder current, D0-D7, CTL0-CTL1, LREQ
VDD = 3.6 V,
VI = 0 V to VDD
0.05
1
mA
IBH–
Negative peak bus holder current, D0-D7, CTL0-CTL1,
LREQ
VDD = 3.6 V,
VI = 0 V to VDD
–1.0
–0.05
mA
IOZ
Off-state output current, CTL0, CTL1, D0-D7, LKON/DS2
I/Os
VO = VDD or 0 V
IIRST
Pullup current, RESET input
VI = 1.5 V or 0 V
VO
TPBIAS output voltage
At rated IO current
(1)
(2)
12
Core VDD
79
7.5
mA
V
V
0.4
TSB81BA3E
±5
TSB81BA3EI
±20
V
μA
–90
–20
μA
1.665
2.015
V
Repeat max packet (one port receiving maximum size isochronous packet–8192 bytes, sent on every isochronous interval, S800, data
value of 0xCCCCCCCCh; two ports repeating; all ports with beta-mode connection), VDD3.3 = 3.3 V, V DDCORE = 1.95 V, TA = 25°C.
Measured at cable-power side of resistor.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
6.7 Switching Characteristics
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
tr
TP differential rise time, transmit
10% to 90%,
At 1394 connector
0.5
1.2
ns
tf
TP differential fall time, transmit
90% to 10%,
At 1394 connector
0.5
1.2
ns
tsu
Setup time,
CTL0, CTL1, D1-D7, LREQ to PCLK
1394a-2000 50% to 50%,
See Figure 2
2.5
ns
th
Hold time,
CTL0, CTL1, D1-D7, LREQ after PCLK
1394a-2000 50% to 50%,
See Figure 2
0
ns
tsu
Setup time,
CTL0, CTL1, D1-D7, LREQ to LCLK_PMC
1394b
50% to 50%,
See Figure 2
2.5
ns
th
Hold time,
CTL0, CTL1, D1-D7, LREQ after LCLK_PMC
1394b
50% to 50%,
See Figure 2
0
ns
td
Delay time,
PCLK to CTL0, CTL1, D1-D7, PINT
1394a-2000
50% to 50%,
and 1394b
See Figure 3
0.5
7
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
ns
13
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
7 Parameter Measurement Information
TPAx+
xCLK
TPBx+
tsu
th
56 Ω
Dx, CTLx, LREQ
Figure 2. Dx, CTLx, LREQ Input Setup and Hold Time
Waveforms
TPAx−
TPBx−
Figure 1. Test Load Diagram
xCLK
td
Dx, CTLx
Figure 3. Dx and CTLx Output Delay Relative to xCLK Waveforms
14
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
8 Detailed Description
8.1 Overview
Data bits to be transmitted through the cable ports are received from the LLC on two-, four-, or eight-bit parallel
paths (depending on the requested transmission speed and PHY-link interface mode of operation). They are
latched internally, combined serially, encoded, and transmitted at 98.304, 196.608, 393.216, 491.52, or 983.04
Mbits/s (referred to as S100, S200, S400, S400B, or S800 speed, respectively) as the outbound information
stream.
The PHY-link interface can follow either the IEEE 1394a-2000 protocol or the IEEE 1394b-2002 protocol. When
using a 1394a-2000 LLC such as the TSB12LV26, the BMODE terminal must be deasserted. The PHY-link
interface then operates in accordance with the legacy 1394a-2000 standard. When using a 1394b LLC such as
the TSB82AA2, the BMODE terminal must be asserted. The PHY-link interface then conforms to the P1394b
standard.
The cable interface can follow either the IEEE 1394a-2000 protocol or the 1394b protocol on all ports. The mode
of operation is determined by the interface capabilities of the ports being connected. When any of the three ports
is connected to a 1394a-2000 compliant device, the cable interface on that port operates in the 1394a-2000
data-strobe mode at a compatible S100, S200, or S400 speed. When a bilingual port is connected to a 1394b
compliant node, the cable interface on that port operates per the P1394b standard at S400B or S800 speed. The
TSB81BA3E automatically determines the correct cable interface connection method for the bilingual ports.
NOTE
The BMODE terminal does not select the cable interface mode of operation. The BMODE
terminal selects the PHY-link interface mode of operation and affects the arbitration
modes on the cable. When the BMODE terminal is deasserted, BOSS arbitration is
disabled.
During packet reception the serial data bits are split into two-, four-, or eight-bit parallel streams (depending upon
the indicated receive speed and the PHY-link interface mode of operation), resynchronized to the local system
clock and sent to the associated LLC. The received data is also transmitted (repeated) on the other connected
and active cable ports.
During packet reception the serial data bits are split into two-, four-, or eight-bit parallel streams (depending upon
the indicated receive speed and the PHY-link interface mode of operation), resynchronized to the local system
clock and sent to the associated LLC. The received data is also transmitted (repeated) on the other connected
and active cable ports.
Both the twisted pair A (TPA) and the twisted pair B (TPB) cable interfaces incorporate differential comparators
to monitor the line states during initialization and arbitration when connected to a 1394a-2000 compliant device.
The outputs of these comparators are used by the internal logic to determine the arbitration status. The TPA
channel monitors the incoming cable common-mode voltage. The value of this common-mode voltage is used
during 1394a-mode arbitration and sets the speed of the next packet transmission. In addition, the TPB channel
monitors the incoming cable common-mode voltage on the TPB pair for the presence of the remotely supplied
twisted pair bias (TPBIAS) voltage.
When connected to a 1394a-2000 compliant node, the TSB81BA3E provides a 1.86-V nominal bias voltage at
the TPBIAS terminal for port termination. The PHY contains three independent TPBIAS circuits (one for each
port). This bias voltage, when seen through a cable by a remote receiver, indicates the presence of an active
connection. This bias voltage source must be stabilized by an external filter capacitor of 1 μF.
The line drivers in the TSB81BA3E are designed to work with external 112-Ω termination resistor networks to
match the 110-Ω cable impedance. One termination network is required at each end of a twisted-pair cable. Each
network is composed of a pair of series-connected ~56-Ω resistors. The midpoint of the pair of resistors that are
connected to the TPA terminals is connected to its corresponding TPBIAS voltage terminal. The midpoint of the
pair of resistors that are directly connected to the TPB terminals is coupled to ground through a parallel RC
network with recommended values of 5 kΩ and 270 pF. The values of the external line-termination resistors are
designed to meet the standard specifications when connected in parallel with the internal receiver circuits. A
precision external resistor connected between the R0 and R1 terminals sets the driver output current, along with
other internal operating currents.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
15
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Overview (continued)
When the power supply of the TSB81BA3E is off while the twisted-pair cables are connected, the TSB81BA3E
transmitter and receiver circuitry present a high-impedance signal to the cable that does not load the device at
the other end of the cable.
When the TSB81BA3E is used without one or more of the ports brought out to a connector, the twisted-pair
terminals of the unused ports must be terminated for reliable operation. For each unused port, the port must be
forced to the 1394a-only mode (Data-Strobe-only mode), then the TPB+ and TPB– terminals can be tied together
and then pulled to ground; or the TPB+ and TPB– terminals can be connected to the suggested normal
termination network. The TPA+ and TPA– terminals of an unused port can be left unconnected. The TPBIAS
terminal can be connected to a 1-μF capacitor to ground or left unconnected.
To operate a port as a 1394b bilingual port, the force data-strobe-only terminal for the port (DS0, DS1, or DS2)
needs to be pulled to ground through a 1-kΩ resistor. The port must be operated in the 1394b bilingual mode
whenever a 1394b bilingual or a 1394b beta-only connector is connected to the port. To operate the port as a
1394a-only port, the force data-strobe-only terminal (DS0, DS1, or DS2) needs to be pulled to 3.3 V VCC through
a 1-kΩ resistor. The only time the port must be forced to the data-strobe-only mode is if the port is connected to
a 1394a connector (either 6 pin, which is recommended, or 4 pin). This mode is provided to ensure that 1394b
Signaling is never sent across a 1394a cable.
The TESTM, VREG_PD, SE, and SM terminals are used to set up various manufacturing test conditions. For
normal operation, the TESTM and VREG_PD terminals must be connected to VDD through a 1-kΩ resistor. The
SE and SM terminals must be tied to ground through a 1-kΩ resistor.
Three package terminals are used as inputs to set the default value for three configuration status bits in the selfID packet. They may be pulled high through a 1-kΩ resistor or hardwired low as a function of the equipment
design. The PC0, PC1, and PC2 terminals indicate the default power class status for the node (the need for
power from the cable or the ability to supply power to the cable). The contender bit in the PHY register set
indicates that the node is a contender either for the isochronous resource manager (IRM) or for the bus manager
(BM). On the TSB81BA3E, this bit may only be set by a write to the PHY register set. If a node desires to be a
contender for IRM or BM, then the node software must set this bit in the PHY register set.
The LPS (link power status) terminal works with the LKON/DS2 terminal to manage the power usage in the node.
The LPS signal from the LLC is used with the LCtrl bit (see Table 4 and Table 5 in the Application Information
section) to indicate the active/power status of the LLC. The LPS signal also resets, disables, and initializes the
PHY-LLC interface (the state of the PHY-LCC interface is controlled solely by the LPS input regardless of the
state of the LCtrl bit).
The LPS input is considered inactive if it remains low for more than the LPS_RESET time (see the LPS terminal
definition) and is considered active otherwise. When the TSB81BA3E detects that the LPS input is inactive, the
PHY-LLC interface is placed into a low-power reset state in which the CTL and D outputs are held in the logic 0
state and the LREQ input is ignored; however, the PCLK output remains active. If the LPS input remains low for
more than the LPS_DISABLE time (see the LPS terminal definition), then the PHY-LLC interface is put into a
low-power disabled state in which the PCLK output is also held inactive. The TSB81BA3E continues the
necessary repeater functions required for normal network operation regardless of the state of the PHY-LLC
interface. When the interface is in the reset or disabled state and the LPS input is again observed active, the
PHY initializes the interface and returns to normal operation. The PHY-LLC interface is also held in the disabled
state during hardware reset. When the LPS terminal is returned to an active state after being sensed as having
entered the LPS_DISABLE time, the TSB81BA3E issues a bus reset. This broadcasts the node self-ID packet,
which contains the updated L bit state (the PHY LLC now being accessible).
The PHY uses the LKON/DS2 terminal to notify the LLC to power up and become active. When activated, the
output LKON/DS2 signal is a square wave. The PHY activates the LKON/DS2 output when the LLC is inactive
and a wake-up event occurs. The LLC is considered inactive when either the LPS input is inactive, as described
above, or the LCtrl bit is cleared to 0. A wake-up event occurs when a link-on PHY packet addressed to this
node is received, or conditionally when a PHY interrupt occurs. The PHY deasserts the LKON/DS2 output when
the LLC becomes active (both LPS sensed as active and the LCtrl bit set to 1). The PHY also deasserts the
LKON/DS2 output when a bus reset occurs, unless a PHY interrupt condition exists, which would otherwise
cause LKON/DS2 to be active. If the PHY is power cycled and the power class is 0 through 4, then the PHY
asserts LKON/DS2 for approximately 167 μs or until both the LPS is active and the LCTRL bit is 1.
16
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
8.2 Functional Block Diagram
R0
CPS
LPS
Bias Voltage
and
Current
Generator
Received Data
Decoder/Retimer
CNA
PINT
PCLK
R1
TPBIAS0
TPBIAS1
TPBIAS2
LCLK
LREQ
CTL0
CTL1
D0
Link
Interface
I/O
TPA0+
TPA0-
D1
D2
D3
D4
Bilingual
Cable Port 0
D5
D6
TPB0+
D7
TPB0Arbitration
and Control
State Machine
Logic
RESETz
LKON/DS2
BMODE
PD
TPA1+
PC0
Bilingual
Cable Port 1
PC1
TPA1-
PC2
TPB1+
SE
TPB1-
SM
TPA2+
DS0
TPA2-
DS1
Bilingual
Cable Port 2
TESTM
VREG_PD
TPB2+
TPB2-
Crystal Oscillator,
PLL System,
and Transmit
Clock Generator
Voltage
Regulator
XI
Transmit
Data
Encoder
8.3 Feature Description
8.3.1 TTL Input Data
The data inputs to the transmitter come from the graphics processor and consist of up to 24 bits of video
information, a horizontal synchronization bit, a vertical synchronization bit, an enable bit, and a spare bit. The
data can be loaded into the registers upon either the rising or falling edge of the input clock selectable by the
CLKSEL pin. Data inputs are 1.8 V to 3.3 V tolerant for the TSB81BA3E and can connect directly to low-power,
low-voltage application and graphic processors. The bit mapping is listed in Table 1.
Table 1. Pixel Bit Ordering
LSB
4-bit MSB
RED
GREEN
BLUE
R0
G0
B0
R1
G1
B1
R2
G2
B2
R3
G3
B3
R4
G4
B4
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
17
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Feature Description (continued)
Table 1. Pixel Bit Ordering (continued)
RED
GREEN
BLUE
R5
G5
B5
R6
G6
B6
R7
G7
B7
6-bit MSB
8-bit MSB
8.3.2 LVDS Output Data
The pixel data assignment is listed in Table 2 for 24-bit, 18-bit, and 12-bit color hosts.
Table 2. Pixel Data Assignment
SERIAL
CHANNEL
Y0
Y1
Y2
Y3
CLKOUT
18
8-BIT
DATA BITS
6-BIT
4-BIT
NON-LINEAR STEP LINEAR STEP
SIZE
SIZE
FORMAT-1
FORMAT-2
FORMAT-3
D0
R0D27
R2
R2
R0
R2
VCC
D1
R1
R3
R3
R1
R3
GND
D2
R2
R4
R4
R2
R0
R0
D3
R3
R5
R5
R3
R1
R1
D4
R4
R6
R6
R4
R2
R2
D6
R5
R7
R7
R5
R3
R3
D7
G0
G2
G2
G0
G2
VCC
D8
G1
G3
G3
G1
G3
GND
D9
G2
G4
G4
G2
G0
G0
D12
G3
G5
G5
G3
G1
G1
D13
G4
G6
G6
G4
G2
G2
D14
G5
G7
G7
G5
G3
G3
D15
B0
B2
B2
B0
B2
VCC
D18
B1
B3
B3
B1
B3
GND
D19
B2
B4
B4
B2
B0
B0
D20
B3
B5
B5
B3
B1
B1
D21
B4
B6
B6
B4
B2
B2
D22
B5
B7
B7
B5
B3
B3
D24
HSYNC
HSYNC
HSYNC
HSYNC
HSYNC
HSYNC
D25
VSYNC
VSYNC
VSYNC
VSYNC
VSYNC
VSYNC
D26
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
D27
R6
R0
GND
GND
GND
GND
D5
R7
R1
GND
GND
GND
GND
D10
G6
G0
GND
GND
GND
GND
D11
G7
G1
GND
GND
GND
GND
D16
B6
B0
GND
GND
GND
GND
D17
B7
B1
GND
GND
GND
GND
D23
RSVD
RSVD
GND
GND
GND
GND
CLKIN
CLK
CLK
CLK
CLK
CLK
CLK
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
8.4 Device Functional Modes
8.4.1 Input Clock Edge
The transmission of data bits D0 through D27 occurs as each are loaded into registers upon the edge of the
CLKIN signal, where the rising or falling edge of the clock may be selected via CLKSEL. The selection of a clock
rising edge occurs by inputting a high level to CLKSEL, which is achieved by populating pull-up resistor to pull
CLKSEL=high. Inputting a low level to select a clock falling edge is achieved by directly connecting CLKSEL to
GND.
8.4.2 Low Power Mode
The TSB81BA3E can be put in low-power consumption mode by active-low input SHTDN#. Connecting pin
SHTDN# to GND will inhibit the clock and shut off the LVDS output drivers for lower power consumption. A lowlevel on this signal clears all internal registers to a low-level. Populate a pull-up to VCC on SHTDN# to enable
the device for normal operation.
8.4.3 1394b Port Interface Considerations
The TSB81BA3E has three 1394b cable ports that can operate at 100, 200, 400, or 800 Mbps. These ports are
compliant with the IEEE Std 1394b-2002, standard. This section describes implementation considerations for the
TSB81BA3E’s 1394b cable ports.
• The cable not active (CNA) terminal is an output that reflects the state of the incoming 1394b cable port bias
voltage. If no cable bias voltage is detected by the TSB81BA3E, then this output is asserted high. If the CNA
terminal is not used, then it must be connected to GND through a 43-kΩ resistor.
• The cable power status (CPS) terminal is an input that drives an internal comparator for the purpose of
detecting the presence of 1394b cable power. Normally, terminal CPS is connected to the 1394b cable power
source through a 390-kΩ resistor. However, if this detection feature is not used, then CPS should be
connected directly to GND.
• PC2, PC1, and PC0 are the power class programming inputs. These inputs are loaded into the power class
field in the 1394b PHY base configuration registers. Since the binary value associated with the power class
field is implementation specific, the system designer must reference the 1394b power class description table
in the TSB81BA3E Data Manual to determine the appropriate PC2:0 input levels. Each terminal is connected
to either GND or VDD_33 to specify the appropriate power class binary value. This connection may either be
direct or through a weak resistor.
• Terminals R0 and R1 are provided to set the operating current of the cable driver. A 6.34-kΩ ±1% resistor is
required to meet the IEEE Std. output voltage limits. One side of the resistor is connected to the R0 terminal
and the other side of the resistor to the R1 terminal. Signal traces must be short to minimize noise coupling
into the two terminals.
• TPAxP, TPAxN, TPBxP, TPBxN, and TPBIASx comprise the five major terminals associated with 1394b PHY
port (Where x = Port#). TPAxP and TPAxN are the cable-A differential signals. TPBxP and TPBxN are the
cable-B differential signals. TPBIASx provides the 1.86-V nominal bias required for proper 1394a
driver/receiver operation and for active cable connection signaling to the remote node. The 1394b TPA and
TPB differential pairs must follow the same routing guidelines as the PCI Express TX and RX differential pairs
except for the differential impedance requirement of 110 ohms. For an unused port, all five terminals can be
left as no connects. See the attached schematics for external circuit recommendations between the
TSB81BA3E and 1394b cable connector.
• The TSB81BA3E is designed to use an external 98.304-MHz crystal oscillator connected to the XI terminal to
provide the reference clock. This clock, in turn, drives a PLL circuit that generates the various clocks required
for transmission and resynchronization of data at the S100 through S800 media data rates.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
19
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
8.5 Programming
8.5.1 Power-Class
The PC0-PC2 terminals are programmed to set the default value of the power-class indicated in the pwr field
(bits 21−23) of the transmitted self-ID packet. Descriptions of the various power-classes are given in Table 3.
The default power-class value is loaded following a hardware reset, but is overridden by any value subsequently
loaded into the Pwr_Class field in register 4.
Table 3. Power-Class Descriptions
PC0-PC2
DESCRIPTION
000
Node does not need power and does not repeat power
001
Node is self-powered and provides a minimum of 15 W to the bus.
010
Node is self-powered and provides a minimum of 30 W to the bus.
011
Node is self-powered and provides a minimum of 45 W to the bus.
100
Node can be powered from the bus and is using up to 3 W; no additional power is needed to enable the link. The node
can also provide power to the bus. The amount of bus power that it provides can be found in the configuration ROM.
101
Reserved for future standardization.
110
Node is powered from the bus and uses up to 3 W. An additional 3 W is needed to enable the link.
111
Node is powered from the bus and uses up to 3 W. An additional 7 W is needed to enable the link.
Outer Shield
Termination
TSB81BA3E
400 kΩ
CPS
VP
1 µF
TPBIAS
56 Ω
Cable
Power
Pair
56 Ω
270 pF
TPA+
Cable
Pair
A
TPA-
1 MΩ
0.1 µF
TPA_REFGND
Cable Port
TPB+
Cable
Pair
B
TPB56 Ω
270 pF
(see Note A)
56 Ω
TPB_REFGND
VG
5 kΩ
NOTE A: The IEEE Std 1394- 1995 calls for a 250-pF capacitor, which is a nonstandard component value. A 270-pF capacitor is recommended.
Figure 4. Typical TP Cable Connections
20
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Outer Cable Shield
0.001 µF
0.01 µF
1 MΩ
Chassis Ground
Figure 5. Typical DC-Isolated Outer Shield Termination
Outer Cable Shield
Chassis Ground
Figure 6. Non-DC-Isolated Outer Shield Termination
10 kΩ
Link Power
LPS
Square-Wave Input
LPS
10 kΩ
Figure 7. Nonisolated Connection Variations for LPS
PHY VDD
18 kΩ
LPS
Square-Wave Signal
0.033 mF
13 kΩ
PHY GND
Figure 8. Isolated Circuit Connection for LPS
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
21
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
8.6 Register Maps
8.6.1 Internal Register Configuration
There are 16 accessible internal registers in the TSB81BA3E. The configuration of the registers at addresses 0h
through 7h (the base registers) is fixed, while the configuration of the registers at addresses 8h through Fh (the
paged registers) is dependent upon which 1 of 8 pages, numbered 0h through 7h, is currently selected. The
selected page is set in base register 7h. Note that while this register set is compatible with 1394a--2000 register
sets, some fields have been redefined and this register set contains additional fields.
Table 4 shows the configuration of the base registers, and Table 5 gives the corresponding field descriptions.
The base register field definitions are unaffected by the selected page number.
A reserved register or register field (marked as Reserved or Rsvd in the following register configuration tables) is
read as 0, but is subject to future usage. All registers in address pages 2 through 6 are reserved.
Table 4. Base Register Configuration
BIT POSITION
ADDRESS
0
1
2
0000
0001
3
4
5
Physical ID
RHB
0010
IBR
7
CPS
Gap_Count
Extended (111b)
0011
6
R
Num_Ports (0011b)
PHY_Speed (111b)
0100
LCtrl
C
0101
WDIE
ISBR
SREN
Delay (1111b)
Jitter (000b)
CTOI
CPSI
0110
Max Legacy SPD
BLINK
0111
Page_Select
Rsvd
Pwr_Class
STOI
PEI
EAA
Bridge
EMC
Rsvd
Port_Select
Table 5. Base Register Field Descriptions
FIELD
SIZE
TYPE
DESCRIPTION
Physical ID
6
Rd
This field contains the physical address ID of this node determined during self-ID. The physical-ID is
invalid after a bus reset until the self-ID has completed as indicated by an unsolicited register 0
status transfer from the PHY to the LLC.
R
1
Rd
Root. This bit indicates that this node is the root node. The R bit is reset to 0 by bus reset, and is
set to 1 during tree-ID if this node becomes root.
CPS
1
Rd
Cable-power status. This bit indicates the state of the CPS input terminal. The CPS terminal is
normally tied to serial bus cable power through a 400-kΩ resistor. A 0 in this bit indicates that the
cable-power voltage has dropped below its threshold for ensured reliable operation.
RHB
1
Rd/Wr
Root-holdoff bit. This bit instructs the PHY to attempt to become root after the next bus reset. The
RHB bit is reset to 0 by a hardware reset and is unaffected by a bus reset. If two nodes on a single
bus have their root holdoff bit set, then the result is not defined. To prevent two nodes from having
their root-holdoff bit set, this bit must only be written using a PHY configuration packet.
Rd/Wr
Initiate bus reset. This bit instructs the PHY to initiate a long (166-μs) bus reset at the next
opportunity. Any receive or transmit operation in progress when this bit is set completes before the
bus reset is initiated. The IBR bit is reset to 0 after a hardware reset or a bus reset. Care must be
exercised when writing to this bit to not change the other bits in this register. It is recommended that
whenever possible a bus reset be initiated using the ISBR bit and not the IBR bit.
Arbitration gap count. This value sets the subaction (fair) gap, arb-reset gap, and arb-delay times.
The gap count can be set either by a write to the register, or by reception or transmission of a
PHY_CONFIG packet. The gap count is reset to 3Fh by hardware reset or after two consecutive
bus resets without an intervening write to the gap count register (either by a write to the PHY
register or by a PHY_CONFIG packet). It is strongly recommended that this field only be
changed using PHY configuration packets.
IBR
1
Gap_Count
6
Rd/Wr
Extended
3
Rd
Extended register definition. For the TSB81BA3E, this field is 111b, indicating that the extended
register set is implemented.
Num_Ports
4
Rd
Number of ports. For the TSB81BA3E, this field indicates the number of ports implemented in the
PHY. This field is 3.
PHY_Speed
3
Rd
PHY speed capability. For the TSB81BA3E, this field is no longer used. This field is 111b. Speeds
for 1394b PHYs must be checked on a port-by-port basis.
22
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Table 5. Base Register Field Descriptions (continued)
FIELD
Delay
SIZE
4
TYPE
Rd
DESCRIPTION
PHY repeater data delay. This field indicates the worst-case repeater data delay of the PHY,
expressed as 144+ (delay × 20) ns. For the TSB81BA3E, this field is 02h.
This value is the repeater delay for the S400B case, which is slower than the S800B or 1394a
cases. Since the IEEE 1394B−2002 Std Phy register set only has a single field for the delay
parameter, the slowest value is used. If a network uses only S800B or 1394a connections, then a
delay value of 00h may be used. The worst case Phy repeater delay is 197 ns for S400B and 127
ns for S800B cable speeds (trained, raw bit speed).
Link-active status control. This bit controls the indicated active status of the LLC reported in the selfID packet. The logical AND of this bit and the LPS active status is replicated in the L field (bit 9) of
the self-ID packet. The LLC bit in the node self-ID packet is set active only if both the LPS input is
active and the LCtrl bit is set.
LCtrl
1
Rd/Wr
The LCtrl bit provides a software-controllable means to indicate the LLC self-ID active status in lieu
of using the LPS input terminal.
The LCtrl bit is set to 1 by hardware reset and is unaffected by bus reset.
NOTE: The state of the PHY-LLC interface is controlled solely by the LPS input, regardless of the
state of the LCtrl bit. If the PHY-LLC interface is operational as determined by the LPS input being
active, then received packets and status information continue to be presented on the interface, and
any requests indicated on the LREQ input are processed, even if the LCtrl bit is cleared to 0.
Contender status. This bit indicates that this node is a contender for the bus or isochronous
resource manager. This bit is replicated in the c field (bit 20) of the self-ID packet. This bit is set to 0
on hardware reset. After hardware reset, this bit can only be set via a software register write. This
bit is unaffected by a bus reset.
C
1
Rd/Wr
Jitter
3
Rd
Pwr_Class
3
Rd/Wr
Node power class. This field indicates this node power consumption and source characteristics and
is replicated in the pwr field (bits 21–23) of the self-ID packet. This field is reset to the state
specified by the PC0-PC2 input terminals upon a hardware reset, and is unaffected by a bus reset.
See Table 3.
WDIE
1
Rd/Wr
Watchdog interrupt enable. This bit, if set to 1, enables the port event interrupt (PIE) bit to be set
when resume operations begin on any port, or when any of the CTOI, CPSI, or STOI interrupt bits
are set and the link interface is nonoperational. This bit is reset to 0 by hardware reset and is
unaffected by bus reset.
ISBR
1
Rd/Wr
PHY repeater jitter. This field indicates the worst-case difference between the fastest and slowest
repeater data delay, expressed as (jitter+1) × 20 ns. For the TSB81BA3E, this field is 0.
Initiate short arbitrated bus reset. This bit, if set to 1, instructs the PHY to initiate a short (1.3 μs)
arbitrated bus reset at the next opportunity. This bit is reset to 0 by a bus reset. It is recommended
that short bus reset is the only reset type initiated by software. IEC 61883-6 requires that a node
initiate short bus resets to minimize any disturbance to an audio stream.
NOTE: Legacy IEEE Std 1394-1995-compliant PHYs are not capable of performing short bus
resets. Therefore, initiation of a short bus reset in a network that contains such a legacy device
results in a long bus reset being performed.
Configuration time-out interrupt. This bit is set to 1 when the arbitration controller times out during
tree-ID start and might indicate that the bus is configured in a loop. This bit is reset to 0 by
hardware reset or by writing a 1 to this register bit.
CTOI
1
Rd/Wr
If the CTOI and WDIE bits are both set and the LLC is or becomes inactive, then the PHY activates
the LKON/DS2 output to notify the LLC to service the interrupt.
NOTE: If the network is configured in a loop, then only those nodes that are part of the loop
generate a configuration time-out interrupt. All other nodes instead time out waiting for the tree-ID
and/or self-ID process to complete and then generate a state time-out interrupt and bus reset. This
bit is only set when the bus topology includes 1394a nodes; otherwise, 1394b loop healing prevents
loops from being formed in the topology.
CPSI
1
Rd/Wr
Cable power status interrupt. This bit is set to 1 when the CPS input transitions from high to low,
indicating that cable power might be too low for reliable operation. This bit is reset to 1 by hardware
reset. It can be cleared by writing a 1 to this register bit.
If the CPSI and WDIE bits are both set and the LLC is or becomes inactive, then the PHY activates
the LKON/DS2 output to notify the LLC to service the interrupt.
STOI
1
Rd/Wr
State time-out interrupt. This bit indicates that a state time-out has occurred (which also causes a
bus reset to occur). This bit is reset to 0 by hardware reset or by writing a 1 to this register bit.
If the STOI and WDIE bits are both set and the LLC is or becomes inactive, then the PHY activates
the LKON/DS2 output to notify the LLC to service the interrupt.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
23
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Table 5. Base Register Field Descriptions (continued)
FIELD
SIZE
PEI
1
TYPE
Rd/Wr
DESCRIPTION
Port event interrupt. This bit is set to 1 on any change in the connected, bias, disabled, or fault bits
for any port for which the port interrupt enable (PEI) bit is set. Additionally, if the resuming port
interrupt enable (WDIE) bit is set, then the PEI bit is set to 1 at the start of resume operations on
any port. This bit is reset to 0 by hardware reset, or by writing a 1 to this register bit.
Enable accelerated arbitration. This bit enables the PHY to perform the various arbitration
acceleration enhancements defined in 1394a-2000 (ACK-accelerated arbitration, asynchronous flyby concatenation, and isochronous fly-by concatenation). This bit is reset to 0 by hardware reset
and is unaffected by bus reset. This bit has no effect when the device is operating in 1394b mode.
EAA
1
EMC
Rd/Wr
1
Rd/Wr
NOTE: The use of accelerated arbitration is completely compatible with networks containing legacy
IEEE Std 1394-1995 PHYs. The EAA bit is set only if the attached LLC is 1394a-2000-compliant. If
the LLC is not 1394a-2000 or 1394b-2002-compliant, then the use of the arbitration acceleration
enhancements can interfere with isochronous traffic by excessively delaying the transmission of
cycle-start packets.
Enable multispeed concatenated packets. This bit enables the PHY to transmit concatenated
packets of differing speeds in accordance with the protocols defined in 1394a-2000. This bit is reset
to 0 by hardware reset and is unaffected by bus reset. This bit has no effect when the device is
operating in 1394b mode.
NOTE: The use of multispeed concatenation is completely compatible with networks containing
legacy IEEE Std 1394-1995 PHYs. However, use of multispeed concatenation requires that the
attached LLC be 1394a-2000 or 1394b-2002-compliant.
Max Legacy SPD
3
Rd
Maximum legacy-path speed. This field holds the maximum speed capability of any legacy node
(1394a-2000 or 1394-1995-compliant) as indicated in the self-ID packets received during bus
initialization. Encoding is the same as for the PHY_SPEED field (but limited to S400 maximum).
BLINK
1
Rd
Beta-mode link. This bit indicates that a Beta-mode-capable link is attached to the PHY. This bit is
set by the BMODE input terminal on the TSB81BA3E.
Bridge
2
Rd/Wr
This field controls the value of the bridge (brdg) field in self-ID packet. The power reset value is 0.
Details for when to set these bits are specified in the IEEE 1394.1 bridging specification.
Page_Select
3
Rd/Wr
Page_Select. This field selects the register page to use when accessing register addresses 8
through 15. This field is reset to 0 by a hardware reset and is unaffected by bus reset.
Port_Select
4
Rd/Wr
Port_Select. This field selects the port when accessing per-port status or control (for example, when
one of the port status/control registers is accessed in page 0). Ports are numbered starting at 0.
This field is reset to 0 by hardware reset and is unaffected by bus reset.
The port status page provides access to configuration and status information for each of the ports. The port is
selected by writing 0 to the Page_Select field and the desired port number to the Port_Select field in base
register 7. Table 6 shows the configuration of the port status page registers, and Table 7 gives the corresponding
field descriptions. If the selected port is unimplemented, then all registers in the port status page are read as 0.
Table 6. Page 0 (Port Status) Register Configuration
ADDRESS
1000
1001
BIT POSITION
0
1
2
Astat
Bstat
Negotiated_speed
PIE
4
5
6
7
Ch
Con
RxOK
Dis
Fault
Standby_fault
Disscrm
B_Only (0)
1010
DC_connected
Max_port_speed
LPP
Cable_speed
1011
Connection_unreliable
Reserved
Beta_mode
Reserved
1100
1101
24
3
Port_error
Reserved
Loop_disable
1110
Reserved
1111
Reserved
Submit Documentation Feedback
In_standby
Hard_disable
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Table 7. Page 0 (Port Status) Register Field Descriptions
FIELD
SIZE
TYPE
DESCRIPTION
TPA line state. This field indicates the instantaneous TPA line state of the selected port, encoded as
follows:
Code
Astat
2
Rd
Arb Value
11
Z
01
1
10
0
00
invalid
Bstat
2
Rd
TPB line state. This field indicates the TPB line state of the selected port. This field has the same
encoding as the Astat field.
Ch
1
Rd
Child/parent status. A 1 indicates that the selected port is a child port. A 0 indicates that the selected
port is the parent port. A disconnected, disabled, or suspended port is reported as a child port. The
Ch bit is invalid after a bus reset until tree-ID has completed.
Con
1
Rd
Debounced port connection status. This bit indicates that the selected port is connected. The
connection must be stable for the debounce time of approximately 341 ms for the Con bit to be set to
1. The Con bit is reset to 0 by hardware reset and is unaffected by bus reset.
NOTE: The Con bit indicates that the port is physically connected to a peer PHY, but this does not
mean that the port is necessarily active. For 1394b-coupled connections, the Con bit is set when a
port detects connection tones from the peer PHY and operating-speed negotiation is completed.
RxOK
1
Rd
Receive OK. In 1394a-2000 mode this bit indicates the reception of a debounced TPBias signal. In
Beta mode, this bit indicates the reception of a continuous electrically valid signal.
Note: RxOK is set to false during the time that only connection tones are detected in Beta mode.
Dis
1
Rd/Wr
Port disabled control. If this bit is 1, then the selected port is disabled. The Dis bit is reset to 0 by
hardware reset (all ports are enabled for normal operation following hardware reset). The Dis bit is not
affected by bus reset. When this bit is set, the port cannot become active; however, the port still
tones, but does not establish an active connection.
Negotiated_speed
3
Rd
Indicates the maximum speed negotiated between this PHY port and its immediately connected port.
The encoding is as for Max_port_speed. It is set during connection when in Beta mode or to a value
established during self-ID when in 1394a-2000 mode.
PIE
1
Rd/Wr
Port-event-interrupt enable. When this bit is 1, a port event on the selected port sets the port-eventinterrupt (PEI) bit and notifies the link. This bit is reset to 0 by a hardware reset and is unaffected by
bus reset.
Fault
1
Rd/Wr
Fault. This bit indicates that a resume fault or suspend fault has occurred on the selected port, and
that the port is in the suspended state. A resume-fault occurs when a resuming port fails to detect
incoming cable bias from its attached peer. A suspend fault occurs when a suspending port continues
to detect incoming cable bias from its attached peer. Writing 1 to this bit clears the Fault bit to 0. This
bit is reset to 0 by hardware reset and is unaffected by bus reset.
Standby_fault
1
Rd/Wr
This bit is set to 1 if an error is detected during a standby operation and cleared on exit from the
standby state. A write of 1 to this bit or receipt of the appropriate remote command packet clears it to
0. When this bit is cleared, standby errors are cleared.
Disscrm
1
Rd/Wr
Disable scrambler. If this bit is set to 1, then the data sent during packet transmission is not
scrambled.
B_Only
1
Rd
Beta-mode operation only. For the TSB81BA3E, this bit is set to 0 for all ports.
DC_connected
1
Rd
If this bit is set to 1, the port has detected a dc connection to the peer port by means of a 1394a-style
connect-detect circuit.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
25
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Table 7. Page 0 (Port Status) Register Field Descriptions (continued)
FIELD
SIZE
TYPE
DESCRIPTION
Max_port_speed
Max_port_speed
3
Rd/Wr
The maximum speed at which a port is allowed to operate in Beta mode. The encoding is:
000 = S100
001 = S200
010 = S400
011 = S800
100 = S1600
101 = S3200
110 = reserved
111 = reserved
An attempt to write to the register with a value greater than the hardware capability of the port results
in the maximum value that the port is capable of being stored in the register. The port uses this
register only when a new connection is established in the Beta mode or when a port is programmed
as a Beta-only port. When a port is programmed as a bilingual port, it is fixed at S400 for the Beta
speed and is not updated by a write to this register. The power reset value is the maximum speed
capable of the port. Software can modify this value to force a port to train at a lower-than-maximum
speed (when in a Beta-only mode), but no lower than the minimum speed.
LPP(Local_plug_
present)
1
Rd
This flag is set permanently to 1.
Cable_speed
3
Rd
This variable is set to the maximum speed that the port is capable of. The encoding is the same as for
Max_port_speed.
Connection_
unreliable
1
Rd/Wr
If this bit is set to 1, then a Beta-mode speed negotiation has failed or synchronization has failed. A
write of 1 to this field resets the value to 0.
Beta_mode
1
Rd
Operating in Beta mode. If this bit is 1, the port is operating in Beta mode; it is equal to 0 otherwise
(that is, when operating in 1394a-2000 mode, or when disconnected). If Con is 1, RxOK is 1, and
Beta_mode is 0, then the port is active and operating in the 1394a-2000 mode.
Port_error
8
Rd/Wr
Incremented when the port receives an invalid codeword, unless the value is already 255. Cleared
when read (including being read by means of a remote access packet). Intended for use by a single
bus-wide diagnostic program.
Loop_disable
1
Rd
This bit is set to 1 if the port has been placed in the loop-disable state as part of the loop-free build
process (the PHYs at either end of the connection are active, but if the connection itself were
activated, then a loop would exist). Cleared on bus reset and on disconnection.
In_standby
1
Rd
This bit is set to 1 if the port is in standby power-management state.
Rd/Wr
No effect unless the port is disabled. If this bit is set to 1, the port does not maintain connectivity
status on an ac connection when disabled. The values of the Con and RxOK bits are forced to 0. This
flag can be used to force renegotiation of the speed of a connection. It can also be used to place the
device into a lower-power state because when hard-disabled, a port no longer tones to maintain
1394b ac-connectivity status.
Hard_disable
1
The vendor identification page identifies the vendor/manufacturer and compliance level. The page is selected by
writing 1 to the Page_Select field in base register 7. Table 8 shows the configuration of the vendor identification
page, and Table 9 shows the corresponding field descriptions.
26
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Table 8. Page 1 (Vendor ID) Register Configuration
BIT POSITION
ADDRESS
0
1
2
3
1000
4
5
6
7
Compliance
1001
Reserved
1010
Vendor_ID0
1011
Vendor_ID1
1100
Vendor_ID2
1101
Product_ID0
1110
Product_ID1
1111
Product_ID2
Table 9. Page 1 (Vendor ID) Register Field Descriptions
FIELD
SIZE
TYPE
DESCRIPTION
Compliance
8
Rd
Compliance level. For the TSB81BA3E, this field is 02h, indicating compliance with the 1394b-2002
specification.
Vendor_ID
24
Rd
Manufacturer's organizationally unique identifier (OUI). For the TSB81BA3E, this field is 08_00_28h
(Texas Instruments) (the MSB is at register address 1010b).
Product_ID
24
Rd
Product identifier. For the TSB81BA3E, this field can be either 83_13_07h (the MSB is at register
address 1101b).
The vendor-dependent page provides access to the special control features of the TSB81BA3E, as well as
configuration and status information used in manufacturing test and debug. This page is selected by writing 7 to
the Page_Select field in base register 7. Table 10 shows the configuration of the vendor-dependent page and
Table 11 shows the corresponding field descriptions.
Table 10. Page 7 (Vendor-Dependent) Register Configuration
BIT POSITION
ADDRESS
0
1
1000
2
3
4
5
Reserved
Reserved for test
1010
Reserved for test
1011
Reserved for test
1100
Reserved for test
1101
Reserved for test
SWR
7
Reserved
1001
1110
6
Reserved for test
1111
Reserved for test
Table 11. Page 7 (Vendor-Dependent) Register Field Descriptions
FIELD
SWR
SIZE
TYPE
DESCRIPTION
1
Rd/Wr
Software hard reset. Writing a 1 to this bit forces a hard reset of the PHY (same effect as momentarily
asserting the RESET terminal low). This bit is always read as a 0.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
27
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TSB81BA3E provides the digital and analog transceiver functions needed to implement a three-port node in
a cable-based IEEE 1394 network. Each cable port incorporates two differential line Interface (HCI)
Requirements transceivers. The transceivers include circuitry to monitor the line conditions as needed for
determining connection status, for initialization and arbitration, and for packet reception and transmission.
9.2 Typical Application
A common application of the TSB81BA3E is a three-port 1394 transceiver, it can be configured port-basis for
data strobe only, beta mode or bilingual modes.
Figure 9. 3-Port 1394 Transceiver in 1394b Mode
28
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Typical Application (continued)
9.2.1 Design Requirements
For this design example, use the parameters shown in Table 12.
Table 12. Design Parameters
PARAMETER
EXAMPLE VALUE
PHY POWER
3.3 V
LLC Controller
TSB82AA2
Crystal
24.576 MHz
Downstream Ports
3- 1394 Bilingual
Power Class
PC[0:2] = 100
Bus Power
12 V
9.2.2 Detailed Design Procedure
9.2.2.1 Port Termination for a 1394 Bilingual Port
The TPA and TPB lines require termination as illustrated in the following figure, the 1394 node connecting to this
external port shall have the same terminations on its ports.
When configuring the TSB81BA3E port to be data-strobe only the TPBIAS terminal can be left unconnected.
Figure 10. Port Termination
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
29
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
9.2.2.2 PHY-LINK Interface
The PHY-link interface of the TSB81BA3E can follow either the 1394a protocol or the 1394b protocol. When
using any 1394-1995 or 1394a links such as the TSB12LV01B or the TSB12LV32, the PHY-link interface has to
be in the 1394a protocol. In this case, the BMODE pin has to be tied low to GND.
When using any 1394b link such as the TSB82AA2, the PHY-link interface has to be in the 1394b protocol. In
this case, the BMODE pin is tied high. The BMODE pin only sets the mode of operation of the PHY-link interface;
it does not set the mode of operation of the cable interface. No isolation is implemented in this schematic.
The PHY and link operate off of the same ground plane. To reduce EMI emissions and reduce reflections on the
PCLK line, a series-damping resistor is recommended. The schematic shows a 0-Ω resistor, which is essentially
a placeholder on the board. To reduce EMI, a 22-Ω resistor on the PCLK line is recommended. This resistor
should be placed as close to the PHY as possible. Its value can be adjusted to reduce emissions. By slowing
down the edge rates on PCLK, this 22-Ω resistor significantly reduces reflections that may occur when the
distance between the PHY and link is large (greater than 4 inches in this case).
The Link Request signal (LREQ) is input to the PHY from the link. The link uses this to initiate a service request
to the PHY. When the BMODE pin is deasserted, the IEEE 1394b-2002 BOSS arbitration is disabled and the
LREQ request stream follows the 1394a specification.
If a power down option control for PD is not implemented, the PD pin on the PHY (pin 77) should be tied to
ground through a 1-kΩ resistor to keep the PHY enabled.
10 Power Supply Recommendations
Another means to minimize EMI emissions is to add decoupling capacitors with a ferrite bead at PLLVDD pin and
DVDD pins of the chip. This array should be as close as possible to the chip in order to minimize the inductance
of the line and minimize noise contributions to the system, a suggested example is shown in Figure 11(a) and
Figure 11(b). In the case of DVDD pins, it is recommended to tie them up to a single low impedance point in the
board and then adding the decoupling capacitors in addition to the ferrite bead. This array of caps and ferrite
bead improve EMI and Jitter performance. Both EMI and Jitter should be taken into account before altering the
configuration.
VDD
VDD
60 Ohms at 100 MHz
60 Ohms at 100 MHz
DVDD
PLANE
PLLVDD
PLANE
10 uF
0.001 uF
0.01 uF
1 uF
10 uF
0.001uF
0.01 uF
1 uF
(b)
(a)
Figure 11. Suggested Array at PLLVDD and DVDD in Order to Minimize EMI
30
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
11 Layout
11.1 Layout Guidelines
Put pads in for all components in prototype boards. When testing prototype boards for EMI and ESD, some of
the following components may not be required:
• The 1394 connector gasket between chassis GND, 1394 connector shield, and metal bracket on PCB board
(for example on a PCI add-in card).
• The ferrite on the cable V- ground pin (socket pin 2).
• The ferrite on the cable V+ power pin (socket pin 1).
11.1.1 Board Stackup
Because of the high frequencies associated with 1394, a 1394 board with at least four layers is recommended;
two signal layers separated by a ground and power layer (See Figure 12).
SIGNAL1
GROUND
POWER
SIGNAL2
Figure 12. Four-Layer Board Stackup
The majority of signal traces should be run on a single layer, preferably SIGNAL1. Immediately next to this layer
should be the GND plane which is solid with no cuts. Avoid running signal traces across a split in the ground or
power plane. When running across split planes is unavoidable, sufficient decoupling must be used (see Section
3.3). Minimizing the number of signal vias could reduce EMI due to a reduction in inductance at high frequencies.
11.1.2 Digital and Analog Partitioning
If separate power planes are used, they must be tied together at one point through a low impedance bridge or
preferably through a ferrite bead (See Figure 13). Care must be taken to capacitively de-couple each power rail
close to the device.
The analog ground (AGND), digital ground (DGND), and Phase Locked Loop (PLL) ground (PLLGND) must be
tied together to the low impedance circuit board ground plane.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
31
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Layout Guidelines (continued)
ANALOG POWER
FERRITE BEAD
SHIELD GND
DIGITAL POWER
FERRITE
BEAD
PLL
POWER
VCCP
Figure 13. A Image Plane Partition, Route Signal Carefully
11.1.3 Image Planes
An image plane is a layer of copper (voltage plane or ground plane), physically adjacent to a signal routing plane.
Use of image planes provides a low impedance, shortest possible return path for RF currents. For a 1394 board
the best image plane is the ground plane, since on most designs a common ground can be used for both analog
and digital circuits. Care should be taken not to route traces such that they cross from one plane to the other, as
this can cause a broken RF return path resulting in an EMI radiating loop (See Figure 7). This is important for
higher frequency or repetitive signals. Therefore it is best to run all clock signals on the signal plane above a
solid ground plane (on a multi-layer board). Avoid crossing the image power or ground plane boundaries with
high speed clock signal traces immediately above or below the separated planes. This also holds true for the
twisted pair signals (TPA, TPB). Special care should be applied to the LPS and LKON signals as these do not
always route easily on a single layer.
Any unused area of the top and bottom signal layers of the PCB can be filled with copper that is connected to the
ground plane through vias.
DON'T
DO
Figure 14. Do Not Cross Image Plane Boundaries
32
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
Layout Guidelines (continued)
Care should also be taken not to overlap planes that do not reference each other. For example do not overlap a
digital power plane with an analog power plane as this will produce a capacitance between the overlapping area
which could pass RF emissions from one plane to the other. See Figure 15.
UNWANTED RF PATH CAUSED BY OVERLAPPING PLANES
Figure 15. Do Not Overlap Planes
Avoid image plane violations. Traces that route over a slot in an image plane results in a possible RF return loop.
See Figure 16.
RF RETURN CURRENT
RF RETURN CURRENT
SLOT IN IMAGE PLANE
SLOT IN IMAGE PLANE
BAD
BETTER
Figure 16. Do Not Violate Image Planes
11.1.4 Parts Placement
Components should be placed on the board such that the traces coming from a component will always be above
its corresponding image plane. The PHY should also be placed close to the link to reduce the trace length of the
PHY/link interface. For less radiated EMI, place the PHY device as far away from the 1394 connector
(termination network should be close to the PHY) as is practical. Balance this against keeping the twisted pair
trace lengths short (for signal integrity), keeping the PHY-Link interface traces short (for signal integrity and EMI)
and keeping the PHY away from any switching power supply.
11.1.5 Decoupling Capacitors
Properly used decoupling caps keep RF energy from being injected into the power planes from high frequency
components. Decoupling capacitors also provides a localized source of pulsed DC power for device or
components. This reduces peak current surges from propagating across the board. Use 0.1 µF and 0.001 µF
decoupling caps on the PHY and link (For PLLVDD see Power Supply Recommendations. Minimize the trace
length between the decoupling capacitor and the corresponding power pins on the device. Also minimize the
trace length from the capacitor pad to the power or ground plane. See Figure 17.
Figure 17. Decoupling Capacitors
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
33
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
Layout Guidelines (continued)
11.1.6 3W Rule for SCLK
When routing the SCLK trace from the PHY to link, try to use the 3W spacing rule. The distance from the center
of the SCLK trace to the center of any adjacent signal trace should be at least three times the width of the SCLK
trace. SCLK is a 49.152 MHz clock with a fast rise time. Using the 3W rule will cut down on crosstalk between
traces. In general, leave space between each of the traces running from the PHY to link. Avoid using right angles
when routing traces to minimize the routing distance and impedance discontinuities.
For further protection from crosstalk, run guard traces beside the SCLK signal from PHY to Link (GND pin to
GND pin if possible). This is to lessen clock signal coupling onto the other PHYLink interface traces near it and
thus radiating the clock signal from more antennas. See Figure 18.
3W
3W
TRACE
W
Figure 18. 3W Rule
34
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
TSB81BA3E
www.ti.com
SLLS783C – MAY 2009 – REVISED MARCH 2016
12 Device and Documentation Support
12.1 Device Support
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
12.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
PowerPAD, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
35
TSB81BA3E
SLLS783C – MAY 2009 – REVISED MARCH 2016
www.ti.com
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
13.1 Designing With PowerPAD™ Devices (PFP Package Only)
The TSB81BA3E is housed in a high performance, thermally enhanced, 80-terminal PFP PowerPAD™ package.
Use of the PowerPAD™ package does not require any special considerations except to note that the
PowerPAD™, which is an exposed die pad on the bottom of the device, is a metallic thermal and electrical
conductor. Therefore, if not implementing PowerPAD™ PCB features, the use of solder masks (or other
assembly techniques) may be required to prevent any inadvertent shorting by the exposed PowerPAD™ of
connection etches or vias under the package. The recommended option, however, is to not run any etches or
signal vias under the device, but to have only a grounded thermal land as explained below. Although the actual
size of the exposed die pad may vary, the maximum size required for the keepout area for the 80-terminal PFP
PowerPAD™ package is 10 mm × 10 mm. The actual PowerPAD™ size for the TSB81BA3E is 6 mm × 6 mm.
It is recommended that there be a thermal land, which is an area of solder-tinned-copper, underneath the
PowerPAD™ package. The thermal land varies in size, depending on the PowerPAD™ package being used, the
PCB construction, and the amount of heat that needs to be removed. In addition, the thermal land may or may
not contain numerous thermal vias depending on PCB construction.
Other requirements for thermal lands and thermal vias are detailed in the Texas Instruments PowerPAD™
Thermally Enhanced Package application report (SLMA002) available via the Texas Instruments web page at
http://www.ti.com.
Figure 19. Example of a Thermal Land for the TSB81BA3E PHY
The thermal land must be grounded to the low-impedance ground plane of the device. This improves not only
thermal performance but also the electrical grounding of the device. It is also recommended that the device
ground terminal landing pads be connected directly to the grounded thermal land. The land size ought to be as
large as possible without shorting the device signal terminals. The thermal land can be soldered to the exposed
thermal pad using standard reflow soldering techniques.
While the thermal land may be electrically floated and configured to remove heat to an external heat sink, it is
recommended that the thermal land be connected to the low impedance ground plane for the device. More
information may be obtained from the TI application note PHY Layout (SLLA020).
36
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Product Folder Links: TSB81BA3E
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
(3)
Device Marking
(4/5)
(6)
TSB81BA3EIPFP
ACTIVE
HTQFP
PFP
80
96
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 85
TSB81BA3EI
TSB81BA3EIZAJ
ACTIVE
NFBGA
ZAJ
168
260
RoHS & Green
SNAGCU
Level-3-260C-168 HR
-40 to 85
TSB81BA3EI
TSB81BA3EPFP
ACTIVE
HTQFP
PFP
80
96
RoHS & Green
NIPDAU
Level-3-260C-168 HR
0 to 70
TSB81BA3E
TSB81BA3EZAJ
ACTIVE
NFBGA
ZAJ
168
260
RoHS & Green
SNAGCU
Level-3-260C-168 HR
0 to 70
TSB81BA3E
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
