User's Guide
SBAU182 – December 2010
TSC2014EVM and TSC2014EVM-PDK
This user's guide describes the characteristics, operation, and use of the TSC2014EVM, both by itself and
as part of the TSC2014EVM-PDK. The TSC2014EVM and TSC2014EVM-PDK are two evaluation fixtures
for the TSC2014, an ultra low-power resistive touch screen controller with an I2C™-compatible interface.
This evaluation module (EVM) is a four-wire resistive touch screen controller EVM that also has auxiliary
input and temperature measurement capabilities. A complete circuit description, schematic diagram, and
bill of materials are included.
The following related documents are available through the Texas Instruments web site at www.ti.com.
Related Documentation
Device
Literature Number
TSC2014
SBAS522
TAS1020B
SLES025
REG1117-5
SBVS001
TPS767D318
SLVS209
SN74LVC125A
SCAS290
SN74LVC1G125
SCES223
SN74LVC1G07
SCES296
5-6k Interface Board
SLAU104
Microsoft, Windows are registered trademarks of Microfsoft Corporation.
I2C is a trademark of NXP Semiconductors.
NI Speedy-33 is a trademark of National Instruments.
All other trademarks are the property of their respective owners.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
1
www.ti.com
1
2
3
4
5
6
7
8
9
10
Contents
EVM Overview ............................................................................................................... 3
Analog Interface ............................................................................................................. 4
Digital Interface .............................................................................................................. 4
Power Supplies .............................................................................................................. 4
EVM Operation .............................................................................................................. 6
EVM-PDK Operation ........................................................................................................ 6
GUI Software and Operating Descriptions ............................................................................. 10
EVM Bill of Materials ...................................................................................................... 20
TSC2014EVM PCB ....................................................................................................... 23
TSC2014EVM Schematic ................................................................................................ 23
List of Figures
1
TSC2014EVM-PDK Hardware Block Diagram and Connection ...................................................... 7
2
Prompt to Set Up TSC2014 I2C Slave Address ......................................................................... 9
3
TSC2014EVM-PDK Software GUI: Startup Screen with Human Interface Tab .................................... 9
4
TSC2014EVM-PDK Software GUI: Configuration Tab ............................................................... 12
5
TSC2014EVM-PDK Software GUI: Command Line Interface Tab.................................................. 15
6
TSC2014EVM-PDK Software GUI: Read All Threshold Registers Option ......................................... 16
7
TSC2014EVM PCB Silkscreen (Top View) ............................................................................ 23
List of Tables
1
J1: Analog Interface Pinout ................................................................................................ 4
2
J2: Digital Interface Pinout ................................................................................................. 4
3
J3: Power-Supply Pinout ................................................................................................... 4
4
List of Jumpers .............................................................................................................. 6
5
Script Command Types ................................................................................................... 17
6
TSC2014EVM Bill of Materials
7
2
..........................................................................................
USB-MODEVM Interface Board Bill of Materials .....................................................................
TSC2014EVM and TSC2014EVM-PDK
20
21
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
EVM Overview
www.ti.com
1
EVM Overview
1.1
Features
TSC2014EVM:
• Full-featured evaluation board for the TSC2014 resistive touch screen controller (TSC)
• Modular design for use with a variety of DSP and microcontroller interface boards
TSC2014EVM-PDK:
• Easy-to-use evaluation software for Microsoft® Windows® XP
• Complete control of board settings

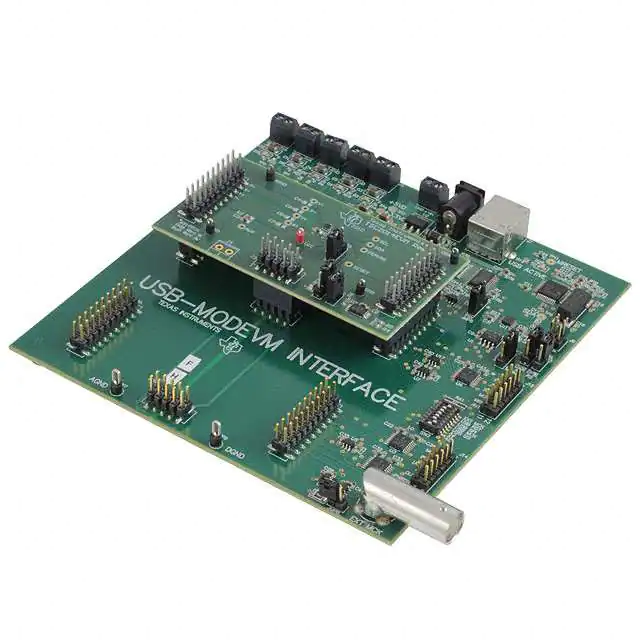

For use with a computer, the TSC2014EVM-PDK is a complete evaluation kit. This kit combines the
TSC2014EVM with the USB-based USB-MODEVM motherboard and evaluation software for use with a
personal computer.
The USB-MODEVM motherboard allows the TSC2014EVM to be connected to the computer via an
available USB port. This manual shows how to use the USB-MODEVM as part of the TSC2014EVM-PDK,
but does not provide technical details about the USB-MODEVM itself.
This manual covers the operation of both the TSC2014EVM and the TSC2014EVM-PDK. Throughout this
document, the abbreviation EVM and the term evaluation module are synonymous with the TSC2014EVM.
1.2
Introduction
The TSC2014EVM is manufactured in Texas Instruments' modular EVM System specification. It can be
connected to any modular EVM system interface card. The TSC2014EVM allows direct evaluation of the
TSC2014 performance and operating characteristics, in addition to rapid software development and
system prototyping. This EVM is compatible with the 5-6k Interface Board (SLAU104) from Texas
Instruments and additional third-party boards such as the HPA449 demonstration board from SoftBaugh,
Inc. (www.softbaugh.com) and the NI Speedy-33™ from National Instruments Corporation.
The TSC2014EVM is available as a stand-alone printed circuit board (PCB) or as part of the
TSC2014EVM-PDK, which includes a USB-MODEVM motherboard and software. As a stand-alone PCB,
the TSC2014EVM is useful for prototyping designs and firmware.
The TSC2014EVM-PDK is a complete evaluation and demonstration kit that includes a USB-based
motherboard, the USB-MODEVM interface board. This kit also contains evaluation software for use with a
personal computer equipped with Microsoft Windows operating systems. The TSC2014EVM-PDK is a
complete package that includes the following items:
1. TSC2014EVM board
2. USB-MODEVM board
3. TSC2014-EVM-PDK evaluation software installer and related documentation
The EVM software is updated regularly. To check for the latest version, go to the TSC2014EVM software
download page on the Texas Instruments' website.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
3
Analog Interface
2
www.ti.com
Analog Interface
For maximum flexibility, the TSC2014EVM is designed for easy interfacing to multiple analog sources by
means of different connection options. Samtec part numbers SSW-110-22-F-D-VS-K and
TSM-110-01-T-DV-P provide a convenient 10-pin, dual-row, header/socket combination at J1, described in
Table 1. This header/socket provides access to the analog input pins of the TSC. Consult Samtec at
www.samtec.com or call 1-800-SAMTEC-9 for a variety of mating connector options.
Table 1. J1: Analog Interface Pinout
3
Pin Number
Signal
J1.2
X+
Touch screen X+ electrode
J1.4
X–
Touch screen X– electrode
J1.6
Y+
Touch screen Y+ electrode
J1.8
Y–
Touch screen Y– electrode
Auxiliary input, 0 V to VREF
J1.12
AUX
J1.1, J1.3, J1.5, J1.7, J1.10,
J1.14 to J1.16, J1.18, J1.20
Unused
J1.9, J1.11, J1.13, J1.17,
J1.19
AGND
Description
—
Analog ground connections
Digital Interface
The TSC2014EVM is designed to easily interface with multiple control platforms. Samtec part numbers
SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin, dual-row, header/socket
combination at J2, described in Table 2. This header/socket provides access to the digital control and
serial data pins of the TSC. Consult Samtec at www.samtec.com or call 1-800-SAMTEC-9 for a variety of
mating connector options.
Table 2. J2: Digital Interface Pinout
4
Pin Number
Signal
Description
J2.12
RESET
Hardware reset to TSC2014
J2.15
PINTDAV
J2.16
SCL
I2C bus serial clock
J2.20
SDA
I2C bus serial data line
J2.1 to J2.3, J2.5 to J2.9,
J2.11, J2.13, J2.14, J2.17,
J2.19
Unused
J2.4, J2.10, J2.18
DGND
Pen interrupt and/or data available output
from TSC2014
—
Digital ground connections
Power Supplies
J3 provides a connection to the common power bus for the TSC2014EVM. Power is supplied on the pins
listed in Table 3.
Table 3. J3: Power-Supply Pinout
Signal
4
Pin Number
Signal
Unused
J3.1
J3.2
Unused
Unused
J3.3
J3.4
Unused
AGND
DGND
J3.5
J3.6
Unused
J3.7
J3.8
+VD1
Unused
J3.9
J3.10
Unused
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
Power Supplies
www.ti.com
When power is supplied to J3, JP1 selects power to the TSC2014 VDD/REF, either from the
TSC2014EVM-PDK motherboard (that is, the USB-MODEVM Interface Board) or from an external power
supply (through the J4 connector). See the schematic and PCB silkscreen for details.
The TSC2014EVM-PDK motherboard (the USB-MODEVM interface board) supplies power to J3 of the
TSC2014EVM. Power for the motherboard is supplied either through its USB connection or on terminal
blocks on the board.
4.1
TSC Power
Power for the TSC2014 VDD/REF can be supplied either from the motherboard or from an external power
source, selected by setting JP1. When the shunt is installed on JP1 pins 1-2, power for VDD/REF comes
from J3.8 (+VD1). +VD1 is a power source from the motherboard (the USB-MODEVM) and can be
selected in the range of +1.2 VDC to +3.3 VDC. When the shunt is installed on JP1, pins 2-3, power for
VDD/REF comes from an external power supply through the J4 terminal block.
CAUTION
Verify that all power supplies are within the safe operating limits shown on the
TSC2014 data sheet (SBAS522) before applying power to the EVM. Also, note
the power polarity to J4.
4.2
Stand-Alone Operation
When used as a stand-alone EVM, the power can be applied through the J4 terminal block. Note that a
shunt must be installed on JP1, pins 2-3 for stand-alone operation
CAUTION
Verify that all power supplies are within the safe operating limits shown on the
TSC2014 data sheet (SBAS522) before applying power to the EVM. Also, note
the power polarity to J4.
4.3
USB-MODEVM Interface Power
The USB-MODEVM Interface Board can be powered from several different sources:
• Through a USB connection
• 6-VDC to 10-VDC ac/dc external wall supply (not included)
• Laboratory power supply
When powered from the USB connection, JMP6 should have a shunt from pins 1-2 (the factory default
configuration). When powered from 6 VDC to 10 VDC, either through the J8 terminal block or J9 barrel
jack, JMP6 should have a shunt installed on pins 2-3. If power is applied in any of these ways, onboard
regulators generate the required supply voltages, and no further power supplies are necessary.
If laboratory supplies are used to provide the individual voltages required by the USB-MODEVM interface
board, JMP6 should have no shunt installed. Voltages are then applied to J2 (+5 VA), J3 (+5 VD), J4
(+1.8 VD), and J5 (+3.3 VD). The +1.8 VD and +3.3 VD also can be generated on the board, from the
+5-VD supply, by the onboard regulators; to enable this supply, the switches on SW1 must be set to
enable the regulators. Move the switches to the ON position (higher position, looking at the board with text
reading right-side up) to enable the regulators. If +1.8 VD and +3.3 VD are supplied externally, disable the
onboard regulators by placing the SW1 switches in the OFF position.
Each power-supply voltage has an LED (D1, D2–D8) that lights when the power supplies are active.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
5
EVM Operation
4.4
www.ti.com
Reference Voltage
No additional reference is needed for the TSC2014EVM because the reference voltage used for the
TSC2014 device is provided from the VDD/REF pin of the TSC2014. A reference is needed only for
single-ended input mode when measuring the AUX or temperature. TSC2014 touch screen measurements
are operated under differential (ratiometric conversion) mode and, therefore do not need any reference.
5
EVM Operation
This section provides information on the analog input, digital control, and general operating conditions of
the TSC2014EVM, both by itself and as part of the TSC2014EVM-PDK.
5.1
Analog Input
The analog input sources (touch screen and auxiliary input) can be applied directly to J1 (top or bottom
side; refer to Table 1), or through signal-conditioning modules available for the modular EVM system.
5.2
Digital Control
The digital control signals can be applied directly to J2 (top or bottom side; refer to Table 2). The modular
TSC2014EVM also can be connected directly to a DSP or microcontroller interface board, such as the
HPA449, or to the USB-MODEVM Interface Board if purchased as part of the TSC2014EVM-PDK. For a
current list of compatible interface and/or accessory boards for the EVM or the TSC2014, see the
TSC2014 product folder on the TI web site (www.ti.com).
5.3
Default Jumper Locations
Table 4 provides a list of jumpers found on the EVM and the respective factory default conditions for each.
Table 4. List of Jumpers
Jumper
JP1
6
Description
Default Shunt Position
Power Supply Select:
1-2 (from J3.8)
1-2: from motherboard +VD1
(J3.8)
2-3: from external (J4)
JP2
EEPROM Address Select:
Installed: firmware for the
motherboard from the
EEPROM onboard the
TSC2014EVM
Removed: firmware for the
motherboard from the
EEPROM on motherboard
Installed (FW from EEPROM on
TSC2014EVM board)
JP3
TSC2014 I2C Address Bit
A0:
1-2: A0 = 1
2-3: A0 = 0
2-3 (A0 = 0)
EVM-PDK Operation
The following sections of this user guide provide information about operating the TSC2014EVM-PDK,
including setup, program installation, and using the software as well as its operational description.
6
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
EVM-PDK Operation
www.ti.com
6.1
Block Diagram
Figure 1 shows the hardware block diagram of the TSC2014EVM-PDK. The two PCBs are connected
together, and the TSC2014EVM board is seated on top of the USB-MODEVM board.
TSC2014EVM
J1
J2
X+
XY+
YAUX
RESET
PINTDAV
SCL
TSC2014
SDA
EEPROM
J3
USB-MODEVM
USB
J7
TAS1020B
J11
J12
Control Interface
J13
2
(SPI, I C)
J21
J22
J23
Figure 1. TSC2014EVM-PDK Hardware Block Diagram and Connection
The USB-MODEVM Interface Board is intended to be used in USB mode, where control of the installed
EVM is accomplished using the onboard USB controller device. However, provision is made for driving all
the buses (I2C and/or SPI) externally. The source of these signals is controlled by switch SW2 on the
USB-MODEVM. For more details, see the USB-MODEVM Interface Board schematic (appended to this
document).
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
7
EVM-PDK Operation
6.2
www.ti.com
Quick Start
Ensure that the TSC2014EVM is installed on the USB-MODEVM Interface Board. The TSC2014EVM
should be installed in the topmost position, using J11, J12, and J13 on the USB-MODEVM, as shown in
Figure 1.
CAUTION
Do not connect the EVM-PDK to your PC through a USB cable before you
install the software.
Follow these procedures to install the software:
1. Download the TSC2014-EVM-PDK software from the TI website
(https://tisps.ext.ti.com/sites/tscevmpdksoftware), and run Setup.exe, found in the Installer directory.
2. Accept the license agreement, and continue the installation.
3. Follow the instructions and prompts given. Then click Finish in the TSC2014EVM Installer window.
4. Restart your computer. (This step may not be necessary, but is recommended.)
5. When your computer has restarted, connect the TSC2014EVM to the computer via a USB cable.
Windows should recognize the new device, and the Found New Hardware wizard appears.
6. Select Install from a list or specific location (Advanced), and click on Next>.
7. Select Don't Search. I will choose the driver to install, and click on Next>.
8. If the TSC2014EVM is in the list of available models, click on it to select it. You are done. Otherwise, if
it is not shown, your PC Add Hardware wizard provides a list of Common hardware types; find and
click on NI-VISA USB Devices.
9. Click on Have Disk...
10. Select Browse ...,and find the TSC2014EVM.inf, which is included with the installer. This file should be
(by default) in the directory C:\Program Files\Texas Instruments\TSC2014EVM\data\.
11. Select the TSC2014EVM.inf, and click on it. Then click on OK; your PC searches for and finds
TSC2014EVM.
12. Select the TSC2014EVM in the list of models, and click on Next>.
13. Click Finish to complete the installation process.
Once the installer has completed its processes, you are done and ready to operate the TSC2014EVM
software.
As configured at the factory, the TSC2014EVM board is powered from the USB-MODEVM interface board.
Therefore, the power indicator LEDs on the USB-MODEVM should light when connecting the EVM-PDK to
your PC through a USB cable. When installation is complete, launch the TSC2014 evaluation software on
your PC.
8
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
EVM-PDK Operation
www.ti.com
Once the USB-MODEVM powers on, the software should automatically find the TSC2014EVM, and a
window similar to the one in Figure 2 should appear.
Figure 2. Prompt to Set Up TSC2014 I2C Slave Address
Check the A0 box if TSC2014EVM jumper JP3 is shunted on 1-2 (that is, set to the high position). By
default, A0 should be unchecked with jumper JP3 shunted on 2-3 (low) (refer to Table 4). Click on the OK
button to continue, and the software graphical user interface (GUI) appears; see Figure 3.
Figure 3. TSC2014EVM-PDK Software GUI: Startup Screen with Human Interface Tab
In order to use the touch screen features, a four-wire resistive touch screen must be connected to J1 of
the TSC2014EVM, as discussed previously. The four wires of the touch panel should be connected to the
pins 2 (X+), 4 (X–), 6 (Y+), and 8 (Y–) of J1A on the TSC2014EVM board.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
9
GUI Software and Operating Descriptions
6.3
www.ti.com
USB-MODEVM Interface Board
The simple diagram shown in Figure 1 shows only the basic features of the USB-MODEVM Interface
Board. The board is designed for a TAS1020B USB controller with an 8052-based core. It features two
positions for modular EVMs, or one double-wide serial modular EVM can be installed.
For use with the TSC2014, the TSC2014EVM is installed in the topmost EVM slot, which connects the
TSC2014 digital control interface to the I2C port of the TAS1020B. Because the TSC2014 has no audio
features, the lower EVM slot (which is connected to the TAS1020B digital audio interface) is not used.
As configured at the factory, the board is ready to use with the TSC2014EVM. However, if external I2C
control is desired, the signals may be applied to J6 on the USB-MODEVM board. To view all the functions
and configuration options available on this board, see the USB-MODEVM Interface Board schematic
appended to this document.
7
GUI Software and Operating Descriptions
7.1
Program Description
Afteryou complete the TSC2014EVM-PDK software installation (described in Section 6.2), evaluation and
development with the TSC2014 can begin.
When the TSC2014EVM-PDK software starts on your PC, the interface GUI is displayed as shown in
Figure 3. On the top-left side of the GUI, a lit green LED indicates the digital serial interface type; this
indicator should be I2C for the TSC2014EVM-PDK. The next box to the right shows the location and
version of the firmware.
The two LEDs near the top center of the GUI can be used to perform a software reset of the TSC2014
and stop the TSC2014 analog-to-digital converter (ADC) operation. Note that the two LEDs reflect the
corresponding bits inside the CB1 (see the TSC2014 data sheet).
When the SW Reset LED is lit (blue), bit 1 of CB1 is set to logic '1' and the TSC2014 is in the software
reset mode. When the LED is off (black), bit 1 is set to logic '0'; the TSC2014 is not reset and is in normal
operating mode.
When the Stop ADC LED is lit (red), bit 0 of CB1 is set to logic '1' and the TSC2014 ADC stops. When this
LED is off (black), bit 0 goes to logic '0' and the TSC2014 operates normally.
Next to the SW Reset and Stop ADC LEDS, two boxes labeled CB0 and CB1 display the current/default
settings of the TSC2014 control byte mode 0 (CB0) and mode 1 (CB1), respectively. See the TSC2014
data sheet on the control byte and its two modes.
The data in CB0 are written to the TSC2014 while writing to a control register; CB0 is the command byte.
Data in CB1 are written to the TSC2014 when one of the following events occurs:
• Bit 0 (STS or Stop ADC) is set by clicking on the Stop ADC LED.
• Bit 1 (SWREST or SW Reset) is set by clicking on the SW Reset LED.
• Bit 2 (RM or Resolution) is set at the Human Interface tab.
• Bits 3 through 6 (Converter Function Select) can be set at the Configuration tab beneath the CFR1
section.
Most product and design evaluations can be implemented using the three primary tabs on the
TSC2014EVM GUI: Human Interface, Configuration, and Command Line Interface. Clicking on a tab
accesses the functions that correspond to the specific tab. This section provides a detailed discussion of
the functions of these tabs.
10
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
GUI Software and Operating Descriptions
www.ti.com
7.2
Human Interface Tab
Refer to Figure 3 for a view of the Human Interface tab; this screen is the default (startup) tab of the GUI,
and shows both touch data (such as X-, Y-, and Z-coordinates of each touch on the screen) and
non-touch data (for example, AUX and temperature).
7.2.1
Touch Screen Control Function
The touch screen box in this tab updates when a touch is detected on the touch screen. As the touch
screen is drawn on, the motion on the touch screen is translated into pixels in this box. The software takes
X, Y, Z1, and Z2 readings which are shown to the right of the touch screen box. As the touch pressure
increases, the pixel size increases; a lighter touch results in thinner pixel sizes.
(NOTE: The Z-value displayed is not exactly what is described in the TSC2014 data sheet because the
data sheet equations are calculated as if there is a known resistance of the touch screen being used.) The
value used in the evaluation software is calculated by Equation 1 of the TSC2014 data sheet, but without
multiplying the value by the Rx-plate resistance. This raw value is shown as Z beneath the measured
touch data, X, Y, Z1, and Z2; it normally ranges from 0 to 4, with larger numbers representing a more
forceful press on the screen. Using the Maximum Z Value to Display knob, you can set a threshold so that
the program does not display lightly pressed points. This threshold setting helps to eliminate the display of
spurious points that may result from touch screen mechanical bouncing or physical jitter.
The display in the touch screen box can be cleared by pressing the Clear Graph button on the screen.
7.2.2
Data Acquisition Functions
The TSC2014 provides for measuring an auxiliary input voltage (AUX) and the temperature. A data
acquisition function on this tab displays the measured values for these parameters. Measurements are
updated only when the touch screen is not being pressed, and the Auto Reading LED is on.
Temperature is displayed using both measurement modes described in the TSC2014 data sheet. Using
the TEMP1 and TEMP2 measurements, a temperature reading with 2°C resolution and accuracy is
achieved. Using only the TEMP1 measurement, a reading with 0.3°C resolution is possible, but requires
that the user know the TEMP1 value at +25°C. This setting normally requests a calibration that the user
performs. The evaluation software program presumes that TEMP1 = 590 mV at +25°C.
By default, the software continuously reads non-touch data, AUX, TEMP1, and TEMP2, and automatically
updates these values in the Non-Touch Data Acquisition section of the GUI display. To stop data
acquisition, click on the green LED Auto Reading in the top-right corner.
Both AUX and temperature measurements require a reference voltage, which is provided to the TSC2014
VDD/REF pin. The VREF value (in volts) controller box can be written with the corresponding VREF voltage.
7.2.3
Direct Configuration
The TSC2014 parameters (or modes) can be set up or configured in two ways. One approach is to set up
the control registers (this procedure is described in the Configuration Tab section). The second method is
to write directly to the TSC2014 through control bytes. Most of the device configuration information and
status of the TSC2014 can be accessed through writing to or reading from the TSC2014 control registers.
Additionally, several parameters or modes can be accessed through the direct configuration, including
Resolution, ADC Power-Down, ADC Stop, and SW Reset. See the TSC2014 data sheet for more details.
In the Human Interface tab, two direct configuration modes can be accessed: one is Resolution mode; the
second is ADC Power-Down mode.
The TSC2014 ADC can be configured to operate in either 10-bit or 12-bit resolution mode. This option can
be directly configured using Control Byte Mode #1 (or CB1), or by writing to bit #13 of Control Register
CFR0. Clicking on the resolution option in this tab changes the resolution setting in CB1. Note that the
CB1 box at the top of the GUI updates when any of the control bits change. You may also need to change
the resolution setting in CFR0 (which is discussed in the Configuration Tab section) to make them
consistent.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
11
GUI Software and Operating Descriptions
www.ti.com
A Power-Down bit in TSC2014 Control Byte Mode #0 (or CB0) can be set from this tab to power up the
ADC biasing circuitry always, or to cycle down the power between conversions. The box under the PND0
control button shows the brief description.
7.3
Configuration Tab
On the Configuration tab, shown in Figure 4, all of the TSC2014 control registers can be accessed and
written to.
Figure 4. TSC2014EVM-PDK Software GUI: Configuration Tab
The tab has four sections, corresponding to the configuration registers CRF0, CFR1, CFR2, and the four
thresholds registers, respectively. The two status boxes, one under the CFR1 section and the other under
the Threshold Selection section, display the current values written to these TSC2014 control/configuration
registers.
Note that a digital box is next to each of these multiple selectors; clicking on this box sends the data to the
corresponding control registers.
12
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
GUI Software and Operating Descriptions
www.ti.com
7.3.1
ADC Configuration (CFR0)
This section controls the parameters in TSC2014 configuration register CFR0. Each button or selection
controls a single parameter.
• Pen Control Mode:
The button controls whether the touch data acquisition is started or initialized by a host processor
command (manually) or by a touch on the screen (automatically). The default option is to start
acquisition by touching the screen.
• Stop ADC
This button can stop the TSC2014 ADC, or put the ADC into normal operating mode; the default is
normal operating mode. It has the same function as the Stop ADC LED (bit #1 of CB1) at the top
center of TSC2014EVM GUI.
• Resolution
This button selects between 10- and 12-bit resolution. Note that bit #2 of CB1 also controls the
resolution; thus, you may need to double-check the settings in both places to make sure they are
consistent. The default setting is 12-bit resolution.
• Conversion Clock
The internal clock that runs the ADC can run at 4 MHz, 2 MHz, or 1 MHz. Note that at 4 MHz, only
10-bit resolution is possible; 12-bit resolution is not. Therefore, you should verify the resolution setting
after selecting a 4-MHz conversion clock. By default, the clock runs at 2 MHz.
• Panel Voltage Stabilization Time
This time is the period that the TSC2014 allows for the touch screen to settle after turning on the
drivers.
• Precharge Time
• Sense Time
These two parameters show the time allowed to precharge the touch panel capacitance and then
sense to see if the screen has been touched. For more details about these parameters, see the
TSC2014 data sheet.
• Detection of Pen Touch in Wait
This option is valid when the ADC is put into the host-controlled mode. Enabling this option puts the
touch detection in the background and allows the TSC2014 to pull its PINTDAV pin high if no touch is
detected while waiting for the host to issue a command, so that the host can decide whether or not a
reading touch data command should be issued.
• Longer Sample Mode
Enabling this option adds an extra 500 ns of sampling time to the normal sampling cycle. It is disabled
by default.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
13
GUI Software and Operating Descriptions
7.3.2
www.ti.com
Test Mode Configuration (CFR1)
The TSC2014 features a touch screen test function to check if the four-wire touch panel has been properly
connected and if there is short-circuitry enabled. To perform the connection test, the resistance range of
the touch screen must be entered into CFR1. Select Short Circuit Panel Test to perform the short-circuitry
test function.
To perform a touch screen test, the Converter Function Selection must be set up in CB1 as X-Axis
Connection Test, Y-Axis Connection Test, or Short-Circuit Test. The multiple selector under CFR1
provides user access.
The test result returns to the Status Register.
Another TSC2014 feature is the Batch Delay Mode, as shown in the CFR1 section. Under the
TSC-controlled ADC mode, this feature adds a delay between ADC samples and thus controls the
time/interval between samples. The batch delay ranges from 0 ms to 100 ms.
7.3.3
MAVF Configuration (CFR2)
The preprocessing MAV filter (MAVF) within the TSC2014 reduces sampling noise. See the TSC2014
data sheet for details of the MAVF.
The CFR2 section has five selection buttons that can be used to enable/disable the MAVF on touch data,
X, Y, and Z, or nontouch data, AUX and Temperature.
Clicking on the MAV Filter Control option box brings up a list of settings on M and W values. Select an
eligible option from the list (do not select the Reserved option) and the corresponding digital value
appears in the next box. Click on the digital box to write the selected value to the CFR2 Register.
7.3.4
Threshold Configuration
Zone detection is one of the new features the TSC2014 offers. The zone detection function was designed
to monitor the zone/range of the nontouch inputs, including AUX and TEMP1/TEMP2.
The four control registers on the TSC2014 (used to set up the upper and lower thresholds of AUX and
TEMP1/TEMP2) can be accessed through the four moving slides in the Threshold Selection section. The
zone detection modes can be controlled/selected through the two option boxes at the bottom of the CFR2
section.
14
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
GUI Software and Operating Descriptions
www.ti.com
7.4
Command Line Interface Tab
Clicking on the Command Line Interface tab brings up a screen similar to that shown in Figure 5, which
provides a flexible way to read from and write to the TSC2014EVM by the use of scripts.
Figure 5. TSC2014EVM-PDK Software GUI: Command Line Interface Tab
The line or lines of the script are typed or loaded into the Command Buffer. Clicking on the Execute
Command Buffer button runs the script. (The script is discussed in Section 7.4.1.)
There are three LEDs on this tab. The req done LED lights up (that is, it turns green) after the script
execution finishes. If a line of the script is a reading command, the read data is shown at the Read Data
section; if the line of the script is a writing command, the written data bytes also are returned to the Read
Data section.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
15
GUI Software and Operating Descriptions
www.ti.com
As Figure 6 shows, three read buttons reveal the contents of the Threshold, Control, and Status Registers
of the TSC2014; these contents are also displayed in the Data Read/Written section of the screen. The
data flow shows at the top of the screen, and is interpreted and listed correspondingly on the button. For
example, Figure 5 shows a read result of the four TSC2014 threshold registers after clicking on the Read
All (4) Control Registers button.
Figure 6. TSC2014EVM-PDK Software GUI: Read All Threshold Registers Option
16
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
GUI Software and Operating Descriptions
www.ti.com
7.4.1
Software Script
The TSC2014EVM-PDK software was designed to identify and decipher several scripting commands, as
described in Table 5.
Table 5. Script Command Types
Command Type
Description
w
Write to TSC through the I2C serial control bus
r
Read from TSC through the I2C serial control bus
#
Comment line
b
Break
d
Delay
Each line in a script file is a command, and a line is terminated by a carriage return.
• The first character of a command line indicates the command type. Table 5 lists all the command types
that can be recognized and implemented by the TSC2014EVM-PDK software.
• Following the command type w or r, the byte is the I2C device address. For the TSC2014, this address
is either [1001 00A0R/W]b where A0 is 0b by default and can be changed by JP3; the LSB R/W is '1' if
a read command or '0' if a write command.
No byte follows a # (comment) or a b (break) command.
The byte or bytes following a command type d is the delay time in milliseconds (ms).
• The second byte in a w or r command line is the address of the TSC2014 configuration register. Refer
to the TSC2014 data sheet for details of the register address.
In an r command, the byte after the TSC2014 register address indicates the number of registers reading
from; the next byte is ignored. If more than one register must be read, the next byte is the address and is
followed by two dummy bytes that are ignored.
In a w command, the two bytes after the register address are the data written to the 16-bit TSC2014
registers. If more than one registers must be written, the next byte is the register address, followed by two
data bytes.
For writing to CB1 of the TSC2014, this byte includes both address and content; thus, there are no further
bytes after this address byte.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
17
GUI Software and Operating Descriptions
7.4.2
www.ti.com
Software Script Command Line Examples
This section provides several command line script examples for use with the TSC2014EVM evaluation
software.
Example 1. Writing to CB1 and Changing to 10-bit Resolution Mode
w 90 80
Example 2. Writing 0xA924 to Register CFR0 and Writing to CB0 to Set ADC Bias Power Always On
w 90 62 A9 24
Example 3. Writing 0xA924 to Register CFR0 and Writing to CB0 to Set ADC Bias Power Always Off
w 90 60 A9 24
Example 4. Writing the Four Threshold Registers to Set Max = 0xFF0 and Min = 0x00F
w 90 42 0F F0 4A 00 0F 52 0F F0 5A 00 0F
Example 5. Reading the Status Register Contents
r 91 38 01 00
Example 6. Reading Back the X, Y, Z1, and Z2 Data Registers
r 91 02 04 00 0A 00 00 12 00 00 1A 00 00
7.4.3
Downloading a Script
To download an existing script into the Control Buffer, first go to the File menu, then select Open
Command File.... This menu option opens a file-select window and allows you to browse and find an
existing script file. Select the desired file, click on Open, and the script is loaded into the command buffer.
7.4.4
Log Script and Data
The software can track and record the script or data used while the TSC2014EVM GUI is active and in
use. In the File menu, select Log Script and Results ... or Log Data to File ... to generate the script or data
log file.
18
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
GUI Software and Operating Descriptions
www.ti.com
7.4.4.1
Log Script and Results
Go into the File menu and select Log Script and Results ..., which opens a file-select window and allows
you to specify a log file to write the script and results to. At this point, the script to read/write and the
results start to be logged into the file. For example, a written script is logged into the file for any action
performed on the Configuration Tab (see Section 7.3); a reading script and the reading results are logged
into the file if one of the read buttons on the Command Line Interface Tab (refer to Section 7.4) is clicked.
7.4.4.2
Log Data to File
Go into the File menu and select Log Data to File ..., which opens a file-select window and allows you to
specify a log file to write the data to. At the same time, this option enables the Datalogging menu.
When ready to begin recording data to a file, select Datalogging→Start Logging. Data are written to the
file until Datalogging→Stop Logging is selected. When the screen is not touched, the AUX, TEMP1, and
TEMP2 values are written to the file; the X, Y, Z1, and Z2 parameters are written to the file with values of
9999, to indicate that they are not updated. When the screen is touched, the X, Y, Z1, and Z2 parameters
are written while the AUX, TEMP1, and TEMP2 values are written to the file as 9999.
The format of the data file has the first column as the time in milliseconds (this value is only a timer in the
program, and can arbitrarily start at any number); then X, Y, Z1, Z2, AUX, TEMP1, and TEMP2 columns
follow. Every new reading is a new row in the file.
After selecting the Start Logging option , the data are constantly updated, and the datalog file can quickly
grow large. Therefore, log only necessary data.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
19
EVM Bill of Materials
8
www.ti.com
EVM Bill of Materials
Table 6 and Table 7 provide a complete bill of materials for the modular TSC2014EVM evaluation board
and the USB-MODEVM Interface Board (included only with the TSC2014EVM-PDK), respectively..
Table 6. TSC2014EVM Bill of Materials
Item
Count
RefDes
Description
MFR
(1)
Part Number
(1)
1
1
NA
Printed wiring board
TI
6518506
1
1
C1
Capacitor, ceramic 10 µF, 10 V 10% X5R 0805
Murata
GRM219R61A106
KE44D
2
3
C2, C3, C8
Capacitor, ceramic 0.1 µF 50 V 10% X7R 0603
Murata
GRM188R71H104
KA93D
3
0
C4, C5, C6, C7
Not installed
4
2
J1, J2
10-pin, dual row, SM header (20-position)
Samtec
TSM-110-01-TDV-P
5
2
J1B, J2B (2)
10-pin, dual row, SM header (20-position)
Samtec
SSW-110-22-F-DVS-K
6
1
J3
5-pin, dual row, SM header (10-position)
Samtec
TSM-105-01-TDV-P
7
1
J3B (2)
5-pin, dual row, SM header (10-position)
Samtec
SSW-105-22-F-DVS-K
8
0
J4
Not installed
9
2
JP1, JP3
3-position header
Samtec
TSW-103-22-T-S
10
1
JP2
2-position header
Samtec
TSW-102-22-T-S
11
1
R1
Resistor, 0.0 Ω 1/10W 5% 0603 SMD
Yageo
RC0603JR-070RL
12
1
R2
Resistor, 100 Ω 1/10W 1% 0603 SMD
Yageo
RC0603FR07100RL
13
2
R3, R6
Resistor, 20.0 kΩ 1/10W 1% 0603 SMD
Yageo
RC0603FR0720KL
14
2
R4, R5
Resistor, 2.74 kΩ 1/10W 1% 0603 SMD
Yageo
RC0603FR072K74L
15
1
TP1
Test point PC Mini .040"D red
Keystone
5000
16
1
TP2 - TP5
Test point PC Mini .040"D black
Keystone
5001
17
0
TP6 - TP14
Not installed
18
1
U1
TSC2014IYZG, Touch Screen Controller with I2C
Interface
TI
TSC2014IZZZ
19
1
U2
IC, EEPROM 256Kbit 400 kHz 8-TSSOP
Microchip
24AA256-I/ST
N/A
0.100 Shunt - Black Shunts
Samtec
SNT-100-BK-T
Additional Components
20
(1)
(2)
20
3
Manufacturer and part numbers for items may be substituted with electrically equivalent items.
J1B, J2B, J3B bottom side parts are not shown in the schematic diagram.
•
J1B is installed on the bottom side of the PCB opposite J1.
•
J2B is installed on the bottom side of the PCB opposite J2.
•
J3B is installed on the bottom side of the PCB opposite J3.
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
EVM Bill of Materials
www.ti.com
Table 7. USB-MODEVM Interface Board Bill of Materials
Item
Count
Value
Ref Des
1
1
10
R4
1/10W 5% Chip Resistor
Description
Panasonic
Mfr
ERJ-3GEYJ100V
Part Number
2
2
27.4
R10, R11
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF27R4V
3
1
75
R20
1/4W 1% Chip Resistor
Panasonic
ERJ-14NF75R0U
4
2
220
R19, R24
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ221V
5
3
390
R14, R21,
R22
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ391V
6
1
649
R13
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF6490V
7
1
1.5k
R9
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ152V
8
4
2.7k
R1, R2, R3,
R5
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ272V
9
1
3.09k
R12
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3091V
10
2
10k
R15, R16
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ103V
11
1
22.1k
R25
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF2212V
12
1
25.5k
R27
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF2552V
13
1
28k
R29
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF2802V
14
1
30.1k
R18
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3012V
15
1
30.9k
R36
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3092V
16
1
32.4k
R31
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3242V
17
1
36.5k
R34
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3652V
18
1
39.2k
R33
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF3922V
19
1
46.4k
R35
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF4642V
20
1
48.7k
R32
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF4872V
21
1
52.3k
R37
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF5232V
22
1
56.2k
R30
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF5622V
23
1
76.8k
R28
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF7682V
24
1
100k
R17
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ104V
25
1
137k
R26
1/16W 1% Chip Resistor
Panasonic
ERJ-3EKF1373V
26
4
200k
R6 through
R8, R23
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ204V
27
1
10M
R38
1/10W 5% Chip Resistor
Panasonic
ERJ-3GEYJ106V
28
2
10k
RA1, RA2
1/8W Octal Isolated Resistor Array
CTS Corporation
742C163103JPTR
29
2
33pF
C18, C19
50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H330J
30
2
47pF
C13, C14
50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H470J
31
1
100pF
C20
50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H101J
32
1
1000pF
C21
50V Ceramic Chip Capacitor, ±5%, NPO
TDK
C1608C0G1H102J
33
26
0.1µF
C9 through
C12, C15,
C22 through
C24, C26-43
16V Ceramic Chip Capacitor, ±10%,X7R
TDK
C1608X7R1C104K
34
2
0.33µF
C16, C17
16V Ceramic Chip Capacitor, ±10%,X5R
TDK
C1608X5R1C334K
35
1
1µF
C44
6.3V Ceramic Chip Capacitor, ±10%, X5R
TDK
C1608X5R0J105K
36
9
10µF
C1 through
C8, C25
6.3V Ceramic Chip Capacitor, +/ - 10%,
X5R
TDK
C3216X5R0J106K
37
1
64K 2-Wire Serial EEPROM I2C
Microchip
24LC64I/SN
U1
2
38
1
U11
I C Voltage Level Translator
Texas Instruments
PCA9306DCT
39
1
U2
5V LDO Regulator
Texas Instruments
REG1117-5
40
1
U17
Single 3-State Buffer
Texas Instruments
SN74AUP1G125DB
V
41
3
U5, U7, U13
1-bit Dual Supply Bus Transceiver
Texas Instruments
SN74AVC1T45DBV
42
3
U3, U4, U12
4-bit Dual Supply Bus Transceiver
Texas Instruments
SN74AVC4T245PW
43
1
U16
Single Open Drain Buffer
Texas Instruments
SN74LVC1G06DBV
44
1
U10
Single 3-State Buffer
Texas Instruments
SN74LVC1G125DB
V
45
1
U15
Single 3-State Buffer
Texas Instruments
SN74LVC1G126DB
V
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
21
EVM Bill of Materials
www.ti.com
Table 7. USB-MODEVM Interface Board Bill of Materials (continued)
Item
Count
46
1
47
48
Value
Ref Des
Description
Mfr
Part Number
U6
10-bit Voltage Clamp
Texas Instruments
SN74TVC3010PW
1
U8
USB Streaming Controller
Texas Instruments
TAS1020BPFB
1
U14
250 mA Adjustable Output LDO Regulator
Texas Instruments
TPS73201DBV
49
1
U9
3.3V/1.8V Dual Output LDO Regulator
Texas Instruments
TPS767D318PWP
50
1
J7
USB Type B Slave Connector Thru-Hole
Mill-Max
897-43-004-90000000
51
6
J1, J2, J3,
J4, J5, J8
2 Position Terminal Block
On Shore Technology
ED555/2DS
52
1
J9
2.5mm Power Connector
CUI Stack
PJ-102BH
53
1
J10
BNC Connector, Female, PC Mount, RA
AMP/Tyco
5413631-2
54
4
J11A, J12A,
J16A, J17A
20-pin SMT Plug
Samtec
TSM-110-01-L-DVP
Not installed
4
J11B, J12B,
J16B, J17B
20-pin SMT Socket
Samtec
SSW-110-22-F-DVS-K
55
2
J13A, J18A
10-pin SMT Plug
Samtec
TSM-105-01-L-DVP
Not installed
2
J13B, J18B
10-pin SMT Socket
Samtec
SSW-105-22-F-DVS-K
56
1
J6
4-pin Double Row Header (2x2) .1"
Samtec
TSW-102-07-L-D
57
2
J14, J15
12-pin Double Row Header (2x6) .1"
Samtec
TSW-106-07-L-D
58
1
NA
USB-MODEVM PWB
Texas Instruments
6463995
59
1
D1
50V, 1A, Diode MELF SMD
Micro Commercial
Components
DL4001-TP
60
1
D2
Yellow Light Emitting Diode
Lumex
SML-LX0603YWTR
61
5
D3, D4, D6 to Green Light Emitting Diode
D8
Lumex
SML-LX0603GWTR
62
1
D5
Red Light Emitting Diode
Lumex
SML-LX0603IW-TR
63
5
JMP1 to
JMP4, JMP8
2 Position Jumper, 0 .1-in spacing
Samtec
TSW-102-07-L-S
64
3
JMP5 to
JMP7
3 Position Jumper, 0 .1-in spacing
Samtec
TSW-103-07-L-S
65
1
SW1
SMT, Half-Pitch 2 Position Switch
C & K Division, ITT
TDA02H0SB1
66
2
SW2, SW3
SMT, Half-Pitch 8 Position Switch
C & K Division, ITT
TDA08H0SB1
Not installed
9
TP1, TP2,
TP3, TP4,
TP5, TP6,
TP9, TP10,
TP11
Miniature Test Point Terminal
Keystone Electronics
5000
67
9
TP7, TP8
Multipurpose Test Point Terminal
Keystone Electronics
5011
68
1
X1
6MHz Crystal SMD
Epson
MA-505
6.0000M-C0:ROHS
Citizen
HCM496.000MABJ-UT
22
CTS
ATS060SM-T
69
8
NA
Jumper Plug
Samtec
SNT-100-BK-T
70
4
NA
Rubber Feet, Adhesive Backed
3M Bumpon
SJ-5003
TSC2014EVM and TSC2014EVM-PDK
SBAU182 – December 2010
Submit Documentation Feedback
© 2010, Texas Instruments Incorporated
TSC2014EVM PCB
www.ti.com
9
TSC2014EVM PCB
The TSC2014EVM PCB silkscreen image is shown in Figure 7.
Figure 7. TSC2014EVM PCB Silkscreen (Top View)
10
TSC2014EVM Schematic
The schematic for the TSC2014EVM is appended to this user's guide.
SBAU182 – December 2010
Submit Documentation Feedback
TSC2014EVM and TSC2014EVM-PDK
© 2010, Texas Instruments Incorporated
23
A
B
C
1
1
3
5
7
9
11
13
15
17
19
Analog Interface
A0(-)
A0(+)
A1(-)
A1(+)
A2(-)
A2(+)
A3(-)
A3(+)
AGND
A4
AGND
A5
AGND
A6
VCOM
A7
AGND REFAGND REF+
J1
2
4
6
8
10
12
14
16
18
20
AUX
X+
XY+
Y-
R2
2
2
TP2
AGND
100
TP3
AGND
C3
0.1uF
TP6
AUX
R1
TP7
Y-
0
C4
NI
1
3
5
7
9
C5
NI
TP4
DGND
TP8
Y+
C6
NI
C7
NI
TP10
X+
TP5
DGND
Power Interface
+VA
-VA
+5VA
-5VA
DGND AGND
+1.8VD VD1
+3.3VD +5VD
J3
TP9
X-
A1
3
2
4
6
8
10
D3
C3
B3
A3
3
J4
Vcc
AUX
Y-
X-
Y+
X+
NI
JP1
C2
1
0.1uF
Vcc
A2
VDD/REF
GND
D2
D
1
2
TP1
Vcc
A0
C1
10uF
B1
C1
D1
C2
B2
Vcc
TSC2014IZZZ
PENIRQ
SDA
SCL
RESET
U1
A0
JP3
4
TP14
SDA
Vcc
4
TP13
SCL
TP12
PENIRQ
TP11
RESET
20K
R3
JP2
20K
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
1
2
3
4
Digital Interface
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
J2
Vcc
R6
1
3
5
7
9
11
13
15
17
19
VCC
SCL
SDA
WP
0.1uF
C8
5
6518506
Lisa Parker
FILE:
Wendy Fang
Engineer:
8
6
5
7
Vcc
2.74K
R4
Vcc
Drawn By:
24AA64-I/MS
A0
A1
A2
GND
U2
2
4
6
8
10
12
14
16
18
20
5
12500 TI Blvd. Dallas, Texas 75243
Approved
ti
ECN Number
SIZE:
DATE:
6
27-Aug-2010
A
SHEET: 1
REV:
OF: 1
TSC2014 Evaluation Module
Title:
2.74K
R5
REV
6
Revision History
A
B
C
D
1
2
3
4
5
6
REVISION HISTORY
REV
+3.3VD
C22 IOVDD
C28 +3.3VD
0.1uF
0.1uF
U3
1
2
3
4
5
6
7
8
0.1uF
16
15
14
13
12
11
10
9
VCCB
OE1
OE2
1B1
1B2
2B1
2B2
GND
VCCA
DIR1
DIR2
1A1
1A2
2A1
2A2
GND
TP10
U10
4
SCL
X1
6.00 MHZ
C
C20
J7 USB SLAVE CONN
GND
D+
DVCC
46
47
48
1
3
5
6
7
4
16
28
45
100pF
BCLK
0.1uF
U5
4
3
2
1
C21
R9
1.5K
R12
3.09K
.001uF
R10
27.4
897-30-004-90-000000
R11
C14
47pF
1
2
3
C13
47pF
27.4
1
3
5
7
9
11
1
3
2
VCCA
A
GND
P1.3
+3.3VD
VCCB
B
DIR
1
3
2
VCCA
A
GND
16
15
14
13
12
11
10
9
+3.3VD
C24
0.1uF
C10
0.1uF
0.1uF
C11
0.1uF
C12
0.1uF
4
C27
J15
1
2
3
4
5
6
7
8
VCCA
DIR1
DIR2
1A1
1A2
2A1
2A2
GND
0.1uF
P3.5
D2
P3.4
SML-LX0603YW-TR
YELLOW
+3.3VD
P3.3
P3.1-P3.2
R17
+3.3VD
100K
C36 IOVDD
C44
1uF
+5VD
A
CUI-STACK PJ102-BH
2.5 MM
C16
0.33uF
VIN
GND
3
C15 DL4001
0.1uF
U9
5
6
4
GREEN
1IN
1IN
1EN
3
9
1GND
2GND
2
VOUT
R15
10K
C6
10uF
10
11
12
R16
10K
2EN
2IN
2IN
1
J9
SW1
1
2
4
3
6
4
5
VCCB
B
DIR
1RESET
1OUT
1OUT
2RESET
2OUT
2OUT
TPS767D318PWP
3.3VD ENABLE
1.8VD ENABLE
R4
10
C7
28
10uF
24
23
22
+3.3VD
18
17
R24
220
0.1uF
IOVDD
SN74LVC1G06DBV
IOVDD
10uF
0.1uF
U16
D8
4
GREEN
SML-LX0603GW-TR
TP6
U14
D5
1
3
2
RED
C37
0.1uF
IN
OUT
EN
GND
FB
TPS73201DBV
R19
220
C8
10uF
IOVDD
R38
D4
SML-LX0603GW-TR
C17
0.33uF
+3.3VD C39
2
C25
U2
REG1117-5
D1
VCCA
A
GND
SN74AVC1T45DBV
SML-LX0603IW-TR
SML-LX0603GW-TR
1
2
3
6VDC-10VDC IN
1
3
2
+1.8VD
D3
C38
U13
0.1uF
R14
390
+3.3VD
5
649
JMP6
PWR SELECT
2
4
6
8
10
12
INT
USB SPI
3
R13
EXT PWR IN
1
3
5
7
9
11
EXTERNAL SPI
SN74AVC4T245PW
USB ACTIVE
ED555/2DS
10M
R25
R26
22.1k
137k
R27
R28
25.5k
76.8k
R29
R30
28k
56.2k
R31
R32
32.4k
48.7k
R33
R34
39.2k
36.5k
R35
R36
46.4k
30.9k
R37
R18
52.3k
30.1k
SW3
4 1.2V 9
1.4V 10
1.6V 11
1.8V 12
2.0V 13
2.5V 14
3.0V 15
3.3V 16
8
7
6
5
4
3
2
1
ti
DATA ACQUISITION PRODUCTS
IOVDD SELECT
6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA
GREEN
TITLE
ENGINEER RICK DOWNS
USB-MODEVM INTERFACE
DOCUMENT CONTROL NO. 6463996
SHEET
3
A
HIGH PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
DRAWN BY ROBERT BENJAMIN
2
B
5
REGULATOR ENABLE
1
U17
SN74AUP1G125DBV
2
MRESET
+3.3VD
J8
0.1uF
RESET
TP11
B
C40 IOVDD
SS
U4
VCCB
OE1
OE2
1B1
1B2
2B1
2B2
GND
C
USB RST
MISO
MOSI
IOVDD
0.1uF
P1.0
PWR_DWN
SCLK
P1.2
P1.1
SW DIP-8
SN74AVC1T45DBV
C43
9
10
11
12
13
14
15
17
18
19
20
22
JMP7
JPR-1X3
U7
31
30
29
27
26
25
24
23
8
21
33
2
1
2
3
4
5
6
7
8
IOVDD C26
0.1uF
6
4
IOVDD 5
16
15
14
13
12
11
10
9
2
4
6
8
10
12
EXTERNAL AUDIO DATA
+3.3VD C42
U8
TAS1020BPFB
P1.7
P1.6
P1.5
P1.4
P1.3
P1.2
P1.1
P1.0
DVDD
DVDD
DVDD
AVDD
J14
I2SDOUT
SN74AVC1T45DBV
XTALO
XTALI
PLLFILI
PLLFILO
MCLKI
PUR
DP
DM
DVSS
DVSS
DVSS
AVSS
75
LRCLK
IOVDD
0.1uF
33pF
MA-505 6.000M-C0
SW2
A0
A1
A2
USB I2S
USB MCK
USB SPI
USB RST
EXT MCK
R20
I2SDIN
C23
VCCB
B
DIR
RA1
10K
JMP8
JPR-2X1
MCLK
44
43
42
41
40
39
37
38
36
35
34
32
33pF
C19
MRESET
TEST
EXTEN
RSTO
P3.0
P3.1
P3.2/XINT
P3.3
P3.4
P3.5
NC
NC
C18
D
IOVDD
J10
EXT MCLK
SN74LVC1G125DBV
C35
6
4
IOVDD 5
SCL
SDA
VREN
RESET
MCLKO2
MCLKO1
CSCLK
CDATO
CDATI
CSYNC
CRESET
CSCHNE
24LC64I/SN
WP
VSS
7
C9
0.1uF
4
A0
A1
A2
VCC
+3.3VD
2
U1
8
SDA
SCL
+3.3VD
4
SN74LVC1G126DBV
SN74AVC4T245PW
+3.3VD
U15
2
1
USB I2S
SN74AVC4T245PW
PCA9306DCT
C34
5
SDA1
SCL1
GND
USB MCK
6
1
3
EXTERNAL I2C
0.1uF
1
2
3
2
4
4
3
1
VREF2
EN
SDA2
SCL2
7
8
5
6
5
J6
TP9
R5
2.7K
C31
U11
VREF1
R3
2.7K
+3.3VD
16
15
14
13
12
11
10
9
3
SDA
2
EXT MCK
R23
200k
0.1uF
VCCB
OE1
OE2
1B1
1B2
2B1
2B2
GND
2
C30
0.1uF
VCCA
DIR1
DIR2
1A1
1A2
2A1
2A2
GND
1
1
2
3
4
5
6
7
8
3
0.1uF
U12
+3.3VD
1
+3.3VD
5
IOVDD
3
D
APPROVED
C41
0.1uF
1
C33 +3.3VD
5
IOVDD C32
ENGINEERING CHANGE NUMBER
4
5
1
OF
2
FILE
SIZE B
REV D
DATE 3-Apr-2007
C:\Work\USB-MODEVM\USB Motherboard - ModEvm.ddb - Documents\SCH\USB Interface
6
1
2
3
4
5
6
REVISION HISTORY
REV
ENGINEERING CHANGE NUMBER
APPROVED
D
1
2
3
D
J11
J12
A0(-)
A1(-)
A2(-)
A3(-)
AGND
AGND
AGND
VCOM
AGND
AGND
2
4
6
8
10
12
14
16
18
20
A0(+)
A1(+)
A2(+)
A3(+)
A4
A5
A6
A7
REFREF+
1
3
5
7
9
11
13
15
17
19
+5VA
DAUGHTER-ANALOG
1
3
5
7
9
+5VD
JMP1
1
-VA
-5VA
AGND
VD1
+5VD
DAUGHTER-SERIAL
SCLK
TP1
TP2
C2
+5VD
IOVDD
+5VD
RESET
TP3
IOVDD
PWR_DWN
2
C3
IOVDD
JMP3
JMP4
+3.3VD
R21
390
J1
-5VA
R22
390
1
10uF
1
10uF
R1
D6
SML-LX0603GW-TR
D7
SML-LX0603GW-TR
GREEN
GREEN
J3
+5VD
TP5
R2
+1.8VD
C4
C5
10uF
10uF
2.7K
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
24
23
22
21
20
19
18
17
16
15
14
13
GATE
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
SN74TVC3010PW
INT
MOSI
2.7K
J2
+5VA
R6
U6
1
2
3
4
5
6
7
8
9
10
11
12
MISO
TP4
10uF
IOVDD
J12A (TOP) = SAM_TSM-110-01-L-DV-P
J12B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K
2
+5VA
0.1uF
SS
JMP2
C1
C29 +3.3VD
RA2
10k
-5VA
2
4
6
8
10
DAUGHTER-POWER
TP7
TP8
AGND
DGND
1
-5VA
IOVDD
200k
+VA
+5VA
DGND
+1.8VD
+3.3VD
2
JPR-2X1
C
JMP5
2
4
6
8
10
12
14
16
18
20
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
J13
J11A (TOP) = SAM_TSM-110-01-L-DV-P
J11B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K
+5VA
J13A (TOP) = SAM_TSM-105-01-L-DV-P
J13B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
2
1
3
5
7
9
11
13
15
17
19
P3.3
P3.4
P3.5
P1.0
P1.1
P1.2
P1.3
P3.1-P3.2
R7
200k
+3.3VD
R8
SCL
C
200k
SDA
MCLK
I2SDOUT
J4
+1.8VD
J5
+3.3VD
I2SDIN
LRCLK
BCLK
J16
1
3
5
7
9
11
13
15
17
19
B
A0(-)
A1(-)
A2(-)
A3(-)
AGND
AGND
AGND
VCOM
AGND
AGND
J17
2
4
6
8
10
12
14
16
18
20
A0(+)
A1(+)
A2(+)
A3(+)
A4
A5
A6
A7
REFREF+
1
3
5
7
9
11
13
15
17
19
+5VA
DAUGHTER-ANALOG
+1.8VD
GPIO0
DGND
GPIO1
GPIO2
DGND
GPIO3
GPIO4
SCL
DGND
SDA
B
DAUGHTER-SERIAL
J18
J16A (TOP) = SAM_TSM-110-01-L-DV-P
J16B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K
CNTL
CLKX
CLKR
FSX
FSR
DX
DR
INT
TOUT
GPIO5
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
+VA
+5VA
DGND
+1.8VD
+3.3VD
-VA
-5VA
AGND
VD1
+5VD
2
4
6
8
10
-5VA
J17A (TOP) = SAM_TSM-110-01-L-DV-P
J17B (BOTTOM) = SAM_SSW-110-22-F-D-VS-K
DAUGHTER-POWER
+3.3VD
+5VD
IOVDD
ti
J18A (TOP) = SAM_TSM-105-01-L-DV-P
J18B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K
A
DATA ACQUISITION PRODUCTS
A
HIGH-PERFORMANCE ANALOG DIVISION
SEMICONDUCTOR GROUP
6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA
TITLE
ENGINEER
RICK DOWNS
DRAWN BY
ROBERT BENJAMIN
USB-MODEVM INTERFACE
DOCUMENT CONTROL NO. 6463996
SHEET
1
2
3
4
5
2
OF
2
FILE
SIZE B
REV D
DATE 3-Apr-2007
C:\Work\USB-MODEVM\USB Motherboard - ModEvm.ddb - Documents\SCH\Daughtercard Interface
6
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 0V to +3.6V and the output voltage range of 0V to +3.6V.
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than +30° C. The EVM is designed to
operate properly with certain components above +85° C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
【Important Notice for Users of this Product in Japan】
】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1.
2.
3.
Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【ご使用にあたっての注】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1.
2.
3.
電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
実験局の免許を取得後ご使用いただく。
技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1.
2.
3.
4.
You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
You will employ reasonable safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even
if the EVM should fail to perform as described or expected.
You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which
have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such
components to meet such requirements.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
