UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
UCC24612 High Frequency Synchronous Rectifier Controller
1 Features
3 Description
•
UCC24612 is a high performance synchronous
rectifier controller and driver for standard and logiclevel N-channel MOSFET power devices. By
implementing
a
near-ideal
diode
emulation
UCC24612 reduces losses of the output rectifier and
indirectly the primary side losses. The drain to source
(VDS) sensing control scheme allows UCC24612 to
work with multiple topologies, such as Active Clamp
Flyback, QR/DCM/CCM Flyback and LLC, et.
1
•
•
•
•
•
•
•
•
•
•
Supports Topologies such as Active Clamp
Flyback, QR, DCM, CCM Flyback and LLC
MOSFET VDS Sensing up to 230 V
Operating Frequency Up to 1 MHz
– 1 MHz for UCC24612-1
– 800 kHz for UCC24612-2
Wide VDD Range Allows for Direct Bias from 5-V
to 28-V Output Systems
4-A Sink, 1-A Source Gate Driver with
Proportional Gate Drive
Adaptive Minimum Off-time for Increased Noise
Immunity
Cycle Limit Pre-Turn-off Improves Efficiency in
CCM
High or Low-Side Configurable
Automatic Light-Load and Sleep-Mode
Management with 320-µA standby current
16-ns Typical Turnoff Propagation Delay
9.5-V Gate Drive Clamp for Reduced Driving Loss
2 Applications
•
•
•
•
AC-to-DC Adapters
USB Type-C and Power Delivery AC Adapters
Server and Telecom Power Supply
AC-to-DC Auxiliary Power Supply
Integrated features simplify the design effort, enabling
UCC24612 to excel in a variety of applications and
frequencies. The wide operating VDD and VD voltage
ranges enable simple implementation in systems with
outputs up to 28 V. Efficiency and noise immunity is
enhanced with adaptive minimum off-time. Variants
UCC24612-1 and UCC24612-2 offer different
minimum on-times to provide additional noise
immunity. Robust operation in continuous conduction
mode (CCM) is further enhanced with proportional
gate-drive and CCM cycle limit pre-turn-off.
UCC24612 has multiple features that improve
efficiency. The fast comparator with short propagation
delays reduces switching loss. The 9.5-V gate drive
clamp reduces MOSFET driving losses. Frequency
dependent standby modes further decreases standby
power. These features help UCC24612 be part of a
greater system that meets stringent efficiency
standards such as Department of Energy (DoE) Level
VI and Code of Conduct (CoC) Tier 2.

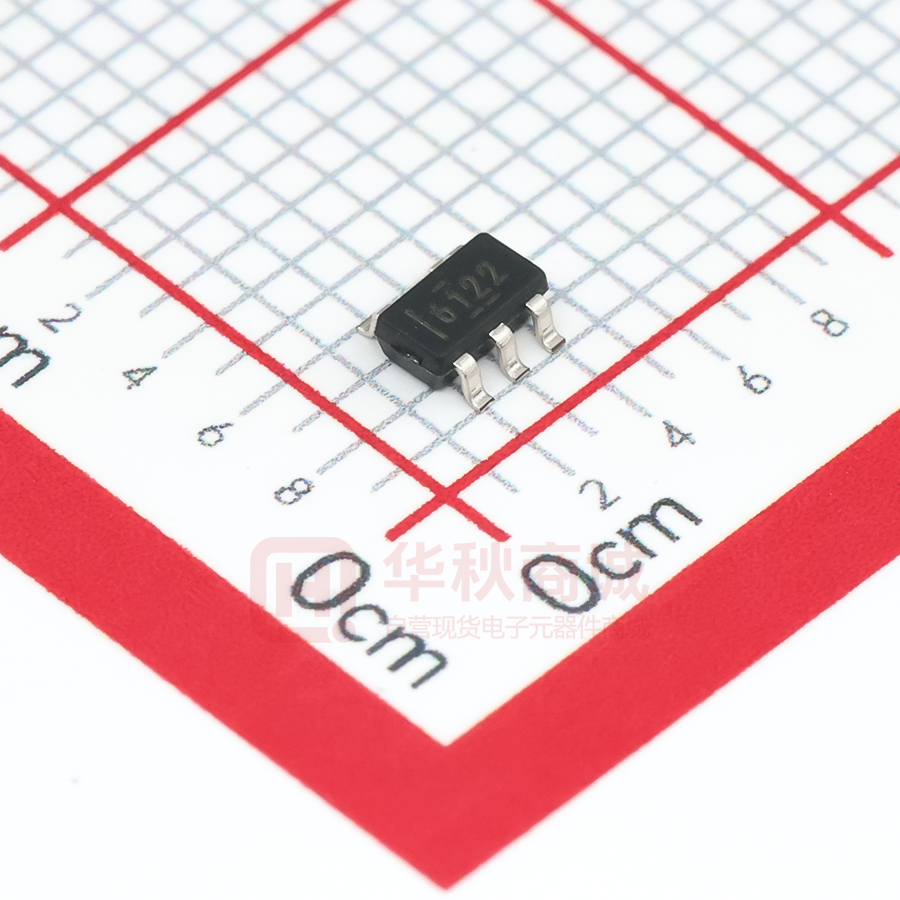

UCC24612 is available in a SOT23-5 package.
Device Information(1)
PART NUMBER
UCC24612
PACKAGE
SOT23 (5)
BODY SIZE (NOM)
3.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Flyback with High-Side SR
REG
VS
Flyback with Low-Side SR
VDD
VG
VD
Vout
VD
VG
VS
REG
VDD
Copyright © 2017, Texas Instruments Incorporated
Copyright © 2017, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
3
6.1
6.2
6.3
6.4
6.5
6.6
6.7
3
4
5
5
6
7
8
Absolute Maximum Ratings ......................................
ESD Ratings ............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ................................................
Typical Characteristics ..............................................
7.3 Feature Description................................................. 11
7.4 Device Functional Modes........................................ 22
8
Application and Implementation ........................ 23
8.1 Application Information............................................ 23
8.2 Typical Application ................................................. 23
9 Power Supply Recommendations...................... 29
10 PCB Layout .......................................................... 31
10.1 Layout Guidelines ................................................. 31
10.2 Layout Example .................................................... 31
11 Device and Documentation Support ................. 32
11.1
11.2
11.3
11.4
Detailed Description ............................................ 10
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
32
32
32
32
12 Mechanical, Packaging, and Orderable
Information ........................................................... 32
7.1 Overview ................................................................. 10
7.2 Functional Block Diagram ....................................... 10
4 Revision History
DATE
REVISION
NOTES
February 2018
A
Initial release.
Table 1. Device Comparison
2
ORDERABL
E PART
NUMBER
TURN ON PROPAGATION
DELAY
MINIMUM ON TIME
MAXIMUM SWITCHING
FREQUENCY
BEST SUITABLE
TOPOLOGIES
UCC24612-1
80 ns
375 ns
1 MHz
CCM/DCM/QR Flyback,
Active Clamp Flyback using
GaN MOSFET as primaryside switch
UCC24612-2
170 ns
540 ns
800 kHz
LLC, Active Clamp Flyback
using Si MOSFET as
primary-side switch
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
5 Pin Configuration and Functions
5-Pin SOT-23
UCC24612
(DBV)
5
VD
4
VDD
VG 1
VS 2
REG 3
(TOP VIEW)
Pin Functions
PIN
NAME
NO.
I/O
DESCRIPTION
REG
3
O
REG is the device bias pin. An internal linear regulator from VDD to REG generates a well regulated
9.5-V voltage. It is recommend to put a 2.2-µF bypass capacitor from REG pin to VS pin.
VD
5
I
MOSFET drain voltage sensing input. Connect this pin to SR MOSFET drain pin. The layout should
avoid sharing the VD pin trace with the power path to minimize the impact of parasitic inductance.
VDD
4
I
Internal linear regulator input. Connect this pin to the output voltage when in low-side SR
configuration. Use R-C-D circuit or other circuits to generate bias voltage from SR MOSFET drain
when using high-side SR configuration, referring to Power Supply Recommendations for details.
VG
1
O
VG (controlled MOSFET gate drive), connect VG to the gate of the controlled MOSFET through a
small series resistor using short PC board tracks to achieve optimal switching performance. The VG
output can achieve >1-A peak source current when High and >4-A peak sink current when Low when
connected to a large N-channel power MOSFET. Due to the weak internal pull up after initial fast turn
on, avoid putting a resistor less than 50 kΩ between VG to VS .
VS
2
-
VS is the internal ground reference of the UCC24612. It is also used to sense the voltage drop across
the SR MOSFET. The layout should avoid sharing the VS pin trace with the power path to minimize
the impact of parasitic inductance.
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
Input voltage
(2)
(1)
MIN
MAX
UNIT
VDD
–0.3
30
V
VD
–0.7
230
V
VG
–0.3
VREG
V
VD for IVD ≤ –10 mA
–1.0
230
V
12
V
REG
(3)
pulsed, tPULSE ≤ 4 ms, duty cycle ≤ 1%
Output current, peak
VG
±4
A
TJ
Operating junction temperature
–40
125
°C
Tstg
Storage temperature
–65
150
°C
(1)
(2)
(3)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Input voltages more negative than indicated may exist on any listed pin without excess stress or damage to the device if the pin’s input
current magnitude is limited to less than -10mA.
In normal use, VG is connected to the gate of a power MOSFET through a small resistor. When used this way, VG current is limited by
the UCC24612 and no absolute maximum output current considerations are required. The series resistor shall be selected to minimize
overshoot and ringing due to series inductance of the VG output and power-MOSFET gate-drive loop. Continuous VG current is subject
to the maximum operating junction temperature limitation.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
3
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
6.2 ESD Ratings
V(ESD)
Electrostatic discharge
VALUE
UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins,
except pin 5 (1)
±2,000
V
(1)
±1,500
V
±500
V
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, pin 5
Charged device model (CDM), per JEDEC specification JESD22-C101,
all pins (2)
(1)
(2)
4
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
VVDD
VDD input voltage
4
CVDD
VDD bypass capacitor
1
CREG
REG bypass capacitor
1.5
TJ
Junction temperature
–40
125
Maximum switching frequency UCC24612-1
770
1000
Maximum switching frequency UCC24612-2
625
800
fS_MAX
UNIT
28
V
µF
2.2
µF
°C
kHz
6.4 Thermal Information
UCC24612
THERMAL METRIC (1)
DBV (SOT23-5)
UNIT
5 PINs
RθJA
Junction-to-ambient thermal resistance
206.6
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
97.6
°C/W
RθJB
Junction-to-board thermal resistance
44.2
°C/W
ψJT
Junction-to-top characterization parameter
9.9
°C/W
ψJB
Junction-to-board characterization parameter
43.7
°C/W
(1)
For more information about traditional and new thermal metrics, see the the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
5
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
6.5 Electrical Characteristics
At VDD = 12 VDC, CVG = 0 pF, CREG = 2.2 µF, −40°C ≤ TJ = TA ≤ +125°C, all voltages are with respect to VS, and currents are
positive into and negative out of the specified terminal, unless otherwise noted. Typical values are at TJ = +25°C.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
BIAS SUPPLY
IVDDSTART
IVDDRUN
IVDDSTBY
VDD current, REG undervoltage
VDD current, run
VDD current, standby mode
VDD = 4 V, VD = 0 V
50
105
150
μA
VDD = 12 V
0.5
0.92
1.5
mA
VDD = 5 V
0.5
0.9
1.5
mA
VDD = 12 V, VD = 1 V
200
390
650
μA
VDD = 5 V, VD = 1 V
200
320
500
μA
4.15
4.5
4.87
V
UNDERVOLTAGE LOCKOUT (UVLO)
VREGON
REG turn-on threshold
Turn-on detected by IVDD rising
VREGOFF
REG turn-off threshold
Turn-off detected by IVDD falling
3.65
4
4.25
V
VREGHYST
UVLO hysteresis
VREGHYST = VREGON – VREGOFF
0.425
0.5
0.575
V
VD falling, TJ = 25°C
–300
–240
–175
mV
VD rising, TJ = 25°C
–20
-9
–2
VD rising, –40°C ≤TJ ≤ 125°C
–30
–9
–2
MOSFET VOLTAGE SENSING
VTHVGON
VG turn-on threshold
VTHVGOFF
VG turn-off threshold
VTHARM
VG re-arming threshold
VD rising
0.4
0.5
0.6
V
IVDBIAS_ON
VD pin bias current when VG is
high (SR is on)
VVD = –50 mV, VVG = VGH
–1
0
1
µA
VVD = –150 mV, VVG = VGL, TJ =
25°C
–6
–2
IVDBIAS_OFF
VD pin bias current when VG is
low (SR is off)
IVDLK
VD pin leakage current
VVD = –150 mV, VVG = VGL, –40°C
≤TJ ≤ 125°C
mV
µA
–10
VVD = 200 V
0.06
2
µA
GATE DRIVER
RSOURCE
VG pull-up resistance
IVG = –20 mA
5.7
10
Ω
RSINK
VG pull-down resistance
IVG = 100 mA
0.45
1
Ω
VGH
VG clamp level
9.4
10.26
VGL
VG output low voltage
IVG = 100 mA, VDD = 12 V
60
150
mV
VOLGUV
VG output low voltage in UVLO
IVG = 25 mA, VDD = 4 V
0.7
V
IVGPU
Gate driver maximum source
current
IVGPD
Gate driver maximum sink current
8.55
(1)
V
1 (1)
A
4
A
REG SUPPLY
VREG
REG pin regulation level
ILOAD_REG = 0 mA
VREGLG
Load regulation on REG
ILOAD_REG= 10 mA to 0 mA
VREGDO
REG drop-out on pass-through
mode
VDD = 5 V, ILOAD_REG= 10 mA
IREGSC
REG short-circuit current
VREG = 0 V
IREGLIM
REG current limit
VREG = 8 V
(1)
6
8.55
9.4
10.26
V
0.016
0.1
V
0.28
0.45
V
1
5.2
15
mA
25
42
62
mA
Specified by design
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
6.6 Timing Requirements
At VDD = 12 VDC, CVG = 0 pF, CREG = 2.2 µF, −40°C ≤ TJ = TA ≤ +125°C, all voltages are with respect to VS, and currents are
positive into and negative out of the specified terminal, unless otherwise noted. Typical values are at TJ = +25°C.
TEST CONDITIONS
MIN
NOM
MAX
VD transitions from 4.7 V to –0.3 V
in 5 ns, UCC24612-1, TJ = 25°C,
see curve for more information
40
80
120
VD transitions from 4.7 V to –0.3 V
in 5 ns, UCC24612-2, TJ = 25°C,
see curve for more information
120
UNIT
MOSFET VOLTAGE SENSING
tdVGON
tdVGOFF
Gate turn-on propagation delay
Gate turn-off propagation delay
ns
VD moves from -0.3 V to 4.7 V in 5
ns
170
225
16
35
ns
MINIMUM ON-TIME
tON(min)
Minimum SR conduction time
UCC24612 -1
245
375
475
ns
UCC24612 -2
350
540
670
ns
UCC24612-1
200
400
595
UCC24612-2
160
360
545
2.65
3.68
4.65
µs
Adaptive MINIMUM OFF-TIME
tOFF_ABSMIN
Absolute minimum SR off-time
tOFF_MAX
Maximum SR off-blanking time
ns
GATE DRIVER
tr_VG
VG rise time
10% to 90%, CVG = 6.8 nF
10
32
65
ns
tf_VG
VG fall time,
90% to 10%, CVG = 6.8 nF
5
16
35
ns
LIGHTLOAD / STANDBY
tSTBY_DET
Standby mode detection time
3
4.5
6
ms
fSLEEP
Average frequency entering
standby mode
8
12
16
kHz
fWAKE
Average frequency coming out of
standby mode
10
15
20
kHz
fSTB_HYS
Average frequency hysteresis for
standby mode
2
3
4
kHz
130 (1)
165
ºC
15
ºC
PROTECTION
TTSD
Thermal shut-down threshold
THYS
Thermal shut-down recovery
hysteresis
(1)
Specified by design
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
7
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
6.7 Typical Characteristics
1.5
1.4
VDD Current, RUN (IVDD RUN) (mA)
4.5
4.45
UVLO Thresholds (V)
4.4
4.35
4.3
4.25
4.2
UVLO ON
UVLO OFF
4.15
4.1
4.05
4
3.95
3.9
-40
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
SR Turn-on Threshold VTHVGON (mV)
SR Turn-off Threshold V THVGOFF (mV)
-9
-9.5
-10
-10.5
-11
-11.5
-12
0.8
0.7
0.6
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
-50
-100
-150
-200
-250
-300
-350
-400
-450
-500
-40
140
-20
0
D001
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
Figure 4. SR Turn-on Threshold Voltage vs Temperature
9.5
Mean
Minimum
Maximum
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
REG Pin Regulation Level VREG (V)
Proportional Gate-drive Threshold (mV)
1
0.9
0
5.5-V VDD
12-V VDD
Figure 3. SR Turn-off Threshold Voltages vs Temperature
140
D001
Figure 5. Proportional Gate-drive Threshold vs Temperature
8
1.1
Figure 2. Bias Supply Current vs. Temperature (CVG= 0 pF,
VVD = 1 V and No Switching)
-8
-8.5
-35
-40
-45
-50
-55
-60
-65
-70
-75
-80
-85
-90
-95
-100
-40
1.2
D001
Figure 1. UVLO Threshold Voltage vs Temperature
-12.5
-40
1.3
0.5
-40
140
5-V VDD
12-V VDD
24-V VDD
Submit Documentation Feedback
9.45
9.4
9.35
9.3
9.25
9.2
9.15
9.1
ILOAD_REG = 0 mA
ILOAD_REG = 10 mA
9.05
9
-40
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
Figure 6. REG Pin Voltage vs Temperature at Different
Loading Conditions
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
4
0.4
3.5
0.38
Turn-off Blanking Time (Ps)
REG Drop-out in Pass-through Mode VREGDO (V)
Typical Characteristics (continued)
0.36
0.34
0.32
0.3
0.28
0.26
0.24
0.22
2.5
2
tOFF_MAX
tOFF_ABSMIN
1.5
1
0.5
0.2
0.18
-60
0
-40
-30
0
30
60
90
Junction Temperature (oC)
120
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
D001
Figure 8. Abs. Minimum Turn-off Blanking Time and
Maximum Turn-off Blanking Time vs Temperature
200
Turn-on Propagation Delay tdVGON (ns)
560
540
520
500
480
460
UCC24612-1
UCC24612-2
440
420
400
380
360
-40
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
180
160
140
120
100
80
140
18
17
16
15
14
13
12
11
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
Figure 11. SR Turn-off Propagation Delay vs Temperature
Copyright © 2017–2018, Texas Instruments Incorporated
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
Figure 10. SR Turn-on Delay Time vs Temperature
VDD Standby Mode Current IVDDSTBY (PA)
19
-20
-20
D001
20
10
-40
UCC24612-1
UCC24612-2
60
-40
Figure 9. Turn-On Blanking Time vs Temperature
Turn-off Propagation Delay td VGOFF (ns)
-20
150
Figure 7. REG Drop-out in Pass-through Mode vs
Temperature, ILOAD_REG = 10 mA
Turn-on Blanking Time tON(min) (ns)
3
600
550
500
450
400
350
300
250
200
VDD = 12 V
VDD = 5 V
150
100
-40
-20
0
20
40
60
80
100
Junction Temperature (oC)
120
140
D001
Figure 12. Standby Current vs Temperature
Submit Documentation Feedback
9
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
7 Detailed Description
7.1 Overview
The UCC24612 synchronous rectifier (SR) controller uses drain-to-source voltage sensing to determine the SR
MOSFET conduction interval. The SR MOSFET is turned on when VDS exceeds turn-on threshold VTHVGON, and
is turned off when VDS falls below VTHVGOFF. The SR conduction voltage drop is continuously monitored and
regulated to minimize the conduction loss while allowing the SR to pre-turn-off when operating in continuous
conduction mode (CCM) . The extremely fast turn-off comparator and driving circuit ensures the fast turn-off of
the SR MOSFET, even in CCM condition. Fixed minimum on-time (tON(min) ) allows the controller to operate up to
1-MHz switching frequency (1 MHz for UCC24612-1, 800 kHz for UCC24612-2). The adaptive minimum off-time
control simplifies the design, making the controller suitable for a wide range of applications and switching
frequencies, with good immunity to noise caused by parasitic ringing. To minimize the standby power, automatic
light-load mode disables the VG pulses when the average switching frequency of the converter becomes lower
than fSLEEP (12 kHz typical). When the load increases such that the average switching frequency increases above
fWAKE (15 kHz typical), the controller resumes normal SR operation. The wide VDD range and gate driver clamp
make the controller ideal for wide output voltage range applications such as USB Power Delivery (USB-PD)
adapters, for example.
7.2 Functional Block Diagram
VDD
REG
9.5-V Linear
Regulator
REG
UVLO
TSD
POWER & FAULT
MANGEMENT
START
GATE
DRIVER
PROPORTIONAL
GATE DRIVE
CONTROL
VD
VG
±
VTHVGON
+
Adaptive TOFF
& DCM ring rejection
S
Q
R
Q
VTHREG
Prop-DRV
threshold
VS
+
VTHVGOFF
±
Turn On
Blanking
Copyright © 2018, Texas Instruments Incorporated
10
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
7.3 Feature Description
7.3.1 Power Management
The UCC24612 SR controller is powered from REG pin through the internal linear regulator between VDD pin
and REG pin. This configuration allows optimal design of the gate driver stage to achieve fast driving speed, low
driving loss and higher noise immunity.
In low-side SR configuration, as shown in Figure 13, the UCC24612 is powered from the output voltage directly.
VD
VG
VS
REG
VDD
Figure 13. UCC24612 Used in Low-side SR Configuration
During start up, the output voltage rises from zero. With the rising of output voltage, the internal linear regulator
operates in a pass-through mode, and the REG pin voltage rises together with the output voltage. The UVLO
function of UCC24612 monitors the voltage on the REG pin instead of the VDD pin. Before REG pin voltage rises
above UVLO on threshold VREGON, UCC24612 consumes the minimum current IVDDSTART. Once the REG
voltage rises above VREGON, the device starts to consume the full operating current and controls the switching of
the SR MOSFET.
When VDD voltage is above 9.5 V, the internal linear regulator operates in regulator mode. The REG pin is well
regulated at 9.5 V. This voltage level is chosen to give a good compromise between SR conduction loss and
gate drive loss. The internal regulator is rated at 10 mA of average load regulation capability for higher switching
frequency operation. It is required to have a sufficient bypass capacitor on the REG pin to ensure stable
operation of the linear regulator. A 2.2-µF bypass capacitor is recommended.
When VDD voltage is below 9.5 V, the internal linear regulator operates in pass-through mode. Depending on the
load current, the regulator has a voltage drop of approximately 0.2 V. The UCC24612 continues to operate
during this mode until the REG pin voltage drops below UVLO turn off level VREGOFF.
A typical timing diagram of VDD and REG pin voltage can be found in Figure 14.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
11
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Feature Description (continued)
VVDD
VREG
VREG
VREG
VREG
VVDD
VON
VOFF
SR Control Enable
Figure 14. Timing Diagram for VDD and REG in Low-side SR Configuration
In some applications, such as USB chargers, the converter is required to deliver the full output current when the
output is over loaded and output voltage drops below the regulation level. In 5-V applications, the output voltage
could drop too low to adequately turn on the SR. In this case, the UCC24612 can be powered through a simple
external R-C-D circuit, as shown in Figure 15. Due to the wide voltage range handling capability, this simple
circuit provides power from the SR drain voltage. Even though this method easily powers up the device, this is a
very inefficient way of powering the controller. A more efficient way would be to use an auxiliary winding to
provide the power.
Vout
VD
VG
VDD
VS
REG
Figure 15. UCC24612 Used in Low-side and Low Output Voltage Condition
The same biasing method can also maintain the SR controller operation in high-side SR configuration, as shown
in Figure 16. More details about biasing UCC24612 can be found in Power Supply Recommendations.
12
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Feature Description (continued)
REG
VS
VDD
VG
VD
Vout
Figure 16. UCC24612 Used in High-Side SR Configuration
7.3.2 Synchronous Rectifier Control
The UCC24612 SR controller determines the conduction time of the SR-MOSFET by comparing the drain-tosource voltage (Vds) of the MOSFET against a turn-on threshold and a turn-off threshold. The VG output is
driven high when VDS of the MOSFET falls below VTHVGON and is driven low when VDS rises above VTHVGOFF as
illustrated in Figure 17. Since when SR is conducting, its drain to source voltage (VDS) is negative, more negative
voltage drop means higher SR current.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
13
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Feature Description (continued)
VDS
ISD
t
VTHVGOFF
VTHREG
VTHVGON
VGATE
90%
10%
tr_VG
t
tdVGON
Figure 17. VG Output With Respect to VDS
NOTE
Because of finite propagation delay and rise times, the body diode of the SR-MOSFET
may conduct briefly after VTHVGON has been exceeded. A waveform similar to that depicted
in Figure 17 can be observed during SR operation in a simple Flyback circuit.
It should be noted that before the SR turns on, there is a small delay caused by the internal comparator delay
and the gate driver delay. During the delay time, the SR MOSFET body diode is conducting. For a Flyback
converter, the SR current is at its maximum value during this delay time. It is desirable to have minimum delay.
The gate driver design should avoid long turn-on delay.
For certain applications, this delay is essential for correct operation. In Active Clamp Flyback converters,
especially when the primary-side switches are using Si-based super-junction MOSFETs, due to the large
nonlinear junction capacitance, the SR often sees a leading spike current, followed by the real conduction
current. Typically, a longer minimum on-time can override this spike to make the circuit operate normally.
However, this forced minimum on-time can allow current that transfers the energy from output to input and
reduces the overall converter efficiency. In UCC24612, two different versions are available. UCC24612-1 has an
inherently short turn-on propagation delay (80 ns typical) and can be used with the converters that need shorter
delay, such as standard Flyback converters or Active Clamp Flyback converters using GaN MOSFETs as main
switches. UCC24612-2 has a longer 170-ns turn-on delay, to further ignore the leading edge spike and can be
used with Active Clamp Flyback using Si-based super-junction MOSFETs as the main switch or LLC converters.
Due to the longer turn-on delay, UCC24612-2 also increases its minimum on time-to 540ns to allow further
enhancement on dealing with resonant-shape current, which makes a better choice for Si-based super-junction
MOSFETs as the main switch or LLC converters.
14
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Feature Description (continued)
When the SR body diode is conducting, the VD pin becomes negative with respect to the VS pin, by a bodydiode drop. The connections of VD and VS pins should be tracked directly to the SR MOSFET pins, to avoid any
overlap of sensing and power paths, minimizing the negative voltage and ringing caused by the parasitic
inductances. Low package inductance MOSFETs are preferred to minimize this effect.
Besides the simple comparator, UCC24612 also includes a proportional gate driver for the SR. For conventional
SR control, the SR MOSFET is always driven to the full driving voltage. This minimizes the conduction loss.
However, this method has some major drawbacks. The turn-off threshold is often a fixed value, to prevent shootthrough, so that the SR is turned off before its current reaches zero. This causes SR body diode conduction and
actually increases the conduction loss. Another issue is associated with operation in continuous conduction mode
(CCM) condition. When a Flyback converter operates in CCM, the SR current slope (di/dt) at turn-off could be as
high as 150 A/µs. This high current slope could cause large negative current due to long propagation delay.
Furthermore, the delay caused by discharging the SR MOSFET gate from full voltage to its threshold level
introduces another delay, further increasing the negative current.
Instead of keeping the SR MOSFET turned on with full gate driver voltage, UCC24612 reduces its gate driver
voltage when the voltage drop across SR drain-to-source reaches -50 mV (current approaching zero). During this
time, UCC24612 tries to regulate the SR voltage drop to -50 mV. This brings two major benefits to the
application: a) Preventing the SR premature turn-off, avoiding extra loss associated with body diode conduction
and reverse recovery, b) Shorter turn-off delay since the SR MOSFET gate voltage is already reduced close to
the threshold level and the SR can be turned off with virtually no further delay. Since the -150 mV is the
maximum level that can be achieved by the UCC24612, the SR MOSFET selection should allow the -150-mV
threshold to be activated when operating in deep CCM condition.
In certain applications, such as telecom DC/DC bricks, due to the lower input and output voltages, operation in
deep CCM mode (low inductor current ripple) gives the benefit of less conduction loss. In these applications, the
SR turn-off current is high and the SR MOSFET voltage drop can still be less than the -50-mV threshold.
UCC24612 decreases the -50-mV threshold to -150 mV to force proportional drive activation and reduction of the
gate driver voltage for a fast turn-off. The timing to decrease the threshold is based on previous cycle SR
conduction time. Because the regular proportional gate drive and the turn-off mechanism are kept functional
continuously, the UCC24612 can still provide correct SR control even for a large SR conduction time change
within two switching cycles. The forced proportional gate drive mechanism can be shown in Figure 18. In
Figure 18, the turn on delay was ignored to simplify the illustration.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
15
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Feature Description (continued)
ISR
t
t
-50mV
-150mV
VDS
VGATE
t
90%TSR(N-1)
90%TSR(N)
TSR(N)
TSR(N+1)
Figure 18. Forced Proportional Gate-Drive for Deep CCM Operation
For Flyback converters, the SR current starts from its maximum amplitude and keeps reducing. Proportional gate
drive is only enabled at the later part of the SR current conduction period. However, for other topologies such as
LLC or Active Clamp Flyback, the SR current starts from lower amplitude and then increases to a higher
amplitude. To prevent the proportional gate drive from being enabled at the beginning of the conduction period,
proportional drive is disabled for the first 50% of the SR conduction time, based on the previous cycle SR
conduction time. In this way, the proportional drive is always enabled on the current falling slope and minimizes
impact on the conduction loss.
16
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Feature Description (continued)
7.3.3 Adaptive Blanking Time
In power converters, the sensed the voltage across the SR is often noisy, caused by the parasitic ringing. This
parasitic ringing is often associated with the SR and the primary-side switch turning on and off. Blanking time is
used to deal with the parasitic ringing to prevent SR false turn on and off. Figure 19 shows more realistic
waveforms and the internal control timing which accommodates them.
ISD
~~
~~
~~
~~
~~
~~
VDS
TONBLANK
TOFFBLANK
SR Gate
Figure 19. Parasitic Ringing Associated with DCM Operation
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
17
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Feature Description (continued)
7.3.3.1 Turn-On Blanking Timer (Minimum On Time)
Right after SR turn-on, for some topologies, such as Flyback, the SR starts to conduct with its maximum current.
Due to the parasitic ringing, SR sensed voltage drop may trip the turn-off threshold and prematurely turn off the
SR. This is largely caused by the ringing due to the package inductance of the SR MOSFET. The ringing voltage
can be managed through appropriate snubbing and use of low package inductance MOSFETs. To further
improve the noise immunity, UCC24612-1 blanks the turn-off comparator with a fixed 360-ns (540 ns for
UCC24612-2) minimum on-time timer. The SR needs to conduct a minimum of 360 ns (540 ns for UCC24612-2)
regardless of its turn-off comparator state. The minimum on-time is short enough to allow the UCC24612 to be
used at up to 1 MHz switching frequency (1 MHz for UCC24612-1 and 800kHz for UCC24612-2), while still
maintaining good noise immunity. Due to the different applications, the minimum on-time is set up differently for
UCC24612-1 and UCC24612-2. For UCC24612-1, the minimum on-time is 360 ns and for UCC24612-2, the
minimum on-time is 540 ns.
7.3.3.2 Turn-Off Blanking Timer
When the converter operates in discontinuous conduction mode (DCM) or burst mode, after SR turn-off, there is
a large parasitic DCM ring caused by the primary inductance and the switch node capacitance. For the first
couple of ringing cycles, there is a possibility that the drain voltage can resonate below the SR turn-on threshold.
The SR could be falsely turned on at these instances and introduce extra loss and EMI noise.
The DCM ringing is blanked by an off blanking timer. It is often called minimum off-time. Due to the range of
switching frequencies and power levels, the parasitic ringing frequency can vary substantially. The programmable
off blanking timer provides maximum flexibility for the circuit design and avoids false triggering. However, there
are some limitations associated with this method. Firstly, the need for a programming pin can force a higher pin
count package, which increases the overall cost and difficulty of layout. Secondly, a fixed off blanking timer might
not work well for the entire range of line and load conditions. For example, for a quasi-resonant (QR) Flyback, in
light load mode, it enters DCM operation. In this case, the off blanking timer should be long to avoid DCM ringing
induced SR false turn on. However, at high input voltage, when the converter operates in QR mode, the primary
side MOSFET conduction time is quite short, and long minimum off-time might cut into the conduction time of the
SR, introducing extra conduction loss.
In UCC24612, instead of a fixed off blanking timer, an adaptive off blanking timer is used to blank the parasitic
ringing and avoid false turn-on. The off blanking timer TOFFblankis determined by the maximum value of three
timings, the absolute minimum off blanking time of 400 ns (tOFF_ABSMIN), the recorded DCM ring cycle time tDCM
and the previous cycle's SR off time tOFF.
UCC24612 sets up the off blanking timer based on the previous cycle SR off time. By choosing 70% of previous
switching cycle's SR off time, the off blanking timer is maximized to prevent any false triggering.
However, the off blanking timer minimum value is clamped by the 400-ns absolute minimum value and recorded
DCM ringing cycle.
The adaptive off-time blanking operation principle is illustrated in Figure 20.
18
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Feature Description (continued)
ISD
C
C
C
C
CC
C
C
C
C
CC
C
VDS
VGS
TOFF
TOFF(N-1)
70%*TOFF(N-2)
TOFF(N)
70%*TOFF(N-1)
Abs. Min
TOFFBLANK
TOFFBLANK
Figure 20. Operation Principle of Adaptive off-blanking
After SR turn-off, if the off blanking time is not sufficient, the SR could be turned on again by a DCM ring.
Because of the DCM ring, the SR conduction time is limited by its minimum on-time. By looking at the SR
conduction time and comparing it with the minimum on time, UCC24612 is able to determine if the conduction is
a real SR conduction or a false turn on triggered by the DCM ring. A real SR conduction should demand the
conduction time longer than the minimum on-time. Once the false turn-on is captured, the time duration between
previous SR turn-off and the SR false turn-on is recorded as the DCM ring cycle. For the next switching cycle,
the off blanking timer is clamped to 2.2 times of the recorded DCM ring cycle. This clamp replaces the 350-ns
clamp as the new minimum clamp for the adaptive-off blanking. This adaptive off-blanking timer allows
UCC24612 achieving the noise immunity without a dedicated programming pin. The DCM ring clamp is illustrated
in Figure 21.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
19
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Feature Description (continued)
ISD
~~
~~
~~
~~
~~
~~
VDS
SR ON
TOFFBLANK
Clamp
Abs. Min
TRing
2.2TRing
Figure 21. Adaptive Off-Time Blanking with DCM Ring Clamp
For some conditions, as mentioned earlier, the off blanking timer suitable for DCM operation might be too long
for high-line QR operation. In this case, the off blanking timer clamp needs to be reset to the correct value.
UCC24612 continuously monitors the SR body diode conduction time during minimum off-time. If the body diode
conduction time is longer than the minimum on-time, this means the minimum off blanking time clamp setting is
too long and needs to be reduced. UCC24612 resets the minimum off blanking time clamp to the absolute
minimum of 400 ns to allow full conduction of the SR on the subsequent cycles.
If for any reason the off blanking time expires after the SR body diode conduction, the SR turn-on is skipped for
the switching cycle. This is because when the SR conducts, it conducts with a minimum on-time, if the blanking
time expires at the end of the SR conduction time and converter operates in the CCM condition, there is a good
chance to cause shoot-through and endanger the converter.
The off blanking time has a maximum value of tOFF_MAX at 3.68 µs.
20
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Feature Description (continued)
7.3.3.3 SR Turn-on Re-arm
The VG output may only turn on when the controller has been armed for the next switching cycle. The controller
is armed for each successive SR cycle only after TOFFBLANK expires. The TOFFBLANK timer only starts after VD
pin voltage rises 500 mV above the VS pin.
7.3.4 Gate Voltage Clamping
With the wide VDD voltage range capability, UCC24612 clamps the gate driver voltage to a maximum level of 9.5
V to allow fast driving speed, low driving loss and compatibility with different MOSFETs. The 9.5-V level is
chosen to minimize the conduction loss for the non-logic level MOSFETs.
The gate driver voltage clamp is achieved through the regulated REG pin voltage. When VDD voltage is above
9.5 V, the linear regulator regulates the REG pin voltage to be 9.5 V, which is also the power supply of the gate
driver stage. This way, the MOSFET gate is clamped at 9.5 V, regardless of how high the VDD voltage is. When
the VDD voltage is close to or below the programmed REG pin regulation voltage, UCC24612 can no longer
regulate the REG pin voltage. Instead, it enters a pass-through mode where the REG pin voltage follows the
VDD pin voltage with slight voltage drop out (VREGDO). During this time, the gate driver voltage is lower than its
programmed value but still provides SR driving capability. The UCC24612 is disabled once the REG pin voltage
drops below its UVLO level.
7.3.5 Standby Mode
With more stringent efficiency standards such as Department of Energy (DoE) level VI, external power supplies
are expected to maintain very low standby power at no-load conditions. It is essential for the SR controller to
enter the low-power standby mode to help save standby power.
During standby mode, the power converter loss allocation is quite different compared to heavy load. At heavier
load, both conduction loss and switching loss are quite high. However, at light load, the conduction loss becomes
insignificant and switching loss dominates. To help improve standby power, modern power supply controllers
often enter burst mode to save switching loss. Furthermore, in each burst switching cycle, the energy delivered is
maximized to minimize the number of switching cycles needed and further reduce the switching loss.
Traditionally, the SR controller monitors the SR conduction time to distinguish normal operating modes from
standby mode. This criterion is no longer suitable for the modern power supply controller designed for delivering
minimum standby power.
Instead, in UCC24612, a frequency based standby mode detection is used. UCC24612 continuously monitors the
average switching frequency of the SR. Once the average switching frequency of the SR controller drops below
12 kHz, the UCC24612 enters standby mode and reduces its current consumption to IVDDSTBY. During standby
mode, the VG pin is kept low while the SR switching cycle is continuously monitored. Once the average
switching frequency is more than 15 kHz over a 4.5-ms window, the SR operation is enabled again. UCC24612
ignores the first six SR switching cycles after coming out of standby mode to make sure the SR isn't turned on in
the middle of the switching cycle.
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
21
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
7.4 Device Functional Modes
7.4.1 UVLO Mode
UCC24612 uses the REG pin voltage to detect UVLO instead of the VDD pin voltage. When the REG voltage to
the device has not yet reached the VREGON threshold, or has fallen below the UVLO threshold VREGOFF, the
device operates in the low-power UVLO mode. In this mode, most internal functions are disabled and VDD
current is IVDDstart, typically less than 120 µA. If the REG pin is above 2 V, there is an active pull-down from VG
to VS to prevent SR turn-on due to noise. When the REG pin voltage is less than 2 V, there is a weak pull down
from VG to VS and this also helps prevent false turn on of the SR MOSFET. The device exits UVLO mode when
REG increases above the VREGON threshold.
7.4.2 Standby Mode
Standby mode is a low-power operating mode to help achieve low standby power for the entire power supply.
UCC24612 detects the operating frequency of the SR MOSFET and enters or exits standby mode operation
automatically. REG current reduces to IVDDSTBY level. During standby mode, the majority of the SR control
functions are disabled, except the switching frequency monitoring, REG monitoring and the active pull-down on
the gate driver.
7.4.3 Run Mode
Run mode is the normal operating mode of the controller when not in UVLO mode or standby mode. In this
mode, REG current is higher because all internal control and timing functions are operating and the VG output is
driving the MOSFET for synchronous rectification. REG current is the sum of IVDDRUN plus the average current
necessary to drive the load on the VG output. The VG voltage is automatically adjusted based on the SR
MOSFET drain to source voltage according to the proportional gate drive operation.
22
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
8 Application and Implementation
NOTE
Information in the following application sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The UCC24612 synchronous rectifier controller is designed to control an SR MOSFET to replace a lossy diode
rectifier to improve the efficiency in various topologies, such as Active Clamp Flyback, Flyback operating in DCM,
QR or CCM mode, as well as LLC resonant converters.
8.2 Typical Application
The following application information is applied to the UCC24612 Evaluation Module (EVM), which is used as a
rectifier stage in a 20-V, 60-W DCM Flyback design. The controller used in this design is a UCC28740 secondary
side regulated, variable-frequency Flyback controller that has a maximum switching frequency of 85 kHz. Please
refer to the UCC28740 data sheet for further details.
T1
VIN
NP
NS
COUT
VOUT
TP1
TP2
1
TP3
2
J1
R3
UCC24612EVM
C3
D1
Q1
C1
C2
R2
20k
27V
2.2
R1
1
VD
VG
JP1
Closed
R4
2.2u
5
D2
2
3
VS
REG
UCC24612
1u
10
4
VDD
U1
Note R3 and C3 are not Populated
Copyright © 2018, Texas Instruments Incorporated
Figure 22. UCC24612 Typical Application Example
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
23
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
Typical Application (continued)
8.2.1 Design Requirements
Table 2. 60-W DCM Flyback Design Requirements
PARAMETER
TEST CONDITIONS
MIN
NOM
MAX
UNIT
INPUT CHARACTERISTICS
VIN
Input voltage
85
265
VRMS
21
V
3
A
OUTPUT CHARACTERISTICS
VOUT
Output voltage, average
VIN = 85 VRMS to 265 VRMS, IOUT = 0 A to 3 A
IOUT
Output current
VIN = 85 VRMS to 265 VRMS
19
20
0
8.2.2 Detailed Design Procedure
8.2.2.1 SR MOSFET Selection
UCC24612 can be paired with an appropriate MOSFET to replace the diode rectifier on existing designs and
demonstrate significant conduction loss reduction. The SR MOSFET selection should consider the tradeoff
between cost and performance. Lower on-state resistance gives lower conduction loss, while it reduces the
efficiency at light load. Due to the unique implementation of proportional gate drive, the benefit of lower on-state
resistance is diminished. It is recommended to select the MOSFET on-state resistance so that the proportional
gate drive operates for less than 50% of the full load SR conduction time.
According to UCC28740 datasheet, for 3-A output DCM Flyback design, the secondary side peak current should
be about 14 A. To allow the proportional gate drive operating less than 50% of the SR conduction time, SR
MOSFET Rdson should be more than 7 mΩ , according to .
Rdson !
50mV
| 7m:
14 A / 2
(1)
The MOSFET breakdown voltage should be higher than the maximum voltage the SR MOSFET sees under
maximum input voltage. For this design, the transformer turns ratio is 3.5, the voltage stress on the SR can be
calculated as in Equation 2.
Vds max
2VIN max
N PS
VOUT
2 u 265V
3.5
20V
127V
(2)
In this EVM, a 150-V, 19-mΩ MOSFET is used to get a balance between the cost and performance.
8.2.2.2 Bypass Capacitor Selection
UCC24612 needs a sufficient external bypass capacitance to ensure the internal regulator stability. Referring to
the power supply recommendation section, a 2.2-µF 50-V ceramic capacitor was chosen as the bypass capacitor
on REG pin. For the VDD pin, it is normally powered by the output voltage and there is plenty of capacitor there.
A 0.1-µF ceramic capacitor is still recommended to be placed close to the IC to provide high frequency current.
8.2.2.3 Snubber design
It is required for the user to setup snubber components C3 and R3 to get the best performance when using the
UCC24612EVM.
To setup these components will require knowledge of the Flyback transformer secondary leakage inductance
(Lslk) and measuring the secondary resonant ring frequency (fr) in circuit. It is recommended that the SR is not
driven while doing this to simplify the process. It is also recommended to do this test at partial load to avoid
creating too much heat on the SR body diode because the conduction loss is much higher. TP3 should be
disconnected from the Flyback converter to ensure FET Q1 is turned off while setting up the snubber.
The secondary winding capacitance (Cs) then needs to be calculated based on the following equation. Please
note for a transformer with a secondary winding leakage inductance of 3.8 µH and a ring frequency of 2 MHz, the
parasitic capacitance would be 1.7 nF, for example.
24
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
CS
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
1
2
2 u S u f r u Lslk
1
2
2 u S u 2 MHz u 3.8PH
1.7nF
(3)
Based on the calculated Cs, Lslk and fr, the snubber resistor R3 can be set to critically dampen the ringing on
the secondary, which requires setting the Q of the circuit equal to 1.
R3
1
Q
Lslk
Cs
1 3.8PH
| 47:
1 1.7nF
(4)
Capacitor C3 is used to limit the time the snubber resistor is applied to the aux winding during the switching
cycle. It is recommended to set the snubber capacitor C3 with the following equation based on the Flyback
converters switching frequency (fSW). For a Flyback converter switching at 85 kHz in the example would require a
C3 of roughly 497 pF.
C3
0.01
5 u fsw u R3
0.01
| 497 pF
5 u 85kHz u 47:
(5)
Please note that the calculations for R3 and C3 are just starting points and should be adjusted based on
individual preference, performance and efficiency requirements. More snubber design information can be found
in "Snubber Circuits Theory, Design and Application".
8.2.2.4 High-Side Operation
To use the UCC24612EVM to replace a high-side rectifier requires removing jumper JP1 and connecting the
EVM as shown in Figure 23. Please note that the EVM comes with a default VDD filtering resistor (R2) of 20 kΩ.
However, resistor R2 needs to be adjusted based on your individual application.
VIN
T1
NP
NS
COUT
VOUT
IP
TP2
1 TP1
2
J1
R3
TP3
UCC24612EVM
C3
D1, 27V
Q1
C1
R1
C2
2.2
5
1
VD
VG
3
VS
REG
UCC24612
D2
20k
10
4
VDD
JP1
Open
R4
1u
2.2u
2
R2
U1
Note: R3 and C3 are not Populated
Figure 23. UCC24612-1EVM Used in High-Side Rectifier Application
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
25
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
If the magnitude of the voltage from TP2 to TP1 is less than 28 V, remove R2 that is populated on the EVM ( 20
kΩ) and set R2 to 0 to 10 ohms and remove 27-V Zener diode D1 from the board.
If TP2 to TP1 is greater than 28 V use resistor R2 to setup an averaging filter to lower the DC voltage applied to
VDD.
The RC filter formed by C2 and R2 should set the filter pole frequency to one-hundredth of the converter's
maximum switching frequency. In this example the converter's maximum switching frequency (fSW) is 85 kHz.
Note that the switching frequency will vary based on design and preference.
R2 !
1
1
fsw
2S u C1 u
100
85kHz
2S u 1PF u
100
| 187 :
(6)
When the RC filter circuit is used, it is recommended that the VDD voltage should be between 4 V to 28 V to
provide enough energy and voltage to the gate driver. This range can be determined in a fixed frequency Flyback
converter with the following equations. DMAX is the maximum duty cycle of the converter and DMIN is the minimum
duty cycle of the converter. NP is the Flyback transformer (T1) primary number of turns and NS is the transformer
secondary number of turns. Please refer to Figure 23 for details.
Maximum VDD voltage (VVDD(MAX)):
88&&(/#:) = @8176 + 8+0(/#:) ×
05
02
A × &/#: = @208 + 3758 × A × 0.5 = 24.48
1
13
(7)
Minimum VDD voltage (VVDD(MIN)):
88&&(/+0) = l8176 + 8+0(/+0) ×
05
1
p × &/+0 = l208 + 728 × p × 0.36 = 9.28
02
13
(8)
8.2.3 Application Curves
The UCC24612EVM is used as a synchronous rectifier in both a high-side and low-side configuration in an offline
(VIN = 85 V to 265 V RMS), 20-V (VOUT), 60-W application. The primary-side controller used in this design is a
UCC28740 secondary-side regulated, variable-frequency Flyback controller that had a maximum switching
frequency of roughly 85 kHz. Please refer to the UCC28740 data sheet for further details.
8.2.3.1 Steady State Testing Low-Side Configuration
•
•
Snubber Components, R2 = 1.02 kΩ, R3 = 51.1Ω , C3 = 470 pF
CH1 = VG, CH2 = Q1 drain (TP2), CH3 = VOUT Voltage Ripple (TP3)
Figure 24. 85-VAC, 0-A Load
26
Submit Documentation Feedback
Figure 25. 85-VAC, 3-A Load
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
Figure 26. 265-VAC, 0-A Load
Copyright © 2017–2018, Texas Instruments Incorporated
Figure 27. 265-VAC, 3-A Load
Submit Documentation Feedback
27
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
8.2.3.2 Steady State Testing High-Side Configuration
•
•
28
Snubber Components, R2 = 1.02 kΩ, R3 = 51.1 Ω , C3 = 470 pF
CH1 = VG, CH2 = Q1 drain (TP2), CH3 = VOUT Voltage Ripple (TP3)
Figure 28. 85-VAC, 0-A Load
Figure 29. 85-VAC, 3-A Load
Figure 30. 265-VAC. 0-A Load
Figure 31. 265-VAC, 3-A Load
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
9 Power Supply Recommendations
UCC24612 internal circuits are powered from the REG pin only. There is an internal LDO between VDD pin and
REG pin to provide a well-regulated REG pin voltage when VDD voltage is above 9.5 V. This allows the device
to have better bypassing and better gate driver performance.
It is important to have sufficient bypass cap on REG pin. A minimum of 1.5-µF bypass capacitor is required.
When the average gate charge current is higher than 5mA, it is required to have at least 2.2-µF bypass capacitor
on REG pin.
VDD pin is the main power source of the device. The voltage on VDD pin should be kept between 4.5 V and 28
V for normal operation. Refer to the electrical characteristics table for the tolerances on the REG pin UVLO ON
and OFF levels.
When UCC24612 is used in low-side SR configuration, VDD can be directly tied to the output voltage if the
output voltage is between 4.5 V to 28 V.
When the UCC24612 is used in high-side SR configuration, VDD can be powered through three different ways,
with a trade off between cost and performance.
a. Power the device through secondary-side auxiliary winding
b. Power the device through simple R-C filter
c. Power the device through depletion mode FET
By using the secondary-side auxiliary winding, as shown in Figure 32, UCC24612 is equivalently powered by the
output voltage because of the transformer coupling effect. This provides the best efficiency solution. However,
this solution is often limited by the transformer construction and cost constraints.
The UCC24612 can be powered by using a diode and RC filter on VDD pin, as shown in Figure 33. This allows
the device to get power from the SR drain voltage. Due to the wide range of VD voltage variation (for example,
VD voltage is the sum of reflected input voltage and output voltage in Flyback converter), this may not be
acceptable for some applications due to the limit of absolute maximum VDD voltage rating. However, this
provides a simple and low cost solution.
A more universal solution without changing the transformer is to provide the VDD through SR drain using a diode
and depletion mode MOSFET, as shown in Figure 34. This allows a well regulated VDD voltage throughout the
entire operation range of the converter. Even though it still reducess the efficiency because the device is
powered up from a high voltage source, this provides a simple solution without changing the transformer design.
The three different configurations are summarized in Figure 32, Figure 33 and Figure 34.
REG
VS
VDD
VG
VD
Vout
Figure 32. Power UCC24612 Using Auxiliary Winding
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
29
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
REG
VS
VDD
VG
VD
Vout
Figure 33. Power UCC24612 Using R-C-D
REG
VS
VDD
VG
VD
Vout
Figure 34. Powering UCC24612 Using Depletion Mode MOSFET
30
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
UCC24612
www.ti.com
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
10 PCB Layout
10.1 Layout Guidelines
The printed circuit board (PCB) requires careful layout to minimize current loop areas and track lengths,
especially when using single-sided PCBs.
• Place a ceramic MLCC bypass capacitor as close as possible between VDD and VS, and between REG and
VS.
• Avoid connecting VD and VS sense points at locations where stray inductance is added to the SR MOSFET
package inductance, as this will tend to turn off the SR prematurely.
• Run a track from the VD pin directly to the MOSFET drain pad to avoid sensing voltage across the stray
inductance in the SR drain current path.
• Run a track from the VS pin directly to the MOSFET source pad to avoid sensing voltage across the stray
inductance in the SR source current path. Because this trace shares both the gate driver path and the
MOSFET voltage sensing path, it is recommended to make this trace as short as possible.
• Run parallel tracks from VG and VS to the SR MOSFET. Include a series gate resistor between VG and SR
MOSFET gate pin to dampen ringing if it is needed.
10.2 Layout Example
UCC24612
VD
VDD
CVDD
RG
REG
VS
VG
CREG
SR Source
SR MOSFET
SR Drain
Figure 35. PCB Layout for Driving an SR with SO-8 Package
Copyright © 2017–2018, Texas Instruments Incorporated
Submit Documentation Feedback
31
UCC24612
SLUSCM5A – AUGUST 2017 – REVISED FEBRUARY 2018
www.ti.com
11 Device and Documentation Support
11.1 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.2 Trademarks
E2E is a trademark of Texas Instruments.
11.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
32
Submit Documentation Feedback
Copyright © 2017–2018, Texas Instruments Incorporated
PACKAGE OPTION ADDENDUM
www.ti.com
21-Feb-2018
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
UCC24612-1DBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
6121
UCC24612-1DBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
6121
UCC24612-2DBVR
ACTIVE
SOT-23
DBV
5
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
6122
UCC24612-2DBVT
ACTIVE
SOT-23
DBV
5
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
6122
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
