UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
UCC2751x Single-Channel, High-Speed, Low-Side Gate Driver (With 4-A Peak Source and
4-A Peak Sink)
1 Features
2 Applications
•
•
•
•
1
•
•
•
•
•
•
•
•
•
•
•
•
Low-Cost Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
4-A Peak-Source and 4-A Peak-Sink Symmetrical
Drive
Fast Propagation Delays (13-ns Typical)
Fast Rise and Fall Times (9-ns and 7-ns Typical)
4.5 to 18-V Single-Supply Range
Outputs Held Low During VDD UVLO (Ensures
Glitch-Free Operation at Power Up and Power
Down)
TTL and CMOS Compatible Input-Logic Threshold
(Independent of Supply Voltage)
Hysteretic-Logic Thresholds for High-Noise
Immunity
Dual Input Design (Choice of an Inverting (IN–
pin) or Noninverting (IN+ Pin) Driver
Configuration)
– Unused Input Pin Can Be Used for Enable or
Disable Function
Output Held Low When Input Pins Are Floating
Input Pin Absolute Maximum Voltage Levels Not
Restricted by VDD Pin Bias Supply Voltage
Operating Temperature Range of –40°C to 140°C

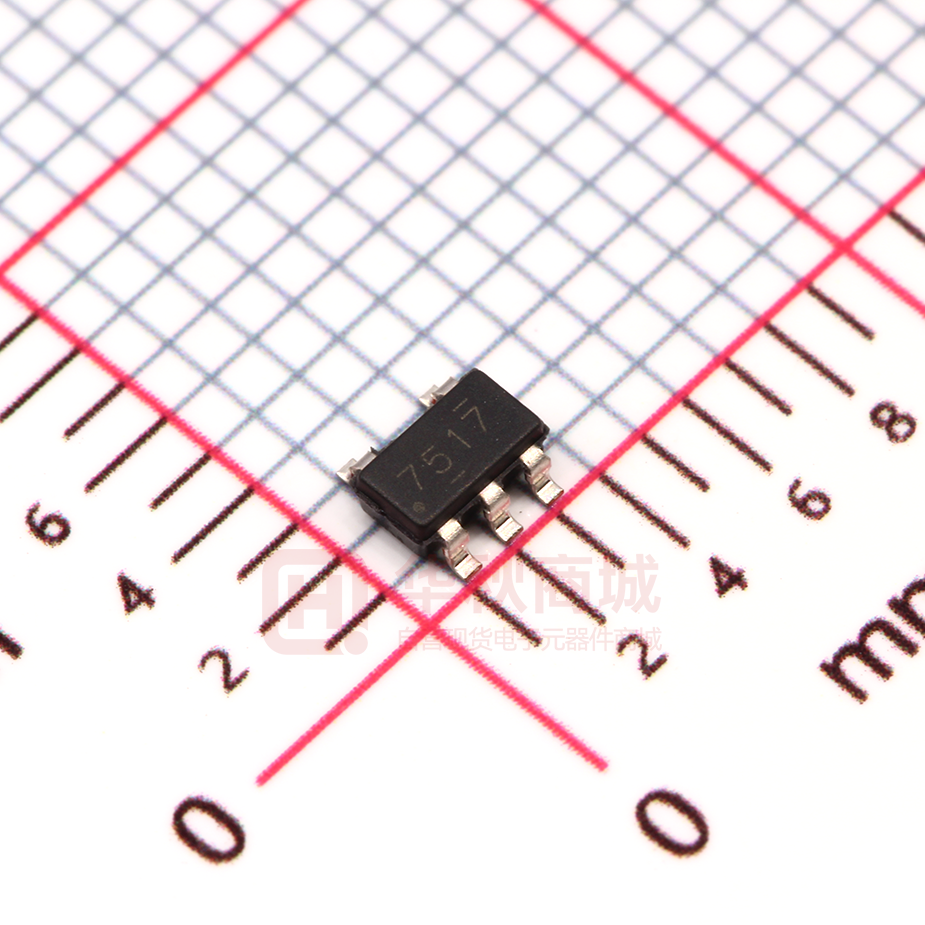

5-Pin DBV (SOT-23) and 6-Pin DRS (3-mm ×
3-mm WSON With Exposed Thermal Pad)
Package Options
•
•
Switched-Mode Power Supplies
DC-DC Converters
Companion Gate-Driver Devices for Digital-Power
Controllers
Solar Power, Motor Control, UPS
Gate Driver for Emerging Wide Band-Gap Power
Devices (such as GaN)
3 Description
The UCC27516 and UCC27517 single-channel, highspeed, low-side gate driver devices can effectively
drive MOSFET and IGBT power switches. Using a
design that inherently minimizes shoot-through
current, UCC27516 and UCC27517 can source and
sink high peak-current pulses into capacitive loads
offering rail-to-rail drive capability and extremely small
propagation delay, typically 13 ns.
The UCC27516 and UCC27517 provides 4-A source,
4-A sink (symmetrical drive) peak-drive current
capability at VDD = 12 V.
Device Information(1)
PACKAGE
BODY SIZE (NOM)
UCC27516
PART NUMBER
SON (6)
3.00 mm × 3.00 mm
UCC27517
SOT-23 (5)
2.90 mm × 1.60 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
Typical Application Diagrams
Inverting Input
Non-Inverting Input
Q1
Q1
UCC27517
UCC27517
4.5 V to 18 V
V+
4.5 V to 18 V
R1
1
VDD
2
GND
3
IN+
OUT
5
C1
V+
R1
1
VDD
2
GND
3
IN+
OUT
5
IN-
4
C1
IN+
IN-
4
VIN-
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
9
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Description (continued).........................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
3
4
5
8.1
8.2
8.3
8.4
8.5
8.6
8.7
5
5
5
5
6
7
9
Absolute Maximum Ratings ......................................
ESD Ratings ............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 12
9.1 Overview ................................................................. 12
9.2 Functional Block Diagrams ..................................... 13
9.3 Feature Description................................................. 13
9.4 Device Functional Modes........................................ 16
10 Application and Implementation........................ 17
10.1 Application Information.......................................... 17
10.2 Typical Application ................................................ 17
11 Power Supply Recommendations ..................... 21
12 Layout................................................................... 21
12.1
12.2
12.3
12.4
Layout Guidelines .................................................
Layout Example ....................................................
Thermal Considerations ........................................
Power Dissipation .................................................
21
22
23
24
13 Device and Documentation Support ................. 26
13.1
13.2
13.3
13.4
Related Links ........................................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
26
26
26
26
14 Mechanical, Packaging, and Orderable
Information ........................................................... 26
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision C (May 2013) to Revision D
•
Page
Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
Changes from Revision B (June 2012) to Revision C
•
Page
Added 0.5 to beginning of PSW equation in Power Dissipation section ............................................................................... 25
Changes from Revision A (March 2012) to Revision B
Page
•
Added UCC27516 device. ...................................................................................................................................................... 1
•
Added GND, ground definition................................................................................................................................................ 4
•
Added DC and repetitive pulse rates to OUT voltage. ........................................................................................................... 5
•
Added note 5. ......................................................................................................................................................................... 5
•
Changed Human Body Model max value from 2000 V to 400V. ........................................................................................... 5
•
Changed Charged Device Model max value from 500 V to 100 V. ....................................................................................... 5
•
Added UCC27516 block diagram. ........................................................................................................................................ 13
•
Added PCB layout bullet....................................................................................................................................................... 22
•
Added Thermal Information description................................................................................................................................ 23
2
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
5 Description (continued)
The UCC27516 and UCC27517 are designed to operate over a wide VDD range of 4.5 to 18 V and wide
temperature range of –40°C to 140°C. Internal undervoltage lockout (UVLO) circuitry on the VDD pin holds
output low outside VDD operating range. The capability to operate at low voltage levels such as below 5 V, along
with best-in-class switching characteristics, is especially suited for driving emerging wide band-gap powerswitching devices such as GaN power semiconductor devices.
The UCC27516 and UCC27517 devices feature a dual-input design which offers flexibility of implementing both
inverting (IN– pin) and noninverting (IN+ pin) configurations with the same device. Either the IN+ or IN- pin can
be used to control the state of the driver output. The unused input pin can be used for enable and disable
function. For safety purpose, internal pullup and pulldown resistors on the input pins ensure that outputs are held
low when input pins are in floating condition. Hence the unused input pin is not left floating and must be properly
biased to ensure that driver output is in enabled for normal operation.
The input pin threshold of the UCC27516 and UCC27517 devices are based on TTL and CMOS compatible lowvoltage logic which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and
low thresholds offers excellent noise immunity.
6 Device Comparison Table
The UCC2751x family of gate-driver products (Table 1) represent TI’s latest generation of single-channel lowside high-speed gate-driver devices featuring high-source/sink current capability, industry best-in-class switching
characteristics and a host of other features (Table 2), all of which combine to ensure efficient, robust, and reliable
operation in high-frequency switching power circuits.
Table 1. UCC2751x Product Family Summary
PART NUMBER
PACKAGE
UCC27516DRS
3 mm × 3 mm WSON, 6 pin
UCC27511DBV
SOT-23, 6 pin
UCC27516DRS
3 mm × 3 mm WSON, 6 pin
UCC27517DBV
SOT-23, 5 pin
UCC27518DBV
SOT-23, 5 pin
UCC27519DBV
SOT-23, 5 pin
PEAK CURRENT
(SOURCE/SINK)
4-A/8-A
(Symmetrical Drive)
4-A/4-A
(Symmetrical Drive)
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
INPUT THRESHOLD LOGIC
CMOS/TTL-Compatible
(low voltage, independent of VDD
bias voltage)
CMOS
(follows VDD bias voltage)
Submit Documentation Feedback
3
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
7 Pin Configuration and Functions
5-Pin
UCC27517 DBV Package
Top View
VDD
1
GND
2
IN+
3
5
6-Pin
UCC27516 DRS
Top View
OUT
IN-
4
IN-
1
6
IN+
GND
2
5
OUT
GND
3
4
VDD
Pin Functions – UCC27516
PIN
NO.
NAME
I/O
DESCRIPTION
IN–
I
Inverting Input: When the driver is used in noninverting configuration, connect IN- to
GND in order to enable output, OUT held LOW if IN- is unbiased or floating.
2, 3
GND
—
Ground: All signals referenced to this pin. TI recommends to connect pin 2 and pin 3
on PCB as close to the device as possible.
4
VDD
I
Bias supply input.
5
OUT
I
Sourcing/Sinking Current Output of Driver
6
IN+
O
Noninverting Input: When the driver is used in inverting configuration, connect IN+ to
VDD in order to enable output, OUT held LOW if IN+ is unbiased or floating.
1
Pin Functions – UCC27517
PIN
NO.
NAME
I/O
DESCRIPTION
1
VDD
I
2
GND
—
3
IN+
I
Noninverting input. When the driver is used in inverting configuration, connect IN+ to
VDD in order to enable output, OUT held LOW if IN+ is unbiased or floating
4
IN–
I
Inverting input. When the driver is used in noninverting configuration, connect IN- to
GND in order to enable output, OUT held LOW if IN- is unbiased or floating
5
OUT
O
Sourcing/Sinking current output of driver.
4
Submit Documentation Feedback
Bias supply input.
Ground. All signals reference to this pin. For the UCC27516, TI recommends to
connect pin 2 and pin 3 on PCB as close to the device as possible.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
8 Specifications
8.1 Absolute Maximum Ratings (1) (2) (3)
over operating free-air temperature range (unless otherwise noted)
Supply voltage
MIN
MAX
VDD
–0.3
20
DC
–0.3
VDD + 0.3
–2
VDD + 0.3
OUT voltage
Repetitive pulse less than
200 ns (4)
Output continuous current
IOUT_DC (source/sink)
Output pulsed current (0.5 µs)
IOUT_pulsed(source/sink)
(3)
(4)
(5)
–0.3
20
–40
150
Soldering, 10 sec.
300
Reflow
260
Storage temperature, Tstg
(2)
A
4
Operating virtual junction temperature, TJ
(1)
V
0.3
IN+, IN- (5)
Lead temperature
UNIT
–65
V
°C
150
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to GND unless otherwise noted. Currents are positive into, negative out of the specified terminal. See
Packaging Section of the datasheet for thermal limitations and considerations of packages.
These devices are sensitive to electrostatic discharge; follow proper device-handling procedures.
Values are verified by characterization on bench.
Maximum voltage on input pins is not restricted by the voltage on the VDD pin.
8.2 ESD Ratings
VALUE
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001
V(ESD)
(1)
(2)
Electrostatic discharge
(1)
UNIT
±4000
Charged-device model (CDM), per JEDEC specification JESD22C101 (2)
V
±1000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
8.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
Supply voltage range, VDD
4.5
12
18
V
Operating junction temperature range
–40
140
°C
0
18
V
Input voltage, IN+ and IN-
MAX
UNIT
8.4 Thermal Information
THERMAL METRIC (1)
UCC27516
UCC27517
WSON
SOT-23
6 PINS
5 PINS
RθJA
Junction-to-ambient thermal resistance
85.6
217.6
RθJC(top)
Junction-to-case (top) thermal resistance
100.1
85.8
RθJB
Junction-to-board thermal resistance
58.6
44.0
ψJT
Junction-to-top characterization parameter
7.5
4.0
ψJB
Junction-to-board characterization parameter
58.7
43.2
RθJC(bot)
Junction-to-case (bottom) thermal resistance
23.7
n/a
(1)
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
5
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
8.5 Electrical Characteristics
VDD = 12 V, TA = TJ = –40°C to 140°C, 1-µF capacitor from VDD to GND. Currents are positive into, negative out of the
specified pin.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
IN+ = VDD, IN- = GND
40
100
160
IN+ = IN- = GND or IN+ = IN- = VDD
25
75
145
IN+ = GND, IN- = VDD
20
60
115
TA = 25°C
3.91
4.20
4.5
TA = –40°C to 140°C
3.70
4.20
4.65
UNIT
BIAS CURRENTS
IDD(off)
Startup current
VDD = 3.4 V
µA
UNDERVOLTAGE LOCKOUT (UVLO)
VON
Supply start threshold
VOFF
Minimum operating
voltage after supply start
3.45
3.9
4.35
VDD_H
Supply voltage hysteresis
0.2
0.3
0.5
2.2
2.4
V
INPUTS (IN+, IN-)
VIN_H
Input signal high
threshold
Output high for IN+ pin,
Output low for IN- pin
VIN_L
Input signal low threshold
Output low for IN+ pin,
Output high for IN- pin
1.0
VIN_HYS Input signal hysteresis
V
1.2
1.0
SOURCE/SINK CURRENT
ISRC/SNK
Source/sink peak
current (1)
CLOAD = 0.22 µF, FSW = 1 kHz
±4
A
VDD = 12 V
IOUT = –10 mA
50
90
VDD = 4.5 V
IOUT = –10 mA
60
130
VDD = 12
IOUT = 10 mA
5
10
VDD = 4.5 V
IOUT = 10 mA
6
12
VDD = 12 V
IOUT = –10 mA
5.0
7.5
VDD = 4.5 V
IOUT = –10 mA
5.0
11.0
VDD = 12 V
IOUT = 10 mA
0.5
1.0
VDD = 4.5 V
IOUT = 10 mA
0.6
1.2
OUTPUTS (OUT)
VDDVOH
VOL
ROH
ROL
(1)
(2)
6
High output voltage
Low output voltage
Output pullup
resistance (2)
Output pulldown
resistance
mV
Ω
Ensured by Design.
ROH represents on-resistance of P-Channel MOSFET in pullup structure of the UCC27516 and UCC27517's output stage.
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
8.6 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER
tR
tF
tD1
tD2
(1)
TEST CONDITIONS
Rise time (1)
Fall time
(1)
IN+ to output propagation delay (1)
IN- to output propagation delay
(1)
MIN
TYP
MAX
VDD = 12 V
CLOAD = 1.8 nF
8
12
VDD = 4.5 V
CLOAD = 1.8 nF
16
22
VDD = 12 V
CLOAD = 1.8 nF
7
11
VDD=4.5V
CLOAD = 1.8 nF
7
11
UNIT
ns
VDD = 12 V
5-V input pulse CLOAD = 1.8 nF
4
13
23
VDD = 4.5 V
5-V input pulse CLOAD = 1.8 nF
4
15
26
VDD = 12 V
CLOAD = 1.8 nF
4
13
23
VDD = 4.5 V
CLOAD = 1.8 nF
4
19
30
See timing diagrams in Figure 1, Figure 2, Figure 3, and Figure 4.
High
INPUT
(IN+ pin)
Low
High
IN- pin
Low
90%
OUTPUT
10%
tD1 t r
tD1 tf
(PWM Input to IN+ Pin (IN– Pin Tied to GND))
Figure 1. Noninverting Configuration
High
INPUT
(IN- pin)
Low
High
IN+ pin
Low
90%
OUTPUT
10%
tD2 tf
tD2 tr
(PWM Input to IN- Pin (IN+ Pin Tied to VDD))
Figure 2. Inverting Configuration
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
7
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
High
INPUT
(IN- pin)
Low
High
ENABLE
(IN+ pin)
Low
90%
OUTPUT
10%
tD1 tr
tD1
tf
(Enable and Disable Signal Applied to IN+ Pin, PWM Input to IN- Pin)
Figure 3. Enable and Disable Function Using IN+ Pin
High
INPUT
(IN+ pin)
Low
High
ENABLE
(IN- pin)
Low
90%
OUTPUT
10%
tD2 t f
tD2 tr
(Enable and Disable Signal Applied to IN- Pin, PWM Input to IN+ Pin)
Figure 4. Enable and Disable Function Using IN- Pin
8
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
8.7 Typical Characteristics
0.12
3.5
0.1
IDD (mA)
Startup Current (mA)
0.11
4
IN+=Low,IN−=Low
IN+=High, IN−=Low
0.09
0.08
0.07
VDD = 3.4 V
0
50
Temperature (°C)
100
2
−50
150
50
Temperature (°C)
100
150
G013
Figure 6. Operating Supply Current vs Temperature (Output
Switching)
4.6
0.5
IN+=Low,IN−=Low
IN+=High, IN−=Low
UVLO Rising
UVLO Falling
4.4
0.4
UVLO Threshold (V)
Operating Supply Current (mA)
0
G001
Figure 5. Startup Current vs Temperature
0.3
0.2
4.2
4
3.8
VDD = 12 V
0.1
−50
0
50
Temperature (°C)
100
3.6
−50
150
50
Temperature (°C)
100
150
G003
Figure 8. UVLO Threshold Voltage vs Temperature
3.5
8
VDD = 12 V
CLoad = 1.8 nF
RoH
Output Pull−Up Resistance (Ω)
Turn−On
Turn−Off
3
2.5
2
1.5
1
−50
0
G002
Figure 7. Supply Current vs Temperature (Output In DC
On/Off Condition)
Input Threshold (V)
VDD = 12 V
CLoad = 500 pF
fsw = 500 kHz
2.5
0.06
0.05
−50
3
0
50
Temperature (°C)
100
150
7
6
5
4
−50
G014
Figure 9. Input Threshold vs Temperature
VDD = 12 V
Iout = 10 mA
0
50
Temperature (°C)
100
150
G004
Figure 10. Output Pullup Resistance vs Temperature
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
9
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Typical Characteristics (continued)
1
8
VDD = 12 V
CLoad = 1.8 nF
0.8
7
Rise Time (ns)
Pull−Down Resistance (Ω)
ROL
0.6
0.4
6
5
0.2
−50
0
50
Temperature (°C)
100
4
−50
150
Figure 11. Output Pulldown Resistance vs Temperature
Propagation Delay (ns)
Fall Time (ns)
150
G000
Turn−On
Turn−Off
9
8
7
6
−50
0
50
Temperature (°C)
100
15
10
VDD = 12 V
5
−50
150
0
G000
Figure 13. Fall Time vs Temperature
50
Temperature (°C)
100
150
G006
Figure 14. Input To Output Propagation Delay vs
Temperature
20
20
VDD=4.5V
VDD=12V
VDD=15V
16
18
Propagation Delay (ns)
18
Supply Current (mA)
100
20
VDD = 12 V
CLoad = 1.8 nF
14
12
10
8
6
4
0
100
200
300
400
Frequency (kHz)
500
600
700
14
12
10
6
Turn−On
Turn−Off
0
4
G010
Figure 15. Operating Supply Current vs Frequency
Submit Documentation Feedback
16
8
CLoad = 1.8 nF
2
10
50
Temperature (°C)
Figure 12. Rise Time vs Temperature
10
0
0
G000
8
12
Supply Voltage (V)
16
20
G007
Figure 16. Propagation Delays vs Supply Voltage
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
Typical Characteristics (continued)
20
10
Fall Time (ns)
Rise Time (ns)
8
15
10
6
4
5
0
4
8
12
Supply Voltage (V)
16
20
2
0
4
G008
Figure 17. Rise Time vs Supply Voltage
8
12
Supply Voltage (V)
16
20
G009
Figure 18. Fall Time vs Supply Voltage
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
11
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
9 Detailed Description
9.1 Overview
The UCC2751x single-channel, high-speed, low-side gate-driver device can effectively drive MOSFET and IGBT
power switches. Using a design that inherently minimizes shoot-through current, the UCC2751x device can
source and sink high peak-current pulses into capacitive loads, offering rail-to-rail drive capability and extremely
small propagation delay of 13 ns (typical). The UCC2751x device provides 4-A source, 4-A sink (symmetrical
drive) peak-drive current capability. The UCC27511 device is designed to operate over a wide VDD range of 4.5
to 18 V, and a wide temperature range of –40°C to 140°C.
Internal UVLO circuitry on the VDD pin holds the output low outside VDD operating range. The capability to
operate at low voltage levels, such as below 5 V, along with best-in-class switching characteristics, is suited for
driving emerging wide band-gap power-switching devices such as GaN power-semiconductor devices.
The UCC2751x device features a dual-input design which offers flexibility of implementing both inverting (IN–
pin) and noninverting (IN+ pin) configuration with the same device. Either the IN+ or IN– pin can be used to
control the state of the driver output. The unused input pin can be used for enable and disable functions. For
system robustness, internal pullup and pulldown resistors on the input pins ensure that outputs are held low
when the input pins are in floating condition. Therefore the unused input pin is not left floating and must be
properly biased to ensure that driver output is in enabled for normal operation. The input pin threshold of the
device is based on TTL and CMOS-compatible low-voltage logic which is fixed and independent of the VDD
supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.
Table 2. UCC2751x Family of Features and Benefits
FEATURE
BENEFIT
High Source/Sink Current Capability
4 A/8 A (Asymmetrical) – UCC27511/2
4 A/4 A (Symmetrical) – UCC2751x
High current capability offers flexibility in employing UCC2751x
family of devices to drive a variety of power switching devices at
varying speeds
Best-in-class 13-ns (typ) Propagation delay
Extremely low-pulse transmission distortion
Expanded VDD Operating range of 4.5 V to 18 V
Flexibility in system design
Low VDD operation ensures compatibility with emerging widebandgap power devices such as GaN
Expanded Operating Temperature range of -40°C to 140°C
(See Electrical Characteristics table)
VDD UVLO Protection
Outputs are held low in UVLO condition, which ensures predictable
glitch-free operation at power up and power down
Outputs held low when input pins (INx) in floating condition
Safety feature, especially useful in passing abnormal condition tests
during safety certification
Ability of input pins (and enable pin in UCC27518/9) to handle
voltage levels not restricted by VDD pin bias voltage
System simplification, especially related to auxiliary bias supply
architecture
Split output structure in UCC27511 (OUTH, OUTL)
Allows independent optimization of turnon and turnoff speeds
Strong sink current (8 A) and low pulldown impedance (0.375 Ω) in
UCC27511/2
High immunity to C x dV/dt Miller turnon events
CMOS/TTL compatible input threshold logic with wide hysteresis in
UCC27511/2/6/7
Enhanced noise immunity, while retaining compatibility with
microcontroller logic-level input signals (3.3 V, 5 V) optimized for
digital power
CMOS input threshold logic in UCC27518/9 (VIN_H – 70% VDD,
VIN_L – 30% VDD)
Well suited for slow input-voltage signals, with flexibility to program
delay circuits (RCD)
12
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
9.2 Functional Block Diagrams
IN+
VDD
6
VDD
4
VDD
5
OUT
3
GND
1
VDD
5
OUT
230 kW
200 kW
IN-
1
VDD
GND
2
UVLO
Figure 19. UCC27516 Functional Block Diagram
IN+
VDD
3
VDD
230 kW
200 kW
IN-
4
VDD
GND
2
UVLO
Figure 20. UCC27517 Functional Block Diagram
9.3 Feature Description
9.3.1 VDD and Undervoltage Lockout
The UCC2751x devices have internal UVLO protection feature on the VDD-pin supply-circuit blocks. Whenever
the driver is in UVLO condition (for example when VDD voltage is less than VON during power up and when VDD
voltage is less than VOFF during power down), this circuit holds all outputs LOW, regardless of the status of the
inputs. The UVLO is typically 4.2 V with 300-mV typical hysteresis. This hysteresis helps prevent chatter when
low VDD-supply voltages have noise from the power supply and also when there are droops in the VDD-bias
voltage when the system commences switching and there is a sudden increase in IDD. The capability to operate
at low voltage levels such as below 5 V, along with best-in-class switching characteristics, is especially suited for
driving emerging GaN wide-bandgap power-semiconductor devices.
For example, at power up, the UCC2751x driver output remains LOW until the VDD voltage reaches the UVLO
threshold. The magnitude of the OUT signal rises with VDD until steady-state VDD is reached. In the noninverting
operation (PWM signal applied to IN+ pin) shown below, the output remains LOW until the UVLO threshold is
reached, and then the output is in-phase with the input. In the inverting operation (PWM signal applied to IN- pin)
shown below the output remains LOW until the UVLO threshold is reached, and then the output is out-phase with
the input. In both cases, the unused input pin must be properly biased to enable the output. Note that in these
devices the output turns to high-state only if IN+ pin is high and IN- pin is low after the UVLO threshold is
reached.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
13
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Feature Description (continued)
Because the driver draws current from the VDD pin to bias all internal circuits, for the best high-speed circuit
performance, two VDD bypass capacitors are recommended to prevent noise problems. The use of surfacemount components is highly recommended. A 0.1-μF ceramic capacitor should be located as close as possible to
the VDD to GND pins of the gate driver. In addition, a larger capacitor (such as 1 μF) with relatively low ESR
should be connected in parallel and close proximity, in order to help deliver the high-current peaks required by
the load. The parallel combination of capacitors should present a low impedance characteristic for the expected
current levels and switching frequencies in the application.
VDD
VDD Threshold
VDD Threshold
IN+
IN -
IN+
IN-
OUT
OUT
Figure 21. Power Up (Noninverting Drive)
Figure 22. Power Up (Inverting Drive)
9.3.2 Operating Supply Current
The UCC2751x features very low quiescent IDD currents. The typical operating-supply current in UndervoltageLockout (UVLO) state and fully-on state (under static and switching conditions) are summarized in Figure 5,
Figure 6, and Figure 7. The IDD current when the device is fully on and outputs are in a static state (DC high or
DC low, see Figure 7) represents lowest quiescent IDD current when all the internal logic circuits of the device are
fully operational. The total supply current is the sum of the quiescent IDD current, the average IOUT current due to
switching and finally any current related to pullup resistors on the unused input pin. For example when the
inverting input pin is pulled low additional current is drawn from VDD supply through the pullup resistors (refer to
Functional Block Diagrams for the device Block Diagram). Knowing the operating frequency (fSW) and the
MOSFET gate (QG) charge at the drive voltage being used, the average IOUT current can be calculated as
product of QG and fSW.
A complete characterization of the IDD current as a function of switching frequency at different VDD bias
voltages under 1.8-nF switching load is provided in Figure 15. The strikingly-linear variation and close correlation
with theoretical value of average IOUT indicates negligible shoot-through inside the gate-driver device attesting to
the high-speed characteristics of IOUT.
9.3.3 Input Stage
The input pins of the UCC27516 and UCC27517 devices are based on a TTL/CMOS compatible input-threshold
logic that is independent of the VDD supply voltage. With typ high threshold = 2.2 V and typ low threshold = 1.2
V, the logic-level thresholds can be conveniently driven with PWM-control signals derived from 3.3-V and 5-V
digital-power controllers. Wider hysteresis (typ 1 V) offers enhanced noise immunity compared to traditional TTLlogic implementations, where the hysteresis is typically less than 0.5 V. These devices also feature tight control
of the input-pin threshold-voltage levels which eases system-design considerations and ensures stable operation
across temperature. The very low input capacitance on these pins reduces loading and increases switching
speed.
The device features an important safety function wherein, whenever any of the input pins are in a floating
condition, the output of the respective channel is held in the low state. This is achieved using VDD-pullup
resistors on all the inverting inputs (IN- pin) or GND-pulldown resistors on all the noninverting input pins (IN+
pin), (refer to Functional Block Diagrams).
14
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
Feature Description (continued)
The device also features a dual-input configuration with two input pins available to control the state of the output.
The user has the flexibility to drive the device using either a noninverting input pin (IN+) or an inverting input pin
(IN-). The state of the output pin is dependent on the bias on both the IN+ and IN- pins. Refer to the input/output
logic truth table (Table 3) and the Typical Application Diagrams, (Figure 24 and Figure 25), for additional
clarification.
Once an input pin has been chosen for PWM drive, the other input pin (the unused input pin) must be properly
biased in order to enable the output. As mentioned earlier, the unused input pin cannot remain in a floating
condition because, whenever any input pin is left in a floating condition, the output is disabled for safety
purposes. Alternatively, the unused input pin can effectively be used to implement an enable and disable
function, as explained below.
• To drive the device in a noninverting configuration, apply the PWM-control input signal to IN+ pin. In this
case, the unused input pin, IN-, must be biased low (eg. tied to GND) in order to enable the output.
– Alternately, the IN- pin can be used to implement the enable/disable function using an external logic
signal. OUT is disabled when IN- is biased high and OUT is enabled when IN- is biased low.
• To drive the device in an inverting configuration, apply the PWM-control input signal to IN- pin. In this case,
the unused input pin, IN+, must be biased high (eg. tied to VDD) in order to enable the output.
– Alternately, the IN+ pin can be used to implement the enable/disable function using an external logic
signal. OUT is disabled when IN+ is biased low and OUT is enabled when IN+ is biased high.
• Finally, note that the output pin is driven into a high state only when IN+ pin is biased high and IN- input is
biased low.
The input stage of the driver should preferably be driven by a signal with a short rise or fall time. Caution must be
exercised whenever the driver is used with slowly-varying input signals, especially in situations where the device
is located in a mechanical socket or PCB layout is not optimal:
• High dI/dt current from the driver output coupled with board layout parasitics causes ground bounce. Because
the device features just one GND pin, which may be referenced to the power ground, the differential voltage
between input pins and GND is modified and triggers an unintended change of output state. Because of fast
13-ns propagation delay, high-frequency oscillations ultimately occur, which increases power dissipation and
poses risk of damage.
• 1-V input-threshold hysteresis boosts noise immunity compared to most other industry-standard drivers.
• In the worst case, when a slow input signal is used and PCB layout is not optimal, adding a small capacitor (1
nF) between input pin and ground very close to the driver device is necessary. This helps to convert the
differential mode noise with respect to the input-logic circuitry into common-mode noise and avoid unintended
change of output state.
If limiting the rise or fall times to the power device is the primary goal, then an external resistance is highly
recommended between the output of the driver and the power device instead of adding delays on the input
signal. This external resistor has the additional benefit of reducing part of the gate charge related power
dissipation in the gate-driver device package and transferring the gate driver into the external resistor.
9.3.4 Enable Function
As mentioned earlier, an enable/disable function is easily implemented in the UCC27516 and UCC27517 using
the unused input pin. When IN+ is pulled down to GND or IN- is pulled down to VDD, the output is disabled.
Thus IN+ pin is used like an enable pin that is based on active-high logic, while IN- can be used like an enable
pin that is based on active-low logic.
9.3.5 Output Stage
The UCC27516 and UCC27517 devices can deliver 4-A source, 4-A sink (symmetrical drive) at VDD = 12 V. The
output stage of the UCC27516 and UCC27517 devices are illustrated in Figure 23. The UCC27516 and
UCC27517 devices features a unique architecture on the output stage which delivers the highest peak-source
current when most needed during the Miller-plateau region of the power-switch turnon transition (when the
power-switch drain/collector voltage experiences dV/dt). The device output stage features a hybrid pullup
structure using a parallel arrangement of N-Channel and P-Channel MOSFET devices. By turning on the NChannel MOSFET during a narrow instant when the output changes state from low to high, the gate-driver device
delivers a brief boost in the peak-sourcing current enabling fast turnon.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
15
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Feature Description (continued)
VCC
ROH
RNMOS, Pull Up
Gate
Voltage
Boost
Input Signal Anti ShootThrough
Circuitry
OUT
Narrow Pulse at
each Turn On
ROL
Figure 23. UCC2751x Gate Driver Output Structure
The ROH parameter (see Electrical Characteristics) is a DC measurement and is representative of the onresistance of the P-Channel device only, because the N-Channel device is turned on only during output change
of state from low to high. Thus the effective resistance of the hybrid pullup stage is much lower than what is
represented by ROH parameter. The pulldown structure is composed of a N-Channel MOSFET only. The ROL
parameter (see Electrical Characteristics), which is also a DC measurement, is representative of true impedance
of the pulldown stage in the device. In the UCC27516 and UCC27517, the effective resistance of the hybrid
pullup structure is approximately 1.4 × ROL.
The driver-output voltage swings between VDD and GND providing rail-to-rail operation because of the MOS
output stage which delivers very low dropout. The presence of the MOSFET-body diodes also offers low
impedance to switching overshoots and undershoots. This means that in many cases, external Schottky-diode
clamps may be eliminated. The outputs of these drivers are designed to withstand 500-mA reverse current
without either damage to the device or logic malfunction.
9.3.6 Low Propagation Delays
The UCC27516 and UCC27517 driver devices feature best-in-class input-to-output propagation delay of 13 ns
(typ) at VDD = 12 V. This promises the lowest level of pulse-transmission distortion available from industrystandard gate-driver devices for high-frequency switching applications. As seen in Figure 14, there is very little
variation of the propagation delay with temperature and supply voltage as well, offering typically less than 20-ns
propagation delays across the entire range of application conditions.
9.4 Device Functional Modes
Table 3. Device Logic Table
IN+ PIN
IN- PIN
OUT PIN
L
L
L
L
H
L
H
L
H
H
H
L
(1)
Any
L
Any
x (1)
L
x
(1)
16
x = Floating Condition
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
10 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
10.1 Application Information
High-current gate-driver devices are required in switching power applications for a variety of reasons. In order to
effect fast switching of power devices and reduce associated switching power losses, a powerful gate driver is
employed between the PWM output of controllers and the gates of the power-semiconductor devices. Further,
gate drivers are indispensable when there are times that the PWM controller cannot directly drive the gates of
the switching devices. With advent of digital power, this situation is often encountered because the PWM signal
from the digital controller is often a 3.3-V logic signal, which is not capable of effectively turning on a power
switch. A level-shifting circuitry is needed to boost the 3.3-V signal to the gate-drive voltage (such as 12 V) in
order to fully turn on the power device and minimize conduction losses. Because traditional buffer-drive circuits
based on NPN/PNP bipolar transistors in totem-pole arrangement, being emitter-follower configurations, lack
level-shifting capability, the circuits prove inadequate with digital power. Gate drivers effectively combine both the
level-shifting and buffer-drive functions. Gate drivers also find other needs such as minimizing the effect of highfrequency switching noise by locating the high-current driver physically close to the power switch, driving gatedrive transformers and controlling floating power-device gates, reducing power dissipation and thermal stress in
controllers by moving gate-charge power losses into itself. Finally, emerging wide-bandgap power-device
technologies, such as GaN based switches, which are capable of supporting very high switching frequency
operation, are driving very special requirements in terms of gate-drive capability. These requirements include
operation at low VDD voltages (5 V or lower), low propagation delays and availability in compact, low-inductance
packages with good thermal capability. In summary gate-driver devices are extremely important components in
switching power combining benefits of high-performance, low cost, component count and board space reduction
with a simplified system design.
10.2 Typical Application
The UCC27516 and UCC27517 devices can be used in non-inverting and inverting driver configurations.
NOTE
The UCC27516 features two ground pins, pin 2 and pin 3. TI recommends tying both pins
together using PCB trace as close as possible to the device.
Q1
UCC27516
UCC27517
4.5 V to 18 V
1
IN-
IN+ 4
2
GND
OUT
5
3
GND
VDD
4
Q1
VIN+
R1
V+
R1
1
VDD
2
GND
3
IN+
OUT
5
IN-
4
C1
4.5 V to 18 V
VIN+
IN+
C1
(IN- Is Grounded to the Enable Output)
Figure 24. Using Noninverting Input
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
17
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Typical Application (continued)
Q1
UCC27516
UCC27517
4.5 V to 18 V
IN-
1
IN-
2
GND
OUT
5
3
GND
VDD
4
Q1
IN+ 4
R1
R1
V+
1
VDD
2
GND
3
IN+
OUT
5
IN-
4
C1
V+
VIN-
4.5 V to 18 V
C1
(IN+ Is Tied to VDD Enable Output)
Figure 25. Using Inverting Input
10.2.1 Design Requirements
When selecting the proper gate driver device for an end application, some design considerations must be
evaluated first to make the most appropriate selection. Among these considerations are input-to-output
configuration, the input threshold type, bias supply voltage levels, peak source and sink currents, availability of
independent enable and disable functions, propagation delay, power dissipation, and package type.
Table 4. Design Parameters
Design Parameter
Example Value
Input-to-Output Logic
Non-Inverting
Input Threshold Type
Logic Level
VDD Bias Supply Voltage
10 V (Minimum), 13 V (Nominal), 15 V (Peak)
Peak Source and Sink Currents
Minimum 3 A Source, Minimum 3 A Sink
Enable and Disable Function
Yes, Needed
Propagation Delay
Maximum 40 ns or less
10.2.2 Detailed Design Procedure
10.2.2.1 Input-to-Output Logic
The design should specify which type of input-to-output configuration should be used. If turning on the power
MOSFET or IGBT when the input signal is in high state is preferred, then the noninverting configuration must be
selected. If turning off the power MOSFET or IGBT when the input signal is in high state is preferred, the
inverting configuration must be chosen. The UCC27516 and UCC27517 devices can be configured in either an
inverting or noninverting input-to-output configuration, using the IN– or IN+ pins, respectively. To configure the
device for use in inverting mode, tie the IN+ pin to VDD and apply the input signal to the IN– pin. For the non
inverting configuration, tie the IN– pin to GND and apply the input signal to the IN+ pin.
10.2.2.2 Input Threshold Type
The type of input voltage threshold determines the type of controller used with the gate driver device. The
UCC27516 and UCC27517 devices feature a TTL and CMOS-compatible input threshold logic, with wide
hysteresis. The threshold voltage levels are low voltage and independent of the VDD supply voltage, which allows
compatibility with both logic-level input signals from microcontrollers, as well as higher-voltage input signals from
analog controllers. See Electrical Characteristics for the actual input threshold voltage levels and hysteresis
specifications for the UCC27516 and UCC27517 devices.
18
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
10.2.2.3 VDD Bias Supply Voltage
The bias supply voltage to be applied to the VDD pin of the device should never exceed the values listed in the
Recommended Operating Conditions table. However, different power switches demand different voltage levels to
be applied at the gate terminals for effective turnon and turnoff. With certain power switches, a positive gate
voltage may be required for turnon and a negative gate voltage may be required for turnoff, in which case the
VDD bias supply equals the voltage differential. With a wide operating range from 4.5 V to 18 V, the UCC27516
and UCC27517 devices can be used to drive a variety of power switches, such as Si MOSFETs (for example,
VGS = 4.5 V, 10 V, 12 V), IGBTs (VGE = 15 V, 18 V), and wide-band gap power semiconductors (such as GaN,
certain types of which allow no higher than 6 V to be applied to the gate terminals).
10.2.2.4 Peak Source and Sink Currents
Generally, the switching speed of the power switch during turnon and turnoff should be as fast as possible, to
minimize switching power losses. The gate driver device must be able to provide the required peak current for
achieving the targeted switching speeds for the targeted power MOSFET.
Using the example of a power MOSFET, the system requirement for the switching speed is typically described in
terms of the slew rate of the drain-to-source voltage of the power MOSFET (such as dVDS/dt). For example, the
system requirement might state that a SPP20N60C3 power MOSFET must be turned-on with a dVDS/dt of
20V/ns or higher, under a DC bus voltage of 400 V in a continuous-conduction-mode (CCM) boost PFCconverter application. This type of application is an inductive hard-switching application and reducing switching
power losses is critical. This requirement means that the entire drain-to-source voltage swing during power
MOSFET turnon event (from 400 V in the OFF state to VDS(on) in on state) must be completed in approximately
20 ns or less.
When the drain-to-source voltage swing occurs, the Miller charge of the power MOSFET (QGD parameter in
SPP20N60C3 power MOSFET data sheet = 33 nC typical) is supplied by the peak current of gate driver.
According to the power MOSFET inductive switching mechanism, the gate-to-source voltage of the power
MOSFET at this time is the Miller plateau voltage, which is typically a few volts higher than the threshold voltage
of the power MOSFET, VGS(TH). To achieve the targeted dVDS/dt, the gate driver must be capable of providing
the QGD charge in 20 ns or less. In other words, a peak current of 1.65 A (= 33 nC / 20 ns) or higher must be
provided by the gate driver. The UCC27516 and UCC27517 gate driver is capable of providing 4-A peak
sourcing current, which exceeds the design requirement and has the capability to meet the switching speed
needed.
The 2.4x overdrive capability provides an extra margin against part-to-part variations in the QGD parameter of
the power MOSFET, along with additional flexibility to insert external gate resistors and fine tune the switching
speed for efficiency versus EMI optimizations. However, in practical designs the parasitic trace inductance in the
gate drive circuit of the PCB will have a definitive role to play on the power MOSFET switching speed. The effect
of this trace inductance is to limit the dI/dt of the output current pulse of the gate driver.
To illustrate this, consider output current pulse waveform from the gate driver to be approximated to a triangular
profile, where the area under the triangle (½ ×IPEAK × time) would equal the total gate charge of the power
MOSFET (QG parameter in SPP20N60C3 power MOSFET datasheet = 87 nC typical).
If the parasitic trace inductance limits the dI/dt, then a situation may occur in which the full peak current capability
of the gate driver is not fully achieved in the time required to deliver the QG required for the power MOSFET
switching. In other words, the time parameter in the equation would dominate and the IPEAK value of the current
pulse would be much less than the true peak current capability of the device, while the required QG is still
delivered. Because of this, the desired switching speed may not be realized, even when theoretical calculations
indicate the gate driver is capable of achieving the targeted switching speed. Thus, placing the gate driver device
very close to the power MOSFET and designing a tight gate drive-loop with minimal PCB trace inductance is
important to realize the full peak-current capability of the gate driver.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
19
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
10.2.2.5 Enable and Disable Function
Certain applications demand independent control of the output state of the driver, without involving the input
signal. A pin offering an enable and disable function achieves this requirement. The UCC27516 and UCC27517
devices offer two input pins, IN+ and IN–, both of which control the state of the output as listed in Table 3. Based
on whether an inverting or non inverting input signal is provided to the driver, the appropriate input pin can be
selected as the primary input for controlling the gate driver. The other unused input pin can be used for the
enable and disable functionality. If the design does not require an enable function, the unused input pin can be
tied to either the VDD pin (in case IN+ is the unused pin), or GND (in case IN– is unused pin) to ensure it does
not affect the output status.
10.2.2.6 Propagation Delay
The acceptable propagation delay from the gate driver is dependent on the switching frequency at which it is
used, and the acceptable level of pulse distortion to the system. The UCC27516 and UCC27517 devices feature
industry best-in-class 13-ns (typical) propagation delays, which ensure very little pulse distortion and allow
operation at very high-frequencies. See Switching Characteristics for the propagation and switching
characteristics of the UCC27516 and UCC27517 devices.
10.2.3 Application Curves
VDD = 10 V
C(LOAD) = 1 nF
VDD = 10 V
Figure 26. Typical Turnon Waveform
20
Submit Documentation Feedback
C(LOAD) = 1 nF
Figure 27. Typical Turnoff Waveform
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
11 Power Supply Recommendations
The bias supply voltage range for which the UCC27516 and UCC27517 device is rated to operate is from 4.5 V
to 18 V. The lower end of this range is governed by the internal UVLO protection feature on the VDD pin supply
circuit blocks. Whenever the driver is in UVLO condition when the VDD pin voltage is below the V(ON) supply
start threshold, this feature holds the output low, regardless of the status of the inputs. The upper end of this
range is driven by the 20-V absolute maximum voltage rating of the VDD pin of the device (which is a stress
rating). Keeping a 2-V margin to allow for transient voltage spikes, the maximum recommended voltage for the
VDD pin is 18 V.
The UVLO protection feature also involves a hysteresis function. This means that when the VDD pin bias voltage
has exceeded the threshold voltage and the device begins to operate, and if the voltage drops, then the device
continues to deliver normal functionality unless the voltage drop exceeds the hysteresis specification VDD(hys).
While operating at or near the 4.5 V range, ensure that the voltage ripple on the auxiliary power supply output is
smaller than the hysteresis specification of the device, to avoid triggering a device shutdown.
During system shutdown, the device operation continues until the VDD pin voltage has dropped below the V(OFF)
threshold, which must be accounted for while evaluating system shutdown timing design requirements. Likewise,
at system startup the device does not begin operation until the VDD pin voltage has exceeded above the V(ON)
threshold. The quiescent current consumed by the internal circuit blocks of the device is supplied through the
VDD pin. Keep in mind that the charge for source current pulses delivered by the OUT pin is also supplied
through the same VDD pin. As a result, every time a current is sourced out of the output pin (OUT), a
corresponding current pulse is delivered into the device through the VDD pin. Therefore, ensure that local bypass
capacitors are provided between the VDD and GND pins, and located as close to the device as possible for the
purpose of decoupling. A low ESR, ceramic surface mount capacitor is necessary. TI recommends using 2
capacitors; a 100-nF ceramic surface-mount capacitor which can be nudged very close to the pins of the device,
and another surface-mount capacitor of few microfarads added in parallel.
12 Layout
12.1 Layout Guidelines
Proper PCB layout is extremely important in a high-current fast-switching circuit to provide appropriate device
operation and design robustness. The UCC27516 and UCC27517 gate driver incorporates short-propagation
delays and powerful output stages capable of delivering large current peaks with very fast rise and fall times at
the gate of the power switch to facilitate voltage transitions very quickly. At higher VDD voltages, the peakcurrent capability is even higher (4-A/4-A peak current is at VDD = 12 V). Very high di/dt causes unacceptable
ringing if the trace lengths and impedances are not well controlled. The following circuit layout guidelines are
strongly recommended when designing with these high-speed drivers.
• Locate the driver device as close as possible to the power device in order to minimize the length of highcurrent traces between the output pins and the gate of the power device.
• Locate the VDD bypass capacitors between VDD and GND as close as possible to the driver with minimal
trace length to improve the noise filtering. These capacitors support high-peak current being drawn from VDD
during turnon of power MOSFET. The use of low inductance SMD components such as chip resistors and
chip capacitors is highly recommended.
• The turnon and turnoff current-loop paths (driver device, power MOSFET and VDD bypass capacitor) should
be minimized as much as possible in order to keep the stray inductance to a minimum. High dI/dt is
established in these loops at two instances – during turnon and turnoff transients, which will induce significant
voltage transients on the output pin of the driver device and gate of the power switch.
• Wherever possible parallel the source and return traces, taking advantage of flux cancellation.
• Separate power traces and signal traces, such as output and input signals.
• Star-point grounding is a good way to minimize noise coupling from one current loop to another. The GND of
the driver should be connected to the other circuit nodes such as source of power switch or the ground of
PWM controller at one, single point. The connected paths should be as short as possible to reduce
inductance and be as wide as possible to reduce resistance.
• Use a ground plane to provide noise shielding. Fast rise and fall times at OUT may corrupt the input signals
during transition. The ground plane must not be a conduction path for any current loop. Instead the ground
plane must be connected to the star-point with one single trace to establish the ground potential. In addition
to noise shielding, the ground plane can help in power dissipation as well.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
21
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Layout Guidelines (continued)
•
•
In noisy environments, tying the unused input pin of UCC27516 and UCC27517 to VDD (in case of IN+) or
GND (in case of IN–) using short traces to ensure that the output is enabled and to prevent noise from
causing malfunction in the output is necessary.
The UCC27516 device offers two ground pins, pin 2 and pin 3. Shorting the two pins together using the PCB
trace is extremely important. The shortest trace should be located as close as possible to the device.
12.2 Layout Example
Figure 28. UCC27516DRS in Noninverting Configuration
22
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
Layout Example (continued)
Figure 29. UCC27517DBV in Noninverting Configuration
12.3 Thermal Considerations
The useful range of a driver is greatly affected by the drive-power requirements of the load and the thermal
characteristics of the package. For a gate driver to be useful over a particular temperature range the package
must allow for the efficient removal of the heat produced while keeping the junction temperature within rated
limits. The thermal metrics for the driver package is summarized in Thermal Information. For detailed information
regarding the thermal information table, refer to the Application Note from Texas Instruments entitled IC Package
Thermal Metrics (SPRA953).
The UCC27516 and UCC27517 devices are offered in SOT-23, 5-pin package (DBV) and 3 mm × 3 mm, WSON
6-pin package with exposed thermal pad (DRS), respectively. The Thermal Information table summarizes the
thermal performance metrics related to the two packages. RθJA metric should be used for comparison of power
dissipation between different packages. Under identical power dissipation conditions, the DRS package will
maintain a lower die temperature than the DBV. The ψJT and ψJB metrics should be used when estimating the die
temperature during actual application measurements.
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
Submit Documentation Feedback
23
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
Thermal Considerations (continued)
The DRS is a better thermal package overall because of the exposed thermal pad and ability to sink heat to the
PCB better than the DBV. The thermal pad in DRS package provides designers with an ability to create an
excellent heat removal subsystem from the vicinity of the device, thus helping to maintain a lower junction
temperature. This pad should be soldered to the copper on the printed circuit board directly underneath the
device package. Then a printed circuit board designed with thermal lands and thermal vias completes a very
efficient heat removal subsystem. In such a design, the heat is extracted from the semiconductor junction
through the thermal pad, which is then efficiently conducted away from the location of the device on the PCB
through the thermal network. This extraction helps to maintain a lower board temperature near the vicinity of the
device leading to an overall lower device-junction temperature.
In comparison, for the DBV package, heat removal occurs primarily through the leads of the device and the PCB
traces connected to the leads.
Note that the exposed pad in DRS package is not directly connected to any leads of the package. However, the
DRS package is electrically and thermally connected to the substrate of the device which is the ground of the
device. TI recommends to externally connect the exposed pads to GND in PCB layout for better EMI immunity.
12.4 Power Dissipation
Power dissipation of the gate driver has two portions as shown in Equation 1.
PDISS = PDC + PSW
(1)
The DC portion of the power dissipation is PDC = IQ x VDD where IQ is the quiescent current for the driver. The
quiescent current is the current consumed by the device to bias all internal circuits such as input stage, reference
voltage, logic circuits, protections, and also any current associated with switching of internal devices when the
driver output changes state (such as charging and discharging of parasitic capacitances, parasitic shoot-through
etc). The UCC27516 and UCC27517 features very low quiescent currents (less than 1 mA, refer Figure 7) and
contains internal logic to eliminate any shoot-through in the output-driver stage. Thus the effect of the PDC on the
total power dissipation within the gate driver can be safely assumed to be negligible.
The power dissipated in the gate-driver package during switching (PSW) depends on the following factors:
• Gate charge required of the power device (usually a function of the drive voltage VG, which is very close to
input bias supply voltage VDD due to low VOH drop-out).
• Switching frequency.
• Use of external-gate resistors.
When a driver device is tested with a discrete, capacitive load calculating the power that is required from the bias
supply is fairly easy. The energy that must be transferred from the bias supply to charge the capacitor is given by
Equation 2.
1
EG = CLOAD VDD2
2
Where
•
•
CLOAD is load capacitor
VDD is bias voltage feeding the driver
(2)
There is an equal amount of energy dissipated when the capacitor is charged. This leads to a total power loss
given by Equation 3.
PG = CLOAD VDD2 fSW
where
•
ƒSW is the switching frequency
(3)
The switching load presented by a power MOSFET/IGBT is converted to an equivalent capacitance by examining
the gate charge required to switch the device. This gate charge includes the effects of the input capacitance plus
the added charge needed to swing the drain voltage of the power device as it switches between the ON and OFF
states. Most manufacturers provide specifications of typical and maximum gate charge, in nC, to switch the
device under specified conditions. Using the gate charge Qg, determine the power that must be dissipated when
charging a capacitor. This is done by using the equation, QG = CLOAD x VDD, to provide Equation 4 for power:
24
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
UCC27516, UCC27517
www.ti.com
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
Power Dissipation (continued)
PG = CLOAD VDD2 fSW = Qg VDD fSW
(4)
This power PG is dissipated in the resistive elements of the circuit when the MOSFET/IGBT is being turned on or
turned off. Half of the total power is dissipated when the load capacitor is charged during turnon, and the other
half is dissipated when the load capacitor is discharged during turnoff. When no external gate resistor is
employed between the driver and MOSFET/IGBT, this power is completely dissipated inside the driver package.
With the use of external gate-drive resistors, the power dissipation is shared between the internal resistance of
driver and external gate resistor in accordance to the ratio of the resistances (more power dissipated in the
higher resistance component). Based on this simplified analysis, the driver power dissipation during switching is
calculated in Equation 5.
æ
ö
ROFF
RON
+
PSW = 0.5 ´ QG ´ VDD ´ fSW ´ ç
÷
è ROFF + RGATE RON + RGATE ø
where
•
•
ROFF = ROL
RON (effective resistance of pullup structure) = 1.4 x ROL
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
(5)
Submit Documentation Feedback
25
UCC27516, UCC27517
SLUSAY4D – MARCH 2012 – REVISED DECEMBER 2014
www.ti.com
13 Device and Documentation Support
13.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 5. Related Links
PARTS
PRODUCT FOLDER
SAMPLE & BUY
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
UCC27516
Click here
Click here
Click here
Click here
Click here
UCC27517
Click here
Click here
Click here
Click here
Click here
13.2 Trademarks
All trademarks are the property of their respective owners.
13.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
13.4 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
26
Submit Documentation Feedback
Copyright © 2012–2014, Texas Instruments Incorporated
Product Folder Links: UCC27516 UCC27517
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
UCC27516DRSR
ACTIVE
SON
DRS
6
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 140
27516
UCC27516DRST
ACTIVE
SON
DRS
6
250
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 140
27516
UCC27517DBVR
ACTIVE
SOT-23
DBV
5
3000
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 140
7517
UCC27517DBVT
ACTIVE
SOT-23
DBV
5
250
RoHS & Green
NIPDAU | SN
Level-1-260C-UNLIM
-40 to 140
7517
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
