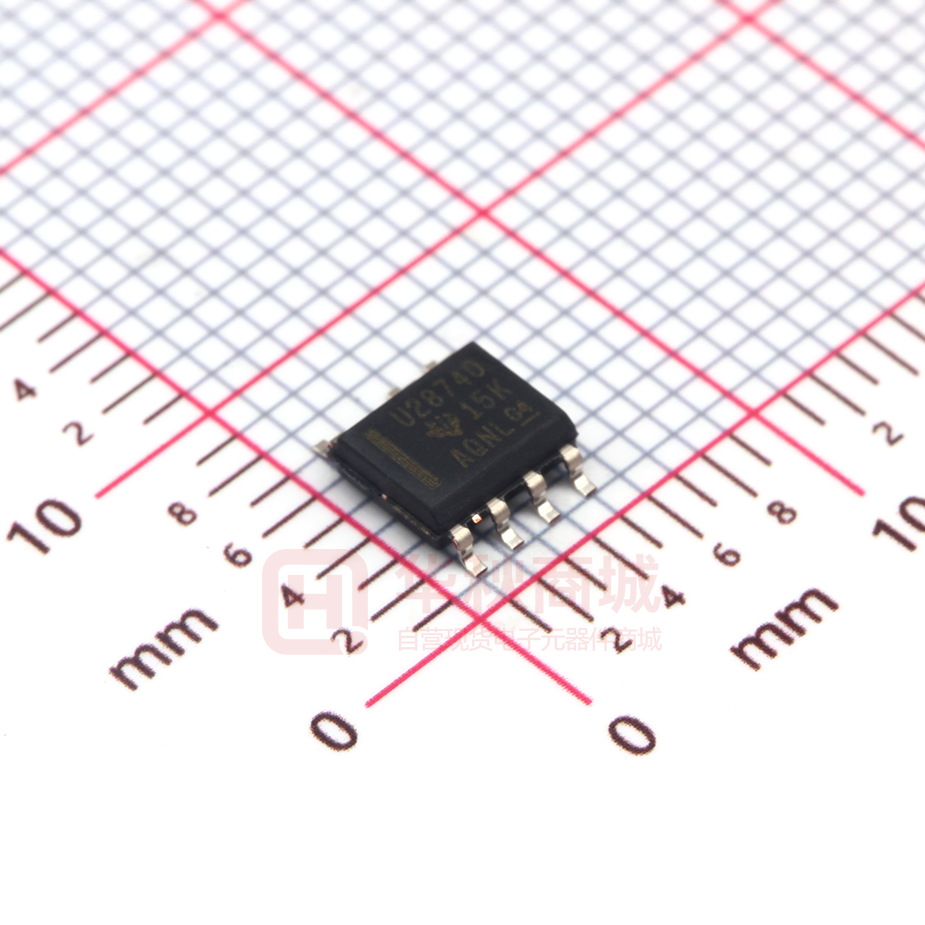

UCC28740DR

UCC28740DR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    SOIC7_150MIL

  • 描述:

    基于光耦反馈的恒压恒流反激控制器 SOIC7_150MIL

  • 数据手册
  • 价格&库存
UCC28740DR 数据手册
Order Now Product Folder Technical Documents Support & Community Tools & Software UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 UCC28740 Constant-Voltage Constant-Current Flyback Controller Using Optocoupled Feedback 1 Features 3 Description • • The UCC28740 isolated-flyback power-supply controller provides Constant-Voltage (CV) using an optical coupler to improve transient response to largeload steps. Constant-Current (CC) regulation is accomplished through Primary-Side Regulation (PSR) techniques. This device processes information from opto-coupled feedback and an auxiliary flyback winding for precise high-performance control of output voltage and current. 1 • • • • • • • • • Less than 10-mW No-Load Power Capability Optocoupled Feedback for CV, and Primary-Side Regulation (PSR) for CC Enables ±1% Voltage Regulation and ±5% Current Regulation Across Line and Load 700-V Startup Switch 100-kHz Maximum Switching Frequency Enables High-Power-Density Charger Designs Resonant-Ring Valley-Switching Operation for Highest Overall Efficiency Frequency Dithering to Ease EMI Compliance Clamped Gate-Drive Output for MOSFET Overvoltage, Low-Line, and Overcurrent Protection Functions SOIC-7 Package Create a Custom Design Using the UCC28740 With the WEBENCH® Power Designer 2 Applications • • • An internal 700-V startup switch, dynamically controlled operating states, and a tailored modulation profile support ultra-low standby power without sacrificing startup time or output transient response. Control algorithms in the UCC28740 allow operating efficiencies to meet or exceed applicable standards. The drive output interfaces to a MOSFET power switch. Discontinuous conduction mode (DCM) with valley-switching reduces switching losses. Modulation of switching frequency and primary current-peak amplitude (FM and AM) keeps the conversion efficiency high across the entire load and line ranges. The controller has a maximum switching frequency of 100 kHz and always maintains control of the peakprimary current in the transformer. Protection features keep primary and secondary component stresses in check. A minimum switching frequency of 170 Hz facilitates the achievement of less than 10-mW noload power. USB-Compliant Adapters and Chargers for Consumer Electronics – Smart Phones – Tablet Computers – Cameras Standby Supply for TV and Desktop White Goods Device Information(1) PART NUMBER UCC28740 PACKAGE BODY SIZE (NOM) SOIC (7) 4.90 mm × 3.91 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Simplified Application Diagram VBULK CB2 CB1 + Typical V-I Diagram VOUT NP COUT NS VOCV ± 4V UCC28740 SOIC-7 RTL VAUX VDD NA RS1 HV CVDD RFB1 VS ZFB DRV RLC RS2 ±5% 3V 2V 1V CS FB GND Output Voltage (VO) VAC RCS RFB2 Output Current (IO) Copyright © 2017, Texas Instruments Incorporated 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Table of Contents 1 2 3 4 5 6 7 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 4 4 4 4 5 6 7 Absolute Maximum Ratings ..................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Switching Characteristics .......................................... Typical Characteristics .............................................. Detailed Description .............................................. 9 7.1 Overview ................................................................... 9 7.2 Functional Block Diagram ......................................... 9 7.3 Feature Description................................................. 10 7.4 Device Functional Modes........................................ 13 8 Application and Implementation ........................ 18 8.1 Application Information............................................ 18 8.2 Typical Application .................................................. 18 9 Power Supply Recommendations...................... 28 10 Layout................................................................... 28 10.1 Layout Guidelines ................................................. 28 10.2 Layout Example .................................................... 29 11 Device and Documentation Support ................. 30 11.1 11.2 11.3 11.4 11.5 11.6 11.7 Device Support...................................................... Documentation Support ........................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 30 32 32 32 33 33 33 12 Mechanical, Packaging, and Orderable Information ........................................................... 33 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision C (July 2017) to Revision D Page • Changed Pin 7 to Pin 8 to match the mechanical drawing. ................................................................................................... 3 • Changed Layout Example's pin 7 to pin 8 to match the mechanical drawing...................................................................... 29 Changes from Revision B (December 2014) to Revision C Page • Moved the timing parameters from the Electrical Characteristics table to the Switching Characteristics table .................... 6 • Deleted quasi from quasi-resonant in the Transformer Turns Ratio, Inductance, Primary-Peak Current section .............. 21 • Added the Development Support, Documentation Support, Receiving Notification of Documentation Updates, and Community Resources sections ........................................................................................................................................... 30 Changes from Revision A (July 2013) to Revision B • Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ................................................................................................. 1 Changes from Original (July 2013) to Revision A • 2 Page Page Changed marketing status from Product Preview to Production Data .................................................................................. 1 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 5 Pin Configuration and Functions D Package 7-Pin SOIC Top View VDD 1 8 HV VS 2 FB 3 6 DRV GND 4 5 CS Pin Functions PIN NAME NO. I/O DESCRIPTION CS 5 I The current-sense (CS) input connects to a ground-referenced current-sense resistor in series with the power switch. The resulting voltage monitors and controls the peak primary current. A series resistor is added to this pin to compensate for peak switch-current levels as the AC-mains input varies. DRV 6 O Drive (DRV) is an output that drives the gate of an external high-voltage MOSFET switching transistor. FB 3 I The feedback (FB) input receives a current signal from the optocoupler output transistor. An internal current mirror divides the feedback current by 2.5 and applies it to an internal pullup resistor to generate a control voltage, VCL. The voltage at this resistor directly drives the control law function, which determines the switching frequency and the peak amplitude of the switching current . GND 4 — The ground (GND) pin is both the reference pin for the controller, and the low-side return for the drive output. Special care must be taken to return all AC-decoupling capacitors as close as possible to this pin and avoid any common trace length with analog signal-return paths. HV 8 I The high-voltage (HV) pin may connect directly, or through a series resistor, to the rectified bulk voltage and provides a charge to the VDD capacitor for the startup of the power supply. VDD 1 I VDD is the bias-supply input pin to the controller. A carefully placed bypass capacitor to GND is required on this pin. I Voltage sense (VS) is an input used to provide demagnetization timing feedback to the controller to limit frequency, to control constant-current operation, and to provide output-overvoltage detection. VS is also used for AC-mains input-voltage detection for peak primary-current compensation. This pin connects to a voltage divider between an auxiliary winding and GND. The value of the upper resistor of this divider programs the AC-mains run and stop thresholds, and factors into line compensation at the CS pin. VS 2 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 3 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings (1) See and (2) . MAX UNIT VHV Start-up pin voltage, HV MIN 700 V VVDD Bias supply voltage, VDD 38 V IDRV Continuous gate-current sink 50 mA IDRV Continuous gate-current source Self-limiting mA IFB Peak current, VS 1 mA IVS Peak current, FB −1.2 mA VDRV Gate-drive voltage at DRV –0.5 Self-limiting V Voltage, CS –0.5 5 V Voltage, FB –0.5 7 V Voltage, VS –0.75 7 V TJ Operating junction temperature –55 150 °C Tstg Storage temperature –65 150 °C (1) (2) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltages are with respect to GND. Currents are positive into, negative out of the specified terminal. These ratings apply over the operating ambient temperature ranges unless otherwise noted. 6.2 ESD Ratings VALUE Electrostatic discharge V(ESD) (1) (2) Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2000 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±500 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) VVDD Bias-supply operating voltage CVDD VDD bypass capacitor IFB Feedback current, continuous IVS VS pin current, out of pin TJ Operating junction temperature MIN MAX 9 35 0.047 –40 UNIT V µF 50 µA 1 mA 125 °C 6.4 Thermal Information UCC28740 THERMAL METRIC (1) D (SOIC) UNIT 7 PINS RθJA Junction-to-ambient thermal resistance 141.5 °C/W RθJC(top) Junction-to-case (top) thermal resistance 73.8 °C/W RθJB Junction-to-board thermal resistance 89 °C/W ψJT Junction-to-top characterization parameter 23.5 °C/W ψJB Junction-to-board characterization parameter 88.2 °C/W (1) 4 For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 6.5 Electrical Characteristics over operating free-air temperature range, VVDD = 25 V, HV = open, VFB = 0 V, VVS = 4 V, TA = –40°C to +125°C, TJ = TA (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT HIGH-VOLTAGE START UP IHV Start-up current out of VDD VHV = 100 V, VVDD = 0 V, start state IHVLKG25 Leakage current at HV VHV = 400 V, run state, TJ = 25°C 100 250 500 µA 0.01 0.5 µA BIAS SUPPLY INPUT IRUN Supply current, run IDRV = 0, run state 2 2.65 mA IWAIT Supply current, wait IDRV = 0, wait state 95 125 µA ISTART Supply current, start IDRV = 0, VVDD = 18 V, start state, IHV = 0 18 30 µA IFAULT Supply current, fault IDRV = 0, fault state 95 130 µA UNDERVOLTAGE LOCKOUT VVDD(on) VDD turnon threshold VVDD low to high 19 21 23 V VVDD(off) VDD turnoff threshold VVDD high to low 7.35 7.75 8.15 V VVSNC Negative clamp level IVSLS = –300 µA, volts below ground 190 250 325 mV IVSB Input bias current VVS = 4 V –0.25 0 0.25 µA IFBMAX Full-range input current fSW = fSW(min) VFBMAX Input voltage at full range IFB = 25 µA, TJ = 25°C FB-input resistance, linearized ΔIFB = 20 µA, centered at IFB = 15 µA, TJ = 25°C Maximum CS threshold voltage IFB = 0 µA (1) VS INPUT FB INPUT RFB 16 23 30 µA 0.75 0.88 1 V 10 14 18 kΩ 738 773 810 mV 170 194 215 mV 3.6 4 4.45 V/V 318 330 343 mV 24 25 28.6 A/A 180 230 280 ns 20 25 CS INPUT VCST(max) (1) VCST(min) Minimum CS threshold voltage IFB = 35 µA KAM AM-control ratio VCST(max) / VCST(min) VCCR Constant-current regulation factor KLC Line-compensation current ratio IVSLS = –300 µA, IVSLS / current out of CS pin tCSLEB Leading-edge blanking time DRV output duration, V CS = 1 V IDRS DRV source current VDRV = 8 V, VVDD = 9 V RDRVLS DRV low-side drive resistance IDRV = 10 mA 6 12 VDRCL DRV clamp voltage VVDD = 35 V 14 16 V RDRVSS DRV pulldown in start-state 150 190 230 kΩ V DRIVERS mA Ω PROTECTION VOVP Overvoltage threshold At VS input, TJ = 25°C (2) 4.52 4.6 4.71 VOCP Overcurrent threshold At CS input 1.4 1.5 1.6 V IVSL(run) VS line-sense run current Current out of VS pin increasing 190 225 275 µA IVSL(stop) VS line-sense stop current Current out of VS pin decreasing KVSL VS line sense ratio IVSL(run) / IVSL(stop) TJ(stop) Thermal-shutdown temperature Internal junction temperature (1) (2) 70 80 100 µA 2.45 2.8 3.05 A/A 165 °C This device automatically varies the control frequency and current sense thresholds to improve EMI performance. These threshold voltages and frequency limits represent average levels. The overvoltage threshold level at VS decreases with increasing temperature by 0.8 mV/°C. This compensation is included to reduce the power-supply output overvoltage detection variance over temperature. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 5 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 6.6 Switching Characteristics over operating free-air temperature range, VVDD = 25 V, HV = open, VFB = 0 V, VVS = 4 V, TA = –40°C to +125°C, TJ = TA (unless otherwise noted) PARAMETER fSW(max) Maximum switching frequency fSW(min) Minimum switching frequency tZTO Zero-crossing timeout delay (1) 6 TEST CONDITIONS IFB = 0 µA (1) IFB = 35 µA (1) MIN TYP MAX UNIT 91 100 106 kHz 140 170 210 Hz 1.8 2.1 2.55 µs This device automatically varies the control frequency and current sense thresholds to improve EMI performance. These threshold voltages and frequency limits represent average levels. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 6.7 Typical Characteristics VVDD = 25 V, TJ = 25°C, unless otherwise noted. 10 10 HV = Open Run State HV = Open IRUN, VDD = 25 V 1 IVDD - Bias-Supply Current (mA) IVDD - Bias-Supply Current (mA) 1 Wait State 0.1 VDD Turn-Off VDD Turn-On 0.01 Start State IWAIT, VDD = 25 V 0.1 ISTART, VDD = 18 V 0.01 0.001 0.001 0.0001 0.0001 0 5 10 15 20 25 30 35 -50 -25 0 VDD - Bias-Supply Voltage (V) 25 50 75 100 125 TJ - Temperature (oC) C001 C002 HV = Open HV = Open Figure 1. Bias-Supply Current vs. Bias-Supply Voltage Figure 2. Bias-Supply Current vs. Temperature 320 300 VHV = 100 V, VVDD = 0 V 280 IVSL(run) VS Line-Sense Current (µA) IHV - HV Startup Current (µA) 250 240 200 160 120 200 150 100 IVSL(stop) 80 50 40 0 0 -50 -25 0 25 50 TJ - Temperature 75 100 125 -50 -25 0 25 50 TJ - Temperature (oC) 75 100 125 (oC) C003 C004 VHV = 100 V, VVDD = 0 V Figure 3. HV Startup Current vs. Temperature Figure 4. VS Line-Sense Currents vs. Temperature 350 VCCR - Constant-Current Regulation Factor (mV) VCST(min) - Minimum CS Threshold Voltage (mV) 210 205 200 195 190 185 180 175 170 345 340 335 330 325 320 315 310 -50 -25 0 25 50 TJ - Temperature 75 100 125 -50 (oC) -25 0 25 50 75 100 125 TJ - Temperature (oC) C005 Figure 5. Minimum CS Threshold vs. Temperature C006 Figure 6. Constant-Current Regulation Factor vs. Temperature Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 7 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Typical Characteristics (continued) VVDD = 25 V, TJ = 25°C, unless otherwise noted. 34 200 32 190 IDRS - DRV Source Current (mA) fSW(min) - Minimum Switching Frequency (Hz) VDRV = 8 V, VVDD = 9 V 180 170 160 150 30 28 26 24 22 140 20 -50 -25 0 25 50 75 100 -50 125 -25 0 25 50 75 100 125 TJ - Temperature (oC) TJ - Temperature (oC) C007 C008 VDRV = 8 V, VVDD = 9 V Figure 7. Minimum Switching Frequency vs. Temperature Figure 8. DRV Source Current vs. Temperature 1.0 4.68 0.9 4.66 VOVP - VS Overvoltage Threshold (V) VFB - FB Input Voltage (V) 0.8 0.7 0.6 0.5 0.4 0.3 0.2 4.64 4.62 4.60 4.58 4.56 4.54 0.1 0.0 4.52 0 5 10 15 20 25 30 35 -50 IFB - FB Input Current (µA) 0 25 50 75 100 125 TJ - Temperature (oC) C009 Figure 9. FB Input Voltage vs. FB Input Current 8 -25 C010 Figure 10. VS Overvoltage Threshold vs. Temperature Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 7 Detailed Description 7.1 Overview The UCC28740 is a flyback power-supply controller which provides high-performance voltage regulation using an optically coupled feedback signal from a secondary-side voltage regulator. The device provides accurate constant-current regulation using primary-side feedback. The controller operates in discontinuous-conduction mode (DCM) with valley-switching to minimize switching losses. The control law scheme combines frequency with primary peak-current amplitude modulation to provide high conversion efficiency across the load range. The control law provides a wide dynamic operating range of output power which allows the power-supply designer to easily achieve less than 30-mW standby power dissipation using a standard shunt-regulator and optocoupler. For a target of less than 10-mW standby power, careful loss-management design with a low-power regulator and high-CTR optocoupler is required. During low-power operating conditions, the power-management features of the controller reduce the deviceoperating current at switching frequencies below 32 kHz. At and above this frequency, the UCC28740 includes features in the modulator to reduce the EMI peak energy of the fundamental switching frequency and harmonics. A complete low-cost and low component-count charger-solution is realized using a straight-forward design process. 7.2 Functional Block Diagram IHV GND VDD POWER AND FAULT MANAGEMENT UVLO 21 V / 7.75 V 5V FB HV OC Fault OV Fault LINE Fault IFB 5V 480 k 14 k VDD VCL IFB / 2.5 0.55 V CONTROL LAW VCST 25 mA DRV VS 14 V + SAMPLER VOVP ± 190 k 1 / fSW OV Fault VALLEY SWITCHING SECONDARY TIMING DETECT S Q R Q CS + CURRENT REGULATION ± VCST LEB IVSLS LINE SENSE IVSLS 10 k IVSLS / KLC ± + + LINE Fault OC Fault ± 1.5 V 2.25 V / 0.8 V Copyright © 2017, Texas Instruments Incorporated Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 9 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 7.3 Feature Description 7.3.1 Detailed Pin Description VDD (Device Bias Voltage Supply) The VDD pin connects to a bypass capacitor-to-ground. The turnon UVLO threshold is 21 V and turnoff UVLO threshold is 7.75 V with an available operating range up to 35 V on VDD. The typical USB-charging specification requires the output current to operate in constantcurrent mode from 5 V down to at least 2 V which is achieved easily with a nominal VVDD of approximately 25 V. The additional VDD headroom up to 35 V allows for VVDD to rise due to the leakage energy delivered to the VDD capacitor during high-load conditions. GND (Ground) UCC28740 has a single ground reference external to the device for the gate-drive current and analog signal reference. Place the VDD-bypass capacitor close to GND and VDD with short traces to minimize noise on the VS, FB, and CS signal pins. HV (High-Voltage Startup) The HV pin connects directly to the bulk capacitor to provide a startup current to the VDD capacitor. The typical startup current is approximately 250 µA which provides fast charging of the VDD capacitor. The internal HV startup device is active until VVDD exceeds the turnon UVLO threshold of 21 V at which time the HV startup device turns off. In the off state the HV leakage current is very low to minimize standby losses of the controller. When VVDD falls below the 7.75 V UVLO turnoff threshold the HV startup device turns on. VS (Voltage Sense) The VS pin connects to a resistor-divider from the auxiliary winding to ground. The auxiliary voltage waveform is sampled at the end of the transformer secondary-current demagnetization time to provide accurate control of the output current when in constant-current mode. The waveform on the VS pin determines the timing information to achieve valley-switching, and the timing to control the duty-cycle of the transformer secondary current. Avoid placing a filter capacitor on this input which interferes with accurate sensing of this waveform. During the MOSFET on-time, this pin also senses VS current generated through RS1 by the reflected bulk-capacitor voltage to provide for AC-input run and stop thresholds, and to compensate the current-sense threshold across the AC-input range. For the AC-input run/stop function, the run threshold on VS is 225 µA and the stop threshold is 80 µA. At the end of off-time demagnetization, the reflected output voltage is sampled at this pin to provide output overvoltage protection. The values for the auxiliary voltage-divider upper-resistor, RS1, and lower-resistor, RS2, are determined by Equation 1 and Equation 2. RS1 = VIN(run) ´ 2 NPA ´ IVSL(run) where • • • RS2 NPA is the transformer primary-to-auxiliary turns-ratio, VIN(run) is the AC RMS voltage to enable turnon of the controller (run), (in case of DC input, leave out the √2 term in the equation), IVSL(run) is the run-threshold for the current pulled out of the VS pin during the switch on-time (see Electrical Characteristics). (1) RS1 u VOVP NAS u VOV VF VOVP where • • • • • VOV is the maximum allowable peak voltage at the converter output, VF is the output-rectifier forward drop at near-zero current, NAS is the transformer auxiliary-to-secondary turns-ratio, RS1 is the VS divider high-side resistance, VOVP is the overvoltage detection threshold at the VS input (see Electrical Characteristics). (2) FB (Feedback) The FB pin connects to the emitter of an analog-optocoupler output transistor which usually has the collector connected to VDD. The current supplied to FB by the optocoupler is reduced internally by a factor of 2.5 and the resulting current is applied to an internal 480-kΩ resistor to generate the control law voltage (VCL). This VCL directly determines the converter switching frequency and peak primary current required for regulation per the control-law for any given line and load condition. 10 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Feature Description (continued) DRV (Gate Drive) The DRV pin connects to the MOSFET gate pin, usually through a series resistor. The gate driver provides a gate-drive signal limited to 14 V. The turnon characteristic of the driver is a 25-mA current source which limits the turnon dv/dt of the MOSFET drain and reduces the leading-edge current spike while still providing a gate-drive current to overcome the Miller plateau. The gate-drive turnoff current is determined by the RDSON of the low-side driver along with any external gate-drive resistance. Adding external gate resistance reduces the MOSFET drain turn-off dv/dt, if necessary. CS (Current Sense) The current-sense pin connects through a series resistor (RLC) to the current-sense resistor (RCS). The maximum current-sense threshold (VCST(max)) is 0.773 V for IPP(max), and the minimum current-sense threshold (VCST(min)) is 0.194 V for IPP(min). RLC provides the feed-forward line compensation to eliminate changes in IPP with input voltage due to the propagation delay of the internal comparator and MOSFET turnoff time. An internal leading-edge blanking time of 235 ns eliminates sensitivity to the MOSFET turnon current spike. Placing a bypass capacitor on the CS pin is unnecessary. The target output current in constant-current (CC) regulation determines the value of RCS. The values of RCS and RLC are calculated using Equation 3 and Equation 4. The term VCCR is the product of the demagnetization constant, 0.425, and VCST(max). VCCRis held to a tighter accuracy than either of its constituent terms. The term ηXFMR accounts for the energy stored in the transformer but not delivered to the secondary. This term includes transformer resistance and core loss, bias power, and primary-to-secondary leakage ratio. Example: With a transformer core and winding loss of 5%, primary-to-secondary leakage inductance of 3.5%, and bias power to output power ratio of 0.5%, the ηXFMR value at full power is approximately: 1 - 0.05 - 0.035 - 0.005 = 0.91. V ´ NPS RCS = CCR ´ hXFMR 2IOCC where • • • • RLC = VCCR is a constant-current regulation factor (see Electrical Characteristics), NPS is the transformer primary-to-secondary turns-ratio (a ratio of 13 to 15 is typical for 5-V output), IOCC is the target output current in constant-current regulation, ηXFMR is the transformer efficiency at full power. (3) KLC ´ RS1 ´ RCS ´ tD ´ NPA LP where • • • • • • RS1 is the VS pin high-side resistor value, RCS is the current-sense resistor value, tD is the total current-sense delay consisting of MOSFET turnoff delay, plus approximately 50 ns internal delay, NPA is the transformer primary-to-auxiliary turns-ratio, LP is the transformer primary inductance, KLC is a current-scaling constant for line compensation (see Electrical Characteristics). (4) 7.3.2 Valley-Switching and Valley-Skipping The UCC28740 uses valley-switching to reduce switching losses in the MOSFET, to reduce induced-EMI, and to minimize the turnon current spike at the current-sense resistor. The controller operates in valley-switching in all load conditions unless the VDS ringing diminishes to the point where valleys are no longer detectable. As shown in Figure 11, the UCC28740 operates in a valley-skipping mode (also known as valley-hopping) in most load conditions to maintain an accurate voltage or current regulation point and still switch on the lowest available VDS voltage. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 11 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Feature Description (continued) VDS VDRV Figure 11. Valley-Skipping Mode Valley-skipping modulates each switching cycle into discrete period durations. During FM operation, the switching cycles are periods when energy is delivered to the output in fixed packets, where the power-per-cycle varies discretely with the switching period. During operating conditions when the switching period is relatively short, such as at high-load and low-line, the average power delivered per cycle varies significantly based on the number of valleys skipped between cycles. As a consequence, valley-skipping adds additional ripple voltage to the output with a frequency and amplitude dependent upon the loop-response of the shunt-regulator. For a load with an average power level between that of cycles with fewer valleys skipped and cycles with more valleys skipped, the voltage-control loop modulates the FB current according to the loop-bandwidth and toggles between longer and shorter switching periods to match the required average output power. 7.3.3 Startup Operation An internal high-voltage startup switch, connected to the bulk-capacitor voltage (VBULK) through the HV pin, charges the VDD capacitor. This startup switch functions similarly to a current source providing typically 250 µA to charge the VDD capacitor. When VVDD reaches the 21-V UVLO turnon threshold the controller is enabled, the converter starts switching, and the startup switch turns off. Often at initial turnon, the output capacitor is in a fully discharged state. The first three switching-cycle current peaks are limited to IPP(min) to monitor for any initial input or output faults with limited power delivery. After these three cycles, if the sampled voltage at VS is less than 1.33 V, the controller operates in a special startup mode. In this mode, the primary current peak amplitude of each switching cycle is limited to approximately 0.63 × IPP(max) and DMAGCC increases from 0.425 to 0.735. These modifications to IPP(max) and DMAGCC during startup allows high-frequency charge-up of the output capacitor to avoid audible noise while the demagnetization voltage is low. Once the sampled VS voltage exceeds 1.38 V, DMAGCC is restored to 0.425 and the primary current peak resumes as IPP(max). While the output capacitor charges, the converter operates in CC mode to maintain a constant output current until the output voltage enters regulation. Thereafter, the controller responds to the condition dictated by the control law. The time to reach output regulation consists of the time the VDD capacitor charges to 21 V plus the time the output capacitor charges. 7.3.4 Fault Protection The UCC28740 provides extensive fault protection. The protection functions include: • Output overvoltage • Input undervoltage • Internal overtemperature • Primary overcurrent fault • CS-pin fault • VS-pin fault A UVLO reset and restart sequence applies to all fault-protection events. 12 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Feature Description (continued) The output-overvoltage function is determined by the voltage feedback on the VS pin. If the voltage sample of VS exceeds 4.6 V, the device stops switching and the internal current consumption becomes IFAULT which discharges the VDD capacitor to the UVLO-turnoff threshold. After that, the device returns to the start state and a startup sequence ensues. The UCC28740 always operates with cycle-by-cycle primary peak current control. The normal operating voltage range of the CS pin is 0.773 V to 0.194 V. An additional protection, not filtered by leading-edge blanking, occurs if the CS pin voltage reaches 1.5 V, which results in a UVLO reset and restart sequence. Current into the VS pin during the MOSFET on-time determines the line-input run and stop thresholds. While the VS pin clamps close to GND during the MOSFET on-time, the current through RS1 is monitored to determine a sample of VBULK. A wide separation of the run and stop thresholds allows for clean startup and shutdown of the power supply with the line voltage. The run-current threshold is 225 µA and the stop-current threshold is 80 µA. The internal overtemperature-protection threshold is 165°C. If the junction temperature reaches this threshold the device initiates a UVLO-reset cycle. If the temperature is still high at the end of the UVLO cycle, the protection cycle repeats. Protection is included in the event of component failures on the VS pin. If complete loss of feedback information on the VS pin occurs, the controller stops switching and restarts. 7.4 Device Functional Modes 7.4.1 Secondary-Side Optically Coupled Constant-Voltage (CV) Regulation Figure 12 shows a simplified flyback convertor with the main output-regulation blocks of the device shown, along with typical implementation of secondary-side-derived regulation. The power-train operation is the same as any DCM-flyback circuit. A feedback current is optically coupled to the controller from a shunt-regulator sensing the output voltage. + VF ± VBULK Auxiliary VOUT COUT Timing Primary Secondary RLOAD RS1 VS Discriminator and Sampler RS2 VCL GD DRV Control Law Minimum Period and Peak Primary Current VDD RTL CS RCS Zero Crossings ROPT RFB1 Mirror Network FB IOPT IFB ZFB RFB2 Figure 12. Simplified Flyback Convertor (With the Main Voltage Regulation Blocks) Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 13 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Device Functional Modes (continued) In this configuration, a secondary-side shunt-regulator, such as the TL431, generates a current through the input photo-diode of an optocoupler. The photo-transistor delivers a proportional current that is dependent on the current-transfer ratio (CTR) of the optocoupler to the FB input of the UCC28740 controller. This FB current then converts into the VCL by the input-mirror network, detailed in the device block diagram (see Functional Block Diagram). Output-voltage variations convert to FB-current variations. The FB-current variations modify the VCL which dictates the appropriate IPP and fSW necessary to maintain CV regulation. At the same time, the VS input senses the auxiliary winding voltage during the transfer of transformer energy to the secondary output to monitor for an output overvoltage condition. When fSW reaches the target maximum frequency, chosen between 32 kHz and 100 kHz, CC operation is entered and further increases in VCL have no effect. Figure 13 shows that as the secondary current decreases to zero, a clearly defined down slope reflects the decreasing rectifier VF combined with stray resistance voltage-drop (ISRS). To achieve an accurate representation of the secondary output voltage on the auxiliary winding, the discriminator reliably blocks the leakage-inductance reset and ringing while continuously sampling the auxiliary voltage during the down slope after the ringing diminishes. The discriminator then captures the voltage signal at the moment that the secondary-winding current reaches zero. The internal overvoltage threshold on VS is 4.6 V. Temperature compensation of –0.8 mV/°C on the overvoltage threshold offsets the change in the output-rectifier forward voltage with temperature. The resistor divider is selected as outlined in the VS pin description (see Detailed Pin Description). VS Sample (VOUT+VF) NAS 0V ±VBULK / NPA Figure 13. Auxiliary-Winding Voltage The UCC28740 VS-signal sampler includes signal-discrimination methods to ensure an accurate sample of the output voltage from the auxiliary winding. Controlling some details of the auxiliary-winding signal to ensure reliable operation is necessary; specifically, the reset time of the leakage inductance and the duration of any subsequent leakage-inductance ringing. See Figure 14 for a detailed illustration of waveform criteria to ensure a reliable sample on the VS pin. The first detail to examine is the duration of the leakage-inductance reset pedestal, tLK_RESET, in Figure 14. Because tLK_RESET mimics the waveform of the secondary-current decay, followed by a sharp downslope, tLK_RESET is internally blanked for a duration which scales with the peak primary current. Keeping the leakagereset time to less than 600 ns for IPP(min), and less than 2.2 µs for IPP(max) is important. The second detail is the amplitude of ringing on the VAUX waveform following tLK_RESET. The peak-to-peak voltage variation at the VS pin must be less than 100 mVp-p for at least 200 ns before the end of the demagnetization time (tDM). A concern with excessive ringing usually occurs during light or no-load conditions, when tDM is at the minimum. The tolerable ripple on VS is scaled up to the auxiliary-winding voltage by RS1 and RS2, and is equal to 100 mV × (RS1 + RS2) / RS2 . 14 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Device Functional Modes (continued) tLK_RESET tSMPL VS ring (p-p) 0V tDM Figure 14. Auxiliary-Winding Waveform Details During voltage regulation, the controller operates in frequency-modulation mode and amplitude-modulation mode, as shown in Figure 15. The internal operating-frequency limits of the device are 100 kHz and fSW(min). The maximum operating frequency of the converter at full-load is generally chosen to be slightly lower than 100 kHz to allow for tolerances, or significantly lower due to switching-loss considerations. The maximum operating frequency and primary peak current chosen determine the transformer primary inductance of the converter. The shunt-regulator bias power, output preload resistor (if any), and low-power conversion efficiency determine the minimum-operating frequency of the converter. Voltage-loop stability compensation is applied at the shuntregulator which drives the opto-coupled feedback signal. The tolerances chosen for the shunt-regulator reference and the sense resistors determines the regulation accuracy. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 15 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Device Functional Modes (continued) Control-Law Profile in Constant-Voltage (CV) Mode IPP(max) IPP (peak primary current) 100 kHz fSW IPP fSW 32 kHz IPP(max) / 4 FM AM FM fSW = 170 Hz 3 kHz 0V 0.75 V 1.3 V 2.2 V 3.55 V 4.9 V 5V Control Law Voltage, Internal (VCL) 26 µA 22.1 µA 19.3 µA 14.6 µA 7.55 µA 0.5 µA Corresponding Feedback Current, FB Input (IFB) Figure 15. Frequency and Amplitude Modulation Modes (During CV Regulation) The level of feedback current (IFB) into the FB pin determines the internal VCL which determines the operating point of the controller while in CV mode. When IFB rises above 22 µA, no further decrease in fSW occurs. When the output-load current increases to the point where maximum fSW is reached, control transfers to CC mode. All current, voltage, frequency, breakpoints, and curve-segment linearity depicted in Figure 15 are nominal. Figure 15 indicates the general operation of the controller while in CV mode, although minor variations may occur from part to part. An internal frequency-dithering mechanism is enabled when IFB is less than 14.6 µA to help reduce conducted EMI (including during CC-mode operation), and is disabled otherwise. 7.4.2 Primary-Side Constant-Current (CC) Regulation When the load current of the converter increases to the predetermined constant-current limit, operation enters CC mode. In CC mode, output voltage regulation is lost and the shunt-regulator drives the current and voltage at FB to minimum. During CC mode, timing information at the VS pin and current information at the CS pin allow accurate regulation of the average current of the secondary winding. The CV-regulation control law dictates that as load increases approaches CC regulation the primary peak current will be at IPP(max). The primary peak current, turns-ratio, demagnetization time tDM, and switching period tSW determine the secondary average output current (see Figure 16). Ignoring leakage-inductance effects, the average output current is given by Equation 5. When the demagnetization duty-cycle reaches the CC-regulation reference, DMAGCC, in the current-control block, the controller operates in frequency modulation (FM) mode to control the output current for any output voltage at or below the voltage-regulation target as long as the auxiliary winding keeps VVDD above the UVLO turnoff threshold. As the output voltage falls, tDM increases. The controller acts to increase tSW to maintain the ratio of tDM to switching period (tDM / tSW) at a maximum of 0.425 (DMAGCC), thereby maintaining a constant average output current. 16 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Device Functional Modes (continued) IS ´ NS NP IPP tON tDM tSW UDG-12203 Figure 16. Transformer-Current Relationship I N t IOUT = PP ´ P ´ DM 2 NS tSW (5) Fast, accurate, opto-coupled CV control combined with line-compensated PSR CC control results in highperformance voltage and current regulation which minimizes voltage deviations due to heavy load and unload steps, as illustrated by the V-I curve in Figure 17. VOCV Output Voltage (VO) VO(min) IOCC ±5% Minimum allowable transient voltage level for heavy load step Output Current (IO) IOCC Figure 17. Typical Target Output V-I Characteristic Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 17 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information The UCC28740 is a flyback controller that provides constant-voltage (CV) mode control and constant current (CC) mode control for precise output regulation. While in CV operating range, the controller uses an opto-coupler for tight voltage regulation and improved transient response to large load steps. Accurate regulation while in CC mode is provided by primary side control. The UCC28740 uses frequency modulation, peak primary current modulation, valley switching and valley hopping in its control algorithm in order to maximize efficiency over the entire operating range. 8.2 Typical Application The UCC28740 is well suited for use in isolated off-line systems requiring high efficiency and fault protection features such as USB compliant adapters and chargers for consumer electronics such a smart phones, tablet computers, and cameras. A 10-W application for a USB charger is shown in Figure 18. This procedure outlines the steps to design a constant-voltage, constant-current flyback converter using the UCC28740 controller. See Figure 18 for component names and network locations. The design procedure equations use terms that are defined below. + VF ± VBULK VAC VAUX CB2 CB1 + NP VOUT COUT NS ± + VFA ± NA RS1 UCC28740 SOIC-7 VVDD VDD HV ROPT CVDD VE RS2 RTL CFB3 RFB1 VS DRV RLC RFB3 IFB IOPT CS FB GND ZFB RCS RFB4 RFB2 Copyright © 2017, Texas Instruments Incorporated Figure 18. Design Procedure Application Example 18 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Typical Application (continued) 8.2.1 Design Requirements Table 1. Design Parameters PARAMETER NOTES AND CONDITIONS MIN NOM MAX UNIT 85 115/230 265 VRMS INPUT CHARACTERISTICS Input Voltage, VIN Maximum Input Current VIN = VINmin, IOUT = IOUTmax Line Frequency No Load Input Power Consumption 0.265 47 60/50 VINmin ≤ VIN ≤ VINmax, IOUT = 0 A ARMS 63 Hz 20 mW OUTPUT CHARACTERISTICS Output Voltage, VOUT VINmin ≤ VIN ≤ VINmax, 0 A ≤ IOUT ≤ IOUTmax Output Load Current, CV Mode, IOUTmax VINmin ≤ VIN ≤ VINmax Output Voltage Regulation 4.95 5 5.05 V 1.995 2.1 2.205 A Line Regulation: VINmin ≤ VIN ≤ VINmax, IOUT ≤ IOUTmax 0.1% Load Regulation: 0 A ≤ IOUT ≤ IOUTmax 0.1% Output Voltage Ripple VINmin ≤ VIN ≤ VINmax, 0 A ≤ IOUT ≤ IOUTmax 150 mVpp Output Overcurrent, ICCC VINmin ≤ VIN ≤ VINmax 2.5 A Minimum Output Voltage, CC Mode VINmin ≤ VIN ≤ VINmax, IOUT = IOCC 2 V Brown-out Protection IOUT = IOUTmax Transient Response Undershoot IOUT = IOUTmax to 0-A load transient Transient Response Time IOUT = IOUTmax to 0-A load transient 1.78 68 VRMS 4.3 V 20 ms 71 kHz SYSTEMS CHARACTERISTICS Switching Frequency, fSW Average Efficiency 1.2 25%, 50%, 75%, 100% load average at nominal input voltages 81% Operating Temperature 25 °C 8.2.2 Detailed Design Procedure 8.2.2.1 Custom Design With WEBENCH® Tools Click here to create a custom design using the UCC28740 device with the WEBENCH® Power Designer. 1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements. 2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial. 3. Compare the generated design with other possible solutions from Texas Instruments. The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time pricing and component availability. In most cases, these actions are available: • Run electrical simulations to see important waveforms and circuit performance • Run thermal simulations to understand board thermal performance • Export customized schematic and layout into popular CAD formats • Print PDF reports for the design, and share the design with colleagues Get more information about WEBENCH tools at www.ti.com/WEBENCH. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 19 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 8.2.2.2 www.ti.com Standby Power Estimate and No-Load Switching Frequency Assuming minimal no-load standby power is a critical design requirement, determine the estimated no-load power loss based on an accounting of all no-load operating and leakage currents at their respective voltages. Close attention to detail is necessary to account for all of the sources of leakage, however, in many cases, prototype measurement is the only means to obtain a realistic estimation of total primary and secondary leakage currents. At present, converter standby power is certified by compliance-agency authorities based on steadystate room-temperature operation at the highest nominal input voltage rating (typically 230 Vrms). Equation 6 estimates the standby power loss from the sum of all leakage currents of the primary-side components of the converter. These leakage currents are measured in aggregate by disconnecting the HV input of the controller from the bulk-voltage rail to prevent operating currents from interfering with the leakage measurement. nP PPRI _ SB VBULK u ¦IPRI _ LK K (6) k 1 Equation 7 estimates the standby power loss from the sum of all leakage and operating currents of the secondary-side components on the output of the converter. Leakage currents result from reverse voltage applied across the output rectifier and capacitors, while the operating current includes currents required by the shuntregulator, optocoupler, and associated components. nS PSEC _ SB VOCV u ¦ISEC K (7) k 1 Equation 8 estimates the standby power loss from the sum of all leakage and operating currents of the auxiliaryside components on the controller of the converter. Leakage currents of the auxiliary diode and capacitor are usually negligible. The operating current includes the wait-state current, IWAIT, of the UCC28740 controller, plus the optocoupler-output current for the FB network in the steady-state no-load condition. The VDD voltage in the no-load condition VVDDNL are the lowest practicable value to minimize loss. na PAUX _ SB VVDDNL u ¦IAUX K (8) k 1 Note that PPRI_SB is the only loss that is not dependent on transformer conversion efficiency. PSEC_SB and PAUX_SB are processed through the transformer and incur additional losses as a consequence. Typically, the transformer no-load conversion efficiency ηSWNL lies in the range of 0.50 to 0.70. Total standby input power (no-load condition) is estimated by Equation 9. 1 PSB PPRI _ SB PSEC _ SB PAUX _ SB KSWNL (9) Although the UCC28740 is capable of operating at the minimum switching frequency of 170 Hz, a typical converter is likely to require a higher frequency to sustain operation at no-load. An accurate estimate of the noload switching frequency fSWNL entails a thorough accounting of all switching-related energy losses within the converter including parasitic elements of the power-train components. In general, fSWNL is likely to lie within the range of 400 Hz to 800 Hz. A more detailed treatment of standby power and no-load frequency is beyond the scope of this data sheet. 8.2.2.3 Input Bulk Capacitance and Minimum Bulk Voltage Determine the minimum voltage on the input bulk capacitance, CB1 and CB2 total, in order to determine the maximum Np-to-Ns turns-ratio of the transformer. The input power of the converter based on target full-load efficiency, the minimum input RMS voltage, and the minimum AC input frequency determine the input capacitance requirement. Maximum input power is determined based on IOCC, VOCV, VCBC (if used), and the full-load conversion-efficiency target. VOCV VCBC u IOCC PIN K (10) 20 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Equation 11 provides an accurate solution for the total input capacitance based on a target minimum bulkcapacitor voltage. Alternatively, to target a given input capacitance value, iterate the minimum capacitor voltage to achieve the target capacitance value. CBULK æ æ VBULK(min) 1 2PIN ´ ç 0.25 + ´ arcsin ç ç 2p ç è 2 ´ VIN(min) è = 2VIN(min)2 - VBULK(min)2 ´ fLINE ( ) öö ÷÷ ÷÷ øø (11) 8.2.2.4 Transformer Turns-Ratio, Inductance, Primary Peak Current The target maximum switching frequency at full-load, the minimum input-capacitor bulk voltage, and the estimated DCM resonant time determine the maximum primary-to-secondary turns-ratio of the transformer. Initially determine the maximum-available total duty-cycle of the on-time and secondary conduction time based on the target switching frequency, fMAX, and DCM resonant time. For DCM resonant frequency, assume 500 kHz if an estimate from previous designs is not available. At the transition-mode operation limit of DCM, the interval required from the end of secondary current conduction to the first valley of the VDS voltage is ½ of the DCM resonant period (tR), or 1 µs assuming 500 kHz resonant frequency. The maximum allowable MOSFET on-time DMAX is determined using Equation 12. §t · DMAX 1 DMAGCC ¨ R u fMAX ¸ © 2 ¹ (12) When DMAX is known, the maximum primary-to-secondary turns-ratio is determined with Equation 13. DMAGCC is defined as the secondary-diode conduction duty-cycle during CC operation and is fixed internally by the UCC28740 at 0.425. The total voltage on the secondary winding must be determined, which is the sum of VOCV, VF, and VOCBC. For the 5-V USB-charger applications, a turns ratio range of 13 to 15 is typically used. DMAX ´ VBULK(min) NPS(max) = DMAGCC ´ (VOCV + VF + VOCBC ) (13) A higher turns-ratio generally improves efficiency, but may limit operation at low input voltage. Transformer design iterations are generally necessary to evaluate system-level performance trade-offs. When the optimum turns-ratio NPS is determined from a detailed transformer design, use this ratio for the following parameters. The UCC28740 constant-current regulation is achieved by maintaining DMAGCC at the maximum primary peak current setting. The product of DMAGCC and VCST(max) defines a CC-regulating voltage factor VCCR which is used with NPS to determine the current-sense resistor value necessary to achieve the regulated CC target, IOCC (see Equation 14). Because a small portion of the energy stored in the transformer does not transfer to the output, a transformerefficiency term is included in the RCS equation. This efficiency number includes the core and winding losses, the leakage-inductance ratio, and a bias-power to maximum-output-power ratio. An overall-transformer efficiency of 0.91 is a good estimate based on 3.5% leakage inductance, 5% core & winding loss, and 0.5% bias power, for example. Adjust these estimates as appropriate based on each specific application. V ´ NPS RCS = CCR ´ hXFMR 2IOCC (14) The primary transformer inductance is calculated using the standard energy storage equation for flyback transformers. Primary current, maximum switching frequency, output voltage and current targets, and transformer power losses are included in Equation 16. First, determine the transformer primary peak current using Equation 15. Peak primary current is the maximum current-sense threshold divided by the current-sense resistance. VCST(max) IPP(max) = RCS (15) LP = 2 (VOCV + VF + VOCBC ) ´ IOCC hXFMR ´ IPP(max)2 ´ fMAX (16) Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 21 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com NAS is determined by the lowest target operating output voltage while in constant-current regulation and by the VDD UVLO turnoff threshold of the UCC28740. Additional energy is supplied to VDD from the transformer leakage-inductance which allows a lower turns ratio to be used in many designs. VVDD(off ) VFA NAS VOCC VF (17) 8.2.2.5 Transformer Parameter Verification Because the selected transformer turns-ratio affects the MOSFET VDS and the secondary and auxiliary rectifier reverse voltages, a review of these voltages is important. In addition, internal timing constraints of the UCC28740 require a minimum on time of the MOSFET (tON) and a minimum demagnetization time (tDM) of the transformer in the high-line minimum-load condition. The selection of fMAX, LP, and RCS affects the minimum tON and tDM. Equation 18 and Equation 19 determine the reverse voltage stresses on the secondary and auxiliary rectifiers. Stray inductance can impress additional voltage spikes upon these stresses and snubbers may be necessary. VIN(max) u 2 VREVS NPS VIN(max) u 2 VREVA NPA u VOV (18) u VVDD (19) For the MOSFET VDS peak voltage stress, an estimated leakage inductance voltage spike (VLK) is included. VDSPK VIN(max) u 2 VOCV VF VOCBC u NPS VLK (20) Equation 21 determines if tON(min) exceeds the minimum tON target of 280 ns (maximum tCSLEB). Equation 22 verifies that tDM(min) exceeds the minimum tDM target of 1.2 µs. IPP(max) LP t ON(min) u K AM VIN(max) u 2 (21) tDM(min) tON(min) u VIN(max) u 2 NPS u VOCV VF (22) 8.2.2.6 VS Resistor Divider, Line Compensation The VS divider resistors determine the output overvoltage detection point of the flyback converter. The high-side divider resistor (RS1) determines the input-line voltage at which the controller enables continuous DRV operation. RS1 is determined based on transformer primary-to-auxiliary turns-ratio and desired input voltage operating threshold. RS1 = VIN(run) ´ 2 NPA ´ IVSL(run) (23) The low-side VS pin resistor is then selected based on the desired overvoltage limit, VOV. RS1 u VOVP RS2 NAS u VOV VF VOVP (24) The UCC28740 maintains tight constant-current regulation over varying input line by using the line-compensation feature. The line-compensation resistor (RLC) value is determined by current flowing in RS1 and the total internal gate-drive and external MOSFET turnoff delay. Assume an internal delay of 50 ns in the UCC28740. K ´ RS1 ´ RCS ´ tD ´ NPA RLC = LC LP (25) 22 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 8.2.2.7 Output Capacitance The output capacitance value is often determined by the transient-response requirement from the no-load condition. For example, in typical low-power USB-charger applications, there is a requirement to maintain a minimum transient VO of 4.1 V with a load-step ITRAN from 0 mA to 500 mA. Yet new higher-performance applications require smaller transient voltage droop VOΔ with ITRAN of much greater amplitude (such as from noload to full-load), which drives the need for high-speed opto-coupled voltage feedback. I ut COUT t TRAN RESP VO' where • tRESP is the time delay from the moment ITRAN is applied to the moment when IFB falls below 1 µA (26) Additional considerations for the selection of appropriate output capacitors include ripple-current, ESR, and ESL ratings necessary to meet reliability and ripple-voltage requirements. Detailed design criteria for these considerations are beyond the scope of this datasheet. 8.2.2.8 VDD Capacitance, CVDD The capacitance on VDD must supply the primary-side operating current used during startup and between lowfrequency switching pulses. The largest result of three independent calculations denoted in Equation 27, Equation 28, and Equation 29 determines the value of CVDD. At startup, when VVDD(on) is reached, CVDD alone supplies the device operating current and MOSFET gate current until the output of the converter reaches the target minimum-operating voltage in CC regulation, VOCC. Now the auxiliary winding sustains VDD for the UCC28740 above UVLO. The total output current available to the load and to charge the output capacitors is the CC-regulation target, IOCC. Equation 27 assumes that all of the output current of the converter is available to charge the output capacitance until VOCC is achieved. For typical applications, Equation 27 includes an estimated qGfSW(max) of average gate-drive current and a 1-V margin added to VVDD. C u VOCC IRUN qG fSW(max) u OUT IOCC CVDD t VDD(on) VVDD(off ) 1 V (27) During a worst-case un-load transient event from full-load to no-load, COUT overcharges above the normal regulation level for a duration of tOV, until the output shunt-regulator loading is able to drain VOUT back to regulation. During tOV, the voltage feedback loop and optocoupler are saturated, driving maximum IFB and temporarily switching at fSW(min). The auxiliary bias current expended during this situation exceeds that normally required during the steady-state no-load condition. Equation 28 calculates the value of CVDD (with a safety factor of 2) required to ride through the tOV duration until steady-state no-load operation is achieved. 2 u IAUXNL(max) u t OV CVDD t VVDDFL VVDD(off ) 1 V (28) Finally, in the steady-state no-load operating condition, total no-load auxiliary-bias current, IAUXNL is provided by the converter switching at a no-load frequency, fSWNL, which is generally higher than fSW(min). CVDD is calculated to maintain a target VDD ripple voltage lower than ΔVVDD, using Equation 29. 1 IAUXNL u fSWNL CVDD t 'VVDD (29) Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 23 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 8.2.2.9 Feedback Network Biasing Achieving very low standby power while maintaining high-performance load-step transient response requires careful design of the feedback network. Optically coupled secondary-side regulation is used to provide the rapid response needed when a heavy load step occurs during the no-load condition. One of the most commonly used devices to drive the optocoupler is the TL431 shunt-regulator, due to its simplicity, regulation performance, and low cost. This device requires a minimum bias current of 1 mA to maintain regulation accuracy. Together with the UCC28740 primary-side controller, careful biasing will ensure less than 30 mW of standby power loss at room temperature. Where a more stringent standby loss limit of less than 10 mW is required, the TLV431 device is recommended due to its minimum 80-µA bias capability. Facilitating these low standby-power targets is the approximate 23-µA range of the FB input for full to no-load voltage regulation. The control-law profile graph (see Figure 15) shows that for FB-input current greater than 22 µA, no further reduction in switching frequency is possible. Therefore, minimum power is converted at fSW(min). However, the typical minimum steady-state operating frequency tends to be in the range of several-hundred Hertz, and consequently the maximum steady-state FB current at no-load will be less than IFBMAX. Even so, prudent design practice dictates that IFBMAX should be used for conservative steady-state biasing calculations. At this current level, VFBMAX can be expected at the FB input. Referring to the Design Procedure Application Example in Figure 18, the main purpose of RFB4 is to speed up the turnoff time of the optocoupler in the case of a heavy load-step transient condition. The value of RFB4 is determined empirically due to the variable nature of the specific optocoupler chosen for the design, but tends to fall within the range of 10 kΩ to 100 kΩ. A tradeoff must be made between a lower value for faster transient response and a higher value for lower standby power. RFB4 also serves to set a minimum bias current for the optocoupler and to drain dark current. It is important to understand the distinction between steady-state no-load bias currents and voltages which affect standby power, and the varying extremes of these same currents and voltages which affect regulation during transient conditions. Design targets for minimum standby loss and maximum transient response often result in conflicting requirements for component values. Trade-offs, such as for RFB4 as discussed previously, must be made. During standby operation, the total auxiliary current (used in Equation 8) is the sum of IWAIT into the IC and the no-load optocoupler-output current ICENL. This optocoupler current is given by Equation 30. VFBMAX ICENL IFBMAX RFB4 (30) For fast response, the optocoupler-output transistor is biased to minimize the variation of VCE between full-load and no-load operation. Connecting the emitter directly to the FB input of the UCC28740 is possible, however, an unload-step response may unavoidably drive the optocoupler into saturation which will overload the FB input with full VDD applied. A series-resistor RFB3 is necessary to limit the current into FB and to avoid excess draining of CVDD during this type of transient situation. The value of RFB3 is chosen to limit the excess IFB and RFB4 current to an acceptable level when the optocoupler is saturated. Like RFB4, the RFB3 value is also chosen empirically during prototype evaluation to optimize performance based on the conditions present during that situation. A starting value may be estimated using Equation 31. VVDDNL 1 V RFB3 ICENL (31) Note that RFB3 is estimated based on the expected no-load VDD voltage, but full-load VDD voltage will be higher resulting in initially higher ICE current during the unload-step transient condition. Because RFB3 is interposed between VE and the FB input, the optocoupler transistor VCE varies considerably more as ICE varies and transient response time is reduced. Capacitor CFB3 across RFB3 helps to improve the transient response again. The value of CFB3 is estimated initially by equating the RFB3CFB3 time constant to 1 ms, and later is adjusted higher or lower for optimal performance during prototype evaluation. 24 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 The optocoupler transistor-output current ICE is proportional to the optocoupler diode input current by its current transfer ratio, CTR. Although many optocouplers are rated with nominal CTR between 50% and 600%, or are ranked into narrower ranges, the actual CTR obtained at the low currents used with the UCC28740 falls around 5% to 15%. At full-load regulation, when IFB is near zero, VFB is still approximately 0.4 V and this sets a minimum steady-state current for ICE through RFB4. After choosing an optocoupler, the designer must characterize its CTR over the range of low output currents expected in this application, because optocoupler data sheets rarely include such information. The actual CTR obtained is required to determine the diode input current range at the secondary-side shunt-regulator. Referring again to Figure 18, the shunt-regulator (typically a TL431) current must be at least 1 mA even when almost no optocoupler diode current flows. Since even a near-zero diode current establishes a forward voltage, ROPT is selected to provide the minimum 1-mA regulator bias current. The optocoupler input diode must be characterized by the designer to obtain the actual forward voltage versus forward current at the low currents expected. At the full-load condition of the converter, IFB is around 0.5 µA, ICE may be around (0.4 V / RFB4), and CTR at this level is about 10%, so the diode current typically falls in the range of 25 µA to 100 µA. Typical optodiode forward voltage at this level is about 0.97 V which is applied across ROPT. If ROPT is set equal to 1 kΩ, this provides 970 µA plus the diode current for IOPT. As output load decreases, the voltage across the shunt-regulator also decreases to increase the current through the optocoupler diode. This increases the diode forward voltage across ROPT. CTR at no-load (when ICE is higher) is generally a few percent higher than CTR at full-load (when ICE is lower). At steady-state no-load condition, the shunt-regulator current is maximized and can be estimated by Equation 30 and Equation 32. IOPTNL, plus the sum of the leakage currents of all the components on the output of the converter, constitute the total current required for use in Equation 7 to estimate secondary-side standby loss. ICENL VOPTNL IOPTNL CTRNL ROPT (32) The shunt-regulator voltage can decrease to a minimum, saturated level of about 2 V. To prevent excessive diode current, a series resistor, RTL, is added to limit IOPT to the maximum value necessary for regulation. Equation 33 provides an estimated initial value for RTL, which may be adjusted for optimal limiting later during the prototype evaluation process. VOUTNL VOPTNL 2 V RTL IOPTNL (33) The output-voltage sense-network resistors RFB1 and RFB2 are calculated in the usual manner based on the shunt-regulator reference voltage and input bias current. Having characterized the optocoupler at low currents and determined the initial values of RFB1, RFB2, RFB3, RFB4, CFB3, ROPT and RTL using the above procedure, the DC-bias states of the feedback network can be established for steady-state full-load and no-load conditions. Adjustments of these initial values may be necessary to accommodate variations of the UCC28740, optocoupler, and shunt-regulator parameters for optimal overall performance. The shunt-regulator compensation network, ZFB, is determined using well-established design techniques for control-loop stability. Typically, a type-II compensation network is used. The compensation design procedure is beyond the scope of this datasheet. 8.2.3 Application Curves The transient response shown in Figure 19 was taken with a 115 VAC, 60 Hz input voltage and a load transition from 0 A to full load. Channel 1 is the load current on a scale of 1 A per division, channel 4 is the otutput voltage on a scale of 1 V per division. The cursor shows the minimum acceptable voltage limit, 4.30 V, under transient conditions. Also note that the output waveform was taken with the probe on TP5 with the ground referenced to TP4 but not using the tip and barrel technique accounting for the high frequency noise seen on the waveform. The typical switching waveform can be seen in Figure 20. Channel 1 shows the VS pin at 2 V per division and channel 2 shows the MOSFET drain to source voltage at 100 V per division. The scan was taken at 1.8-A load, 115-VAC, 60-Hz input voltage. At this operating point, the switching frequency is dithering between 58.8 kHz and 52.6 kHz due to valley skipping. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 25 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com The UCC28740 controller employs a unique control mechanism to help with EMI compliance. As shown in Figure 21, the DRV pin, shown as channel 3, drives the gate of the MOSFET with a sequence of pulses in which there will be two longer pulses, two medium pulses, and two shorter pulses at any operating point starting with the amplitude modulation mode. The EMI dithering is not enabled at light load. Figure x shows the result of these varying pulse widths on the CS signal, shown on channel 4. The longer pulses result in a peak current threshold of 808 mV, the medium length pulses are shown measured at 780 mV, and the shorter pulses measure a threshold voltage of 752 mV. This dithering adds to the frequency jitter caused by valley skipping and results in a spread spectrum for better EMI compliance. 115 VAC, 60 Hz 0 A to 2 A CH 1 = Load Current, 1 A/DIV CH 4 = VOUT, cursor shows minimum limit CH 1 = VS IOUT = 1.8 A Figure 19. Transient Response CH 2 = VDS VIN = 115 VAC, 60 Hz Figure 20. Switching Waveform 0.95 115 V, 60 Hz 230 V, 50 Hz Efficiency 0.9 0.85 0.8 0.75 0.7 0 1 1.5 Load Current (A) 2 2.5 D005 Figure 22. Efficiency Figure 21. EMI Dithering 26 0.5 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 0.82 0.815 0.81 0.805 0.8 0.795 0.79 0.785 0.78 0.775 0.77 0.765 0.76 0.755 0.75 80 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 20 18 16 Input Power (mW) Efficiency www.ti.com 14 12 10 8 6 4 2 110 140 170 200 Input Voltage (V AC) 230 0 85 260 Figure 23. Average Efficiency 6 100 90 Switching Frequency (kHz) 5 Output Voltage (V) 4.5 4 3.5 3 2.5 2 85 VAC, 60 Hz 115 VAC, 60 Hz 230 VAC, 50 Hz 265 VAC, 50 Hz 1 0.5 145 175 205 Input Voltage (VAC) 235 265 D003 Figure 24. No Load Power Consumption 5.5 1.5 115 D004 120 VDC 163 VDC 325 VDC 375 VDC 80 70 60 50 40 30 20 10 0 0 0 0.5 1 1.5 Load Current (A) 2 2.5 0 0.3 0.6 0.9 1.2 Load Current (A) D002 Figure 25. VOUT vs. IOUT 1.5 1.8 2.1 D001 Figure 26. Control Law 60 200 Gain (dB) Phase (degrees) 100 0 0 -30 -60 10 Phase (q) Gain (dB) 30 -100 100 1000 Frequency (Hz) VIN = 115 VAC -200 10000 g6_b IOUT = 2 A Figure 27. Bode Plot Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 27 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 9 Power Supply Recommendations The UCC28740 is designed to be used with a Universal AC input, from 85 VAC to 265 VAC, at 47 Hz to 63 Hz. Other input line conditions can be used provided the HV pin can be set up to provide 500 µA to charge the VDD capacitor for start-up through the internal startup switch. Once the VDD reaches the 21-V UVLO turnon threshold, the VDD rail should be kept within the limits of the Bias Supply Input section of the Electrical Characteristics table. To avoid the possibility that the device might stop switching, VDD must not be allowed to fall below the UVLO VVDD(off) range. 10 Layout 10.1 Layout Guidelines In general, try to keep all high current loops as short as possible. Keep all high current/high frequency traces away from other traces in the design. If necessary, high frequency/high current traces should be perpendicular to signal traces, not parallel to them. Shielding signal traces with ground traces can help reduce noise pick up. Always consider appropriate clearances between the high-voltage connections and any low-voltage nets. 10.1.1 VDD Pin The VDD pin must be decoupled to GND with good quality, low ESR, low ESL ceramic bypass capacitors with short traces to the VDD and GND pins. The value of the required capacitance on VDD is determined as shown in the Application and Implementation section. 10.1.2 VS Pin The trace between the resistor divider and the VS pin should be as short as possible to reduce/eliminate possible EMI coupling. The lower resistor of the resistor divider network connected to the VS pin should be returned to GND with short traces. Avoid adding any external capacitance to the VS pin so that there is no delay of signal; added capacitance would interfere with the accurate sensing of the timing information used to achieve valley switching and also control the duty cycle of the transformer secondary current. 10.1.3 FB Pin The PCB tracks from the opto-coupler to the FB pin should have minimal loop area. If possible, it is recommended to provide screening for the FB trace with ground planes. A resistor to GND from the FB pin is recommended to speed up the turnoff time of the opto-coupler during a heavy load step transient. This resistor should be placed as close as possible to FB and GND with short traces, the value of this resistor, RFB4, is detailed in the Application and Implementation section. 10.1.4 GND Pin The GND pin is the power and signal ground connection for the controller. As with all PWM controllers, the effectiveness of the filter capacitors on the signal pins depends upon the integrity of the ground return. Place all decoupling and filter capacitors as close as possible to the device pins with short traces. The IC ground and power ground should meet at the bulk capacitor’s return. Try to ensure that high frequency/high current from the power stage does not go through the signal ground. 10.1.5 CS Pin A small filter capacitor may be placed on CS to GND, with short traces, to filter any ringing that may be present at light load conditions when driving MOSFETs with large gate capacitance. This capacitor may not be required in all designs; however, it is wise to put a place holder for it in your designs. The current sense resistor should be returned to the ground terminal of the input bulk capacitor to minimize the loop area containing the input capacitor, the transformer, the MOSFET, and the current sense resistor. 10.1.6 DRV Pin The track connected to DRV carries high dv/dt signals. Minimize noise pickup by routing the trace to this pin as far away as possible from tracks connected to the device signal inputs, FB and VS. There is no requirement for a Gate to Source resistor with this device. 28 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Layout Guidelines (continued) 10.1.7 HV Pin Sufficient PCB trace spacing must be given between the high-voltage connections and any low-voltage nets. The HV pin may be connected directly, or through series resistance, to the rectified high voltage input rail. 10.2 Layout Example CVDD 2 VS 3 FB 4 GND HV 8 DRV 6 CS 5 MOSFET VDD RFB4 RLC RCS CFB RFB RS2 RS1 1 CCS CCININ Figure 28. Layout Example Schematic Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 29 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support For design tools see the UCC28740 Design Calculator 11.1.1.1 Custom Design With WEBENCH® Tools Click here to create a custom design using the UCC28740 device with the WEBENCH® Power Designer. 1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements. 2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial. 3. Compare the generated design with other possible solutions from Texas Instruments. The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time pricing and component availability. In most cases, these actions are available: • Run electrical simulations to see important waveforms and circuit performance • Run thermal simulations to understand board thermal performance • Export customized schematic and layout into popular CAD formats • Print PDF reports for the design, and share the design with colleagues Get more information about WEBENCH tools at www.ti.com/WEBENCH. 11.1.2 Device Nomenclature 11.1.2.1 Capacitance Terms in Farads CBULK The total input capacitance of CB1 and CB2. CVDD The minimum required capacitance on the VDD pin. COUT The minimum output capacitance required. 11.1.2.2 Duty Cycle Terms DMAGCC The secondary diode conduction duty-cycle limit in CC mode, 0.425. DMAX MOSFET on-time duty-cycle. 11.1.2.3 Frequency Terms in Hertz fLINE The minimum input-line frequency. fMAX The target full-load maximum switching frequency of the converter. fMIN The steady-state minimum switching frequency of the converter. fSW(min) The minimum possible switching frequency (see Electrical Characteristics). 11.1.2.4 Current Terms in Amperes IOCC The converter output constant-current target. IPP(max) The maximum transformer primary peak current. ISTART The startup bias-supply current (see Electrical Characteristics). ITRAN The required positive load-step current. IVSL(run) The VS-pin run current (see Electrical Characteristics). 11.1.2.5 Current and Voltage Scaling Terms KAM 30 The maximum-to-minimum peak primary current ratio (see Electrical Characteristics). Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Device Support (continued) KLC The current-scaling constant for line compensation(see Electrical Characteristics). 11.1.2.6 Transformer Terms LP The transformer primary inductance. NAS The transformer auxiliary-to-secondary turns-ratio. NPA The transformer primary-to-auxiliary turns-ratio. NPS The transformer primary-to-secondary turns-ratio. 11.1.2.7 Power Terms in Watts PIN The converter maximum input power. POUT The full-load output power of the converter. PSB The total standby power. 11.1.2.8 Resistance Terms in Ohms RCS The primary peak-current programming resistance. RESR The total ESR of the output capacitor(s). RPL The preload resistance on the output of the converter. RS1 The high-side VS-pin sense resistance. RS2 The low-side VS-pin sense resistance. 11.1.2.9 Timing Terms in Seconds tD The total current-sense delay including MOSFET-turnoff delay; add 50 ns to MOSFET delay. tDM(min) The minimum secondary rectifier conduction time. tON(min) The minimum MOSFET on time. tR The resonant frequency during the DCM dead time. tRESP The maximum response time of the voltage-regulation control-loop to the maximum required loadstep. 11.1.2.10 Voltage Terms in Volts VBLK The highest bulk-capacitor voltage for standby power measurement. VBULK(min) The minimum valley voltage on CB1 and CB2 at full power. VCCR The constant-current regulation factor (see Electrical Characteristics). VCST(max) The CS-pin maximum current-sense threshold (see Electrical Characteristics). VCST(min) The CS-pin minimum current-sense threshold (see Electrical Characteristics). VVDD(off) The UVLO turnoff voltage (see Electrical Characteristics). VVDD(on) The UVLO turnon voltage (see Electrical Characteristics). VDSPK The MOSFET drain-to-source peak voltage at high line. VF The secondary-rectifier forward-voltage drop at near-zero current. VFA The auxiliary-rectifier forward-voltage drop. VLK The estimated leakage-inductance energy reset voltage. VOΔ The output voltage drop allowed during the load-step transient in CV mode. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 31 UCC28740 SLUSBF3D – JULY 2013 – REVISED MARCH 2018 www.ti.com Device Support (continued) VOCBC The target cable-compensation voltage added to VOCV (provided by an external adjustment circuit applied to the shunt-regulator). Set equal to 0 V if not used. VOCC The converter lowest output voltage target while in constant-current regulation. VOCV The regulated output voltage of the converter. VOV The maximum allowable peak output voltage. VOVP The overvoltage-detection level at the VS input (see Electrical Characteristics). VREVA The peak reverse voltage on the auxiliary rectifier. VREVS The peak reverse voltage on the secondary rectifier. VRIPPLE The output peak-to-peak ripple voltage at full-load. 11.1.2.11 AC Voltage Terms in VRMS VIN(max) The maximum input voltage to the converter. VIN(min) The minimum input voltage to the converter. VIN(run) The converter startup (run) input voltage. 11.1.2.12 Efficiency Terms η The converter overall efficiency at full-power output. ηSB The estimated efficiency of the converter at no-load condition, excluding startup resistance or bias losses. For a 5-V USB-charger application, 60% to 65% is a good initial estimate. ηXFMR The transformer primary-to-secondary power-transfer efficiency. 11.2 Documentation Support 11.2.1 Related Documentation For related documentation see the following: • 12-W Ultra-Wide Input Range Power Supply • 36-W, Universal Input, >90% Efficiency, Dual Output, Auxiliary Supply Reference Design for Server PSU • 60-W, 24-V, High-Efficiency Industrial Power Supply With Precision Voltage, Current, and Power Limit • Choosing Standard Recovery Diode or Ultra-Fast Diode in Snubber • Control Challenges for Low Power AC/DC Converters • Integrated 30-W Sensorless BLDC Motor Drive Retrofit Reference Design With 90- to 265-V AC Input • Using the UCC28740EVM-525 10 W Constant- Voltage, Constant-Current Charger Adaptor Module • 100-W, 24-V, High Efficiency, High PF, Industrial Power Supply With Precision Current and Power Limit 11.3 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 11.4 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. 32 Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 UCC28740 www.ti.com SLUSBF3D – JULY 2013 – REVISED MARCH 2018 Community Resources (continued) Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.5 Trademarks E2E is a trademark of Texas Instruments. WEBENCH is a registered trademark of Texas Instruments. All other trademarks are the property of their respective owners. 11.6 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 11.7 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Documentation Feedback Copyright © 2013–2018, Texas Instruments Incorporated Product Folder Links: UCC28740 33 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) UCC28740D ACTIVE SOIC D 7 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 U28740 UCC28740DR ACTIVE SOIC D 7 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 U28740 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
