ECS-100A-024

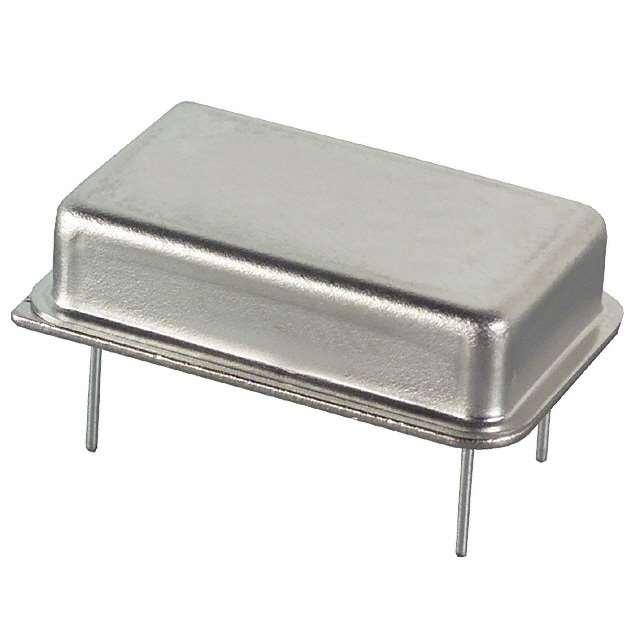

ECS-100 SERIES CLOCK OSCILLATOR The ECS-100 clock oscillator is fully compatible with TTL circuitry. The metal package with pin #7 case ground acts as shielding to minimize radiation. FEATURES • 10 TTL output load • Low cost • Wide frequency range • Industry standard footprint • Resistance weld package • 3.3V operation (optional) PART NUMBERING GUIDE PART NUMBER * ECS-100A ECS-100B ECS-100C FREQUENCY STABILITY ±100 PPM ±50 PPM ±25 PPM * Complete part number to include frequency. i.e. ECS-100A-100 (100 = 10.000MHz) OPERATING CONDITIONS/ELECTRICAL CHARACTERISTICS PARAMETERS FREQUENCY RANGE (f o) OPERATING TEMP. RANGE (T OPR) STORAGE TEMP. RANGE (T STG) FREQUENCY STABILITY FREQUENCY RANGE 1.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 7.999 8.000 ~ 23.999 24.000 ~ 69.999 70.000 ~ 150.000 1.000 ~ 7.999 8.000 ~ 150.000 1.000 ~ 24.999 25.000 ~ 69.999 70.000 ~ 150.000 1.000 ~ 24.999 25.000 ~ 69.999 70.000 ~ 150.000 1.000 ~ 24.999 25.000 ~ 150.000 70.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 150.000 1.000 ~ 3.499 3.500 ~ 3.999 4.000 ~ 5.999 6.000 ~ 19.999 20.000 ~ 150.000 1.000 ~ 150.000 INPUT CURRENT (I DD) OUTPUT SYMMETRY RISE TIME (T R) FALL TIME (T F) OUTPUT VOLTAGE OUTPUT CURRENT (V OL) (V OL) (V OH) (I OL) (I OH) OUTPUT LOAD START-UP TIME (T S) SUPPLY VOLTAGE CONDITIONS All conditions* max. load max. load max. load max. load 1.4V level 1.4V level 0.4V ~ 2.4V 0.5V ~ 2.4V 0.5V ~ 2.4V 2.4V ~ 0.4V 2.4V ~ 0.5V 2.4V ~ 0.5V I OL = 20 mA I OL = 20 mA I OH = 1 mA V OL = 0.5 V V OH = 2.4 V MINIMUM 1.000 0 -55 -100 TYPICAL 45 40 50 ±3 50 ±3 MAXIMUM 150.000 +70 +125 +100 15 30 70 80 55 60 10 5 4 10 5 4 0.4 0.5 2.4 20 1.0 10 20 35 30 20 15 – +5.0 ±0.25 UNITS MHz ˚C ˚C PPM mA mA mA mA % % nS nS nS nS nS nS V V V mA mA TTL mS mS mS mS mS V DC * Inclusive of 25˚C tolerance, operating temperature range, input voltage change, load change, aging, shock and vibration. PACKAGE DIMENSIONS (mm) TF 20.86 max TR 1 7 14 8 13.2 max Ø0.45 7.62 ± 0.2 0.8 ±0.2 6.35 ±1.0 5.08 1 LEVEL 1.4V DC 0.4V DC (0.5V DC) 0 LEVEL 15.24 Figure 1) ECS-100 Series Side and Bottom views 2.4V DC 0 VDC 40% min 60% max PIN CONNECTIONS #1 NC #7 CASE GND #8 OUTPUT #14 +5 V DC Figure 3) Pin Connections Figure 2) Output Wave Form ECS, INC. INTERNATIONAL 1105 S. RIDGEVIEW, OLATHE, KS 66062 • 913-782-7787 • 800-237-1041 • FAX 913-782-6991 • WWW.ECSXTAL.COM OSCILLATORS 32 OSCILLATORS
