ECS-3225S
SMD CRYSTAL OSCILLATOR

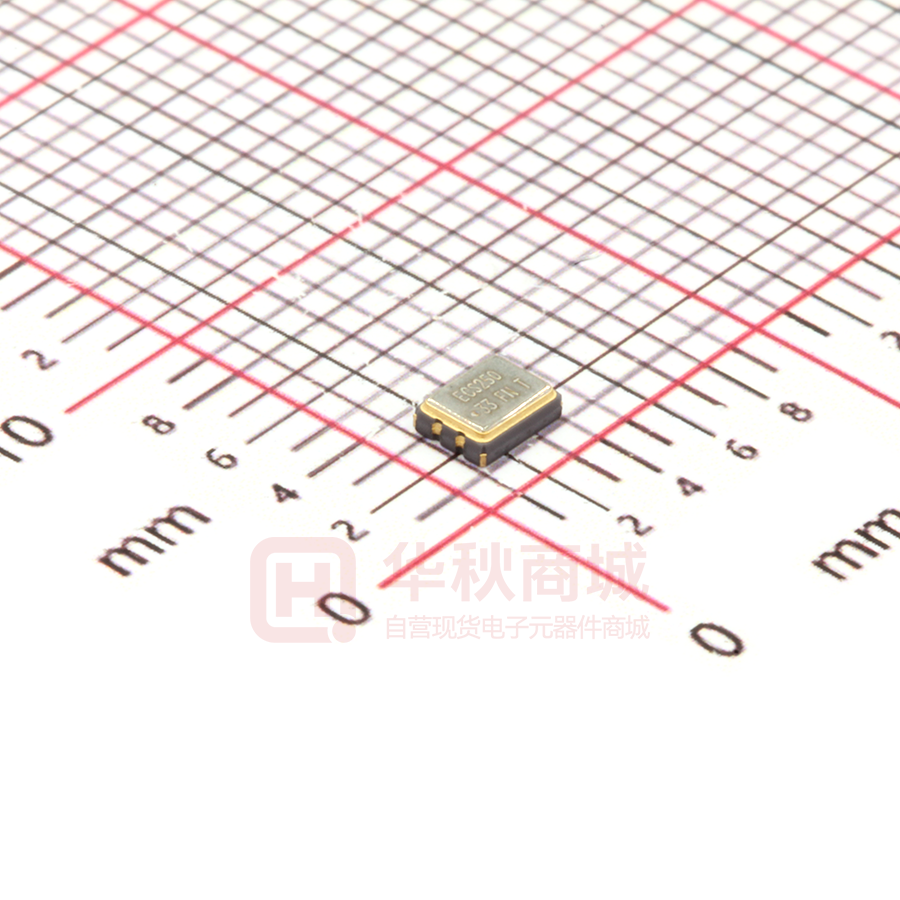

The miniature ECS-3225S is a miniature SMD HCMOS Tight Stability
Crystal Oscillator. The 3.2 x 2.5 x 0.9 mm ceramic package is ideal
for wireless and IOT application where stability is critical.
Request a Sample
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
ECS-3225S SMD XO
CONDITIONS
ECS-3225S
MIN
Frequency Range
Low Profile
3.2 x 2.5 mm Footprint
Extended Temp Range
RoHS Compliant
DIMENSIONS (mm)
MAX
2.500
55.000
MHz
± 15
ppm
FN (-40 ~ +85°C)
± 10
ppm
Vdd ±10%
+1.8, +2.5, +3.0, +3.3
V DC
7
mA
10
µA
HCMOS
15
pF
VOL:10%Vdd max./VOH:90%Vdd min.V DC
10%Vdd – 90%Vdd
5
ns
10
ms
@ ½ Vdd
45/55
%
@ 10 KHz offset
-145
dBc/Hz
-40
+85
°C
-55
+125
°C
EN (-40 ~ +85°C)
Frequency Stability *
•
•
•
•
TYP
UNITS
Power Supply
Current Consumption
Standby Current
Output
Output voltage Level
Rise & Fall time
Startup Time
Duty Cycle
Phase Noise
Operating Temp
Storage Temp
* Frequency Stability includes initial tolerance, temperature, supply voltage & load change reflow frequency shift,
aging (1 year @+25°C).
PAD CONNECTIONS
1
Tri-state
2
No Connect
3
Ground
4
Output
5
No Connect
6
Vdd
Tri State Function
Pin 1
Output
High or NC
Active
Low
High Impedance
Figure 1) Top, Side, and Bottom views
Figure 2) Suggested Land Pattern
PART NUMBERING GUIDE: Example ECS-3225S33-250-FN-TR
ECS -
SERIES
3225S
3.2 x 2.5 mm
Voltage
18 = +1.8V
25 = +2.5V
30 = +3.0V
33 = +3.3V
FREQUENCY
ABBREVIATION
250 = 25.000 MHz
See Developed
Frequencies Pg.2
STABILITY
TEMP RANGE
PACKAGING
E = ±15 ppm
F = ± 10 ppm
N = -40 ~ +85°C
TR = Tape
& Reel
1K/Reel
Rev.2016
15351 West 109th Street | Lenexa, KS 66219 | Phone: 913.782.7787 | Fax: 913.782.6991 | www.ecsxtal.com
ECS-3225S
SMD CRYSTAL OSCILLATOR
FREQUENCY ABBREVIATIONS
FREQUENCY MHz
5.000
10.000
12.000
16.000
20.000
24.000
25.000
26.000
27.000
32.000
40.000
44.000
50.000
CODE
050
100
120
160
200
240
250
260
270
320
400
440
500
SOLDER PROFILE
Peak solder Temp +260°C Max 10 sec Max.
2 Cycles Max.
MSL 1, Lead Finish Au
POCKET TAPE DIMENSIONS (mm)
15351 West 109th Street | Lenexa, KS 66219 | Phone: 913.782.7787 | Fax: 913.782.6991 | www.ecsxtal.com
