ECS-80-12-30Q-DS-TR

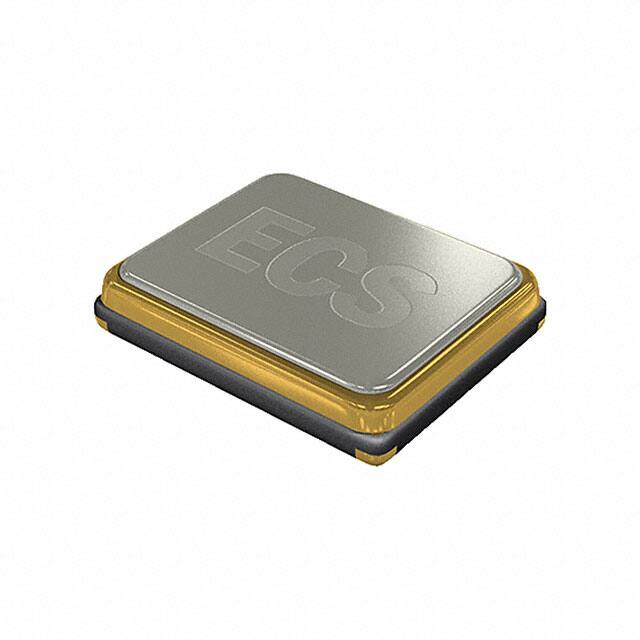

ECX-53Q SMD CRYSTAL The ECX-53Q is a miniature SMD Crystal with a 3.2 x 5 x 1.1 mm ceramic package. AEC-Q200 Qualified. Request a Sample OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS ECX-53Q SMD CRYSTAL PARAMETERS CONDITIONS ECX-53Q MIN Frequency 8.000 MHz @ +25°C ± 30 ppm -40 ~ +125°C (DS Option) ± 100 ppm Shunt Capacitance Co 5 pF Load Capacitance Specify in P/N Series pF 300 μW -40 +150 °C -55 +150 °C ±5 ppm Fundamental Frequency Tolerance* Frequency Stability* Compact and low profile Extended Temp. Range Option RoHS Compliant AEC-Q200 Qualified Drive Level Operating Temperature* Storage Temperature DIMENSIONS (mm) MAX 54.000 Mode of Oscillation • • • • TYP UNITS Aging (First Year) DL Topr (Y Option) Tstg 6 20 @ +25°C ±3°C Frequency (MHz) 8.000 ~ 11.999 12.000 ~ 13.999 14.000 ~ 19.999 20.000 ~ 54.000 ESR Ω Max. 100 60 50 40 Pad Connections 1 In/Out 2 Out/In Figure 1) Top, Side, and Bottom Crystal is symmetrical, pad 1 & 2 are interchangeable.. Figure 2) Suggested land PART NUMBERING GUIDE: Example ECS-200-8-30Q-VY-TRpattern ECS - FREQUENCY ABBREVIATION ECS 200 = 20.000 MHz See P/N Guide LOAD CAPACITANCE 8 = 8 pF S = Series * Specify available options in P/N. † Contact ECS for availability over extended temp range. PACKAGE AVAILABLE OPTIONS Tolerance 30Q = ECX-53Q Blank = ±30 ppm A = ± 25 ppm J = ± 20 ppm R = ± 15 ppm C = ± 10 ppm Stability V= ± 150 ppm D= ± 100 ppm E = ± 50 ppm G = ± 30 ppm H = ± 25 ppm T = ± 20 ppm † W = ± 15 ppm † K = ± 10 ppm † PACKAGING Temp Range L = -10 ~ +70°C M = -20 ~ +70°C N = -40 ~ +85°C P = -40 ~ +105°C S = -40 ~ +125°C U = -55 ~ +125°C Y = -40 ~ +150°C TR = Tape & Reel 1K/Reel Rev.2019 15351 West 109th Street | Lenexa, KS 66219 | Phone: 913.782.7787 | Fax: 913.782.6991 | www.ecsxtal.com ECX-53Q SMD CRYSTAL POCKET TAPE DIMENSIONS (mm) SOLDER PROFILE Peak solder Temp +260°C Max 10 sec Max. 2 Cycles Max. MSL 1, Lead Finish Au Figure 1) Suggested Reflow Profile 15351 West 109th Street | Lenexa, KS 66219 | Phone: 913.782.7787 | Fax: 913.782.6991 | www.ecsxtal.com
