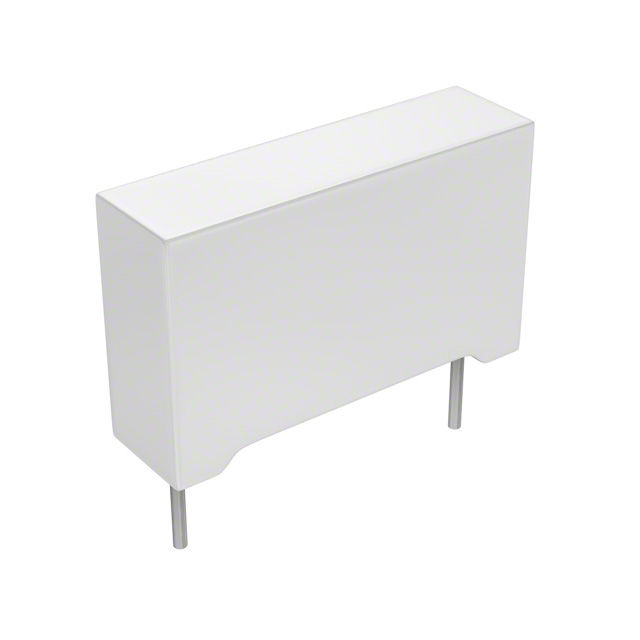

Type 171 Radial Leaded Metallized Polypropylene
Radial Box Metallized Polypropylene Capacitors
Type 171 radial leaded, box, metallized polypropylene capacitors are available in
five pitch sizes and have a flame retardant case and epoxy encapsulant that meets
UL94V-0. The Type 171 is an excellent choice for applications requiring low dielectric losses, high insulation resistance in an AC or DC environment. The polypropylene direlectric gives this capacitor excellent pulse rise time (dv/dt) performance.
Highlights
•
•
•
•
High dv/dt
Low leakage
Radial leaded (7.5, 10, 15, 22.5, 27.5 mm pitch)
Flame retardant case and encapsulant meets UL94V-0
•
Non-inductively wound
Specifications
Capacitance Range
0.0022 to 3.3 µF
Capacitance Tolerance
±5%, ±10%, ±20%
Rated Voltage
160 to 630 Vdc (90 to 250 Vac, 60 Hz)
Operating Temperature Range
–55 ºC to +105 ºC (derate linearly to 50% rated voltage from 85 ºC to 105 ºC)
Dielectric Withstand Voltage
1.6 x rated voltage for 2 s @ +25 ºC ±5 ºC
Dissipation Factor @ 120 Hz, +25 ºC
tgδ x 10–4 at +25 ºC ±5 ºC
kHz
C ≤0.1 µF 0.1 µF 1 µF
≤6
—
—
Pitch (mm)
7.5
10
15
22.5
27.5
L (nH) ≈
8
9
10
18
18
2000 hrs @ 85 ºC 1.25 x Vn
95% RH @ +40 ºC for 56 days
260 ºC ±5 ºC for 10 s ±1 s
ΔC/C ≤ ±0.5% after 2 years
Maximum Pulse Rise Time dv/dt (V/µ)
Lead Spacing (Pitch)
Vn
7.5
10
15
22.5
27.5
160
250
400
630
5.5
15
35
55
4
11
20
30
2
7
10
15
1.5
4
5.5
8
1
3
5
7
If the working voltage (V) is less than the nominal voltage (Vn), the capacitor can work
at higher dv/dt . In this case, the maximum value allowed is obtained by multiplying the above value (See table dv/dt) with the ratio Vn/V
Regulatory Information
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 171 Radial Leaded Metallized Polypropylene
Outline Drawing
T
L
Max
Max
H
Max
.217 ±.039
(5.5 ±1.0 mm)
S
±0.016
(±0.4 mm)
Ød
±0.003
(±0.076 mm)
Ratings
Cap
(µF)
Inches (mm)
Catolog
Part Number
L Max
T Max
H Max
S (Pitch)
Ød
IRMS (Amps)
ESR (mΩ)
20 kHz to
100 kHz 25 ºC 45 ºC 85 ºC
160 Vdc / 90 Vac 60 Hz
0.033
171333*160B-F
0.413 (10.5)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.024 (0.6)
0.047
171473*160B-F
0.413 (10.5)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.024 (0.6)
0.047
171473*160C-F
0.512 (13.0)
0.157 (4.0)
0.374 (9.5)
0.394 (10)
0.024 (0.6)
0.068
171683*160C7-F
0.413 (10.5)
0.197 (5.0)
0.433 (11.0)
0.295 (7.5)
0.024 (0.6)
0.068
171683*160D-F
0.512 (13.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10.0)
0.024 (0.6)
0.1
171104*160C7-F
0.413 (10.5)
0.197 (5.0)
0.433 (11.0)
0.295 (7.5)
0.024 (0.6)
0.1
171104*160E-F
0.512 (13.0)
0.236 (6.0)
0.472 (12.0)
0.394 (10.0)
0.024 (0.6)
0.15
171154*160D7-F
0.413 (10.5)
0.236 (6.0)
0.472 (12.0)
0.295 (7.5)
0.024 (0.6)
0.15
171154*160E-F
0.512 (13.0)
0.236 (6.0)
0.472 (12.0)
0.394 (10)
0.024 (0.6)
0.22
171224*160F-F
0.709 (18.0)
0.197 (5.0)
0.433 (11.0)
0.591 (15.0)
0.031 (0.8)
0.33
171334*160G-F
0.709 (18.0)
0.236 (6.0)
0.472 (12.0)
0.591 (15.0)
0.031 (0.8)
0.47
171474*160H-F
0.709 (18.0)
0.295 (7.5)
0.531 (13.5)
0.591 (15.0)
0.031 (0.8)
37
3.7
3.1
1.4
0.68
171684*160L -F
1.043 (26.5)
0.236 (6.0)
0.591 (15.0)
0.886 (22.5)
0.031 (0.8)
33
4.1
3.5
1.6
1.0
171105*160N-F
1.043 (26.5)
0.335 (8.5)
0.669 (17.0)
0.886 (22.5)
0.031 (0.8)
26
5.5
4.7
2.6
1.5
171155*160O-F
1.043 (26.5)
0.394 (10.0)
0.748 (19.0)
0.886 (22.5)
0.031 (0.8)
20
6.1
5.1
3.1
2.2
171225*160P-F
1.26 (32.0)
0.433 (11.0)
0.787 (20.0)
1.083 (27.5)
0.031 (0.8)
18
6.3
5.7
3.3
3.3
171335*160Q-F
1.26 (32.0)
0.512 (13.0)
0.886 (22.5)
1.083 (27.5)
0.031 (0.8)
16
7.4
6.4
3.6
Not applicable. These
capacitance values are not
customarily used in switchedmode power supplies
250 Vdc / 90 Vac 60 Hz
0.015
171153*250B-F
0.413 (10.5)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.024 (0.6)
0.022
171223*250B-F
0.413 (10.5)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.024 (0.6)
0.022
171223*250C-F
0.512 (13.0)
0.157 (4.0)
0.374 (9.5)
0.394 (10)
0.024 (0.6)
0.033
171333*250C-F
0.512 (13.0)
0.157 (4.0)
0.374 (9.5)
0.394 (10)
0.024 (0.6)
0.047
171473*250D-F
0.512 (13.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10)
0.024 (0.6)
0.068
171683*250E-F
0.512 (13.0)
0.236 (6.0)
0.472 (12.0)
0.394 (10)
0.024 (0.6)
Not applicable. These
capacitance values are not
customarily used in switchedmode power supplies
* indicates capacitance tolereance, J = ±5%, K = ±10%, M = ±20%
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 171 Radial Leaded Metallized Polypropylene
Ratings
Cap
(µF)
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
Catolog
Part Number
171104*250F-F
171154*250G-F
171224*250H-F
171334*250L-F
171474*250M-F
171684*250Q-F
171105*250P-F
171155*250Q-F
Inches (mm)
L Max
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
1.043 (26.5)
1.043 (26.5)
1.26 (32.0)
1.26 (32.0)
1.26 (32.0)
0.0068
0.010
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
171682*400B-F
171103*400B-F
171103*400C-F
171153*400D-F
171223*400D-F
171333*400E-F
171473*400F-F
171683*400G-F
171104*400H-F
171154*400I-F
171224*400N-F
171334*400O-F
171474*400P-F
171684*400Q-F
0.413 (10.5)
0.413 (10.5)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
1.043 (26.5)
1.043 (26.5)
1.26 (32.0)
1.26 (32.0)
0.0022
0.0022
0.0033
0.0033
0.0047
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
171222*630B-F
171222*630C-F
171332*630B-F
171332*630C-F
171472*630B-F
171472*630C-F
171682*630D-F
171103*630D-F
171153*630E-F
171223*630F-F
171333*630G-F
171473*630H-F
171683*630I-F
171104*630N-F
171154*630O-F
171224*630P-F
171334*630Q-F
0.413 (10.5)
0.512 (13.0)
0.413 (10.5)
0.512 (13.0)
0.413 (10.5)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.512 (13.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
0.709 (18.0)
1.043 (26.5)
1.043 (26.5)
1.26 (32.0)
1.26 (32.0)
T Max
H Max
S (Pitch)
250 Vdc / 90 Vac 60 Hz
0.197 (5.0)
0.433 (11.0)
0.591 (15.0)
0.236 (6.0)
0.472 (12.0)
0.591 (15.0)
0.295 (7.5)
0.531 (13.5)
0.591 (15.0)
0.236 (6.0)
0.591 (15.0)
0.886 (22.5)
0.276 (7.0)
0.650 (16.5)
0.886 (22.5)
0.512 (13.0) 0.886 (22.5)
1.083 (27.5)
0.433 (11.0) 0.787 (20.0)
1.083 (27.5)
0.512 (13.0) 0.886 (22.5)
1.083 (27.5)
400 Vdc / 220 Vac 60 Hz
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.157 (4.0)
0.374 (9.5)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10.0)
0.236 (6.0)
0.472 (12.0)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.591 (15.0)
0.236 (6.0)
0.472 (12.0)
0.591 (15.0)
0.295 (7.5)
0.531 (13.5)
0.591 (15.0)
0.335 (8.5)
0.571 (14.5)
0.591 (15.0)
0.335 (8.5)
0.669 (17.0)
0.886 (22.5)
0.394 (10.0) 0.748 (19.0)
0.886 (22.5)
0.433 (11.0) 0.787 (20.0)
1.083 (27.5)
0.512 (13.0) 0.886 (22.5)
1.083 (27.5)
630 Vdc / 250 Vac 60 Hz
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.157 (4.0)
0.374 (9.5)
0.394 (10.0)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.157 (4.0)
0.374 (9.5)
0.394 (10.0)
0.157 (4.0)
0.374 (9.5)
0.295 (7.5)
0.157 (4.0)
0.374 (9.5)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.394 (10.0)
0.236 (6.0)
0.472 (12.0)
0.394 (10.0)
0.197 (5.0)
0.433 (11.0)
0.591 (15.0)
0.236 (6.0)
0.472 (12.0)
0.591 (15.0)
0.295 (7.5)
0.531 (13.5)
0.591 (15.0)
0.335 (8.5)
0.571 (14.5)
0.591 (15.0)
0.335 (8.5)
0.669 (17.0)
0.886 (22.5)
0.394 (10.0) 0.748 (19.0)
0.886 (22.5)
0.433 (11.0) 0.787 (20.0)
1.083 (27.5)
0.512 (13.0) 0.886 (22.5)
1.083 (27.5)
Ød
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
ESR (mΩ)
IRMS (Amps)
20 kHz to
100 kHz 25 ºC 45 ºC 85 ºC
Not applicable
35
32
28
26
3.8
4
4.4
5.1
3.6
3.8
4.4
4.9
1.7
1.9
3.2
3.5
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6) Not applicable.
These
0.024 (0.6)
capacitance values are not
0.031 (0.8) customarily used in switchedmode power supplies
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
32
5.7
5
2.2
0.031 (0.8)
30
5.7
5.5
2.4
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
0.024 (0.6)
These
0.024 (0.6) Not applicable.
capacitance values are not
0.024 (0.6)
customarily used in switched0.031 (0.8)
mode power supplies
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
0.031 (0.8)
* indicates capacitance tolereance, J = ±5%, K = ±10%, M = ±20%
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 171 Radial Leaded Metallized Polypropylene
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
