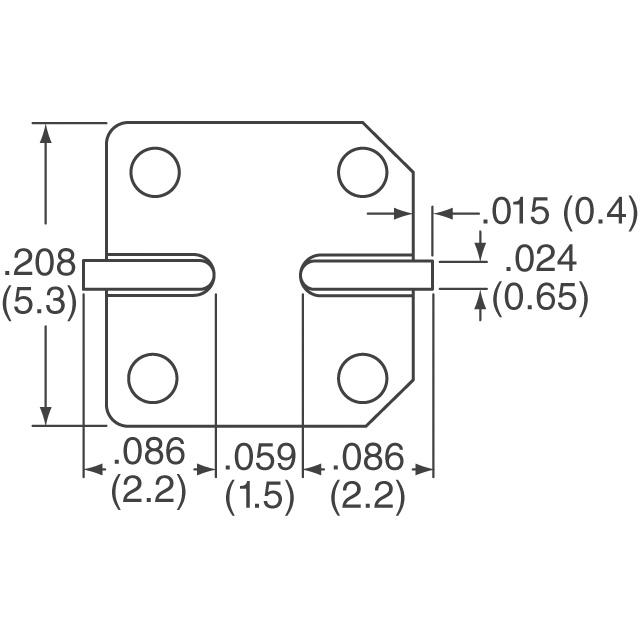

AVRF476M16C12T-F

Type AVRF –55 °C to 105 °C SMT Aluminum Electrolytic Capacitors - Lowest E.S.R., 105 °C Low Impedance and Long-Life for Filtering, Bypassing and Power Supply Decoupling Type AVRF Capacitors are the best and by a wide margin. With 40% to 60% lower impedance, 30% to 50% smaller case size and more than twice the life compared to low-ESR type AFC, the Type AVRF also excels at cold performance down to –55 °C. In addition, this terrific low- impedance performance, approaching low-ESR tantalum capacitors, is at a significant cost savings compared to tantalum. The vertical cylindrical cases facilitate automatic mounting and reflow soldering into the same footprint of like-rated tantalum capacitors except without the need for voltage derating. Highlights • +105 °C, Up to 5000 Hour Load Life • Ultra-low Impedance • Voltage Range: 6.3 Vdc to 35 Vdc Specifications Operating Temperature: Rated Voltage: Capacitance: Capacitance Tolerance: Leakage Current: Low Temperature Characteristics @ 120 Hz: Complies with the EU Directive 2002/95/EC requirement restricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE). –55 °C to +105 °C 6.3, 10, 16, 25, 35 Vdc 4.7 µF to 1500 µF ±20% @ 120 Hz and +20 °C 0.01 CV or 3 µA @ +20 °C, after two minutes (whichever is greater) Rated Voltage (Vdc) Impedance Z(-40ºC)/Z(+20ºC) Ratio Z(-55ºC)/Z(+20ºC) Z(-25ºC)/Z(+20ºC) 6.3 2 3 4 10 2 3 4 16 2 3 4 25 2 3 3 35 2 3 3 Dissipation Factor: 6.3V 0.26 10 V 0.19 16 V 0.16 25 V 0.14 35 V 0.12 Life Test: 2000 h @ 105 °C, 4.0 — 6.3 mm dia. Shelf Test: 5000 h @ 105 °C, 8.0 — 10.0 mm dia. ∆ Capacitance ±30% (10 mm Dia.: ±35% DF: ≤ 200% of limit (10 mm Dia.: ≤300%) DCL: ≤ 100% of limit 1000 h @ 105 °C ∆ Capacitance ±30% (10 mm Dia.: ±35%) DF: ≤ 200% of limit (10 mm Dia.: ≤300%) DCL: ≤ 100% of limit Part Numbering System AVRF Type AVRF 106 Capacitance 475 = 4.7 µF 106 = 10.0 µF 107 = 100.0 µF 108 = 1000.0 µF M 16 B 12T –F Capacitance Voltage Code Tolerance 06 = 6.3 Vdc 25 = 25 Vdc M = ±20% 10 = 10 Vdc 16 = 16 Vdc 35 = 35 Vdc Case Packaging Code RoHS Code 12 = Carrier tape Compliant Width (mm) T = Tape & Reel CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com Type AVRF –55 °C to 105 °C SMT Aluminum Electrolytic Capacitors - Lowest E.S.R., 105 °C Outline Drawing & Marking (4.0 - 6.3 mm Dia.) (8.0 - 10.0 mm Dia.) Case Dimensions Case Code B C D F G D ± .05 L B, C A (ref) 1.8 2.2 2.6 3.4 3.5 W E (ref) 1.0 1.5 1.8 3.1 4.6 K (mm) 4.0 5.0 6.3 8.0 10.0 (mm) 5.4 ± 0.2 5.4 ± 0.3 5.4 ± 0.2 10.2 ± 0.5 10.2 ± 0.5 (mm) 4.3 5.3 6.6 8.3 10.3 (mm) 0.65 ±0.1 0.65 ±0.1 0.65 ±0.1 0.90 ±0.2 0.90 ±0.2 (mm) 0.35 +0.15/–0.20 0.35 +0.15/–0.20 0.35 +0.15/–0.20 0.70 ±0.20 0.70 ±0.20 Ratings Max. Ripple Current @ 100kHz/105ºC (mA) 70 70 100 160 600 600 850 70 70 160 600 600 850 Cap. (µF) 22 47 100 220 470 1000 1500 22 33 150 330 470 1000 Catalog Part Number Max. DCL 2 min. (µA) 3.0 3.0 6.3 13.9 29.6 63.0 94.5 3.0 3.3 15.0 33.0 47.0 100.0 Max. DF @ 120Hz/20ºC (%) 0.26 0.26 0.26 0.26 0.26 0.26 0.26 0.19 0.19 0.19 0.19 0.19 0.19 AVRF226M06B12T-F AVRF476M06B12T-F AVRF107M06C12T-F AVRF227M06D16T-F AVRF477M06F24T-F AVRF108M06F24T-F AVRF158M06G24T-F AVRF226M10B12T-F AVRF336M10B12T-F AVRF157M10D16T-F AVRF337M10F24T-F AVRF477M10F24T-F AVRF108M10G24T-F Max. E.S.R. Max. Impedance @ 100kHz/20ºC @ 100kHz/20ºC (Ω) (Ω) 6.3 Vdc 1.65 1.65 1.65 1.65 0.90 0.90 0.50 0.50 0.16 0.16 0.16 0.16 0.08 0.08 10 Vdc 1.65 1.65 1.65 1.65 0.50 0.50 0.16 0.16 0.16 0.16 0.08 0.08 Case Code Size DxL (mm) 4x5.4 4x5.4 5x5.4 6.3x5.4 8x10.2 8x10.2 10x10.2 4x5.4 4x5.4 6.3x5.4 8x10.2 8x10.2 10x10.2 Quantity /Reel (Ea) 2000 2000 1000 1000 500 500 500 2000 2000 1000 500 500 500 B B C D F F G B B D F F G CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com Type AVRF –55 °C to 105 °C SMT Aluminum Electrolytic Capacitors - Lowest E.S.R., 105 °C Catalog Part Number Max. DCL 2 min. (µA) 3.0 3.5 7.5 10.9 52.8 75.2 3.0 5.5 8.3 11.8 17.0 37.5 55.0 82.5 117.5 3.0 3.5 7.7 11.6 16.5 35.0 52.5 77.0 115.5 Max. DF @ 120Hz/20ºC (%) 0.16 0.16 0.16 0.16 0.16 0.16 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 Max. E.S.R. @ 100kHz/20ºC (Ω) 16 Vdc 1.65 1.65 0.90 0.50 0.16 0.16 25 Vdc 1.65 0.90 0.50 0.50 0.50 0.16 0.16 0.16 0.08 35 Vdc 1.65 0.90 0.50 0.50 0.16 0.16 0.16 0.16 0.08 Max. Impedance @ 100kHz/20ºC (Ω) 1.65 1.65 0.90 0.50 0.16 0.16 1.65 0.90 0.50 0.50 0.50 0.16 0.16 0.16 0.08 1.65 0.90 0.50 0.50 0.16 0.16 0.16 0.16 0.08 Max. Ripple Current @ 100kHz/105ºC (mA) 70 70 100 160 600 600 70 100 160 160 160 600 600 600 850 70 100 160 160 600 600 600 600 850 Case Code Size DxL (mm) 4x5.4 4x5.4 5x5.4 6.3x5.4 8x10.2 8x10.2 4x5.4 5x5.4 6.3x5.4 6.3x5.4 6.3x5.4 8x10.2 8x10.2 8x10.2 10x10.2 4x5.4 5x5.4 6.3x5.4 6.3x5.4 8x10.2 8x10.2 8x10.2 8x10.2 10x10.2 Quantity /Reel (Ea) 2000 2000 1000 1000 500 500 2000 1000 1000 1000 1000 500 500 500 500 2000 1000 1000 1000 500 500 500 500 500 Cap. (µF) 10 22 47 68 330 470 10 22 33 47 68 150 220 330 470 4.7 10 22 33 47 100 150 220 330 AVRF106M16B12T-F AVRF226M16B12T-F AVRF476M16C12T-F AVRF686M16D16T-F AVRF337M16F24T-F AVRF477M16F24T-F AVRF106M25B12T-F AVRF226M25C12T-F AVRF336M25D16T-F AVRF476M25D16T-F AVRF686M25D16T-F AVRF157M25F24T-F AVRF227M25F24T-F AVRF337M25F24T-F AVRF477M25G24T-F AVRF475M35B12T-F AVRF106M35C12T-F AVRF226M35D16T-F AVRF336M35D16T-F AVRF476M35F24T-F AVRF107M35F24T-F AVRF157M35F24T-F AVRF227M35F24T-F AVRF337M35G24T-F B B C D F F B C D D D F F F G B C D D F F F F G CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
