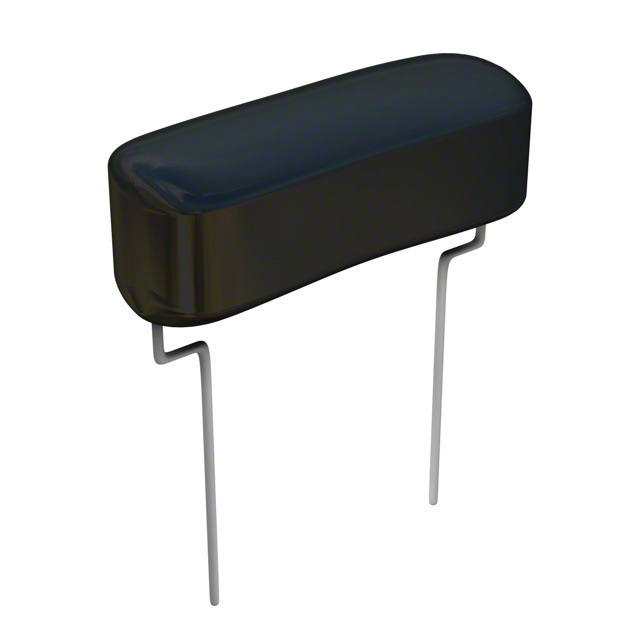

DPFF4S47J-F

Type DPFF High AC Current Polypropylene Film Capacitors High Voltage Single and Series Section Film/Foil Polypropylene Capacitors Type DPFF radial leaded polypropylene film/foil capacitors feature single section extended foil construction for 200 Vdc through 600 Vdc and series wound extended foil with a floating common metallized film for 800 Vdc through 1600 Vdc. Excellent temperature stability to 105 ºC and low loss characteristics, make Type DPFF ideal for high AC current and pulse applications. Highlights • • • • High dv/dt High AC current Good for pulse applications Low DF Outline Drawing T Max. L Max. NOTE: Other capacitance values, sizes and performance specifications are available. Please contact CDE. .250” Max. H Max. 0.032” (0.8 mm) Tinned Copper 1.18” Min (30 mm) S .06” (1.5 mm). Specifications Capacitance Range 0.001 to 0.47 µF Capacitance Tolerance ±10% (K) standard, ±5% (J) optional Rated Voltage 200 to 1600 Vdc (155 to 500 Vac 60 Hz) Operating Temperature Range –55 ºC to +125 ºC (with 50% Vdc derating >85 ºC) Dielectric Strength 250% (≤800 Vdc ) 200% (1200 and 1600 Vdc) for 1 minute Dissipation Factor .10% Max. (25 °C, 1kHz) Insulation Resistance 50,000 MΩ x µF, 100,000 MΩ Min Life Test 500 Hours at 85°C at 125% Rated Voltage Pulse Capability Rated Body Length Volts .700-.750 .900-.950 1.250-1.300 1.650-1.700 200 4600 2400 1400 400 6000 3200 1800 840 600 8000 6600 2800 1200 800 6000 3200 1200 6800 3200 1600 11600 6000 dV/dt — volts per microsecond, maximum 720 Regulatory Information CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type DPFF High AC Current Polypropylene Film Capacitors Ratings Cap Catalog (µF) Part Number T Max. H Max. L Max. S ±0.06 (±1.5) Cap Inches (mm) Inches (mm)Inches (mm) Inches (mm) (µF) Catalog T Max. H Max. L Max. S ±0.06 (±1.5) Part Number Inches (mm) Inches (mm)Inches (mm) Inches (mm) 200/250 Vdc (155 Vac 60 Hz) 400 Vdc (200 Vac 60 Hz) .0120 DPFF2S12J–F 0.37 (9.4) 0.37 (9.4) 0.75 (19.1) 0.374 (9.5) .0470 DPFF4S47J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0150 DPFF2S15J–F 0.37 (9.4) 0.37 (9.4) 0.75 (19.1) 0.374 (9.5) .0560 DPFF4S56J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0150 DPFF2S15JS–F 0.28 (7.1) 0.34 (8.6) 0.70 (17.8) 0.374 (9.5) .0680 DPFF4S68J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0180 DPFF2S18J–F 0.37 (9.4) 0.37 (9.4) 0.75 (19.1) 0.374 (9.5) .0820 DPFF4S82J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0220 DPFF2S22J–F 0.37 (9.4) 0.37 (9.4) 0.75 (19.1) 0.374 (9.5) .1000 DPFF4P1J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0220 DPFF2S22JS–F 0.31 (7.9) 0.37 (9.4) 0.70 (17.8) 0.374 (9.5) .1200 DPFF4P12J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0270 DPFF2S27J–F 0.42 (10.7) 0.42 (10.7) 0.75 (19.1) 0.374 (9.5) .1500 DPFF4P15J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0330 DPFF2S33J–F 0.42 (10.7) 0.42 (10.7) 0.75 (19.1) 0.374 (9.5) .1500 DPFF4P15JS–F 0.56 (14.2) 0.62 (15.7) 1.25 (31.8) 0.72 (18.3) .0330 DPFF2S33JS–F 0.36 (9.1) 0.42 (10.7) 0.70 (17.8) 0.374 (9.5) .1800 DPFF4P18J–F 0.70 (17.8) 0.70 (17.8) 1.70 (43.2) 1.095 (27.8) .0390 DPFF2S39J–F 0.40 (10.2) 0.40 (10.2) 0.95 (24.1) 0.374 (9.5) .2200 DPFF4P22J–F 0.70 (17.8) 0.70 (17.8) 1.70 (43.2) 1.095 (27.8) .0470 DPFF2S47J–F 0.40 (10.2) 0.40 (10.2) 0.95 (24.1) 0.374 (9.5) .2200 DPFF4P22JS-F 0.58 14.7) 0.64 (16.3) 1.65 (41.9) 1.095 (27.8) .0470 DPFF2S47JS–F 0.34 (8.6) 0.40 (10.2) 0.90 (22.9) 0.374 (9.5) .2700 DPFF4P27J–F 0.80 (20.3) 0.80 (20.3) 1.70 (43.2) 1.095 (27.8) .0560 DPFF2S56J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .3300 DPFF4P33J–F 0.80 (20.3) 0.80 (20.3) 1.70 (43.2) 1.095 (27.8) .0680 DPFF2S68J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .3300 DPFF4P33JS–F 0.70 (17.8) 0.76 (19.3) 1.65 (41.9) 1.095 (27.8) .0680 DPFF2S68JS-F 0.39 (9.9) 0.45 (11.4) 0.90 (22.9) 0.374 (9.5) .3900 DPFF4P39J–F 0.90 (22.9) 0.90 (22.9) 1.70 (43.2) 1.095 (27.8) .0820 DPFF2S82J–F 0.45 (11.4) 0.45 (11.4) 1.30 (33.0) 0.72 (18.3) .4700 DPFF4P47J–F 0.90 (22.9) 0.90 (22.9) 1.70 (43.2) 1.095 (27.8) .1000 DPFF2P1J–F 0.45 (11.4) 0.45 (11.4) 1.25 (31.8) 0.72 (18.3) .4700 DPFF4P47JS–F 0.82 (20.8) 0.88 (22.4) 1.65 (41.9) 1.095 (27.8) .1000 DPFF2P1JS–F 0.38 (9.7) 0.44 (11.2) 1.25 (31.8) 0.72 (18.3) .1200 DPFF2P12J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0010 DPFF6D1J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .1500 DPFF2P15J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0012 DPFF6D12J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .1500 DPFF2P15JS–F 0.44 (11.2) 0.50 (12.7) 1.25 (31.8) 0.72 (18.3) .0015 DPFF6D15J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .1800 DPFF2P18J–F 0.62 (15.7) 0.62 (15.7) 1.30 (33.0) 0.72 (18.3) .0015 DPFF6D15JS–F 0.32 (8.1) 0.36 (9.1) 0.70 (17.8) 0.374 (9.5) .2200 DPFF2P22J–F 0.62 (15.7) 0.62 (15.7) 1.30 (33.0) 0.72 (18.3) .0018 DPFF6D18J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .2200 DPFF2P22JS–F 0.51 (13.0) 0.57 (14.5) 1.25 (31.8) 0.72 (18.3) .0022 DPFF6D22J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .2700 DPFF2P27J–F 0.65 (16.5) 0.65 (14.5) 1.70 (43.2) 1.095 (27.8) .0027 DPFF6D27J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .3300 DPFF2P33J–F 0.65 (16.5) 0.65 (14.5) 1.65 (41.9) 1.095 (27.8) .0033 DPFF6D33J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .3300 DPFF2P33JS-F 0.53 (13.5) 0.59 (15.0) 1.65 (41.9) 1.095 (27.8) .0033 DPFF6D33JS–F 0.32 (8.1) 0.36 (9.1) 0.70 (17.8) 0.374 (9.5) .3900 DPFF2P39J–F 0.75 (19.1) 0.75 (19.1) 1.70 (43.2) 1.095 (27.8) .0039 DPFF6D39J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) .4700 DPFF2P47J–F 0.75 (19.1) 0.75 (19.1) 1.70 (43.2) 1.095 (27.8) .0047 DPFF6D47J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) 0.6 (15.2) 0.66 (168) .0047 DPFF6D47JS–F 0.34 (8.6) 0.38 (9.7) 0.70 (17.8) 0.374 (9.5) .0056 DPFF6D56J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) .4700 DPFF2P47JS–F 1.65 (41.9) 1.095 (27.8) 400 Vdc (200 Vac 60 Hz) 600/630 Vdc (200 Vac 60 Hz) .0039 DPFF4D39J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0068 DPFF6D68J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) .0047 DPFF4D47J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0068 DPFF6D68JS–F 0.38 (9.7) 0.42 (10.7) 0.70 (17.8) 0.374 (9.5) .0056 DPFF4D56J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0082 DPFF6D82J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .0068 DPFF4D68J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0100 DPFF6S1J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .0082 DPFF4D82J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0100 DPFF6S1JS–F 0.36 (8.1) 0.40 (10.2) 0.90 (22.9) 0.374 (9.5) .0100 DPFF4S1J–F 0.40 (10.2) 0.40 (10.2) 0.75 (19.1) 0.374 (9.5) .0120 DPFF6S12J–F 0.50 (12.7) 0.50 (12.7) 0.95 (24.1) 0.374 (9.5) .0120 DPFF4S12J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) .0150 DPFF6S15J–F 0.50 (12.7) 0.50 (12.7) 0.95 (24.1) 0.374 (9.5) .0150 DPFF4S15J–F 0.45 (11.4) 0.45 (11.4) 0.75 (19.1) 0.374 (9.5) .0150 DPFF6S15JS–F 0.42 (10.7) 0.46 (11.7) 0.90 (22.9) 0.374 (9.5) .0150 DPFF4S15JS–F 0.34 (8.6) 0.40 (10.2) 0.70 (17.8) 0.374 (9.5) .0180 DPFF6S18J–F 0.55 (14.0) 0.55 (14.0) 0.95 (24.1) 0.374 (9.5) .0180 DPFF4S18J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .0220 DPFF6S22J–F 0.55 (14.0) 0.55 (14.0) 0.95 (24.1) 0.374 (9.5) .0220 DPFF4S22J–F 0.45 (11.4) 0.45 (11.4) 0.95 (24.1) 0.374 (9.5) .0220 DPFF6S22JS–F 0.48 (12.2) 0.52 (13.2) 0.90 (22.9) 0.374 (9.5) .0270 DPFF4S27J–F 0.50 (12.7) 0.50 (12.7) 0.95 (24.1) 0.374 (9.5) .0270 DPFF6S27J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0330 DPFF4S33J–F 0.50 (12.7) 0.50 (12.7) 0.95 (24.1) 0.374 (9.5) .0270 DPFF6S27JS–F 0.43 (10.9) 0.47 (11.9) 1.25 (31.8) 0.72 (18.3) .0330 DPFF4S33JS–F 0.38 (9.7) 0.44 (11.2) 0.90 (22.9) 0.374 (9.5) .0330 DPFF6S33J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0390 DPFF4S39J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0390 DPFF6S39J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type DPFF High AC Current Polypropylene Film Capacitors Cap (µF) Catalog T Max. H Max. L Max. S ±0.06 (±1.5) Part Number Inches (mm) Inches (mm) Inches (mm) Inches (mm) 600/630 Vdc (200 Vac 60 Hz) .0470 DPFF6S47J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0560 DPFF6S56J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0680 DPFF6S68J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0680 DPFF6S68JS–F 0.60 (15.2) 0.64 (16.3) 1.25 (31.8) 0.72 (18.3) .0820 DPFF6S82J–F 0.75 (16.0) 0.75 (16.0) 1.30 (33.0) 0.72 (18.3) .1000 DPFF6P1J–F 0.75 (16.0) 0.75 (16.0) 1.30 (33.0) 0.72 (18.3) .1000 DPFF6P1JS–F 0.71 (18.0) 0.75 (16.0) 1.25 (31.8) 0.72 (18.3) .1200 DPFF6P12J–F 0.75 (19.0) 0.75 (19.0) 1.70 (43.2) 1.095 (27.8) .1500 DPFF6P15J–F 0.75 (19.0) 0.75 (19.0) 1.70 (43.2) 1.095 (27.8) .1500 DPFF6P15JS–F 0.71 (18.0) 0.75 (19.0) 1.65 (41.9) 1.095 (27.8) .1800 DPFF6P18J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) .2200 DPFF6P22J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) .2200 DPFF6P22JS–F 0.83 (21.1) 0.85 (21.6) 1.65 (41.9) 1.095 (27.8) 800 Vdc (450 Vac 60 Hz) .0056 DPFF8D56J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0056 DPFF8D56JS–F 0.28 (7.1) 0.34 (8.6) 1.25 (31.8) 0.72 (18.3) .0068 DPFF8D68J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0082 DPFF8D82J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0100 DPFF8S1J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0100 DPFF8S1JS–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0120 DPFF8S12J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0120 DPFF8S12JS–F 0.35 (8.9) 0.41 (10.4) 1.25 (31.8) 0.72 (18.3) .0150 DPFF8S15J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0150 DPFF8S15JS–F 0.38 (9.7) 0.44 (11.2) 1.25 (31.8) 0.72 (18.3) .0180 DPFF8S18J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0220 DPFF8S22J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0220 DPFF8S22JS–F 0.44 (11.2) 0.50 (12.7) 1.25 (31.8) 0.72 (18.3) .0270 DPFF8S27J–F 0.70 (17.8) 0.70 (17.8) 1.30 (33.0) 0.72 (18.3) .0330 DPFF8S33J–F 0.70 (17.8) 0.70 (17.8) 1.30 (33.0) 0.72 (18.3) .0330 DPFF8S33JS–F 0.51 (13.0) 0.57 ( (14.5) 1.25 (31.8) 0.72 (18.3) .0390 DPFF8S39J–F 0.70 (17.8) 0.70 (17.8) 1.70 (43.2) 1.095 (27.8) .0470 DPFF8S47J–F 0.70 (17.8) 0.70 (17.8) 1.70 (43.2) 1.095 (27.8) .0560 DPFF8S56J–F 0.80 (20.3) 0.80 (20.3) 1.70 (43.2) 1.095 (27.8) .0680 DPFF8S68J–F 0.80 (20.3) 0.80 (20.3) 1.70 (43.2) 1.095 (27.8) .0680 DPFF8S68JS–F 0.58 (14.7) 0.64 (16.3) 1.65 (41.9) 1.095 (27.8) .0820 DPFF8S82J–F 0.90 (22.9) 0.90 (22.9) 1.70 (43.2) 1.095 (27.8) .1000 DPFF8P1J–F 0.90 (22.9) 0.90 (22.9) 1.70 (43.2) 1.095 (27.8) .1000 DPFF8P1JS–F 0.67 (17.0) 0.73 (18.5) 1.65 (41.9) 1.095 (27.8) 1200 Vdc (475 Vac 60 Hz) .0027 DPFF12D27J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0033 DPFF12D33J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0039 DPFF12D39J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0047 DPFF12D47J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0056 DPFF12D56J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0068 DPFF12D68J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0082 DPFF12D82J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) Cap Catalog (µF) Part Number T Max. H Max. L Max. S ±0.06 (±1.5) Inches (mm) Inches (mm) Inches (mm) Inches (mm) 1200 Vdc (475 Vac 60 Hz) .0100 DPFF12S1J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0120 DPFF12S12J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0150 DPFF12S15J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0150 DPFF12S15JS–F 0.55 (14.0) 0.61 (15.5) 1.25 (31.8) 0.72 (18.3) .0180 DPFF12S18J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 1.095 (27.8) .0220 DPFF12S22J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 1.095 (27.8) .0270 DPFF12S27J–F 0.75 (16.0) 0.75 (16.0) 1.70 (43.2) 1.095 (27.8) .0330 DPFF12S33J–F 0.75 (16.0) 0.75 (16.0) 1.70 (43.2) 1.095 (27.8) .0390 DPFF12S39J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) .0390 DPFF12S39JS–F 0.68 (17.3) 0.74 (18.8) 1.65 (41.9) 1.095 (27.8) .0470 DPFF12S47J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) 1600 Vdc (500 Vac 60 Hz) .0010 DPFF16D1JS–F 0.29 (7.4) 0.33 (8.4) 1.25 (31.8) 0.72 (18.3) .0012 DPFF16D12JS–F 0.30 (7.6) 0.34 (8.6) 1.25 (31.8) 0.72 (18.3) .0015 DPFF16D15JS–F 0.32 (8.1) 0.36 (9.1) 1.25 (31.8) 0.72 (18.3) .0018 DPFF16D18J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0022 DPFF16D22J–F 0.50 (12.7) 0.50 (12.7) 1.30 (33.0) 0.72 (18.3) .0022 DPFF16D22JS–F 0.35 (8.9) 0.39 (9.9) 1.25 (31.8) 0.72 (18.3) .0027 DPFF16D27J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0033 DPFF16D33J–F 0.55 (14.0) 0.55 (14.0) 1.30 (33.0) 0.72 (18.3) .0033 DPFF16D33JS–F 0.40 (10.2) 0.44 (11.2) 1.25 (31.8) 0.72 (18.3) .0039 DPFF16D39J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0047 DPFF16D47J–F 0.60 (15.2) 0.60 (15.2) 1.30 (33.0) 0.72 (18.3) .0047 DPFF16D47JS–F 0.46 (11.7) 0.50 (12.7) 1.25 (31.8) 0.72 (18.3) .0056 DPFF16D56J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0068 DPFF16D68J–F 0.65 (16.5) 0.65 (16.5) 1.30 (33.0) 0.72 (18.3) .0068 DPFF16D68JS–F 0.52 (13.2) 0.56 (14.2) 1.25 (31.8) 0.72 (18.3) .0082 DPFF16D82J–F 0.70 (17.8) 0.70 (17.8) 1.30 (33.0) 0.72 (18.3) .0100 DPFF16S1J–F 0.70 (17.8) 0.70 (17.8) 1.30 (33.0) 0.72 (18.3) .0100 DPFF16S1JS–F 0.61 (15.5) 0.65 (16.5) 1.25 (31.8) 0.72 (18.3) .0120 DPFF16S12J–F 0.75 (19.1) 0.75 (19.1) 1.70 (43.2) 1.095 (27.8) .0150 DPFF16S15J–F 0.75 (19.1) 0.75 (19.1) 1.70 (43.2) 1.095 (27.8) .0150 DPFF16S15JS–F 0.59 (15.0) 0.63 (16.0) 1.65 (41.9) 1.095 (27.8) .0180 DPFF16S18J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) .0220 DPFF16S22J–F 0.85 (21.6) 0.85 (21.6) 1.70 (43.2) 1.095 (27.8) .0270 DPFF16S27J–F 0.95 (24.1) 0.95 (24.1) 1.70 (43.2) 1.095 (27.8) 0.033 DPFF16S33J–F 0.95 (24.1) 0.95 (24.1) 1.70 (43.2) 1.095 (27.8) 0.033 DPFF16S33JS–F 0.81 (20.6) 0.85 (21.6) 1.65 (41.9) 1.095 (27.8) CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type DPFF High AC Current Polypropylene Film Capacitors Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and data (collectively, the “Information”) in this datasheet or other publication are subject to change. The customer is responsible for checking, confirming and verifying the extent to which the Information contained in this datasheet or other publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards as typical for such applications, but are not intended to constitute any guarantee, warranty or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning the suitability for a specific customer application, use, storage, transportation, or operating environment. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design and manufacturing of its products, in light of the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product-related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be required. CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
