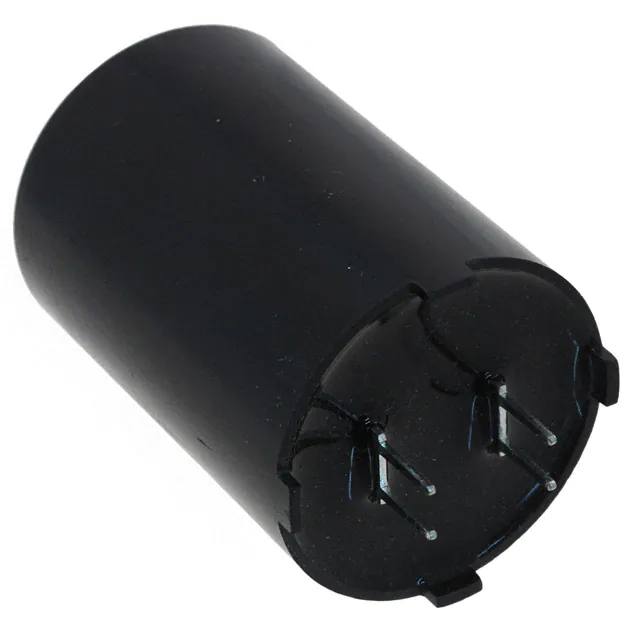

UNL8W15K-F

Type UNL ElectroFilm High Current Capacitors Metallized Polypropylene Dielectric Constructed using a low-loss polypropylene film, the UNL series offers high ripple current capabilities and high capacitance values making them ideal for electrolytic bank replacement and high ripple current applications Highlights / Applications Advantages over Electrolytics - Exceptionally low ESR - Up to 10 times the ripple current - Non-polar - Higher voltage ratings - Dry construction - no electrolyte - Improved reliability Typical Applications - High Voltage Inverters - DC Bus Link - DC Filtering Specifications Capacitance Range: Voltage Range: Capacitance Tolerance: Operating Temperature Range: Insulation Resistance: Dielectric Withstand: Ratings Catalog Part Number* UNL4W30K-F UNL4W80K-F UNL5W35K-F UNL5W100K-F UNL6W30K-F UNL6W80K-F UNL7W20K-F UNL7W50K-F UNL8W15K-F UNL8W40K-F UNL9W13P5K-F UNL9W35K-F UNL10W10K-F UNL10W25K-F UNL12W7P5K-F UNL12W20K-F UNL15W4P7K-F UNL15W13K-F Cap (µF) 30.0 80.0 35.0 100.0 30.0 80.0 20.0 50.0 15.0 40.0 13.5 35.0 10.0 25.0 7.5 20.0 4.7 13.0 Voltage (Vdc) 400 400 500 500 600 600 750 750 800 800 900 900 1000 1000 1200 1200 1500 1500 D Dia. (mm) 35 50 35 50 35 50 35 50 35 50 35 50 35 50 35 50 35 50 H Height (mm) 53.7 63 53.7 63 53.7 63 53.7 63 53.7 63 53.7 63 53.7 63 53.7 63 53.7 63 4.7 µF to 100 µF 400 Vdc to 1500 Vdc ±10% standard –55 ºC to +85ºC ≥ 10,000MΩ 1.25 x Rated Vdc 60s - Between Terminals 3000 Vac 60s - Terminals to Case dV/dt (V/µs) 30 25 26 22 30 25 37 30 42 35 43 36 50 40 60 50 72 60 Peak Current (A) 900 2000 910 2200 900 2000 740 1500 630 1400 580 1260 500 1000 450 1000 338 780 Ripple Current @ 100 kHz 25 ºC (Arms) 24.2 35.0 22.0 31.8 20.7 30.5 19.0 29.4 18.8 28.4 18.0 27.5 17.5 26.7 16.0 26.0 15.0 24.6 50 ºC (Arms) 19.4 28.0 18.2 25.4 17.0 24.4 16.0 23.5 15.0 22.8 14.5 22.0 13.7 21.4 12.0 20.7 11.5 19.7 75 ºC (Arms) 14.6 14.3 13.0 13.2 12.0 12.6 9.9 12.0 9.8 11.7 9.6 11.3 9.0 11.0 8.4 10.7 7.8 10.1 ESR @ 100 kHz (mΩ) 6.0 5.0 8.0 6.0 9.0 6.5 10.0 7.0 10.0 7.5 10.5 8.0 12.0 8.5 13.5 9.0 15.0 10.0 *Add ‘S’ after ‘K’ for short pins Additional values available upon request. CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type UNL ElectroFilm High Current Capacitors Part Numbering System UNL Type UNL 7 Voltage 4 = 400 Vdc 5 = 500Vdc 6 = 600 Vdc 7 = 750 Vdc 8 = 800 Vdc 9 = 900 Vdc 10 = 1000 Vdc 12 = 1200 Vdc 15 = 1500 Vdc W20 Capacitance W80 = 80µF W100 = 100µF W30 = 30µF W50 = 50µF W40 = 40µF W13P5 = 13.5µF W10 = 10µF W7P5 = 7.5µF W4P7 = 4.7µF K Tolerance K = ±10% J = ±5% Optional S Leads S = Short Pins Blank = Long Pins –F RoHS Compliant Outline Drawing 12.7±0.8 (0.5±0.031) 5.1±0.127 (0.2± 0.005) PC Board Mounting Hole Pattern 12.7±0.8 (0.5±0.031) 5.1±0.127 (0.2±0.055) 2.54±0.8 (0.1±0.031) D±0.8 (D±0.031) h*±0.5 (h*±0.02) 0.8±0.076 (0.031±0.003) 1.5±0.1 (0.06±0.005) H±0.5 (H±0.02) Pins are tin plated brass - tapered 1.27 (0.05) - 1.14 (0.045) D and H dimensions in Ratings Table *Standard Long Pins: h = 7.6 (0.3) ‘S’ Style Short Pins: h = 3.8 (0.15) Dimensions: Millimeters (Inches) CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type UNL ElectroFilm High Current Capacitors Typical Performance Curves Expected Lifetime vs Applied Voltage and Core Temp 1.7 1.6 Applied / Rated Voltage Ratio (Va/Vr) 1.5 1.4 1.3 60ºC 1.2 70ºC 1.1 1 0.9 0.8 100 85ºC 50ºC 1000 10000 Expected Lifetime (h) 100000 1000000 Ripple Current Ratings vs Temperature and Frequency UNL6W30K-F 25 25ºC 20 Ripple Current (Amps RMS) 50ºC 15 70ºC 10 85ºC 5 0 10 100 1000 10000 Frequency (Hz) 100000 1000000 CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com Type UNL ElectroFilm High Current Capacitors Typical Performance Curves UNL6W30K-F ESR vs Frequency and Temperature 15 12 ESR (m�) 9 85ºC 65ºC 45ºC 25ºC 0ºC -20ºC -40ºC 6 3 100 1000 Frequency (Hz) 10000 100000 UNL6W30K-F Impedance vs Frequency 1000 100 Impedance (�) 10 1 0.1 0.01 100 1000 10000 Frequency (Hz) 100000 1000000 CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
