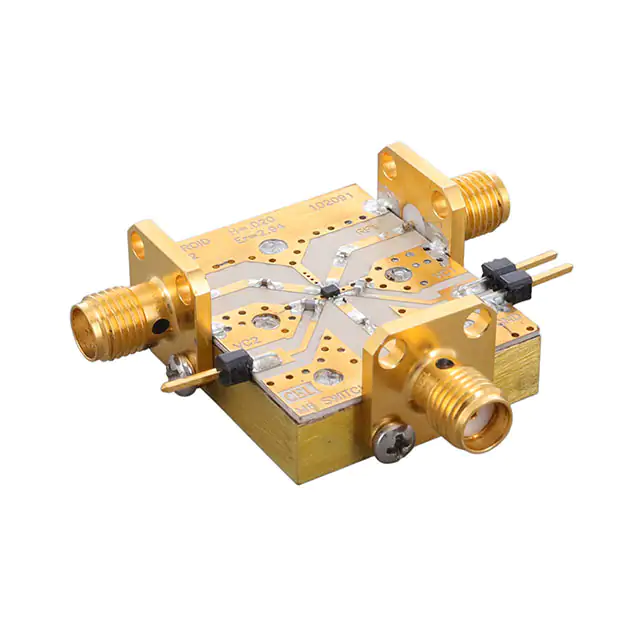

CG2415M6-EVAL

RF SWITCH CG2415M6 L, S-band SPDT Name RF Switch Enter aHigh Short Power Document/Title Here DESCRIPTION  PACKAGE The CG2415M6 is a pHEMT GaAs MMIC high power SPDT (Single Pole Double Throw) switch which was developed for dual-band wireless LAN.  6-pin lead-less mini mold package (1.5mm x 1.1mm x 0.55mm) FEATURES     Control voltage : VC(H) = 1.8 to 5.3 V (3.0 V TYP.) VC(L) = -0.2 to 0.2 V (0 V TYP.) Low insertion loss : Lins1 = 0.30 dB TYP. @ f = 0.5 to 2.0 GHz Lins2 = 0.35 dB TYP. @ f = 2.0 to 2.5 GHz Lins3 = 0.40 dB TYP. @ f = 2.5 to 3.8 GHz Lins4 = 0.45 dB TYP. @ f = 3.8 to 6.0 GHz High isolation : ISL1 = 32 dB TYP. @ f = 0.5 to 2.0 GHz ISL2 = 32 dB TYP. @ f = 2.0 to 2.5 GHz ISL3 = 32 dB TYP. @ f = 2.5 to 3.8 GHz ISL4 = 26 dB TYP. @ f = 3.8 to 6.0 GHz Power handling : Pin(0.5dB) = +34 dBm TYP VC(H) = 3.0 V, VC(L) = 0 V APPLICATIONS  Dual-band wireless LAN (IEEE 802.11 a/b/g/n/ac) ORDERING INFORMATION Part Number Order Number CG2415M6 CG2415M6-C2 CG2415M6-EVAL CG2415M6-EVAL This document is subject to change without notice. Date Published: September 2017 CDS-0022-04 (Issue G) Package 6-pin lead-less mini mold package (Pb-Free) Marking C0A Description • Embossed tape 8 mm wide • Pin 1, 6 face the perforation side of the tape • MOQ 9 kpcs/reel • Evaluation Board with DC block capacitors, power supply bypass capacitors, and RF and DC connectors • MOQ 1 1 CG2415M6 PIN CONFIGURATION AND INTERNAL BLOCK DIAGRAM TRUTH TABLE VC1 VC2 RFC-RF1 RFC-RF2 High Low ON OFF Low High OFF ON ABSOLUTE MAXIMUM RATINGS (TA = +25˚C, unless otherwise specified) Parameter Symbol Rating Unit VC 6.0Note 1 V Control Voltage Note 2 Input Power Pin +34.5 Operating Ambient Temperature TA -45～+85 ˚C Storage Temperature Tstg -55～+150 ˚C Note dBm 1. |VC1 - VC2| ≦ 6.0 V 2. 3.0V ≦ |VC1 – VC2| ≦ 5.0V RECOMMENDED OPERATING RANGE (TA = +25˚C, unless otherwise specified) Parameter Symbol MIN. TYP. MAX. Unit f 0.5 - 6.0 GHz Switch Control Voltage (H) VC(H) +1.8 +3.0 +5.3 V Switch Control Voltage (L) VC(L) -0.2 0 +0.2 V Operating Frequency This document is subject to change without notice. 2 CG2415M6 ELECTRICAL CHARACTERISTICS 1 (TA = +25˚C, VC(H) = 3.0 V, VC(L) = 0 V, Zo = 50 Ω, DC Block Capacitance = 8 pF, unless otherwise specified) Parameter Insertion Loss Isolation Return Loss 0.1dB Loss Compression Input Power Note 2 0.5dB Loss Compression Input Power Note 3 Symbol MIN. TYP. MAX. Unit LINS1 f=0.5 to 2.0 GHz Note 1 - 0.30 0.50 dB LINS2 f=2.0 to 2.5 GHz - 0.35 0.55 dB LINS3 f=2.5 to 3.8.0GHz - 0.40 0.60 dB LINS4 f=3.8 to 6.0GHz - 0.45 0.70 dB ISL1 f=0.5 to 2.0 GHz Note 1 29 32 - dB ISL2 f=2.0 to 2.5 GHz 29 32 - dB ISL3 f=2.5 to 3.8.0GHz 29 32 - dB ISL4 f=3.8 to 6.0GHz 23 26 - dB RL1 f=0.5 to 2.0GHz Note 1 15 20 - dB RL2 f=2.0 to 2.5GHz 15 20 - dB RL3 f=2.5 to 6.0GHz 10 15 - dB f=0.5 to 2.0GHz Note1 - +32 - dBm f=2.0 to 6.0GHz - +31 - dBm f=0.5 to 6.0GHzNote1 VC(H)=5.0V - +35 - dBm f=0.5 to 2.0GHz Note1 - +34 - dBm f=2.0 to 6.0GHz - +34 - dBm f=2.5GHz, Pin=+20dBm - -90 - dBc f=6.0GHz, Pin=+20dBm - -90 - dBc f=2.5GHz, Pin=+20dBm - -90 - dBc f=6.0GHz, Pin=+20dBm - -90 - dBc Pin(0.1dB) Pin(0.5dB) 2nd Harmonics 2f0 3rd Harmonics 3rd Order Input Intercept Point Condition 3f0 IIP3 f=2.5GHz, 2-tone 60 dBm 1MHz Spacing Note 1. DC block capacitance = 56 pF at f = 0.5 to 2.0 GHz Note 2. Pin(0.1dB) is the measured input power level when the insertion loss increases 0.1dB more than that of the linear range. Note 3. Pin(0.5dB) is the measured input power level when the insertion loss increases 0.5dB more than that of the linear range This document is subject to change without notice. 3 CG2415M6 ELECTRICAL CHARACTERISTICS 2 (TA = +25˚C, VC(H) = 3.0 V, VC(L) = 0 V, Zo = 50 Ω, DC Block Capacitance = 8 pF, unless otherwise specified) Error Vector Magnitude EVM 802.11a, 64QAM, 54Mbps, Pin≦+25dBm - 0.5 - % - 0.5 - % 80MHz, Pin≦+25dBm - 0.5 - % RF none - 2 10 uA 50% CTL to 90/10% RF - 100 250 ns 802.11g, 64QAM, 54Mbps, Pin≦+25dBm 802.11ac, 256QAM, MCS9, Switch Control Current ICONT Switching Speed This document is subject to change without notice. tSW 4 CG2415M6 TYPICAL CHARACTERISTICS (VC(H)=3V, VC(L)=0V, TA = +25˚C, DC Block Capacitance=8pF, through board loss is subtracted in insertion loss data) Typical Insertion Loss vs. Frequency Typical Isolation vs. Frequency Typical Return Loss vs. Frequency Typical Insertion Loss vs. Input Power This document is subject to change without notice. 5 CG2415M6 EVALUATION CIRCUIT Note C0 ：0.5 to 2.0 GHz : 2.0 to 6.0 GHz 56pF 8pF The application circuits and their parameters are for reference only and are not intended for use in actual designs. DC Blocking Capacitors are required at all RF ports. PACKAGE DIMENSIONS 6-pin lead-less mini mold package (Unit: mm) This document is subject to change without notice. 6 CG2415M6 RECOMMENDED SOLDERING CONDITIONS Recommended Soldering Conditions are available on CEL's Part Summary page under Associated Documents This document is subject to change without notice. 7 CG2415M6 REVISION HISTORY Version Change to current version Page(s) CDS-0022-01 (Issue A) February 17, 2016 CDS-0022-02 (Issue B) March 11, 2016 Initial datasheet Added Eval Board ordering information 1 CDS-0022-02 (Issue C) March 16, 2016 Added Package Photo 1 CDS-0022-02 (Issue D) April 4, 2016 Updated marking information and MOQ 1,2 CDS-0022-02 (Issue E) August 11, 2016 Removed “preliminary” All CDS-0022-02 (Issue F) January 11, 2017 Revised Electrical Characteristics table Added “Recommended Soldering Conditions” section 3, 5 CDS-0022-04 (Issue G) September 15, 2017 Updated Characteristics tables and added Error Vector Magnitude Added “Typical Characteristics” graphs section This document is subject to change without notice. N/A 8 3, 4, 5 CG2415M6 [CAUTION] ・ All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. ・ You should not alter, modify, copy, or otherwise misappropriate any CEL product, whether in whole or in part. ・ CEL does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of CEL products or technical information described in this document. No license, expressed, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of CEL or others. ・ Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. CEL assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information. ・ CEL has used reasonable care in preparing the information included in this document, but CEL does not warrant that such information is error free. CEL assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein. ・ Although CEL endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a CEL product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you. ・ Please use CEL products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. CEL assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations. ・ This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of CEL. ・ Please contact CEL if you have any questions regarding the information contained in this document or CEL products, or if you have any other inquiries. This document is subject to change without notice. 9 CG2415M6 [CAUTION] This product uses gallium arsenide (GaAs) of the toxic substance appointed in laws and ordinances. GaAs vapor and powder are hazardous to human health if inhaled or ingested. ・ Do not dispose in fire or break up this product. ・ Do not chemically make gas or powder with this product. ・ When discarding this product, please obey the laws of your country. ・ Do not lick the product or in any way allow it to enter the mouth. [CAUTION] Although this device is designed to be as robust as possible, ESD (Electrostatic Discharge) can damage this device. This device must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times. CEL Headquarters • 4590 Patrick Henry Drive • Santa Clara, CA 95054 • Tel: (408) 919-2500 • www.cel.com For a complete list of sales offices, representatives and distributors, Please visit our website: www.cel.com/contactus For inquiries email us at rfw@cel.com This document is subject to change without notice. 10
