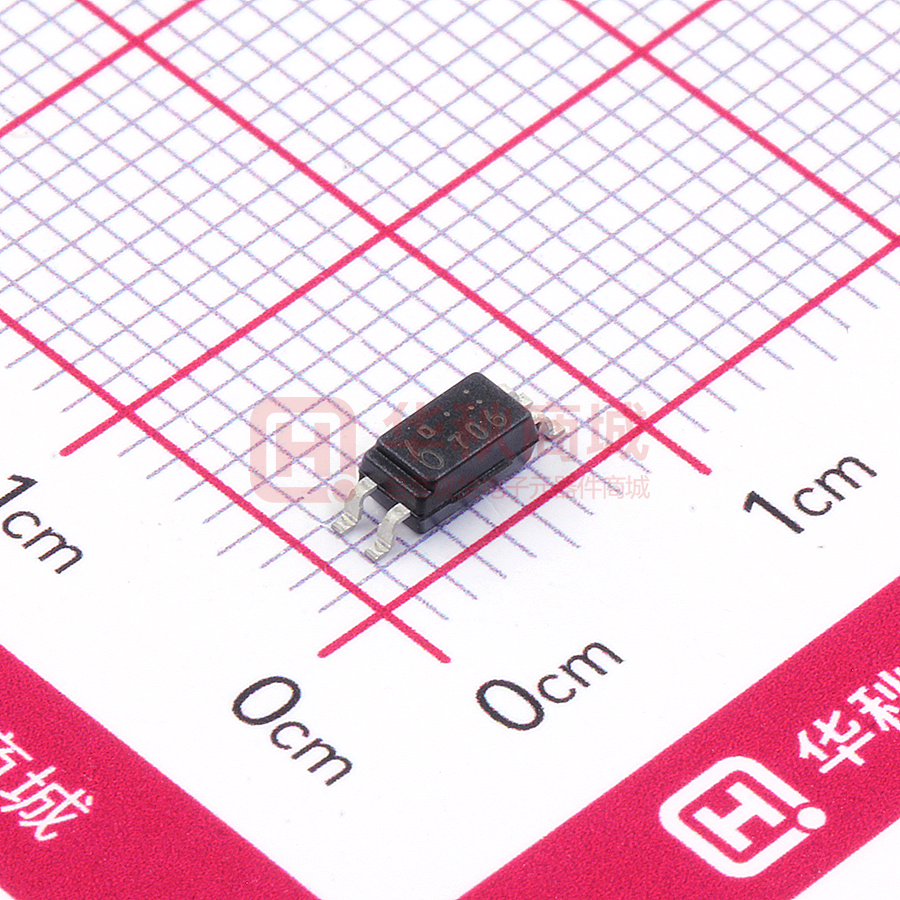

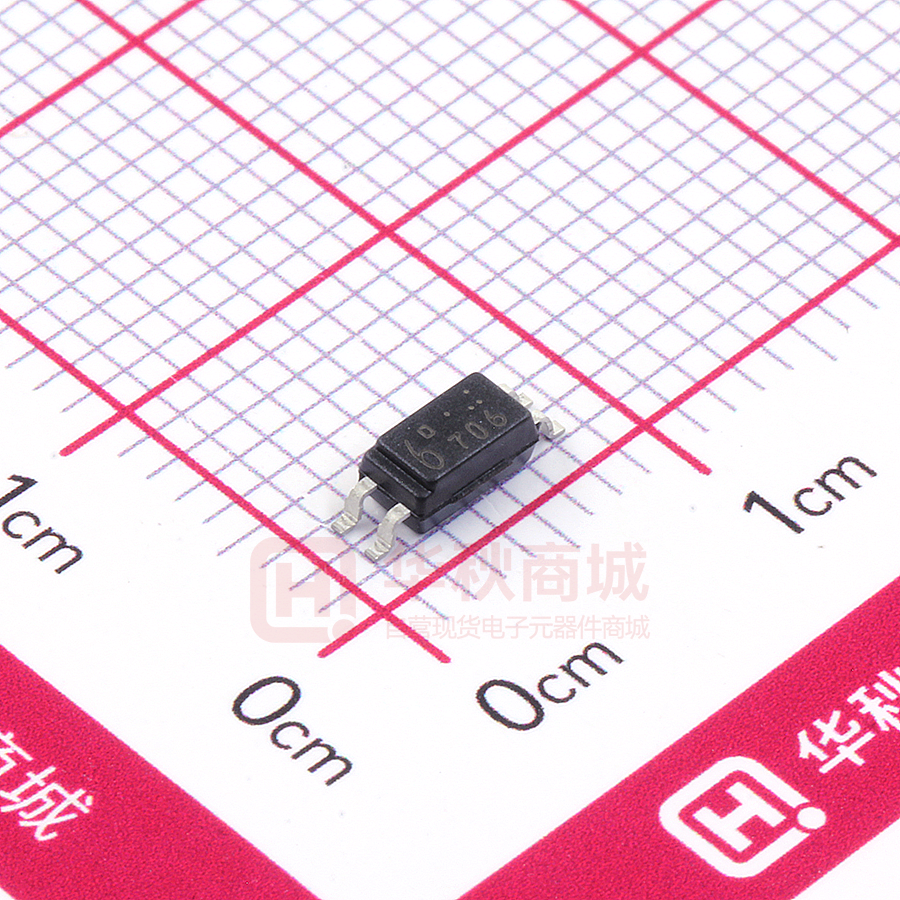

PS2806-1-A

PHOTOCOUPLER PS2806-1,PS2806-4 HIGH ISOLATION VOLTAGE AC INPUT, DARLINGTON TRANSISTOR TYPE SOP PHOTOCOUPLER −NEPOC Series− DESCRIPTION The PS2806-1 and PS2806-4 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon darlington connected phototransistor in a plastic SOP for high density applications. This package has shield effect to cut off ambient light. FEATURES • High isolation voltage (BV = 2 500 Vr.m.s.) • Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm) • AC input response • High current transfer ratio (CTR = 2 000 % TYP. @ IF = ±1 mA, VCE = 2 V) • Ordering number of tape product: PS2806-1-F3, F4, PS2806-4-F3, F4 • Safety standards: PS2806-1, -4 • UL approved: File No. E72422 (S) • BSI approved: No. 8188, 8189 • VDE0884 approved (Option): PS2806-4 only APPLICATIONS • Programmable logic controllers • Measuring instruments • Hybrid IC Document No. PN10254EJ01V0DS (1st edition) (Previous No. P10150EJ5V0DS00) Date Published February 2003 CP(K) The mark  shows major revised points. PS2806-1,PS2806-4 PACKAGE DIMENSIONS (UNIT: mm) PS2806-1 PS2806-4 TOP VIEW TOP VIEW 4 3 2.7±0.3 16 15 14 13 12 11 10 9 10.3±0.3 1 2 1 2 3 4 5 6 7 8 1. 3. 5. 7. 2. 4. 6. 8. 9. 11. 13. 15. 10. 12. 14. 16. Anode, Cathode Cathode, Anode Emitter Collector 7.0±0.3 4.4 4.4 0.15+0.10 –0.05 7.0±0.3 0.5±0.3 1.27 0.4±0.1 0.12 M 0.1±0.1 2.0+0.3 –0.2 2.0±0.1 0.1±0.1 0.15+0.10 –0.05 1. Anode, Cathode 2. Cathode, Anode 3. Emitter 4. Collector 0.40+0.10 –0.05 0.12 M 1.27 0.5±0.3 MARKING PS2806-4 PS2806-1 6 003 PS2806-4 N 003 Assembly Lot Last number of type No. : 6 No. 1 pin Mark N 0 03 0 03 Week Assembled Year Assembled (Last 1 Digit) CTR Rank Code Week Assembled Year Assembled (Last 1 Digit) 2 Country Assembled Type Number Assembly Lot Data Sheet PN10254EJ01V0DS PS2806-1,PS2806-4 ORDERING INFORMATION (Solder Contains Lead) Part Number PS2806-1 Package 4-pin SOP PS2806-1-F3 Packing Style 50 pcs (Tape 50 pcs cut) Application Part *1 Number PS2806-1 Embossed Tape 3 500 pcs/reel PS2806-1-F4 PS2806-4 16-pin SOP PS2806-4-F3 Magazine Case 45 pcs PS2806-4 Embossed Tape 2 500 pcs/reel PS2806-4-F4 *1 For the application of the Safety Standard, following part number should be used. ORDERING INFORMATION (Pb-Free) Part Number PS2806-1-A Package 4-pin SOP PS2806-1-F3-A Packing Style 50 pcs (Tape 50 pcs cut) Application Part *1 Number PS2806-1 Embossed Tape 3 500 pcs/reel PS2806-1-F4-A PS2806-4-A PS2806-4-F3-A 16-pin SOP Magazine Case 45 pcs PS2806-4 Embossed Tape 2 500 pcs/reel PS2806-4-F4-A *1 For the application of the Safety Standard, following part number should be used. Data Sheet PN10254EJ01V0DS 3 PS2806-1,PS2806-4 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise specified) Parameter Symbol Ratings PS2806-1 Diode Forward Current (DC) Power Dissipation mA ∆PD/°C 0.6 0.8 mW/°C PD 60 80 mW/ch IFP ±1 A Collector to Emitter Voltage VCEO 40 V Emitter to Collector Voltage VECO 6 V Peak Forward Current Transistor PS2806-4 ±50 IF Power Dissipation Derating Unit *1 Collector Current IC 90 100 mA/ch ∆PC/°C 1.2 mW/°C PC 120 mW/ch BV 2 500 Vr.m.s. Operating Ambient Temperature TA −55 to +100 °C Storage Temperature Tstg −55 to +150 °C Power Dissipation Derating Power Dissipation Isolation Voltage *2 *1 PW = 100 µs, Duty Cycle = 1 % *2 AC voltage for 1 minute at TA = 25 °C, RH = 60 % between input and output 4 Data Sheet PN10254EJ01V0DS PS2806-1,PS2806-4 ELECTRICAL CHARACTERISTICS (TA = 25 °C) Parameter Symbol Conditions MIN. TYP. MAX. Unit 1.4 V Diode Forward Voltage VF IF = ±5 mA 1.1 Terminal Capacitance Ct V = 0 V, f = 1.0 MHz 30 Transistor Collector to Emitter Dark Current ICEO VCE = 40 V, IF = 0 mA Coupled Current Transfer Ratio (IC/IF) CTR IF = ±1 mA, VCE = 2 V 200 2 000 CTR1/ CTR2 IF = 1 mA, VCE = 2 V 0.3 1.0 Collector Saturation Voltage VCE(sat) IF = ±1 mA, IC = 2 mA Isolation Resistance RI-O VI-O = 1.0 kVDC Isolation Capacitance CI-O V = 0 V, f = 1.0 MHz 0.4 pF VCC = 5 V, IC = 2 mA, RL = 100 Ω 200 µs CTR Ratio Rise Time Fall Time *1 *2 tr *2 tf pF 400 % 3.0 1.0 10 nA V Ω 11 200 *1 CTR1 = IC1/IF1, CTR2 = IC2/IF2 IC1 IF1 VCE IC2 IF2 *2 Test circuit for switching time Pulse Input IF VCC PW = 1 ms Duty Cycle = 1/10 50 Ω VOUT RL = 100 Ω Data Sheet PN10254EJ01V0DS 5 PS2806-1,PS2806-4 TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise specified) DIODE POWER DISSIPATION vs. AMBIENT TEMPERATURE TRANSISTOR POWER DISSIPATION vs. AMBIENT TEMPERATURE Transistor Power Dissipation PC (mW) Diode Power Dissipation PD (mW) 100 PS2806-4 80 60 0.8 mW/˚C PS2806-1 40 0.6 mW/˚C 20 0 50 25 60 1.2 mW/˚C 40 20 25 50 75 100 FORWARD CURRENT vs. FORWARD VOLTAGE FORWARD CURRENT vs. FORWARD VOLTAGE 80 60 TA = +100 ˚C +60 ˚C +25 ˚C 10 5 0 ˚C –25 ˚C –55 ˚C 1 0.5 Forward Current IF (mA) Forward Current IF (mA) 80 Ambient Temperature TA (˚C) 50 40 20 0 –20 –40 –60 0.1 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 –80 1.5 –1.5 –1.0 –0.5 0 0.5 1.0 1.5 Forward Voltage VF (V) Forward Voltage VF (V) COLLECTOR TO EMITTER DARK CURRENT vs. AMBIENT TEMPERATURE COLLECTOR CURRENT vs. COLLECTOR SATURATION VOLTAGE 10 000 1 000 Collector Current IC (mA) VCE = 2 V 5V 10 V 24 V 40 V 100 10 1 –50 –25 0 25 50 75 100 200 100 IF = 10 mA 50 5 mA 1 mA 0.5 mA 10 5 0.2 mA 1 0.1 mA 0.5 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Collector Saturation Voltage VCE(sat) (V) Ambient Temperature TA (˚C) 6 PS2806-1 PS2806-4 Ambient Temperature TA (˚C) 100 Collector to Emitter Dark Current ICEO (nA) 100 0 100 75 120 Data Sheet PN10254EJ01V0DS 1.6 PS2806-1,PS2806-4 COLLECTOR CURRENT vs. COLLECTOR TO EMITTER VOLTAGE Collector Current IC (mA) 140 Normalized Current Transfer Ratio CTR 160 5 mA 120 100 80 2 mA 60 40 1 mA 20 IF = 0.5 mA 0 2 4 NORMALIZED CURRENT TRANSFER RATIO vs. AMBIENT TEMPERATURE 6 8 10 1.4 1.2 1.0 0.8 0.6 0.4 0.0 –50 0 25 50 75 100 CURRENT TRANSFER RATIO vs. FORWARD CURRENT CURRENT TRANSFER RATIO vs. FORWARD CURRENT 3 000 VCE = 2 V Current Transfer Ratio CTR (%) Current Transfer Ratio CTR (%) –25 Ambient Temperature TA (˚C) VCE = 2 V 7 000 6 000 Sample A B C 4 000 D 5 000 3 000 2 000 1 000 2 500 2 000 Sample A B C D 1 500 1 000 500 0 0.1 0.5 1 5 10 10 30 50 100 500 Forward Current IF (mA) Forward Current IF (µA) SWITCHING TIME vs. LOAD RESISTANCE SWITCHING TIME vs. LOAD RESISTANCE 10 000 10 000 VCC = 5 V, IF = 1 mA, CTR = 1 910 % 1 000 Swiching Time t (µs) VCC = 5 V, IC = 2 mA, CTR = 1 910 % Switching Time t (µs) Normalized to 1.0 at TA = 25 ˚C, IF = 1 mA, VCE = 2 V 0.2 Collector to Emitter Voltage VCE (V) 8 000 0 ;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;; tf tr 100 ts td 10 tf 1 000 ts 100 tr 10 td 1 0.1 0.5 1.0 5.0 Load Resistance RL (kΩ) 1 0.1 1.0 10 100 Load Resistance RL (kΩ) Data Sheet PN10254EJ01V0DS 7 PS2806-1,PS2806-4 LONG TERM CTR DEGRADATION FREQUENCY RESPONSE IF = 1 mA 1.0 CTR (Relative Value) Normalized Gain Gv 0 –5 –10 –15 RL = 100 Ω –20 0.2 1.2 IF = 1 mA, VCE = 2 V TA = 25 ˚C 0.8 60 ˚C 0.6 0.4 0.2 0.5 1 2 5 10 20 50 100 200 0.0 10 103 104 Time (Hr) Frequency f (kHz) Remark The graphs indicate nominal characteristics. 8 102 Data Sheet PN10254EJ01V0DS 105 106 PS2806-1,PS2806-4 TAPING SPECIFICATIONS (UNIT: mm) φ 1.5+0.1 –0 7.5±0.1 4.0±0.1 16.0±0.3 2.0±0.1 7.55±0.1 1.75±0.1 Outline and Dimensions (Tape) 2.8 MAX. 0.3 1.55±0.1 2.3±0.1 2.85±0.1 4.0±0.1 Tape Direction 6003 6003 6003 6003 6003 6003 6003 6003 6003 PS2806-1-F4 6003 PS2806-1-F3 Outline and Dimensions (Reel) R 1.0 φ 21.0±0.8 φ 100±1.0 2.0±0.5 φ13.0±0.2 φ 330±2.0 2.0±0.5 17.5±1.0 21.5±1.0 Packing: 3 500 pcs/reel Data Sheet PN10254EJ01V0DS 15.9 to 19.4 Outer edge of flange 9 PS2806-1,PS2806-4 2.8 MAX. 10.7±0.1 7.5±0.1 φ 1.5+0.1 –0 16.0±0.3 2.0±0.1 4.0±0.1 1.75±0.1 Outline and Dimensions (Tape) 0.3 2.3±0.1 8.3±0.1 1.55±0.1 12.0±0.1 Tape Direction PS2806-4-F3 PS2806-4-F4 Outline and Dimensions (Reel) R 1.0 φ 21.0±0.8 φ 100±1.0 2.0±0.5 φ13.0±0.2 φ 330±2.0 2.0±0.5 17.5±1.0 21.5±1.0 Packing: 2 500 pcs/reel 10 Data Sheet PN10254EJ01V0DS 15.9 to 19.4 Outer edge of flange PS2806-1,PS2806-4 NOTES ON HANDLING 1. Recommended soldering conditions (1) Infrared reflow soldering • Peak reflow temperature 260°C or below (package surface temperature) • Time of peak reflow temperature 10 seconds or less • Time of temperature higher than 220°C 60 seconds or less • Time to preheat temperature from 120 to 180°C 120±30 s • Number of reflows Three • Flux Rosin flux containing small amount of chlorine (The flux with a maximum chlorine content of 0.2 Wt% is recommended.) Package Surface Temperature T (˚C) Recommended Temperature Profile of Infrared Reflow (heating) to 10 s 260˚C MAX. 220˚C to 60 s 180˚C 120˚C 120±30 s (preheating) Time (s) (2) Wave soldering • Temperature 260°C or below (molten solder temperature) • Time 10 seconds or less • Preheating conditions 120°C or below (package surface temperature) • Number of times One (Allowed to be dipped in solder including plastic mold portion.) • Flux Rosin flux containing small amount of chlorine (The flux with a maximum chlorine content of 0.2 Wt% is recommended.) (3) Cautions • Fluxes Avoid removing the residual flux with freon-based and chlorine-based cleaning solvent. 2. Cautions regarding noise Be aware that when voltage is applied suddenly between the photocoupler’s input and output or between collector-emitters at startup, the output side may enter the on state, even if the voltage is within the absolute maximum ratings. Data Sheet PN10254EJ01V0DS 11 PS2806-1,PS2806-4 USAGE CAUTIONS 1. Protect against static electricity when handling. 2. Avoid storage at a high temperature and high humidity. 12 Data Sheet PN10254EJ01V0DS PS2806-1,PS2806-4 PROGRAMMABLE LOGIC CONTROLLERS EXAMPLE Purpose: In-out interface Ya xis Xaxis Servo Motor Servo Motor Sensor Controller Amplifier Motor Controller Heater Controller Pulse Generator COM PS2806–1 PS2806–4 PD4050 AC.DC Servo Motor Driver Unit M TG PG Pulse Motor Driver Unit CRT M Computer Terminal Terminal Printer Printer Power Supply PC Programmable Logic Controller FDD Controller Memory Cassette Data Sheet PN10254EJ01V0DS 13 4590 Patrick Henry Drive Santa Clara, CA 95054-1817 Telephone: (408) 919-2500 Facsimile: (408) 988-0279 Subject: Compliance with EU Directives CEL certifies, to its knowledge, that semiconductor and laser products detailed below are compliant with the requirements of European Union (EU) Directive 2002/95/EC Restriction on Use of Hazardous Substances in electrical and electronic equipment (RoHS) and the requirements of EU Directive 2003/11/EC Restriction on Penta and Octa BDE. CEL Pb-free products have the same base part number with a suffix added. The suffix –A indicates that the device is Pb-free. The –AZ suffix is used to designate devices containing Pb which are exempted from the requirement of RoHS directive (*). In all cases the devices have Pb-free terminals. All devices with these suffixes meet the requirements of the RoHS directive. This status is based on CEL’s understanding of the EU Directives and knowledge of the materials that go into its products as of the date of disclosure of this information. Restricted Substance per RoHS Concentration Limit per RoHS (values are not yet fixed) Concentration contained in CEL devices -A Not Detected Lead (Pb) < 1000 PPM Mercury < 1000 PPM Not Detected Cadmium < 100 PPM Not Detected Hexavalent Chromium < 1000 PPM Not Detected PBB < 1000 PPM Not Detected PBDE < 1000 PPM Not Detected -AZ (*) If you should have any additional questions regarding our devices and compliance to environmental standards, please do not hesitate to contact your local representative. Important Information and Disclaimer: Information provided by CEL on its website or in other communications concerting the substance content of its products represents knowledge and belief as of the date that it is provided. CEL bases its knowledge and belief on information provided by third parties and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. CEL has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. CEL and CEL suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall CEL’s liability arising out of such information exceed the total purchase price of the CEL part(s) at issue sold by CEL to customer on an annual basis. See CEL Terms and Conditions for additional clarification of warranties and liability.
