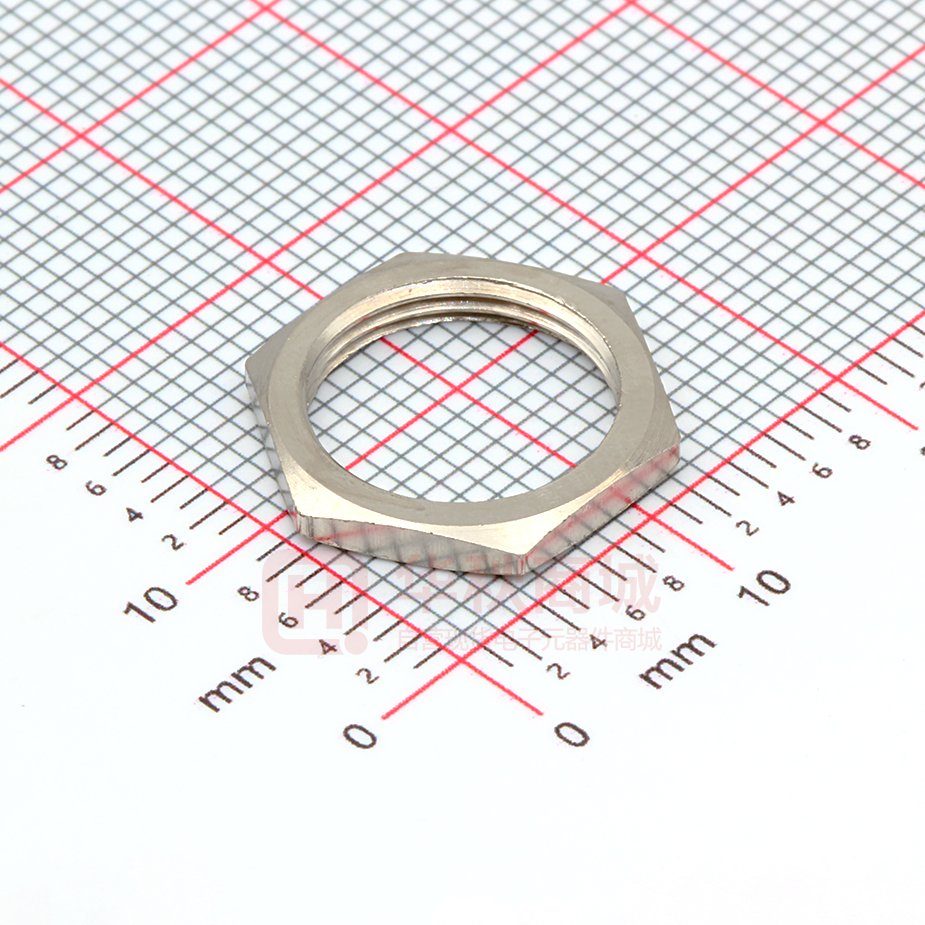

Hardware DRESS NUTS Switchlocks: Y, H & A Series Pushbuttons: 8020, 8060, 8500 & TP Series Toggles: T Series Pushbuttons: TP Series .312 DIA. (7,92Ø) .280 (7,11) 10-48 UNS .215 DIA. (5,46) .040 (1,02) .070 (1,78) PART NO. 531300201 531300535 175052745 PART NO. NICKEL PLATE POLISHED NICKEL PLATE ALUMINIUM BLACK ANODIZE Pushbuttons: 8020, 8060, E010 & TP Series PART NO. 298D01201 NICKEL PLATED 298D01A30 BLACK 580700201 Toggles: 7000, 9000 , E & T Series Pushbuttons: 8020, 8060, 8500, E010 & TP Series Toggles: 7000, 9000 , E & T Series Pushbuttons: 8020, 8060, 8500, E010 & TP Series .352 (8,94) ACROSS FLATS .372 DIA. (9,45Ø) NICKEL PLATED .440 (11,18) ACROSS FLATS 1/4-40 UNS BLIND THD. .460 DIA. (11,68Ø) 1/4-40 UNS .118 (3,00) .090 (2,29) PART NO. PART NO. 702501201 702501A30 709901201 709901215 709901A30 NICKEL PLATED BLACK Additional Hardware Information Toggles: 7000, 9000, E & T Series Pushbuttons: 8020, 8060, 8500, E010 & TP Series O NICKEL PLATED SATIN CHROME BLACK Pushbuttons: 8500 Series PART NO. 776001201 776002231 Toggles: 7000 Series, T2P Actuator .322 DIA. (8,18Ø) .372 DIA. (9,45Ø) .352 (8,94) ACROSS FLATS NICKEL PLATED BLACK .630 DIA. (16,00Ø) 1/4-40 UNS .556 ACROSS (14,12) FLATS 15/32-32 NS BLIND THD. .060 (1,52) .030 (0,76) .118 (3,00) PART NO. 299D01201 NICKEL PLATED 299D01215 SATIN CHROME 299D01A30 BLACK 498800201 Toggles: 7000 & 9000 Series Pushbuttons: 8500 Series Toggles: 7000 Series Pushbuttons: 8020 & 8060 Series .750 (19,05) PART NO. .770 DIA. (19,56Ø) PART NO. NICKEL PLATED 605300201 .170 (4,32) NICKEL PLATED ACROSS FLATS 15/32-32 NS BLIND THREAD PART NO. .120 (3,05) 895101201 NICKEL PLATED 895101A30 BLACK PART NO. 709903201 709903A30 NICKEL PLATED BLACK MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service center. Third Angle Projection Dimensions are shown: IN (mm) Dimensions subject to change O-2 www.ck-components.com Hardware KNURLED NUTS Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Toggles: 7000, 9000, E & T Series Pushbuttons: 8020, 8060, 8500, E010 & TP Series .312 DIA. (7,92ø) .300 DIA. (7,62Ø) 1/4-40 UNS 1/4-40 UNS Controlled Knurl .080 (2,03) PART NO. 778000201 778000A30 .100 (2,54) PART NO. 778600201 778600A30 NICKEL PLATED BLACK Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Fits Gulmite #12 Socket & Wrench 8942-02-201 NICKEL PLATED BLACK Toggles: 7000 & 9000 Series Pushbuttons: 8500 Series Will not fit T, T1, TP & T1P Toggles .273 DIA. HOLE .362 DIA. (9,19Ø) .638 DIA. (16,21Ø) 1/4-40 UNS 15/32-32 NS BLIND THREAD Controlled Knurl .062 (1,57) PART NO. 796901201 796901A30 PART NO. 471300201 471300A30 NICKEL PLATED BLACK NICKEL PLATED BLACK .174 (4,42) Toggles: 7000 Series Pushbuttons: 8020 & 8060 Series (7,9Ø) M6P .75 THD. Controlled Knurl PART NO. 483200201 NICKEL PLATED MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service center. LOCKING RINGS Toggles: T Series Pushbuttons: TP Series Fits 10-48 Bushing .435 DIA. (11,05Ø) Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Rotary: M Series Fits 1/4-40 Bushing .029 (0,74) .468 DIA. (11,89) .029 (0,74) .065 (1,65) .065 (1,65) 465000201 NICKEL PLATED WITH FLAT 700701201 700701A30 TYPICAL ASSEMBLY WITH LOCKING RING NOTE: We recommend that locknut always be used with non-flanged bushings. PART NO. PART NO. PANEL MOUNT ASSEMBLY NICKEL PLATED WITH KEYWAY BLACK WITH KEYWAY CAUTION: To avoid damaging panel front, always tighten locknut at back of panel. Overtightening mounting nut may cause K2-K12 actuators to bind. MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service Center. Third Angle Projection Dimensions are shown: IN (mm) Dimensions subject to change O-3 www.ck-components.com Additional Hardware Information (2,0) O Hardware LOCKING RINGS Toggles: T Series Pushbuttons: TP Series Fits 10-48 Bushing Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Rotary: M Series Fits 1/4-40 Bushing .435 DIA. (11,05Ø) .343 DIA. (8,71Ø) .029 (0,74) .029 (0,74) .082 (2,08) .065 (1,65) PART NO. PART NO. 465101201 753700201 753700A30 NICKEL PLATED WITH KEYWAY NICKEL PLATED WITH KEYWAY BLACK WITH KEYWAY Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Rotary: M Series Fits 1/4-40 Bushing Toggles: 7000 & 9000 Series Pushbuttons: 8500 Series Fits 15/32 Bushing .718 DIA. (18,24Ø) .040 (1,02) .468 DIA. (11,89Ø) .029 (0,74) .065 (1,65) .090 (2,29) PART NO. PART NO. 707200201 707200A30 757200201 757200A30 NICKEL PLATED WITH KEYWAY BLACK WITH KEYWAY Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series Rotary: M Series Fits 1/4-40 Bushing Toggles: 7000 Series Pushbuttons: 8020 & 8060 Series Fits M6P2 Metric Bushing Additional Hardware Information NICKEL PLATED WITH FLAT BLACK WITH FLAT .472 DIA. (11,99Ø) .034 (0,86) .343 DIA. (8,71Ø) .029 (0,74) .082 (2,08) .065 (1,65) PART NO. PART NO. 791800201 791800A30 757300201 757300A30 NICKEL PLATED WITH KEYWAY BLACK WITH KEYWAY NICKEL PLATED WITH FLAT BLACK WITH FLAT MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service Center. LOCKWASHERS Toggles: T Series Pushbuttons: TP Series Fits 10-48 Bushing Toggles: 7000 & 9000 Series Pushbuttons: 8500 Series Fits 15/32 Bushing .593 (15,06) .310 (7,87) .018 THK. (0,46) O .021 THK. (0,53) PART NO. PART NO. 465200202 700302202 700302A30 NICKEL PLATED NICKEL PLATED BLACK MATERIAL Steel, nickel plated standard. Other finishes available, consult Customer Service Center. Third Angle Projection Dimensions are shown: IN (mm) Dimensions subject to change O-4 www.ck-components.com Hardware LOCKWASHERS Toggles: 7000, 9000, E & T Series Pushbuttons: 8020, 8060, 8500, E010 & TP Series Fits 1/4-40 Bushing Switchlocks: A, BY, H, W, Y & YL Series Fits 3/4 Dia. Bushing .402 (10,21) .018 THK. (0,46) PART NO. 700303202 700303A30 PART NO. NICKEL PLATED BLACK 175050200 ZINC PLATED Pushbutton: 8700 Series Rotary: F Series Fits 5/16 Dia. Thread Rotary: A & RTA Series Fits 3/8 Dia. Thread M10 X .75 metric PART NO. PART NO. 472800202 135A00000 ZiINC PLATED NICKEL PLATED MATERIAL Steel, nickel plated standard. Other finishes available, consult Customer Service Center. MOUNTING NUTS Toggles: T Series Pushbuttons: TP Series Rotary: M Series .324 (8,23) .253 (6,43) .219 (5,56) .281 (7,14) 8-40 UNS .355 (9,02) 10-48 UNS 1/4-28 UNS .307 (7,80) .062 (1,57) .047 (1,19) PART NO. 775200201 775200A30 PART NO. 464900201 464900A30 NICKEL PLATED BLACK Toggles: E Series Pushbuttons: E010 Series 477100201 Toggles: 7000, 9000 & T Series Pushbuttons: 8020, 8060, 8500 & TP Series .359 (9,12) .307 (7,80) PART NO. NICKEL PLATED BLACK Toggles: 7000 & 9000 Series Pushbuttons: 8500 Series .307 (7,80) .093 (2,36) 1/4-40 UNS 15/32-32 NS .062 (1,57) PART NO. PART NO. PART NO. 540400201 540400A30 NICKEL PLATED BLACK .650 (16,51) .563 (14,30) .355 (9,02) 1/4-40 UNS NICKEL PLATED 700201201 700201A30 NICKEL PLATED BLACK 707100201 707100215 707100A30 O .078 (1,98) NICKEL PLATED SATIN CHROME BLACK MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service Center. Third Angle Projection Dimensions are shown: IN (mm) Dimensions subject to change O-5 Additional Hardware Information Pushbuttons: 8600 Series www.ck-components.com Hardware MOUNTING NUTS Toggles: 7000 Series Pushbuttons: 8020 & 8060 Series Switchlocks: A, BY, H, P, W, Y & YL Series Rotary: A & RTA Series PART NO. PART NO. 175050700 472706201 (10,4) (9,0) M6P .75 THD. (1,6) PART NO. 791600201 791600A30 NICKEL PLATED BLACK Rotary: H & R Series Rotary: A & RTA Series Rotary: F Series PART NO. PART NO. PART NO. 495100201 925C00000 175020201 ZINC, YELLOW TRIVALENT CHROMIUM NICKEL PLATED Switchlocks: YM Series Additional Hardware Information NICKEL PLATED ZINC PLATE NICKEL PLATED Pushbutton: 8700 Series PART NO. PART NO. 179090A47 281B00201 ZINC PLATED, CLEAR TRIVALENT CHROMIUM NICKEL PLATED MATERIAL Brass, nickel plated standard. Other finishes available, consult Customer Service Center. WRENCHES PART NO. PART NO. 778500201 894200201 Fits Nut Part Numbers 7002XXXXX, 7099XXXXX 7807XXXXX, 7916XXXXX Fits Nut Part Number 7969XXXXX O Third Angle Projection Dimensions are shown: IN (mm) Dimensions subject to change O-6 www.ck-components.com
