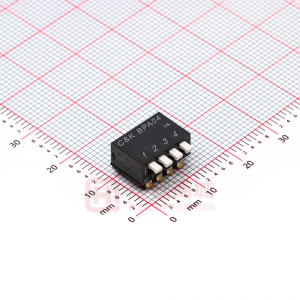

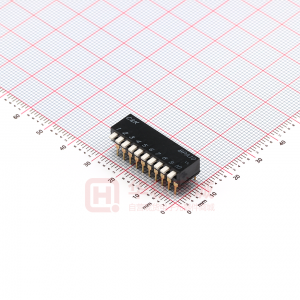

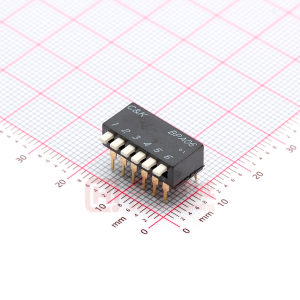

BPA Series Side Actuated DIP Switches Features/Benefits • Side actuated contacts • Available in thru-hole or Typical Applications • Address switch for industrial controls • Logic switching for computers and peripherals H DIP SMT models • High pressure contact system does not require tape seal for washing • Function controlling for numerous applications • RoHS compliant & compatible Specifications SWITCH FUNCTION: 1 thru 10 position available. CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max. @ 24 V DC. MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min. @ 5 V DC 10mA. CONTACT RESISTANCE: 50 milliohms initial max. INSULATION RESISTANCE: 100 V DC 100 megohms min. DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute. STORAGE TEMPERATURE: -40°C to 85°C. OPERATING TEMPERATURE: -20°C to 85°C. OPERATING FORCE: 800 grams max. SOLDERABILITY: Flow solderable and washable (soldering: 260°C for 10 sec. max.) PACKAGING: Switches supplied in rigid dispensing tubes in fulltube quantities only, this may affect order quantity. Numbers of switches per tube varies with model. Tape and reel packaging available for SMT options. Materials HOUSING: PPS, color black (UL94V-0). COVER: PPS, color black (UL94V-0). ACTUATOR: PA-6T UL94V-0). CONTACTS: Beryllium Copper with Gold over Nickel plate. TERMINALS: Brass, Gold over Nickel plate. Note: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. How To Order Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box. All switches supplied in “OFF” position. BPA Model BPA01 BPA02 BPA03 BPA04 BPA05 BPA06 BPA07 BPA08 BPA09 BPA10 1 position 2 positions 3 positions 4 positions 5 positions 6 positions 7 positions 8 positions 9 positions 10 positions B On Position NONE Down R Up Terminations NONE PC S Surface Mount Contact material B BeCu, Gold over nickel plate Packaging NONE Tube R Tape and Reel (Surface Mount only) Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–16 H-16 www.ck-components.com BPA Series Side Actuated DIP Switches Side Actuator – Thru-hole Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 DIM. ‘A’ .176 (4,48) .276 (7,0) .376 (9,6) .476 (12,1) .575 (14,6) .677 (17,2) .776 (19,7) .878 (22,3) .976 (24,8) 1.075 (27,3) DIM. ‘B’ N/A .100 (2,54) .200 (5,08) .300 (7,62) .400 (10,16) .500 (12,70)) .600 (15,24) .700 (17,78) .800 (20,32) .900 (22,56) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 1 2 3 4 5 6 7 8 BPA01B BPA02B BPA03B BPA04B BPA05B BPA06B BPA07B BPA08B BPA09B BPA10B Schematic H DIP BPA08B C&K BPA08 5B “B” 15 0.055 (1,4) “A” “B” 0.100 (2,54) 0.100 (2,54) PITCH 0.321 (8,15) 0.173 (4,4) 0.300 (7,6) +.008 ø0.032 -.000 (0,8+0,2/-0) 0.083 (2,1) 0.029 (0,75) SPST NOTE: Reverse throw available, contact C&K for P/N and quote. 0.236 0.051 (6,0) (1,3) ON 1 2 3 4 5 6 7 8 250 0.039 (1,0) 0.157 (4,0) 0.106 (2,7) +.000 0.063 -.008 (1,6+0/-0,2) +.000 0.024 -.004 (0,6+0/-0,2) 0.299/0.343 (7,6/8,7) 0.010 (0,25) Side Actuator – Surface Mount Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 C&K BPA08 5B 0.325 (8,26) 0.410 MIN. (10,41) DIM “B” DIM. ‘A’ .176 (4,48) .276 (7,0) .376 (9,6) .476 (12,1) .575 (14,6) .677 (17,2) .776 (19,7) .878 (22,3) .976 (24,8) 1.075 (27,3) DIM. ‘B’ N/A .100 (2,54) .200 (5,08) .300 (7,62) .400 (10,16) .500 (12,70)) .600 (15,24) .700 (17,78) .800 (20,32) .900 (22,56) BPA01SB BPA02SB BPA03SB BPA04SB BPA05SB BPA06SB BPA07SB BPA08SB BPA09SB BPA10SB Schematic BPA08SB SPST 1 2 3 4 5 6 7 8 NOTE: Tape and reel packaging available by adding “R” to end of project number. 0.055 (1,4) “A” “B” 0.100 (2,54) PITCH 0.100 (2,54) 0.060 MIN. (1,52) 0.321 (8,15) 0.173 (4,4) 0.083 (2,1) 0.029 (0,75) 0.236 (6,0) ON 1 2 3 4 5 6 7 8 250 0.010 (0,25) 0.039 (1,0) 0.033/0.041 (0,85/1,04) +.000 0.063 -.008 (1,6+0/-0,2) +.000 0.024 -.004 (0,6+0/-0,1) 0.031 (0,8) 0.366 (9,3) 0.031 (0,8) Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–17 www.ck-components.com BPA Series Side Actuated DIP Switches Tape & Reel Packaging – Surface Mount Options Only FEED DIRECTION QTY/ REEL POLES 1 2 3 4 5 6 7 8 9 10 DIM. ‘A’ .453 .453 .453 .453 .453 .559 .559 .795 .795 .795 (11,5) (11,5) (11,5) (11,5) (11,5) (14,2) (14,2) (20,2) (20,2) (20,2) DIM. ‘B’ –– –– –– –– –– 1.118 (28,4) 1.118 (28,4) 1.590 (40,4) 1.590 (40,4) 1.590 (40,4) DIM. ‘C’ .945 (24,0) .945 (24,0) .945 (24,0) .945 (24,0) .945 (24,0) 1.260 (32,0) 1.260 (32,0) 1.732 (44,0) 1.732 (44,0) 1.732 (44,0) DIM. ‘D’ .530 (13,45) .311 (7,9) .409 (10,4) .508 (12,9) .606 (15,4) .709 (18,0) .807 (20,5) .894 (22,7) 1.004 (25,5) 1.106 (28,1) DIM. ‘E’ .960 (24,4) .960 (24,4) .960 (24,4) .960 (24,4) .960 (24,4) 1.275 (32,4) 1.275 (32,4) 1.748 (44,4) 1.748 (44,4) 1.748 (44,4) 1 Position Ø.012 (0,30) MAX. 0.079 (2,00) 0.157 (4,0) Ø 0.059 (Ø 1,50) 0.069 (1,75) 30 MAX DIM 'A' BPA01 H DIP 1000 500 500 500 500 500 500 500 500 500 DIM 'C' DIM 'D' Note: For tape and reel packaging, add ‘R’ to end of part number. 0.360 0.209 (5,3) 400 .079 (2,00) DIM. 'E' .079 (2,00) 3x 1200 2 x .079 (2P-7P) (2 x 2.0) 2 x .118 (8P-10P) (2 x 3.0) 0.098 (2,5) 30 MAX 0.315 (8,0) ø.827 ø(21,0) 2, 3, 4 & 5 Positions 13.0 (330) 3.937 (100,0) .157 (4,00) FEED DIRECTION .079 (2,00) ø.512 ø(13,0) ø7.48 ø(190,0) Ø.059 (1,50) .069 (1,75) DIM. 'A' DIM. 'C' 30 MAX. DIM 'D' Ø.012 (0,30) MAX. 1234 .630 (16,0) .450 (11,5) 30 MAX. 0.020 (0,5) Tube Packaging MARKING LABEL ON END OF TUBE Ø.012 (0,30) MAX. .315 (8,00) 0.079 (2,0) 0.276 ± .008 (7,0 ± 0,2) 0.071 (1,8) 0.512 (13,0) 19.68 ± 0.04 (500,0 ± 1,0) 6, 7, 8, 9 & 10 Positions FEED DIRECTION 0.020 (0,5) 0.177 0.256 (4,5) (6,5) 0.512 (13,0) .079 (2,00) .157 (4,00) Ø.059 (1,50) .069 (1,75) 3 MAX. DIM. 'C' DIM 'D' DIM. 'B' 0 Ø.012 (0,30) MAX. 1234 5 6 78 0.197 (5,0) 0.433 (11,0) 0.020 MAX. (0,5) TYP 0.079 REF. (2,0) DIM. 'A' SEE DETAIL A .630 (16,0) .450 (11,5) 30 MAX. 0.020 (0,5) .315 (8,00) Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–18 www.ck-components.com
