DA Series
Miniature Single Pole Rocker Switches
Typical Applications
• Small appliances
• Computers and peripherals
• Medical instrumentation
Features/Benefits
• Nice actuator styling with
multiple options
• Guards to prevent accidental
actuation
• Momentary and maintained functions
• IP65 splash proof rubber boot option
• RoHS compliant
UL 61058-1
Specifications
Materials
CONTACT RATING:
16 AMPS @ 125 VAC, 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP.
10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108 Ω min.
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
NOTE: Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G-57 through G-59. For additional options not shown in catalog, consult Customer Service Center.
Switch

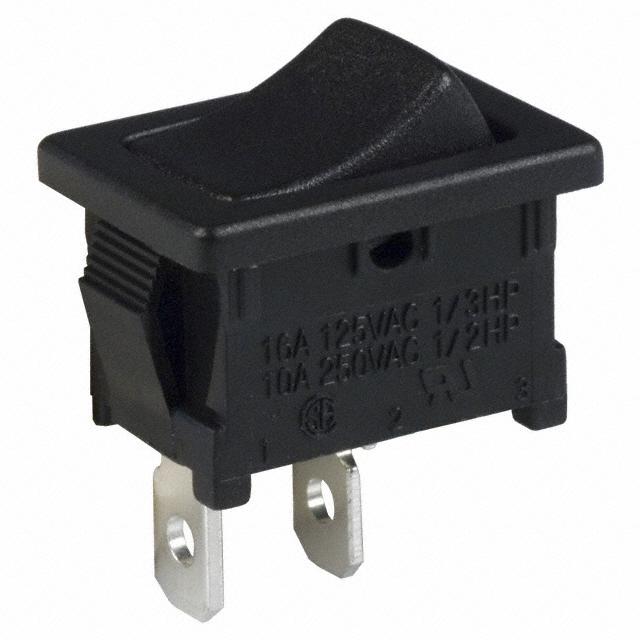

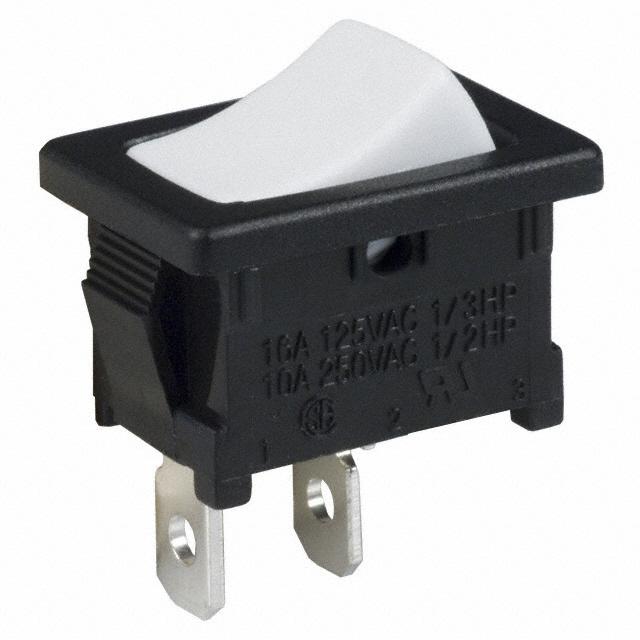

DA101
DA102
DA103
Function
SPDT On-None-On
SPST On-None-Off
SPDT On-Off-On
* Actuator “J3” illuminated switches are
not available with actuator markings
Rocker
** Actuator “J3”, “J4” and “J5” are not
available with Termination option “17”
solder lug
Actuator
Rocker
J1
J2
Two-tone rocker
*, **J3 Illuminated rocker
** J4 Circle, illuminated rocker
** J5 Oval, illuminated rocker
Actuator Color
1-5 See Chart on Page G-59
*R Red, illuminated
*A Amber, illuminated
*G Green, illuminated
Mounting Style/Color
S2 Snap-in, black
S1 Snap-in, white
B2 Recessed snap-in bracket, black
G2 Guard, black
Termination
15 .187” quick connect
17 Solder lug
02 Thru-hole
A Right angle Actuator Marking
(NONE) No marking
D ON-OFF
H ”O l” - international ON-OFF
N Large dot
P ”O -” international ON-OFF
Contact Rating
QF Silver
Lamp Rating
(NONE) No lamp
6 LED
7 125 VAC neon
8 250 VAC neon
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G
G–56
www.ck-components.com
DA Series
Miniature Single Pole Rocker Switches
SWITCH FUNCTION
CONNECTED TERMINALS
SWITCH FUNCTION
NO.
POLES
SP
C&K marking on opposite side
C&K marking on opposite side
MODEL NO.
DA101
ON
NONE
ON
DA102
ON
NONE
OFF
2-3
SCHEMATIC
OR
OR
2-1
N/A
For 7 & 8
For Illuminated
Illuminated Versions
Version
Only
+
DA103
ON
OFF
–
For 6 Illuminated
Versions Only
ON
Shown in Pos. 1
ACTUATOR
J1 ROCKER
*J3 ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
Bottom
.142
(3,6)
* J3 actuator not available with markings or Termination option “17” solder lug
.389
(9,88)
NOTE:
1. Available with DA102 switch function only.
2. Available with None or P actuator marking options only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–57
www.ck-components.com
Rocker
NOTE: J3 actuator available with DA102 switch functions, 7&8 lamp ratings and not
available with O2 and A termination options.
Top
G
DA Series
Miniature Single Pole Rocker Switches
ACTUATOR
J4
J5
CIRCLE, ILLUMINATED ROCKER
OVAL, ILLUMINATED ROCKER
.389
(9,88)
.142
(3,6)
.389
(9,88)
.142
(3,6)
NOTE: Available with DA102 switch function and
6 lamp rating combinations only. Not available with O2 and A termination options.
* J5 actuator not available with Termination option “17” solder lug
NOTE: Available with DA102 switch function and
7 & 8 lamp ratings combinations only. Not available with O2 and A termination options.
* J4 actuator not available with Termination option “17” solder lug
ACTUATOR COLOR
OPTION
CODE
J1only
J3, J4,
J5 only
2
1
3
R
A
G
ACTUATOR
COLOR
OPTION
CODE
BLACK
WHITE
1
2
3
4
5
J2
only
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
RED
WHITE
BLACK
RED
WHITE
BLACK
WHTE
BLACK
RED
Bottom
Top
.142
(3,6)
.389
(9,88)
MOUNTING STYLE/COLOR
S2
S1
G2
SNAP-IN, BLACK
GUARD, BLACK
SNAP-IN, WHITE
S2, S1 & G2 PANEL MOUNTING
.350
(8,89)
.940
(23,88)
.700
(17,78)
1.064
(27,03)
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
0.756-.004 (19,2-0,1)
0.764-.004 (19,4-0,1)
0.779-.004 (19,8-0,1)
“Y”
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
NOTE: Available with DA10X switch functions only.
Actuator shown in Pos. 1
B2
.080
(2,03)
Rocker
B2 PANEL MOUNTING
RECESSED SNAP-IN BRACKET, BLACK
1.200
(30,48)
.820
(20,83)
1.244
(31,60)
PANEL THICKNESS
0.030-0.049 (0,75-0,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“Y”
1.068 (27,13)
1.076 (27,33)
1.092 (27,74)
NOTE: Available with DA10X switch functions only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G
G–58
www.ck-components.com
DA Series
Miniature Single Pole Rocker Switches
TERMINATION
15
17
.187” QUICK CONNECT
SOLDER LUG
0.870±.020
(22,10±0,5)
0.079
(2,0)
0.071
(1,8)
0.039
(1,00)
0.161
(4,1)
For switches with LED option
02*
A*
THRU-HOLE
RIGHT ANGLE
* NOTE - O2 and A termination options not offered with J3, J4 or J5 actuator options.
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
N
Ol
LARGE DOT
P
O-
All models shown in Pos. 1
NOTE: Orientation of actuator marking and terminals.
Markings not available with J3 actuator
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
QF
SILVER
RATINGS
16 AMPS @ 125 VAC; 1/3 HP; 10 AMPS @ 250 VAC; 1/2
POWER
10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
ACCESSORIES
LAMP RATING
216C00000
.748
(19,0)
IP65 SPLASH PROOF RUBBER BOOT
.551
(14,0)
.787
(20,0)
.957
(24,3)
.142
(3,6)
.295
(7,5)
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–59
Rocker
(NONE) NO LAMP
6 LED RATING @ 10 mA Vf=1.85V
7 125 VAC 33kΩ NEON
8 250 VAC 150kΩ NEON
