ES Series Sealed Tiny Slide Switches
Features/Benefits • Process compatible—internal
o-ring and epoxy base seal
Typical Applications • Computer peripherals &
network products
• Thru-hole & surface mount models • Reliable contact design ensures
long electrical life
• Test & measurement equipment • Telephone & cable modems
• Robust actuator for easy actuation • RoHS compliant
Patent No. 6,008,458
I Slide
Specifications
CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max. MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break cycles at full load. CONTACT RESISTANCE: 50 m Ω max. initial @ 2-4 V DC, 100 mA. INSULATION RESISTANCE: 109 Ω min. DIELECTRIC STRENGTH: 500 Vrms min. OPERATING TEMPERATURE: –30ºC to 85ºC. SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E method 9. DEGREE OF PROTECTION: IP57; Protection against harmful dust deposit, full-scale voltage protection, temporary immersion. ESD ENDURANCE: 8kv min. (EIA 545). PACKAGING: Thru-hole switches supplied in anti-static trays. Surface mount switches available in tape and reel packaging.
Materials
HOUSING & BASE: Nylon (UL 94V-0). ACTUATOR: LCP (UL 94V-0) black, standard. SURFACE PLATE: Stainless steel with tin plate. MOVABLE CONTACT: Bronze with gold plate over nickel plate. STATIONARY CONTACTS: Copper alloy, with gold plate over nickel plate. TERMINALS: Copper alloy, with gold over nickel plate. All terminals insert molded. BASE & TERMINAL SEAL: Epoxy.
NOTE: All models RoHS compliant and compatible with all options. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center.
How To Order
Complete part numbers for ES Series Sealed Tiny Slide Switches are shown on pages I-5 through I-7. These unique tiny slide switches are process compatible. An internal o-ring and epoxy base seal protects the switch from wave and reflow soldering, as well as cleaning processes.
PC MOUNTING
SWITCH FUNCTION POS. 1 POS. 2 POS. 3 PART NUMBER
ES01MCBE ES03MCBE
CONN. TERMINALS SCHEMATIC
ON ON 2-3
NONE OFF OPEN
ON ON 2-1
ES01MCBE
ES02 Models: omit hole 2.
SPDT
SPDT
ES02MCBE
CONN. TERMINALS SCHEMATIC
OFF OPEN
NONE N/A
ON 3-1
ES02 Models: omit terminal 2.
SPST
Dimensions are shown: Inch (mm) Specifications and dimensions subject to change
I–4
www.ck-components.com
ES Series Sealed Tiny Slide Switches
PC MOUNTING
SWITCH FUNCTION POS. 1 POS. 2 POS. 3 PART NUMBER
ES21MCBE
ES02 Models: omit holes 2 & 5.
ON ON 2-3, 5-6
NONE OFF OPEN
ON ON 2-1, 5-4
ES23MCBE
CONN. TERMINALS SCHEMATIC
ES21MCBE
DPDT
DPDT
I
OFF OPEN NONE N/A ON
ES22MCBE
CONN. TERMINALS
ES02 Models: omit terminals 2 & 5.
Slide
3-1, 6-4
SCHEMATIC
DPST
PC MOUNTING
SWITCH FUNCTION POS. 1 POS. 2 POS. 3 PART NUMBER
ES21MABE ES23MABE
CONN. TERMINALS SCHEMATIC
ES02 Models: omit holes 2 & 5.
ON ON 2-3, 5-6
NONE OFF OPEN
ON ON 2-1, 5-4
ES21MABE
DPDT
DPDT
ES22MABE
CONN. TERMINALS SCHEMATIC
OFF OPEN
NONE N/A
ON 3-1
DPST
ES22 Models: omit terminals 2 & 5.
Dimensions are shown: Inches (mm) Specifications and dimensions subject to change
I–5
www.ck-components.com

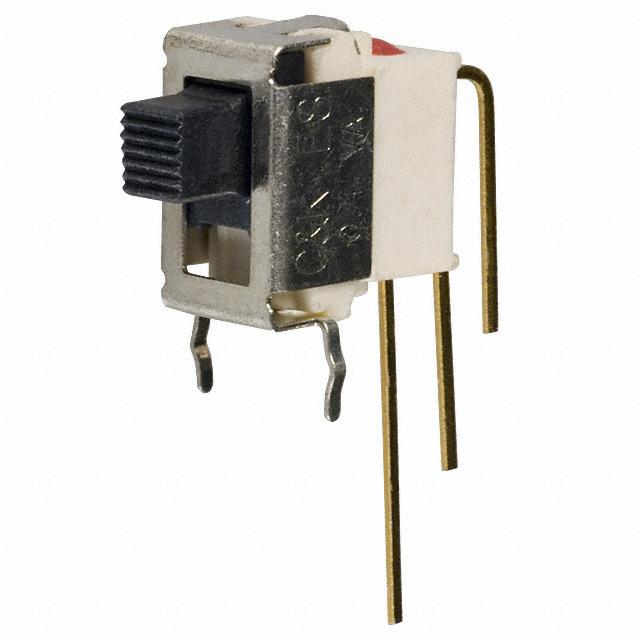

ES Series Sealed Tiny Slide Switches
PC MOUNTING
SWITCH FUNCTION POS. 1 POS. 2 POS. 3 PART NUMBER
ES01MAVBE ES03MAVBE
CONN. TERMINALS
ON ON 2-3
NONE OFF OPEN
ON ON 2-1
ES02 Models: omit hole 2.
I Slide
SCHEMATIC
ES01MAVBE
SPDT
ES02 Models: omit terminal 2.
PC MOUNTING
SWITCH FUNCTION POS. 1 POS. 2 POS. 3 PART NUMBER
SMT
ES01MSABE ES03MSABE
CONN. TERMINALS SCHEMATIC
ON ON 2-3
NONE OFF OPEN
ON ON 2-1
ES02 Models: omit pad 2.
ES01MSABE Horizontal Actuation
SPDT
SPDT
OFF OPEN NONE N/A ON 3-1
ES02MSABE
CONN. TERMINALS SCHEMATIC
SPST
ES02 Models: omit terminal 2.
Dimensions are shown: Inch (mm) Specifications and dimensions subject to change
I–6
www.ck-components.com
ES Series Sealed Tiny Slide Switches
TAPE & REEL
For part numbers ESXXMSABE
REEL INFORMATION OUTSIDE DIAMETER PILOT HOLE QUANTITY PER REEL 13.00 (330,0) .512 (13,0)
I Slide
300
Dimensions are shown: Inches (mm) Specifications and dimensions subject to change
I–7
www.ck-components.com
