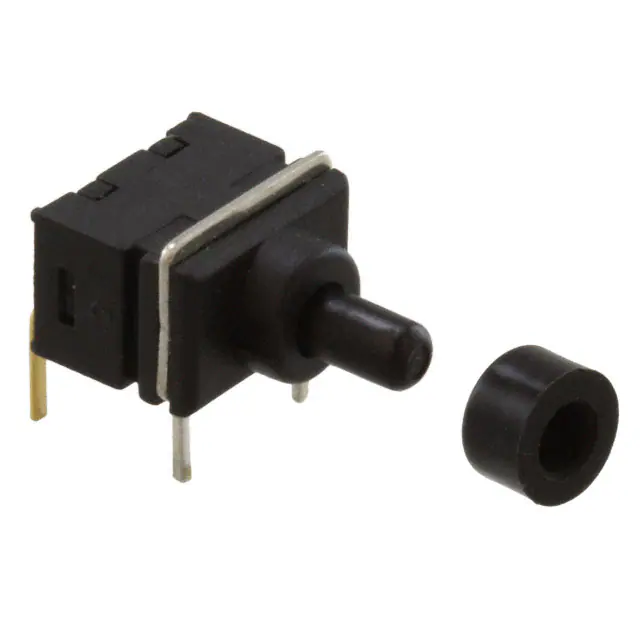

FP11SPA1B1TP02

FP Series Sealed Ultra Miniature Pushbutton Switches Typical Applications • Networking equipment • High-end consumer • Professional instrumentation • Computer, Server, Modem & A Pushbutton Features/Benefits • Ultra-miniature pushbutton • Multiple poles and throws • Long life 100,000 cycles • Vertical and right angle mount • Sealed against soldering and cleaning Data storage processes • O  ptional caps • RoHS compliant Specifications Materials CONTACT RATING: Max. 0.4 VA (28 V DC or V AC) MOVABLE CONTACTS: ELECTRICAL LIFE: 50,000 cycles (FP11 & FP21) Base metal: Phosphor bronze Plating: Gold over nickel plate 10,000 cycles (FP12 & FP22) CONTACT RESISTANCE: (10mA @ 2 V DC) 80 mΩ max. initial FIXED CONTACTS: INSULATION RESISTANCE: 500MΩ min. @ 500 V DC - 1 minute Base metal: Brass OPERATING TEMPERATURE: –20ºC to 80ºC Plating: Gold over nickel plate SOLDERABILITY: Per MIL-STD-202F method 208D, or COVER: PA66 - Black EIA RS-186E method 9 ACTUATOR: PPS - Black PACKAGING: BASE: PPS - Black Tray pack - 25 pcs per tray (A1 type terminal) SUPPORT BRACKET: Steel with tin plate - 100 pcs per tray (C1 type terminal) Caps (optional) - Bulk bag; 100 caps per bag. (A1 type terminal only) . NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. Build-A-Switch To order, simply select desired option from each category and place in the appropriate box. Available options are shown and described on pages A-106 thru A-107. For additional options not shown in catalog, consult Customer Service Center. F P S P B 1 T P Designation FP11 SPST N.O. FP12 SPDT N.O. FP21 DPST N.O. FP22 DPDT N.O. Actuator Length SP Standard plunger 3.3mm Terminal Style C1 Vertical A1 Right Angle Contact Plating B1 Gold over nickel plate Packaging TP Tray packaging Cap 00 01 02 03 No cap White cap - bulk bagged Black cap - bulk bagged Red cap - bulk bagged Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 13 Mar 20 A-105 www.ckswitches.com FP Series Sealed Ultra Miniature Pushbutton Switches SWITCH CIRCUIT A Pushbutton SWITCH FUNCTION POS. 1 POS. 2 SCHEMATIC MODEL NO. CIRCUIT OFF SPST FP11 MOM CONNECTED TERMINALS OPEN ON FP12 SPDT DPST FP21 MOM CONNECTED TERMINALS 2-3 2-1 OFF MOM ON FP22 3 NC 2 (COMMON) 1 NO CONNECTED TERMINALS 1 OPEN 1-3,4-6 DPDT 3 1 1-3 MOM CONNECTED TERMINALS 2-3,5-6 3 2 (COMMON) 5 (COMMON) 2-1,5-4 6 4 3 NC 1 NO 6 NC 4 NO TERMINAL STYLE C1  VERTICAL A1  RIGHT ANGLE 7 0.3 7 1 0.3 1 4.5 0.5 2 5.08 1 STROKE 1 STROKE 2 3.3 KEY WAY 4 KEY WAY 4X 3.3 1.6 0.6 4 1.6 10.5 EPOXY BOTH SIDES EPOXY BOTH SIDES 2.54 5.08 (1) 5.6 5.6 0.2 (4) 2.4 0.3 0.2 0.45 MOUNTING HOLE PATTERN 0.45 2.54 2.54 EPOXY SEAL 5.08 2.54 (3) (1) 7 5.08 1 0.3 2.6 MOU 4.5 5 TERMINAL NO TERMINAL NUMBER (3) (4) (6) (4) AND (6) ARE SUPPORT TERMINALS (1) EPOXY SEAL Third Angle Projection Dimensions are shown: mm Specifications and dimensions subject to change 13 Mar 20 A-106 5.08 www.ckswitches.com FP Series Sealed Ultra Miniature Pushbutton Switches ACTUATOR LENGTH 3.3MM Pushbutton SP  STANDARD PLUNGER A 3.3 CAPS OPTION CODE 00 01 02 03 DESCRIPTION To purchase Caps separately without switch, please use these part numbers 4±0.3 NO CAP 0.4 WHITE CAP, BULK BAGGED BLACK CAP, BULK BAGGED 2.4 ±0.3 1.9 ±0.3 RED CAP, BULK BAGGED 0.8 1.95 .2x45° CHAMFER PART # COLOR 798D01000 WHITE 798D02000 BLACK 798D03000 RED MOUNTING HOLE A1  RIGHT ANGLE C1  VERTICAL FP11  5.08 4X 5.08 0.6 2.54 FP12  5X 0.6 0.6 5.08 2.54 2.54 5X 0.6 5.08 5.08 2.54 6X 4X 2.54 2.54 2.54 FP21  5.08 0.6 5.08 0.6 2.54 FP22  2.54 2.54 8X 0.6 5.08 2.54 2.54 Third Angle Projection 2.54 13 Mar 20 A-107 2.54 Dimensions are shown: mm Specifications and dimensions subject to change www.ckswitches.com
