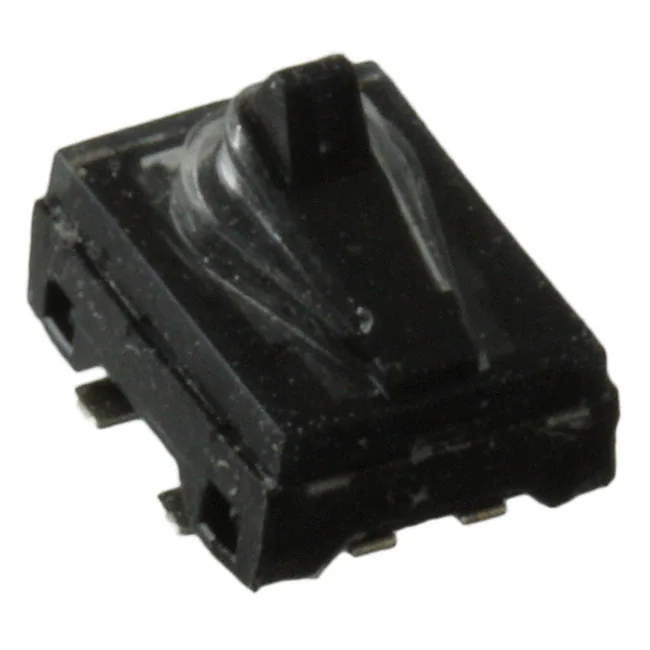

JCH1AQNPR

REVISIONS 4.7 (0.3) 2X 1.7 (1.4) ECN SYM 12004 A A DATE APPROVAL DESCRIPTION 2/7/13 RELEASED TO PRODUCTION JT 0.6 1 2 1 2 R1.2 (2.3) 4.2 JCH1AQNPR 3 3 2 3 4 (4.7) 3.8 R0.8 1 4 SCALE 6:1 SCHEMATIC 4 (1.4) (0.3) SURFACE MOUNT LAYOUT (1.85) (0.64) 0.8 R0.2 TEMPERATURE C 2.5 OVER TRAVEL A (2.05) 2.02 3.8 3.5 OPER POS. FREE POS. REV. 2.25 260 230 180 2.9 RECOMMENDED STROKE NOTES: 1. TERMINAL NUMBERS FOR REFERENCE ONLY 2. MECHANICAL/ELECTRICAL LIFE: 100,000 CYCLES MIN 3. OPERATING TEMPERATURE: -20ºC TO +70ºC STORAGE TEMPERATURE: -30ºC TO +80ºC 4. OPERATING FORCE: 65 gf MAX 5. ELECTRICAL RATING: 1mA - 5VDC MAX (INITIAL) 6. CONTACT RESISTANCE: 1 AT 500VDC/MINUTE 7. INSULATION RESISTANCE: 100 M 8. DIELECTRIC STRENGTH: 500VAC FOR 1 MIN 9. PACKAGING: TAPE AND REEL SEE PAGE 2 10. THIS PART IS RoHS COMPLIANT AND MEETS ALL REQUIREMENTS OF ROHS DIRECTIVE 2002/95/EC. 90 30s 30 +10 S 0 TIME (S) CAD FILE NO.: ALL DIMS. AND TOLS. PER ANSI Y14.5 JCH1AQNPR-OL_A UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM TOLERANCES THIS DOCUMENT AND THE INFORMATION IN IT IS THE EXCLUSIVE PROPERTY OF C&K COMPONENTS, INC., AND IS NOT TO BE USED OR DISCLOSED WITHOUT THE EXPRESS WRITTEN PERMISSION OF C&K COMPONENTS. LINEAR 0,2 SCALE CRITICAL - MUST COMPLY WITH C&K QUALIFICATION STD. CKQI0019 MAJOR DIMENSION JCH1AQNPR 150 ANGULAR 2 DATE 10:1 DRAWN Dec-10-12 APPROVED CAB G.BOWMAN OUTLINE DRAWING JCH1AQNPR JCH SERIES COMPONENTS REF NO. N_JCH-SER JCH1AQNPR SHT.NO. 1 OF REV. A 2 REVISIONS ECN 2±0.1 1.5 4±0.1 +0.1 0 SYM A 1.75±0.1 JCH1AQNPR A DATE APPROVAL DESCRIPTION SEE PAGE 1 2.0 0.5 13.0 0.5 21.0 0.8 16 8 0.1 TYP SECTION 50.0 B-B 13 21.0 380.0 17.0 REV. REEL NOT TO SCALE A 7.5 JCH1AQNPR COVER TAPE NOTES: 1. PACKAGE QUANTITY: 2,800 PCS/REEL. 2. THE REEL CARRIER TAPE WILL HAVE A LEAD OF 50 EMPTY COMPONENT POCKETS AND AN END OF 50 EMPTY COMPONENT POCKETS ON EVERY REEL. ALL EMPTY COMPONENT POCKET WILL BE SEALED WITH COVER TAPE. 3. AFTER THE LEAD, NO REEL CARRIER TAPE SHALL HAVE MORE THAN TWO CONSECUTIVE EMPTY COMPONENT POCKETS. CAD FILE NO.: ALL DIMS. AND TOLS. PER ANSI Y14.5 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MM TOLERANCES THIS DOCUMENT AND THE INFORMATION IN IT IS THE EXCLUSIVE PROPERTY OF C&K COMPONENTS, INC., AND IS NOT TO BE USED OR DISCLOSED WITHOUT THE EXPRESS WRITTEN PERMISSION OF C&K COMPONENTS. LINEAR 0,2 SCALE CRITICAL - MUST COMPLY WITH C&K QUALIFICATION STD. CKQI0019 MAJOR DIMENSION JCH1AQNPR-OL_A ANGULAR 1 DATE 10:1 DRAWN Dec-11-12 APPROVED CAB G.BOWMAN OUTLINE DRAWING JCH1AQNPR JCH SERIES COMPONENTS REF NO. N_JCH-SER JCH1AQNPR SHT.NO. 2 OF REV. A 2
