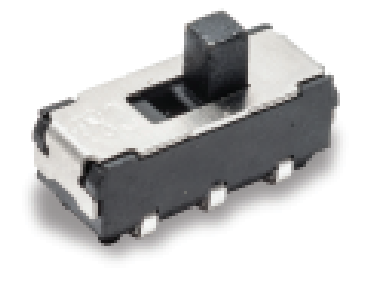

JS Series Sub-Miniature Slide Switches Features/Benefits • Positive detent • Low profile • IR reflow to 260º solder profile • Surface and thru hole mounting • SPDT, DPDT, DP3T models • RoHS compliant Typical Applications • Telecommunication products • Computer peripherals • Thermostat select switch • Instrumentation • Medical I Materials CONTACT RATING: 6 VDC @ 0.3A ELECTRICAL LIFE: 5,000 make-and-break cycles CONTACT RESISTANCE: 70 m Ω max. INSULATION RESISTANCE: 100 M Ω min. @ 500V. DIELECTRIC STRENGTH: 500 VAC min. @ sea level. OPERATING TEMPERATURE: -40ºC to +85ºC STORAGE TEMPERATURE: -40ºC to +85ºC HOUSING: 4/6 nylon (UL94V-2), black. ACTUATOR: 4/6 nylon (UL94V-2), black (some options white). CONTACTS: Copper alloy, silver plated. TERMINALS: Brass, silver plated NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. RIGHT ANGLE, PC THRU-HOLE 2,5 TYP 9,0 3,3 C&K 2,0 PCB MOUNT - HOLE LAYOUT 1,5±0,05 a 2,0 b 6X 0,9 DPDT Shown in position b 1,5±0,05 TRAVEL 4 3,5 C 5 6 6,5 0,6 TYP 1,0 TYP 2,5 TERMINAL No. 1 0,30 2,5 TYP Part Number JS202011AQN 0,35 3,3±0,4 TYP 8,5 1 2 3 C CIRCUIT DIAGRAM C: COMMON PIN Shown in position b Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–49 www.ckswitches.com Slide Specifications JS Series Sub-Miniature Slide Switches RIGHT ANGLE, PC THRU-HOLE 2,0 13,0 3,6 4,0 2,0 3,3 Part Number JS203011AQN C&K 2,0 8X 0,9 PCB MOUNT - HOLE LAYOUT DP3T 1,5±0,05 I c b a TRAVEL 2,0 Slide 2,0 Shown in position b 1,5±0,05 5 6 C 7 8 3 4 3,5 0,6 TYP 2 C 1 2,5 3,0 CIRCUIT DIAGRAM C: COMMON PIN TERMINAL No. 1 0,30 4,0 2,0 2,0 3,3±0,4 TYP Shown in position c 11,6 PC THRU-HOLE 2,0 13,0 c b a 2,0 3,3 3,6 C&K 2,0 2,0 4,0 TRAVEL Part Number JS203011CQN PCB MOUNT - HOLE LAYOUT 8X 0,9 DP3T Shown in position b 1,5±0,05 1,5±0,05 2,0 5 3,5 0,6 TYP 6 C 7 8 2 C 3 4 3,0 TERMINAL No. 1 1 0,30 2,0 4,0 2,0 3,3±0,4 TYP 12,4 CIRCUIT DIAGRAM C: COMMON PIN Shown in position c Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–50 www.ckswitches.com JS Series Sub-Miniature Slide Switches PC THRU-HOLE 9,0 2,5 TYP 3,6 3,3 C&K b a Part Number JS202011CQN 6X 0,9 PCB MOUNT - HOLE LAYOUT DPDT 2 TRAVEL 1,5±0,05 1,5±0,05 I Shown in position a 3,5 0,6 TYP C 5 6 1 2 3 6,5 1,0 TYP TERMINAL No. 1 0,30 0,35 2,5 TYP 4 Slide 2,0 C CIRCUIT DIAGRAM C: COMMON PIN 3,3±0,4 TYP 8,5 Shown in position b SURFACE MOUNT Part number JS202011SCQN Part number JS203011SCQN Shown in position b. Quantity per reel 1000 Quantity per reel 900 Available in tape & reel only, see page I-58 Available in tape & reel only, see page I-60 DP3T DPDT 9,0 2,5 TYP 13 2 C&K 3,6 3,0 1,2 TYP 2,5 a 2,0 b TYP 4 2 2 8,0 3 3,6 TERMINAL No. 1 0,6 TYP 2 4 PCB MOUNT - TOLERANCE ±.002(0,05) 1,2 TYP TERMINAL NO. 1 TRAVEL 1,5±0,05 2 c 1,5±0,05 b a 2 TRAVEL PC MOUNT - TOLERANCE 1,5 ± 0,05 ±.002 [0,05] 1,5 ± 0,05 2,0 2 0,3 TYP 3,5 8,5 4 C 5 0,3 3,5 3,0 7,5 3 6 1 2 3 C CIRCUIT DIAGRAM C: COMMON PIN Shown in position b 5 6 1 2 C 7 8 7,5 C 3 4 CIRCUIT DIAGRAM C: COMMON PIN Shown in position a Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–51 www.ckswitches.com 8 JS Series Sub-Miniature Slide Switches RIGHT ANGLE SURFACE MOUNT 2,5 TYP 0,6 TYP 2,5 TYP 1,2 TYP TERMINAL No. 1 2,50 C&K 3,6 Part Number JS102011SAQN 4,0 SPDT 2,0 0,3 MAX 6,8 1,5±0,05 Shown in position a 2X 0,9 9,0 I Available in tape & reel only, see page I-59 Slide PCB MOUNT - HOLE LAYOUT a b 2,0 TRAVEL 3,5 0,8 3,5 0,3 0,8+0/-0,1 6,8 1 2 3 C CIRCUIT DIAGRAM C: COMMON PIN TYP 3,75 Shown in position b 8,5 PC THRU-HOLE (2) 8,5 3X ø 0,8 3,2 (2) (1) (3) 3,5 C&K 2,5 (1) 2 (3) b a 2,5 PCB LAYOUT RECOMMENDED Part Number JS102011CQN SPDT TRAVEL 1,5 ± 0,1 2 1,5 ± 0,1 45˚ X 0,2 CHAMFER Shown in position a 3,5 S: 1. DIMENSIONS IN (X,XX) PARENTHESIS ARE MILLIMETERS. 3 1 TERMINAL NO. 1 3 3X 0,3 3X 0,5 2,5 C 2 3,2 2,5 SCHEMATIC Shown in position b Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–52 www.ckswitches.com JS Series Sub-Miniature Slide Switches SURFACE MOUNT 1 8,5 (2) 3 Part Number JS102011SCQN 8,00 3,5 C&K SPDT (3) (1) Terminal No. 1 Shown in position a 0,5 2,5 2,5 2,5 b a PCB LAYOUT RECOMMENDED TRAVEL 2 45˚ X 0,2 2X CHAMFER SQ 1,5 ± 0,1 I Slide 2 Available in tape & reel only, see page I-59 2,5 C 2 1 3,5 3 0,30 3 SCHEMATIC Shown in position b 7,5 SURFACE MOUNT NEW 13 2 4 10 2 2 2 4 5 6 C 7 8 Part Number JS207011SCQNR 5.5 8 3.6 2X 0.9 +0.1 0 DP3T 3 4 SHOWN IN POS.b 1.2 TYP TERMINAL NO.1 PC MOUNT - TOLERANCE 2 0.2 TRAVEL 2±0.2 Shown in position b SWITCH FUNCTION POS.c C&K 1.5 0.05 2 POS.b C&K POS.a C&K Available in tape & reel only, see page I-58 (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5±0.25 3.5±0.2 2X .05 1 2 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 2X 0.8 0 0.8 -0.1 0.3 TYP 3 5±0.2 10 7.5 0.125 CHAMFER Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–53 www.ckswitches.com JS Series Sub-Miniature Slide Switches PC THRU-HOLE NEW 10 2 13 4 2 6 5 7 8 3.3 3.6 8X SHOWN IN POS.b 2X 0.9 3 4 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 2 1 0.9 +0.1 0 PC MOUNT - TOLERANCE .05 Part Number JS207011CQNR SWITCH FUNCTION I Slide C 2 0.2 TRAVEL 2 0.2 TRAVEL POS.c C&K 1.5±0.05 2 POS.b C&K (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5 DP3T POS.a C&K Shown in position b 3.5 2X 0.8 3 0.125 CHAMFER 2 TERMINAL NO.1 4 2X 0 0.8 -0.1 0.3 TYP 2 3.3 5±0.2 10 NEW RIGHT ANGLE SURFACE MOUNT 2X 0.9 TYP 6.8 9 Part Number JS102011JAQN SPDT 2 1.6 TYP 3.6 6X 1 2.5 2 C 2.5 1 2 Shown in position 3 PCB LAYOUT RECOMMENDED 1.5±0.5 b a CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 1.5±0.5 2 TRAVEL 3.5 Available in tape & reel only, see page I-59 2.6 TERMINAL NO.1 3.5 0.6 6.8 1.35 2.5 2.5 2X 0.8 0.1 Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–54 www.ckswitches.com JS Series Sub-Miniature Slide Switches VERTICAL MOUNT SMT - J BEND NEW 1.0 TYP 0.8 8.5 4 1 3.6 2.5 C 2 3 Part Number JS102011JCQN 2.5 CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW PCB LAYOUT RECOMMENDED SPDT Available in tape & reel only, see page I-59 2 TRAVEL 1.5 1.5±0.5 I 2 Slide 1.2 3.6 0.6 TYP 2.5 2.5 0.8 TYP 7.9 RIGHT ANGLE SURFACE MOUNT NEW 2X 2.5 2X 2.5 9 0.8 TYP 1 4 TYP 3.5 2X 0.9 2 1.5 C 2 3 Part Number JS202011JAQN 1 TYP 6.8 6 7 C CIRCUIT DIAGRAM C: COMMON PIN 5 PCB LAYOUT RECOMMENDED 2 TRAVEL DPDT Shown in position BOTTOM VIEW Available in tape & reel only, see page I-61 1.5±0.5 3.5 3.6 2.6 2X 2X 0.8 0.8 3.6 3X 0.6 2.5 0.8 (GAP BETWEEN TERMINALS) 2.5 6.8 Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–55 www.ckswitches.com JS Series Sub-Miniature Slide Switches VERTICAL MOUNT SMT - J BEND 2.5 9 NEW 2.5 0.8 TYP 1 4 TYP C 2 3 3.6 1.0 TYP Part Number JS202011JCQN 6 7 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 5 PCB LAYOUT RECOMMENDED DPDT Shown in position 2 I 2 Slide 1.5 0.5 3.5 Available in tape & reel only, see page I-61 3.6 0.6 TERMINAL NO.1 2.5 3.6 0.8 2.5 8.5 NEW RIGHT ANGLE MOUNT SMT - J BEND Part Number JS203011JAQN 13 DP3T 5 6 3.6+0.3 0 C 7 8 Shown in position 2 1 2 1.5±0.05 C Available in tape & reel only, see page I-60 3 4 SCHEMATIC C: COMMON PIN 2 TRAVEL 2 TRAVEL 0.8 1.5±0.05 4 3.5 2 TERMINAL No. 1 3.6 2.65 2 3 4 4 4 8X 0.6 2 8 8X 0.8 2 1.0 TYP 4 2 PCB LAYOUT RECOMMENDED 11.5 Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–56 www.ckswitches.com JS Series Sub-Miniature Slide Switches NEW VERTICAL MOUNT SMT - J BEND 5 6 13 3.6 1 2 2 TRAVEL c 7 8 Part Number JS203011JCQN 3 4 C DP3T Shown in position b SCHEMATIC C: COMMON PIN 2 TRAVEL b C a Available in tape & reel only, see page I-60 Shown in position c 1.5 0.5 2 4 I 2 Slide 5.5 4 3.5 3.6 2 TERMINAL N0.1 1.0 0.6 TYP 4 0.8 3 2 PCB LAYOUT RECOMMENDED 0.8 TYP 12.4 SURFACE MOUNT - J BEND  NEW 13 10 2 4 2 5 6 C 7 8 Part Number JS207011JCQNR 4 3.6 SP3T 3 4 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 1 2 1.0 SHOWN IN POS.b 2X 0.8 0.9 +0.1 0 .05 PC MOUNT - TOLERANCE 2 0.2 TRAVEL 2 0.2 TRAVEL SWITCH FUNCTION POS.c POS.b POS.a C&K C&K C&K (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5 2X 0.8 3.5±0.2 2X 1.5 0.05 Available in tape & reel only, see page I-58 3.6 3 0.8 0 -0.1 0.6 TERMINAL NO.1 2 4 2 0.125 CHAMFER 4X 0.8 (SPACE BETWEEN TERMINALS) 5±0.2 10 Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–57 www.ckswitches.com JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS207011SCQNR, JS207011JCQNR Quantity per reel 800 PACKING DETAIL 800 PCS 30.4 330 13.5 .5 2 .5 21 .8 DETAIL 'A' I Slide REEL 24.4 +.1 1.5 -0 2 4 +2 -0 DETAIL 'A' 8 1.75 C 4.1 (1.5) 11.5 24 .2 13.4 21.5 B B (9) C 4 .02 12 SHOWN IN POS.2 9.4 COVER TAPE POCKET CARRIER TAPE 6 .2 TAPE AND REEL FOR PART NUMBER JS202011SCQN Quantity per reel 1000 24.4 30.4 330 3X 2 0.5 13 21 R1 SEE DETAIL B REEL SCALE 1/4:1 B 2 TYP DETAIL B SCALE 1:1 1.5 TYP 4 TYP 1.75 21 11.5 24±0.2 A 8.7 A 11 SECTION B-B COVER TAPE 12 B 5.7 8 Dimensions are shown: mm Specifications and dimensions subject to change SECTION A-A 12 jun 19 I–58 www.ckswitches.com 12 JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS102011SCQN, JS102011JCQN Quantity per reel 1000 24.4 30.4 330 3X 2 0.5 13 21 3X R1 SEE DETAIL C REEL SCALE 1/4:1 1.5 +0.1 0 2 C DETAIL C SCALE 1:1 1.75 4 B I 0.4 21.5 A 8.9 A COVER TAPE C 7.9 12 B SECTION C-C SECTION B-B CARRIER TAPE SCALE 2:1 5.9 9.14 4.4 1.2 SECTION A-A TAPE AND REEL FOR PART NUMBER JS102011SAQN, JS102011JAQN Quantity per reel 1000 330 18 2.2 21 100 13 SEE DETAIL E 120 REF 22 DETAIL E SCALE 1.5:1 2 TYP 1.5 TYP 4 TYP 1.75 C 0.4 4.9 7.5 16 9.1 A 8.6 TYP 13.5 A C 1.7 12 TYP 4.3 COVER TAPE SECTION C-C SCALE 3:1 1.2 SECTION A-A Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–59 www.ckswitches.com Slide 11.5 24±0.2 JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS203011SCQN, JS203011JCQN Quantity per reel 900 24.4 30.4 330 3X 2 0.5 13 21 3X R1 SEE DETAIL D DETAIL D SCALE 1:1 REEL SCALE 1/4:1 I Slide 1.5 TYP 2 TYP 2 TYP 1.75 TYP 4 TYP B 11.5 24±0.2 A 13.4 A 21 B COVER TAPE SECTION B-B 12 CARRIER TAPE SCALE 2:1 8 SECTION A-A TAPE AND REEL FOR PART NUMBER JS203011JAQN Quantity per reel 1000 A 2 4 1.5 +0.1 0 5 1.75 0.4 30.4 330 11.5 24 REEL SEE DETAIL A A 12 FEED DIRECTION SECTION A-A 24.4 2 3X 120° 21 13 21 COVER TAPE DETAIL A SCALE 2:1 Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–60 www.ckswitches.com JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS202011JCQN Quantity per reel 1300 330 20 2 21 100 13 120° SEE DETAIL F REEL SCALE 1/4:1 4 16 I 1.75 1.5 0.4 13.5 16 A 8.8 A 7.6 COVER TAPE B SECTION B-B CARRIER TAPE SCALE 2:1 5.9 4 SECTION A-A TAPE AND REEL FOR PART NUMBER JS202011JAQN Quantity per reel 1000 18 330 22 2.2 13 21 100 SEE DETAIL G 120° REEF DETAIL G SCALE 1.5:1 2 TYP 4 TYP 1.5 TYP 1.75 TYP 0.38 C 4.9 7.5 16 9.1 A 13.5 A COVER TAPE C 8.8 TYP 12 SECTION C-C 4.3 SCALE 3:1 1.2 SECTION A-A Dimensions are shown: mm Specifications and dimensions subject to change 12 jun 19 I–61 www.ckswitches.com Slide B DETAIL F SCALE 1:1 JS Series Sub-Miniature Slide Switches Specifications RIGHT ANGLE SURFACE MOUNT LOW PROFILE .028±.004 (0.7±0.1) HIGH CONTACT RATING: 5 VDC @ 1mA ELECTRICAL LIFE: 15,000 cycles. CONTACT RESISTANCE:
