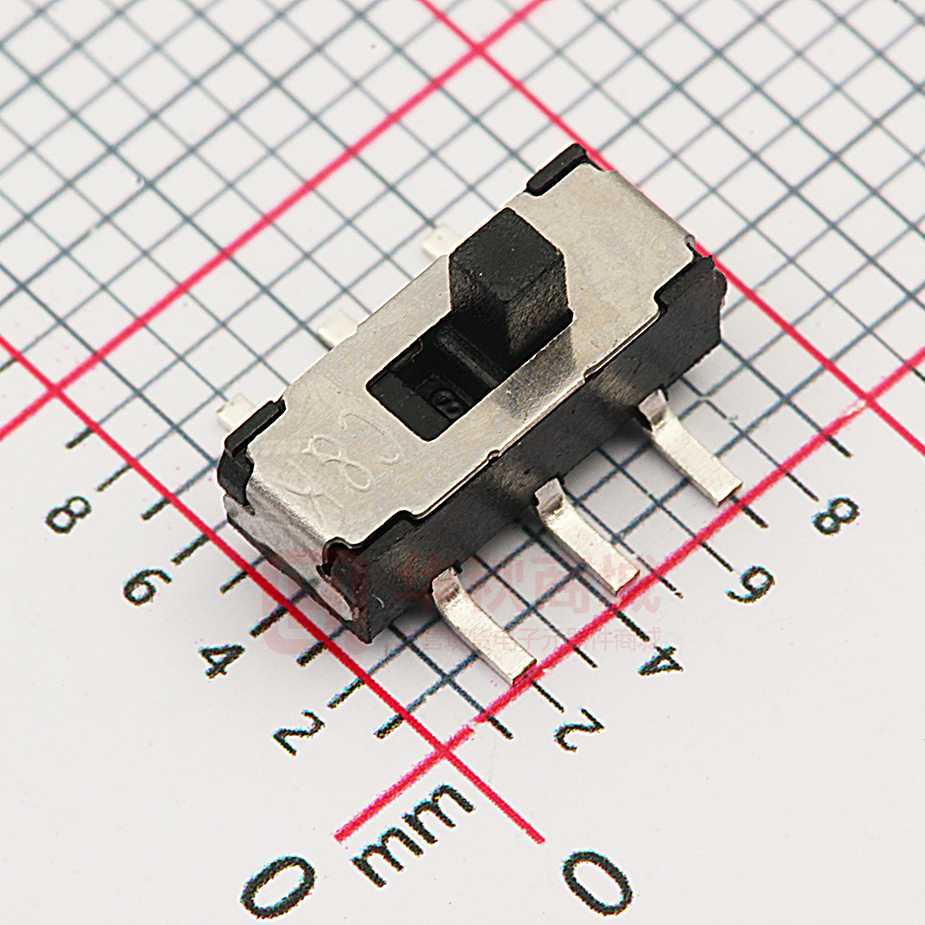

JS Series Sub-Miniature Slide Switches Typical Applications • Telecommunication products • Computer peripherals • Thermostat select switch • Instrumentations Features/Benefits • Positive detent • Low profile • IR reflow to 260º solder profile • Surface and thru hole mounting • SPDT, DPDT, DP3T models • RoHS compliant I Materials CONTACT RATING: 6 VDC @ 0.3A ELECTRICAL LIFE: 5,000 make-and-break cycles CONTACT RESISTANCE: 70 m Ω max. INSULATION RESISTANCE: 100 M Ω min. @ 500V. DIELECTRIC STRENGTH: 500 VAC min. @ sea level. OPERATING TEMPERATURE: -40ºC to +85ºC STORAGE TEMPERATURE: -40ºC to +85ºC HOUSING: 4/6 nylon (UL94V-2), black. ACTUATOR: 4/6 nylon (UL94V-2), black (some options white). CONTACTS: Copper alloy, silver plated. TERMINALS: Brass, silver plated NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. RIGHT ANGLE, PC THRU-HOLE 0.098 (2,5) TYP 0.354 (9,0) 0.130 (3,3) C&K 0.079 (2,0) PCB MOUNT - HOLE LAYOUT 0.059±.002 (1,5±0,05) b Shown in position b 4 0.138 (3,5) 0.098 (2,5) TYP 0.040 (1,0) TYP 0.335 (8,5) DPDT 0.059±.002 (1,5±0,05) 0.079 a (2,0) TRAVEL 0.024 (0,6) TYP TERMINAL No. 1 Part Number JS202011AQN 6X 0.035 (6X 0,9) 0.256 (6,5) C 5 6 0.098 (2,5) 0.012 (0,30) 0.014 (0,35) 0.130±.016 (3,3±0,4) TYP 1 2 3 C CIRCUIT DIAGRAM C: COMMON PIN Shown in position b Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 29 jun 16 I–49 www.ck-components.com Slide Specifications JS Series Sub-Miniature Slide Switches RIGHT ANGLE, PC THRU-HOLE 0.512 (13,0) 0.079 (2,0) 0.157 (4,0) 0.079 (2,0) 0.130 (3,3) C&K 0.079 (2,0) 8X 0.035 (8X 0,9) Part Number JS203011AQN PCB MOUNT - HOLE LAYOUT DP3T 0.059±.002 (1,5±0,05) I c b a 0.079 (2,0) TRAVEL Slide 0.079 (2,0) Shown in position b 0.059±.002 (1,5±0,05) 5 6 C 7 8 3 4 0.138 (3,5) 0.024 (0,6) TYP 0.118 (3,0) CIRCUIT DIAGRAM C: COMMON PIN TERMINAL No. 1 0.157 (4,0) 0.079 (2,0) 2 C 1 0.098 (2,5) 0.012 (0,30) 0.079 (2,0) 0.130±.016 (3,3±0,4) TYP Shown in position c 0.457 (11,6) PC THRU-HOLE 0.079 (2,0) 0.512 (13,0) +.012 0.142 -.000 (3,6+0,3/-0,0) C&K 0.079 (2,0) c b a 0.079 (2,0) TRAVEL 0.157 (4,0) 0.079 (2,0) 0.130 (3,3) Part Number JS203011CQN 8X 0.035 (8X 0,9) 0.059±.002 (1,5±0,05) DP3T PCB MOUNT - HOLE LAYOUT Shown in position b 0.059±.002 (1,5±0,05) 0.079 (2,0) 0.138 (3,5) 0.024 (0,6) TYP 5 6 C 7 8 2 C 3 4 0.118 (3,0) 1 TERMINAL No. 1 0.079 (2,0) 0.157 (4,0) 0.079 (2,0) 0.012 (0,30) 0.488 (12,4) 0.130±.016 (3,3±0,4) TYP CIRCUIT DIAGRAM C: COMMON PIN Shown in position c Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 29 jun 16 I–50 www.ck-components.com JS Series Sub-Miniature Slide Switches PC THRU-HOLE 0.098 (2,5) TYP 0.354 (9,0) 0.130 (3,3) Part Number JS202011CQN 6X 0.035 (6X 0,9) C&K PCB MOUNT - HOLE LAYOUT DPDT b a 2 TRAVEL 0.059±.002 (1,5±0,05) 0.059±.002 (1,5±0,05) I Shown in position a 0.138 (3,5) 0.024 (0,6) TYP 0.040 (1,0) TYP 0.012 (0,30) 0.014 (0,35) 0.335 (8,5) C 5 6 1 2 3 0.256 (6,5) TERMINAL No. 1 0.098 (2,5) TYP 4 Slide 0.079 (2,0) C CIRCUIT DIAGRAM C: COMMON PIN 0.130±.016 (3,3±0,4) TYP Shown in position b SURFACE MOUNT Part number JS202011SCQN Part number JS203011SCQN DPDT DP3T Shown in position b. Quantity per reel 1000 Quantity per reel 900 Available in tape & reel only, see page I-58 Available in tape & reel only, see page I-60 0.354 (9,0) 0.098 (2,5) TYP .079 [2] 0.047 (1,2) TYP 0.098 TYP (2,5) 0.079 a (2,0) TRAVEL .118 [3] TERMINAL NO. 1 0.059±.002 (1,5±0,05) .079 [2] 0.012 (0,3) TYP 0.138 (3,5) C 5 c b .079 TRAVEL a [2 ] .059 ±.002 [ 1,5 ± 0,05 ] 0.079 (2,0) 4 .079 [2] .315 [8] PCB MOUNT - TOLERANCE ±.002(0,05) 0.059±.002 (1,5±0,05) 0.118 (3,0) 0.295 (7,5) 0.335 (8,5) .157 [4] .142 [3,6 ] TERMINAL No. 1 b .079 [2] .079 [2] 0.118 0.315 (3,0) (8,0) C&K 0.024 (0,6) TYP .512 [13] .157 [4] .047 TYP [1,2] PC MOUNT - TOLERANCE ±.002 [0,05] .059 ±.002 [ 1,5 ± 0,05 ] .079 [2] .012 [0,3 ] .138 [3,5] 6 5 6 2 3 C CIRCUIT DIAGRAM C: COMMON PIN 1 2 1 Shown in position b C 7 8 C 3 4 CIRCUIT DIAGRAM C: COMMON PIN Shown in position a 29 jun 16 I–51 .118 [3 ] .295 [7,5] Dimensions are shown: Inches (mm) Specifications and dimensions subject to change www.ck-components.com JS Series Sub-Miniature Slide Switches RIGHT ANGLE SURFACE MOUNT 0.098 (2,5) TYP 0.024 (0,6) TYP 0.098 (2,5) TYP 0.047 (1,2) TYP TERMINAL No. 1 0.099 (2,50) C&K 0.142 (3,6) 0.157 (4,0) Part Number JS102011SAQN SPDT 0.079 (2,0) 0.012 MAX (0,30) 0.354 (9,0) Slide I 2X 0.035 (2X 0,9) 0.267 (6,8) 0.059±.002 (1,5±0,05) Shown in position a Available in tape & reel only, see page I-59 PCB MOUNT - HOLE LAYOUT a b 0.079 (2,0) TRAVEL 0.138 (3,5) 0.138 (3,5) 0.031 (0,8) (0,8+0/-0,1) 2 3 C CIRCUIT DIAGRAM C: COMMON PIN 0.012 (0,3) TYP +.000 -.004 0.031 0.267 (6,8) 1 0.148 (3,75) Shown in position b 0.335 (8,5) PC THRU-HOLE (2) 8,5 [.335] 3X ø 0,8 [.031] 3,2 [.126] (2) (1) 3,5 [.138] C&K (1) 2 [.079] 1,5 ± 0,1 [ .059 ± .004] 2,5 [.098] (3) b a (3) 2,5 [.098] PCB LAYOUT RECOMMENDED Part Number JS102011CQN SPDT TRAVEL 1,5 ± 0,1 [ .059 ± .004 ] 2 [.079] 45˚ X 0,2[.008] CHAMFER Shown in position a 3,5 [.138] 3 [.118] 1 C 2 3 TERMINAL NO. 1 3X 0,5 [.020] 2,5 [.098] 3,2 [.126] 2,5 [.098] 3X 0,3 [.012] SCHEMATIC Shown in position b Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 29 jun 16 I–52 www.ck-components.com JS Series Sub-Miniature Slide Switches SURFACE MOUNT 1 [.039] 8,5 [.335] (2) 3 [.118] 3,5 [.138] C&K Part Number JS102011SCQN 8,00 [.315] SPDT (3) (1) Shown in position a Terminal No. 1 0,5 [.020] 2,5 [.098] 2,5 [.098] 2,5 [.098] b a PCB LAYOUT RECOMMENDED TRAVEL 2 [.079] SQ 1,5 ± 0,1 [ .059 ± .004 ] 45˚ X 0,2[.008] 2X CHAMFER C 2 1 3,5 [.138] I Slide 2 [.079] Available in tape & reel only, see page I-59 2,5 [.098] 3 0,30 [.012] 3 [.118] SCHEMATIC Shown in position b 7,5 [.295] SURFACE MOUNT NEW 13 2 4 10 2 2 4 2 C 5 6 7 8 Part Number JS207011SCQNR 5.5 8 3.6 2X 0.9 +0.1 0 DP3T 3 4 SHOWN IN POS.b 1.2 TYP TERMINAL NO.1 PC MOUNT - TOLERANCE .05 1 2 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW Shown in position b SWITCH FUNCTION 2 0.2 TRAVEL 2±0.2 POS.c C&K 1.5 0.05 2 POS.a C&K Available in tape & reel only, see page I-58 (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5±0.25 3.5±0.2 2X POS.b C&K 2X 0.8 0 0.8 -0.1 0.3 TYP 3 5±0.2 10 7.5 0.125 CHAMFER Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 29 jun 16 I–53 www.ck-components.com JS Series Sub-Miniature Slide Switches PC THRU-HOLE 10 2 13 4 NEW 2 C 5 6 7 8 3.3 3.6 8X SHOWN IN POS.b 2X 0.9 3 4 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 1 2 0.9 +0.1 0 PC MOUNT - TOLERANCE .05 Part Number JS207011CQNR SWITCH FUNCTION Slide I 2 0.2 TRAVEL 2 0.2 TRAVEL POS.c C&K 1.5±0.05 2 POS.b C&K (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5 DP3T POS.a C&K Shown in position b 3.5 2X 0.8 3 0.125 CHAMFER 2 4 2X 0 0.8 -0.1 0.3 TYP 2 3.3 TERMINAL NO.1 5±0.2 10 RIGHT ANGLE SURFACE MOUNT NEW 2X 0.9 TYP 6.8 9 Part Number JS102011JAQN SPDT 2 1.6 TYP 3.5 6X 1 2.5 C 2.5 1 2 Shown in position 3 PCB LAYOUT RECOMMENDED CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 1.5±0.5 b a 1.5±0.5 2 TRAVEL 3.5 Available in tape & reel only, see page I-59 2.6 TERMINAL NO.1 3.5 0.6 6.8 1.35 2.5 2.5 2X 0.8 0.1 Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–54 www.ck-components.com JS Series Sub-Miniature Slide Switches VERTICAL MOUNT SMT - J BEND NEW 1.0 TYP 0.8 8.5 4 1 3.6 2.5 C 2 3 Part Number JS102011JCQN 2.5 CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW PCB LAYOUT RECOMMENDED SPDT Available in tape & reel only, see page I-59 2 TRAVEL 1.5 1.5±0.5 I Slide 1.2 3.6 0.6 TYP 2.5 2.5 0.8 TYP 7.9 RIGHT ANGLE SURFACE MOUNT NEW 2X 2.5 2X 2.5 9 0.8 TYP 1 4 TYP 3.5 2X 0.9 2 1.5 C 2 3 Part Number JS202011JAQN 1 TYP 6.8 6 7 C CIRCUIT DIAGRAM C: COMMON PIN 5 PCB LAYOUT RECOMMENDED 2 TRAVEL DPDT Shown in position BOTTOM VIEW Available in tape & reel only, see page I-61 1.5±0.5 3.5 3.6 2.6 2X 2X 0.8 0.8 3.6 3X 0.6 2.5 0.8 (GAP BETWEEN TERMINALS) 2.5 6.8 Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–55 www.ck-components.com JS Series Sub-Miniature Slide Switches VERTICAL MOUNT SMT - J BEND 2.5 9 NEW 2.5 0.8 TYP 1 4 TYP C 2 3 3.6 1.0 TYP Part Number JS202011JCQN 6 7 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 5 PCB LAYOUT RECOMMENDED DPDT Shown in position 2 I 2 Slide 1.5 0.5 3.5 Available in tape & reel only, see page I-61 3.6 0.6 TERMINAL NO.1 2.5 3.6 0.8 2.5 8.5 RIGHT ANGLE MOUNT SMT - J BEND NEW Part Number JS203011JAQN 13 DP3T C 5 6 3.6+0.3 0 7 8 Shown in position 2 1 2 1.5±0.05 C Available in tape & reel only, see page I-60 3 4 SCHEMATIC C: COMMON PIN 2 TRAVEL 2 TRAVEL 0.8 1.5±0.05 4 3.5 3.6 2.65 4 3 2 8X 0.6 TERMINAL No. 1 2 4 8 4 2 8X 0.8 2 4 2 1.0 TYP PCB LAYOUT RECOMMENDED 11.5 Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–56 www.ck-components.com JS Series Sub-Miniature Slide Switches VERTICAL MOUNT SMT - J BEND NEW C 5 6 13 3.6 1 2 2 TRAVEL b Part Number JS203011JCQN 3 4 C DP3T SCHEMATIC C: COMMON PIN 2 TRAVEL c 7 8 a Available in tape & reel only, see page I-60 1.5 0.5 2 4 I 2 Slide 5.5 4 3.5 3.6 2 TERMINAL N0.1 1.0 0.6 TYP 4 0.8 3 2 PCB LAYOUT RECOMMENDED 0.8 TYP 12.4 SURFACE MOUNT - J BEND NEW 13 10 2 4 C 2 5 6 7 8 Part Number JS207011JCQNR 4 3.6 SP3T 3 4 C CIRCUIT DIAGRAM C: COMMON PIN BOTTOM VIEW 1 2 1.0 SHOWN IN POS.b 0.8 2X 0.9 +0.1 0 .05 PC MOUNT - TOLERANCE 2 0.2 TRAVEL 2 0.2 TRAVEL 1.5 0.05 SWITCH FUNCTION POS.c POS.b POS.a C&K C&K C&K (MOM) ON ON CONNECTED TERMINALS 1-3,5-7 2-3,6-7 3-4,7-8 5.5 2X 0.8 3.5±0.2 2X Available in tape & reel only, see page I-58 3.6 3 0.8 0 -0.1 0.6 TERMINAL NO.1 2 4 2 0.125 CHAMFER 4X 0.8 (SPACE BETWEEN TERMINALS) 5±0.2 10 Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–57 www.ck-components.com JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS207011SCQNR, JS207011JCQNR Quantity per reel 800 PACKING DETAIL 800 PCS 30.4 330 .5 13.5 2 .5 21 .8 DETAIL 'A' I Slide REEL 24.4 +.1 1.5 -0 2 +2 -0 DETAIL 'A' 8 1.75 4 C 4.1 (1.5) 11.5 24 9.4 13.4 .2 21.5 B B (9) C 4 .02 12 SHOWN IN POS.2 COVER TAPE POCKET CARRIER TAPE 6 .2 TAPE AND REEL FOR PART NUMBER JS202011SCQN Quantity per reel 1000 24.4 30.4 330 3X 2 0.5 13 21 R1 SEE DETAIL B REEL SCALE 1/4:1 B 2 TYP DETAIL B SCALE 1:1 1.5 TYP 4 TYP 1.75 21 11.5 24±0.2 8.7 A A COVER TAPE 11 SECTION B-B 12 B 5.7 8 Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–58 www.ck-components.com 12 JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS102011SCQN, JS102011JCQN Quantity per reel 1000 24.4 30.4 330 3X 2 0.5 13 21 3X R1 SEE DETAIL C REEL SCALE 1/4:1 1.5 +0.1 0 2 C DETAIL C SCALE 1:1 1.75 4 B I 0.4 21.5 8.9 A A COVER TAPE C 7.9 12 B SECTION C-C SECTION B-B CARRIER TAPE SCALE 2:1 5.9 9.14 4.4 1.2 SECTION A-A TAPE AND REEL FOR PART NUMBER JS102011SAQN, JS102011JAQN Quantity per reel 1000 330 18 2.2 21 100 13 SEE DETAIL E 120 REF 22 DETAIL E SCALE 1.5:1 2 TYP 1.5 TYP 0.4 4 TYP 1.75 C 4.9 7.5 16 13.5 9.1 A 8.6 TYP A C 1.7 12 TYP COVER TAPE SECTION C-C 4.3 SCALE 3:1 1.2 SECTION A-A Dimensions are shown: mm Specifications and dimensions subject to change 29 jun 16 I–59 www.ck-components.com Slide 11.5 24±0.2 JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS203011SCQN, JS203011JCQN Quantity per reel 900 24.4 30.4 330 3X 2 0.5 13 21 3X R1 SEE DETAIL D DETAIL D SCALE 1:1 REEL SCALE 1/4:1 I 2 TYP 2 TYP Slide 1.5 TYP 1.75 TYP 4 TYP B 11.5 24±0.2 13.4 A 21 A B COVER TAPE SECTION B-B 12 CARRIER TAPE SCALE 2:1 8 SECTION A-A TAPE AND REEL FOR PART NUMBER JS203011JAQN Quantity per reel 1000 A 2 4 1.5 +0.1 0 5 1.75 0.4 30.4 330 11.5 24 REEL SEE DETAIL A A 12 FEED DIRECTION SECTION A-A 24.4 2 3X 120° 21 13 21 COVER TAPE DETAIL A SCALE 2:1 Dimensions are shown: mm Specifications and dimensions subject to change I–60 www.ck-components.com JS Series Sub-Miniature Slide Switches TAPE AND REEL FOR PART NUMBER JS202011JCQN Quantity per reel 1300 330 20 2 21 100 13 120° SEE DETAIL F DETAIL F SCALE 1:1 REEL SCALE 1/4:1 16 I 4 1.75 1.5 13.5 16 8.8 A A 7.6 COVER TAPE B SECTION B-B CARRIER TAPE SCALE 2:1 5.9 4 SECTION A-A TAPE AND REEL FOR PART NUMBER JS202011JAQN Quantity per reel 1000 18 330 22 2.2 13 21 100 SEE DETAIL G 120° REEF DETAIL G SCALE 1.5:1 2 TYP 4 TYP 1.5 TYP 1.75 TYP 0.38 C 4.9 7.5 16 13.5 9.1 A A COVER TAPE C 8.8 TYP 12 SECTION C-C 4.3 SCALE 3:1 1.2 SECTION A-A Dimensions are shown: mm Specifications and dimensions subject to change I–61 www.ck-components.com Slide 0.4 B JS Series Sub-Miniature Slide Switches Specifications RIGHT ANGLE SURFACE MOUNT LOW PROFILE .028±.004 (0.7±0.1) HIGH CONTACT RATING: 5 VDC @ 1MA ELECTRICAL LIFE: 15,000 cycles. CONTACT RESISTANCE:
