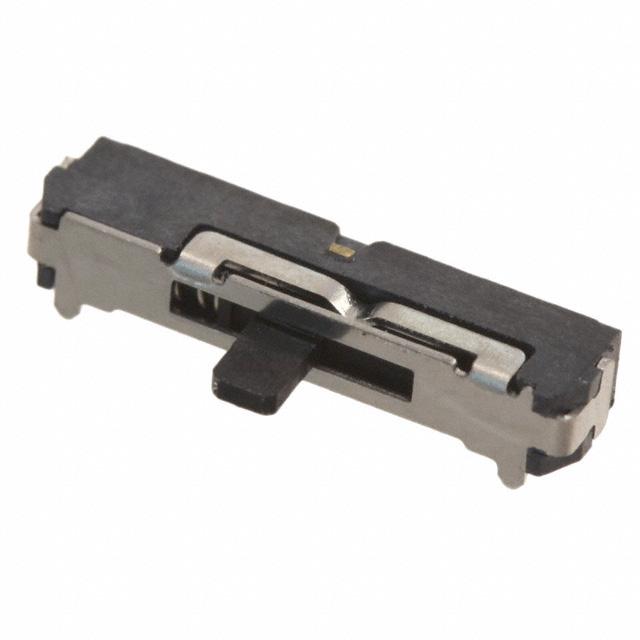

JSM07011SAQNR

JSM Series Sub-Miniature Slide Switches Features/Benefits • RoHS compliant and meets all requirements of RoHS directive 2002/95EC, Halogen Free • Positive detent • Low profile • IR reflow to 260º solder profile • Surface and thru hole mounting • Maintained and momentary functions • SP3T model Typical Applications • Telecommunication products • Computer peripherals • Thermostat select switch • Instrumentations I Materials CONTACT RATING: 4 VDC @ 0.3A ELECTRICAL LIFE: 10,000 make-and-break cycles at full load. CONTACT RESISTANCE: 70 m Ω max. INSULATION RESISTANCE: 100 M Ω min. @ 500V. DIELECTRIC STRENGTH: 100 VAC min. @ sea level. OPERATING TEMPERATURE: -10ºC to +60ºC STORAGE TEMPERATURE: -30ºC to +85ºC HOUSING: LCP, Glass filled (Halogen free) ACTUATOR: 4/6 nylon (UL94V-2), black. CONTACTS: Berylium copper, silver plated. TERMINALS: Brass, silver plated. COVER: Stainless steel RETURN SPRING: Stainless steel Slide Specifications NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. 0.079 (2,0) 0.020 4X (0,5) 1 0.492 (12,5) 0.157 (4,0) 2 C 0.079±.004 (2,0±0,1) 0.039±.004 (0,1±0,1) 0.079 (2,0) 3 4 0.079 (2,0) 0.059 (1,5) TRAVEL (SPRING RETURN) 0.197±.004 (5,0±0,1) 0.098±.004 (2,5±0,1) 2X Ø0.031 +.004 -.000 C TRAVEL (WITH LOCK) 0.012 MAX. (0,3) 0.024 (0,6) 0.043 (1,1) 0.429 (10,9) 2X 0.026 (0,65) 0.012 (0,3) JSM07011SAQNR SP3T Surface Mount Momentary one side & Maintained the other 0.404±.004 (10,25±0,1) PCB MOUNT 2X (Ø0,8+0,1/-0) 0.079 (2,0) C 2X 0.024 (0,6) 0.008 2X R (R 0,2) C 0.079 (2,0) 0.079 (2,0) 0.079±.004 (2,0±0,1) 0.059 (1,5) 0.118 (3,0) 0.008 2X CHAMFER (0,2) 0.157±.004 (4,0±0,1) 1 C 0.008 (0,2) PC BOARD MOUNTING FACE 2 3 COM 4 0.010 (0,25) SCHEMATIC (1P3T) Shown in position 2 Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 20 Jul 21 I–63 www.ckswitches.com JSM Series Sub-Miniature Slide Switches 12,5 4 2 2 2 4X 0,5 4 2 1,5 4X 1 2X 0,8 JSM07011SAQNL SP3T Surface Mount Momentary one side & Maintained the other 2 2,5 5 3 C L 10,25 1,5 ON ON MOM 2 TRAVEL (SPRING RETURN) C L C L 0,28 0,6 4 0,2 2X 0,65 2X R0,2 COM 3 2 1 2X 2 1,1 0,31 MAX 0,25 2 TRAVEL (WITH LOCK) 0,6 2X 0.2 X 45 CHAMFER SCHEMATIC (1P3T) 10,9 Shown in position 2 Packaging for JSM07011SAQNR and JSM07011SAQNL 0.079±0.020 (2,0±0,5) REEL Ø0.827±0.031 (21,0±0,8) 1.000 (25,5) 0.118 (3,0) 0.157 (4,0) 0.079 (2,0) 0.014 (0,35) CARRIER TAPE Ø0.059 (1,5) A COVER TAPE 0.069 (1,75) 0.453 (11,5) Ø12.99 (330,0) 0.945 (24,0) 0.846 (21,5) PACKAGING QUANTITY: 1,800 PCS/REEL Ø0.512±0.020 (13,0±0,5) 0.472 (12,0) SECTION A-A A Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 20 Jul 21 I–64 www.ckswitches.com
