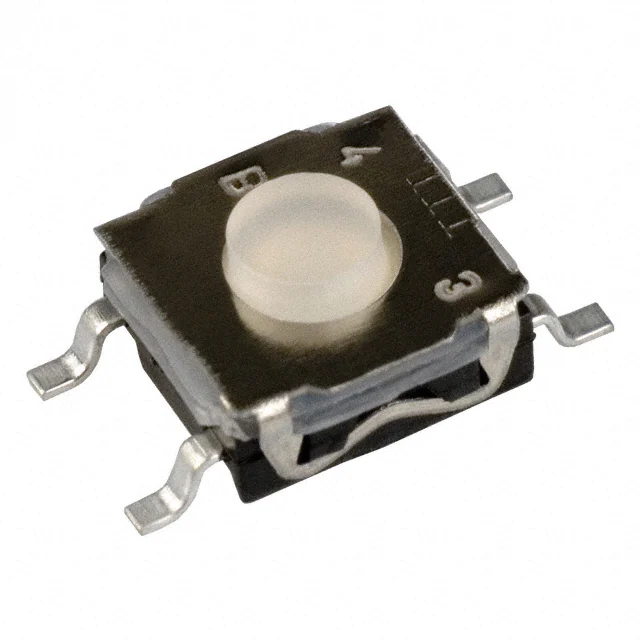

KSC241GLFS

KSC Series Sealed Tact Switch for SMT Features/Benefits • Positive tactile feeling • J or G terminations • Various heights • IP67 Tactile Switches B Typical Applications • Automotive • Medical instruments • Industrial electronics • Network infrastructure and IT • Elevator Specification Electrical Silver Gold FUNCTION: Momentary action CONTACT ARRANGEMENT: 1 make contact = SPST, N.O. TERMINALS: J bend & Gullwing type for SMT SEALING: IP67 except KSC5 (IP50) MAXIMUM POWER: MAXIMUM VOLTAGE: MINIMUM VOLTAGE: MAXIMUM CURRENT: MINIMUM CURRENT: 1 VA 32 VDC 20 mV 50 mA 1 mA* 0.2 VA 32 VDC 20 mV 10 mA 0.1 mA Liability Limitation This datasheet does not provide enough information for applications that require a certain level of quality or safety such as automotive, medical systems, or safety equipement. Please contact customer service for the contractual specification package. Environmental Silver OPERATING TEMPERATURE: -40˚C to 85˚C STORAGE TEMPERATURE: -55˚C to 85˚C DIELECTRIC STRENGTH (50 Hz, 1 min.): ≥ 250 Vrms CONTACT RESISTANCE: ≤ 100mΩ INSULATION RESISTANCE (100 V): ≥ 10M Ω BOUNCE TIME: ≤ 1 ms * Ultra low current with 10 µA - 1 VDC version are available upon request for KSC2 and KSC4 Gold -40˚C to 125˚C -55˚C to 125˚C Packaging Tape and Reel (see series for quantity information) Process NOTE: Specifications listed above are for switches with standard options. SOLDERING: Depending on the application, this component is suited to the following methods: – Terminals being silver or gold plated over a nickel barrier, the use of slightly activated flux is suitable. – Soldering on double wave machine for vertical versions: soldering time ≤ 5 sec. – Cleaning according to typical washing processes. – Lead free reflow soldering process in accordance with IEC 61760-1. KSC Product Range KSC1 KSC2 KSC3 KSC4 KSC5 KSC6 KSC7 KSC8 KSC9 KSC10 Without actuator Soft actuator Hard actuator Soft actuator Hard actuator Hard actuator Soft actuator Hard actuator Hard actuator Soft actuator H = 2.5 mm H = 3.5 mm H = 4.3 mm H = 4.9 mm H = 7.7 mm compatible with button H = 4.9 mm IP67 IP67 IP67 IP67 IP67 IP67 H = 3.5 mm H = 5.2 mm H = 5.6 mm H = 7.7 mm IP67 IP67 IP50 IP67 Note:  KSC Series is subject to variants. Please contact customer service for other options. Dimensions are shown: mm Specifications and dimensions subject to change 18 Sep 19 B–74 www.ckswitches.com KSC Series Sealed Tact Switch for SMT ( 7,6 ) 10 4 4 0,7±0,05 3,3 mini 6,8 2,9 max +0,2 0,1 0 GULLWING 4 4 1 1 PAD LAYOUT 5,8 maxi 8,6 mini 12 mini 12 MM 12 330 mm 16 MM 330/380 12 mm Pieces KSC1J 2,000 KSC2J 2,000 KSC3J 2,000 16 16 mm KSC1G KSC2G KSC3G KSC4J & G KSC5J & G KSC6J & G KSC7J & G KSC8J & G KSC9J & G KSC10J & G mm Pieces 2,000 2,000 2,000 1,000 1,000   950 1,000 1,000 950 1,000 Reel Diameter 330 mm 330 mm 330 mm 330 mm 330 mm 380 mm 330 mm 330 mm 380 mm 330 mm Dimensions are shown: mm Specifications and dimensions subject to change 18 Sep 19 B–75 www.ckswitches.com Tactile Switches PAD LAYOUT 3 maxi B 0,7±0,05 G 2,9 max J BEND +0,2 0,1 0 J KSC XA Series Soft Sound Tact Switch Typical Applications • Automotive interior & openings (gear shift paddle, steering wheel, window lifter, seat adjustment modules, trunk & door handle modules) • Medical & industrial electronics (front panel, instrumentation) B Life (cycles) Travel (mm) KSC XA 35J LFS 3.5 +/-1 1.000,000 0.7+/-0.2 KSC XA 40J LFS 4.0 +/-1 1.000,000 0.7+/-0.2 KSC XA 55J LFS 5.5 +/-1.1 1,000,000 0.7+/-0.2 KSC XA 68J LFS 6.8 +/- 1.4 500,000 0.7+/-0.2 KSC XA 96J LFS 9.6 +/- 2.4 150,000 0.7+/-0.2 4,73 0,1 3 0,1 1,13 0,1 Force (N) 2,9 max 4,9 0,2 POWER: 0.002 VA min. / 1VA Max. VOLTAGE: 2V min. / 24V Max. CURRENT: 1mA min. / 42mA Max. 0,1+0,2 0 OPERATING TEMPERATURE: -40°C / +95°C CONTACT RESISTANCE: 0.1 ohm 3,3 mini 6,8+0,3 -0,1 0,1 PCB LAYOUT * 6,3+0,3 0 3 max 0,7 0,05 4 0,1 +0,3 * 6,2 0 4 8,6 min Packaging In reels of 1,400 pieces. Dimensions of reels according to EIA RS481 or IEC 2863. External diameter 380 mm ± 2 mm. How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C X A Operating Force 35 3.5 N 40 4.0 N 55 5.5 N 68 6.8 N 96 9.6 N J L F S LFS Lead free compatible, silver plated Termination J J bend Dimensions are shown: mm Specifications and dimensions subject to change 8 Jul 21 B–77 www.ckswitches.com Tactile Switches Type 1 B Features/Benefits • New soft sound • Extended cage • IP67 • Long life • J terminations • Tape & reel KSC SLT Series Long Travel Tact Switch Features/Benefits • Long travel • Soft sound • IP40 • J & G terminations • Tape & reel Tactile Switches B Typical Applications • Automotive interior • Front panel • Instrumentation Specification Silver Electrical FUNCTION: Momentary CONTACT ARRANGEMENT: 1 make contact = SPST, N.O. TERMINALS: J bend & Gullwing type for SMT SWITCHING POWER MAX.: 1.0 VA MAXIMUM POWER: 1.0 VA MAXIMUM VOLTAGE: 32 VDC MINIMUM VOLTAGE: 20 mV MAXIMUM CURRENT: 50 mA MINIMUM CURRENT: 1 mA Mechanical MAXIMUM APPLIED FORCE: 40N * VALID ONE TIME. MAXIMUM ALLOWED TRAVEL TO AVOID OVERLOAD ISSUES IS 1.70MM. Type Force (N) Life (cycles) Travel (mm) KSC SLT 221J LFS 2.4 +/- 0.7 200,000 1.35 +/-0.25 KSC SLT 221G LFS 2.4 +/- 0.7 200,000 1.35 +/-0.25 KSC SLT 223J LFG 2.4 +/- 0.7 200,000 1.35 +/-0.25 KSC SLT 223G LFG 2.4 +/- 0.7 200,000 1.35 +/-0.25 KSC SLT 241J LFS 3.5 +/- 0.9 200,000 1.35 +/-0.25 KSC SLT 241G LFS 3.5 +/- 0.9 200,000 1.35 +/-0.25 KSC SLT 243J LFG 3.5 +/- 0.9 200,000 1.35 +/-0.25 KSC SLT 243G LFG 3.5 +/- 0.9 200,000 1.35 +/-0.25 Gold 0.2 VA 0.2 VA 32 VDC 20 mV 10 mA 1 mA DIELECTRIC STRENGTH: ≥ 250 Vrms CONTACT RESISTANCE: < 100mΩ INSULATION RESISTANCE: Initial measurement: ≥ 1GΩ After damp heat: ≥10MΩ BOUNCE TIME: < 5 ms Environmental OPERATING TEMPERATURE: -40°C to +85°C (Silver) -40°C to +125°C (Gold) STORAGE TEMPERATURE: -40°C to +85°C (Silver) -40°C to +125°C (Gold) Process Compatible with the lead free reflow soldering process. Packaging In reels of 1,000 pieces. Dimensions of reels according to EIA RS481 or IEC 2863. External diameter 330 mm ± 2 mm. How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C S L T L 2 Actuator 2 Soft 5.0 mm height F S LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Operating Force 2 2.4 N 4 3.5 N Plating 1 Silver (with LFS final digits ONLY) 3 Gold (with LFG final digits ONLY) Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 20 Apr 21 B–78 www.ckswitches.com KSC SLT Series Long Travel Tact Switch G Gullwing 2,7 0,1 2,7 0,1 B 5 0,1+0,2 0 3,3 mini 0,1 ( 15 ) 0,1 ( 0,5 ) 7,6+0,2 -0,1 * 6,2 0 +0,3 10 0,3 * 6,2 0 0,7 0,05 4 0,1 6,2+0,3 0 4 0,1 0,7 0,05 +0,3 * * 6,8+0,3 -0,1 5,8 max 4 4 1 1 3 max 8,6 min 12 min LAYOUT - PAD SCALE : 5 LAYOUT - PAD SCALE : 5 TAPE & REEL 2 0,05 1,5+0,1 0 4 0,1 1,75 0,1 12 0,1 B 5,4 7,5 0,1 Draft 5° A 6,6 2,4 10,5 A 40 16+0,3 +0,1 SECTION B-B 14,25 min 6,2+0,3 0 Tactile Switches 0,1+0,2 0 B 2,8 max 2,8 max 5+0,3 -0,1 5+0,3 -0,1 J J Bend 0,6 mini 9 0, R 0,15 0,02 3 B 2 0,1 4 Hollows , depth 0,15 mm 0,33 0,03 6,65 40 SECTION A-A 0,1 Dimensions are shown: mm Specifications and dimensions subject to change 20 Apr 21 B–79 www.ckswitches.com KSC1 Series Sealed Tact Switch for SMT KSC1 without actuator 2,5 mm high 4˚ max 1.8 ± 0.65 3 ± 0.75 5.5 ± 1.4 200,000 200,000 100,000 0.3 ± 0.15 0.3 ± 0.15 0.35 ± 0.15 2,9 max KSC121 KSC141 KSC151 Travel (mm) +0,2 0,1 0 Operating Operating force FA life (Newtons) (operations) +0,3 6,2 0 +0,3 6,2 0 Tactile Switches Type ø2 1,5 min ,2 R0 B smooth surface Packaging Switches delivered on continuous tape & reels of 2,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 1 Operating Force 2 1.8 N * (180 grams) 4 3 N * (300 grams) 5 5.5 N (550 grams) * See mechanical chart above to confirm specifications Contact Material 1 Silver 3 Gold LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 1 mar 17 B–80 www.ckswitches.com KSC2 Series Sealed Tact Switch for SMT KSC2 soft actuator 3,5 mm high 1.6 ± 0.6 2 ± 0.5 2 ± 0.5 3.5 ± 0.9 5.55 ± 1.45 3.55 ± 0.9 6.2 ± 1.55 Travel (mm) 5,000,000 0.3 ± 0.2 500,000 0.35 + 0.25/- 0.15 1,000,000 0.35 + 0.25/- 0.15 300,000 0.5 ± 0.2 300,000 0.5 ± 0.2 300,000 0.5 ± 0.2 100,000 0.6 ± 0.2 +0,3 6,2 0 Packaging Switches delivered on continuous tape & reels of 2,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 2 Operating Force 0 1.6 N (160 grams) 2 2 N (200 grams) 4 3.5 N (350 grams) 5 5.5 N (550 grams) LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated NONE Standard version SPD Special delta version See mechanical chart above to confirm specifications Contact Material 1 Silver 2 Silver long life 3 Gold 4 Gold long life Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 10 dec 18 B–81 B Tactile Switches KSC201 KSC221 KSC222 KSC241 KSC251 KSC241 SPD KSC251 SPD Operating Operating force FA life (Newtons) (operations) 3,5 Type +0,3 6,2 0 B +0,2 2,9 max 0,1 0 ø3 www.ckswitches.com KSC3 Series Sealed Tact Switch for SMT KSC3 hard actuator 3,5 mm high Operating Operating force FA life (Newtons) (operations) KSC321 KSC341 KSC351 2 ± 0.4 3 ± 0.75 5 ± 1 300,000 300,000 100,000 Travel (mm) +0,2 2,9 max 0,1 0 Type 0.2 + 0.3/- 0 0.2 + 0.3/- 0 0.25 + 0.3/- 0 +0,3 6,2 0 +0,3 6,2 0 Tactile Switches B 3,47 ø2,8 Packaging Switches delivered on continuous tape & reels of 2,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 3 Operating Force 2 2 N (200 grams) 4 3 N (300 grams) 5 5 N (500 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver 3 Gold LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 1 mar 17 B–82 www.ckswitches.com KSC4 Series Sealed Tact Switch for SMT KSC4 soft actuator 5,2 mm high ø 2,7 5,000,000 1,000,000 300,000 1,000,000 300,000 1,000,000 300,000 300,000 300,000 300,000 100,000 300,000 0.5 ± 0.25 0.35 ± 0.20 0.5 ± 0.25 0.5 ± 0.25 0.75 ± 0.25 0.75 ± 0.25 0.8 ± 0.2 0.7 ± 0.2 0.7 ± 0.25 0.35 ± 0.20 1 ± 0.3 0.5 ± 0.2 5,2 B +0,3 6,2 0 +0,3 6,2 0 1.45 ± 0.55 1.4 ± 0.35 1.7 ± 0.45 1.7 ± 0.45 4 ± 1 4 ± 1 4.25 ± 0.75 3.5 ± 0.9 3.4 ± 1 3.4 ± 1 6.25 ± 1.75 6.25 ± 1.75 Travel (mm) +0,2 2,9 max 0,1 0 Operating Operating force FA life (Newtons) (operations) Tactile Switches Type KSC401 50SH KSC411 70SH KSC421 70SH KSC422 70SH KSC441 70SH KSC442 70SH KSC451 70SH KSC441 SPD KSC441 ST1 KSC441 ST2 KSC461 ST1 KSC461 ST2 Packaging Switches delivered on continuous tape & reels of 1,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 4 Operating Force 0 1.45 N (145 grams) 1 1.4N (140 grams) 2 1.7 N (170 grams) 4 4 N (400 grams) 5 4.25 N (425 grams) 6 6.25 N (625 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver 2 Silver long life 3 Gold 4 Gold long life LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing 50SH 50 shore ** 70SH 70 shore *** SPD Special delta version ST1 High click ST2 Low click ** applies to KSC401J/G50SH only *** applies to KSC411J/G70SH, KSC421J/G70SH and KSC441J/G70SH Dimensions are shown: mm Specifications and dimensions subject to change 6 may 19 B–83 www.ckswitches.com KSC DCT Series Dual Circuit Technology Tact Switch Features/Benefits • SPDT NC-NO function • Silicone actuator • J or G terminations • Tape & reel • IP67 Force (N) Travel (mm) KSC441J DCT 70SH LFS 4.75 +/-1.25 300,000 0.85+0.35/-0.25 KSC441G DCT 70SH LFS 4.75 +/-1.25 300,000 0.85+0.35/-0.25 Type 0,1+0,2 0 2,9 max Packaging In reels of 1,000 pieces. Dimensions of reels according to EIA RS481 or IEC 2863. External diameter 330 ± 2 mm 2,7 0,1 5,2 0,2 Operating Life (operations) B PCB Layout 3,3 mini Visual poka yoke 0,85 0,05 3 max 1 3 ma 6,2+0,3 0 SCALE 5 2 4 1 - 2 NC 1 - 3 NO 1 1 1 8,6 m 4 3 4 6,2+0,3 0 3 2 4 0,1 4 LAYOUT - PAD SCALE : 5 4 1 C 1 2 1 8,6 min 0,7 0,05 Tactile Switches Typical Applications • Automotive • Medical equipment • Industrial electronics 6,8+0,3 -0,1 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C 4 4 1 DCT 70SH L F S LFS Lead free compatible, silver plated Force 4 4.75 N Actuator / Tactile 70SH Silicon 70SH Contact Material 1 Silver Termination J J bend G Gull wing Dimensions are shown: mm Specifications and dimensions subject to change 25 oct 18 B–84 www.ckswitches.com KSC PF Series Potting Friendly Tact Switch Features/Benefits • Extended Cage • Silicone actuator • J or G terminations • Tape & reel • IP67 KSC421J 70SH LFS PF 1.8+/-0.45 300,000 0.5+/-0.25 KSC422G 70SH LFS PF 1.8+/-0.45 1,000,000 0.5+/-0.25 KSC422J 70SH LFS PF 1.8+/-0.45 1,000,000 0.5+/-0.25 KSC441G 70SH LFS PF 4 +/- 1 300,000 0.65+/-0.25 KSC441J 70SH LFS PF 4 +/- 1 300,000 0.65+/-0.25 KSC442G 70SH LFS PF 4 +/- 1 1,000,000 0.65+/-0.25 KSC442J 70SH LFS PF 4 +/- 1 1,000,000 0.65+/-0.25 KSC461G 70SH LFS PF 6.25+/- 1.75 300,000 0.75+/-0.25 6.25+/- 1.75 300,000 0.75+/-0.25 4 +/- 1 300,000 0.65+/-0.25 KSC471J 70SH LFS PF 4 +/- 1 300,000 0.65+/-0.25 2,5 0,1 3,3 mini 0,1 +0,3 * 6,2 0 * KSC461J 70SH LFS PF KSC471G 70SH LFS PF 4,725 0,1 5,2 0,2 0.5+/-0.25 0,7 0,05 300,000 1,125 0,1 1.8+/-0.45 2,9 max KSC421G 70SH LFS PF B 0,1+0,2 0 Travel (mm) 6,2+0,3 0 Operating Life (operations) 4 0,1 Force (N) Tactile Switches Type Typical Applications • Automotive • Medical equipment • Industrial electronics Max. potting height: 2.9 mm Packaging In reels of 1,000 pieces. Dimensions of reels according to EIA RS481 or IEC 2863. External diameter 330 ± 2 mm 6,8+0,2 -0,1 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C 70SH 4 L F S P F LFS Lead free compatible, silver plated Force 2 1.8 N 4 4.0 N 6 6.25 N 7 4.0 N Actuator / Tactile 70SH Silicon 70SH Contact Material 1 Silver 2 Silver Long Life Termination J J bend G Gull wing Dimensions are shown: mm Specifications and dimensions subject to change 18 sep 18 B–85 www.ckswitches.com KSC OF Series Overload Friendly Tact Switch Features/Benefits • Extended cage for mechanical stop • Silicone actuator • J termination • Tape & reel • IP67 Typical Applications • Industrial electronics • Consumer • Medical equipment • Automotive interior Life Travel (mm) KSC421J 70SH LFS OF 1.65+/-0.45 300,000 0.5+/-0.25 KSC441J 70SH LFS OF 4.0+/-1.0 300,000 0.65+0.3/-0.2 4,725 0,1 2,5 0,1 1 5,1 0,2 Force (N) 3,9 max Type - Life time is 300,000 cycles at 20N actuation force - The extended cage can be used as mechanical stop for the activation button - Overload value reaches 200N (one time) 3,3 mini 0,1 Packaging In reels of 1,000 pieces Dimensions of reels according to EIA RS481 or IEC 2863 External diameter 330 ± 2 mm * 6,2 0 0,7 0,05 4 0,1 6,2+0,3 0 +0,3 * Tactile Switches B 6,8+0,3 -0,1 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C 4 70SH L F S O F LFS Lead free compatible, silver plated Force 2 1.65 N 4 4.0 N Contact Material 1 Silver Actuator / Tactile 70SH Silicon 70SH Termination J J bend Dimensions are shown: mm Specifications and dimensions subject to change B–86 www.ckswitches.com KSC TE Series Tireless Endurance Tact Switch NEW Features/Benefits • New combination of dome/support • Silicone actuator • J terminations • Tape & reel • IP67 Typical Applications • Elevator • Game controllers • Industrial applications B Force (N) Life Travel (mm) Electrical Height ON (mm) (from PCB) KSC2 TE 01J LFS 1.60+/-0.6 10,000,000 0.25+/-0.2 3.25 ±0.2 KSC2 TE 31J LFS 2.80+/-0.7 5,000,000 0.30+/-0.2 3.25 ±0.2 KSC2 TE 41J LFS 4.00+/-1.0 5,000,000 0.35+/-0.2 3.20 ±0.2 3+0,1 -0,2 0,1+0,2 0 3,5 0,2 2,9 max Packaging In reels of 2,000 pieces Dimensions of reels according to EIA RS481 or IEC 2863 External diameter 330 ± 2 mm EH (Electrical height ON) Life time under electrical load (24 V, 1.3 mA) 3,3 mini 6,8+0,3 -0,1 0,1 * 6,3 0 0,7 0,05 4 4 0,1 * 6,2 0 +0,3 T +0,3 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S C 2 T E 1 J L F S LFS Lead free compatible, silver plated Force 0 1.60 N 3 2.80 N 4 4.00 N Contact Material 1 Silver Termination J J bend Dimensions are shown: mm Specifications and dimensions subject to change 25 Feb 21 B–87 www.ckswitches.com Tactile Switches Type KSC5 Series Tact Switch with Rocker Option for SMT KSC5 hard actuator 5,6 mm high Operating force Operating force Travel to Travel to axial FA lateral FL make make Life expectancy Life expectancy Type N (grams) N (grams) ±30% axial (mm) lateral (mm) cycles, axial cycles, lateral KSC521 2 ± 0.5 1.2 - 2.6 0.25 ± 0.15 0.5 ± 0.25 100,000 10,000 KSC541 3 ± 0.75 1.8 - 3.8 0.25 ± 0.15 0.5 ± 0.25 100,000 10,000 B +0,2 0,1 0 Switches delivered on continuous tape & reels of 1,000 pieces, dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm 5,6 2,9 max 1,2 Packaging 3,3 mini +0,3 6,2 0 4 0,7±0,05 6,8 6,2 +0,3 0 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 5 R O H Operating Force 2 2 N (200 grams) 4 3 N (300 grams) Contact Material 1 Silver 3 Gold S RoHS compliant, non compatible Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 18 sep 18 B–89 www.ckswitches.com Tactile Switches ø 4,7 ø 2,4 KSC6 Series Sealed Tact Switch for SMT KSC6 hard actuator 7,7 mm high ø4,7 ø 2,9 300,000 300,000 300,000 0.4 ± 0.2 0.4 ± 0.2 0.4 ± 0.2 +0,2 0,1 0 1.7 ± 0.5 2.55 ± 0.65 3.4 ± 0.85 7,7 Travel (mm) 1,6 Operating Operating force FA life (Newtons) (operations) 2,9 max Type KSC621 KSC631 KSC641 Packaging +0,3 6,2 0 +0,3 6,2 0 Tactile Switches B Switches delivered on continuous tape & reels of 950 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 380 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 6 Operating Force 2 1.7 N (170 grams) 3 2.55 N (255 grams) 4 3.4 N (340 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver 3 Gold LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 19 Nov 21 B–90 www.ckswitches.com KSC7 Series Sealed Tact Switch for SMT KSC7 soft actuator 4,3 mm high 5,000,000 300,000 300,000 0.3 ± 0.2 0.3 ± 0.15 0.4 ± 0.2 4,3 B +0,3 6,2 0 +0,3 6,2 0 1.6 ± 0.6 2.25 ± 0.55 3.9 ± 1 Travel (mm) +0,2 0,1 0 Operating Operating force FA life (Newtons) (operations) Tactile Switches Type KSC701 KSC721 KSC741 2,9 max ø3 Packaging Switches delivered on continuous tape & reels of 1,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 7 Operating Force 0 1.6 N (160 grams) 2 2.25 N (225 grams) 4 3.9 N (390 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver 3 Gold LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing Dimensions are shown: mm Dimensions are shown: mm Specifications and dimensions subject to change Specifications and dimensions subject to change 12 oct 17 B–91 B–91 www.ckswitches.com www.ckswitches.com KSC8 Series Sealed Tact Switch for SMT KSC8 hard actuator 4,9 mm high 3.15 ± 0.75 1.7 ± 0.5 2.55 ± 0.65 3.4 ± 0.85 300,000 300,000 300,000 300,000 Travel (mm) 0.65 ± 0.2 0.4 ± 0.2 0.4 ± 0.2 0.4 ± 0.2 Packaging 4,9 Operating Operating force FA life (Newtons) (operations) +0,2 2,9 max 0,1 0 Type KSC821 KSC821 OL KSC831 OL KSC841 OL +0,3 6,2 0 +0,3 6,2 0 Tactile Switches B 1,15 ø4,7 ø 2,96 Switches delivered on continuous tape & reels of 1,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 8 Operating Force 2 1.7 / 3.15 N (170/315 grams) 3 2.55 N (255 grams) 4 3.4 N (340 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver 3 Gold Option NONE Long travel OL Short travel LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Termination J J bend G Gullwing Dimensions are shown: mm Specifications and dimensions subject to change 1 mar 17 B–92 www.ckswitches.com KSC9 Series Sealed Tact Switches for SMT KSC9 hard actuator 7,7 mm high 300,000 300,000 300,000 Travel (mm) 0.4 ± 0.2 0.4 ± 0.2 0.4 ± 0.2 B 3,3 min 0,1 +0,3 *6,2 0 +0,3 * 6,2 0 4±0,1 Packaging 0,7±0,05 1.7 ± 0.5 2.25 ± 0.65 3.4 ± 0.85 +0,2 2,9 max1,6±0,1 0,10 Operating Operating force FA life (Newtons) (operations) Tactile Switches Type KSC921 KSC931 KSC941 1,05±0,05 7.7±0.2 ø 4,7±0,1 ø 2,95±0,02 Switches delivered on continuous tape & reels of 950 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 380 ± 2 mm +0,2 6,8 -0,1 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S Operating Force 2 1.7 N (170 grams) 3 2.55 N (255 grams) 4 3.4 N (340 grams) C 9 LFS Lead free compatible, silver plated. LFG Lead free compatible, gold plated. Contact Material 1 Silver 3 Gold B T K N Termination J J bend G Gullwing S C 9 Type NONE 15.4mm height mounted Color 20 Light grey 40 Red 80 White 90 Black ø 6,35 5 0,2 15,4±0,4 R 10,2±0,1 ø6 SWITCH WITH CAP Dimensions are shown: mm Specifications and dimensions subject to change 19 Nov 21 B–93 www.ckswitches.com KSC10 Series Sealed Tact Switches for SMT KSC10 soft actuator 4,9 mm high 2,9 max Operating Operating Travel force FA life (mm) (Newtons) (operations) 5,000,000 0,1 0.45 ± 0.25 3,3 mini +0,3 * 6,2 0 0,7 ± 0,05 1 1.45 ± 0.55 +0,2 0,1 0 Type KSC1001 +0,3 6,2 * 0 4 ± 0,1 Packaging Switches delivered on continuous tape & reels of 1,000 pieces Dimensions according to EIA RS-481/ IEC 60286-3 standard External diameter 330 ± 2 mm 0 Tactile Switches B 4,9 ± 0,2 Ø 2,7 ± 0,1 +0,2 6,8 -0,1 How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. However, please note that all the combinations of these options are not feasible. For any part number different from those listed above, please consult your local representative. K S C 10 0 1 L F Operating Force 0 1.45 N (145 grams) See mechanical chart above to confirm specifications Contact Material 1 Silver S LFS Lead free compatible, silver plated Termination J J bend G Gullwing Note: KSC10 offered with yellow actuator as standard, hardness 55 Shore Dimensions are shown: mm Specifications and dimensions subject to change 1 mar 17 B–94 www.ckswitches.com KSC V2 Series Side Actuated Sealed Tact Switch Features/Benefits • Full SMD side actuated • Haptic adaptability • Pin in paste terminations • Tape & reel • IP67 Typical Applications • Automotive • Industrial electronics • Network equipment • Telecommunications Electrical Silver Gold FUNCTION: momentary action CONTACT ARRANGEMENT: 1 make contact = SPST, N.O. TERMINALS: 2 pin in paste signal terminals 3 SMD ground terminals MAXIMUM POWER: MAXIMUM VOLTAGE: MINIMUM VOLTAGE: MAXIMUM CURRENT: MINIMUM CURRENT: Mechanical DIELECTRIC STRENGTH (50 Hz, 1 min.): ≥ 250 Vrms CONTACT RESISTANCE: ≤ 100 mΩ INSULATION RESISTANCE (100 V, initial stage): > 109 Ω BOUNCE TIME: < 1 ms Type Force (N) Operating Life (operations) Travel (mm) KSC201 V2 LFS 1.6 ± 0.6 1,000,000 0.3 ± 0.2 KSC421 V2 70SH LFS 1.55 ± 0.45 300,000 0.45 ± 0.25 KSC441V2 70SH SP DELTA LFS 3.5 ± 1.0 300,000 0.7 ± 0.2 KSC443V2 70SH SP DELTA LFG 3.5 ± 1.0 300,000 0.7 ± 0.2 0.3 ± 0.2 KSC421 V2 RT LFS 1.8 ± 0.5 300,000 KSC423 V2 RT LFG 1.8 ± 0.5 300,000 0.3 ± 0.2 KSC441 V2 RT LFS 3.4 ± 1.0 300,000 0.35 ± 0.2 1 VA 32 VDC 20 mV 50 mA 1 mA Environmental Silver OPERATING TEMPERATURE: -40˚C to 85˚C STORAGE TEMPERATURE: -55˚C to 85˚C 0.2 VA 32 VDC 20 mV 10 mA 0.1 mA Gold -40˚C to 125˚C -55˚C to 125˚C Process SOLDERING: Depending on the application, this component is suited to the following methods: – Cleaning according to typical washing processes. – Lead free reflow soldering process in accordance with IEC 61760-1. TERMINALS: pin in paste, silver or gold plated TOP PLATE: tin plated MSL level: 1 Vacuum pick head mandatory NOTE: Other configurations of haptics are available upon demand MISUSE OVERLOAD: 40N with back support SHEAR FORCE: 10N without back support Packaging In reels of 800 pieces. Dimensions of reels according to EIA RS481 or IEC 2863. External diameter 380 mm ± 2 mm. NOTE: This product is designed and manufactured for general electronic devices. For systems where reliability and safety are required, please contact your sales representative to secure product integration and function to secure usage. How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. K S V C 2 L Actuator 2 short, soft* 4 long, soft S LFS Lead free compatible, silver plated LFG Lead free compatible, gold plated Operating Force** 0 1.6 N (160 grams) 2 2 N (200 grams) 4 3.5 N (350 grams) Contact Material 1 Silver 3 Gold Actuator / Tactile None for KSC2 Standard 70SH for KSC4 Silicon 70SH 70SH SP DELTA for KSC4 Silicon 70SH with improved tactile RT for KSC4 Hard rubber * KSC2 version available upon demand ** Force available upon demand (variant version) 24 Nov 20 F B–95 Dimensions are shown: mm Specifications and dimensions subject to change www.ckswitches.com B Tactile Switches Specification KSC V2 Series Side Actuated Sealed Tact Switch +0,3 6,2 0 * 0,75±0,05 5 2,6±0,15 METALIZED HOLES ø 1,1±0,05 2 6,6 2 ON TWO PCB SIDES ø 1,6±0,1 ø 0,1 A B L 1,25 1,25 Switch standing plan reference 1,5 ø 2,7±0,1 6,5 6,7 2 3,4 90˚±2˚ 3,4 4±0,1 7,25 0,1 90˚±3˚ GROUND 2,3 3,9±0,2 1,13±0,15 PCB LAYOUT PIN IN PASTE TOP VIEW P &P area ( ø 1,9 max ) 0,25±0,05 0,8 Series L KSC2 2,3 KSC4 3,9 IMPORTANT NOTE FOR RT ACTUATOR METALIZED HOLES 1,1± 0,05 6,6 2 2 ON TWO PCB SIDES 1,6± 0,1 1,25 1,25 1,5 0,8 3,87±0,2 Tactile Switches B ø 0,2 A B 0,8 GROUND PCB LAYOUT PIN IN PASTE TOP VIEW Common signal must not be linked to the ground due to Actuator conductive EPDM raw material This actuator is not compatible with grease even with restricted contact. In case of the integration of an actuator or button by the customer, please consult us if use of plasticizer agent for button raw material (risk of chemical migration). Our actuator contains carbon particles and is electrical conductive. In consequence, customer actuator must be electric insulating raw material. Due to the cover raw material plating, small tin balls can appear after the reflow soldering process. These small tin balls are located near all cutting areas. Dimensions are shown: mm Specifications and dimensions subject to change 24 Nov 20 B–96 www.ckswitches.com TAPE AND REEL 2±0,1 12±0,1 Ø1,5 +0,1 0 A 2,8 7,7 A 5 +0,3 16 -0,1 SECTION C-C 4±0,1 7,5±0,1 1,75±0,1 C B 2,85 3,7 5,35 +0,1 Ø 1,5 0 4,5 4,1 SECTION A-A 7 5,1±0,1 C 70˚ 20˚ 50˚ 30˚ INTEGRATION Dimensions are shown: mm Specifications and dimensions subject to change 24 Nov 20 B–97 www.ckswitches.com Tactile Switches 7,1±0,1 9,3±0,1
