PCM Series Ultraminiature Surface Mount Slide Switches
Features/Benefits • Ultraminiature surface mount • Low profile • SPDT & SP3T models • RoHS compliant Typical Applications • Computer peripherals & network
products • Telecommunication products • Test & measurement equipment
I Slide
Specifications
CONTACT RATING: 0.3A @ 6 VDC. MECHANICAL LIFE: 50,000 cycles. CONTACT RESISTANCE: 70 m Ω max. INSULATION RESISTANCE: 100 M Ω min. @ 500V. DIELECTRIC STRENGTH: 500 VAC min. OPERATING TEMPERATURE: –20ºC to +85ºC. SOLDERABILITY: 255C max. solder temperature. PACKAGING: Tape & reel.
Materials
CASE: PA6T COVER: Stainless steel. SLIDER: Nylon 4/6 BRUSH: Copper alloy silver clad. TERMINALS: Copper alloy, silver plated.
NOTE: All models RoHS compliant and compatible with all options. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center.
How To Order
Complete part numbers for PCM Series Ultraminiature Surface Mount Slide Switches are shown below and on page I–45.
PC MOUNTING
.026 (0,66)
SWITCH FUNCTION POS. 1 POS. 2 PART NUMBER

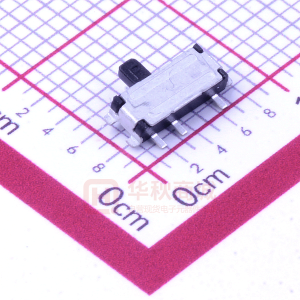

PCM12SMTR
CONN. TERMINALS SCHEMATIC
ON 1-2
ON 2-3
PCM12SMTR
SPDT
SPDT
Actuator shown in pos. 2
Dimensions are shown: Inch (mm) Specifications and dimensions subject to change
I–44
www.ck-components.com
PCM Series Ultraminiature Surface Mount Slide Switches
PC MOUNTING
SWITCH FUNCTION POS.1 PART NUMBER POS. 2 POS. 3
.026 (0,66)
1
2
3
4
PCM13SMTR
CONN. TERMINALS SCHEMATIC
ON 1-3
ON 2-3
ON 3-4
PCM13SMTR
SP3T
SP3T
I Slide
Actuator shown in pos. 2
TAPE & REEL
For part number PCM12SMTR Quanity per reel 3500
2±0,1 4±0,1 8±0,1 1,5 +0,1 0 1,75±0,1 0,3 ±0,05
7,5 ±0,1 3,85±0,1 16±0,3 8,5 ±0,1 2,2 ±0,1 5,2 2,5 ±0,1 1,7 ±0,1 SECTION A-A
For part number PCM13SMTR Quanity per reel 3500
Dimensions are shown: Inches (mm) Specifications and dimensions subject to change
I–45
www.ck-components.com
