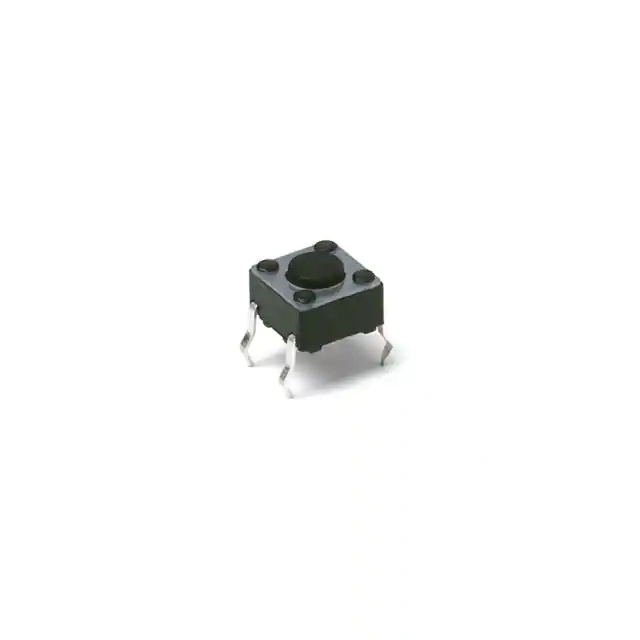

PTS645 Series
6 mm Tact Switches
Features/Benefits
• Compact size 6 x 6 mm
• Variety of actuator lengths
• Choice of actuation force
• RoHS compliant and compatible
Typical Applications
• Consumer products
• Instrumentation
• Computer products
• Industrial
B
Process
FUNCTION: Momentary action
CONTACT ARRANGEMENT: SPST, N.O.
TERMINALS: PC pins
SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux flush
with top surface of PCB; do not apply to component side of PCB
and area where terminals are located. Soldering to 255˚C for 5 sec.
max. Clean by brushing on solder surface. Do not clean switch with
solvents.
Mechanical
LIFE EXPECTANCY: 100,000 operations.
Packaging
Electrical
Bulk packaging
CONTACT RATING: 50 mA @ 12 V DC.
DIELECTRIC STRENGTH: 250 V AC min.
CONTACT RESISTANCE: 100 mΩ max. initial.
INSULATION RESISTANCE: 1011 Ω min.
Tape & reel for the SMT type:
Reels of 1,000 pieces for 4.3 and 5.0 mm height
Reels of 700 pieces for 7.0 mm height
Reels of 700 pieces for 7.3 mm height
Reels of 500 pieces for 9.5 mm height
Reels of 400 pieces for 13.0 mm height
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C
STORAGE TEMPERATURE: -40˚C to 85˚C
NOTE:
•
Specifications listed above are for switches with standard options. For information
on specific and custom switches, consult Customer Service Center.
•
The PTS series is not certified for using in Automotive application and no PPAP.
However, in the case of some automotive accessories and specific applications for
2 and 3 wheeled vehicles the PTS is widely used and very suitable. Please contact
your local C&K representative to discuss your application and the best switch
solution.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
P
T
S
6
4
L
5
Termination
S Straight
T Straight with ESD pin
V Vertical THT
Actuator Shape
NONE Round actuator, All versions
J Square actuator, 2.4 mm side
(available for Straight 7.3 mm and
Vertical 6.15 mm)
Actuation Force
N 100 gf
L 130 gf
M 160 gf
H 200 gf
K 260 gf
P 320 gf
*Only the straight type termination without ESD pin is available in SMT type
* Long life version has to be created case by case as special part number
F
S
Insertion Type
2
Thru hole
SMTR92* Surface mount G-type, tape & reel
JSMTR92* Surface mount J-type, tape & reel
RoHS compliant and
compatible.
Silver plated.
Switch height from PCB for S and T only
(H dimension see actuator height drawings)
43 4.3 (.169), thru-hole and SMT
50 5.0 (.197), thru-hole and SMT
70 7.0 (.275), thru-hole and SMT
73 7.3 (.287), thru-hole and SMT, square actuator 2.4 mm side only
95 9.5 (.374), thru-hole and SMT
13 13.0 (.512) SMT only
11 11.0 (.433) SMT only
Switch length from front leads for V only
(H dimension see actuator height drawings)
31 3.15 (.124), vertical
39 3.85 (.151), vertical
58 5.85 (.230), vertical
61 6.15 (.242), vertical, square actuator 2.4 mm side only
83 8.35 (.329), vertical
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–141
www.ckswitches.com
Tactile Switches
Specification
PTS645 Series
6 mm Tact Switches
TERMINATION
1
2
3
4
3,45
0,7
6,5
7,9
PCB LAYOUT
6
1
4
3
2
4,5
4,5
0,7 ± 0,1
2
6
1
4x Ø 1
4
3
6,5
Ø 3,5
STRAIGHT WITH ESD PIN
3,45
1,8
2
3
4
3,0
1
0,7
0,3
0,7
SCHEMATIC
4,3 ± 0,1
0,5
Max
T
6,5
7,9
PCB LAYOUT
4 ± 0,1
4
3
4,1
4,5
4,5
2
2
4,1
0,3
1
6
1
5
5
0,7± 0,1
6
1,5
4x Ø 1
3
4
6,5
Ø 3,5
VERTICAL THT
SCHEMATIC
Push
2
1
2,55 ± 0,05
7,5
2x Ø 1,3
4,5± 0,05
4,05
6,2
Ø 3,5
2
1
0,7
4,5 ± 0,15
7±0,05
3,95
4,3
V
4,95
Tactile Switches
B
SCHEMATIC
3,0
1,8
0,3
4,3 ± 0,1
STRAIGHT
0,5
Max
S
2x Ø 1
0,3
1
4,2
PCB LAYOUT
2,55± 0,1
3,9± 0,1
7
8,5
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–142
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
TERMINATION
SMT G Type
(0,3)
9,5
6,4
3
4
2
3
4
3,2
2
5,8
3,45
9
1
1
PCB LAYOUT
3
4
6
2
4,5
1
0,7± 0,1
6
Ø 3,5
SMT J Type
PCB LAYOUT
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–143
B
Tactile Switches
0
0,3 -0,02
4,3 ±0,1
SCHEMATIC
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
ACTUATOR SHAPE
J
SQUARE ACTUATOR
VERTICAL THT - FOR 6.15MM LENGTH ONLY
Ø 3,5
3,85
B
SCHEMATIC
Push
2
1
2,55 ±0,05
7,5
4,3
4x Ø 0,9
2x Ø 1,3
4,5 ±0,05
0,4
2
1
7 ± 0,05
3,95
4,3
4,95
4,05
4,3
2,4
6,2
Ø 3,5
2x Ø 1
0,3
1
0,7
4,2
4,5
6,2
2,55 ±0,1
RECOMMENDED PCB LAYOUT
6,2
7 ± 0,2
8,5 ±0,2
STRAIGHT THT - FOR 7.3MM HEIGHT ONLY
SCHEMATIC
1
2
3
4
3,0
0,3
Max
7,3
1,4
1,6
3,85
1,8
2,4
0,3
6,5
7,9
6
4,3
RECOMMENDED PCB
LAYOUT
2
4,5
2,4
6
4,3
2
0,7 ± 0,1
1
1
4,5
Tactile Switches
1,4 1,8
2,4
4x Ø 1
4
3
4
3
Ø 1,15
6,5
Ø 3,5
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–144
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
ACTUATOR SHAPE
STRAIGHT SMT G TYPE - FOR 7.3MM HEIGHT ONLY
1,8
2,4
SCHEMATIC
0,05
0
0,3-0,02
1
2
3
4
B
Tactile Switches
3,45
7,3 0,1
1,4
(0,3)
1,6
RECOMMANDED PCB LAYOUT
9 0,2
9,5
6
1
2
3
4
3,2
4
5,8
3
6
2
4,5
1
0,7 0,1
6,4
STRAIGHT SMT J TYPE - FOR 7.3MM HEIGHT ONLY
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–145
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
ACTUATOR SHAPE
STRAIGHT SMT - FOR 7.3MM HEIGHT ONLY
B
SCHEMATIC
0
0,3-0,02
0,05
3,45
7,3 0,1
1,4
(0,3)
1,6
1
2
3
4
RECOMMANDED PCB LAYOUT
9 0,2
9,5
6
4
1
2
3
4
3,2
3
5,8
2
6
1
0,7 0,1
6,4
4,5
Tactile Switches
1,8
2,4
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–146
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
ACTUATION FORCE
OPTION
CODE
B
FORCE
L
M
H
K
130 grams Black
160 grams Blue
200 grams Gray
260 grams Red
B
Tactile Switches
ACTUATOR HEIGHT
Switch height from PCB for S and T only
OPTION SCHEMATIC
CODE
DIMENSION H
TERMINATION Without EMC pin With EMC pin
(0,3)
H ± 0.1
3,45
0
0,3-0,02
43
50
70
95
13
4,3 (.169)
5,0 (.197)
Thru-hole and SMT
Thru-hole and SMT
1
2
7,0 (.275)
Thru-hole and SMT
3
4
9,5 (.374)
Thru-hole and SMT
13,0 (.512)
SMT
1
2
3
4
4,05
Switch length from front leads for V only
OPTION SCHEMATIC
CODE
DIMENSION H
TERMINATION Without EMC pin With EMC pin
3,95
0,3
Vertical
Vertical
5,85 (.230)
Vertical
8,35 (.329)
Vertical
1
3
2,55± 0,1
H ± 0,1
TAPE & REEL FOR SMT G TYPE VERSIONS
Cover tape
(Polyester)
Carrier tape
(Polystyrene)
H
2±0,1
OPTION
CODE
16±0,3
4±0,1
7,4
1,5+0,1
0
1,75±0,1
Reel
(Polystyrene)
13
Cover tape
POCKET
HEIGHT
16
±
0.3
16
±
0.3
5.3
5.3
16
±
0.3
7.3
16
±
0.3
7.6
24
±
0.3
10.3
24
±
0.3
13.3
2 0,1
24 0,3
4 0,1
1,5+0,1
0
43
50
70
73
95
13
WIDTH TAPE
1,75 0,1
12±0,1
10,25
4,2
3,15 (.124)
3,85 (.151)
20
Cover tape
1
31
39
58
83
Dimensions are shown: mm
Specifications and dimensions subject to change
12 0,1
14 Apr 22
B–147
www.ckswitches.com
PTS645 Series
6 mm Tact Switches
TAPE & REEL FOR SMT J TYPE VERSIONS
～
Tactile Switches
B
Dimensions are shown: mm
Specifications and dimensions subject to change
14 Apr 22
B–148
www.ckswitches.com
