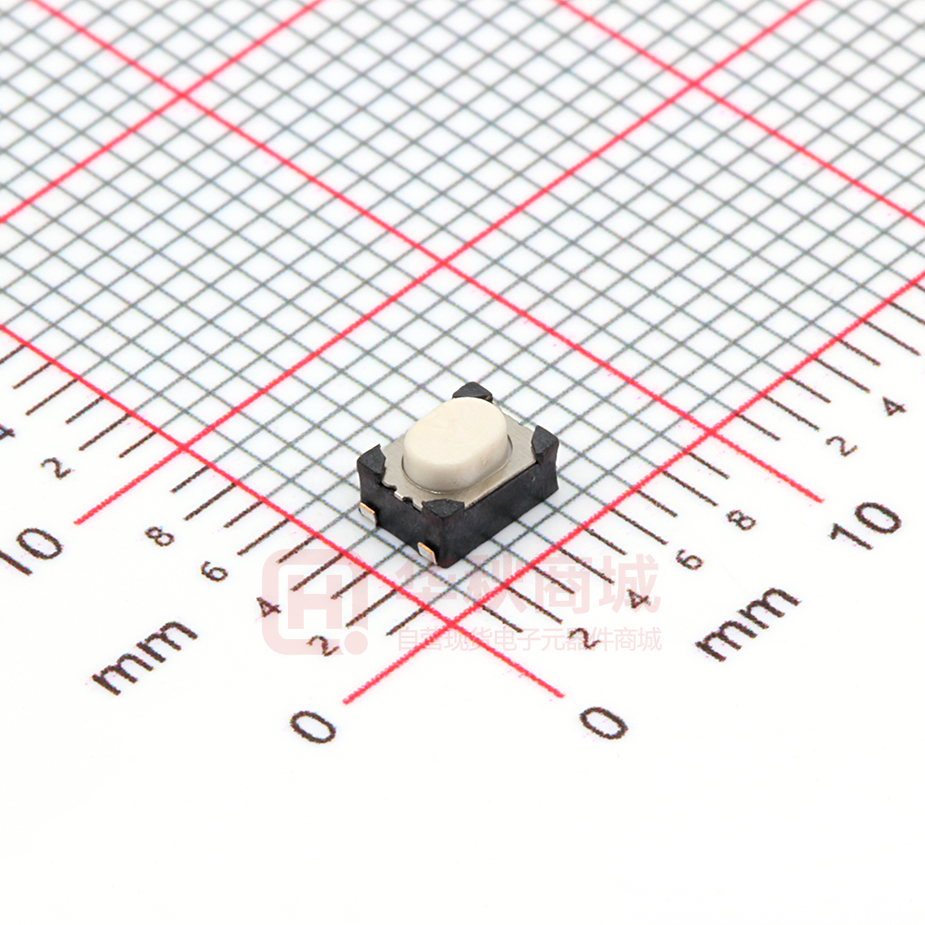

PTS 810 Series
Microminiature SMT Top Actuated
Features/Benefits
• 4.2 x 3.2 mm footprint
• 2.5 mm thickness
• High number of cycles
• Color coded actuators
Typical Applications
• Control panels
• Nomad devices
• Remote controls
B
Electrical
FUNCTION: momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST N.O.
TERMINALS: J type for SMT
TRAVEL: 160 & 260 gf: 0.15mm ± 0.1mm
400 & 600 gf: 0.20mm ± 0.1mm
MAXIMUM VOLTAGE: 16 VDC
MAXIMUM CURRENT DC: 50 mA
DIELECTRIC STRENGTH: 250 VA C (1mn)
CONTACT RESISTANCE: ≤ 500 mΩ
INSULATION RESISTANCE: ≥ 100 MΩ
BOUNCE TIME: ≤ 10 ms
PTS810 SJM 250 SMTR LFS
PTS810 SJK 250 SMTR LFS
PTS810 SJG 250 SMTR LFS
PTS810 SJS 250 SMTR LFS
Operating
Force (gf)
Operating Life
(operations)
160 ± 50
260 ± 70
400 ± 100
600 ± 150
150,000
50,000
100,000
150,000
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C
Process
Packaging
SOLDERING: This component is suited to the following methods:
Infrared Reflow Soldering in accordance with IEC61760-1
Switches in reels of 2,900 pieces.
Dimensions of reels according to EIA 481B
External diameter 330 mm
NOTE: Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
For any part number different from those listed above, please consult your local representative.
P
T
S
8
1
0
S
J
2
5
0
S M T
R
L
F
Actuator Type
S Standard
S
LFS RoHS, silver plated
Termination
J J bend SMT
Packaging
SMTR Tape & reel
Height
250 2.5 mm height
Actuation Force
M 160 gf; gray actuator
K 260 gf; white actuator
G 400 gf; blue actuator
S 600 gf; gray actuator
Dimensions are shown: mm
Specifications and dimensions subject to change
1 Dec 20
B–41
www.ckswitches.com
Tactile Switches
Specifications
PTS 810 Series
Microminiature SMT Top Actuated
PTS810
3
1,8±0,2
2
3
4
RECOMMENDED PCB LAYOUT
2
1,5
4
3
2
2,2
3,2
1,6
1
2,7
1
3
2,8
4,6±0,2
4,2
1
4
3,1
5,2
TAPE & REEL
5,6
2
12±0,3
1,75
4
1,5
9,3
Cover tape
Tactile Switches
B
1,6
+0.2
2,5 -0.1
0,5±0,2
SCHEMATIC
8
CARRIER TAPE
18,4 Max
12,4+2
0
330
13± 0,5
2±0,5
21± 0,8
SEE DETAIL A
DETAIL A
SCALE 0,5
REEL
Dimensions are shown: mm
Specifications and dimensions subject to change
1 Dec 20
B–42
www.ckswitches.com
