PTS810SJM250SMTRLFS

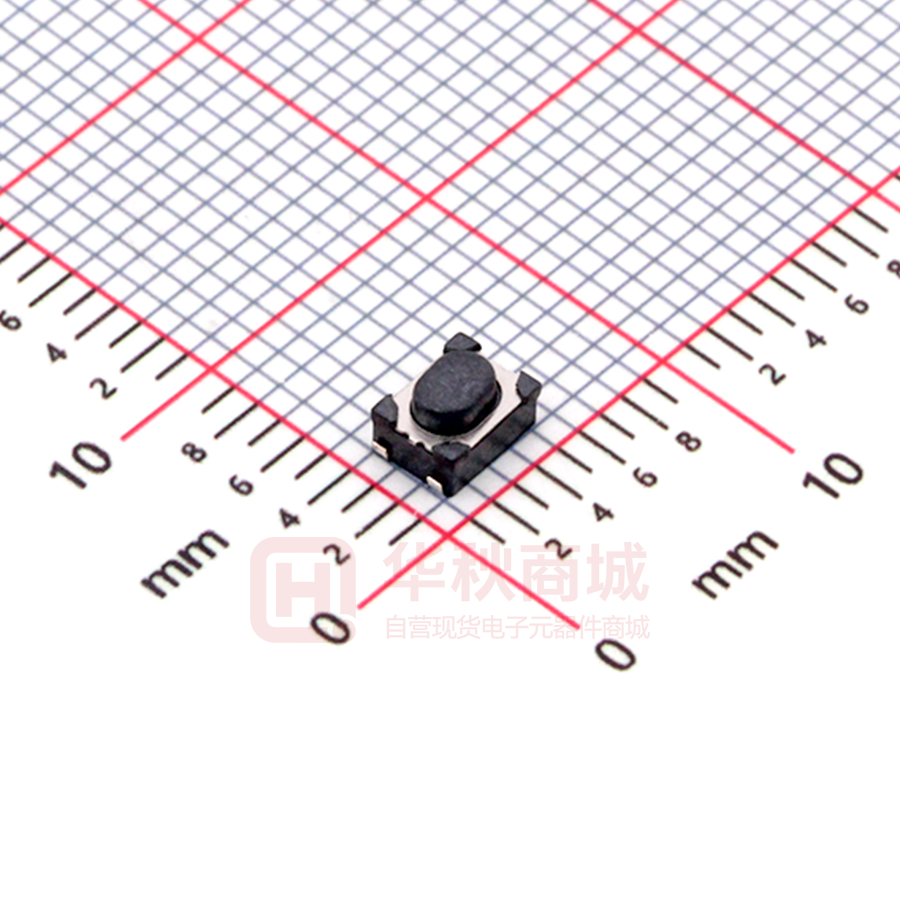

PTS 810 Series Microminiature SMT Top Actuated Features/Benefits • 4.2 x 3.2 mm footprint • 2.5 mm thickness • High number of cycles • Color coded actuators Typical Applications • Control panels • Nomad devices • Remote controls B Electrical FUNCTION: momentary action CONTACT ARRANGEMENT: 1 make contact = SPST N.O. TERMINALS: J type for SMT TRAVEL: 160 & 260 gf: 0.15mm ± 0.1mm 400 & 600 gf: 0.20mm ± 0.1mm MAXIMUM VOLTAGE: 16 VDC MAXIMUM CURRENT DC: 50 mA DIELECTRIC STRENGTH: 250 VA C (1mn) CONTACT RESISTANCE: ≤ 500 mΩ INSULATION RESISTANCE: ≥ 100 MΩ BOUNCE TIME: ≤ 10 ms PTS810 SJM 250 SMTR LFS PTS810 SJK 250 SMTR LFS PTS810 SJG 250 SMTR LFS PTS810 SJS 250 SMTR LFS Operating Force (gf) Operating Life (operations) 160 ± 50 260 ± 70 400 ± 100 600 ± 150 150,000 50,000 100,000 150,000 Environmental OPERATING TEMPERATURE: -40˚C to 85˚C Process Packaging SOLDERING: This component is suited to the following methods: Infrared Reflow Soldering in accordance with IEC61760-1 Switches in reels of 2,900 pieces. Dimensions of reels according to EIA 481B External diameter 330 mm NOTE: Specifications listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. For any part number different from those listed above, please consult your local representative. P T S 8 1 0 S J 2 5 0 S M T R L F Actuator Type S Standard S LFS RoHS, silver plated Termination J J bend SMT Packaging SMTR Tape & reel Height 250 2.5 mm height Actuation Force M 160 gf; gray actuator K 260 gf; white actuator G 400 gf; blue actuator S 600 gf; gray actuator Dimensions are shown: mm Specifications and dimensions subject to change 1 Dec 20 B–41 www.ckswitches.com Tactile Switches Specifications PTS 810 Series Microminiature SMT Top Actuated PTS810 3 1,8±0,2 2 3 4 RECOMMENDED PCB LAYOUT 2 1,5 4 3 2 2,2 3,2 1,6 1 2,7 1 3 2,8 4,6±0,2 4,2 1 4 3,1 5,2 TAPE & REEL 5,6 2 12±0,3 1,75 4 1,5 9,3 Cover tape Tactile Switches B 1,6 +0.2 2,5 -0.1 0,5±0,2 SCHEMATIC 8 CARRIER TAPE 18,4 Max 12,4+2 0 330 13± 0,5 2±0,5 21± 0,8 SEE DETAIL A DETAIL A SCALE 0,5 REEL Dimensions are shown: mm Specifications and dimensions subject to change 1 Dec 20 B–42 www.ckswitches.com
