SDA

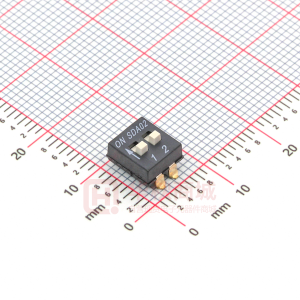

SDA Series Low Profile DIP Switches Features/Benefits • Low profile design saves space • Thru-hole and surface mount models • High pressure contact does not require tape seal for washing • Tape and reel packaging available • RoHS compliant Typical Applications • Address switch for industrial controls • Logic switching for computers and peripherals • Function controlling for numerous applications H DIP Specifications CONTACT RATING: 25 mA @ 24 V DC or 100 mA @ 50 V DC. MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles at rated loads. CONTACT RESISTANCE: 50 mΩ max. initial. INSULATION RESISTANCE: 100 MΩ between terminals. DIELECTRIC WITHSTANDING VOLTAGE: 300 V DC min. for 1 minute. STORAGE TEMPERATURE: -40°C to 85°C. OPERATING TEMPERATURE: -40°C to 85°C. OPERATING FORCE: 800 grams max. SOLDERABILITY: Dip and look solderability testing per C&K spec. #448. Unplated edges of terminals permitted. PACKAGING: Switches supplied in rigid dispensing tubes in fulltube quantities only, this may affect order quantity. Numbers of switches per tube varies with model. Tape and reel packaging also available for surface mount options. Materials HOUSING: PPS, color black (UL94V-0). COVER: PPS, color black (UL94V-0). ACTUATOR: PA6T (UL94-0) CONTACTS: Gold plated Beryllium copper. TERMINALS: Gold plate over nickel plated brass. TAPE SEAL: Polyimide. Note: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. For Tin Lead options consult customer service center. How To Order Complete part numbers for SDA Series are shown on pages H–8 through H–10. All switches supplied in “OFF” position. Flush Actuator – No Tape, Thru-hole Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 SDA08H0BD DIM 'A' Ø.031 (0,8) TYP. 7 8 .300 TYP. (7,6) 1 2 3 4 5 6 TRAVEL .051 (1,30) .100 (2,54) TYP. .295 (7,49) .183 (4,65) .238 (3,5) .106 (2,70) .100 (2,54) SDA01H0BD SDA02H0BD SDA03H0BD SDA04H0BD SDA05H0BD SDA06H0BD SDA07H0BD SDA08H0BD SDA09H0BD SDA10H0BD SDA12H0BD Schematic .063 (1,60) .024 (0,61) .320 (8,13) .010 (0,25) SPST NOTE: SDA 01 options are 4,25mm thick Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–8 www.ck-components.com SDA Series Low Profile DIP Switches Flush Actuator – With Top Tape, Thru-hole Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 .183 (4,65) PEELABLE TAPE SEAL .138 (3,5) .106 (2,70) .295 (7,49) 1 2 3 4 5 6 7 8 SDA01H0B SDA02H0B SDA03H0B SDA04H0B SDA05H0B SDA06H0B SDA07H0B SDA08H0B SDA09H0B SDA10H0B SDA12H0B Schematic DIM 'A' TRAVEL .051 (1,30) Ø.031 TYP. (0,8) .300 TYP. (7,6) H DIP SDA08H0B .100 TYP. (2,54) .063 (1,60) SPST .024 (0,61) .100 (2,54) .320 (8,13) .010 (0,25) NOTE: SDA 01 options are 4,25mm thick Flush Actuator – With Top Tape, Surface Mount Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 .024 (0,61) .100 (2,54) .366 (9,30) .031 (0,79) .175 (4,45) PEELABLE TAPE SEAL 1 2 3 4 5 6 7 8 SDA01H0SB SDA02H0SB SDA03H0SB SDA04H0SB SDA05H0SB SDA06H0SB SDA07H0SB SDA08H0SB SDA09H0SB SDA10H0SB SDA12H0SB Schematic DIM 'A' .240 TYP. (6,10) TRAVEL .051 (1,30) .059 MIN. (1,50) .295 (7,49) .100 (2,54) TYP. .409 MIN. (10,4) SDA08H0SB SPST NOTE: SDA 01 options are 4,25mm thick Flush Actuator – No Tape, Surface Mount Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 .100 (2,54) .366 (9,30) .031 (0,79) .175 (4,45) .138 (3,5) .295 (7,49) 1 2 3 4 5 6 7 8 SDA01H0SBD SDA02H0SBD SDA03H0SBD SDA04H0SBD SDA05H0SBD SDA06H0SBD SDA07H0SBD SDA08H0SBD SDA09H0SBD SDA10H0SBD SDA12H0SBD Schematic DIM 'A' .240 TYP. (6,10) TRAVEL .051 (1,30) .059 MIN. (1,50) .100 (2,54) TYP. .409 MIN. (10,4) SDA08H0SBD .024 (0,61) SPST NOTE: SDA 01 options are 4,25mm thick Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–9 www.ck-components.com SDA Series Low Profile DIP Switches Extended Actuator – No Top Tape, Thru-hole Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 H DIM 'A' DIP SDA08H1BD 1 2 3 4 5 6 7 8 TRAVEL .051 (1,30) Ø.031TYP. (0,8) .300 (7,6) TYP. .100 TYP. (2,54) .051 (1,30) .189 (4,80) .138 (3,5) .039 (1,0) .295 (7,49) SDA01H1BD SDA02H1BD SDA03H1BD SDA04H1BD SDA05H1BD SDA06H1BD SDA07H1BD SDA08H1BD SDA09H1BD SDA10H1BD SDA12H1BD Schematic .063 (1,60) .024 (0,61) .100 (2,54) .320 (8,13) .010 (0,25) SPST NOTE: SDA 01 options are 4,25mm thick Extended Actuator – No Top Tape, Surface Mount Terminals ROHS PART NUMBER NO. POS. 1 2 3 4 5 6 7 8 9 10 12 DIM. ‘A’ .178 (4,52) .278 (7,06) .378 (9,60) .476 (12,10) .578 (14,68) .676 (17,18) .778 (19,76) .876 (22,26) .978 (24,84) 1.076 (27,34) 1.279 (32,50) QUANTITY PER TUBE 100 60 45 35 30 25 20 20 15 15 14 DIM 'A' .240 TYP. (6,10) TRAVEL 1 2 3 4 5 6 7 8 SDA08H1SBD .051 (1,30) .059 MIN. (1,50) .409 MIN. (10,4) .100 TYP. (2,54) .175 (4,45) .051 (1,30) .138 (3,5) .039 (1,0) .295 (7,49) SDA01H1SBD SDA02H1SBD SDA03H1SBD SDA04H1SBD SDA05H1SBD SDA06H1SBD SDA07H1SBD SDA08H1SBD SDA09H1SBD SDA10H1SBD SDA12H1SBD Schematic .024 TYP. (0,61) .100 (2,54) .366 (9,30) .031 (0,79) NOTE: SDA 01 options are 4,25mm thick SPST Tape & Reel Packaging – Surface Mount Options only 2 - 5 OPTION 0.079 (2,0) 0.157 (4,0) 4F 1 2 3 4 ON C&K SDA04 0.059 (1,5) 0.069 (1,75) 'C' 'W1' 3˚ MAX 'B' 0.016 (0,4) TAPE AND REEL PACKAGING SMT OPTIONS ONLY (ALL DIMS. ARE FOR REF. ONLY) MODEL NO. MODEL NO. 'S' OPTION 'S' OPTION H0 SDA02 H1 H0 SDA03 H1 H0 SDA04 H1 H0 SDA05 H1 H0 SDA06 H1 H0 SDA07 H1 H0 SDA08 H1 H0 SDA09 H1 H0 SDA10 H1 H0 SDA12 H1 DIM. 'H' (REF.) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.228 (5,8) 0.189 (4,8) 0.189 (4,8) DIM. 'W1' (REF.) DIM. 'W2' (REF.) DIM. 'B' (REF.) 0.311 (7,9) 0.409 (10,4) 0.508 (12,9) 0.606 (15,4) 0.709 (18,0) DIM. 'C' (REF.) 0.453 (11,5) 0.453 (11,5) 0.453 (11,5) 0.453 (11,5) 0.559 (14,2) DIM. 'D' (REF.) N/A N/A N/A N/A 1.118(28,4) QUANTITY PER REEL 750 700 750 700 750 700 750 700 750 700 750 750 700 750 700 750 750 0.059 (1,5) 0.630 (16,0) 3˚ MAX. 0.945 (24,0) 0.961 (24,4) 0.945 (24,0) 0.961 (24,4) 0.945 (24,0) 0.961 (24,4) 0.945 (24,0) 0.961 (24,4) 1.260 (32,0) 1.276 (32,4) 0.394 (10) 'H' 6 - 12 OPTION 0.079 (2,0) 0.157 (4,0) 0.059 (1,5) 0.069 (1,75) 3˚ MAX 4F 1 2 3 4 5 6 SDA08 7 8 ON C&K 1.260 (32,0) 1.276 (32,4) 0.807 (20,5) 0.559 (14,2) 1.118(28,4) NOT CURRENTLY AVAILABLE IN TAPE AND REEL 1.732 (44,0) 1.748 (44,4) 1.732 (44,0) 1.748 (44,4) 0.894 (22,7) 1.004 (25,5) 0.795 (20,2) 0.795 (20,2) 1.591(40,4) 1.591(40,4) 0.016 (0,4) 'C' 'D' 'W1' 'B' 1.732 (44,0) 1.748 (44,4) 1.106 (28,1) 0.795 (20,2) 1.591(40,4) NOT CURRENTLY AVAILABLE IN TAPE AND REEL 1.732 (44,0) 1.748 (44,4) 1.307 (33,2) 0.795 (20,2) 1.591(40,4) NOT CURRENTLY AVAILABLE IN TAPE AND REEL 0.079 (2,0) 0.630 (16,0) 3˚ MAX. 0.394 (10) 'H' Dimensions are shown: Inch (mm) Specifications and dimensions subject to change H–10 www.ck-components.com
